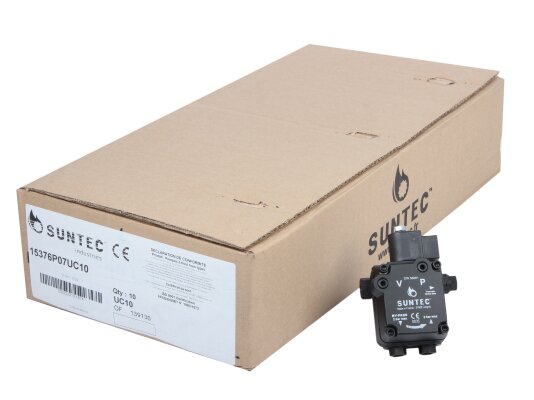

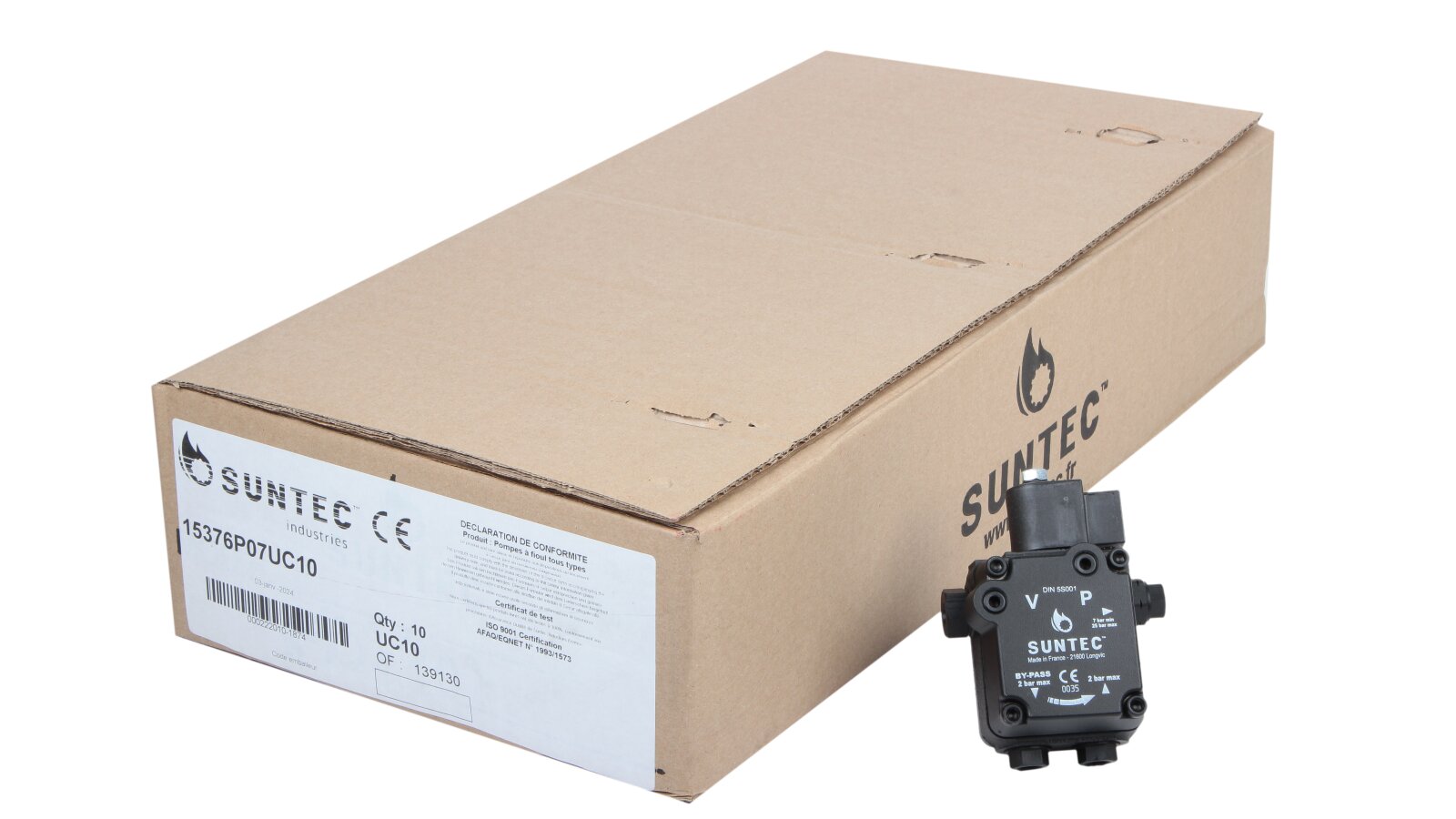

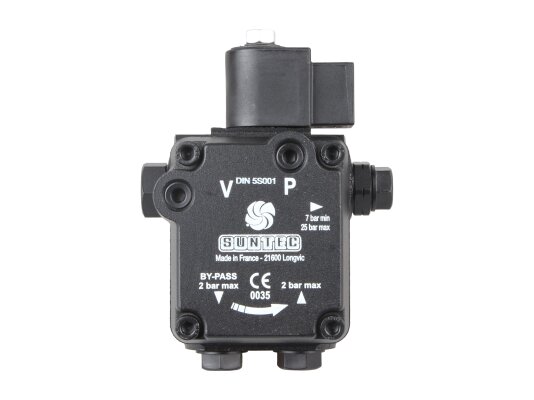

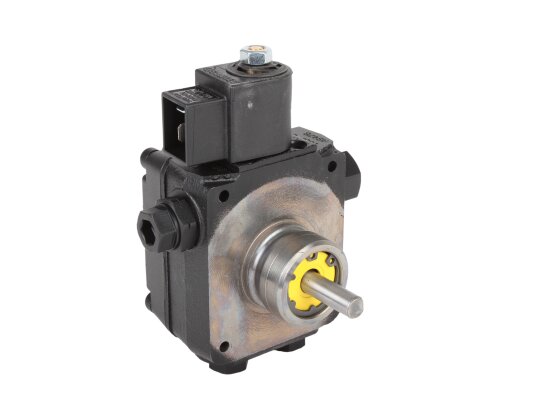

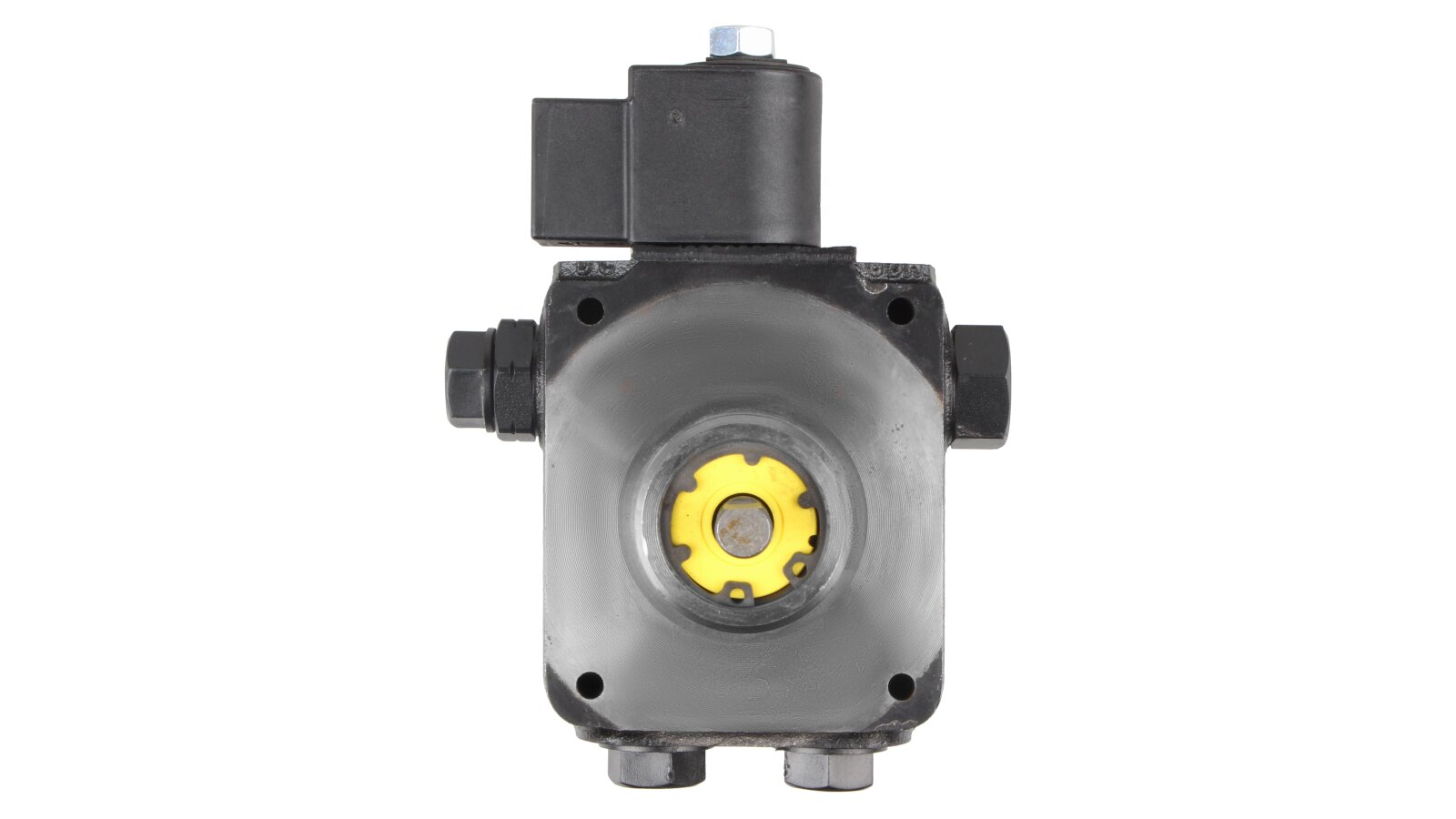

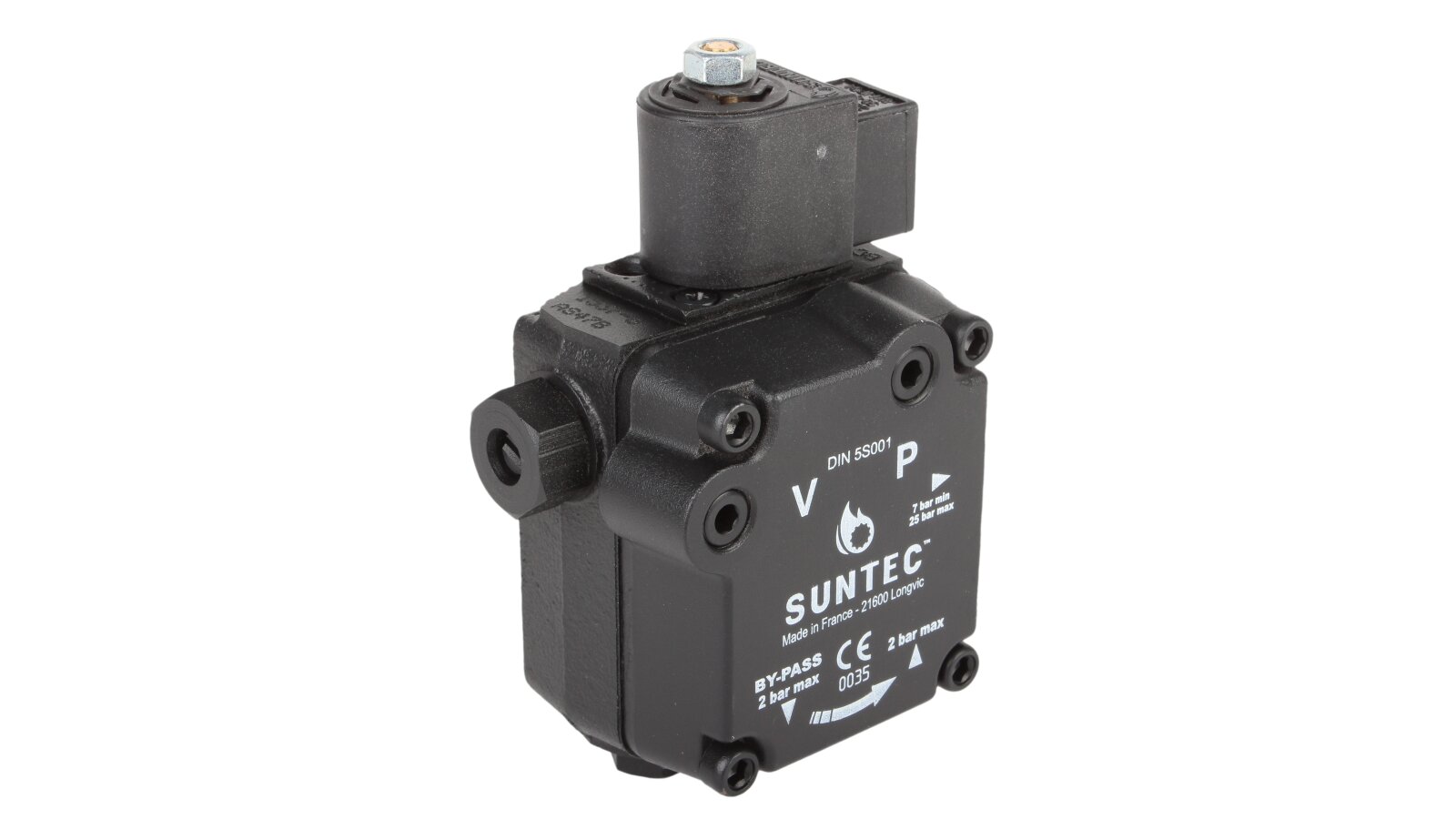

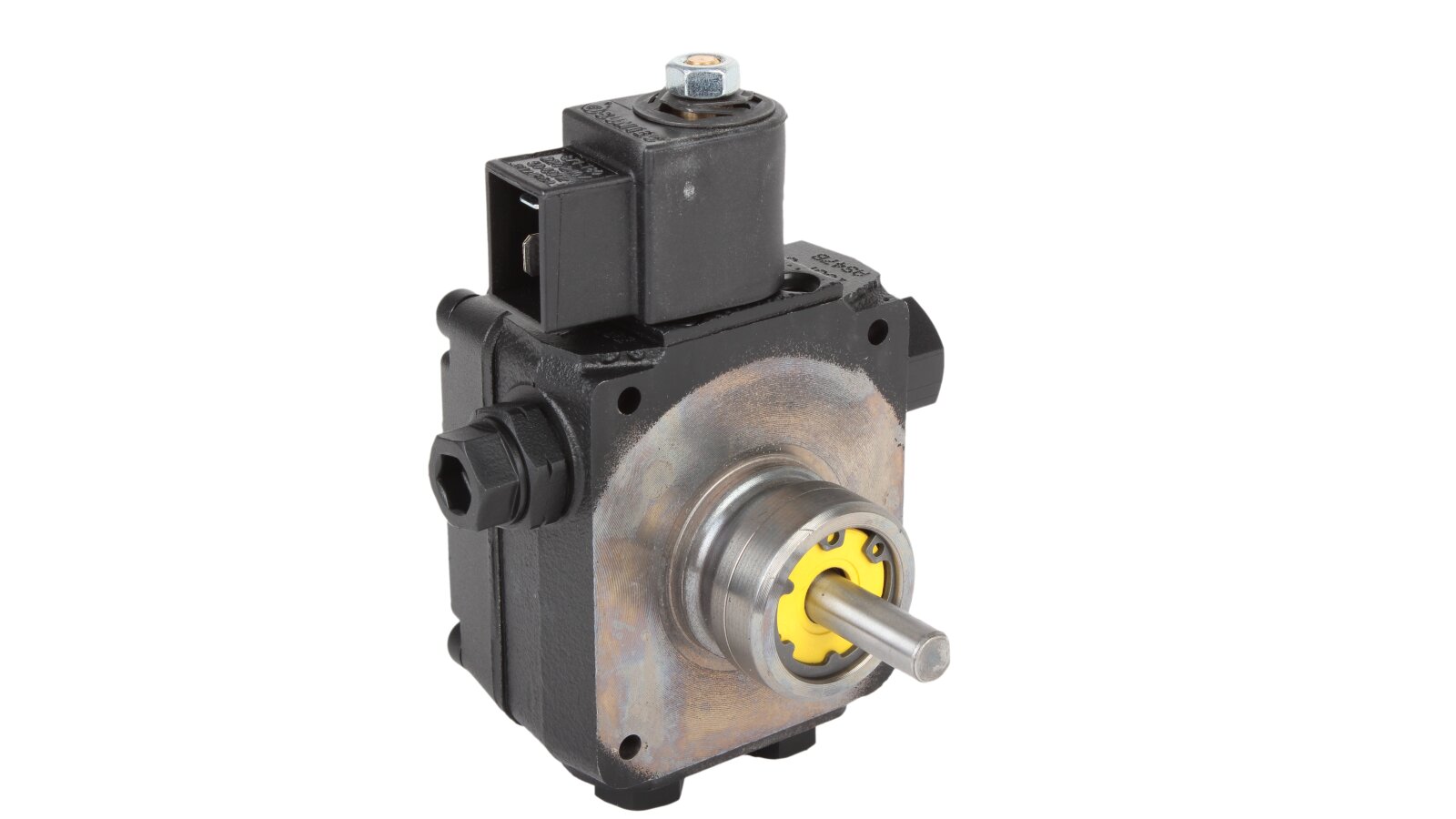

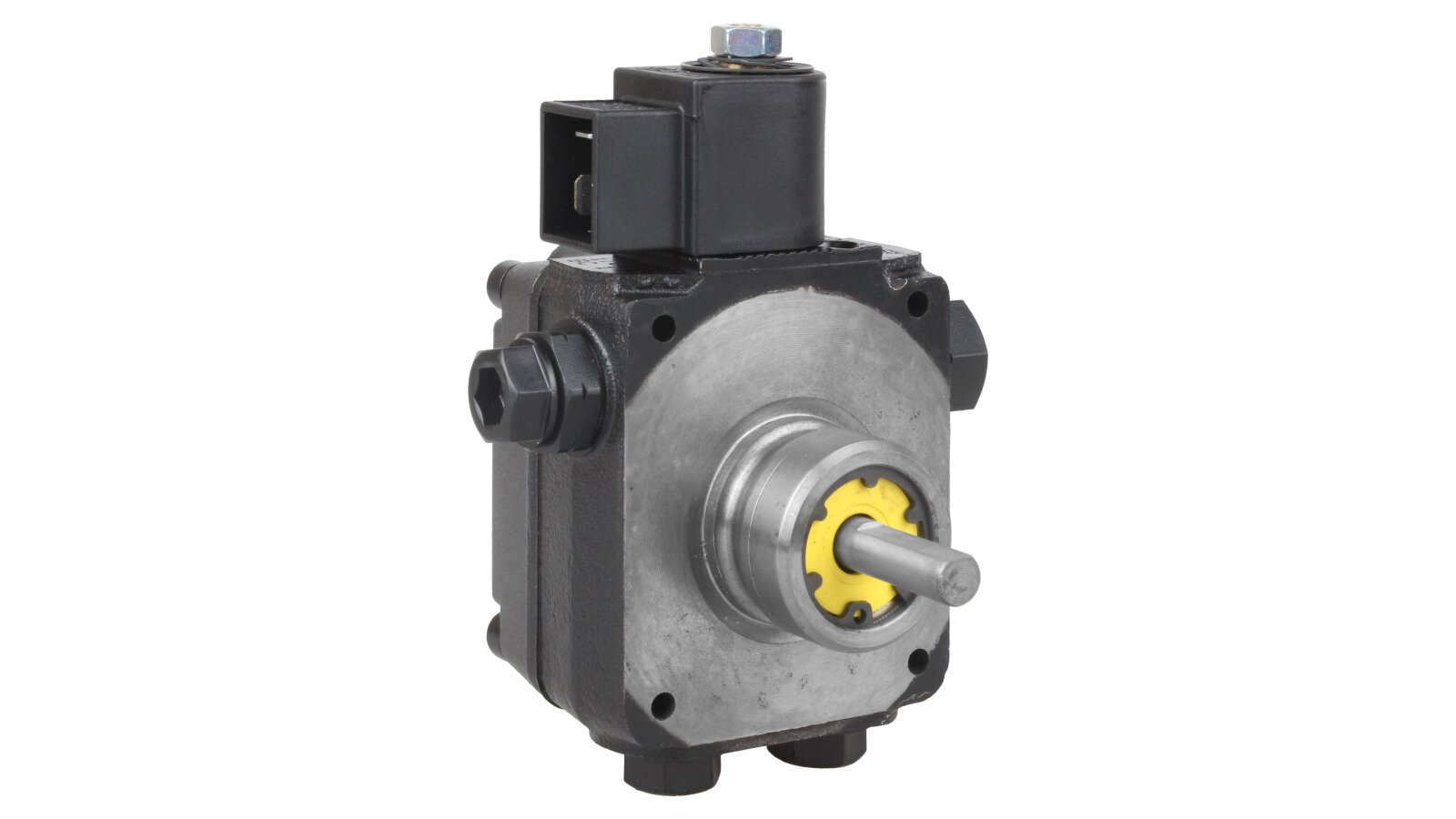

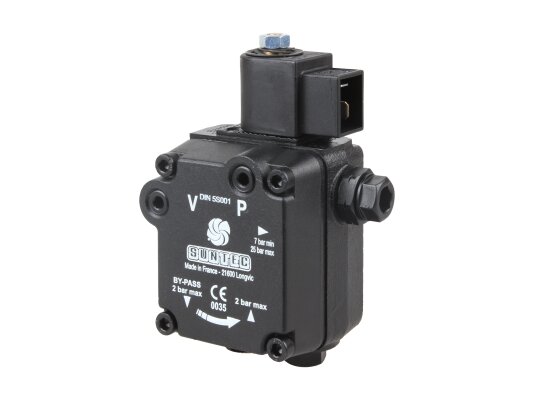

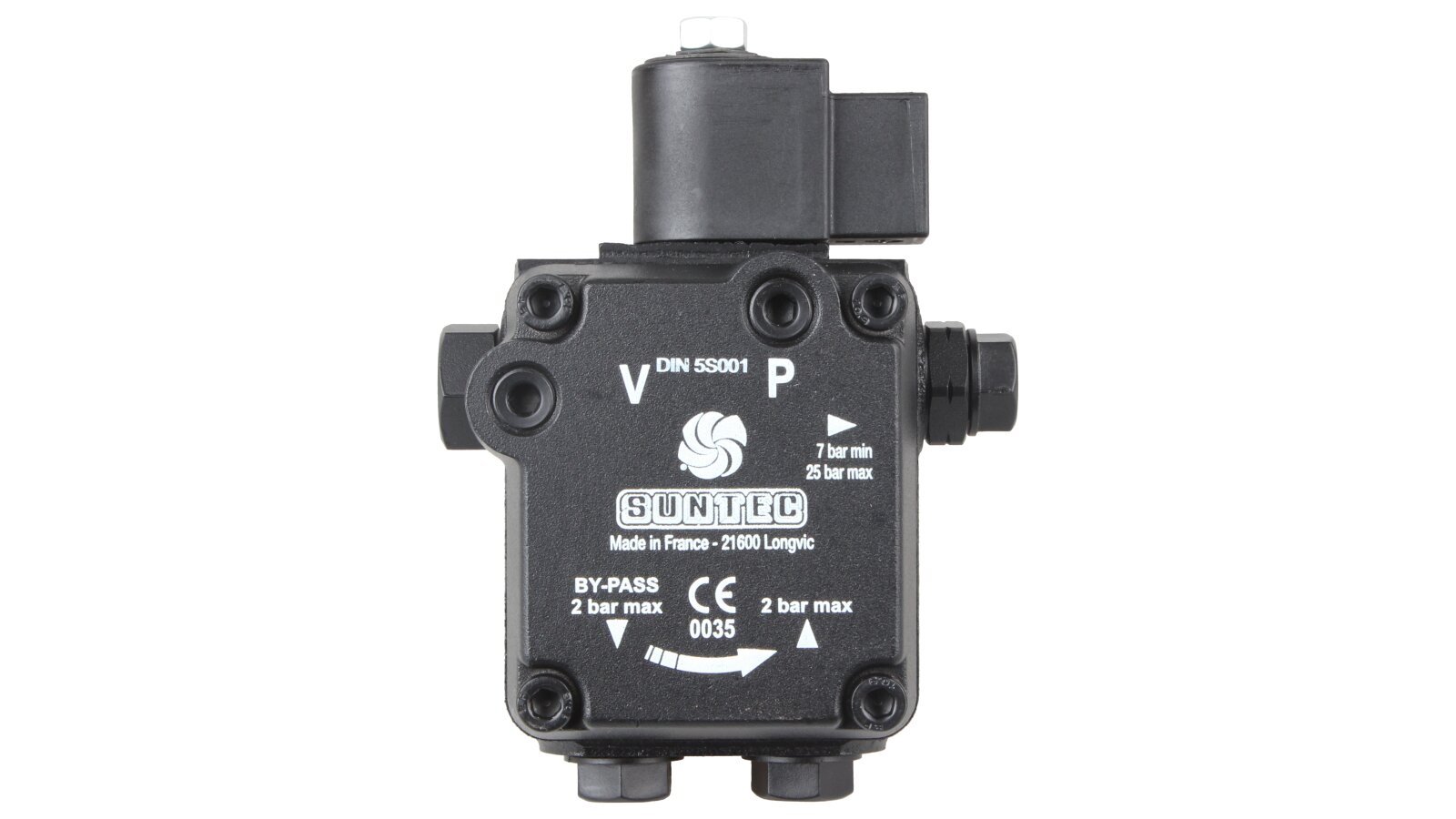

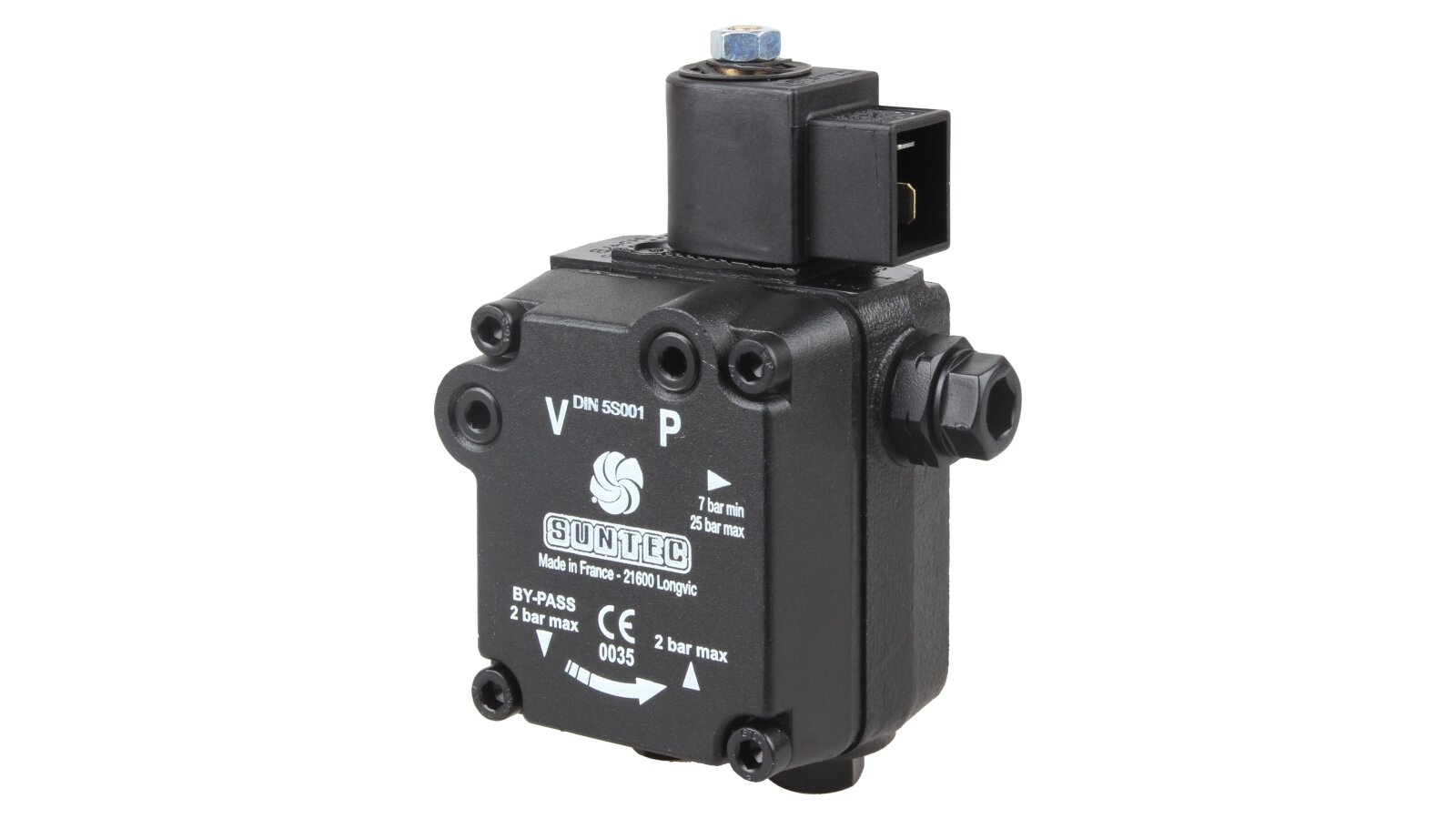

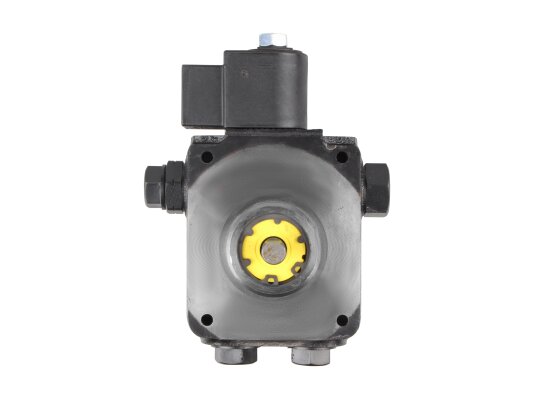

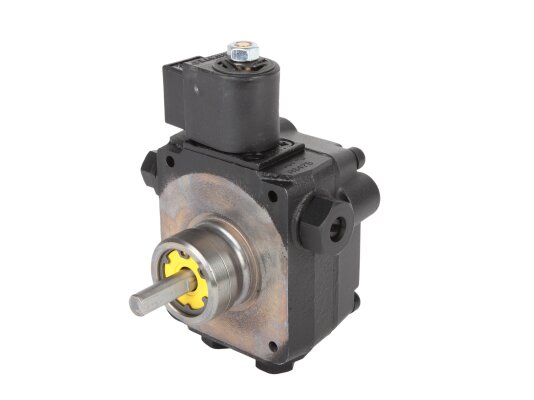

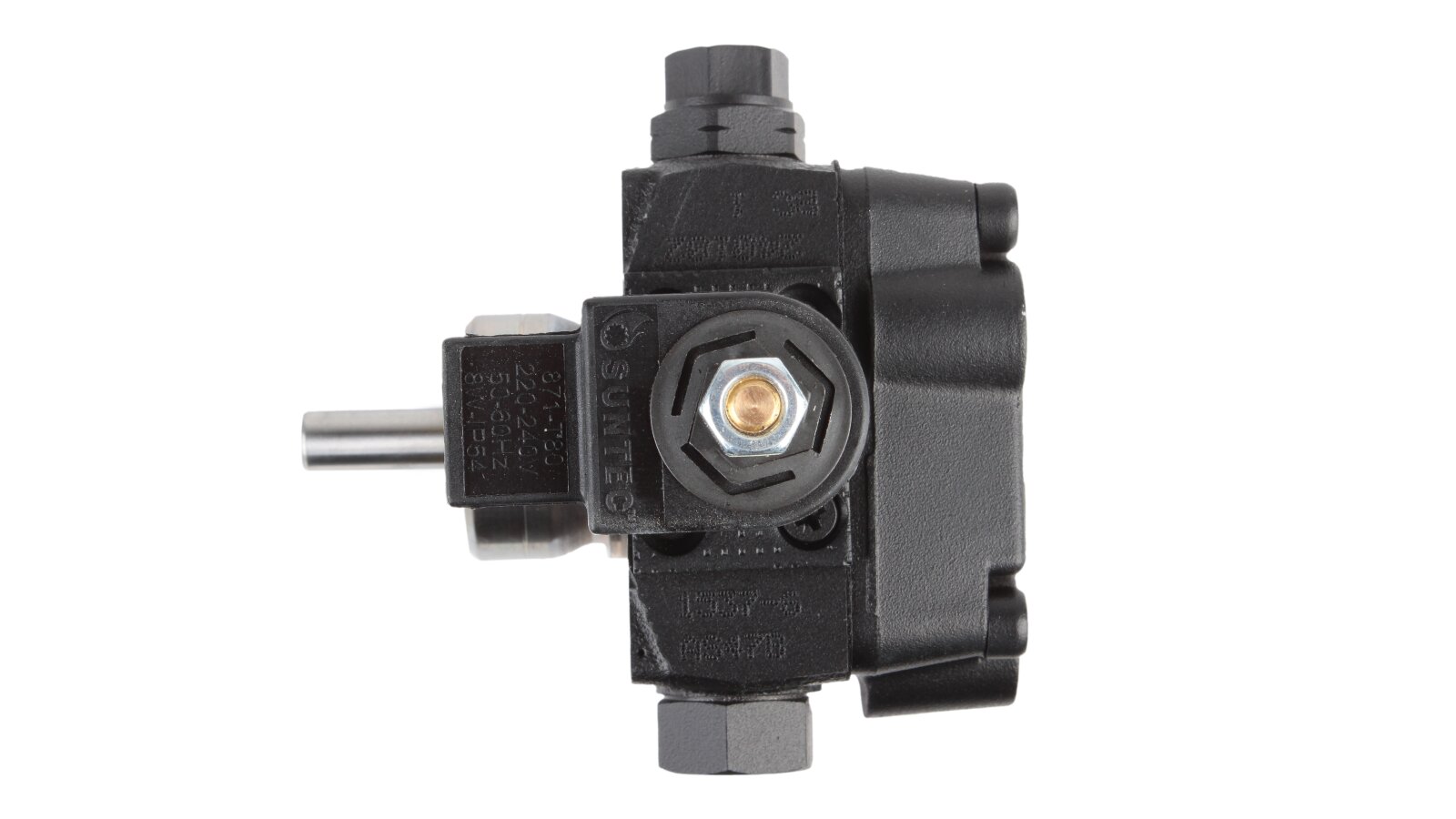

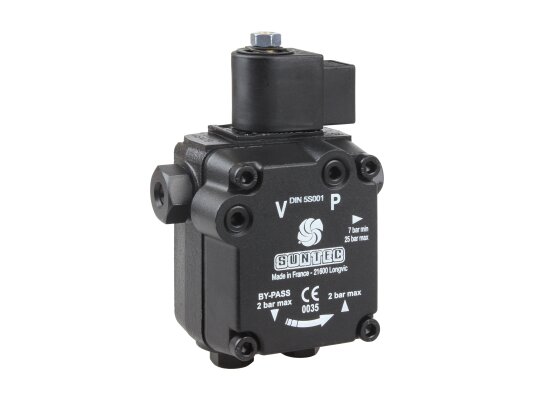

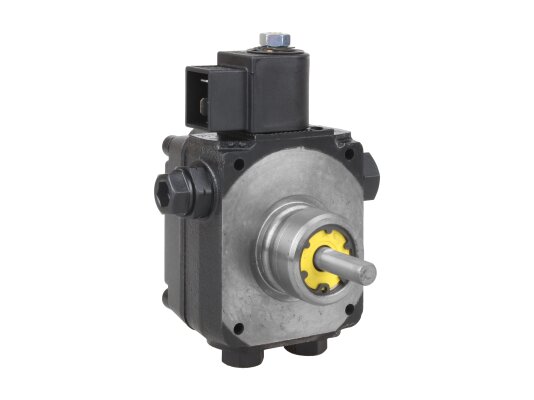

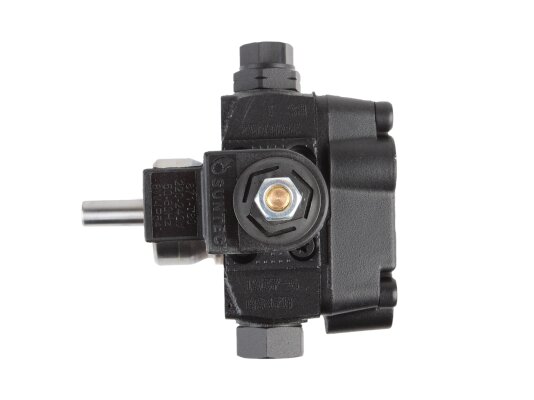

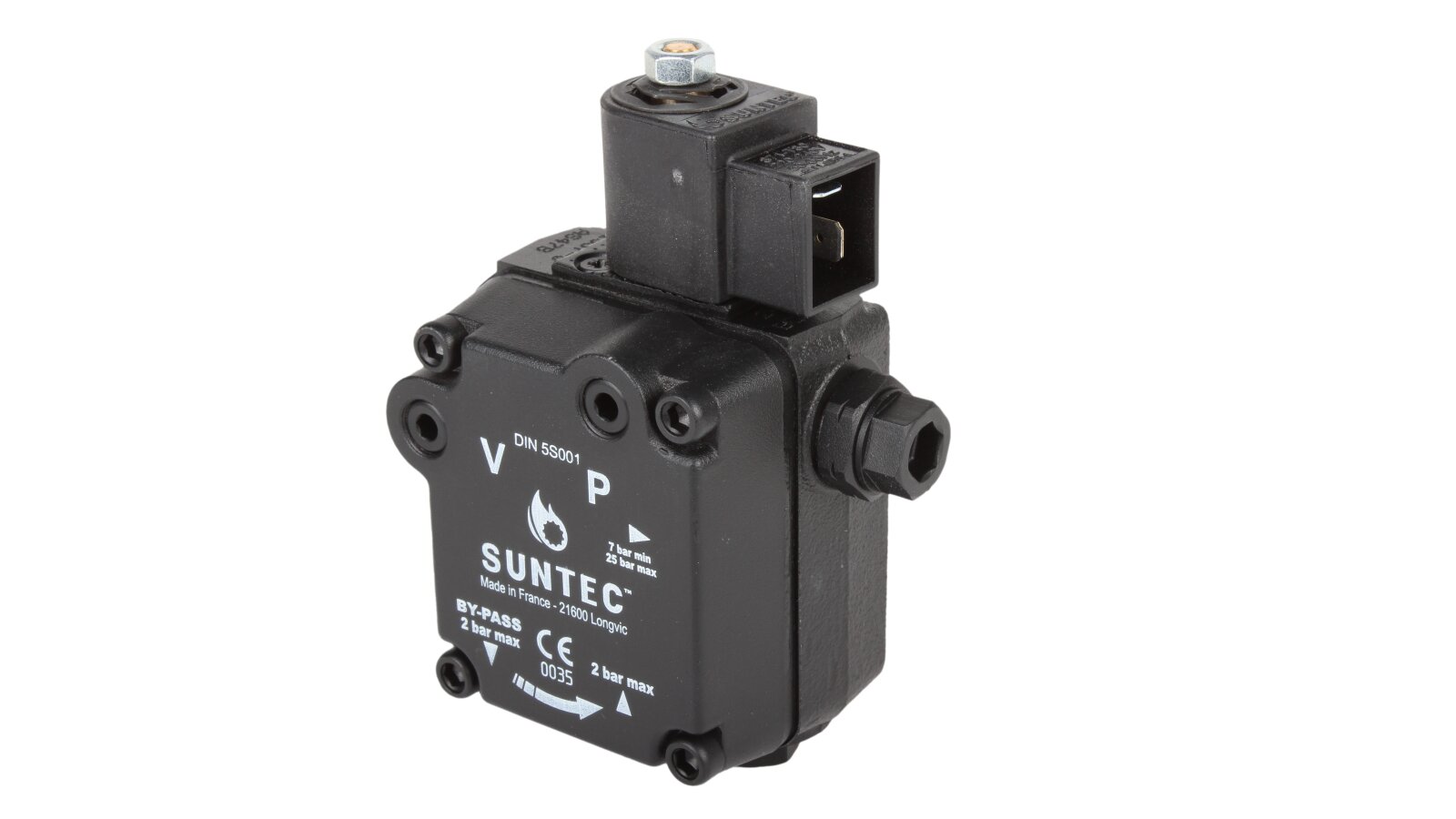

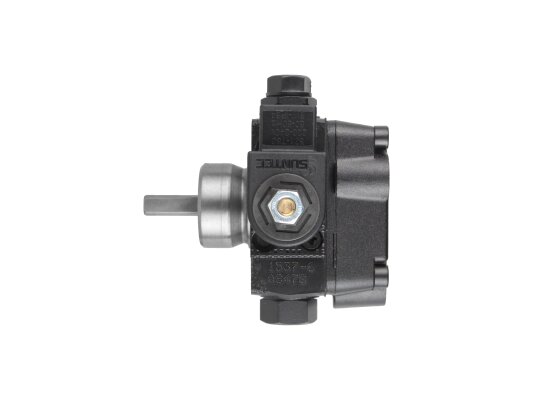

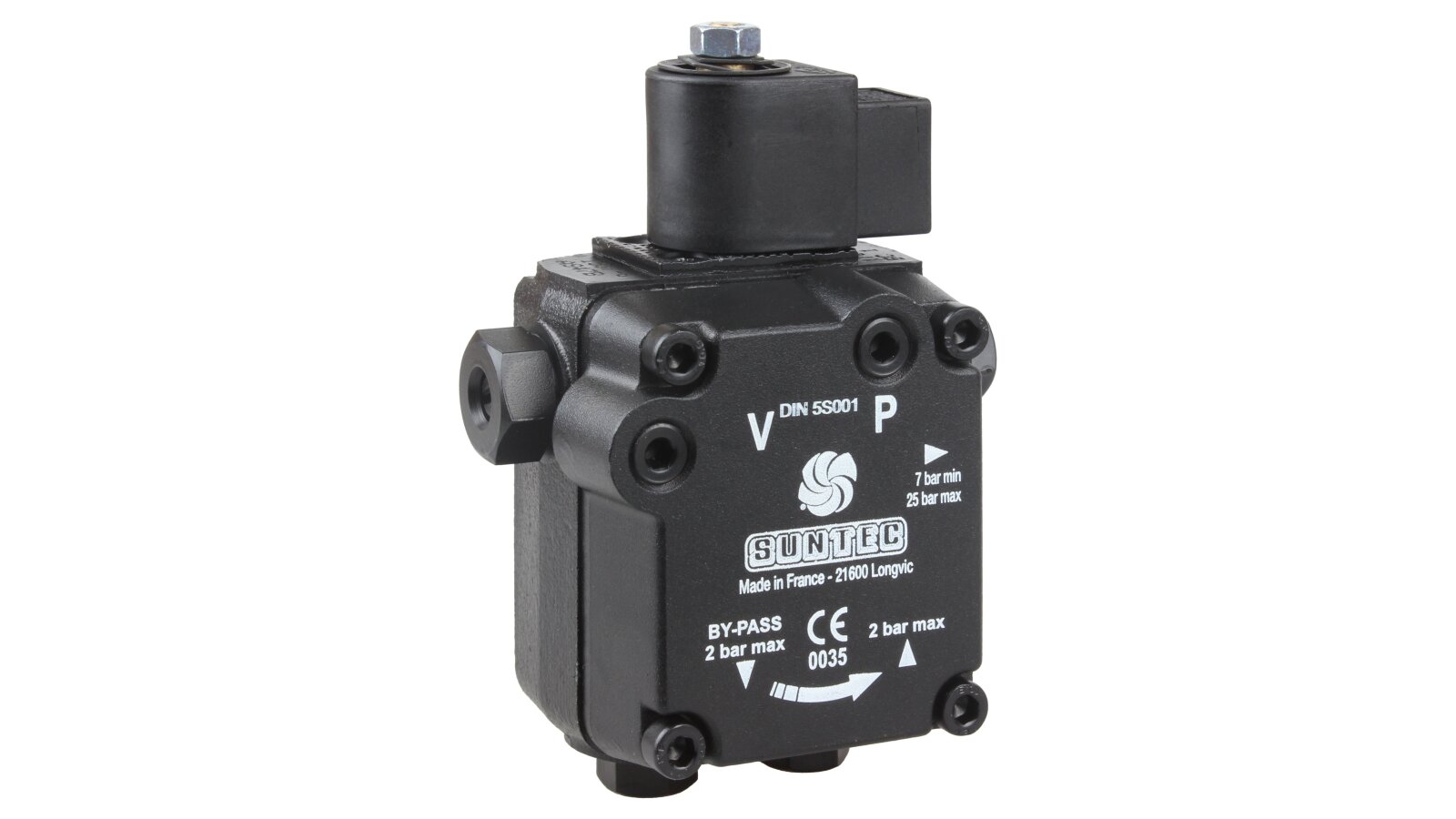

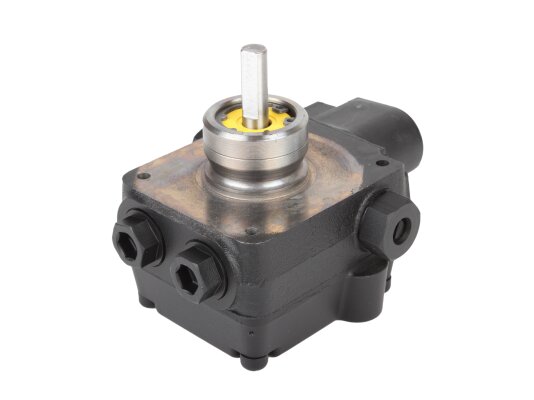

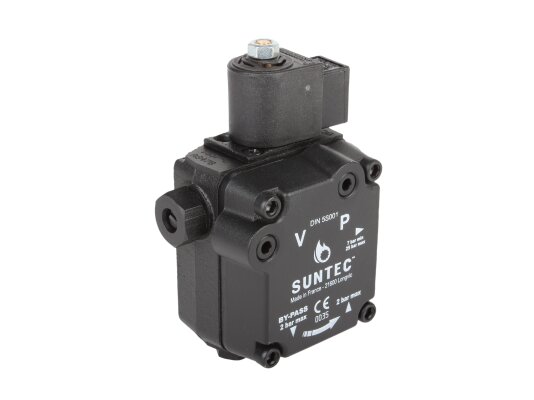

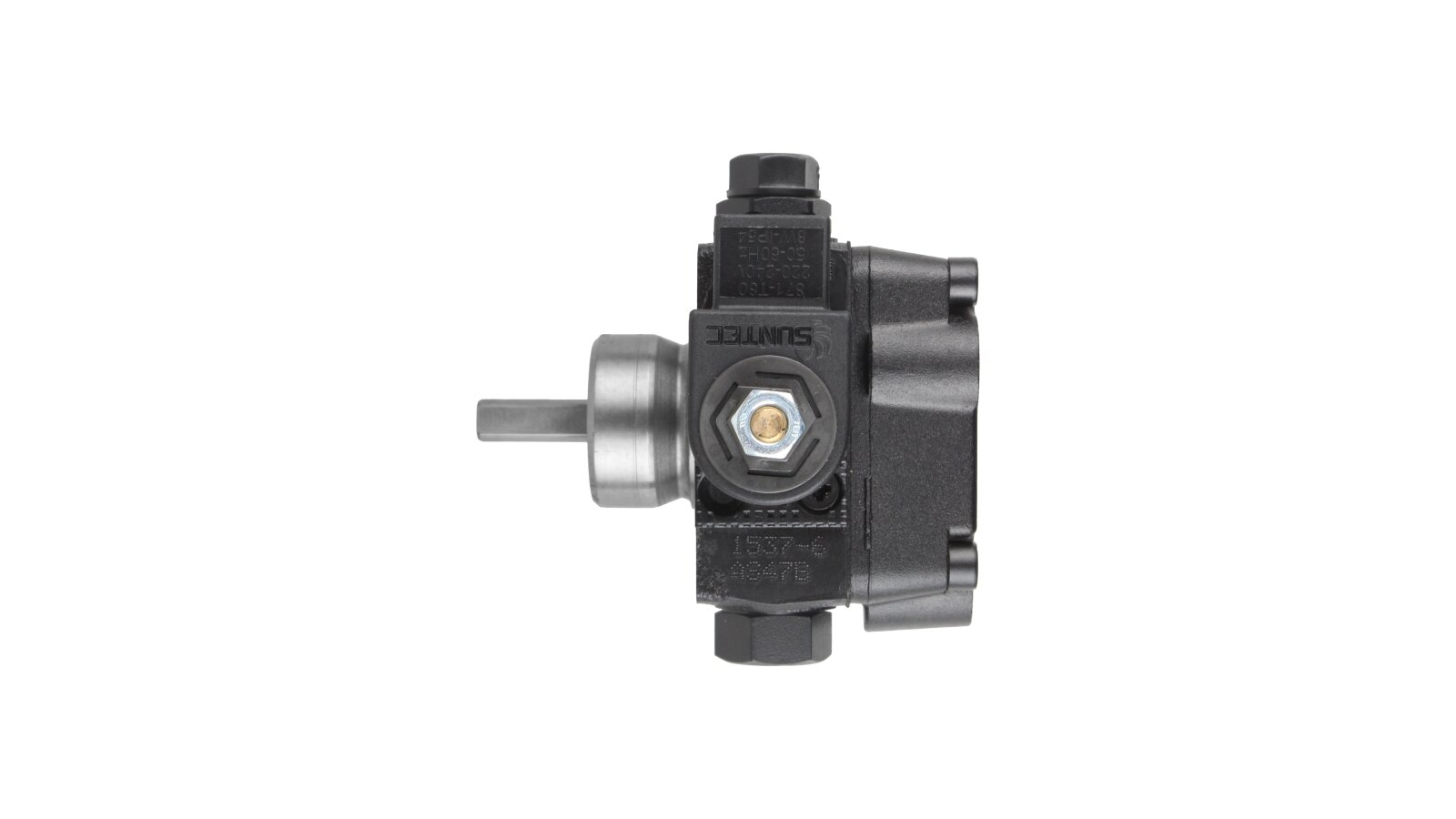

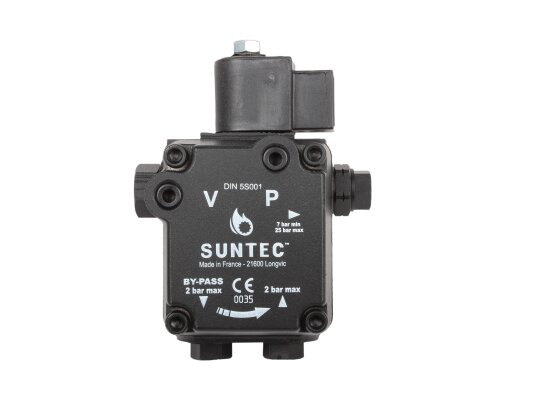

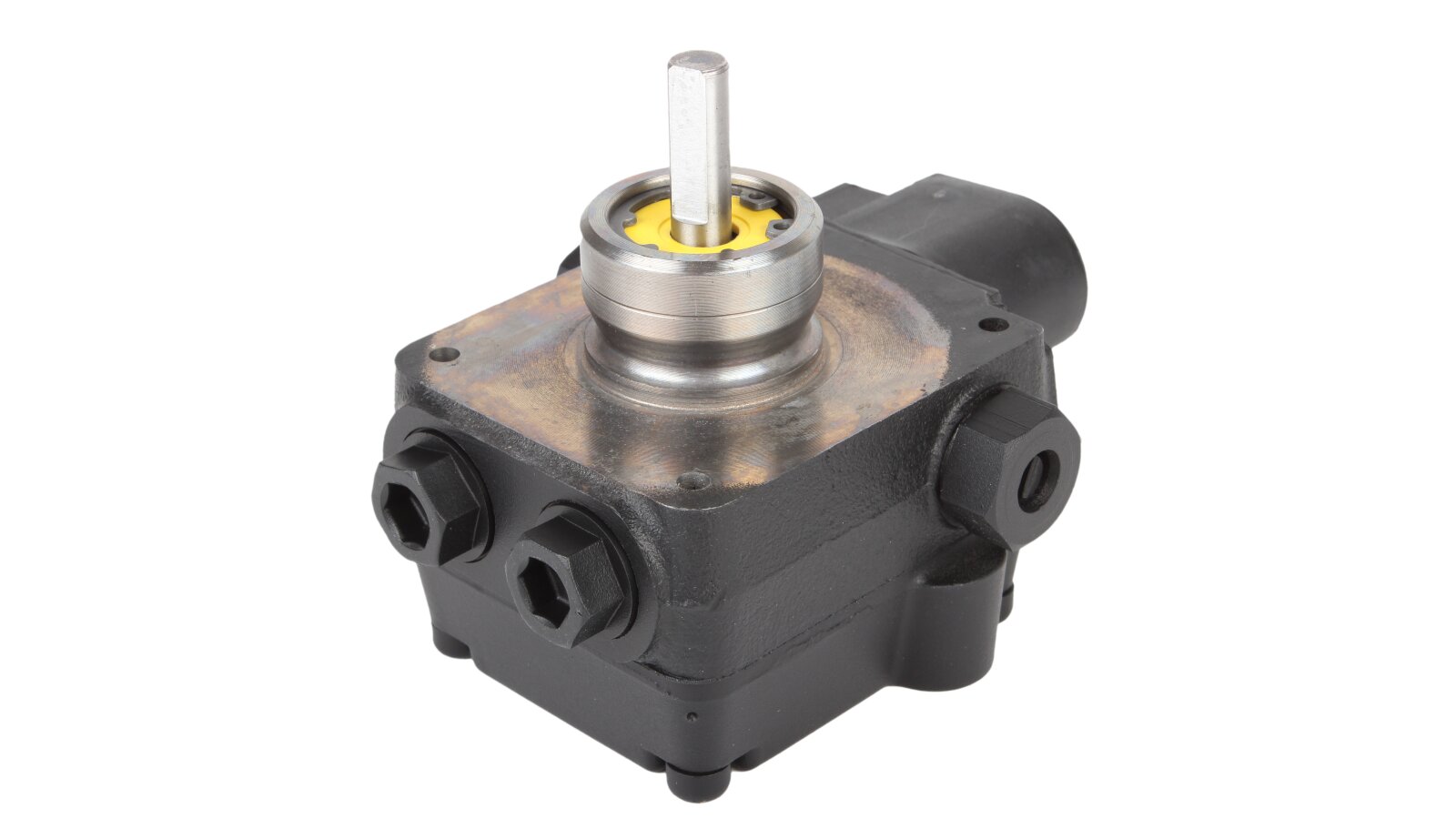

Burner Pump Suntec AS 47 B 1537 6P 0700

Suntec

AED 600

Oil Burner Pumps
Products code: 1191

Description

Suntec liquid fuel gear pumps for AS series burners are presented by a wide variety of models, including the energy-efficient AS 47 B 1537 6P 0700. The pressure value in it is adjusted with an adjusting screw directly "on the go". The electromagnetic valve of the "normally open" type is responsible for disconnecting the channel leading to the nozzle line.

The main difference from other representatives of the series is the left-hand location of the outlet to the nozzle.

In the online store of the company "ANKAS" you can buy a Suntec pump at a reasonable price. You can pay for the goods in a way convenient for you.

Design features

  • Pumping diesel fuel is carried out by clockwise rotation of two gears of the mechanism. They are driven by a shaft that receives a torque of 0.10 Nm from an external engine.

  • The sucked fuel goes to the filter element with a mesh. It traps not only sand, but also rust and other barely noticeable debris. Installing a fine filter further along the fluid flow will prevent clogging and extend the service life of the fuel injectors.

  • To achieve the required pressure of diesel fuel pumped to the injector, tighten the adjusting screw of the spool valve that compresses the spring. The locking function is implemented by an electromagnetic valve that connects the injection line to the fuel discharge channel. To resume fuel supply, a signal is sent to the solenoid, which leads to the closure of the discharge line.

Main advantages:

  • good performance with low energy consumption;

  • filter mesh with a cell size of 150 µm traps almost any debris;

  • you can adjust the pressure parameters without turning off the pump;

  • works in one- and two-pipe systems with an additional outlet for draining fuel into the tank;

  • two standard ports for instrumentation (pressure gauge and vacuum gauge) according to ISO 228/1 are provided.

All sold burner pumps from the French company Suntec, including AS 47 B 1537 6P 0700, are original products from the manufacturer. Before sale, they undergo various tests under loads exceeding the nominal values. The product has a long warranty period, during which the device works properly. Otherwise, the store replaces the device.

Characteristics

Direction of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 39 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
