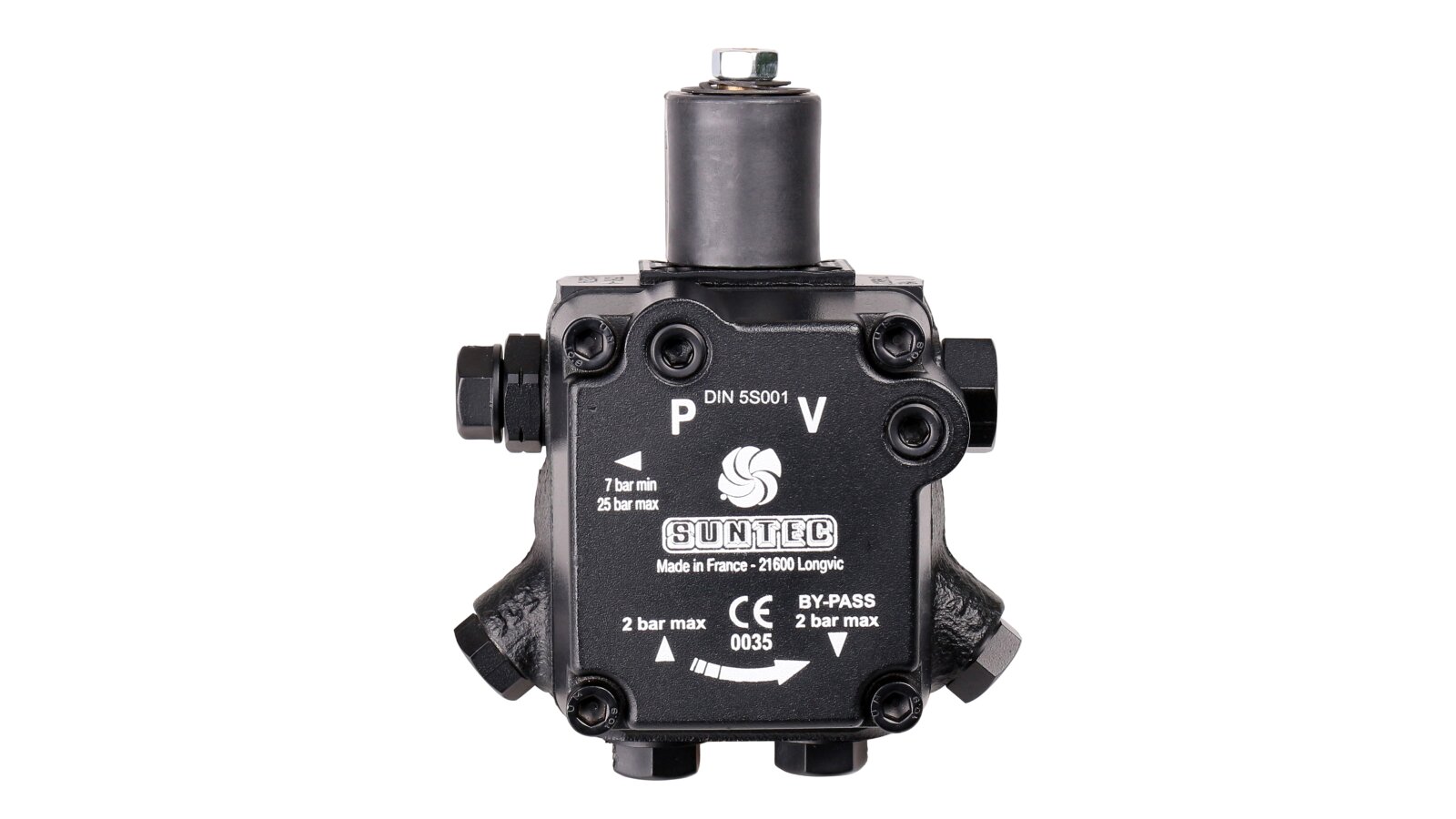

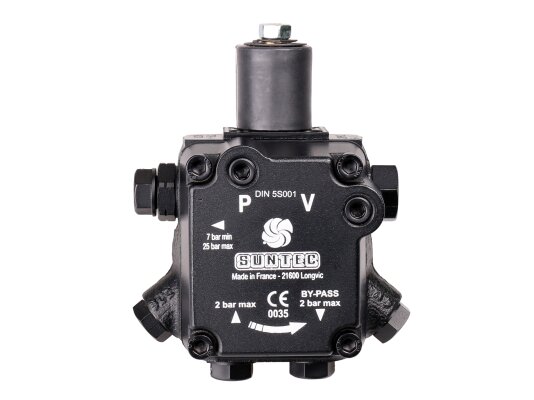

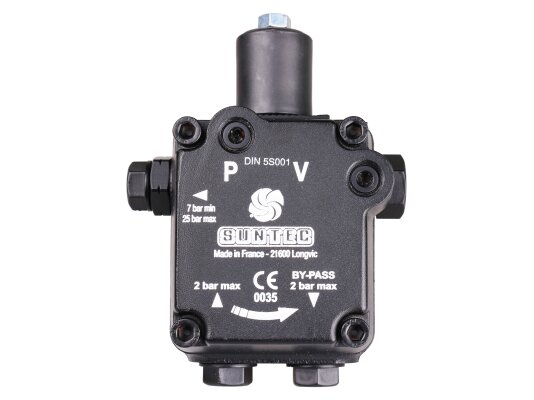

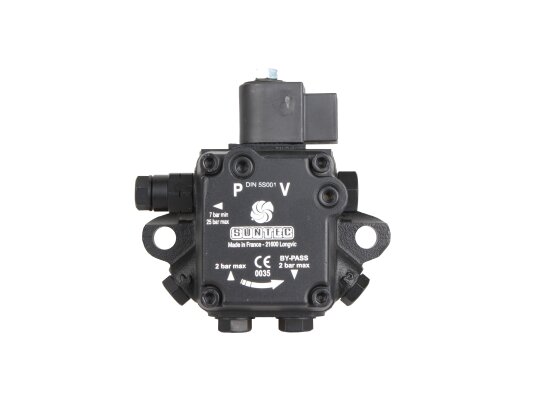

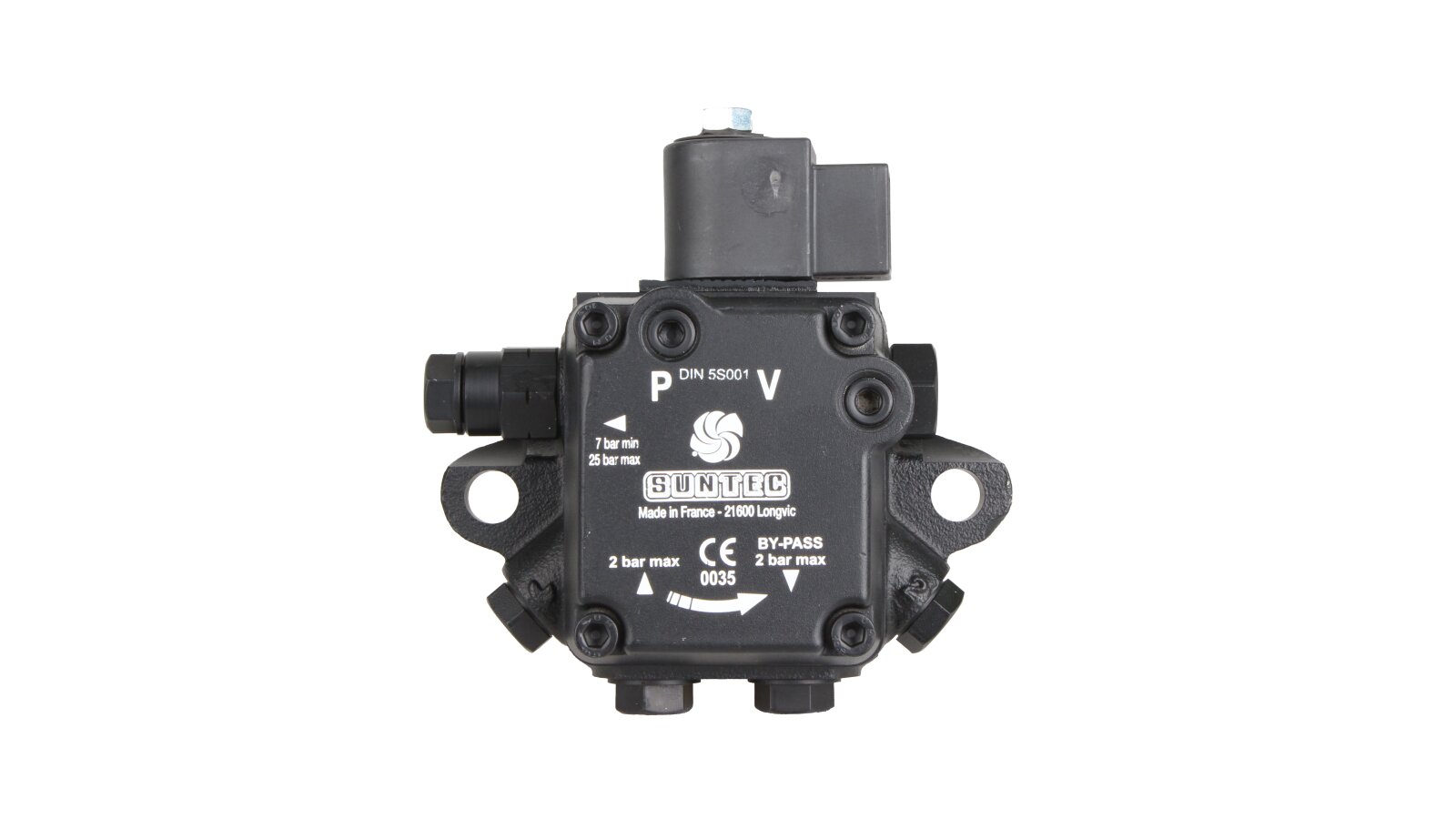

Burner Pump Suntec AS 47 B 7445 4P 0700

Suntec

Alternative Part Number

Baltur

31010

Oil Burner Pumps
Products code: 1193

Description

AS 47 B 7445 4P 0700 is a single-stage liquid fuel pump with a gear mechanism and a built-in electromagnetic shut-off valve of the "normally open" type. A distinctive feature of this representative of the AS line is a flange installation method with a landing size of 54 mm. Also, before buying this fuel pump for the burner, you should take into account that the outlet to the nozzle is located on the left side of the body.

The company "ANKAS" offers to buy a Suntec pump at a market price. You can pay for your order in a way convenient for you.

Design Features

  • The fuel is supplied to the nozzles by rotating a pair of gears clockwise, which are in engagement with each other. The speed of their movement is determined by the frequency of revolutions of the shaft, which is connected to the rotor of the electric motor. Through the suction line, the fuel enters the working cavity of the mechanism and is pushed out through the high-pressure tube to the nozzle. To maintain the required pressure in the range from 7 to 14 bar, the pump is equipped with a slide valve with a piston, a spring and an adjusting screw. The valve installed in the upper part of the EM is needed to switch from idle to working mode.

  • Model AS 47 B 7445 4P 0700 supports the connection of a second pipe - a return line - to drain unclaimed fuel into the tank. With a single-pipe configuration of fuel lines, remove the bypass plug with an Allen key and close the return line with a steel plug with a washer.

Main advantages:

  • good performance (39 l / h) and high efficiency of the unit;

  • reliable mating flange with two lugs for bolts;

  • the pump for the diesel burner is equipped with a quickly responding electromagnetic bypass valve;

  • standard ports for pressure gauge and vacuum gauge with cylindrical thread G⅛";

internal parts of the mechanism are protected by the housing from moisture and dust according to the IP54 standard.

Suntec liquid fuel pumps from the French company have gained popularity due to their reliability and long service life. Another important advantage is their unification with burners from global brands Baltur, Elco, Weishaupt, Lamborghini. The manufacture of parts, their processing and assembly into units and mechanisms are carried out according to European quality standards on modern equipment with digital software control.

Characteristics

Direction of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 39 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: flange ∅ 54 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
