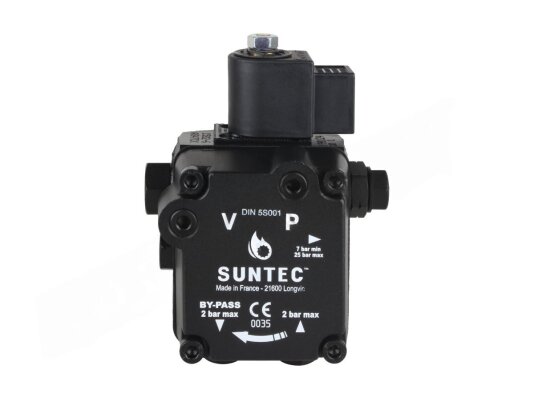

Burner Pump Suntec AS 47 C K 1623 6P

Suntec

Alternative Part Number

Oilon

34024520

AED 650

Oil Burner Pumps
Products code: 28466

Description

The Suntec AS 47 C K 1623 6P burner pump is designed to pump diesel fuel and kerosene. It is equipped with a shut-off electromagnetic valve that instantly shuts off/resumes the fuel supply in any operating mode. The pump is built into burners from various manufacturers: Lamborghini, Elco, Ecoflam and others.

Features:

  • The main unit of the pump is a pair of wear-resistant gears;

  • Electromagnetic shut-off valve included;

  • For single-pipe and double-pipe connections;

  • Pressure adjustment within 7…14 bar using a screw, default setting – 9 bar,

  • Built-in mesh filter to protect the gear mechanism from damage, hole size 150 µm;

  • Viton shaft seal for safe pumping of kerosene;

  • Electrical component protection class – IP 54 according to EN 60529;

  • operating conditions and temperature of pumped fuel: 0…+60 °C;

  • basic version for a 2-pipe system (the bypass plug is installed in the return line hole);

  • mounting position – any, except for the position with the axis up (to exclude axial or radial load on the axis);

  • installation on a bushing with a diameter of 32 mm;

  • connection to the inlet and return line on a tapered thread ¼ inch NPTF;

  • outputs for connecting measuring instruments ⅛ inch.

It is recommended to install a separate filter upstream of the Suntec AS 47 C K 1623 6P burner pump for maximum protection of the nozzles from damage and long service life.

Characteristics

Strainer: Opening size: 150 µmNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/h2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 27 l/hPump series: AS: pressure regulation and bypass solenoid valveStrainer: Open area: 6 cm²Solenoid valve voltage: 220-240 or 110-120 or 24 VOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulating and cut-offOperating viscosity: from 1 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 39 l/hPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 27 l/hNozzle pressure range: from 7 to 14 barTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 1 barReturn pressure: 2 barShaft diameter: 8 mmFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmMaximum pressure of the solenoid valve: 25 barInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftType of pumped liquid: kerosene, diesel
