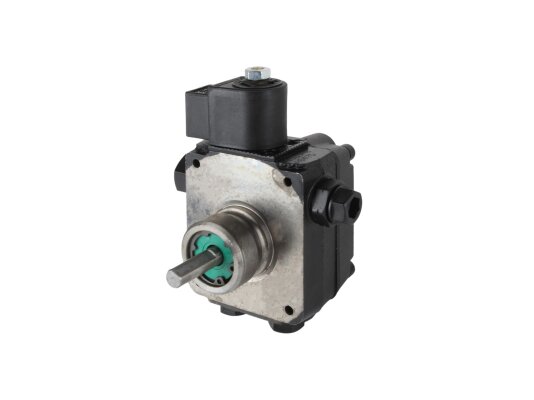

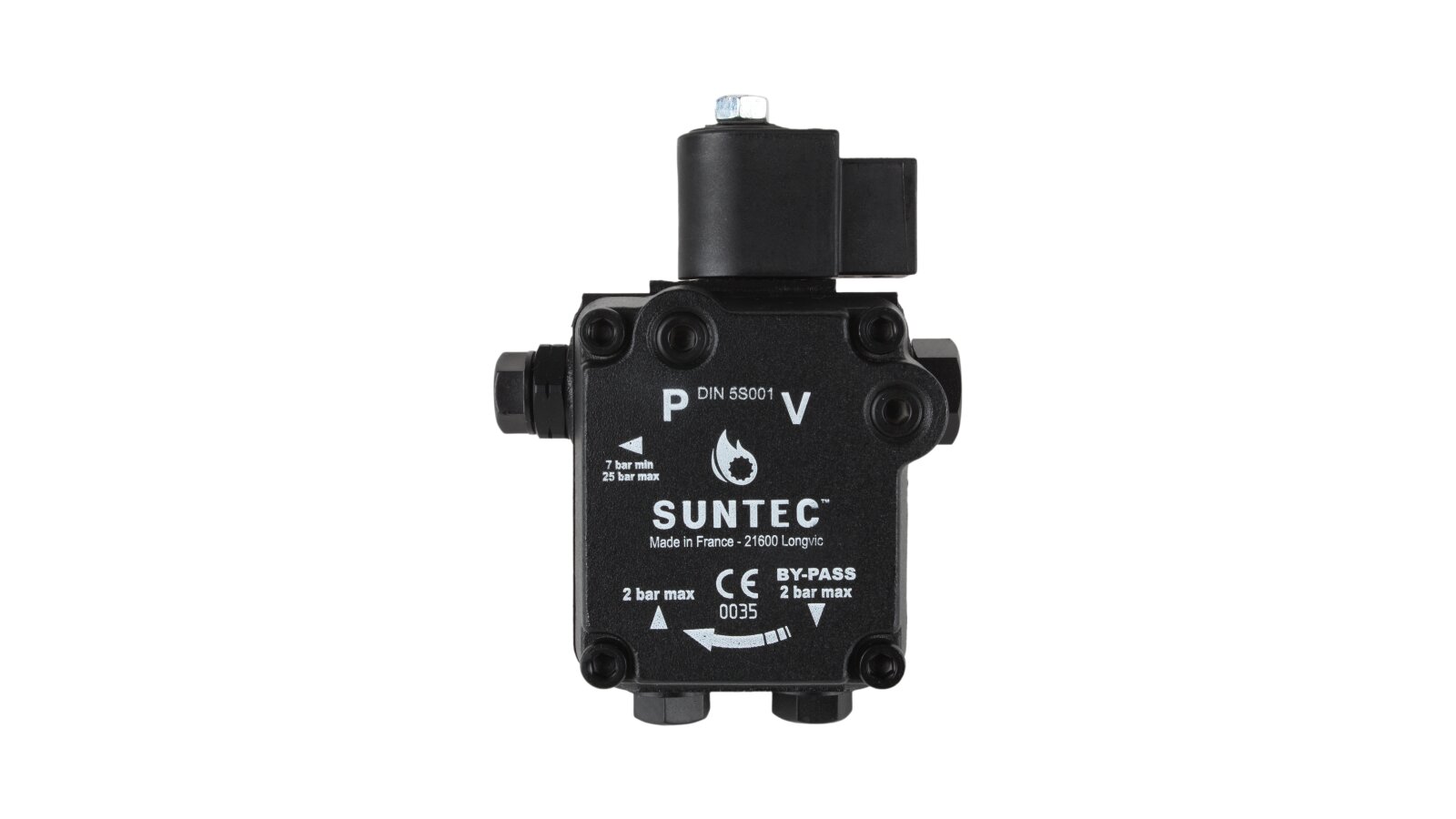

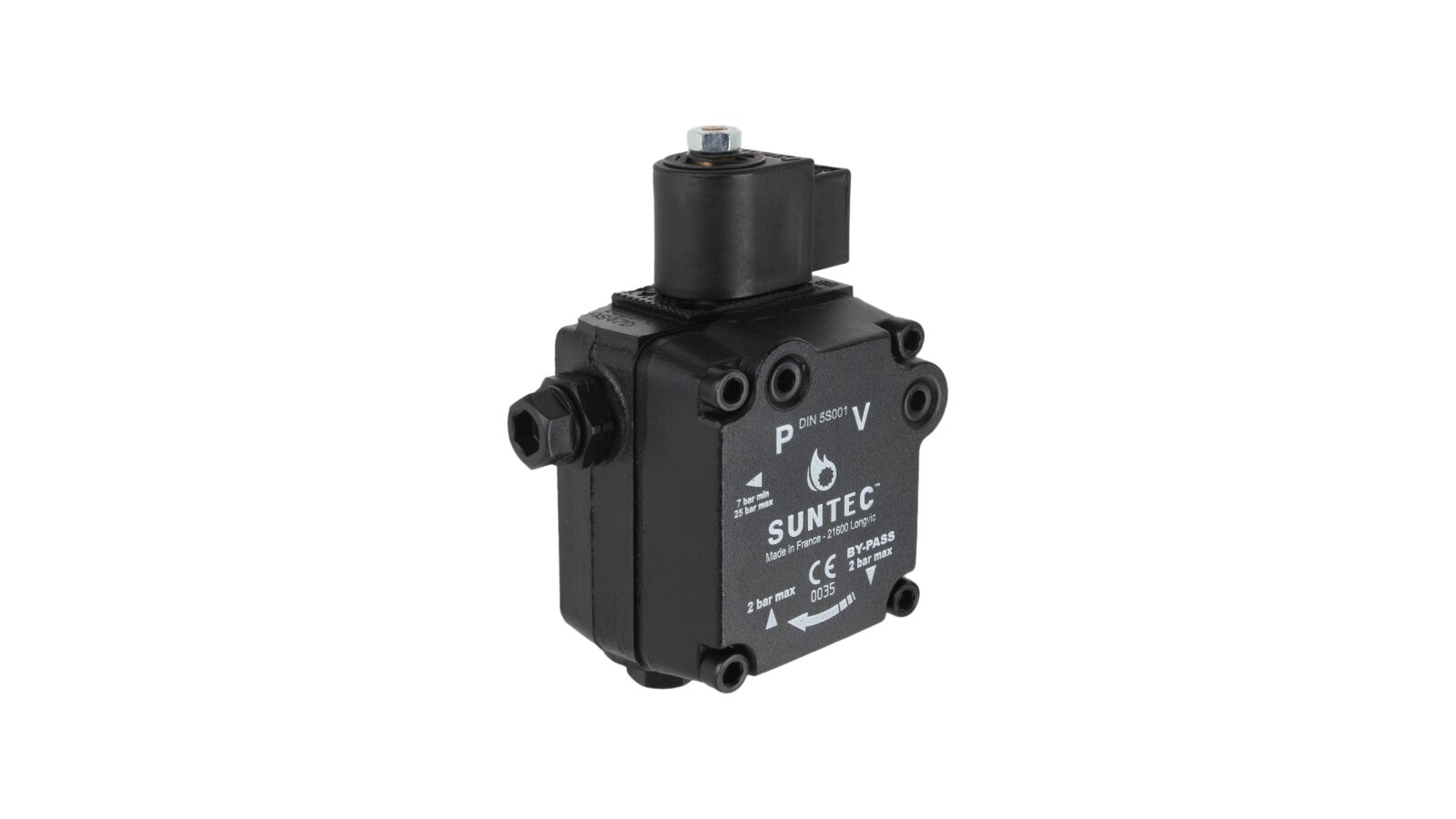

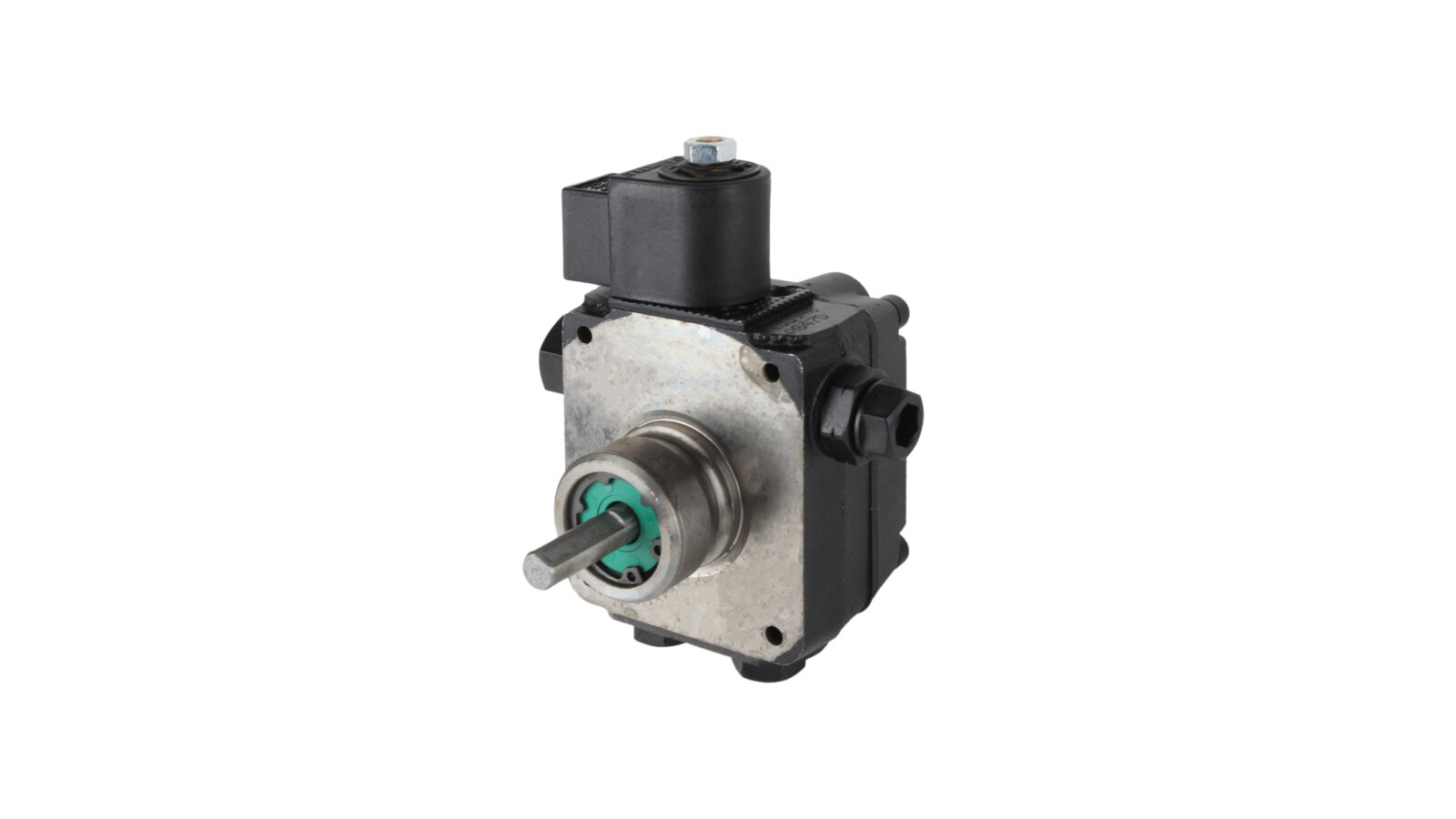

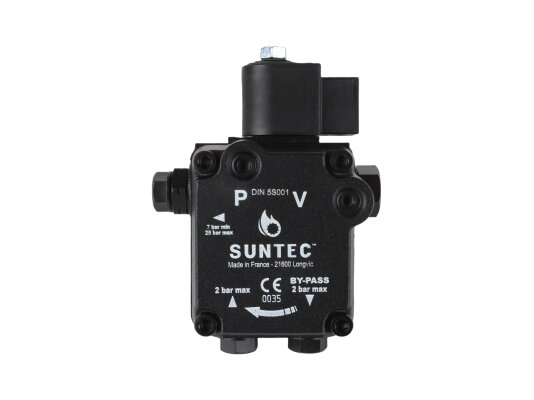

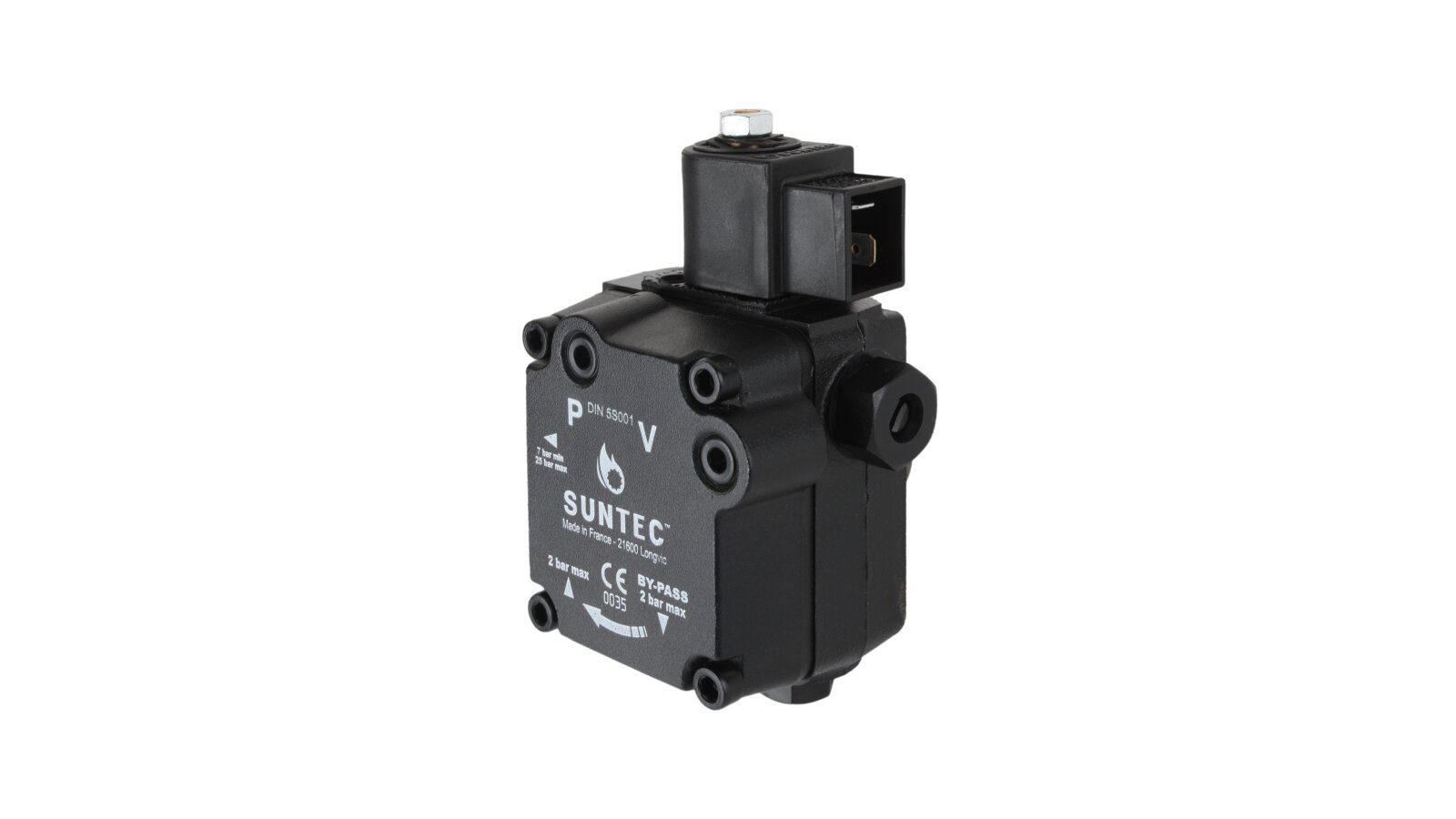

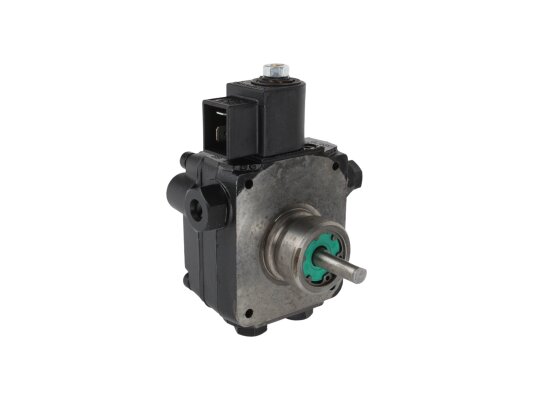

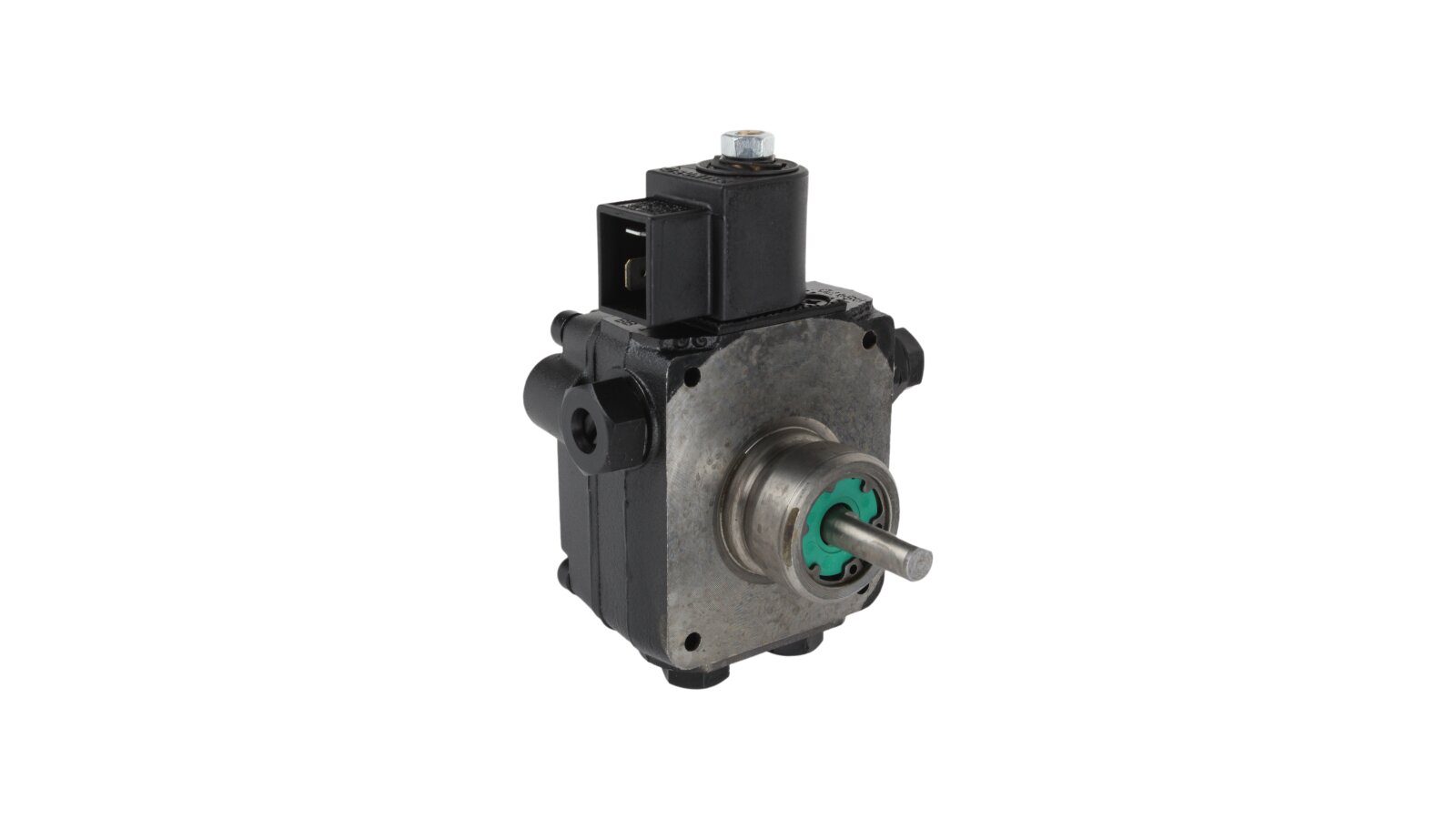

Burner Pump Suntec AS 47 D 1539 6P 0700

Suntec

AED 575

Oil Burner Pumps
Products code: 1199

Description

The single-stage fuel pump AS 47 D 1539 6P 0700 from the French company Suntec belongs to the AS series. The unit is characterized by a built-in electromagnetic valve with a shut-off function and a slide valve for regulating the pressure of the working medium. This low-power model allows you to effectively pump diesel fuel to the injector line under high pressure up to 14 bar.

The letter "D" in the code marks devices with a right-hand location of the outlet to the injector and counterclockwise rotation of the shaft.

To buy Suntec liquid fuel pumps from the official supplier of European equipment - the company "ANKAS" - leave a request on our website, and the manager will contact you shortly.

Design features

  • As in other models of the AS series, here a mechanism of two elements engaged between themselves is implemented - a gear and a wheel - rotating in the same direction as the shaft. The gear in the center is firmly mounted on the shaft and sets the wheel with internal teeth in motion. The high rotation speed draws diesel fuel from the tank and feeds it through the suction pipe through the filter mesh to the working element of the mechanism.

  • To set the required value of the feed pressure to the injector line, it is necessary to tighten the adjusting screw of the spool valve. To switch the device to the operating mode, a "normally open" electromagnetic valve is provided. By locking the bypass channel, it sharply increases the pressure of the fuel supplied to the injector, regardless of the shaft speed.

Main advantages:

  • The simple design of the single-stage model contributes to the reliability of the entire mechanism;

  • The design includes a spool valve for pressure adjustment and a solenoid valve for switching the operating mode;

  • It is possible to mount a pressure gauge and a vacuum gauge to ports with a standard ISO 228/1 connecting thread;

  • Excellent ratio of performance to expended power;

  • The cylindrical thread of the suction and pressure fuel lines complies with the European standard.

The AS series of fuel pumps from the French manufacturer Suntec has proven itself as reliable devices for pumping fuel to the nozzle line of most models of diesel burners with a capacity of up to 1000 kW. Durable and efficient gear units are assembled at the factory in compliance with European ISO quality standards.

Characteristics

Direction of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 39 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
