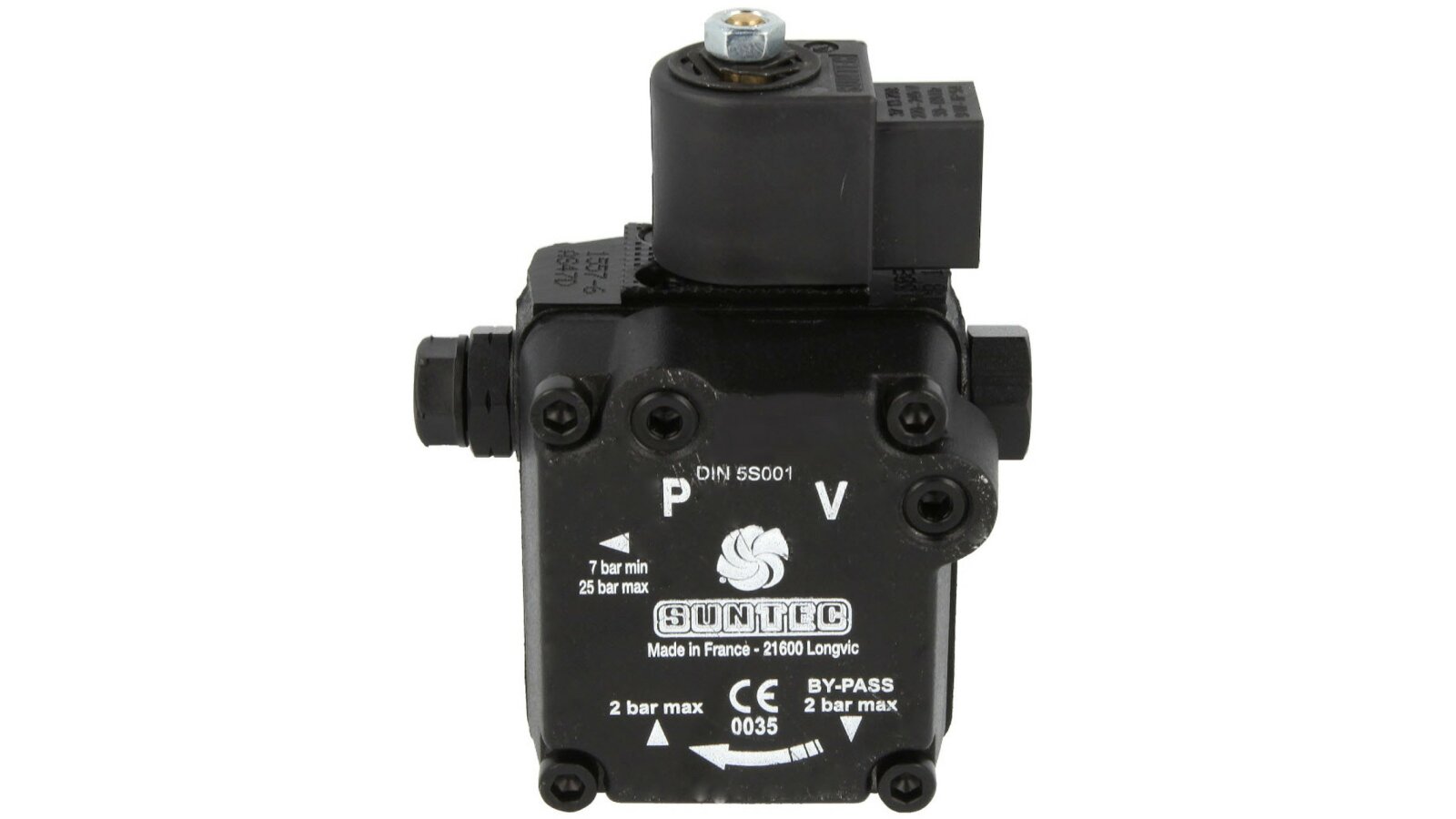

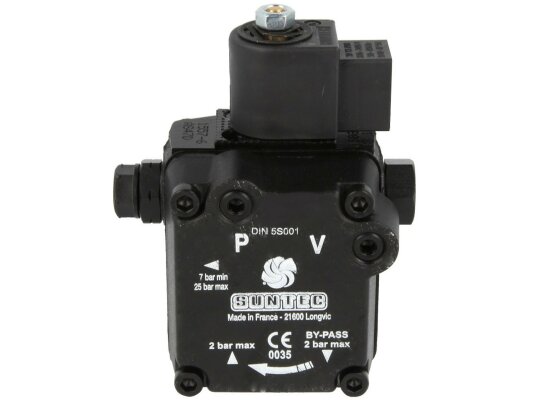

Burner Pump Suntec AS 47 D 1557 6P 0700

Suntec

AED 1,550

Oil Burner Pumps
Products code: 1200

Description

Liquid fuel pump for diesel burners AS 47 D 1557 6P 0700 is presented by the leader in the production of heating equipment - the French company Suntec. It belongs to the line of single-stage devices with a shut-off electromagnetic valve and can pump diesel fuel from the tank to the nozzle line under a pressure of 7-14 bar. To set the required value in this range, a slide valve with an adjusting screw is provided. The unit is connected to the burner by means of a sleeve with a diameter of 32 mm.

On the website of the company "ANKAS" the Suntec fuel pump is offered at an affordable price. Before making a purchase, you can get answers to all your questions from experienced managers of our online store.

Design features

  • The AS series models use a time-tested gear mechanism. It includes two gears engaged with each other, rotating counterclockwise. The first gear is pressed onto the shaft and rotates the second - driven. Between them there is a crescent-shaped groove separating the suction and discharge cavities.

  • A mesh filter built into the suction channel protects the mechanism from wear and jamming. For more thorough fuel preparation and to extend the service life of fuel injectors, it is recommended to install a fine filter.

  • The design of the device allows its connection to a one-pipe or two-pipe system with an additional drain of unclaimed fuel into the tank.

Main advantages:

  • high operating efficiency with good performance;

  • the design includes an electromagnetic bypass shut-off valve and a slide valve;

  • a wide range of operational viscosity for pumping various grades of diesel fuel;

  • small dimensions and weight;

  • has a unified sleeve connection with the burner;

  • high degree of casing protection against water and dust penetration - IP54.

Suntec liquid fuel pumps are used all over the world and are in demand due to their simplicity of design and reliable operation in all operating modes. The AS 47 D 1557 6P 0700 model is among the most successful solutions among competitors. To improve quality, Suntec uses high-precision modern equipment, which is operated by the best specialists in the field of mechanical engineering and hydrodynamics.

Characteristics

Direction of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 39 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
