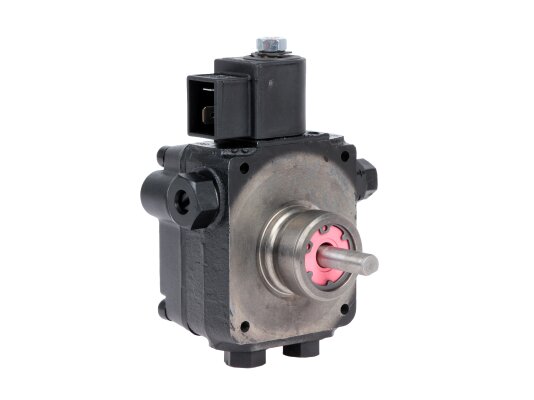

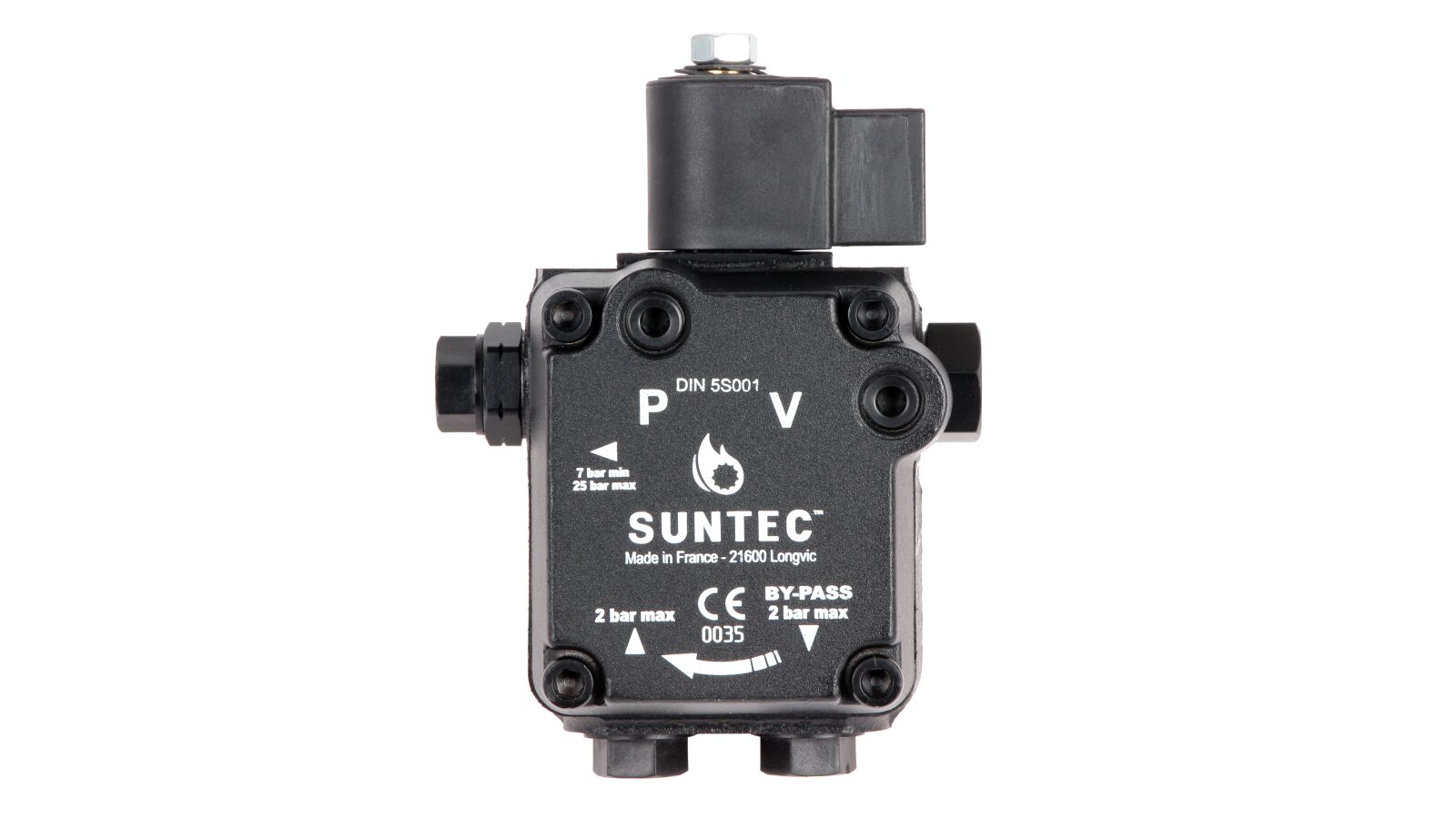

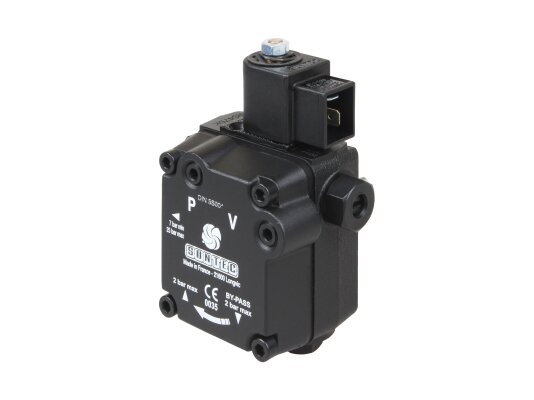

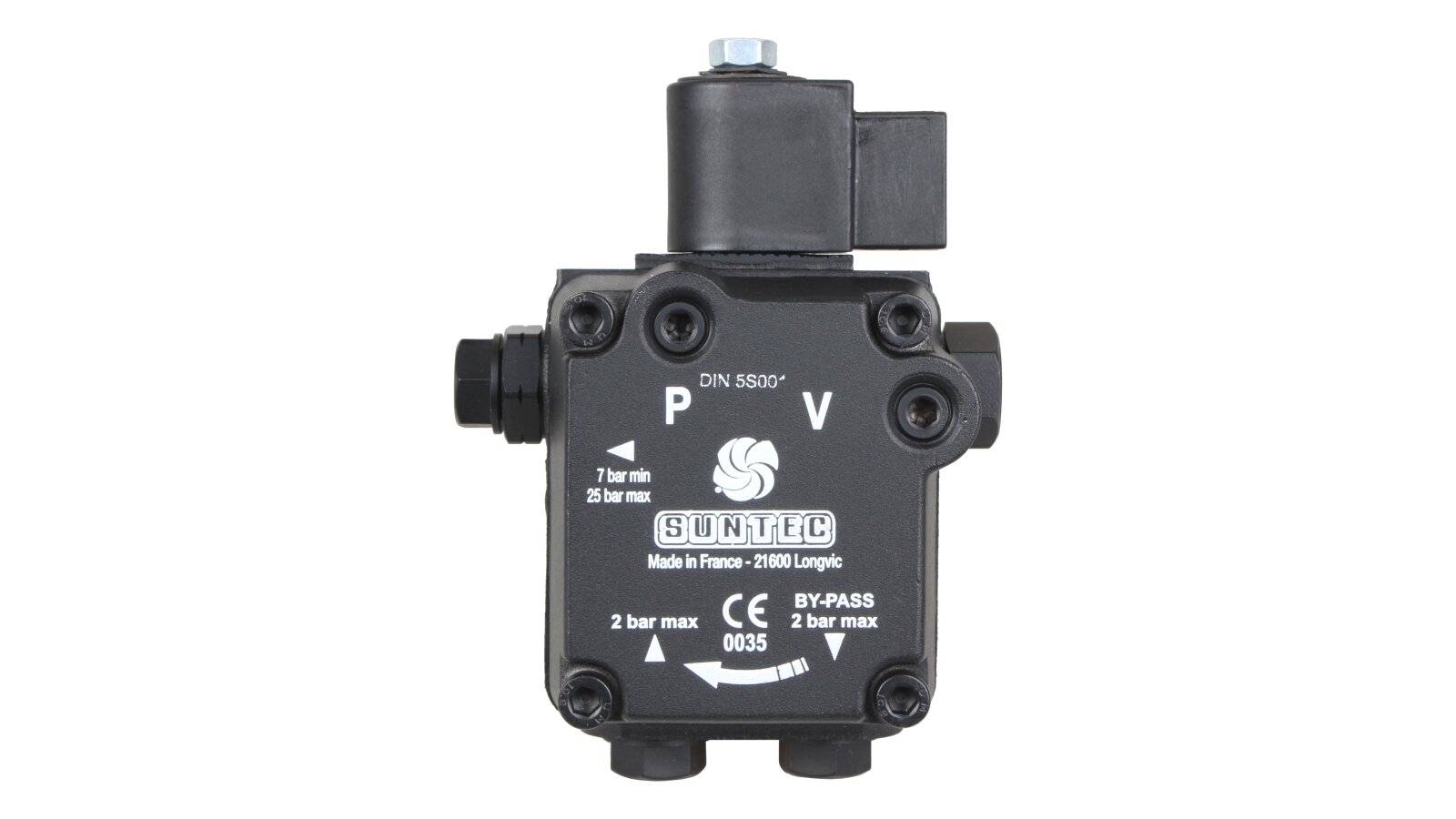

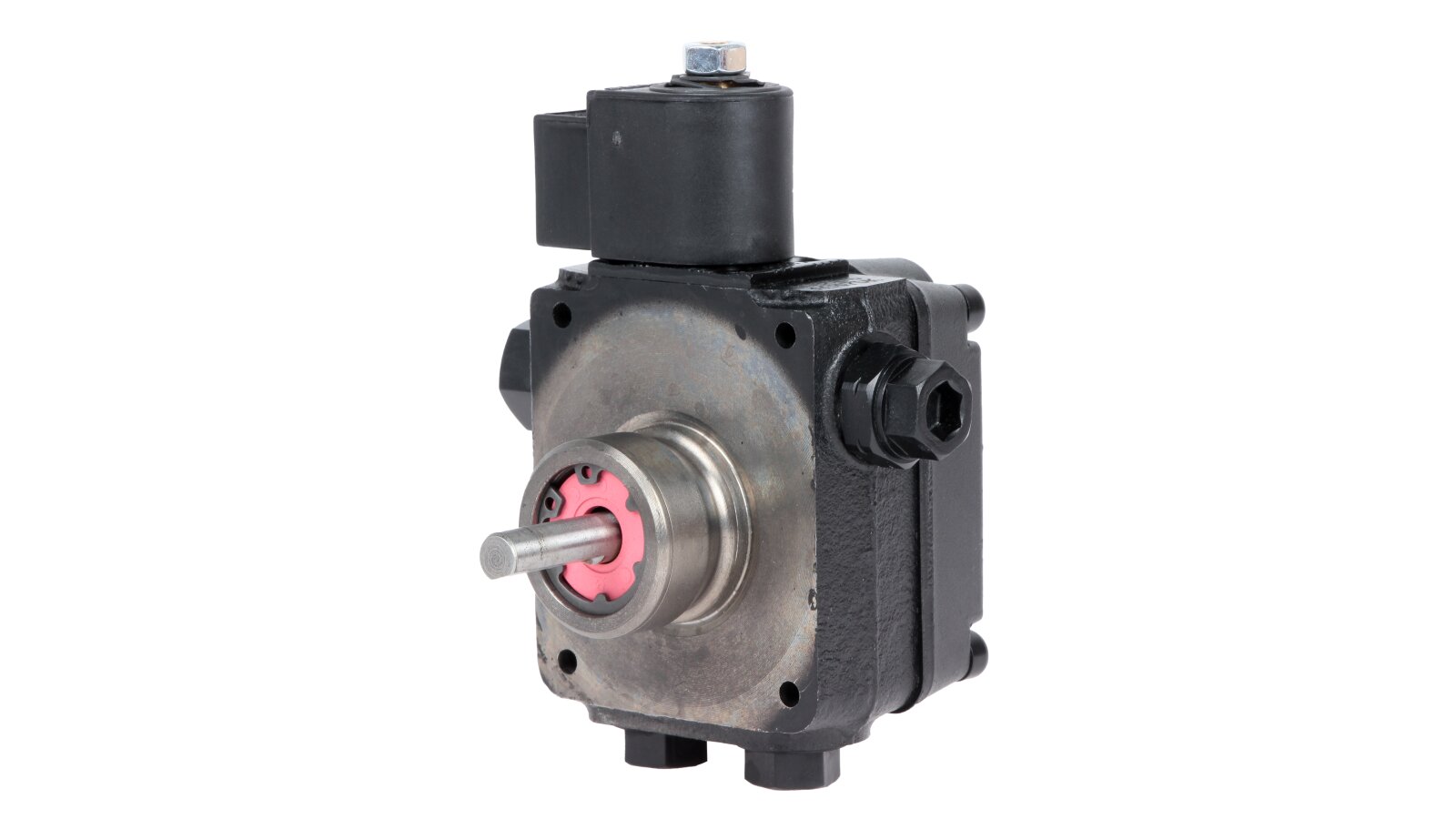

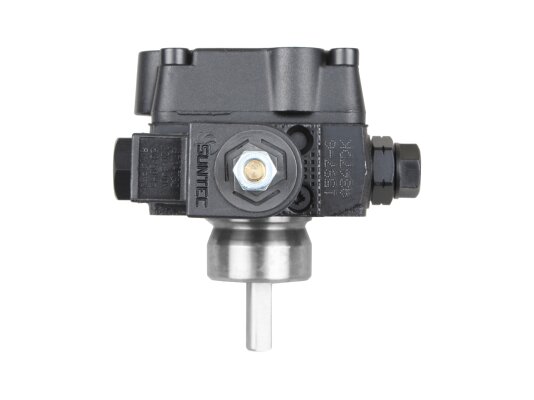

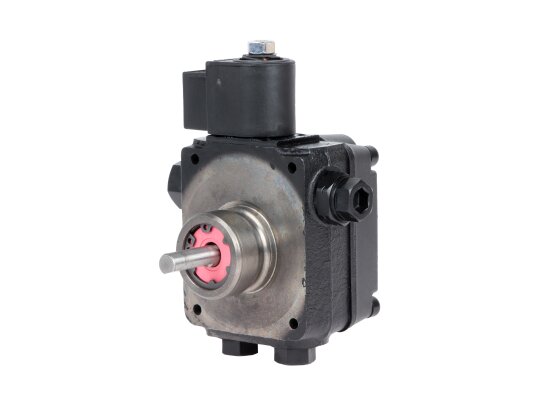

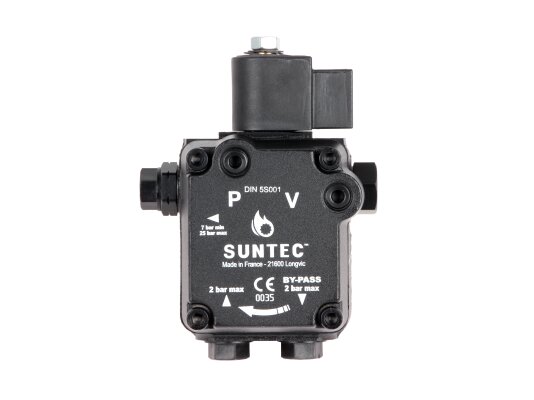

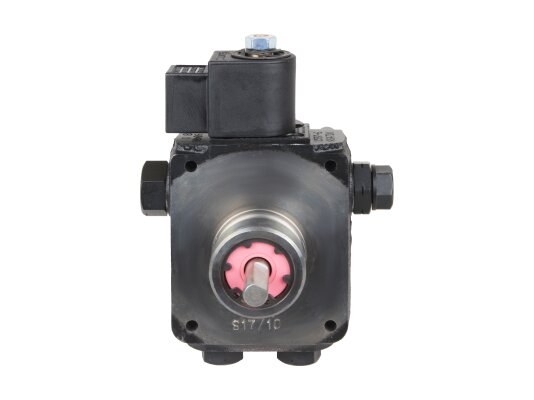

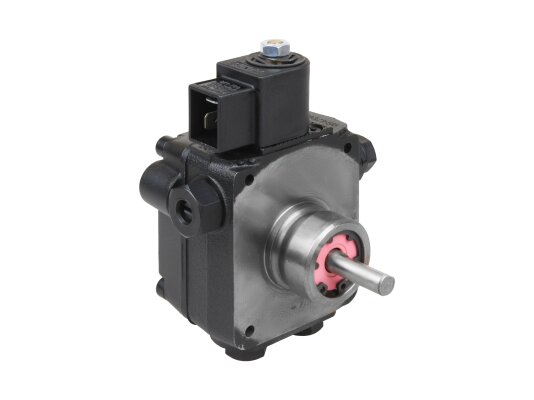

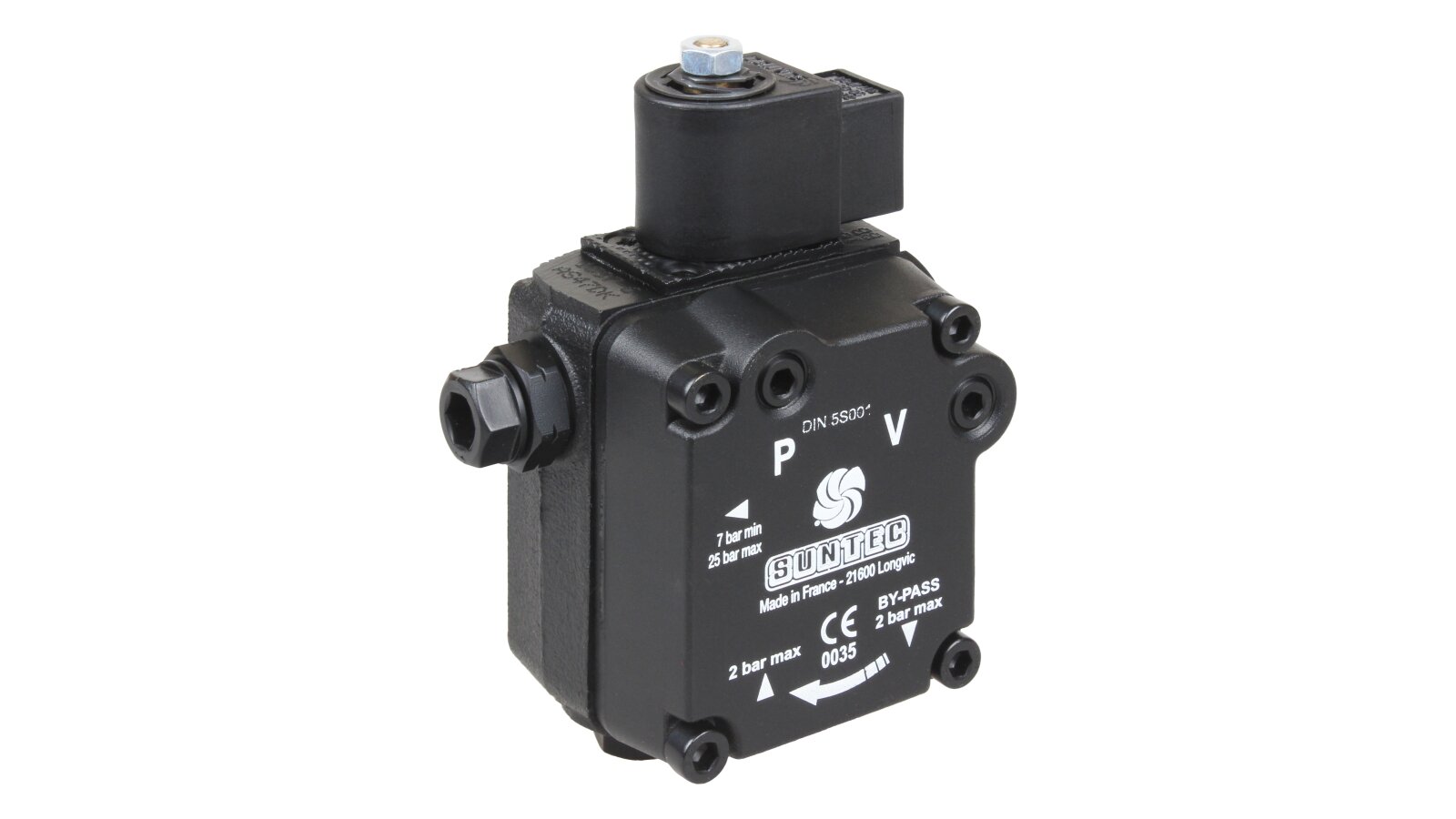

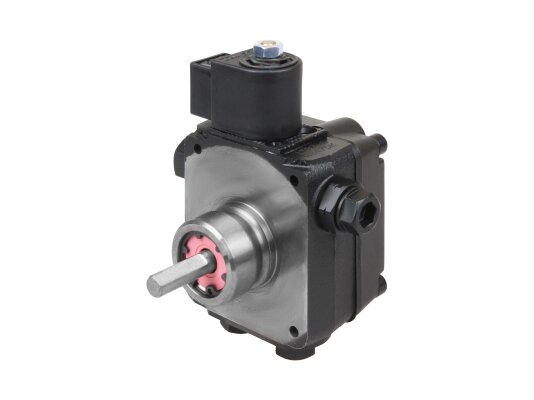

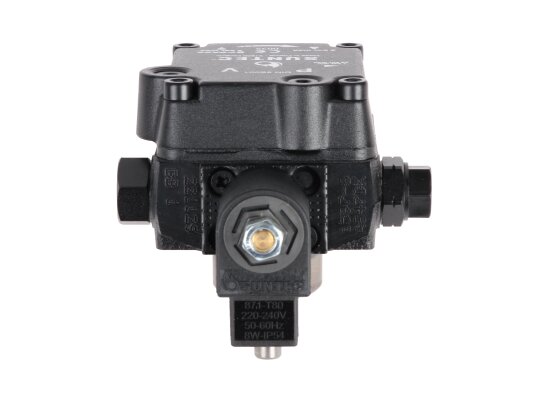

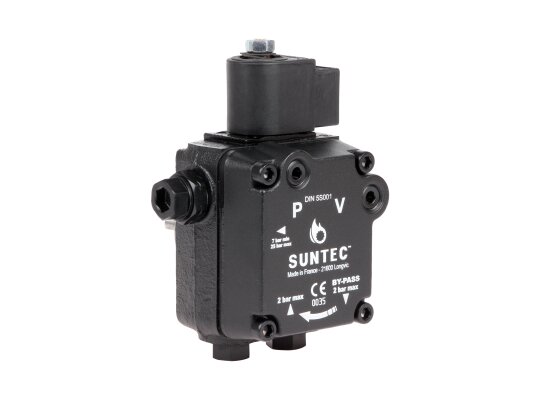

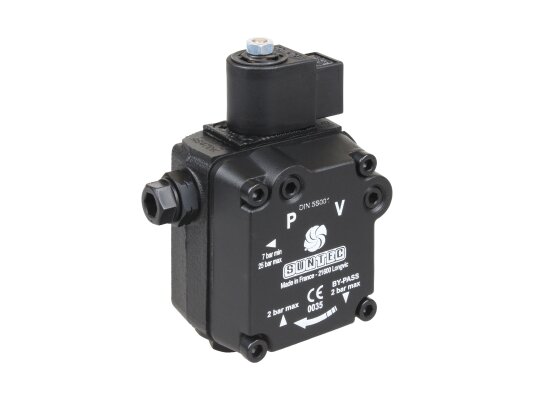

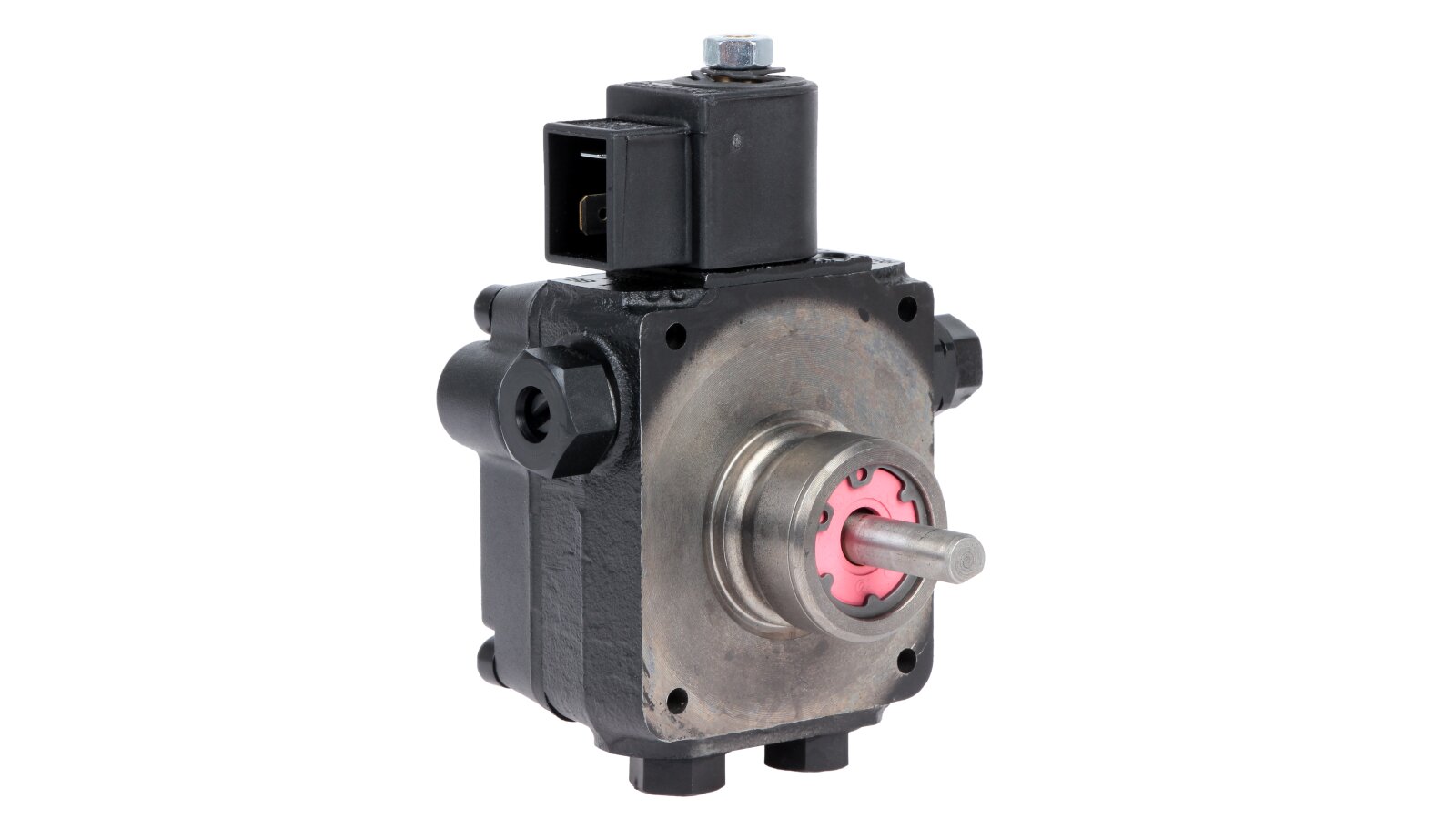

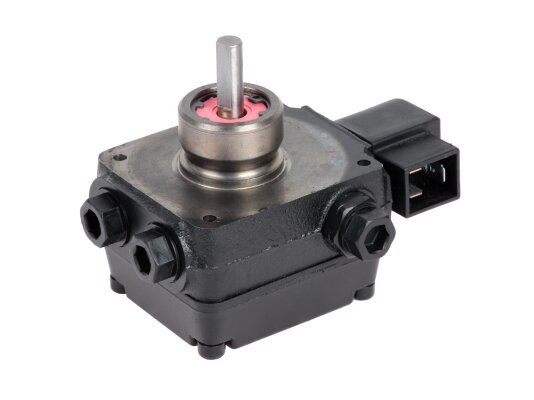

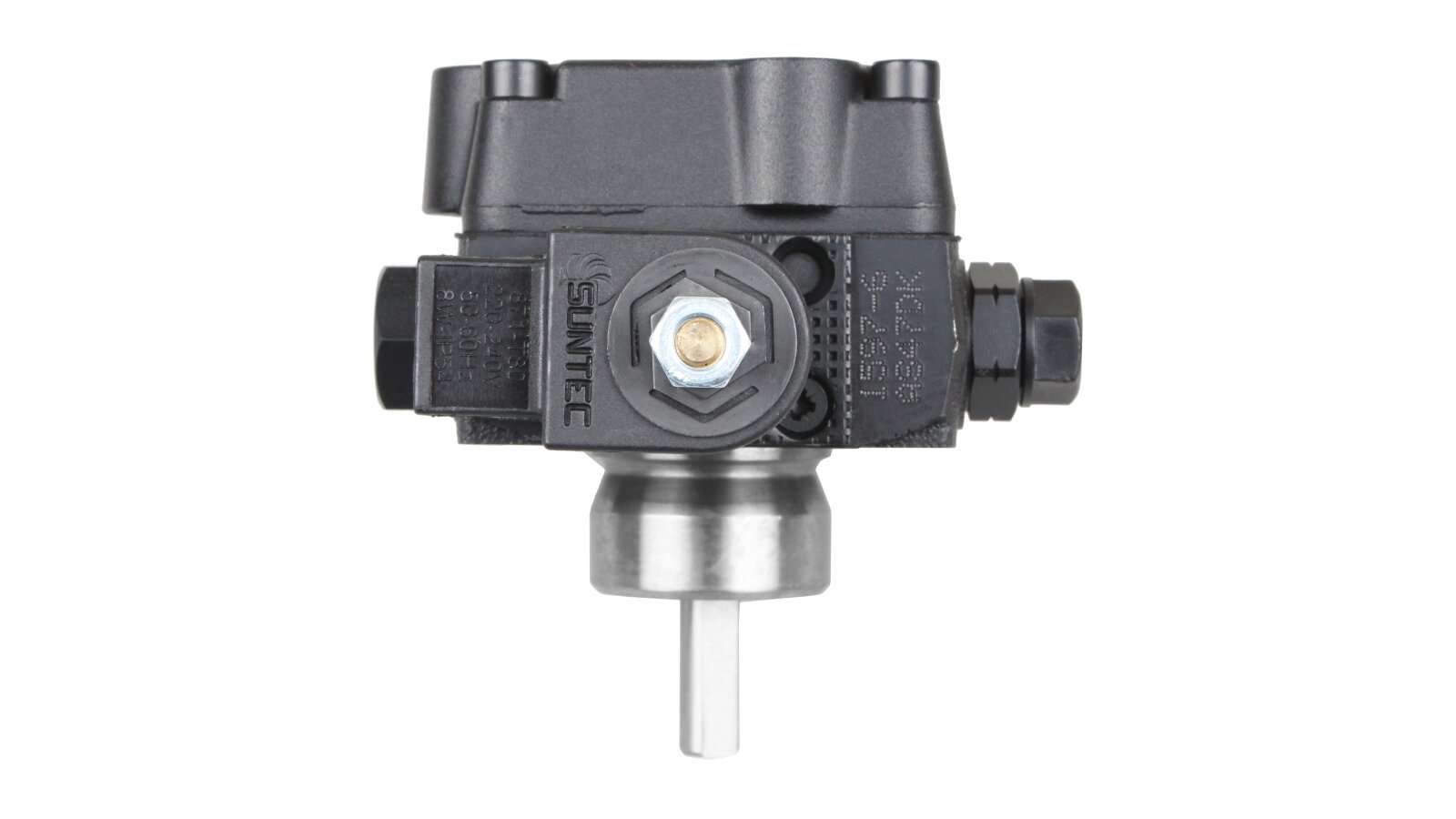

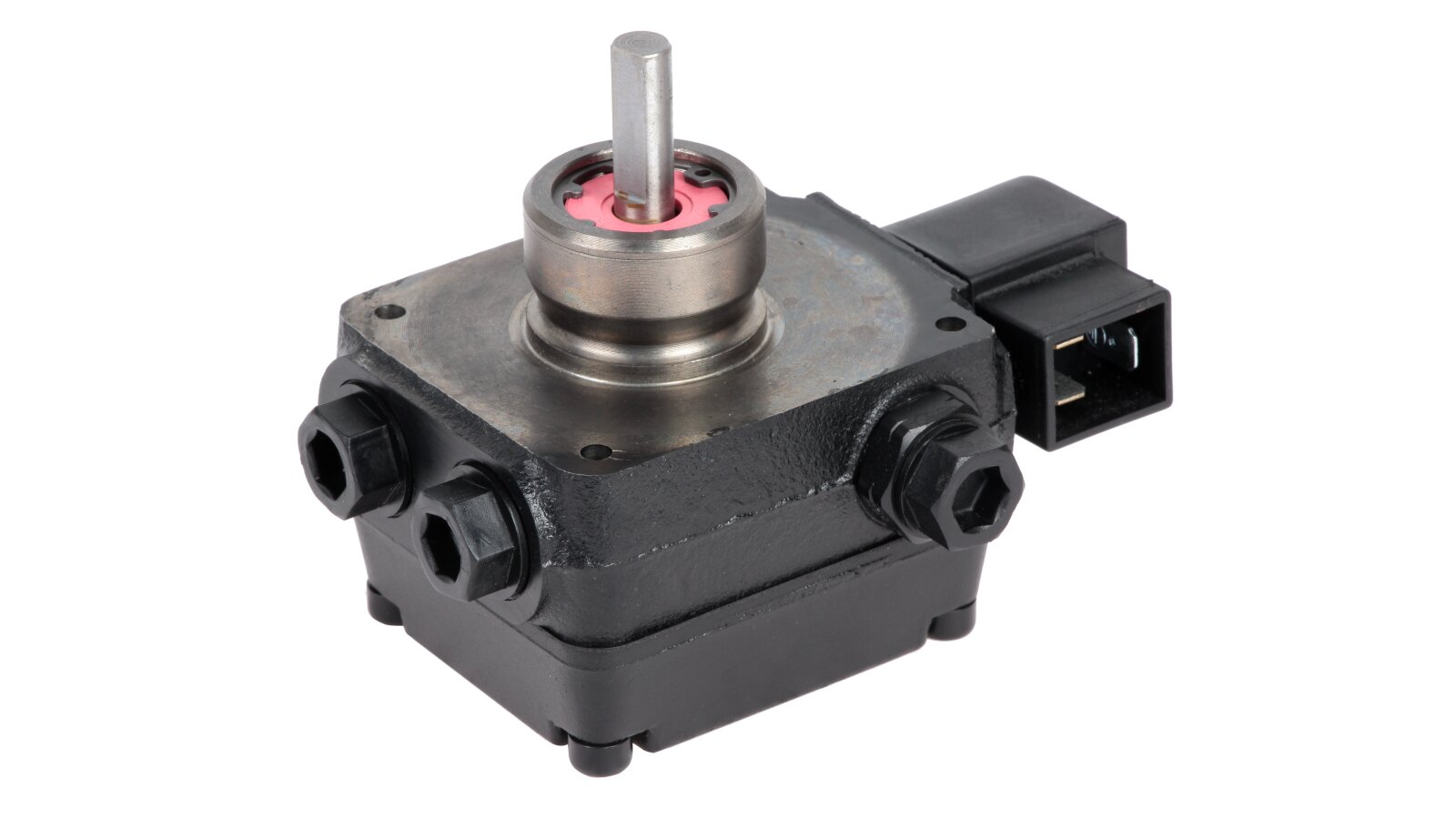

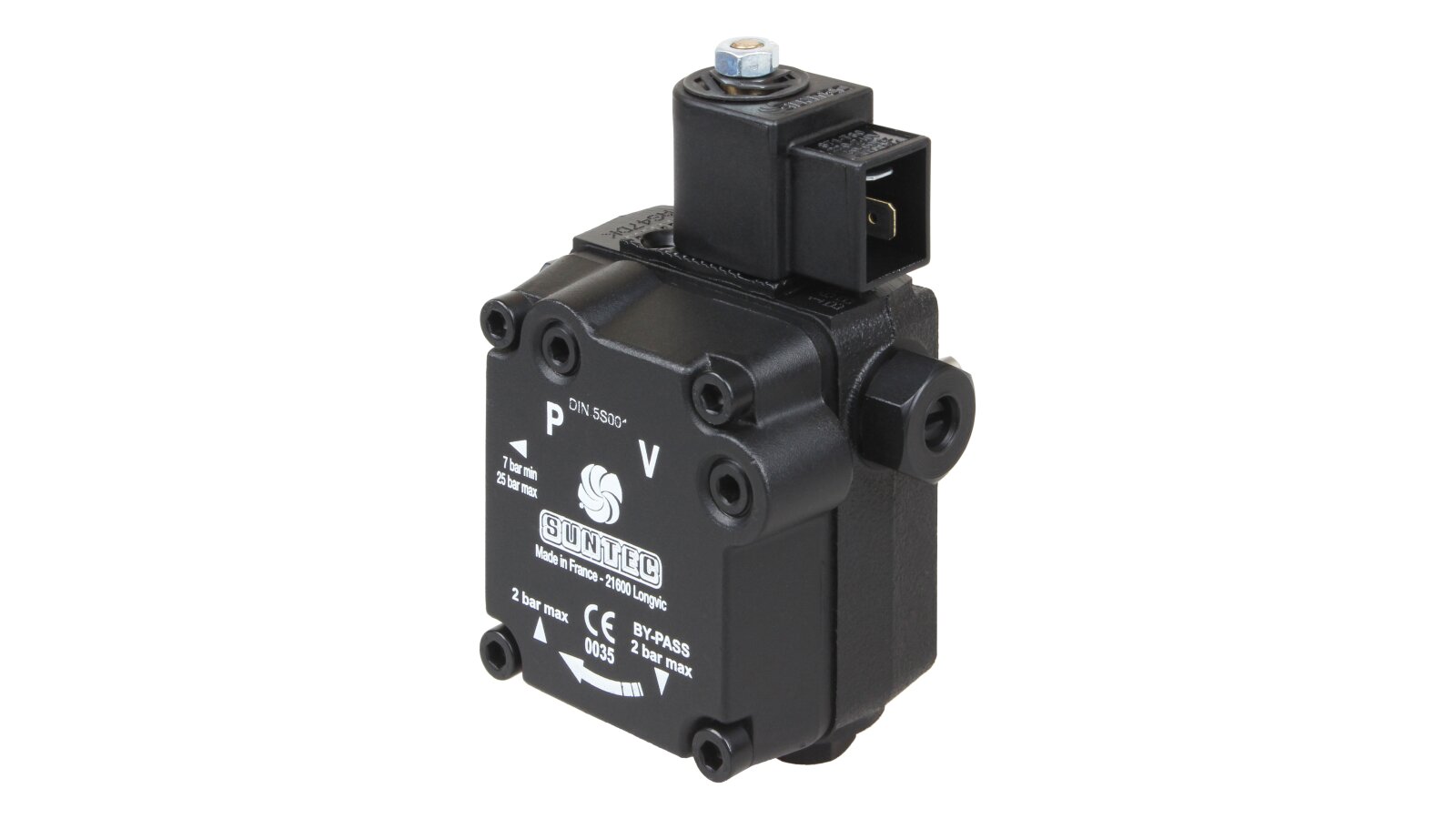

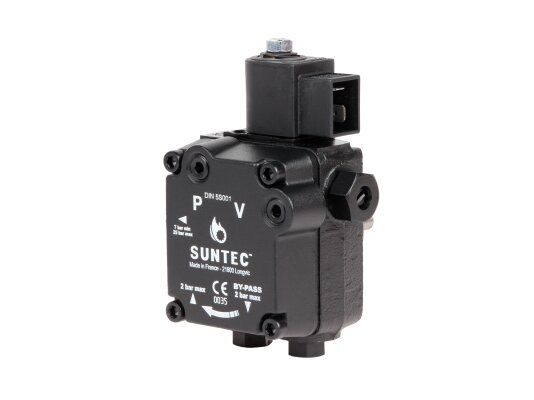

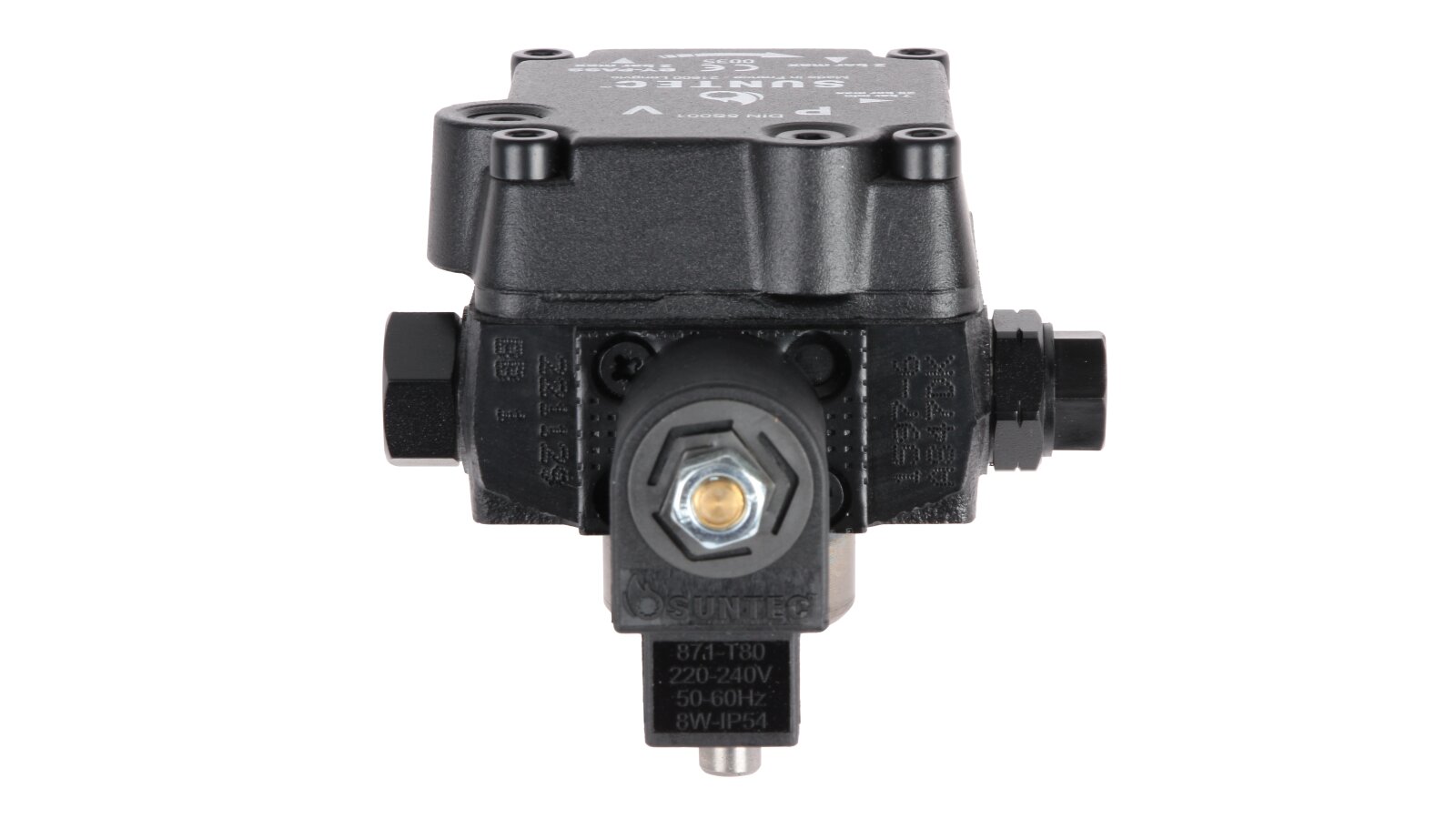

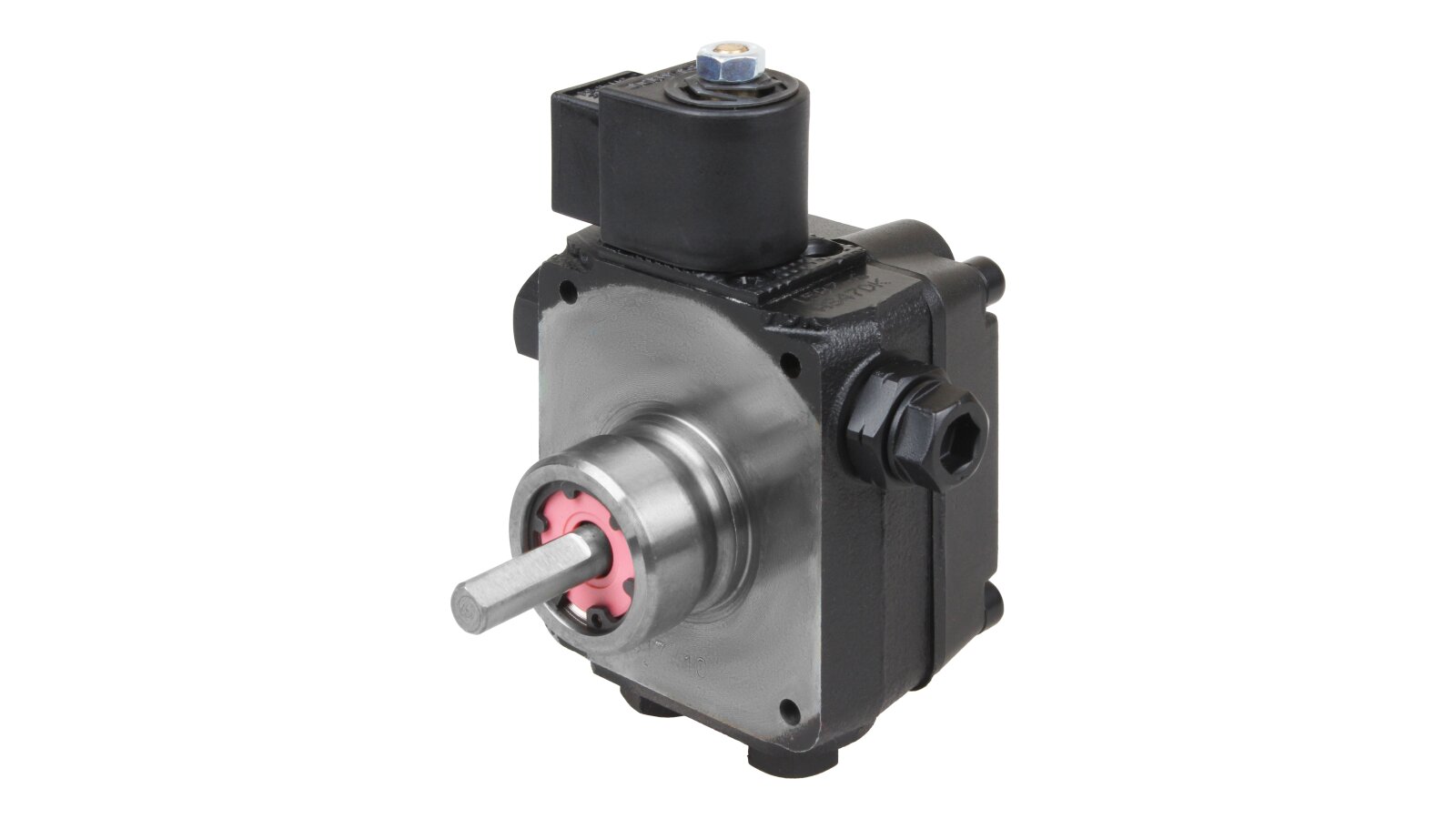

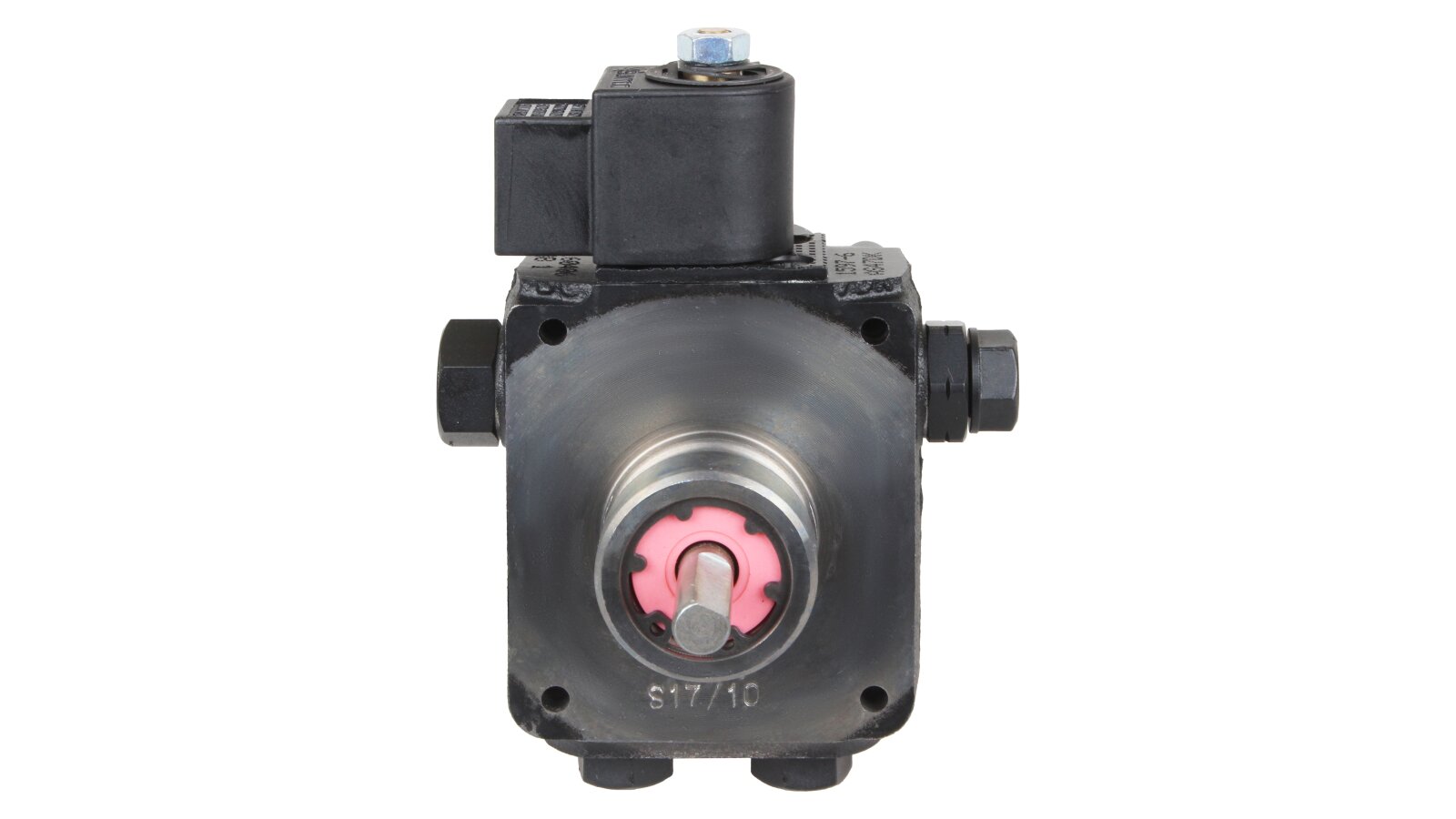

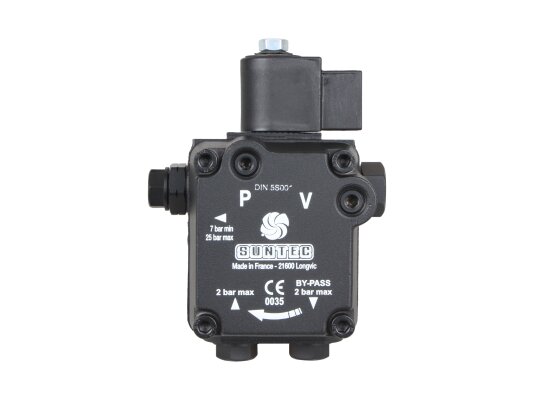

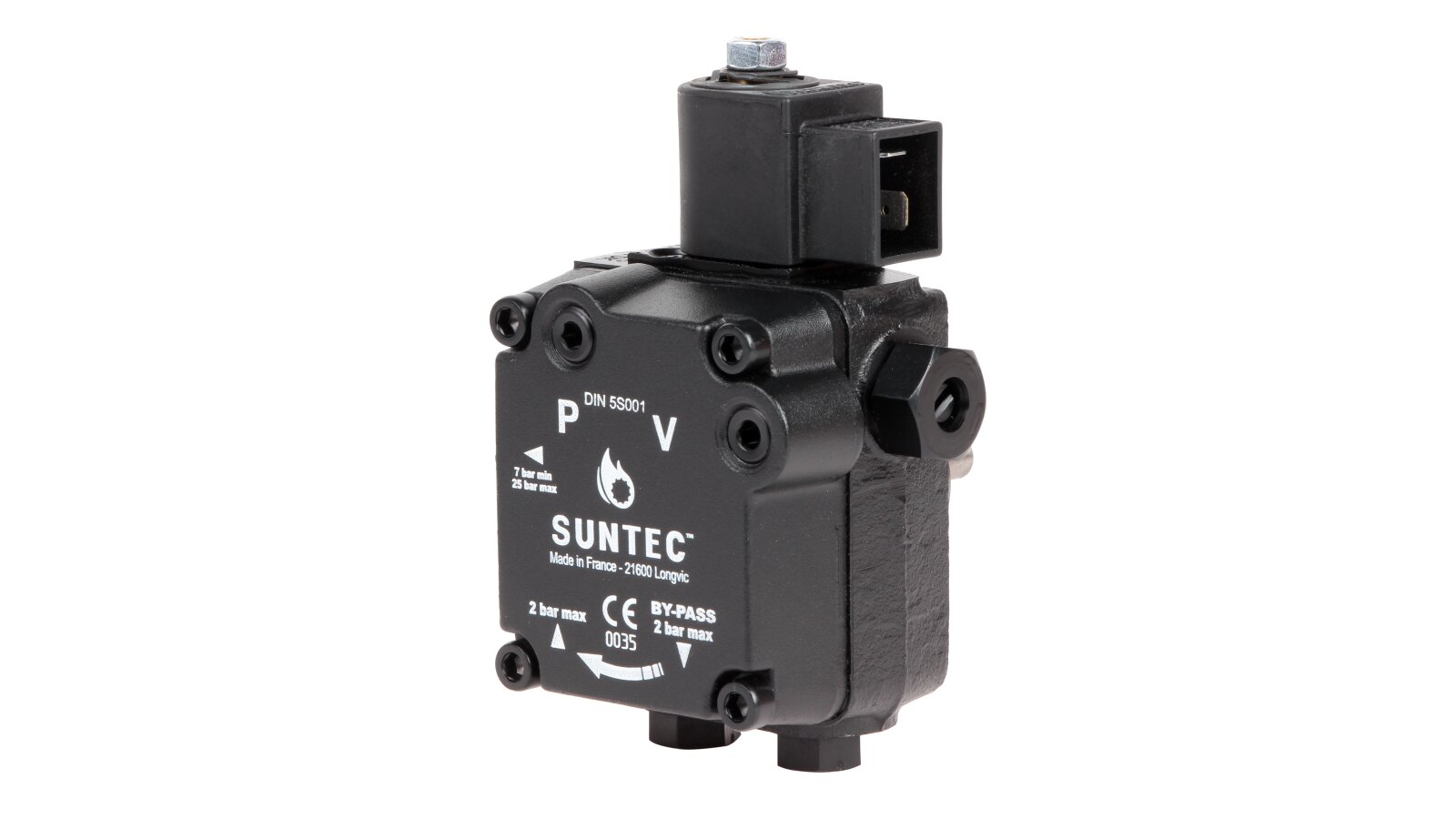

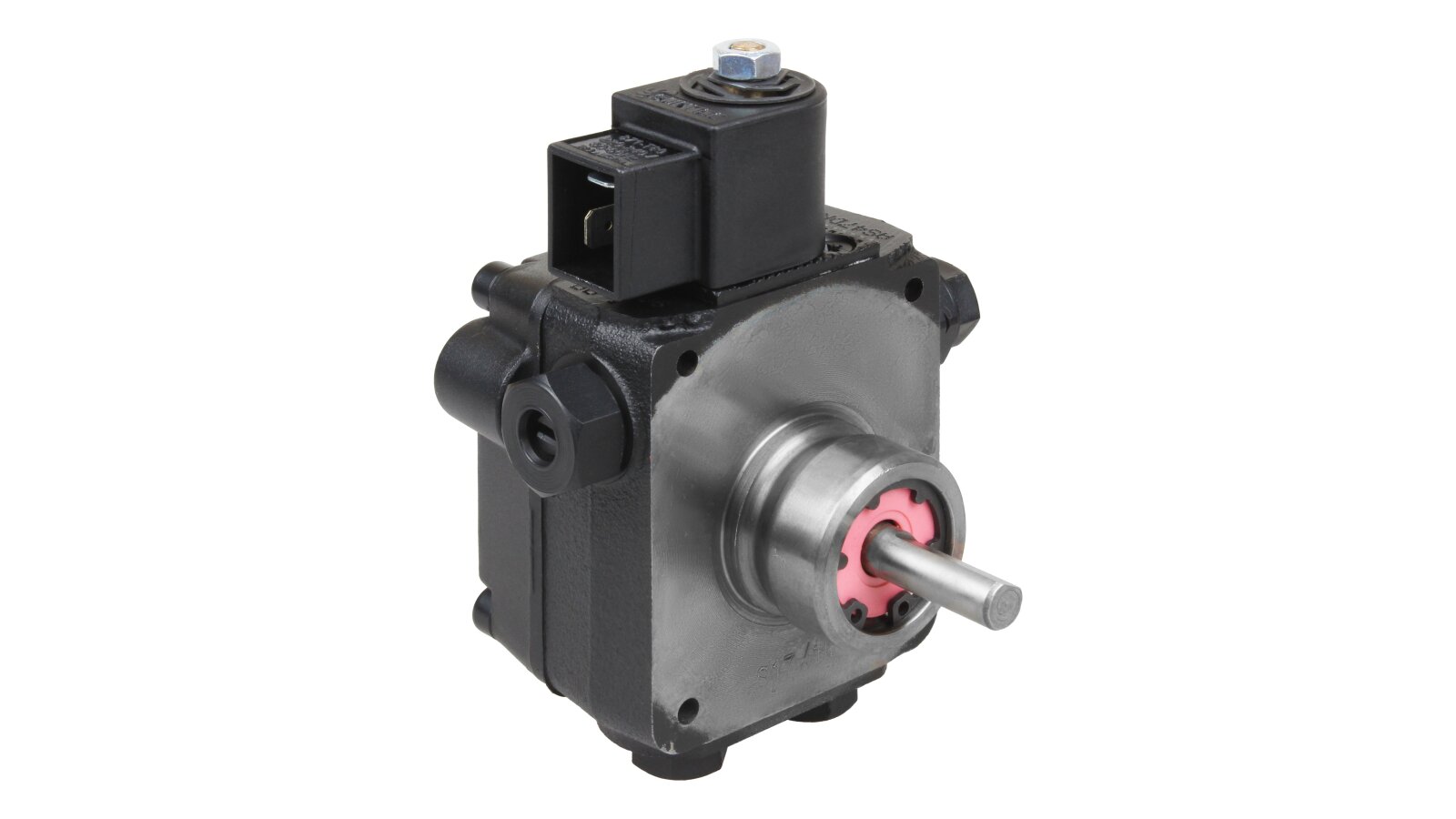

Burner Pump Suntec AS 47 D K 1597 6P 0700

Suntec

AED 625

Oil Burner Pumps
Products code: 2391

Description

The fuel pump AS 47 D K 1597 6P 0700 is equipped with a built-in EM valve, which ensures instant interruption/resumption of supply regardless of the engine shaft speed. The model is suitable for working with diesel fuel and kerosene. It is installed in heating equipment of most manufacturers, including Lamborghini, Baltur, Ecoflam, Riello, F.B.R.Cuenod, Elco, Weishaupt.

Features

The pump is distinguished by its right-hand location of the outlet to the injector, the shaft rotates counterclockwise (marked "D").

A special material, Viton, is used to seal the shaft, which allows pumping not only diesel fuel, but also kerosene.

In the factory assembly, the pump is suitable for installation in a system with two pipes. When integrating into a single-pipe system, the bypass plug should be removed, replacing it with a steel one to block the backflow hole.

Operating principle

The gear mechanism sucks fuel from the tank, passes it through a mesh filter and directs it through the control valve to the injector pipeline. The pumped liquid that has not passed through the injector line is directed to the gear pair or to the return line, depending on the system configuration.

When the electromagnetic valve is inactive, the return line is open. When it is turned on, the bypass channel closes, fuel is supplied under a set pressure to the injector.

Main characteristics

  • The model is installed using a 32 mm diameter sleeve connection.

  • The supply pressure range is 7-14 atmospheres. Factory setting at 9 bar.

  • The capacity is 39 l / h at a pressure of 11 bar and a viscosity of 5 cSt.

  • Maximum vacuum - 0.45 atm. to prevent separation of air from the fuel.

The advantages are:

  • instantaneous stop / resumption of fuel supply;

  • reliable protection of structural elements;

  • sleeve connection according to the European standard EN 225;

  • threaded holes for pipeline and instrumentation connection corresponding to ISO 228/1;

  • serviceable pre-filter of 150 microns.

On our website you can buy the Suntec AS 47 D K 1597 6P 0700 fuel pump and other equipment for low-power burners at an affordable price. Suntec equipment is characterized by its simplicity of execution, trouble-free operation over many years of operation.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 39 l/hInstallation method: sleeve ∅ 32 mmOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valveSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightMaximum pressure of the solenoid valve: 25 barTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 1 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 7 to 14 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmDegree of protection: IP54Type of pumped liquid: kerosene, diesel
