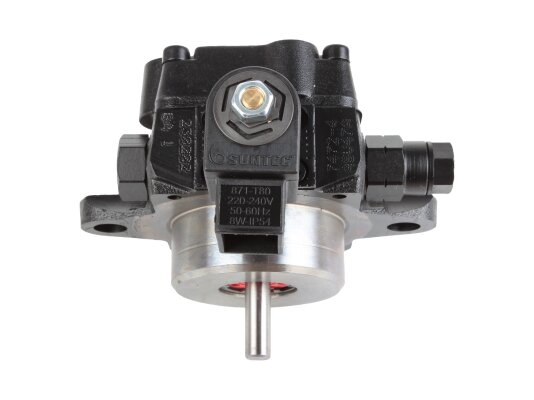

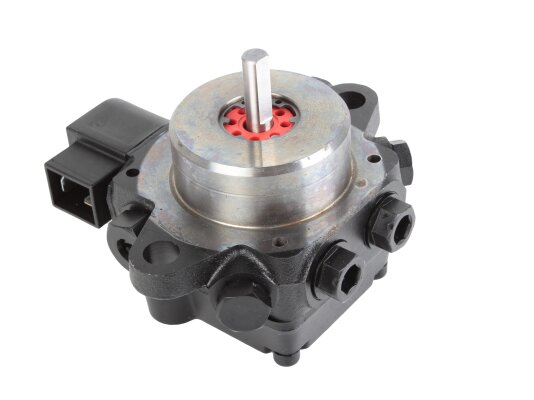

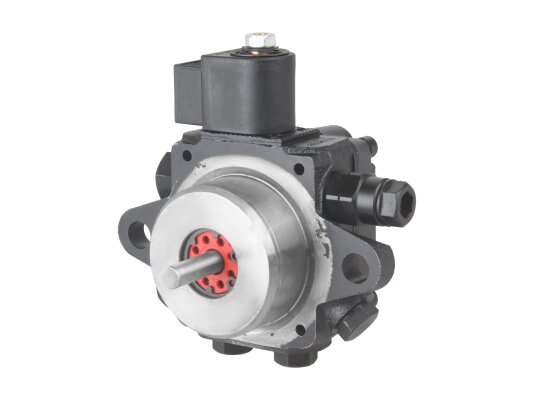

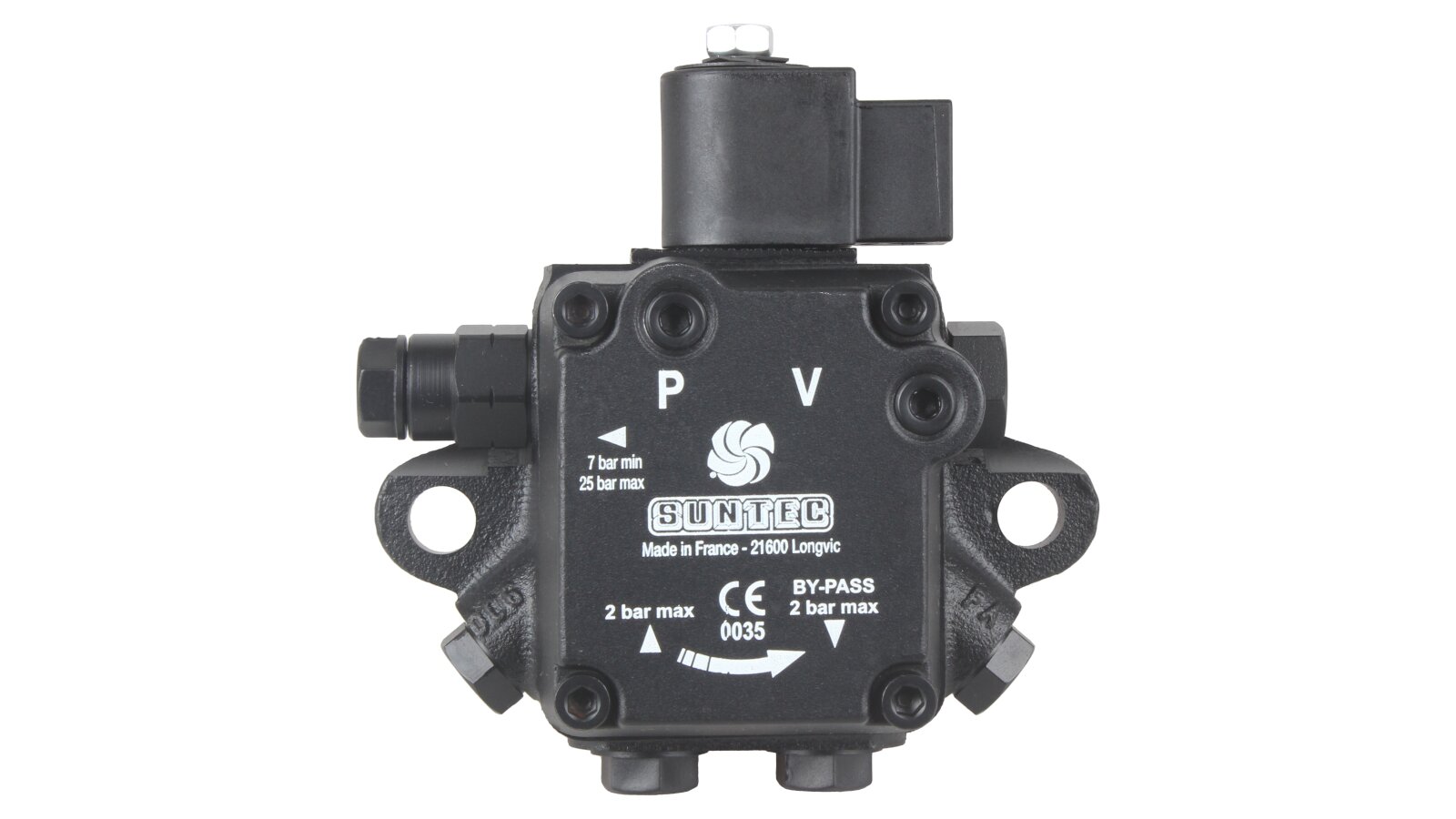

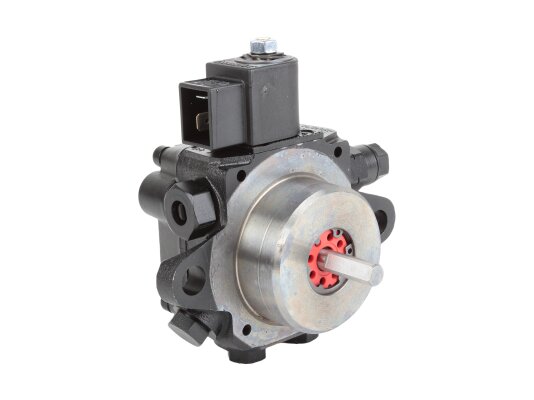

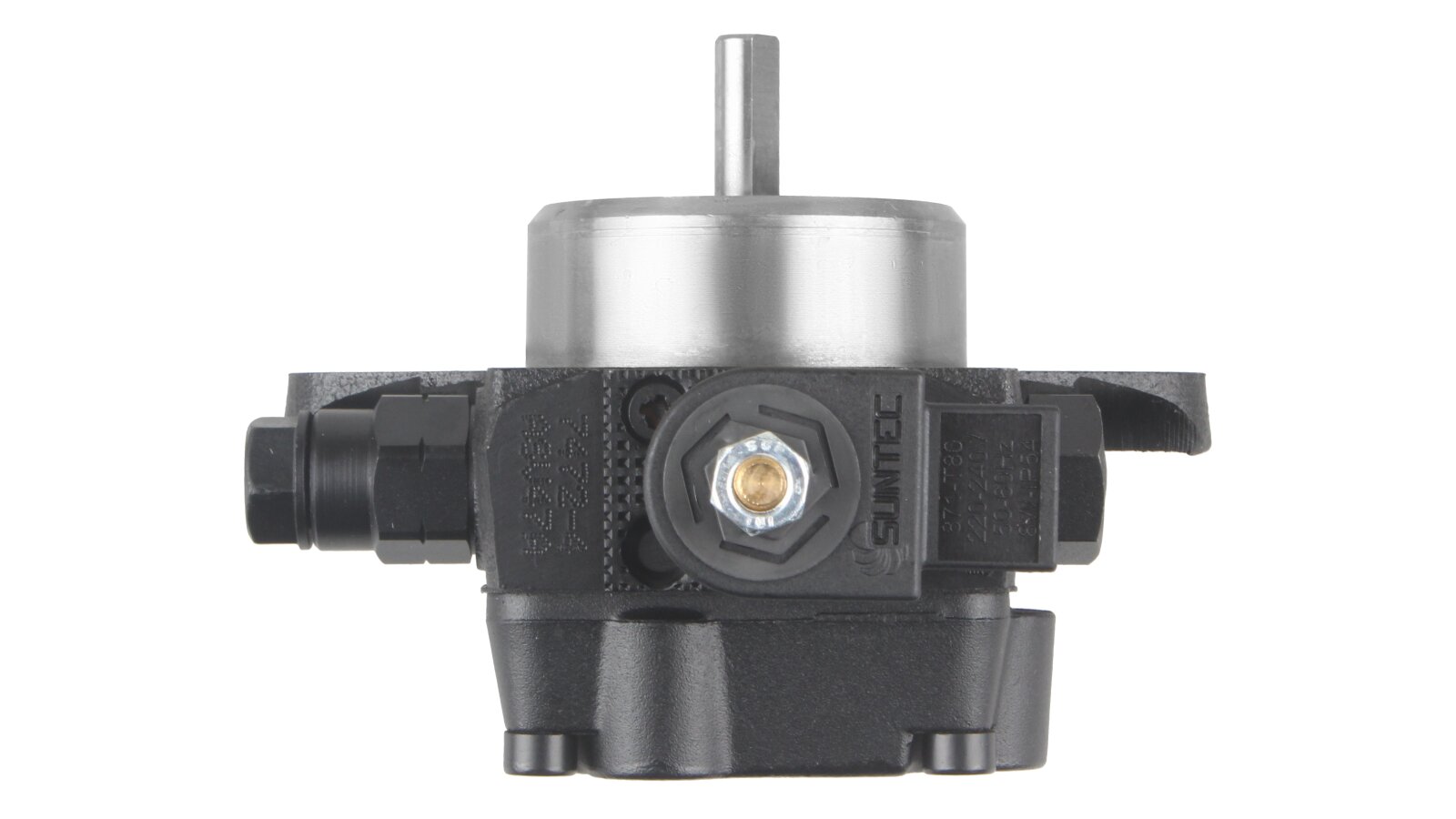

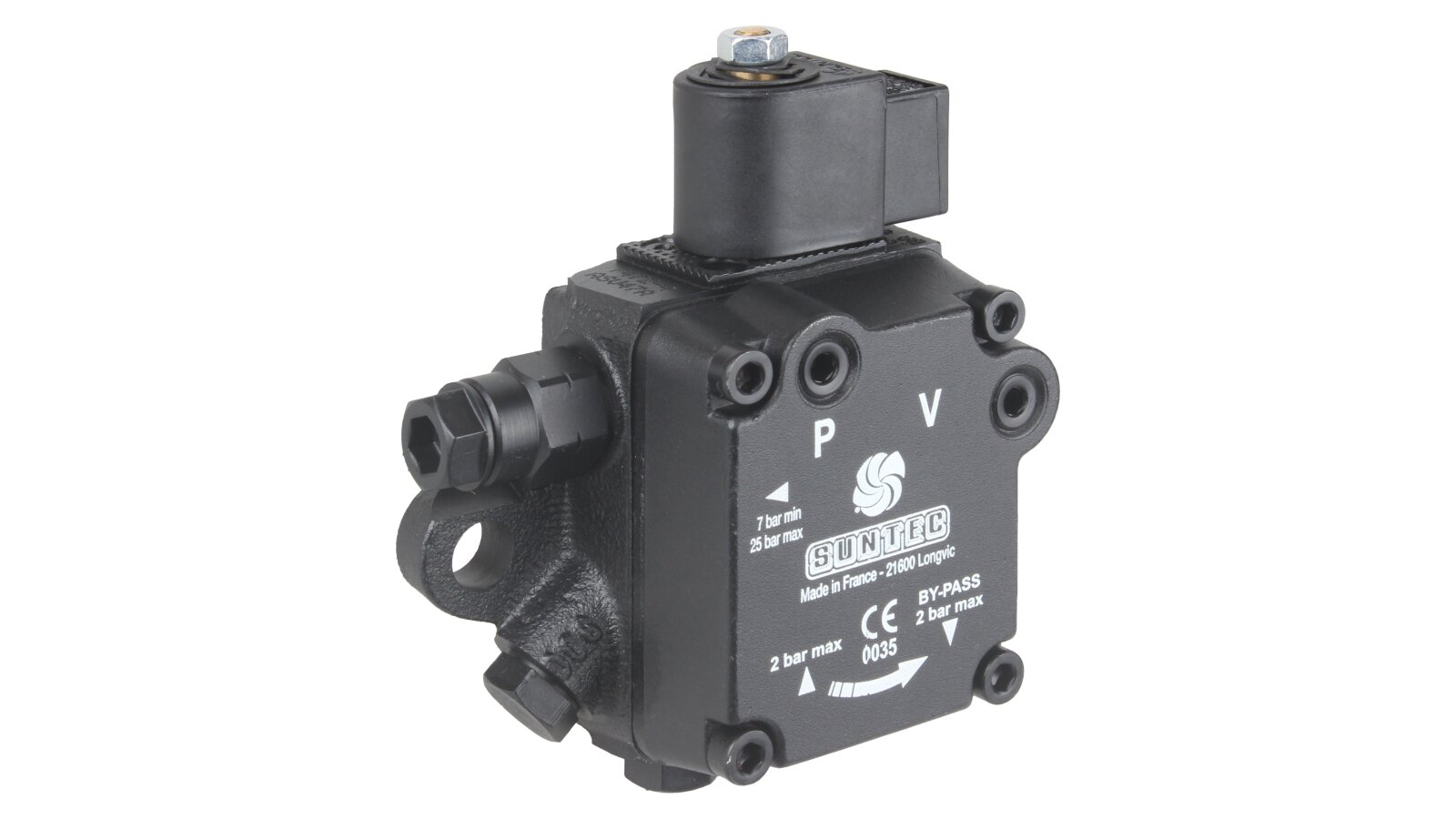

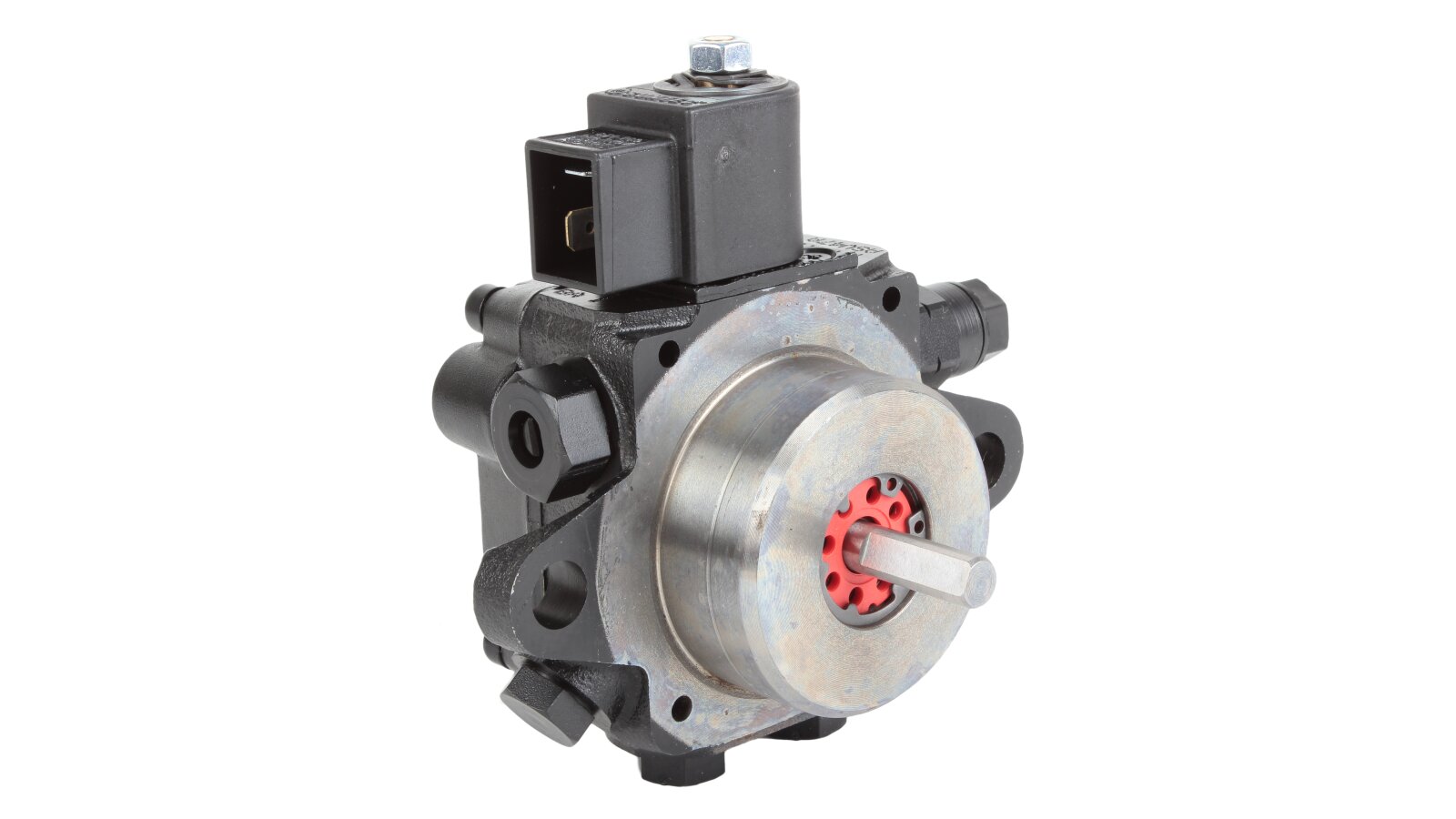

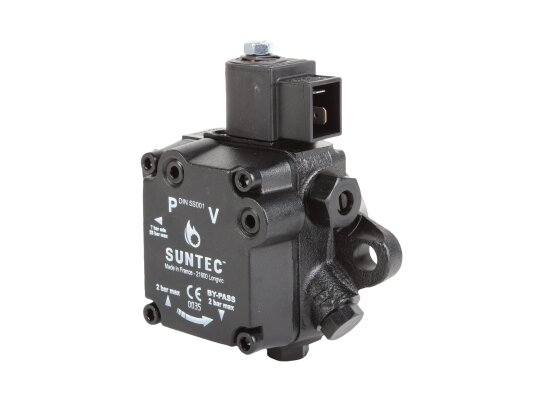

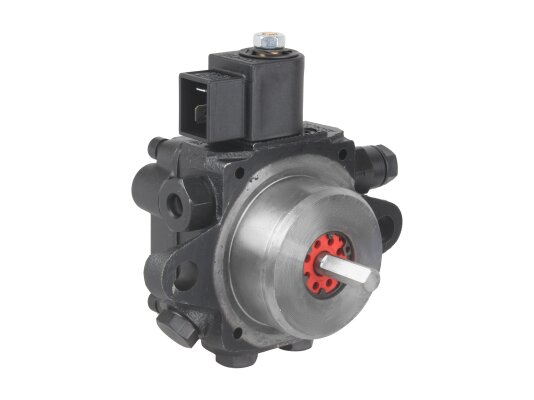

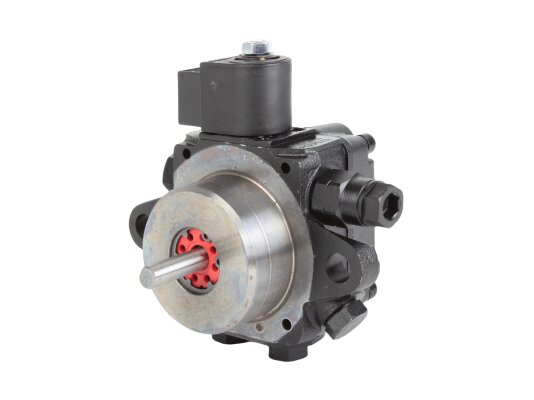

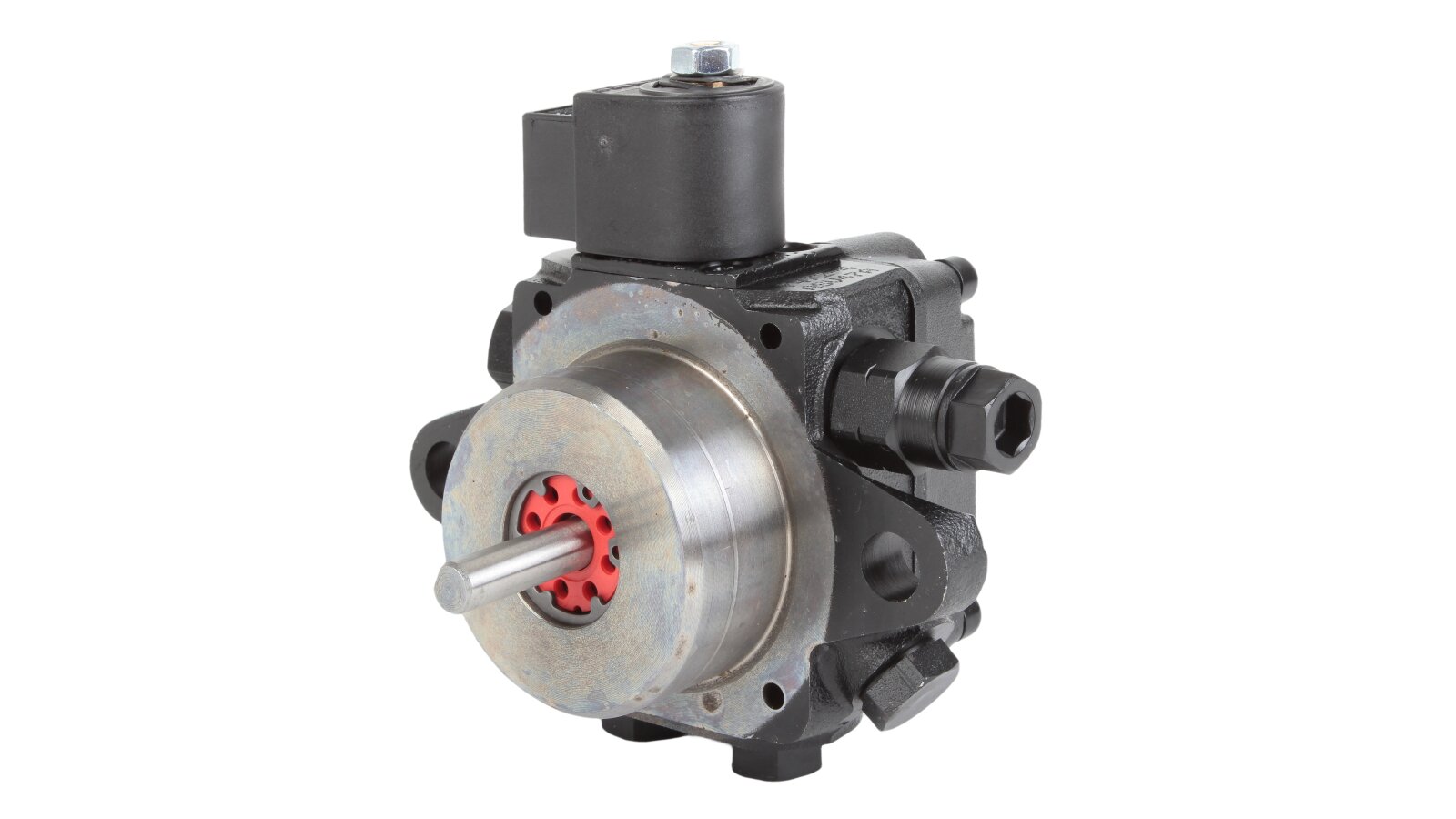

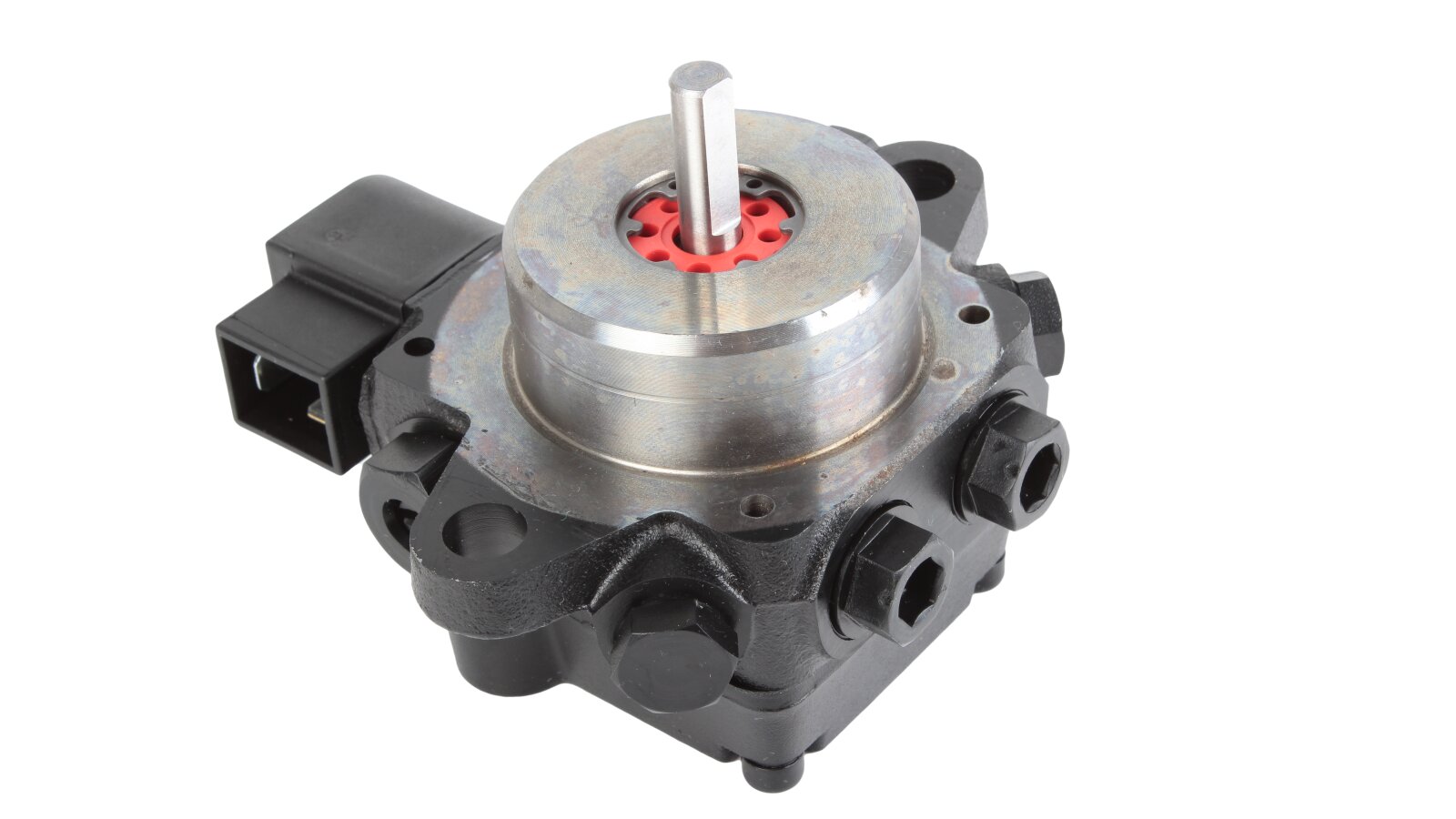

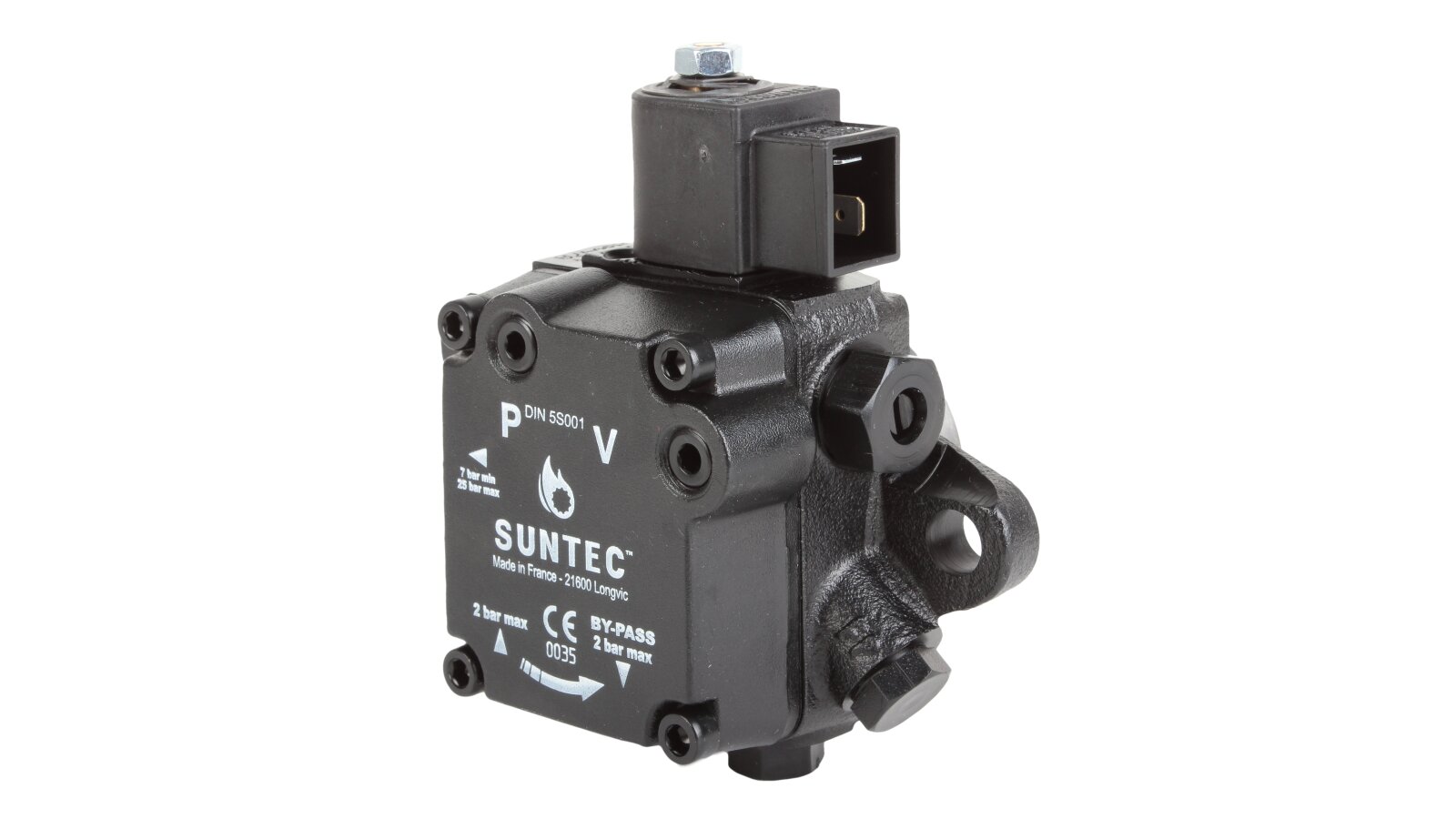

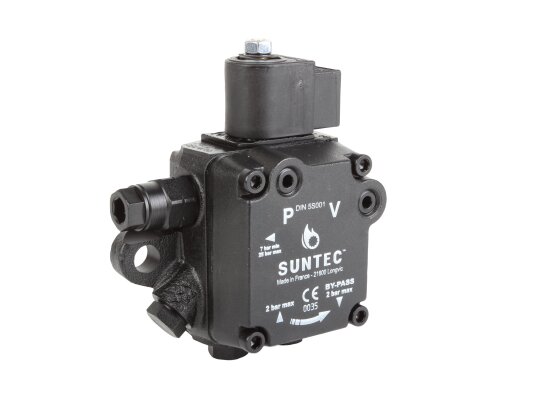

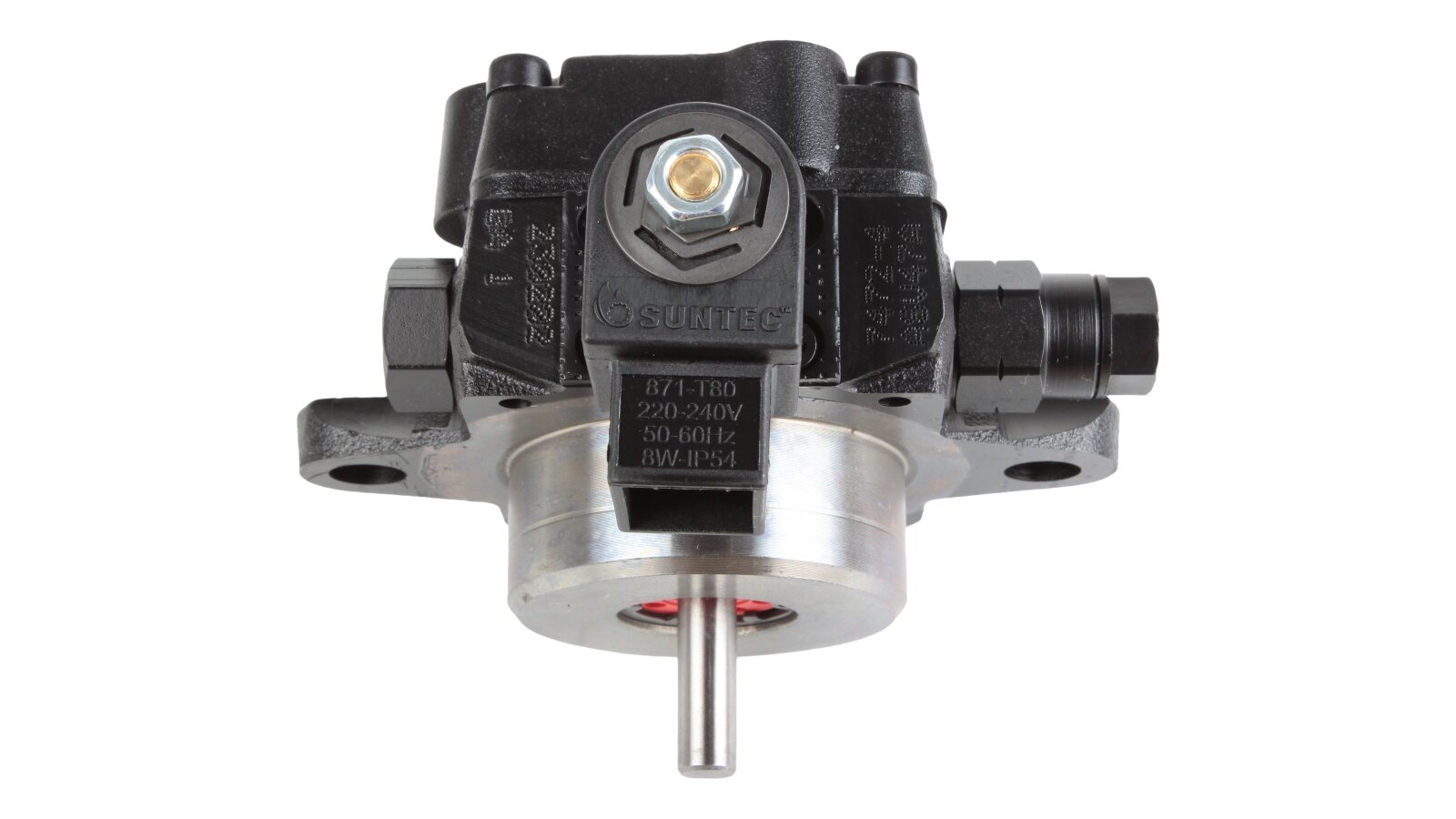

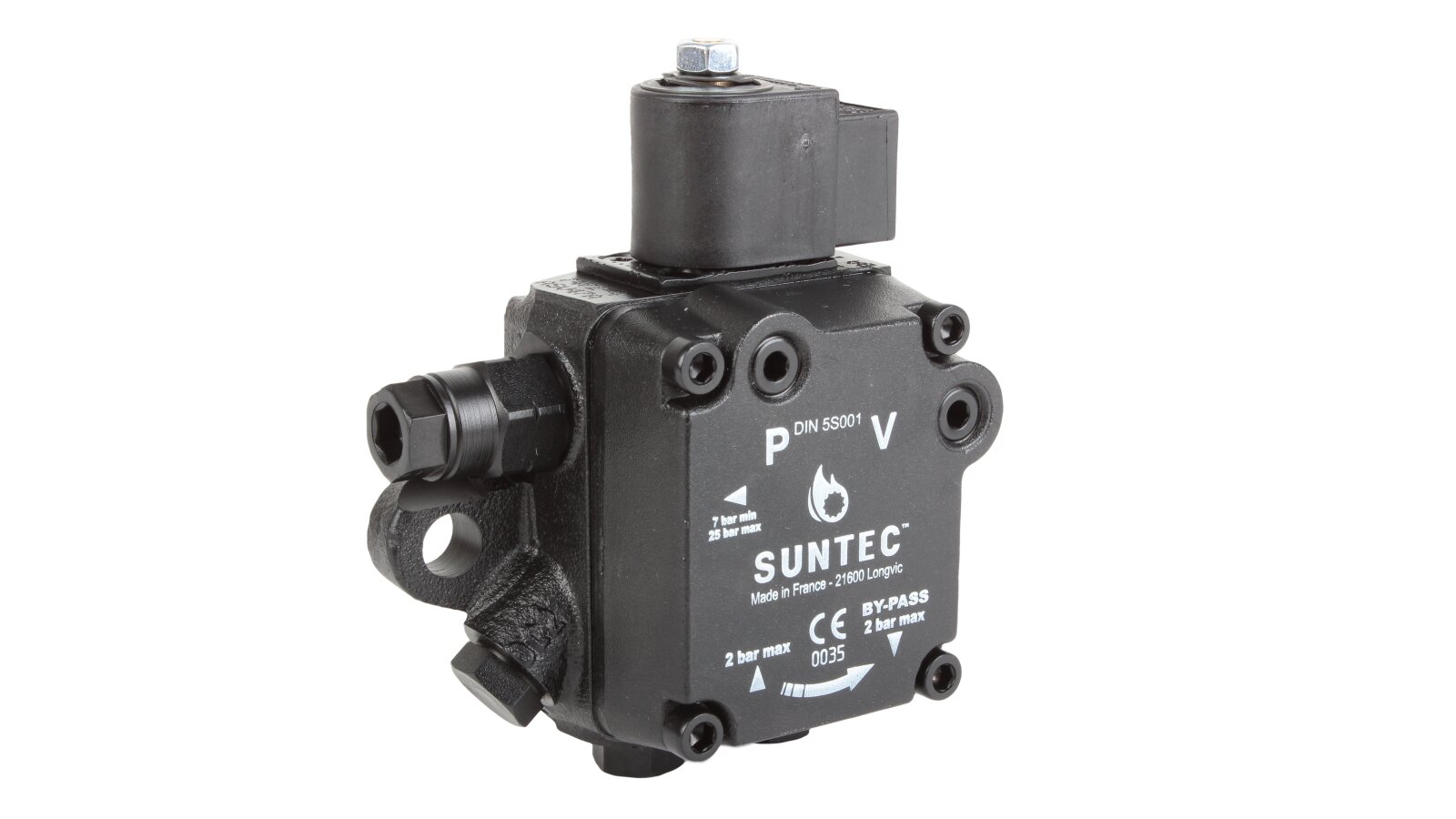

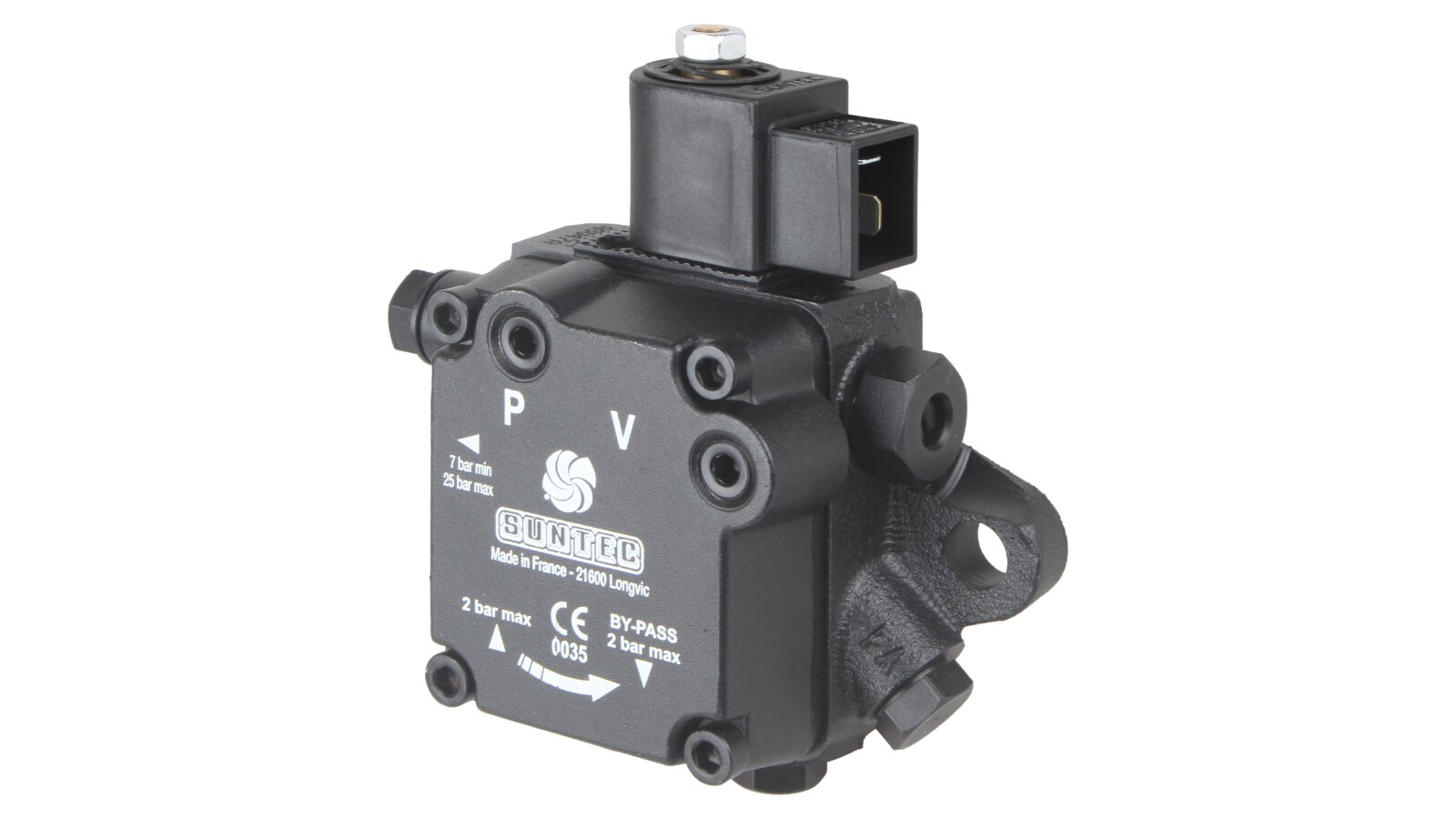

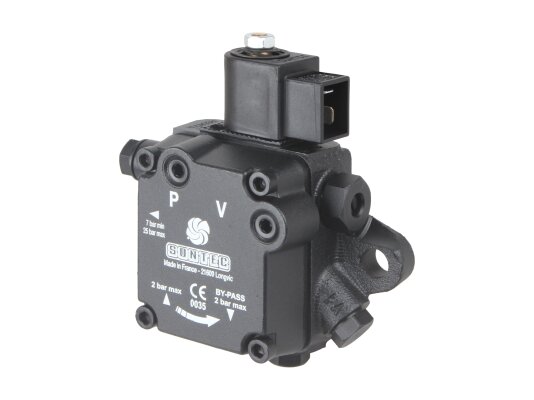

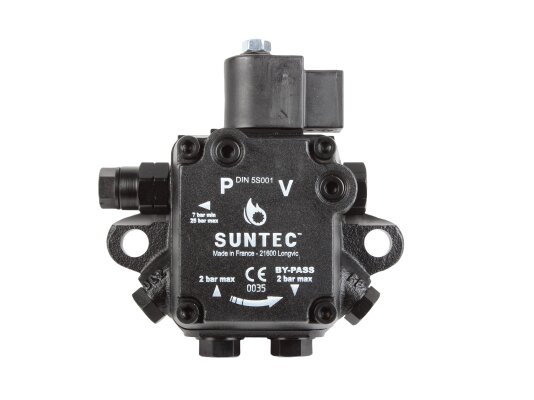

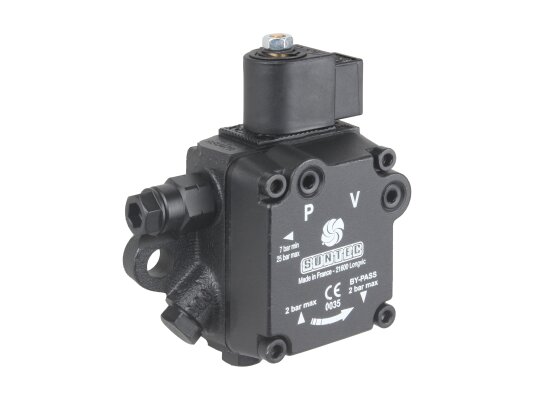

Burner Pump Suntec AS V 47 A 7472 4P 0700

Suntec

AED 775

Oil Burner Pumps
Products code: 6847

Description

The Suntec AS V 47 A 7472 4P 0700 pump is supplied complete with a built-in electromagnetic valve with a locking function, which ensures quick interruption and resumption of fuel supply when operating at any speed. The pump is used to pump diesel fuel and a mixture of biodiesel fuel B10.

Features

  • The pump design is made taking into account the IP54 electrical protection standards. The nozzle mounting branch is located on the right.

  • The pump is ready for installation in a system with a return line. When used in single-pipe designs, the bypass plug should be removed and a steel plug with a washer should be installed in its place.

  • Unused fuel is sent to the tank or passes to the suction line, depending on the system configuration.

  • A gear mechanism moves fuel from the tank to the nozzle, passing it through a filter and a pressure regulating valve. The filter removes coarse particles such as sand, rust, debris larger than 150 microns, protecting the gears from clogging and damage. Regular washing of the mesh contributes to the productive operation of the equipment.

  • The electromagnetic "normally open" valve provides a quick response. When it is inactive, the bypass channel is open, and the fuel returns to the tank (2-pipe connection) or to the gears (1-pipe system). The active position of the valve closes the drain channel, fuel is pumped to the nozzle.

  • "By default" the pump is set to 9 bar. To meet individual needs, the pressure can be adjusted in the range: 7-14 bar. The pump performance depends on the pressure and viscosity of the fuel.

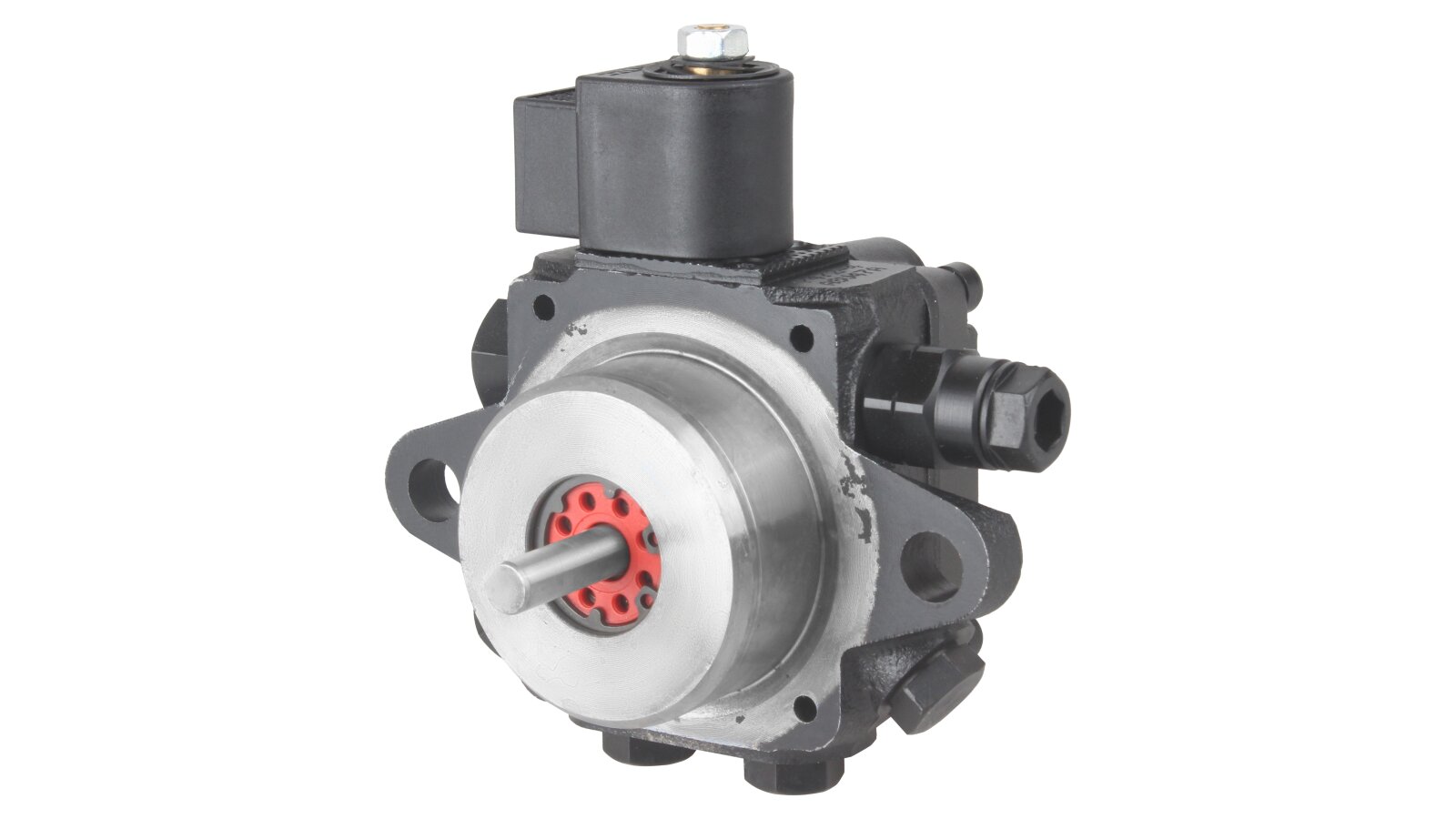

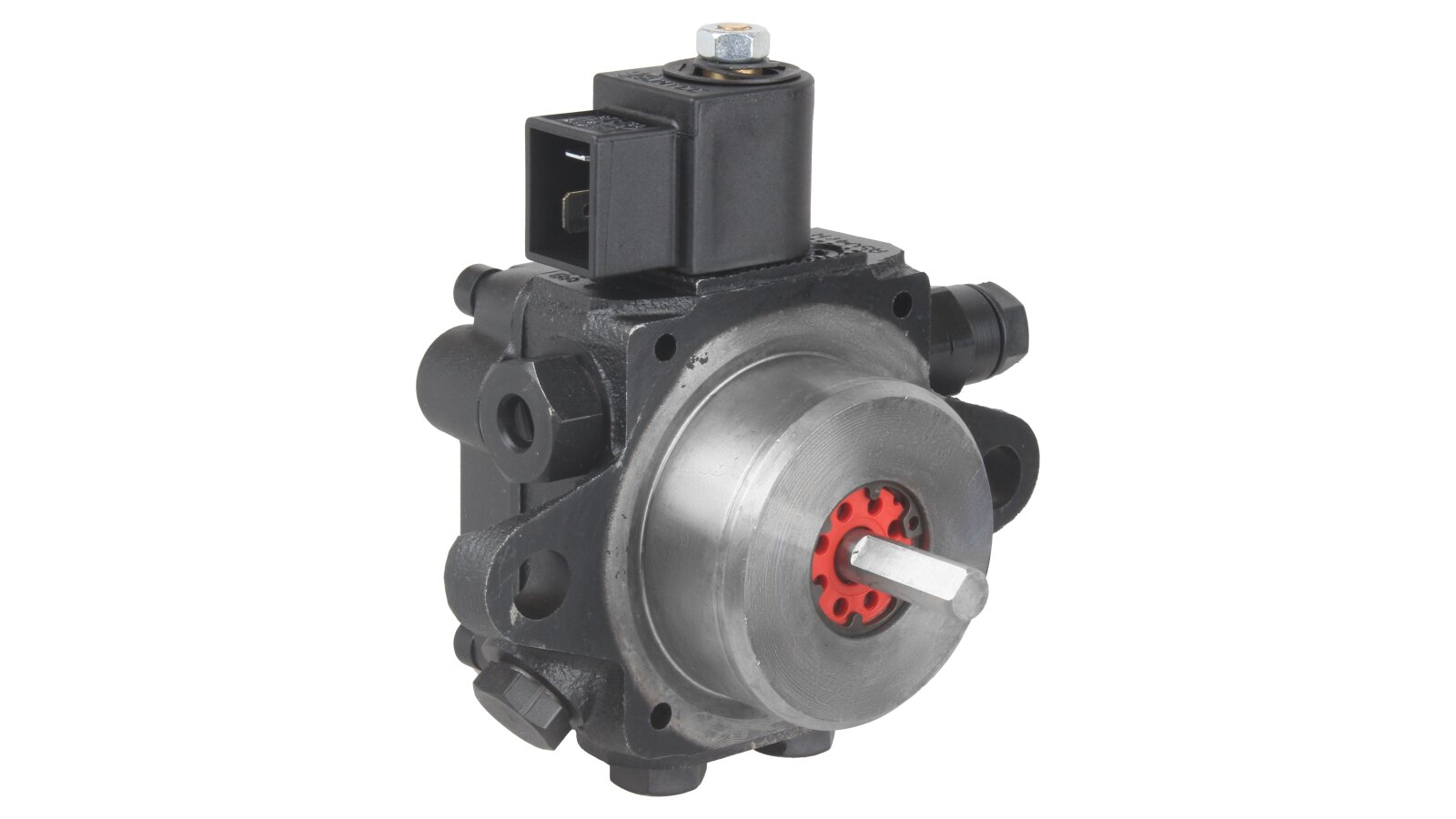

  • The sleeve mounting method ∅32 mm according to the European standard EN225 allows the pump to be used for burners of most brands.

Advantages:

  • works with diesel fuel and biodiesel;

  • electromagnetic valve with a locking function;

  • mesh filter for removing coarse impurities from fuel;

  • variability of installation – in one- and two-pipe systems;

  • standard ports for connecting measuring equipment;

  • reliable protection of electrical components from dust and moisture (IP54);

  • universal installation according to European standard EN 225;

  • stable, long service life.

In addition to the Suntec AS V 47 A 7472 4P 0700 pump, the ANKAS catalog presents a wide range of equipment, accessories and installation accessories for assembling heating systems of any capacity and purpose.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barOperating viscosity: from 2 to 12 mm²/sNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.1 N·mDegree of protection: IP54
