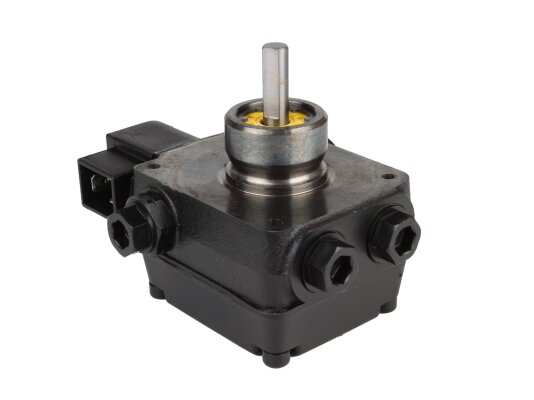

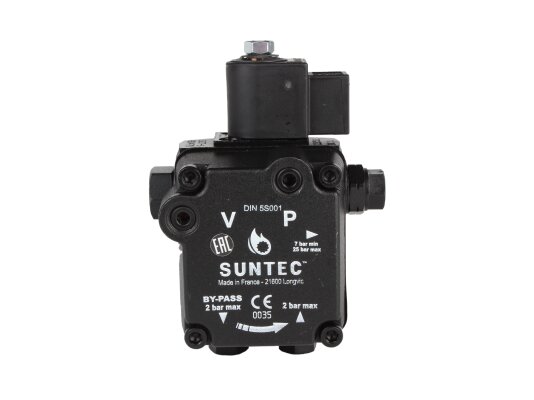

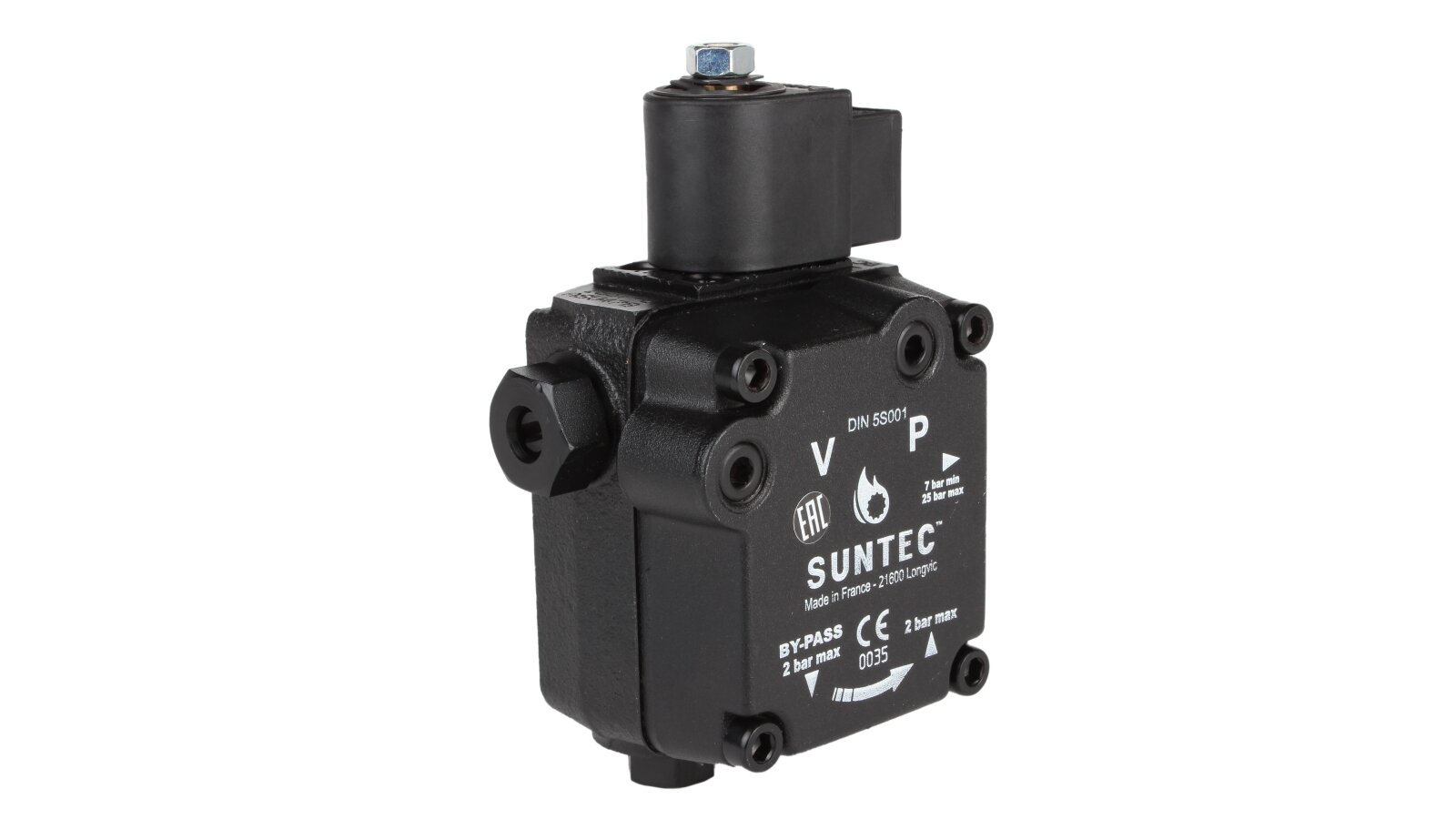

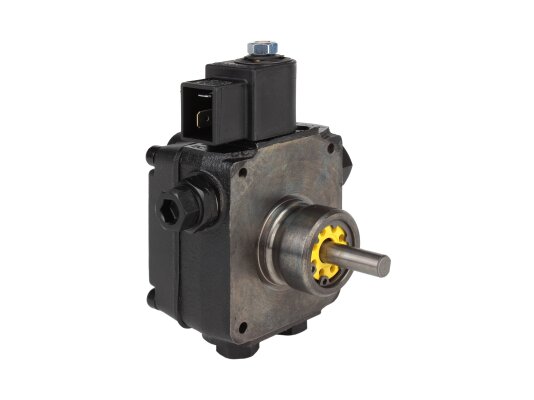

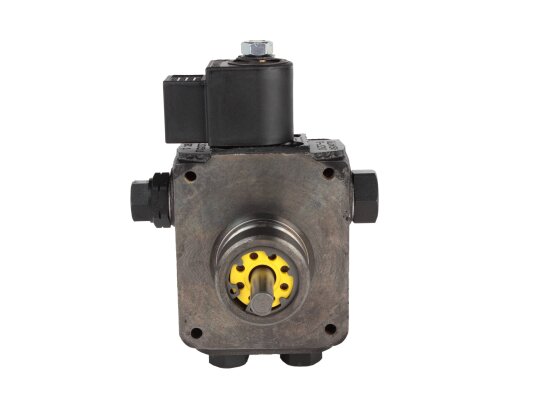

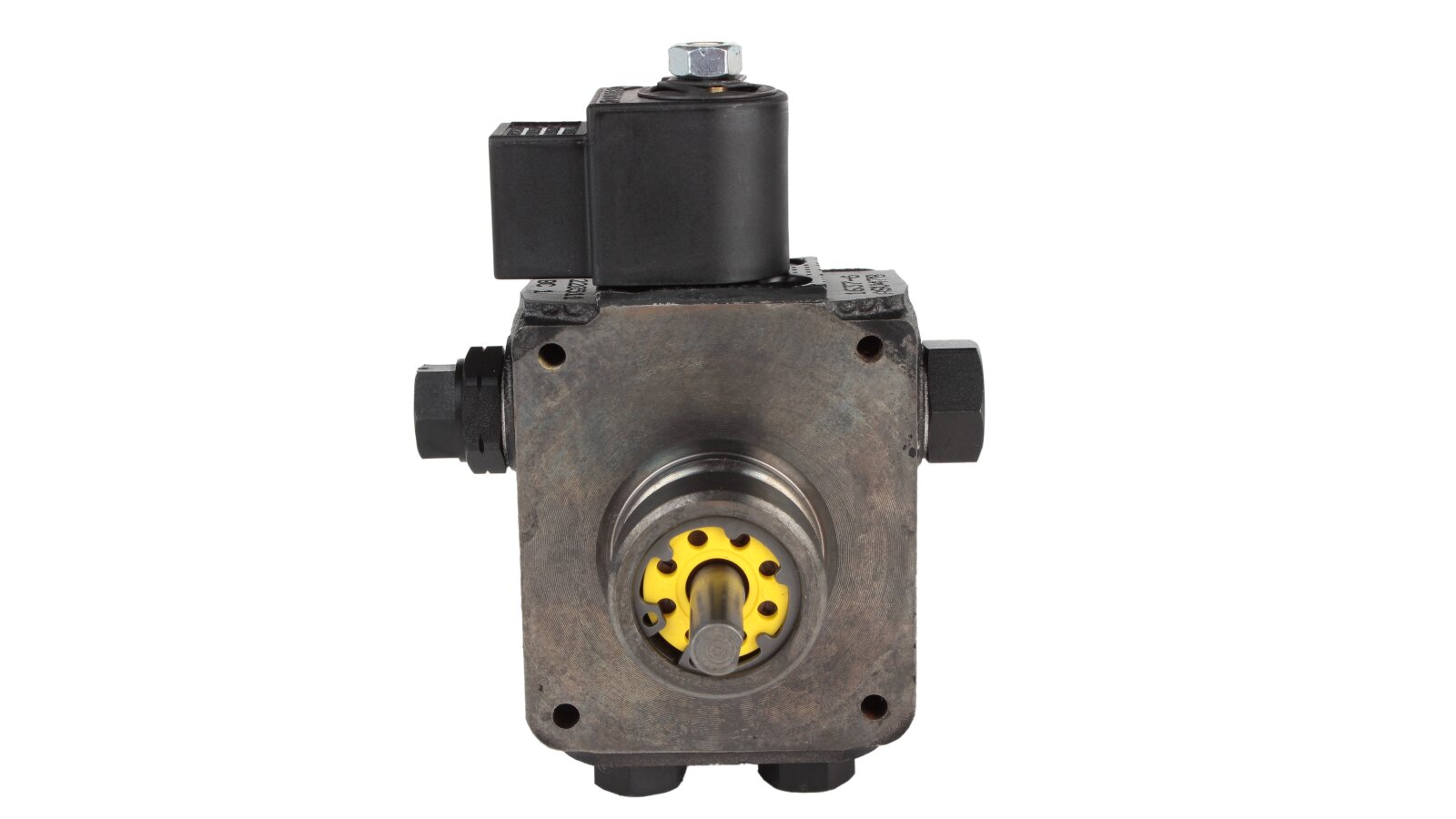

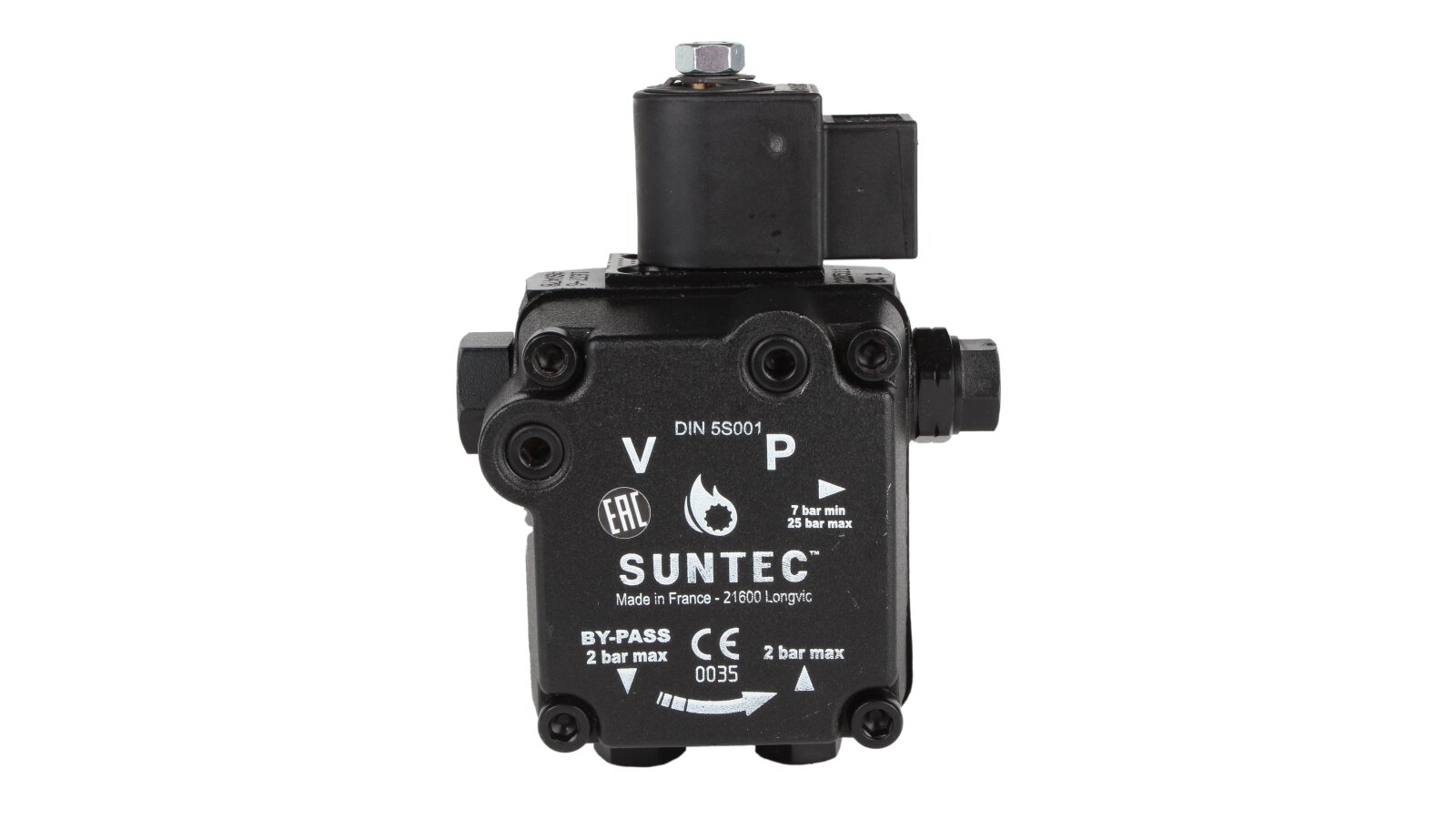

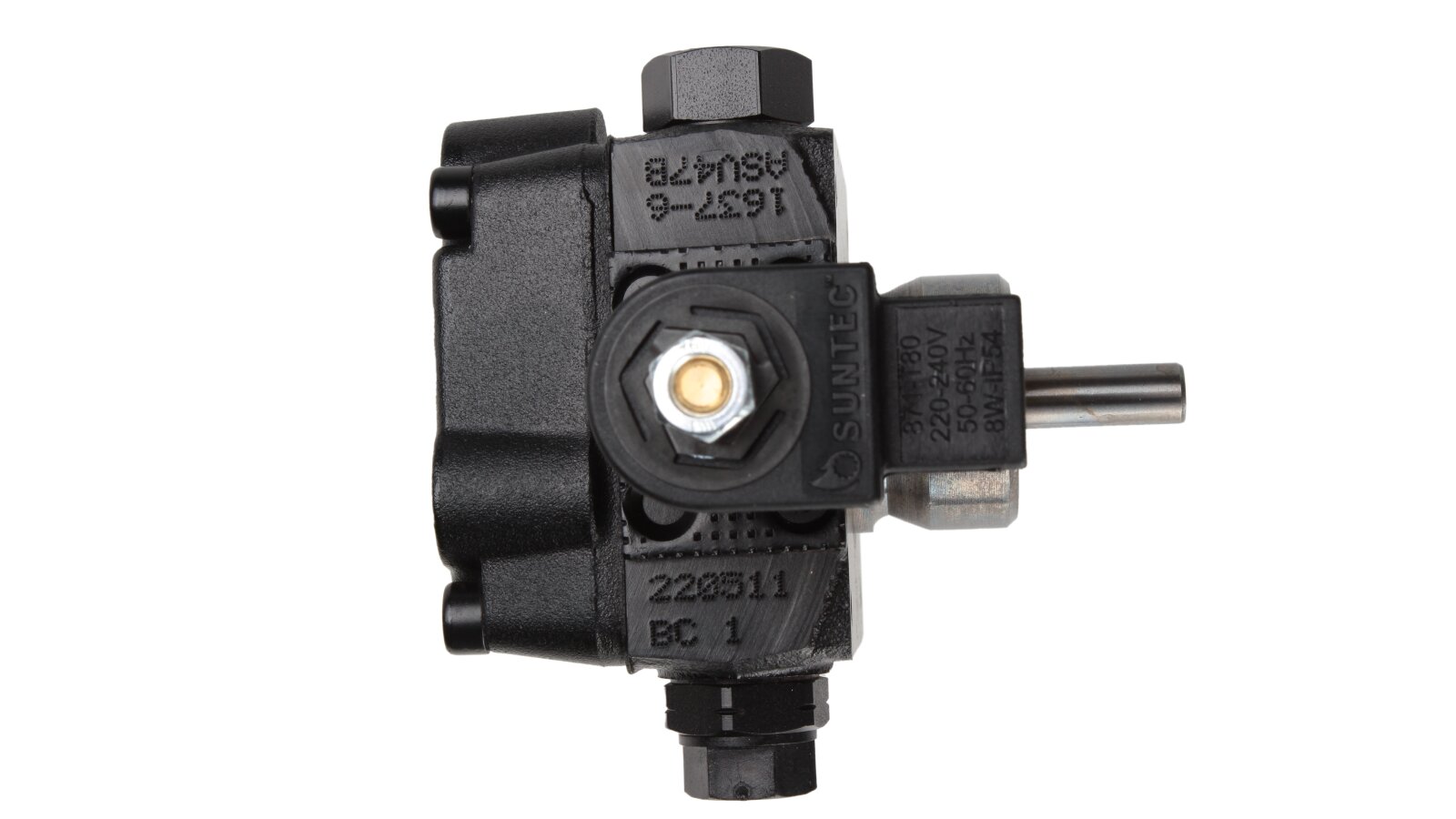

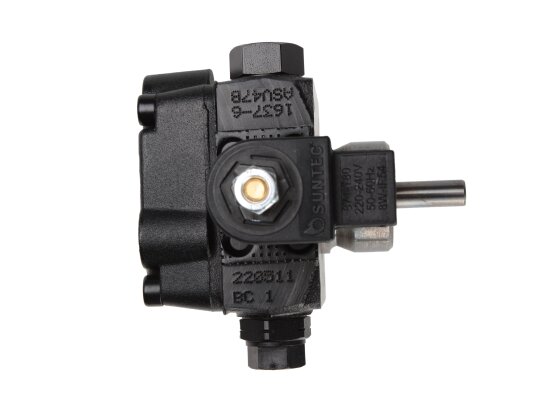

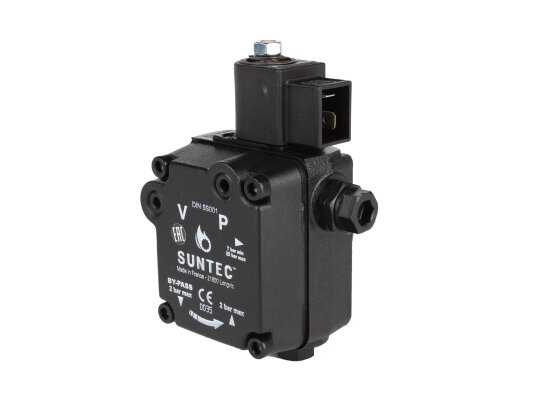

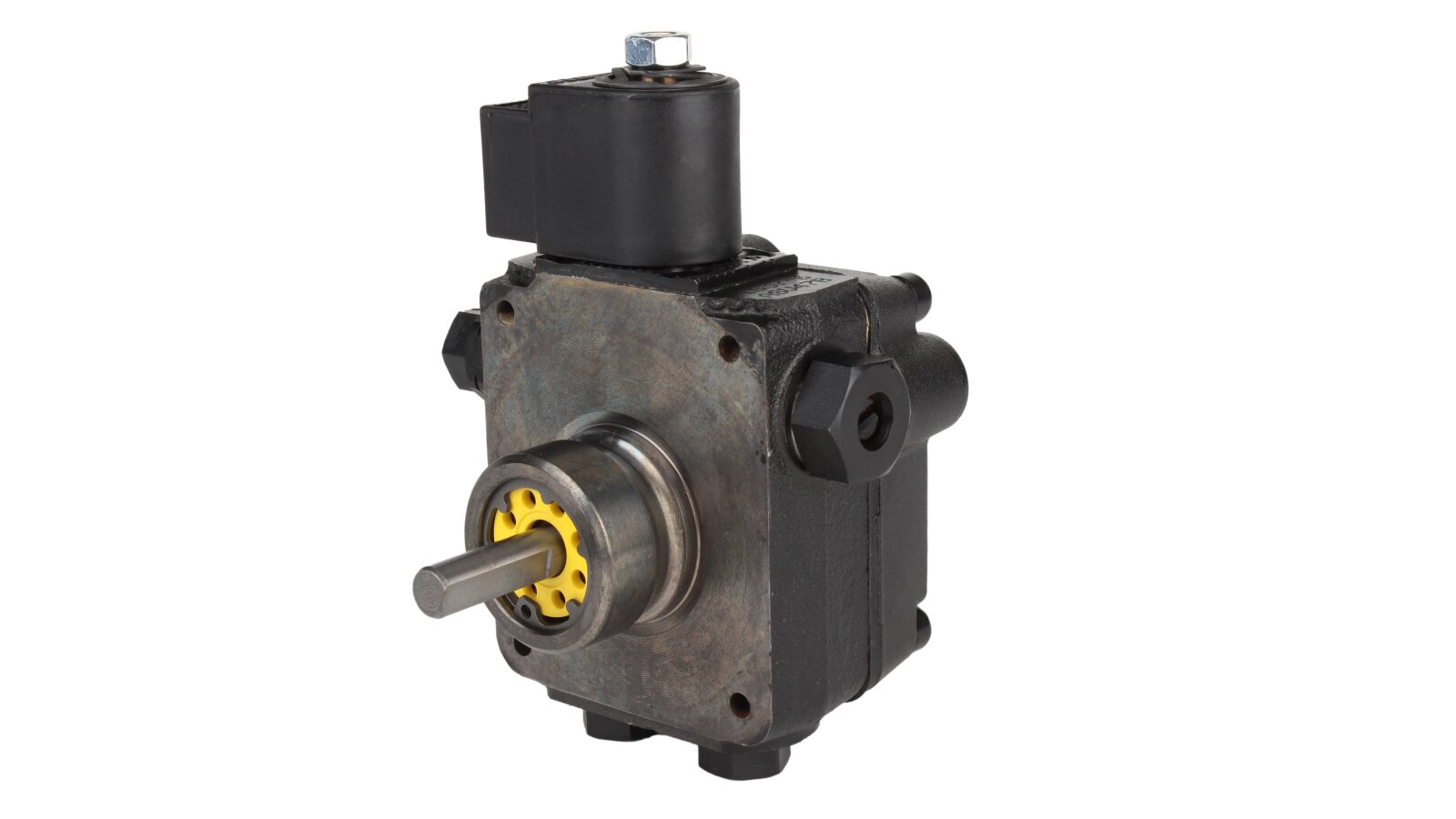

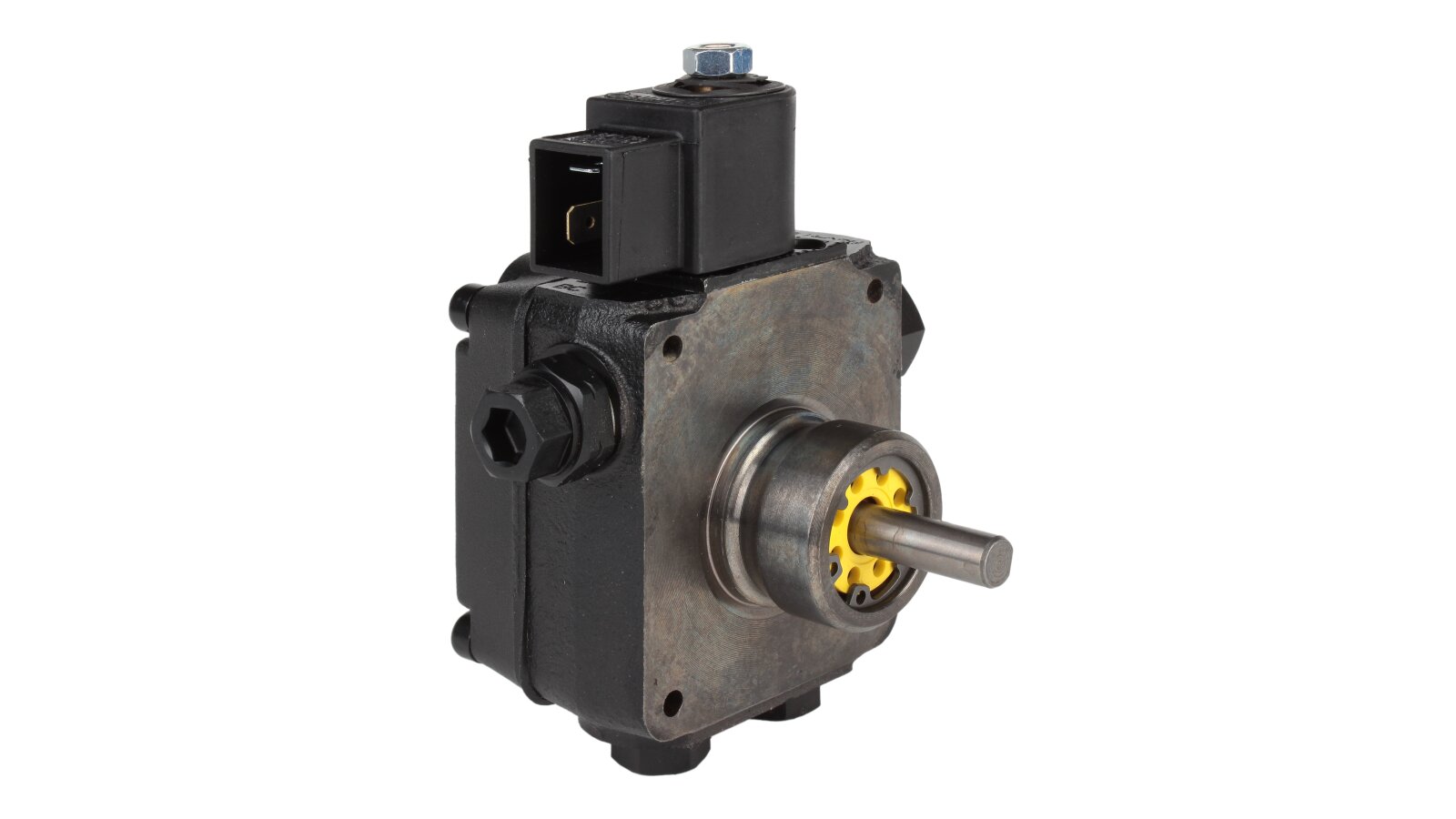

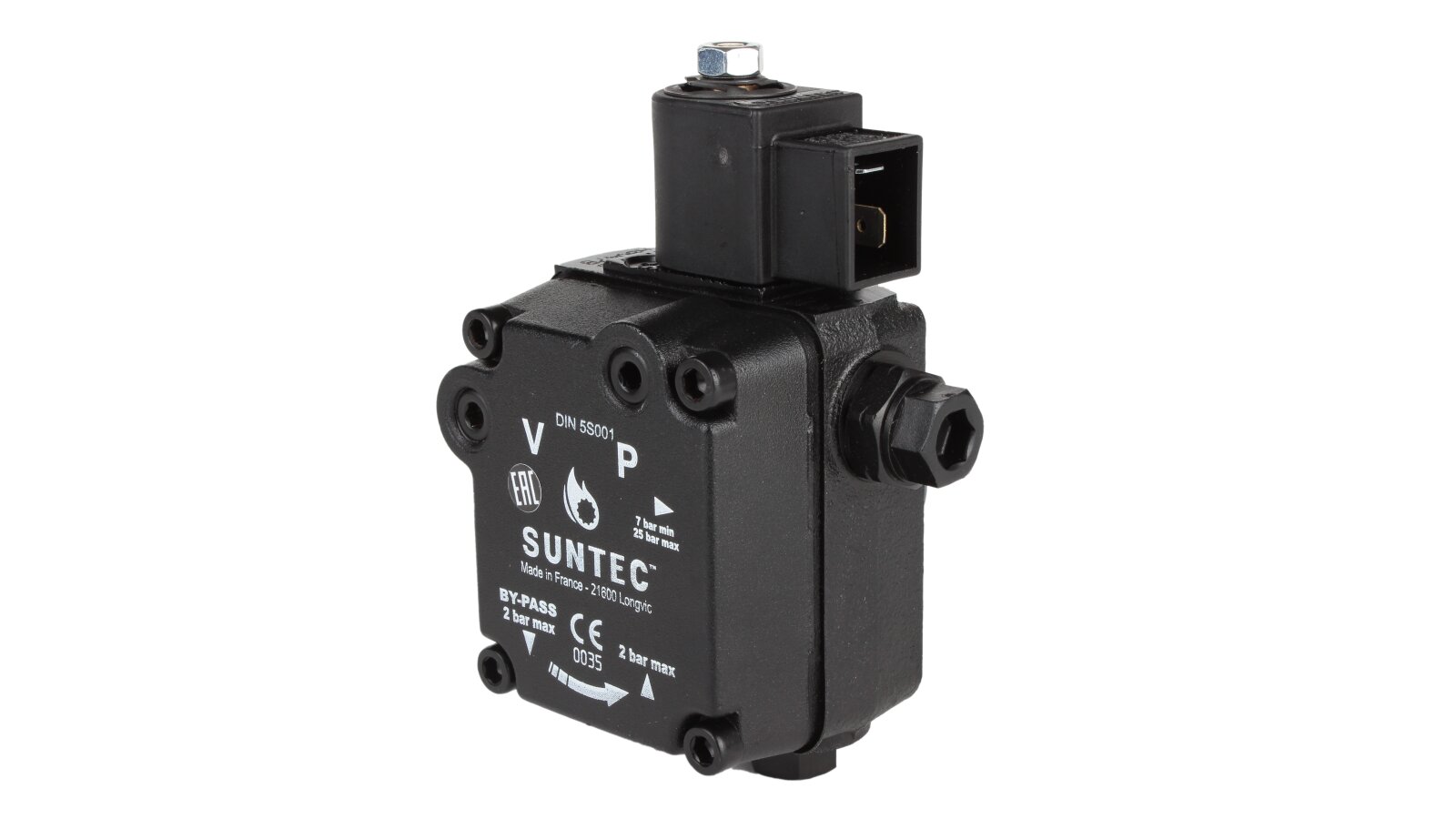

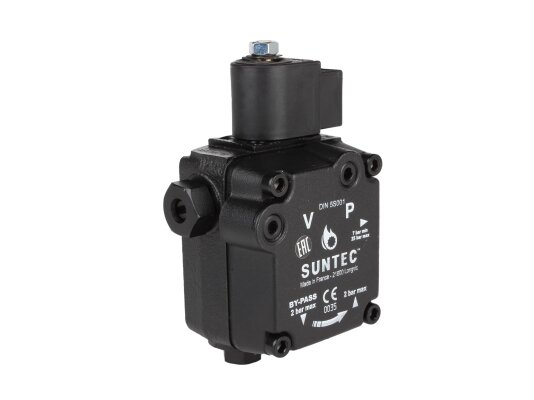

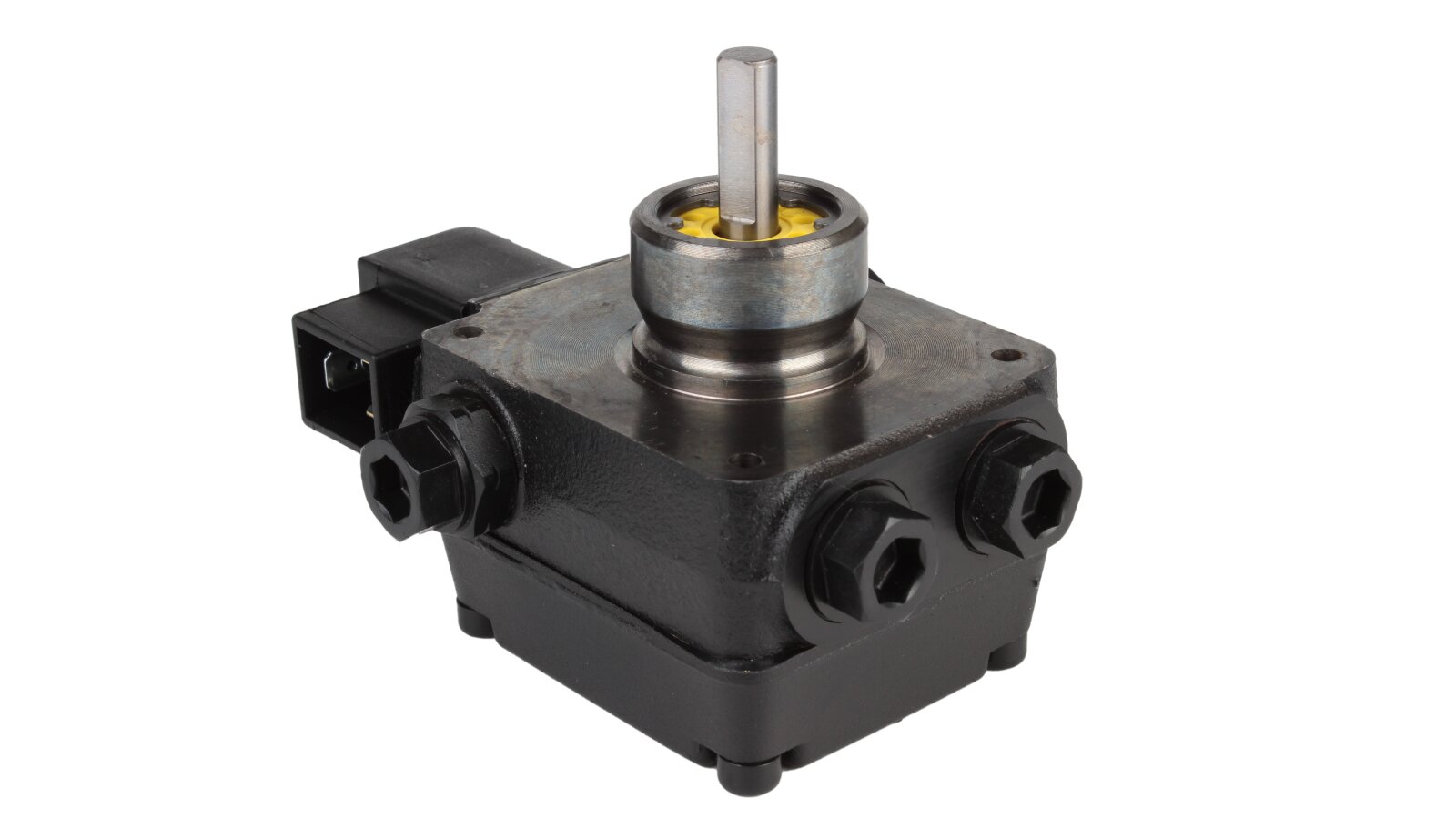

Burner Pump Suntec AS V 47 B 1637 6P 0700

Suntec

AED 800

Oil Burner Pumps
Products code: 6846

Description

The Suntec AS V 47 B 1637 6P 0700 pump pumps diesel fuel and a mixture of biodiesel fuel B10. It is equipped with a built-in electromagnetic valve, which acts as a shut-off valve for quick interruption and resumption of fuel supply when operating at any speed.

Features

  • The pump is manufactured in accordance with the IP54 standard. The housing reliably protects electrical components from dust and moisture. The nozzle connection is located on the left.

  • The pump is supplied from the factory ready for installation in a system with a return line. To create a single-pipe design, the bypass plug should be removed and a steel plug with a washer should be installed instead.

  • Depending on the features of the connection diagram, unused fuel returns to the tank or passes into the suction line.

  • The main working element of the pump is a pair of gears. The gear mechanism is responsible for moving fuel from the tank to the nozzle.

  • A mesh filter is installed at the fuel inlet to protect the working unit from breakage and wear. All abrasive particles of 150 microns in size are retained by the mesh. To maintain performance, regularly wash the filter from dirt.

  • The electromagnetic "normally open" valve provides instant response. In its inactive state, the bypass channel is open, the fuel is directed back to the tank (2-pipe connection) or passes to the suction (1-pipe system). The active position of the valve closes the drain channel, and the fuel is supplied to the injector.

  • The pressure is regulated in the range: 10-15 atm. Factory setting - 10 bar. Performance depends on the set pressure and viscosity of the fuel.

Advantages:

  • electromagnetic valve with a locking function;

  • pumping diesel fuel and biodiesel;

  • sifting out abrasive particles before they enter the gears;

  • one- and two-pipe connection;

  • universal installation according to the European standard EN 225;

  • ports for connecting measuring devices;

  • high level of protection against dust and moisture (IP54);

  • uninterrupted, reliable service.

Additional information about the Suntec AS V 47 B 1637 6P 0700 pump and other equipment for burners can be obtained from ANKAS consultants.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 80 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 10 barOperating viscosity: from 2 to 12 mm²/sNozzle pressure range: from 10 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.12 N·mDegree of protection: IP54
