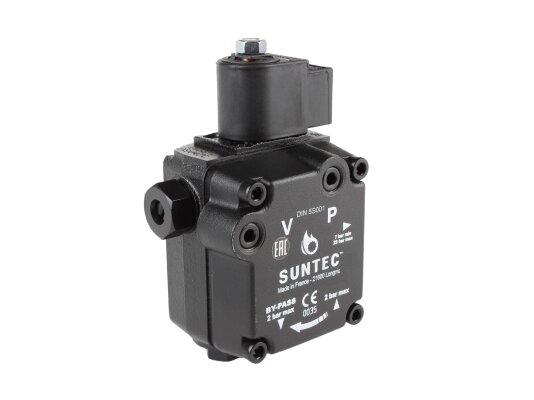

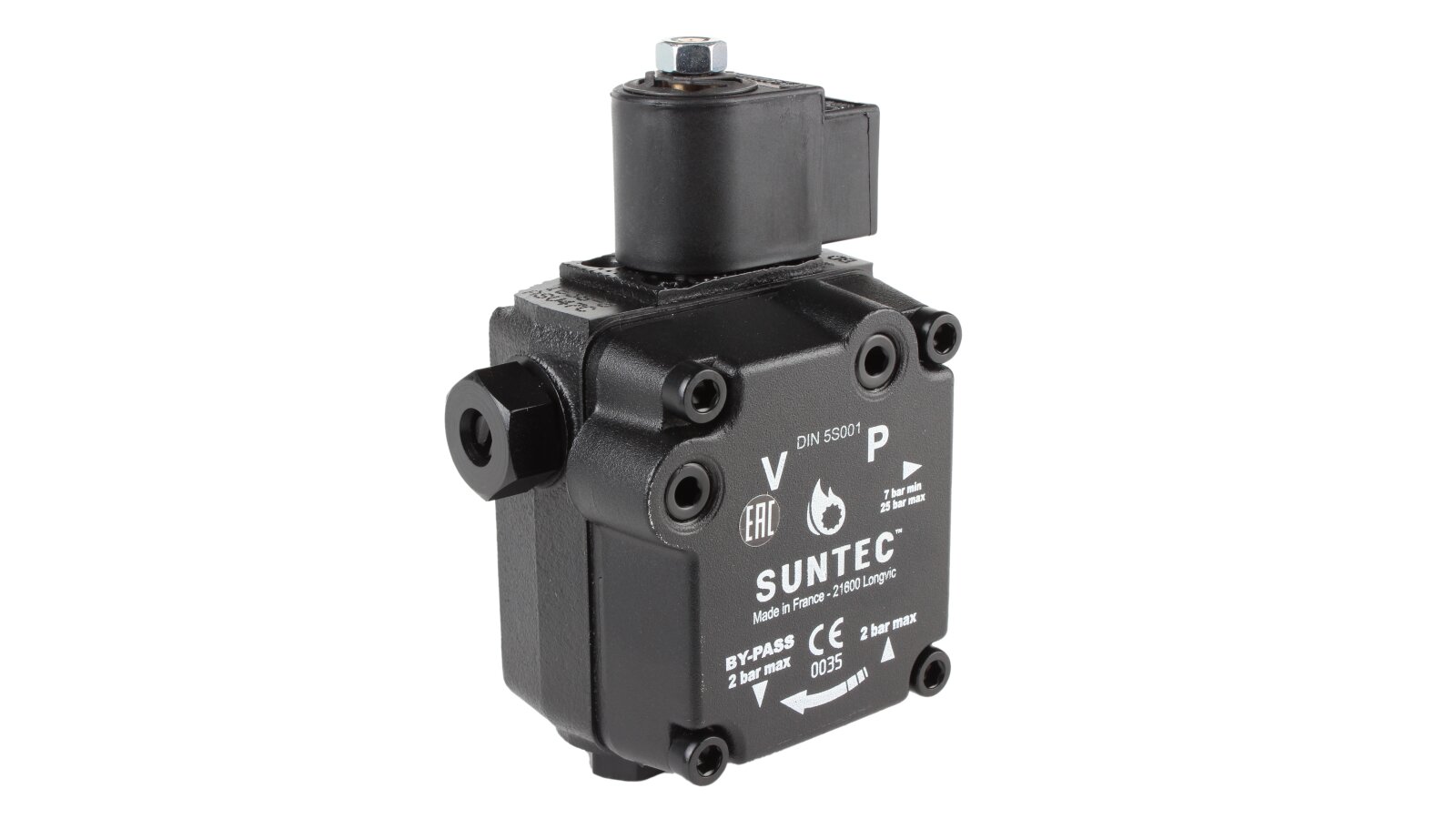

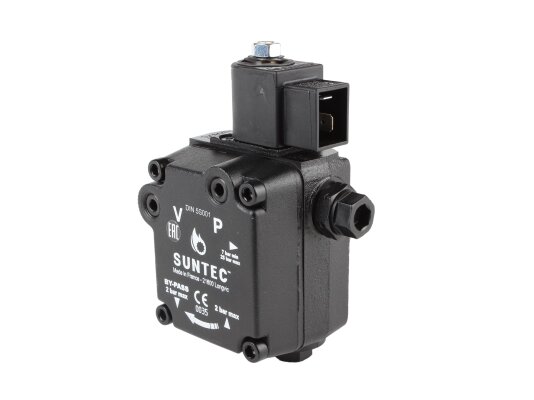

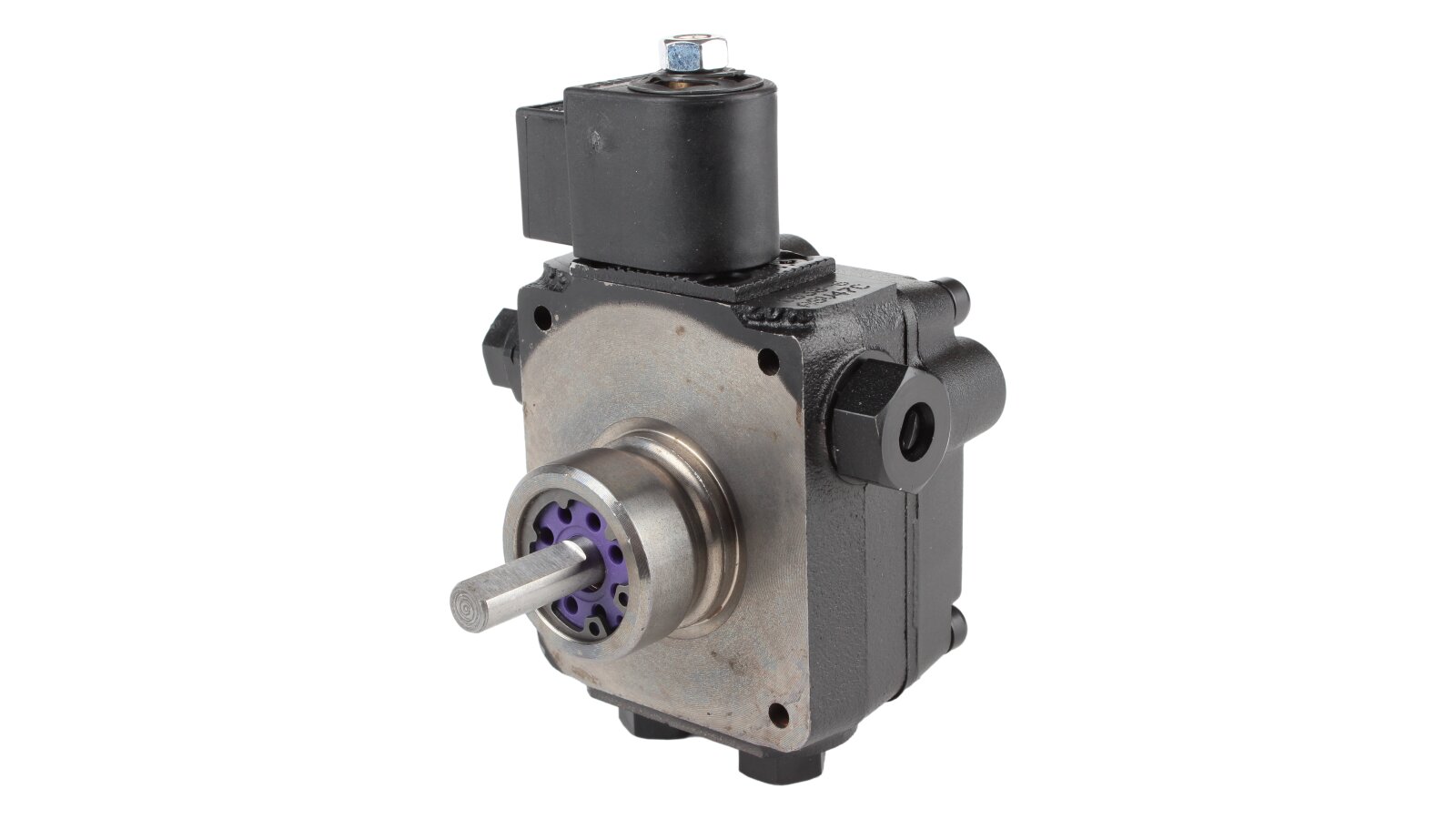

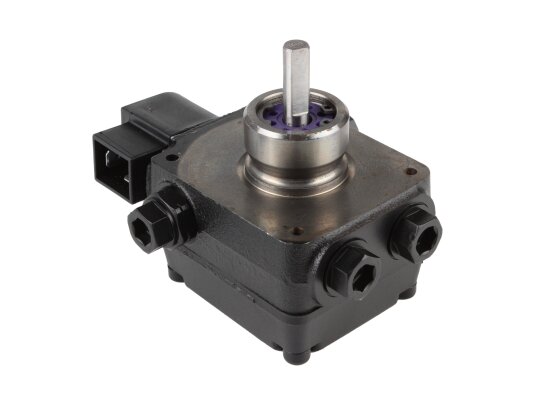

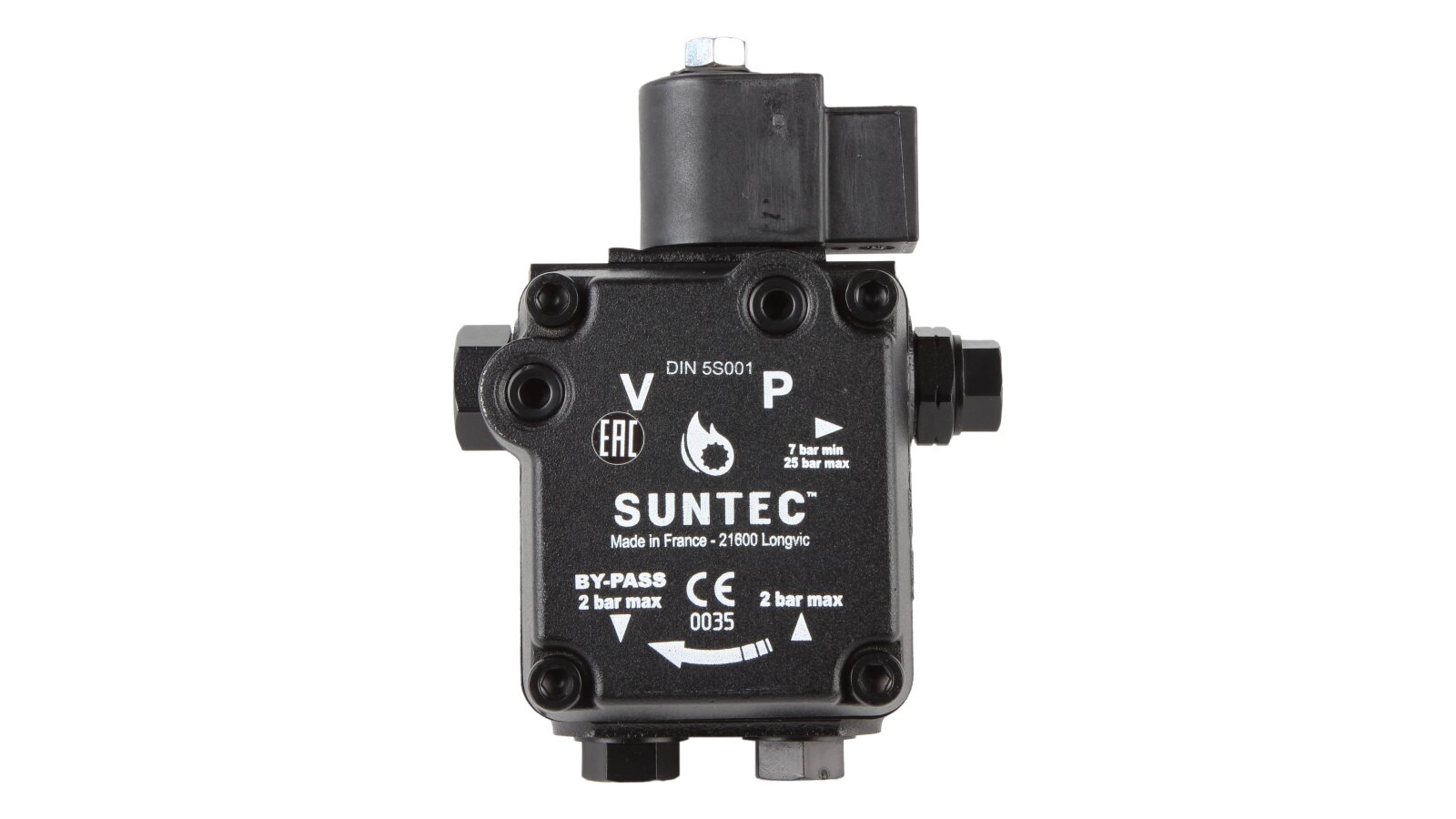

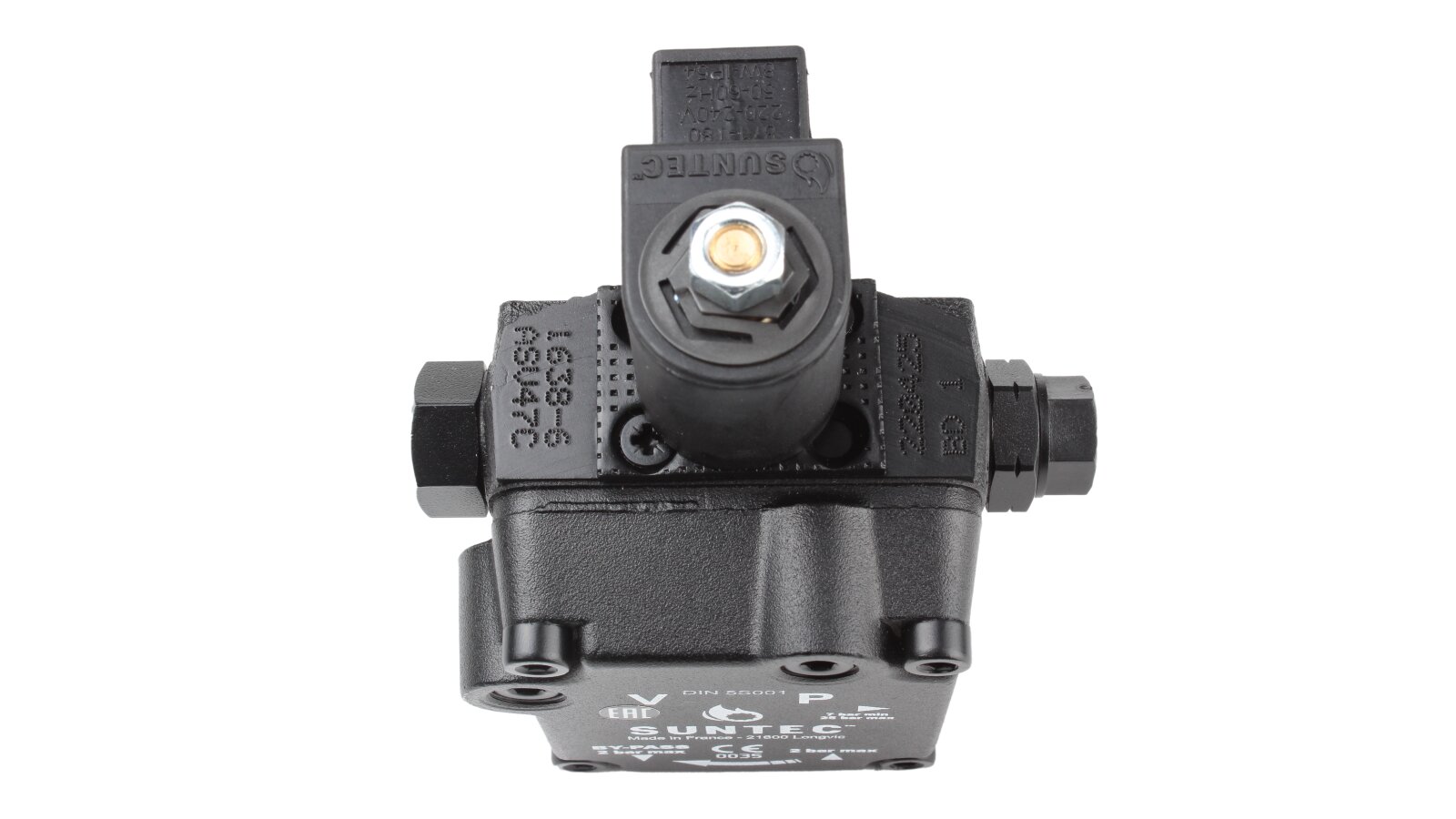

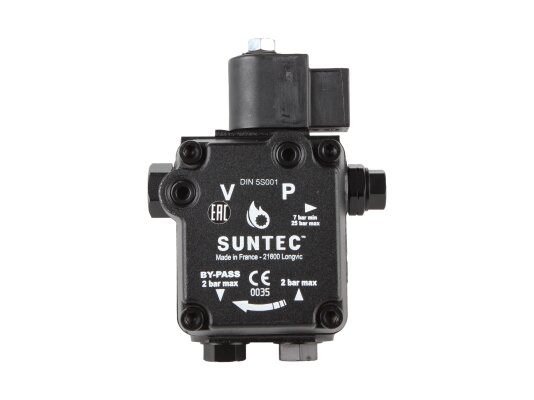

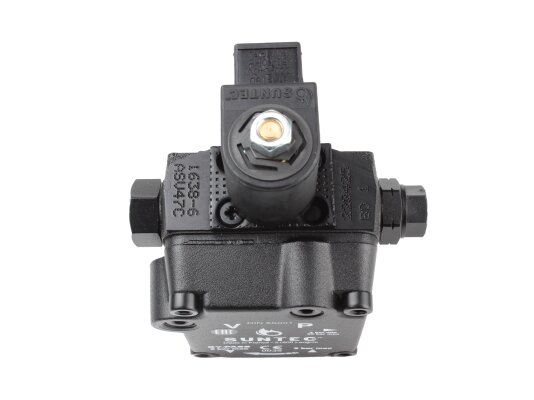

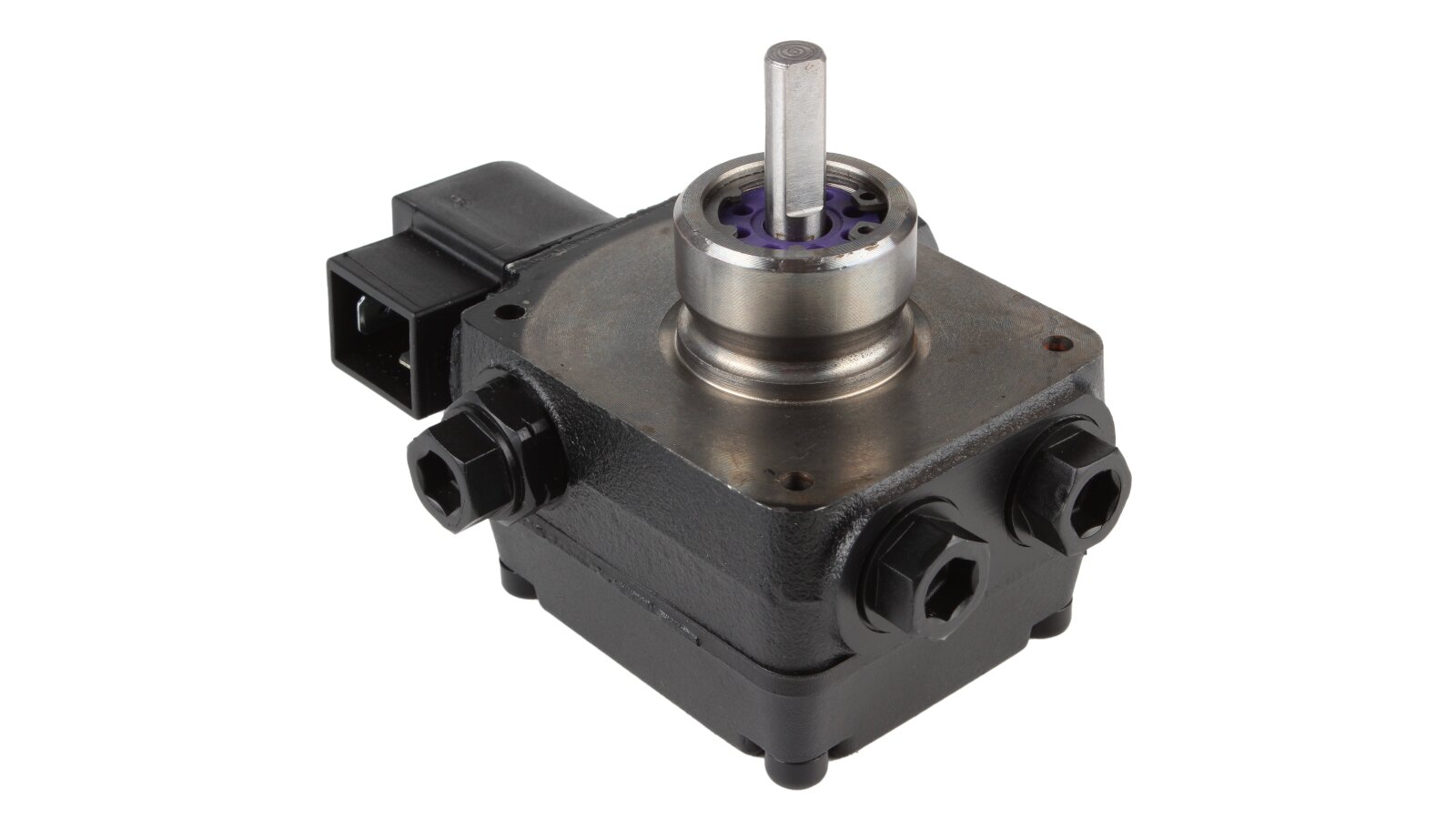

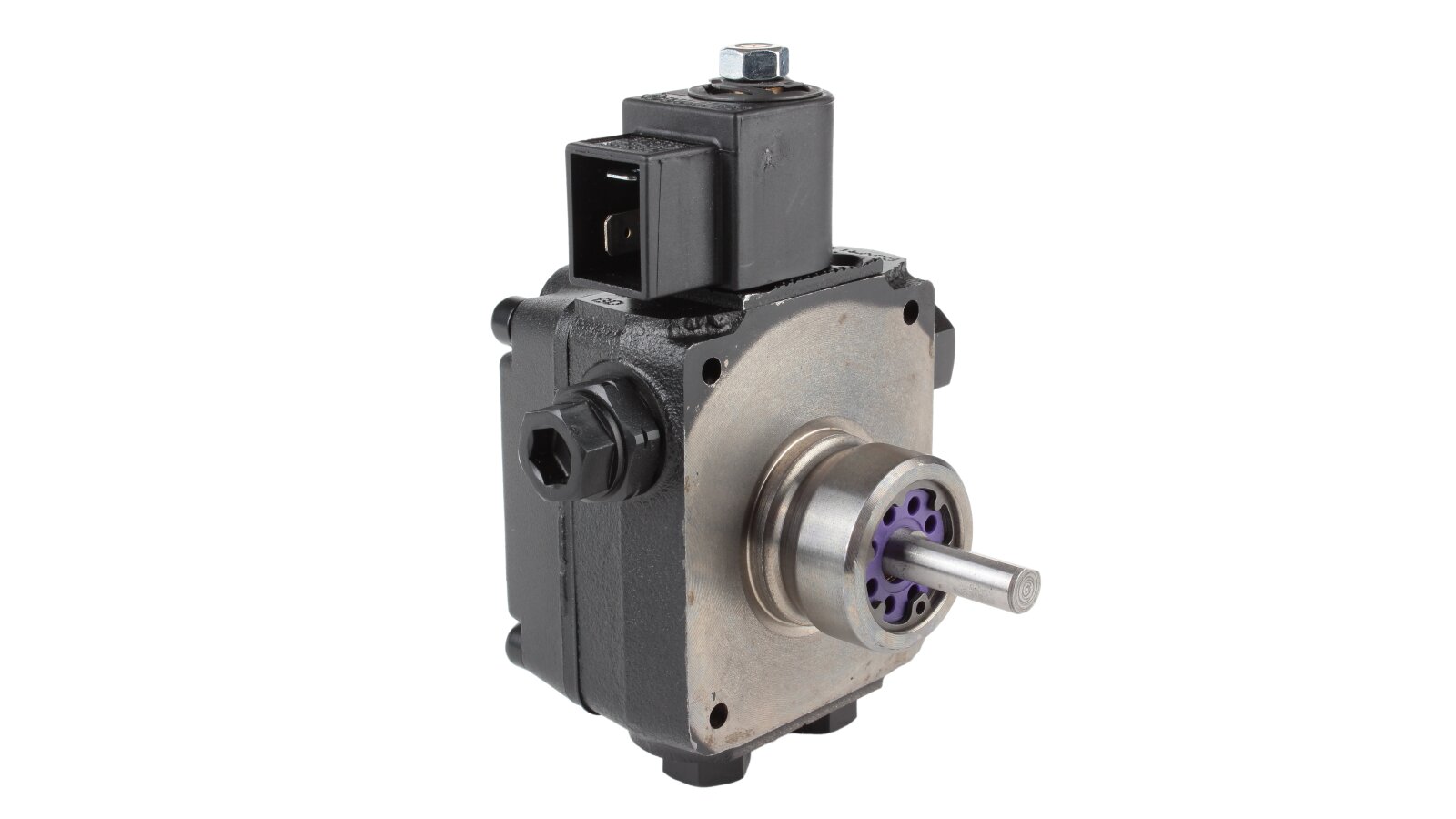

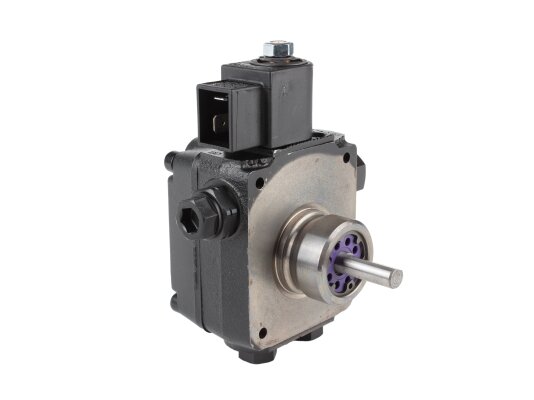

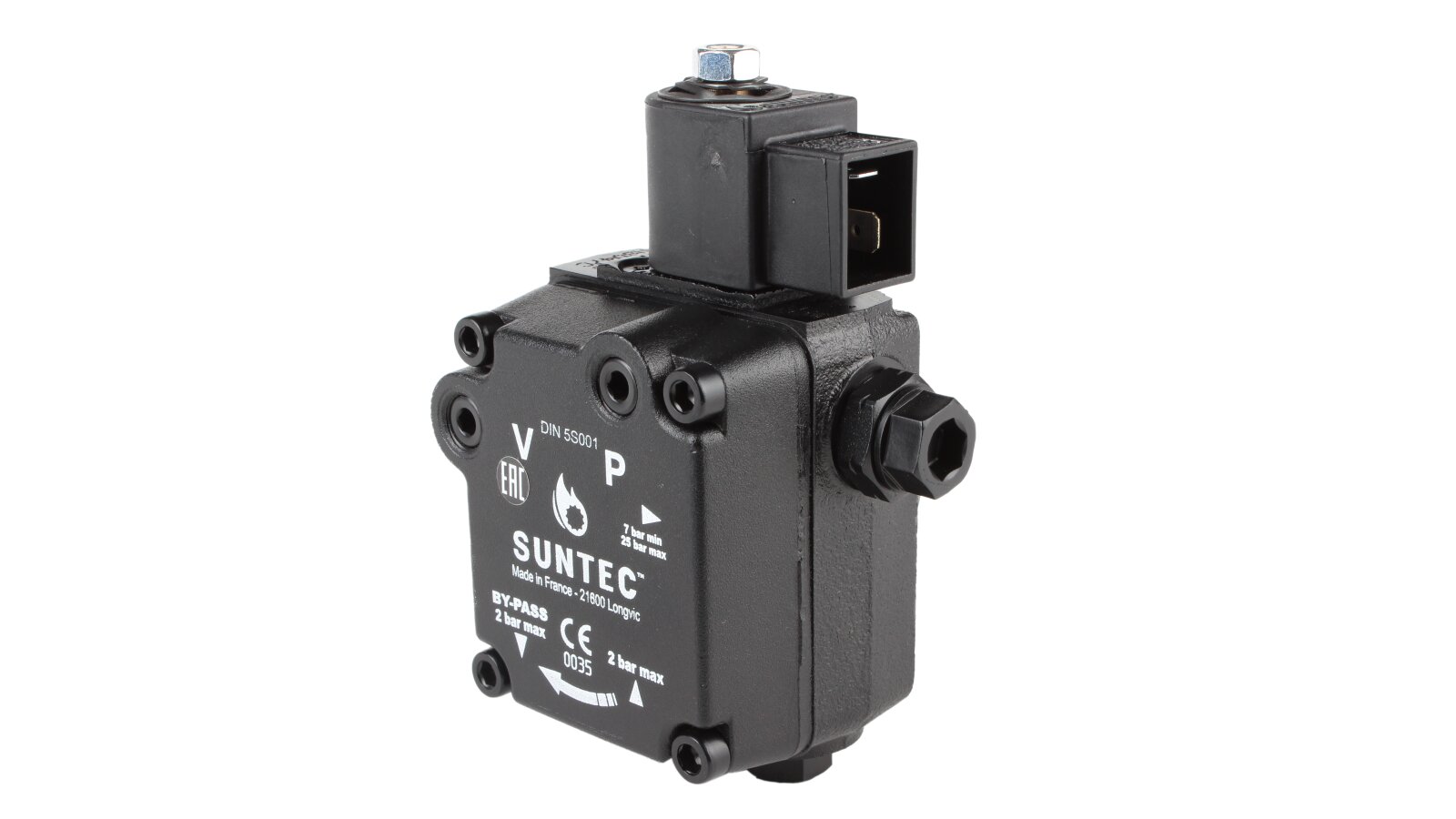

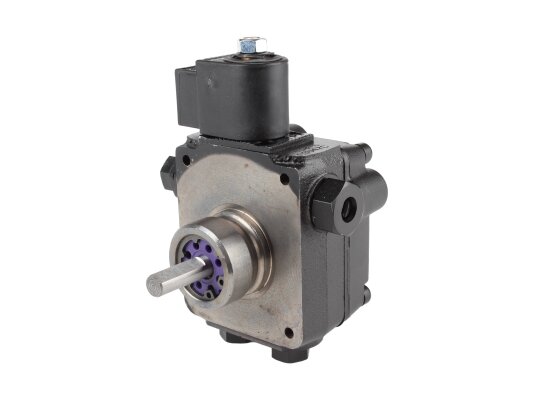

Burner Pump Suntec AS V 47 C 1638 6P 0700

Suntec

AED 625

Oil Burner Pumps
Products code: 10012

Description

The AS V 47 C 1638 6P 0700 gear fuel pump is part of a line of equipment equipped with a pressure control electromagnetic valve with a shut-off function. It stands out for its universal purpose - it pumps not only diesel fuel, but also biodiesel, thanks to the use of a special material for the shaft seal in the design.

Features

The "normally open" electromagnetic valve is located in the nozzle line. It functions as a locking device for quick start/stop of the burner regardless of the engine shaft speed.

When the valve is inactive, the fuel that has not passed through the nozzle line returns to the tank (in a 2-pipe system) or to the suction line (in a 1-pipe design). When the valve is on, the fuel discharge line is closed.

The pump has an outlet to the nozzle on the left side. The shaft rotates counterclockwise.

The bushing installation method, according to the European standard EN 225, allows the pump to be used as a complete set of burners from many manufacturers, including Elco, Lamborghini, Baltur, Weishaupt, etc.

In the basic version, the design is ready for connection to a 2-pipe system. When using the pump as part of a system without a return line, it is necessary to remove the bypass plug, installing a steel plug with a washer in the hole.

The advantages of the model are:

  • pumping diesel fuel and biodiesel with a viscosity of 2-12 cSt;

  • the presence of an EM valve with a shut-off function;

  • a coarse filter that retains debris, rust and other dirt particles from 150 microns in size;

  • standard ports for connecting instrumentation that comply with ISO 228/1;

  • compact dimensions;

  • protection of internal parts from dust and moisture, class IP 54;

  • the ability to adjust the pressure in the range of 7-14 atmospheres.

In the production of equipment for burners, Suntec uses modern developments and a high-tech base, which ensures the reliability and safety of products. To complete heating systems, we offer to buy a fuel pump Suntec AS V 47 C 1638 6P 0700 and other equipment at the best price.

Characteristics

Performance at 7 bar pressure and 5 cSt viscosity: 47 l/hInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftSolenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hPump series: AS: pressure regulation and bypass solenoid valveStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpValve function: pressure regulating and cut-offModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barOperating viscosity: from 2 to 12 mm²/sNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.1 N·mType of pumped liquid: diesel, biodiesel fuel blend B10Degree of protection: IP54
