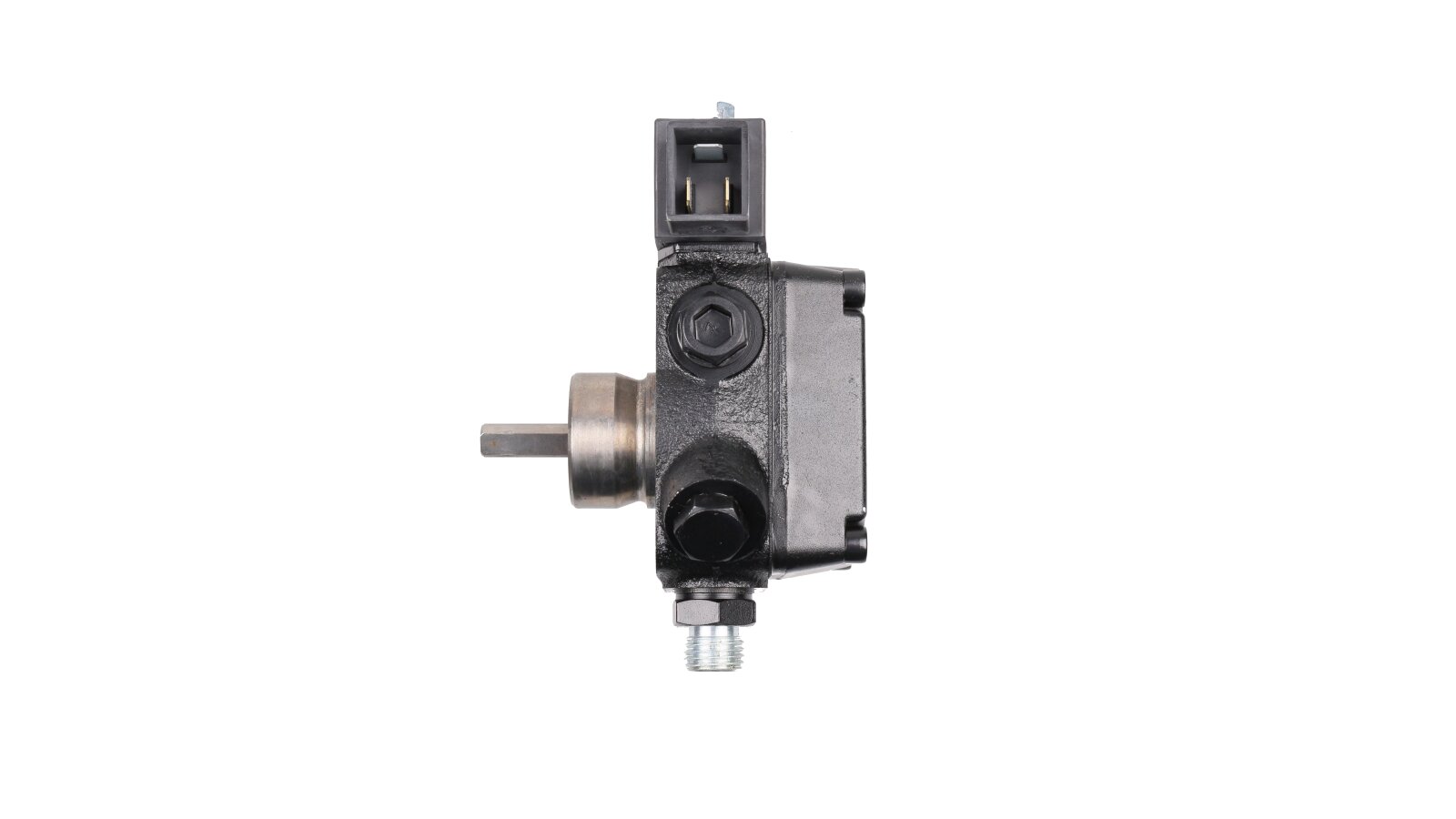

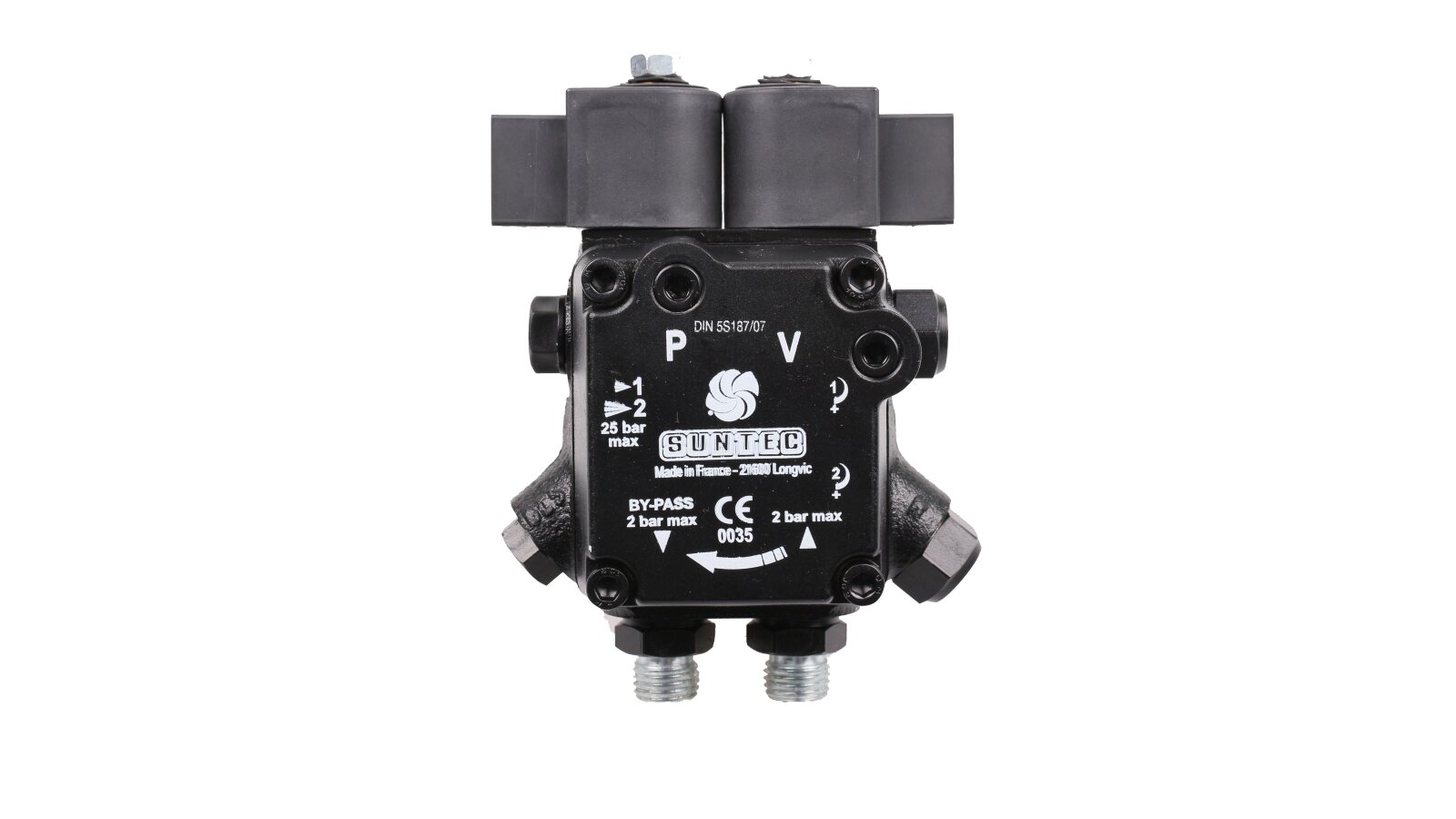

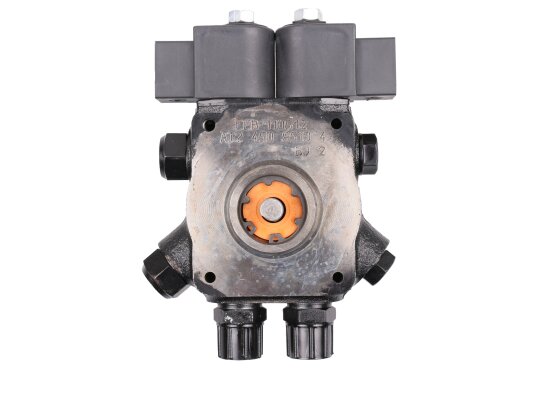

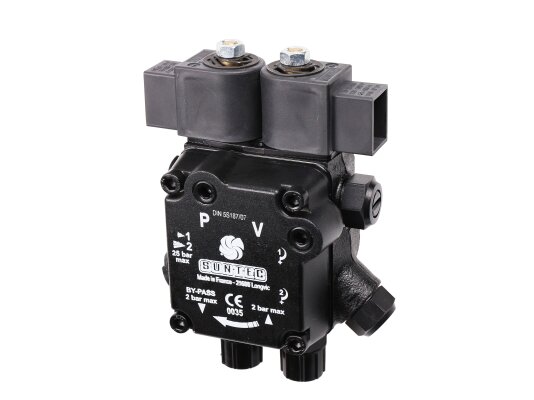

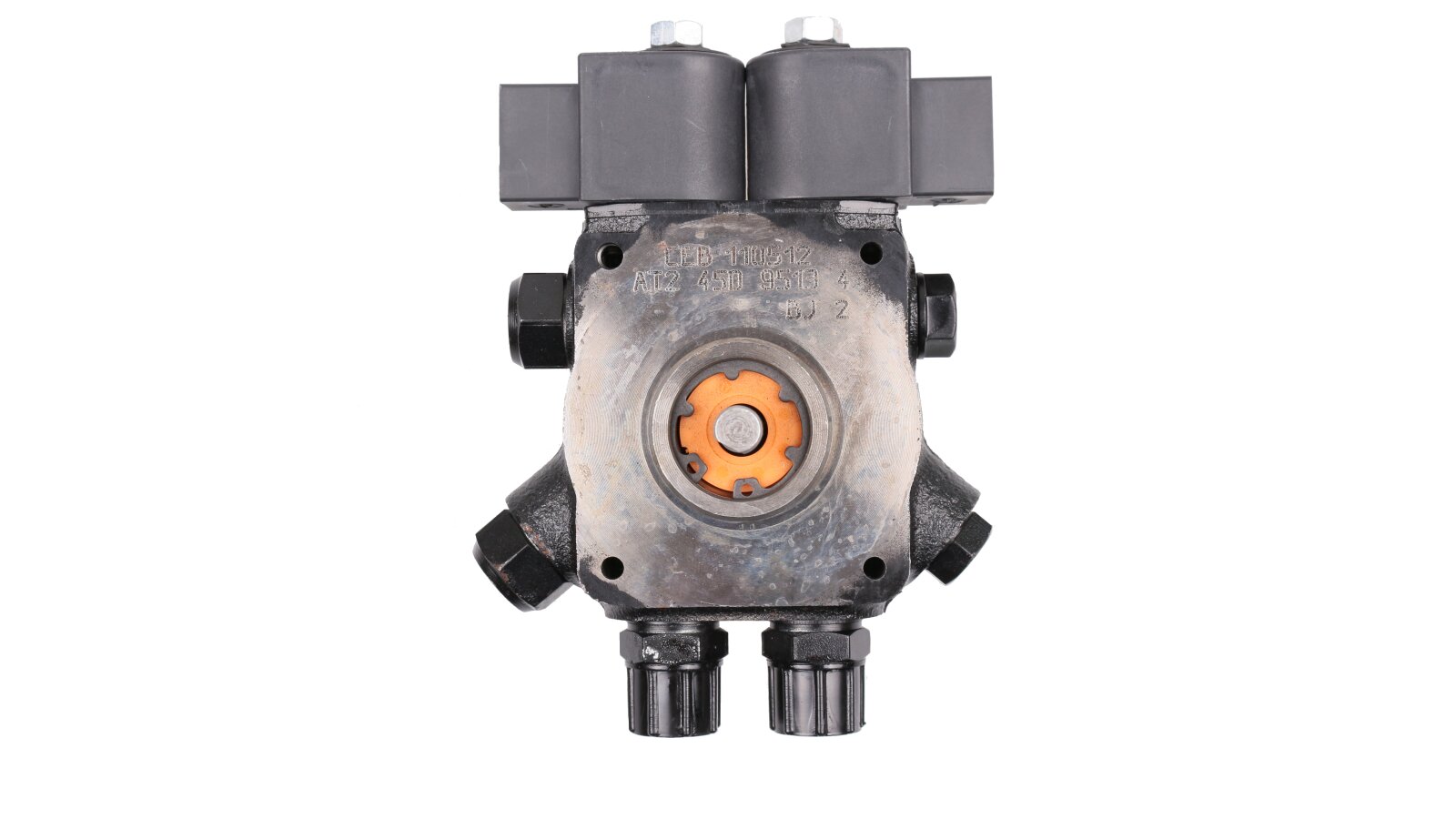

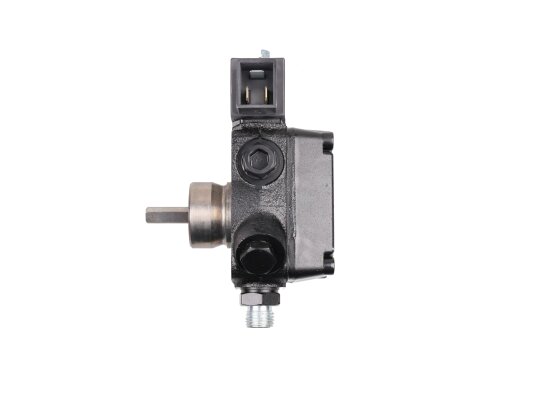

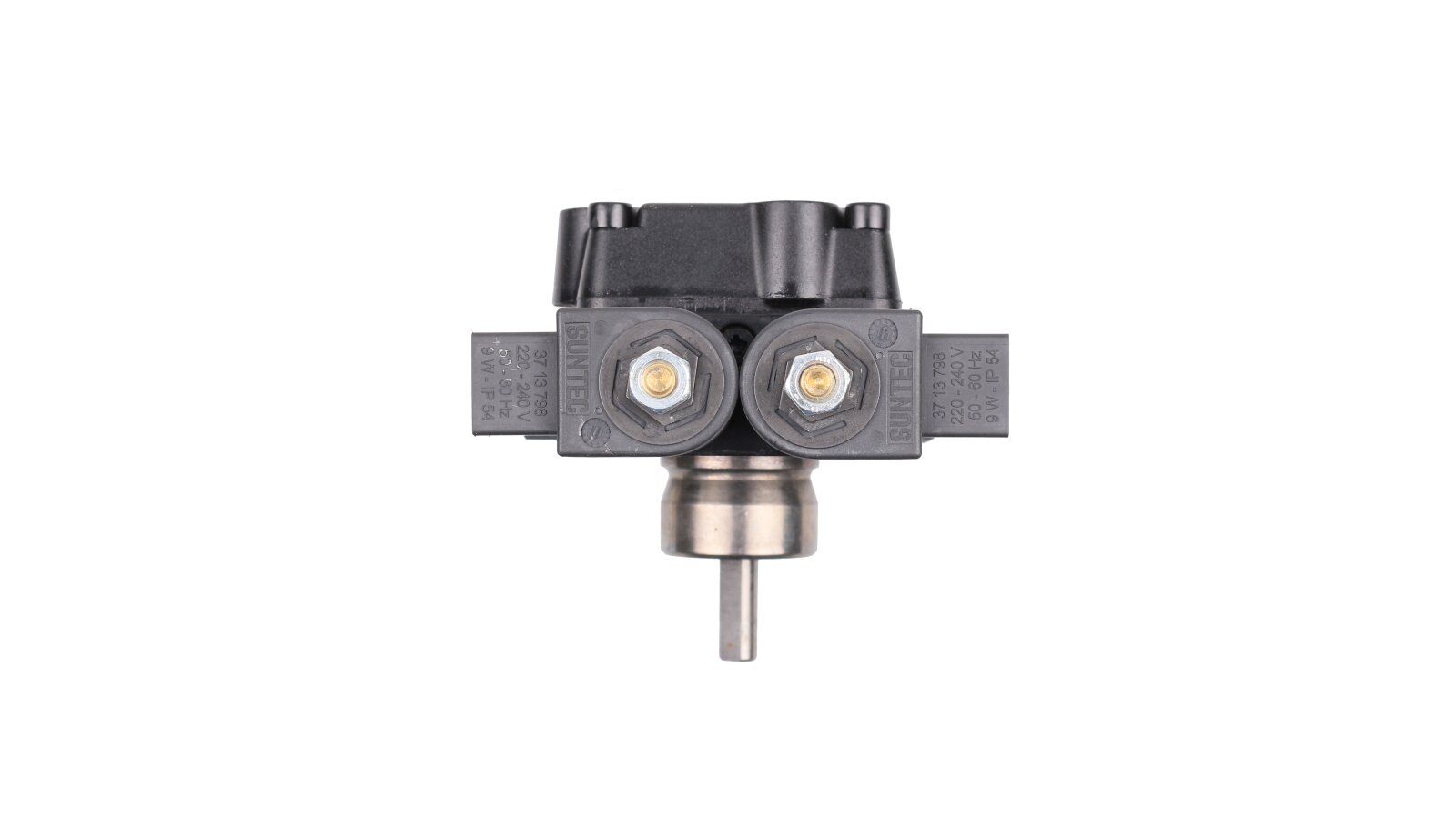

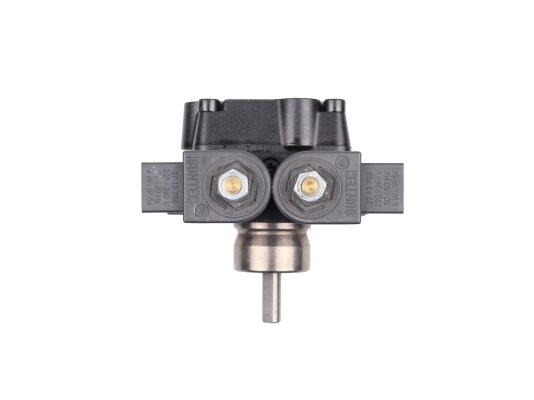

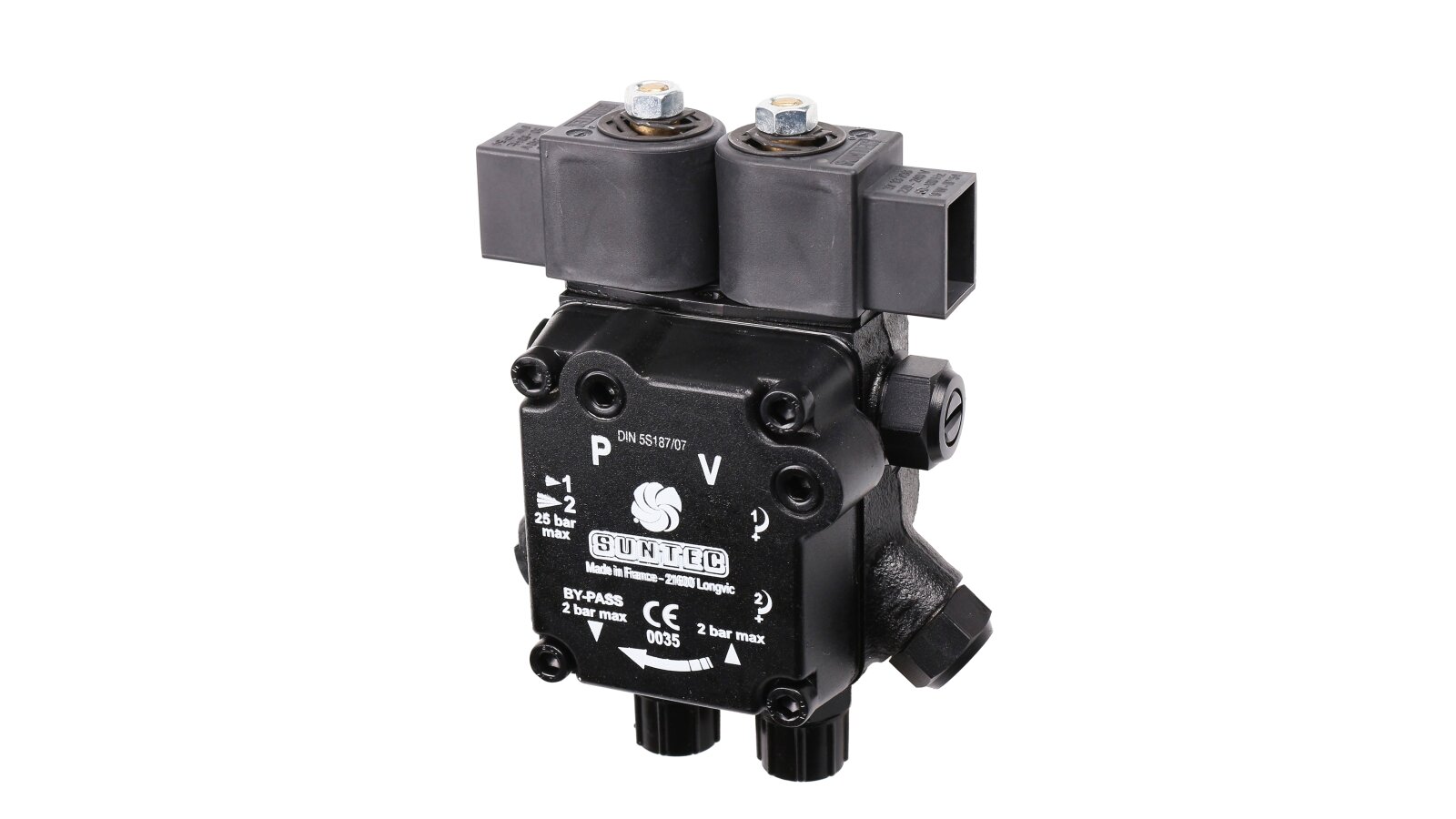

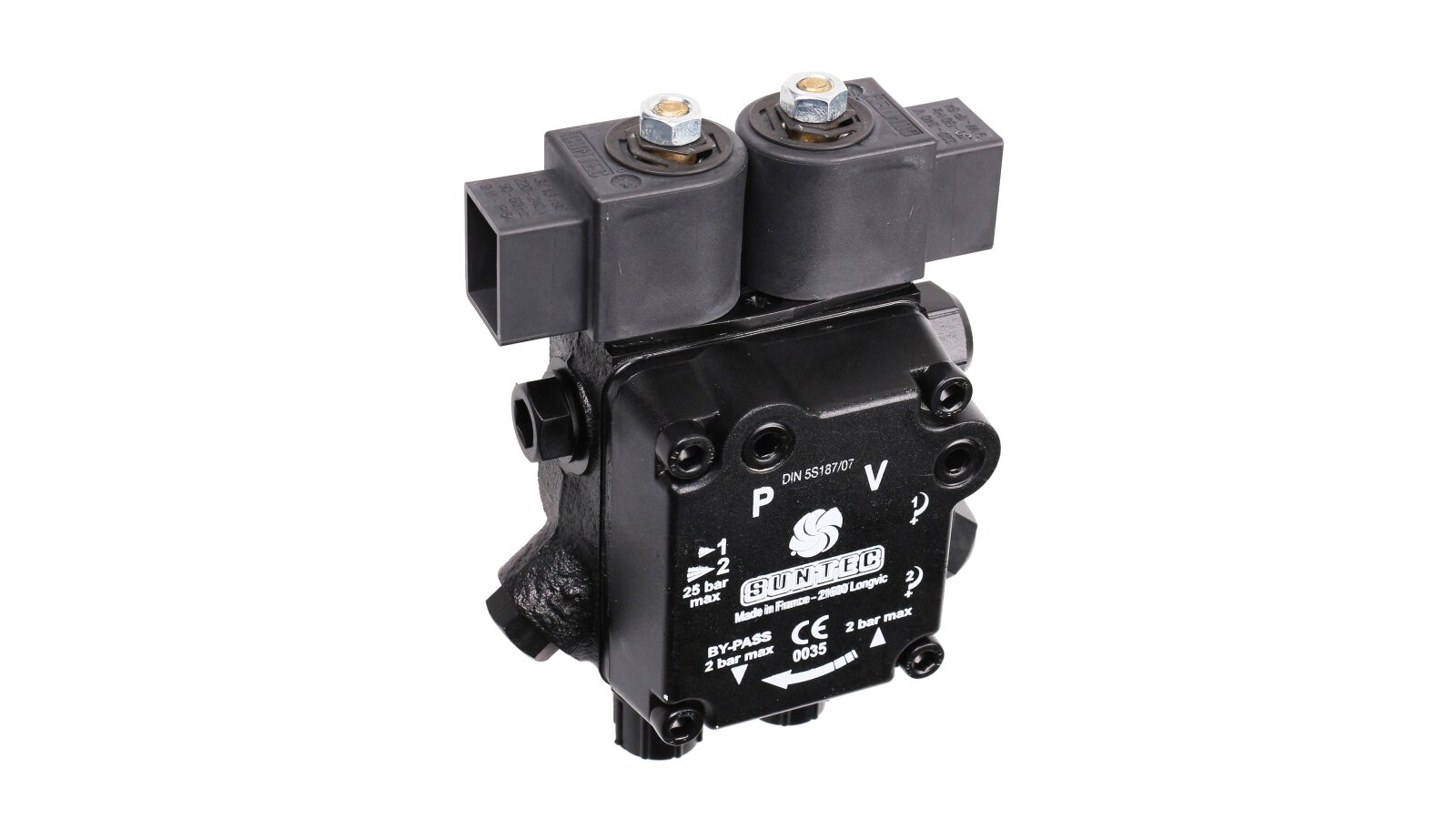

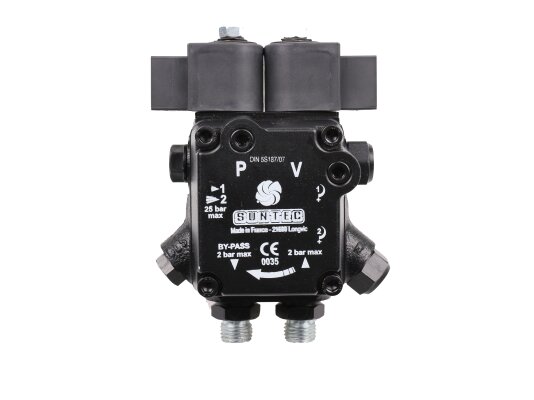

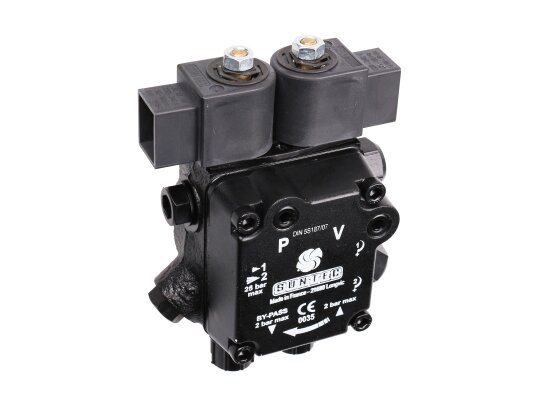

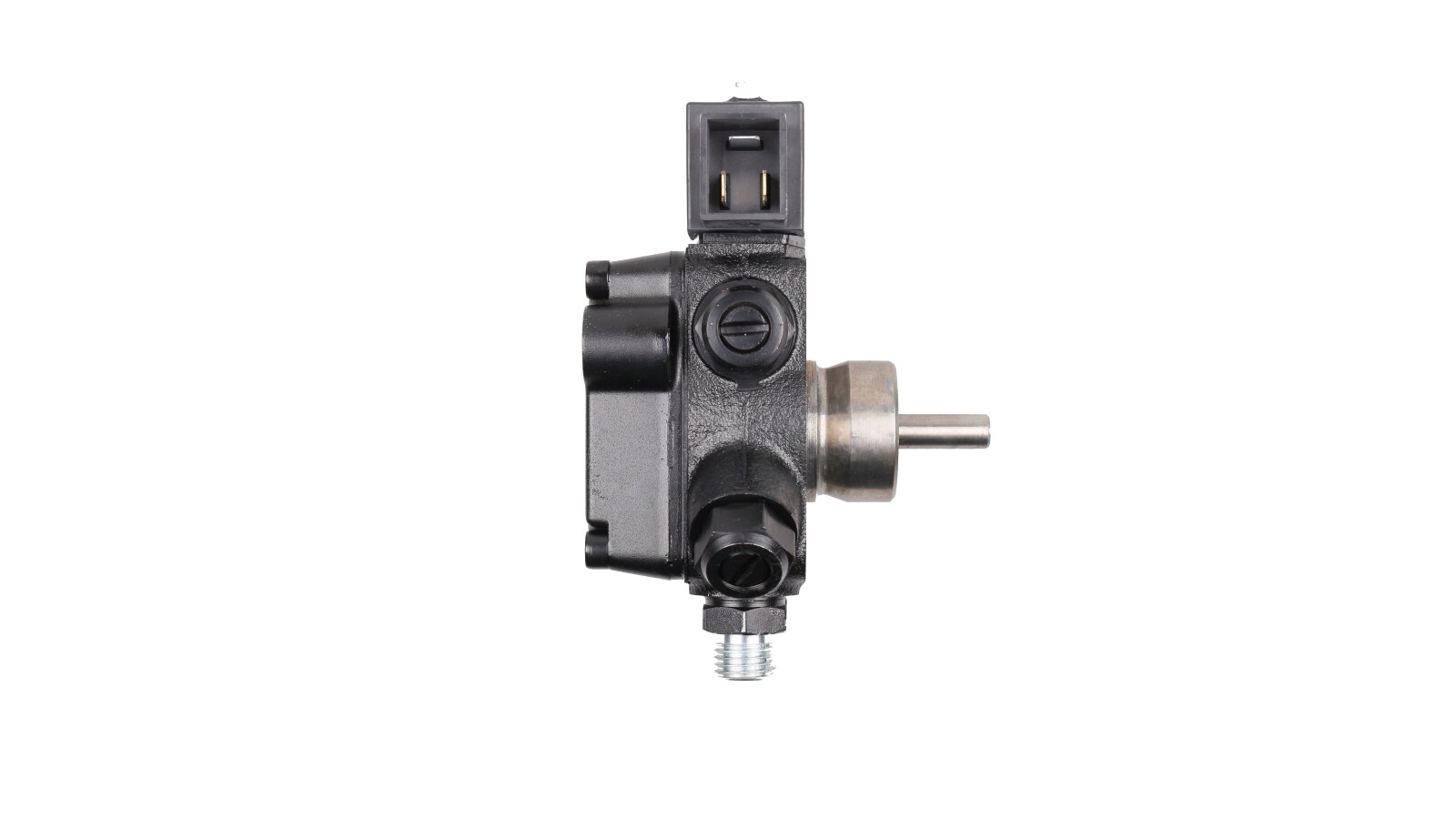

Burner Pump Suntec AT2 45 D 9513 4P 0700

Suntec

Alternative Part Number

Elco 13005319Elco 13016441
AED 1,150
  1. Oil Burner Pumps

Description

Among low-power liquid fuel pumps, the AT2 45 D 9513 4P 0700 model from the French company Suntec is in great demand. It is the junior representative of the AT series - two-mode devices with a switching and shut-off electromagnetic valve in the feed line. The outlet to the nozzle line is located on the right side of the body. The model with a capacity of 46 l / h is adapted for heating burners of such manufacturers as Lamborghini, Weishaupt, Elco, Baltur and others.

Design Features

The gear pair of the gear pump pumps diesel fuel from the tank to the spool valves. Before this, it undergoes a pre-cleaning stage using a cylindrical filter with a mesh, which does not allow debris, sand and other mechanical inclusions.

The spool valves are responsible for the level of fuel pressure at the feed. They are adjusted by tightening the screws that compress the internal spring. The modes (spools) are switched by a "normally open" bypass EM valve. In its normal position, fuel is supplied under low pressure of the first stage. The closed valve removes the spool from the system and starts the second stage - high pressure. Fuel that does not pass to the injector is drained into the tank or flows back to the gear teeth.

Advantages of the model:

  • optimal size/performance ratio;

  • there are two modes of diesel fuel supply;

  • it is possible to install control and measuring devices;

  • all ports and outputs comply with the European standard ISO 228/1;

  • can be mounted in a one- or two-pipe system;

  • automatic control of electromagnetic valves;

  • the presence of a shut-off valve that instantly disconnects the pump and the injector.

All Suntec products are certified and have a warranty period. Before sale, each pump undergoes a thorough check. The simplicity and reliability of the design eliminates many breakdowns during operation, and repairability allows you to replace worn parts with new ones. The company "ANKAS", which is a supplier of wear-resistant European equipment for industrial and household purposes, offers to buy a fuel pump for a diesel burner with supercharging. We also have a full range of spare parts and repair kits for all models of the Santek brand listed in the catalog.

Characteristics

Strainer: Open area: 6 cm²Installation method: sleeve ∅ 32 mmSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 31 l/hPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 46 l/hMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory settings for low pressure: 9 barFactory installations for high pressure: 22 barTorque: 0.1 N·mNozzle pressure range: from 8 to 25 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
