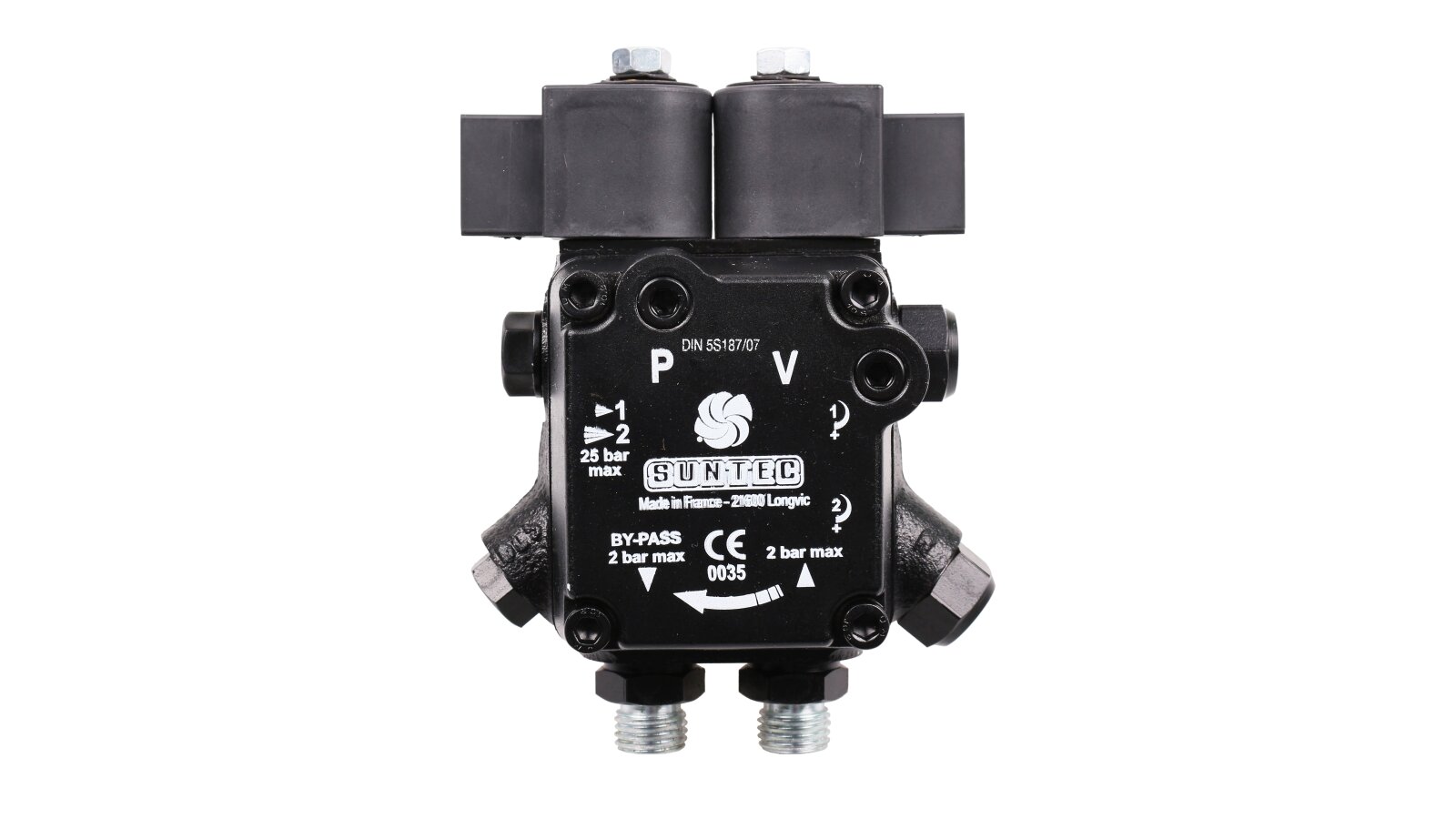

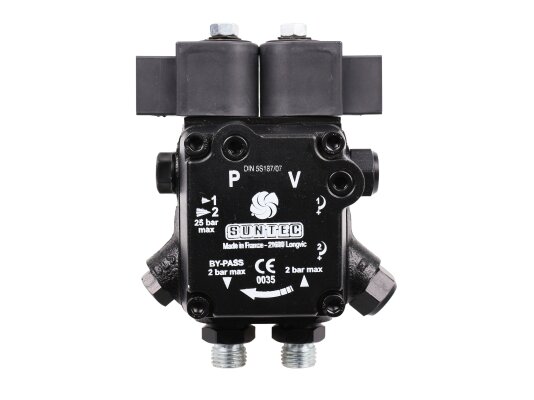

Burner Pump Suntec AT2 55 C K 9571 4P 0500

Suntec
  • Discontinued
  1. Oil Burner Pumps

Description

The Suntec AT2 55 C K 9571 4P 0500 pump operates in two modes - low and high pressure. It is equipped with two electromagnetic valves - shut-off and bypass. The pump is installed in burners burning diesel fuel and kerosene. Universal mount according to the European standard EN 225 expands the scope of the pump.

Features

  • The pump has a reliable housing with high-quality insulation from dust and moisture (IP54). The nozzle mounting branch is located on the left. The use of special shaft seals allows you to safely pump kerosene.

  • Wear-resistant gears move fuel from the tank to the nozzle through a shut-off electromagnetic valve. Two spool valves are provided for pressure regulation.

  • The electromagnetic "normally open" bypass valve switches between low and high pressure modes.

  • Before entering the gear mechanism, the fuel is freed from large contaminants of 150 microns using a built-in filter located at the fuel inlet, which eliminates the risk of breakdown and equipment failure due to the ingress of abrasive particles.

  • The pump can be built into systems with or without a return line. Depending on the features of the connection diagram, unused fuel passes into the tank or onto the gears.

  • When creating a single-pipe design, the bypass plug must be unscrewed and the drain hole must be plugged.

  • The pressure is set to 9 and 22 bar and can be adjusted in the range: 8-15 bar (1st stage) and 12-25 bar (2nd stage). Performance depends on the set pressure and viscosity of the fuel

Advantages:

  • 2-stage regulation;

  • 2 built-in electromagnetic valves - shut-off and bypass;

  • universal fit;

  • wide range of pressure adjustment;

  • one- and two-pipe connection;

  • standard ports for readings;

  • detachable mesh filter for 150 microns;

  • reliable protection against dust and moisture (IP54);

  • long service life.

Other information about the Suntec AT2 55 C K 9571 4P 0500 pump and spare parts for burners can be clarified with ANKAS specialists.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 62 l/hDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmSolenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 47 l/hPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sMaximum pressure of the solenoid valve: 25 barTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 25 barFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmDegree of protection: IP54Type of pumped liquid: kerosene, diesel
