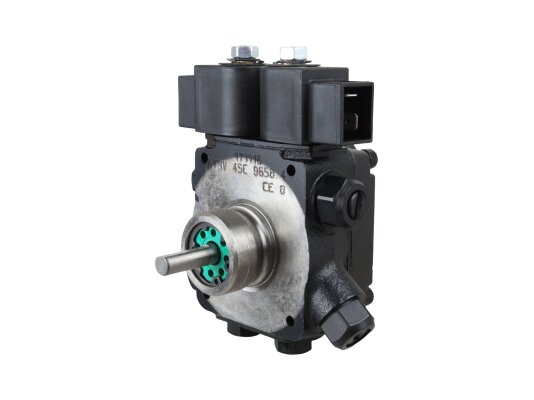

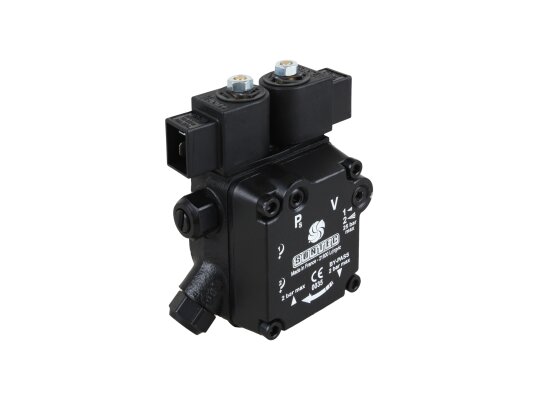

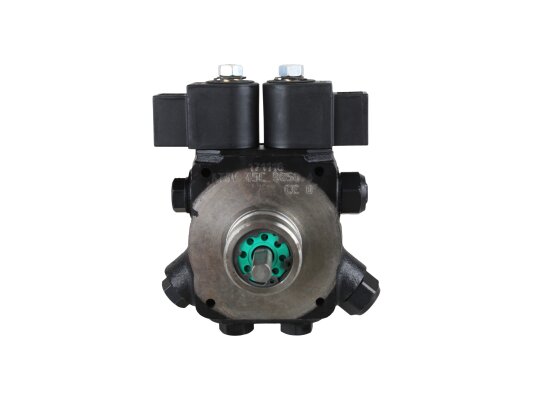

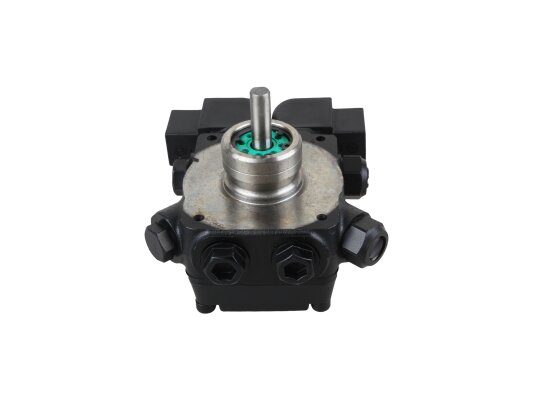

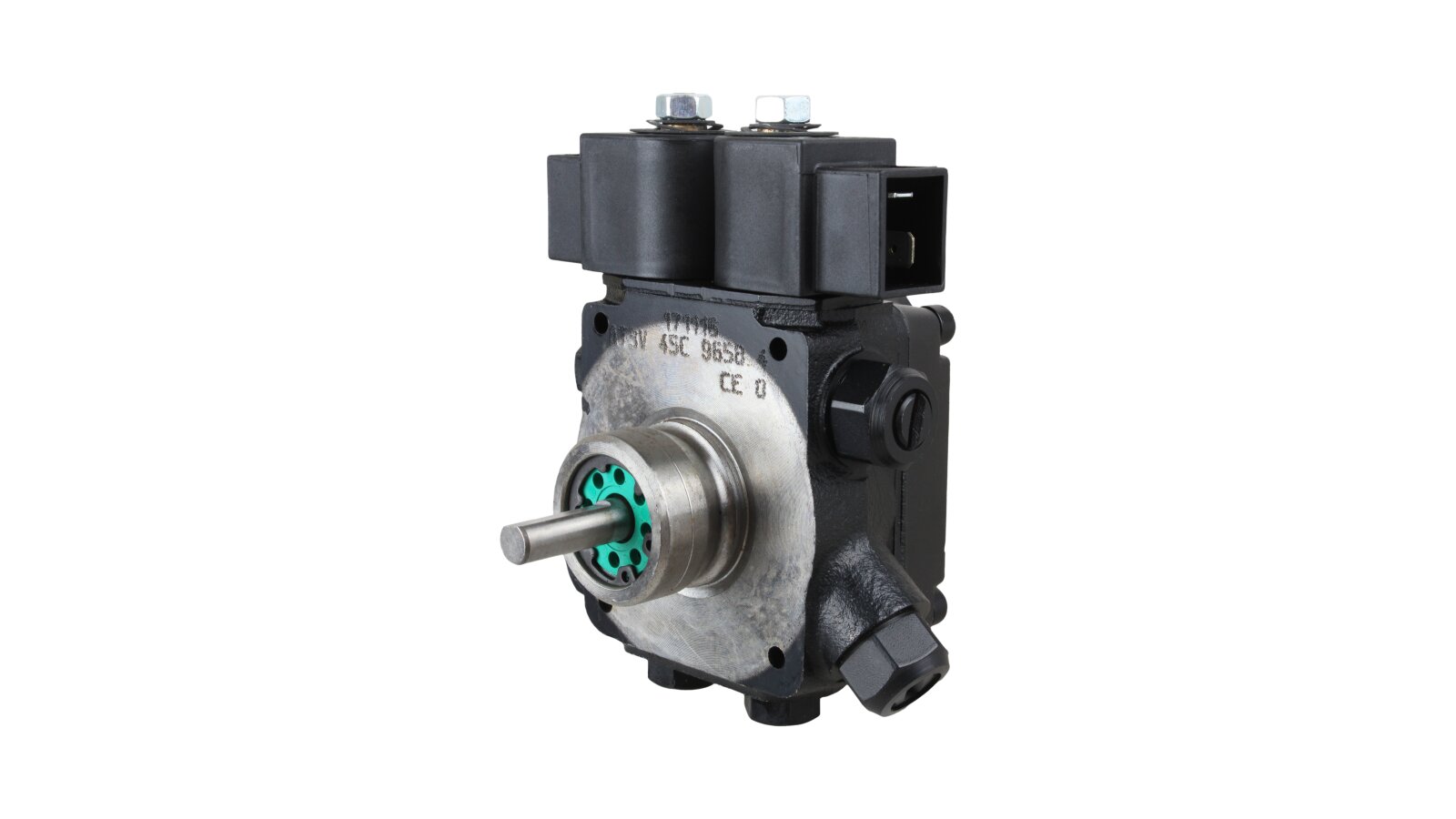

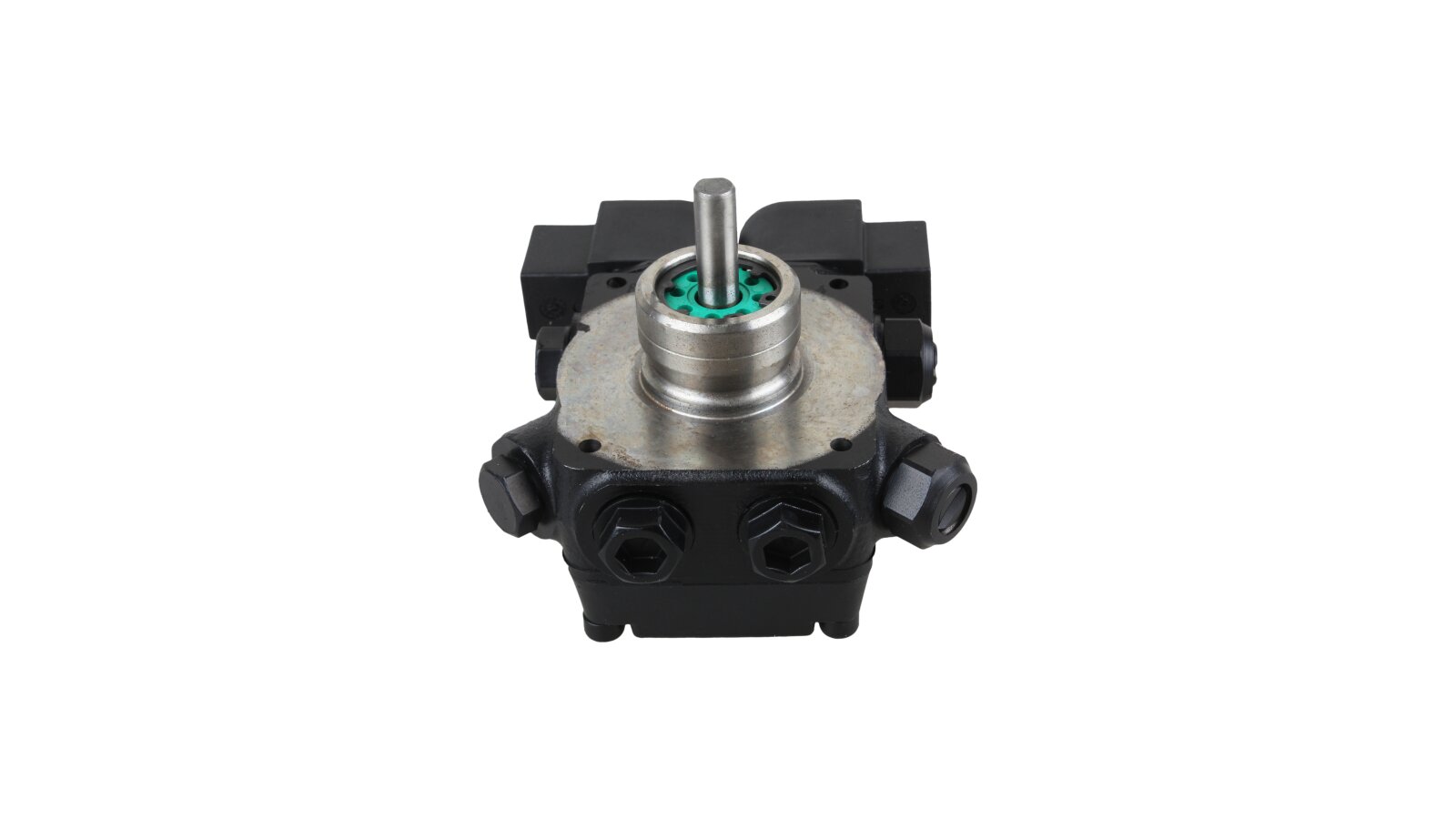

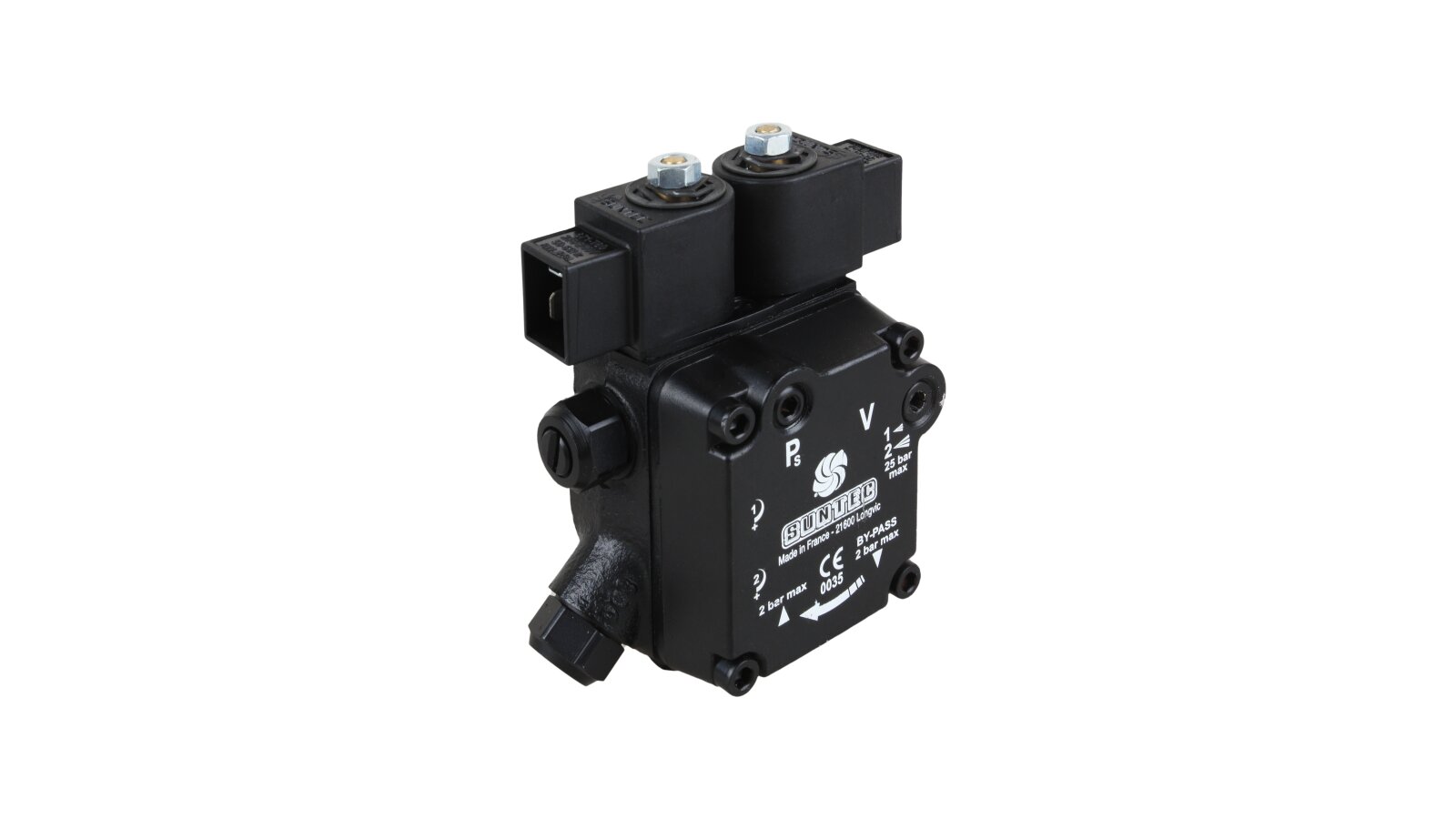

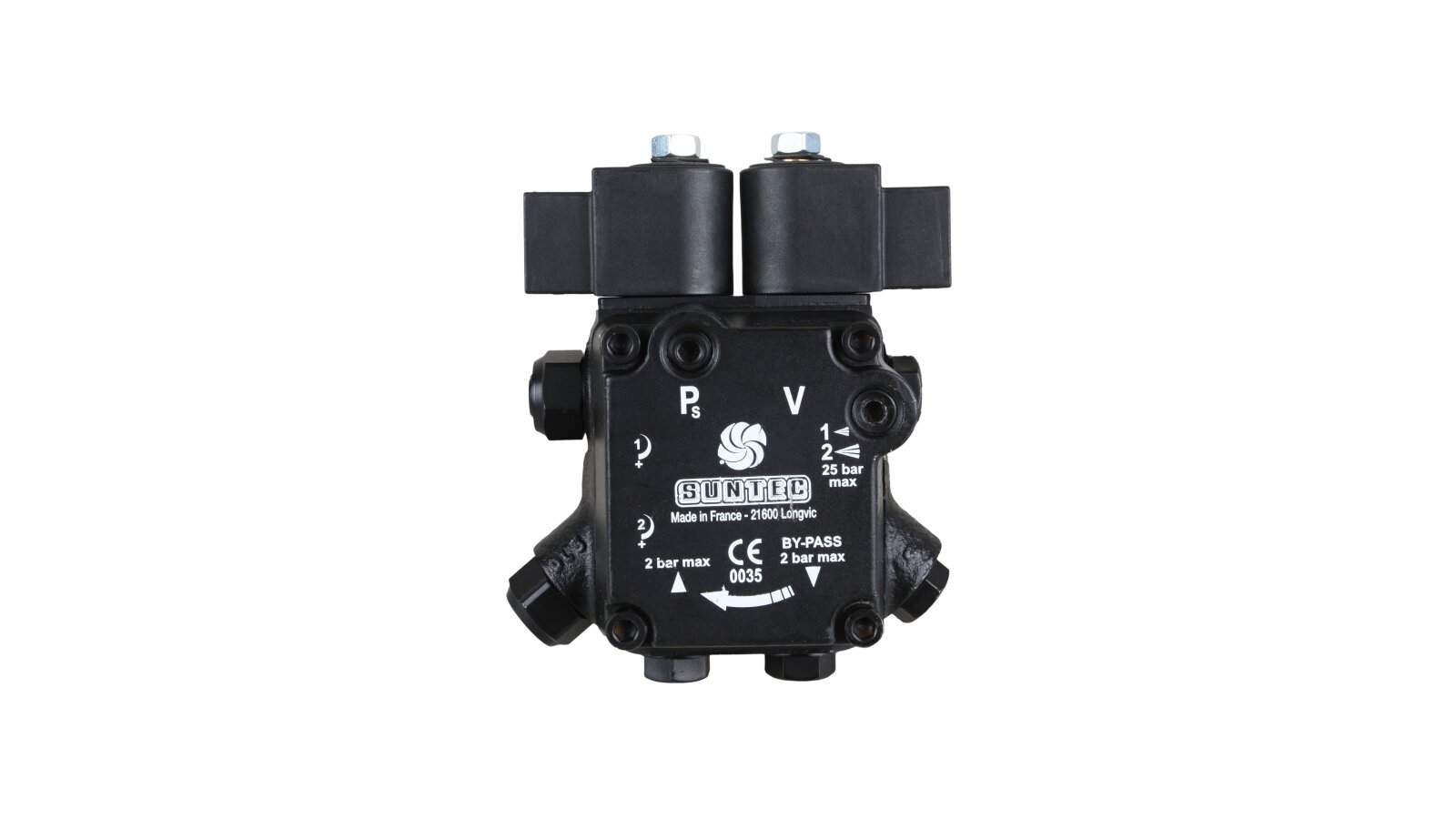

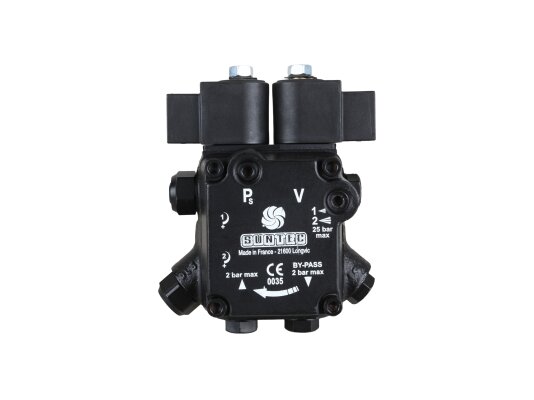

Burner Pump Suntec AT3 45 C 9558 4P 0500

Suntec

Alternative Part Number

Baltur 0005060003
  • Discontinued
  1. Oil Burner Pumps

Description

The modern dual-mode gear pump Suntec AT3 45 C 9558 4P 0500 is a representative of the line of energy-efficient devices from a French company with a low productivity level. Thanks to the standard EN 225 sleeve connection with a diameter of 32 mm, it fits many diesel burners with a rated power of up to 1000 kW: Lamborghini, Baltur, Weishaupt and Elco.

Main differences:

  • counterclockwise shaft rotation;

  • location of the nozzle port on the left side;

  • flow rate at a pressure of 11 bar - 46 l / h.

Design features

The operating principle of the burner pump is based on the rotation of a pair of gears that are in constant engagement with each other and are driven by an electric drive shaft. Fuel is sucked from the tank, cleaned by a mesh filter with a 150 µm cell and pushed under pressure to the spool valves.

Spool and electromagnetic valves allow fuel to be pumped in one of the modes, which can be adjusted at any stage. The EM shut-off valve on the discharge line eliminates the need to install an external check valve.

The return fuel line in a 2-pipe configuration prevents air locks in the system and removes them along with the liquid into the tank.

Advantages of the model:

  • high efficiency and low energy consumption;

  • two stages of discharge pressure, which can be controlled in automatic mode;

  • wide range of operational viscosity of diesel fuel - from 2 to 12 mm²/s (cSt);

  • standard threads on outlets and ports - G¼" and G⅛";

  • built-in EM shut-off valve.

The AT3 45 C 9558 4P 0500 model is manufactured at the plant of the European company Santek and is certified in accordance with the international quality standard. Each fuel transfer pump is tested for reliability of units with short-term loads exceeding the nominal values. It goes on sale with a technical passport and a guarantee from the manufacturer. The ANKAS company, an official supplier of industrial equipment, offers to buy a heating burner pump at an affordable price. We accept payment for the goods in a way convenient for you: both cash and non-cash.

Characteristics

Strainer: Open area: 6 cm²Installation method: sleeve ∅ 32 mmSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 31 l/hPump series: AT3: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 46 l/hMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory settings for low pressure: 9 barFactory installations for high pressure: 22 barTorque: 0.1 N·mNozzle pressure range: from 8 to 25 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
