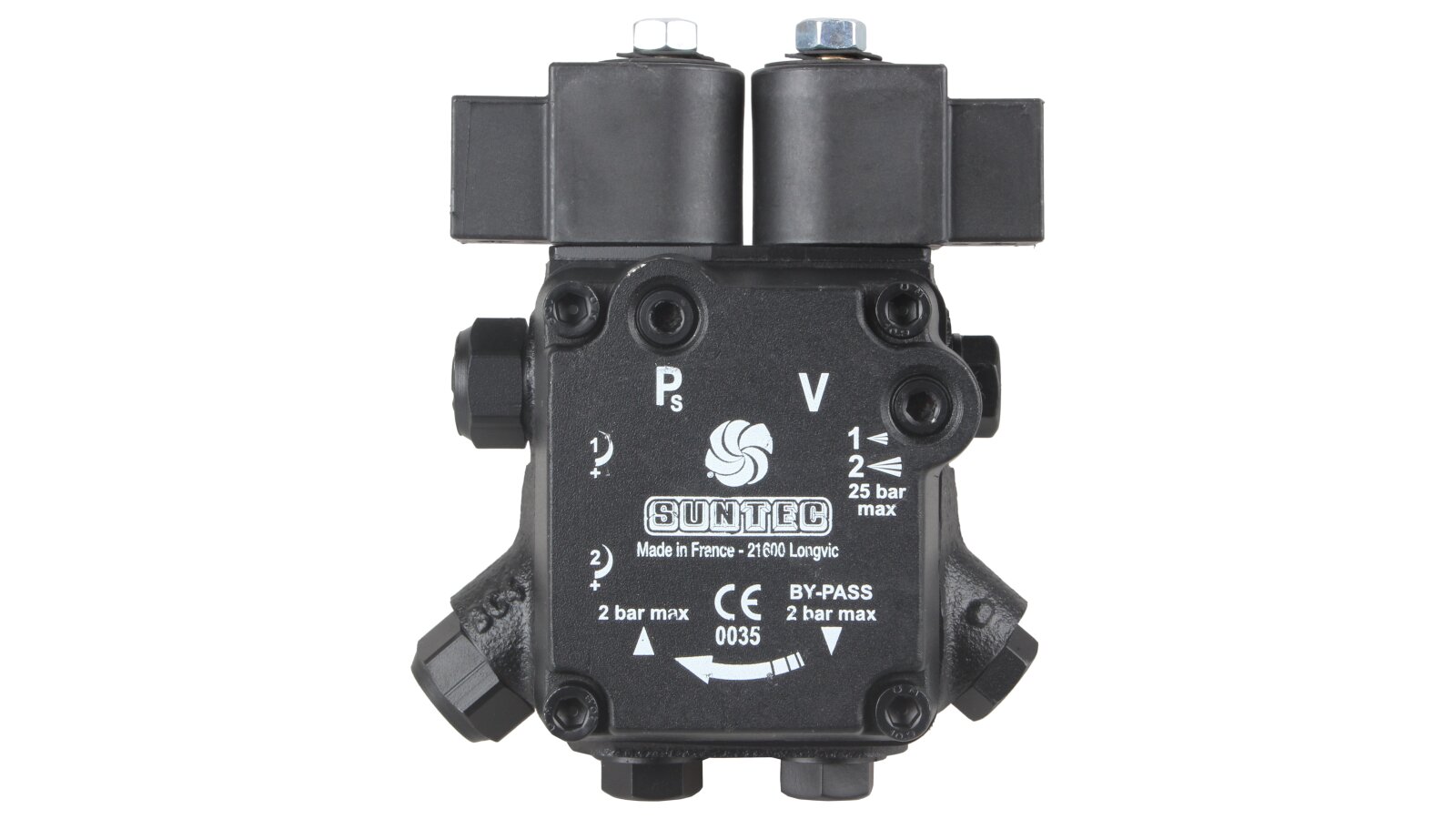

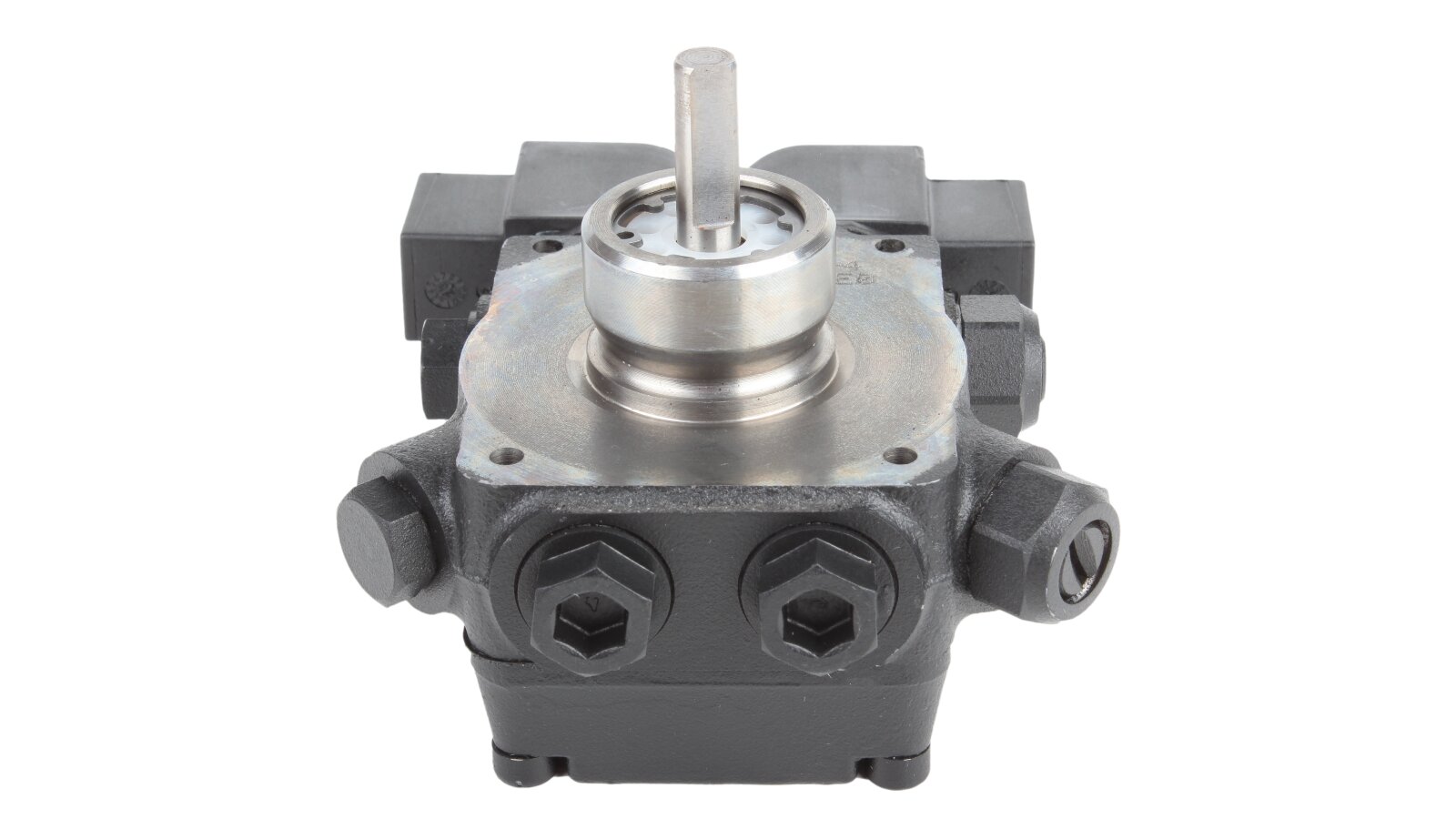

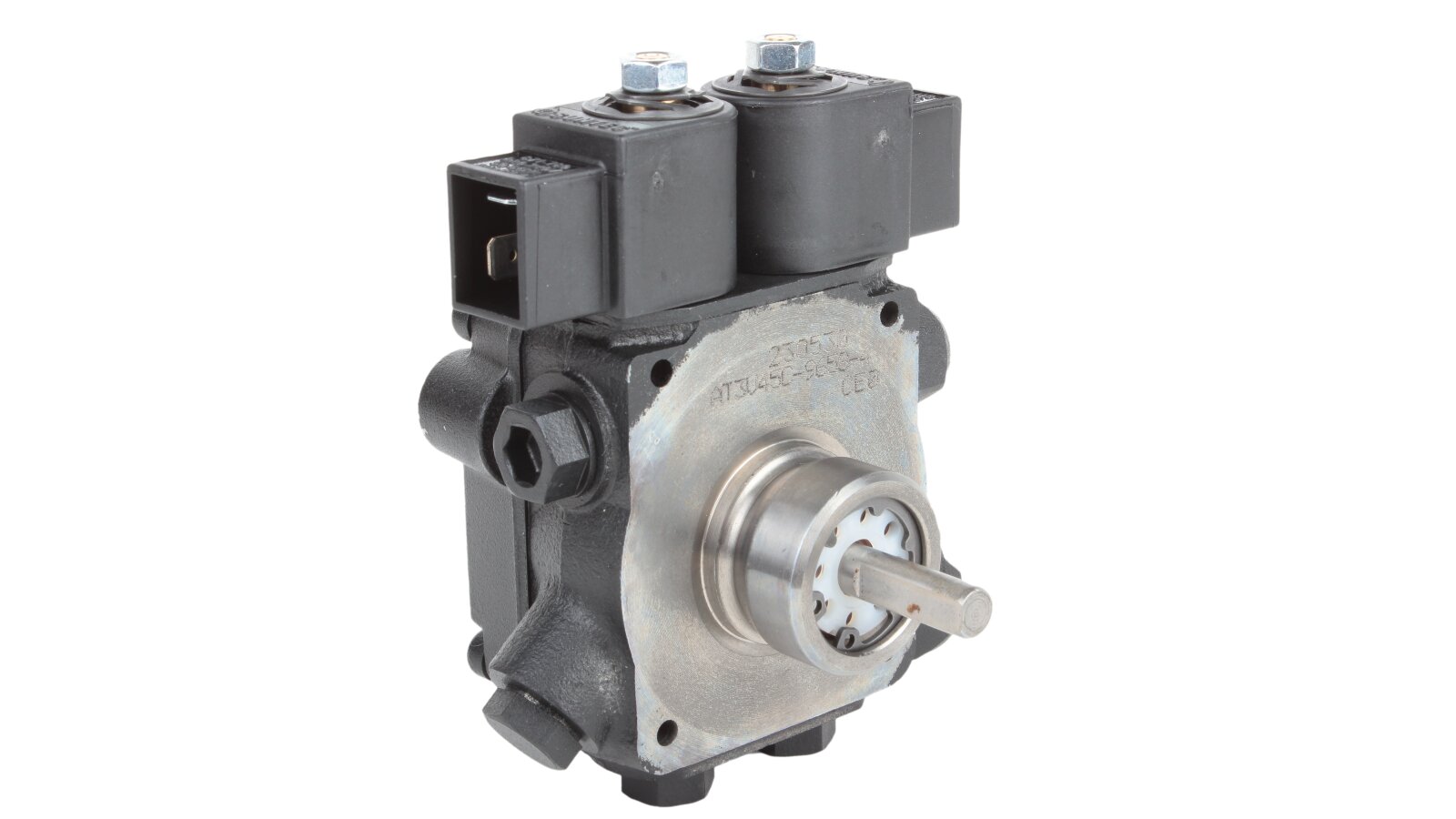

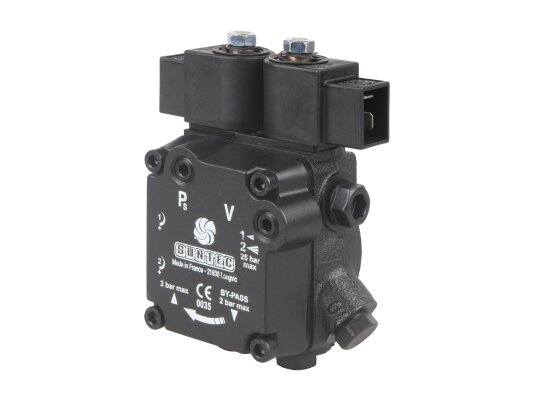

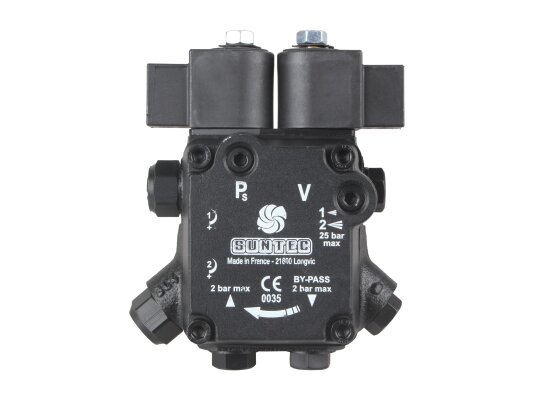

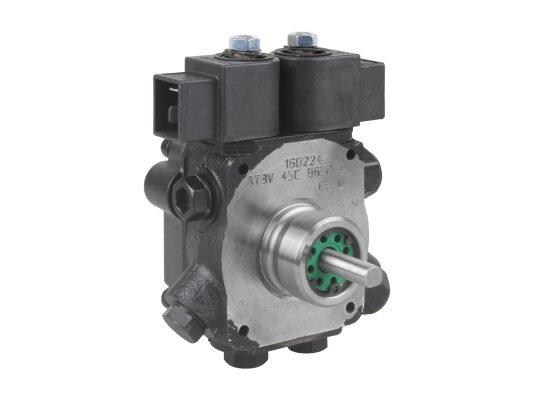

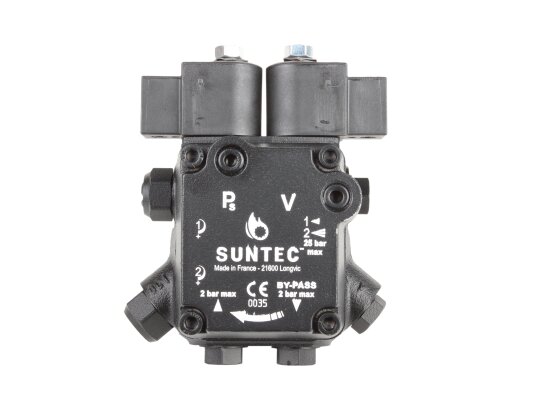

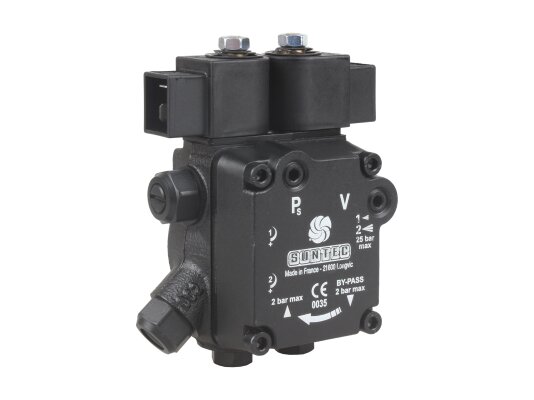

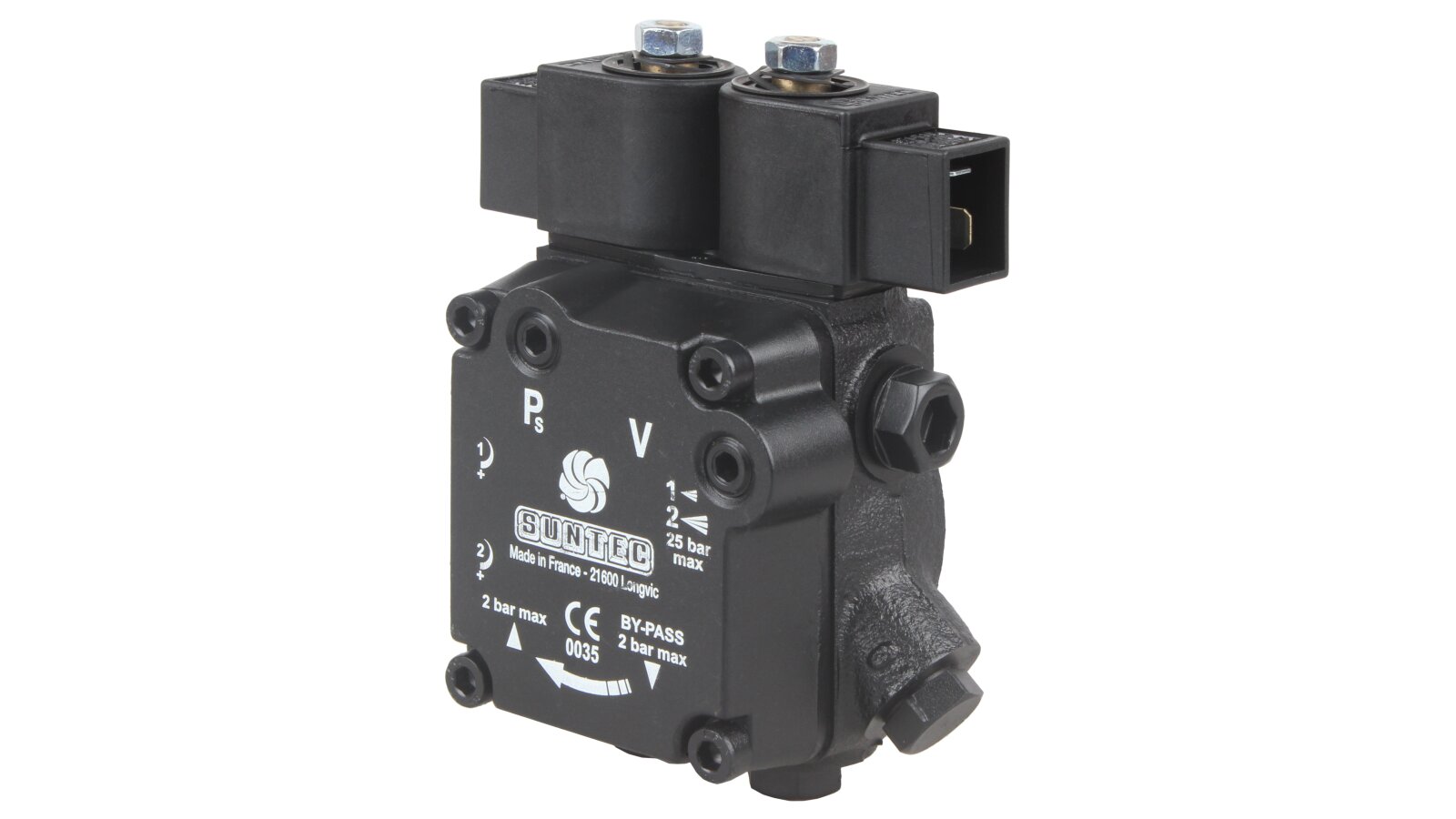

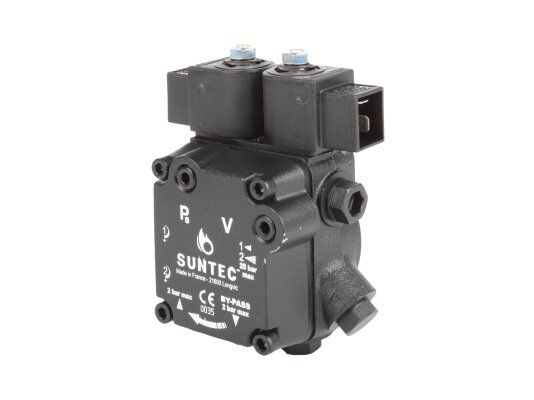

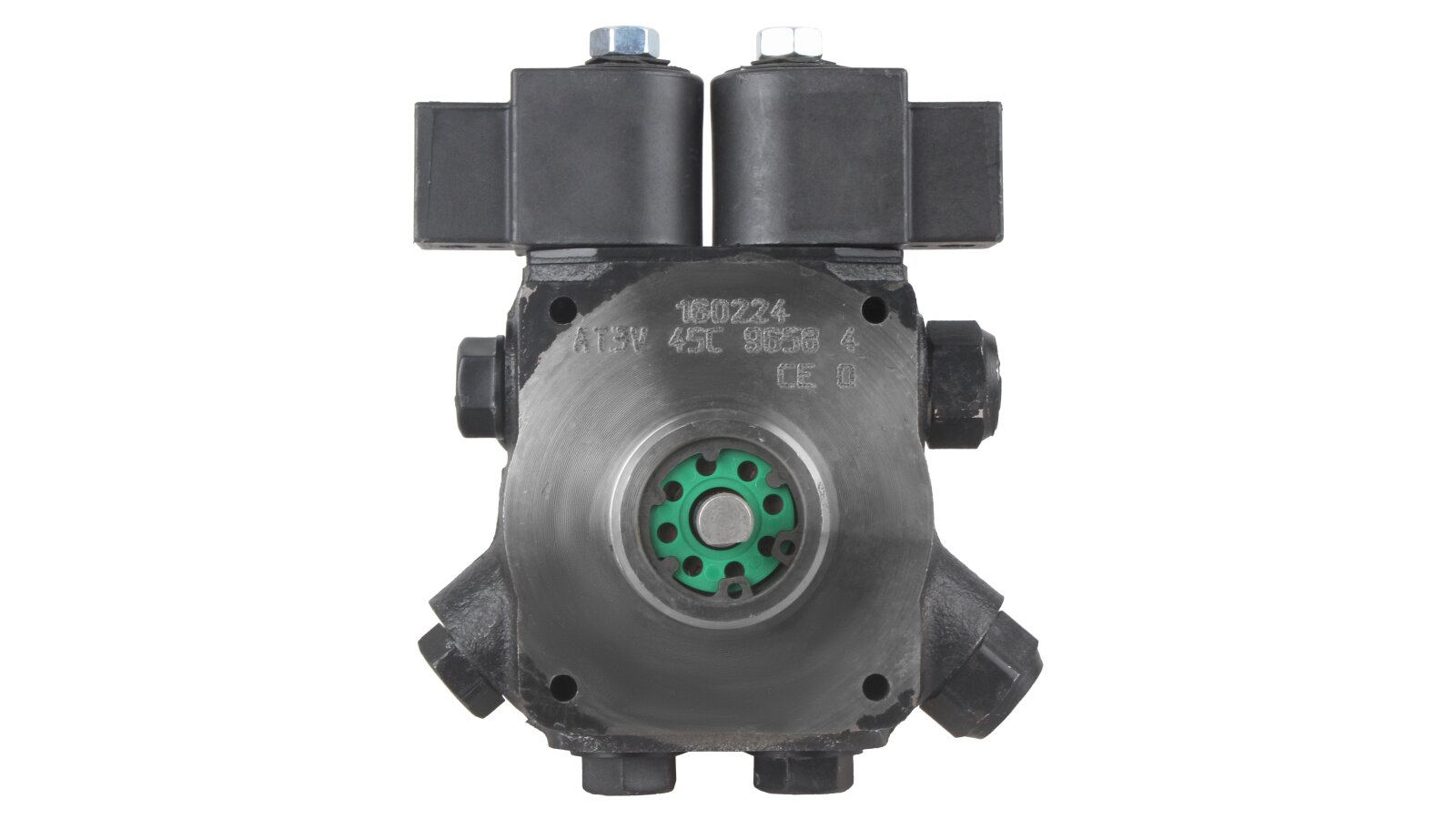

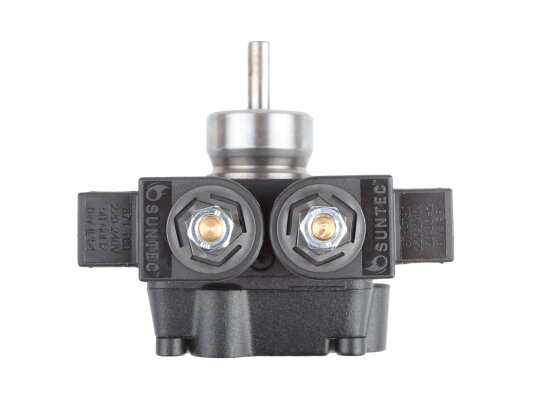

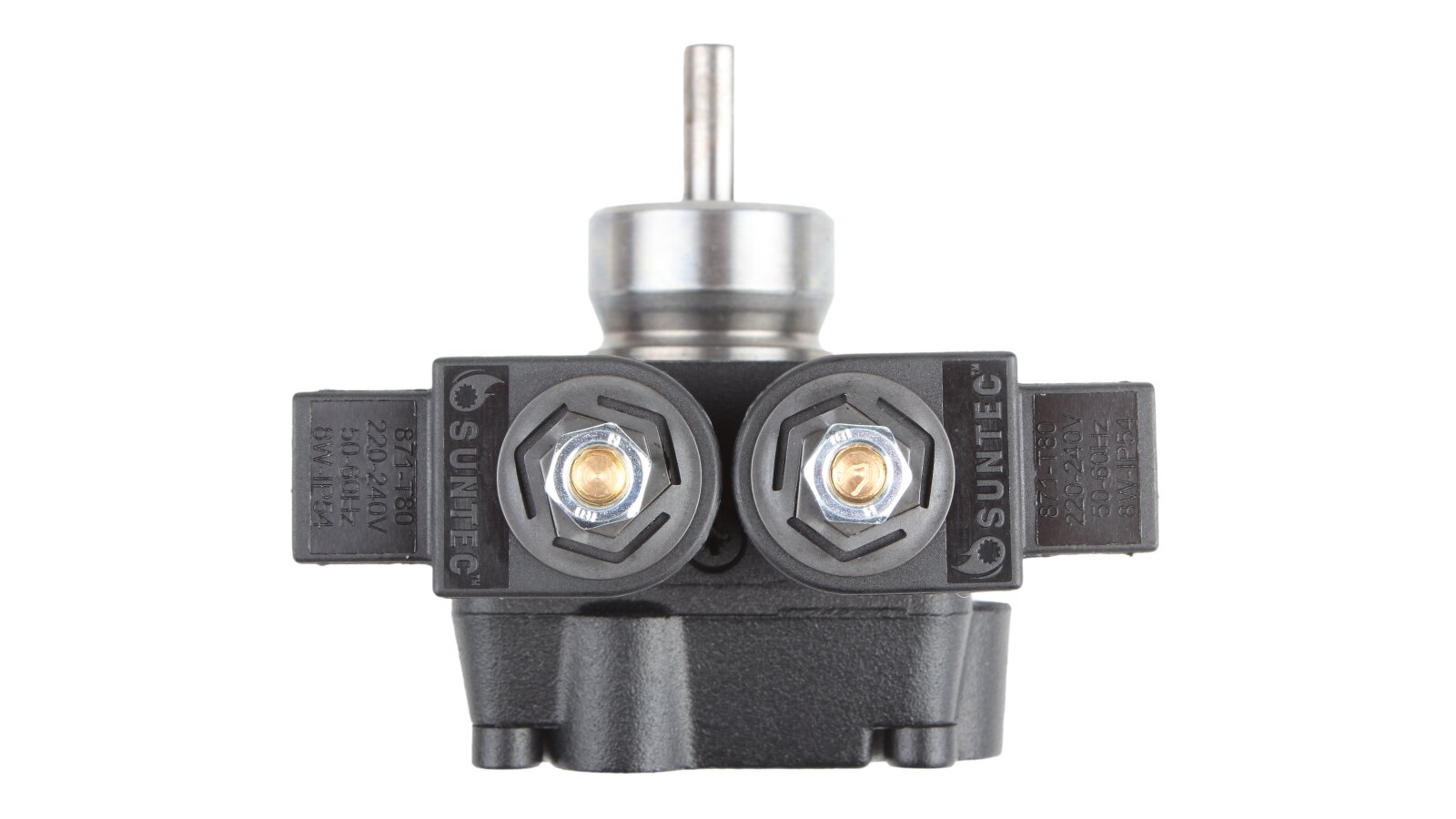

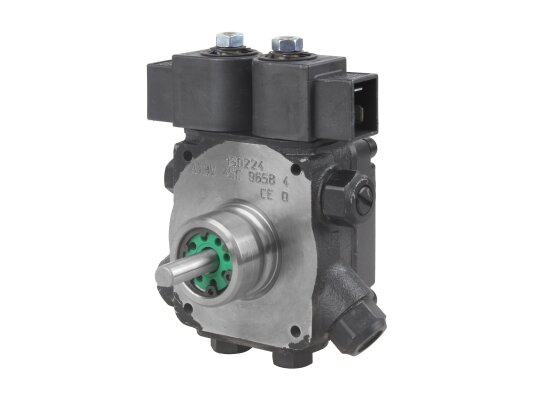

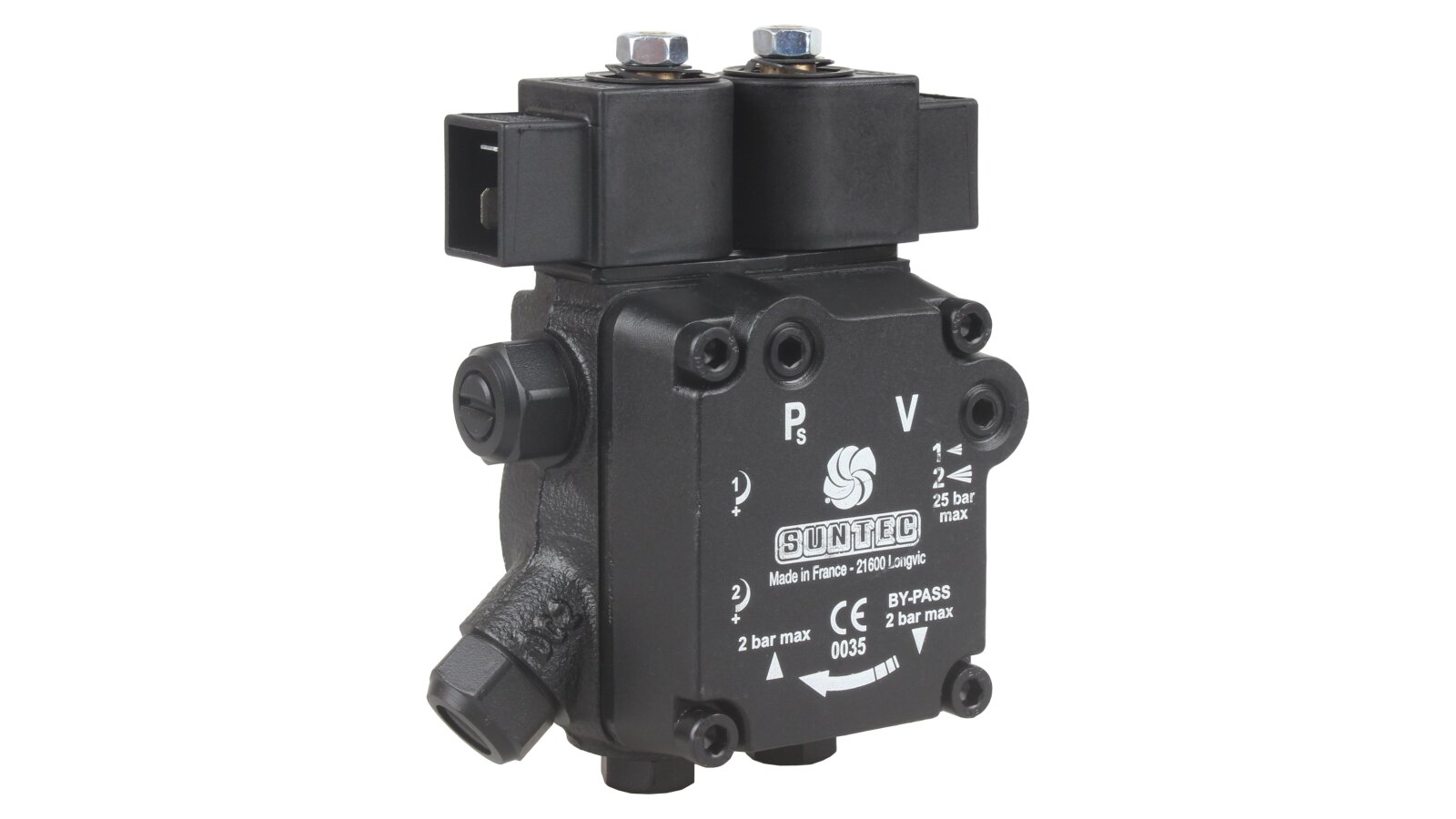

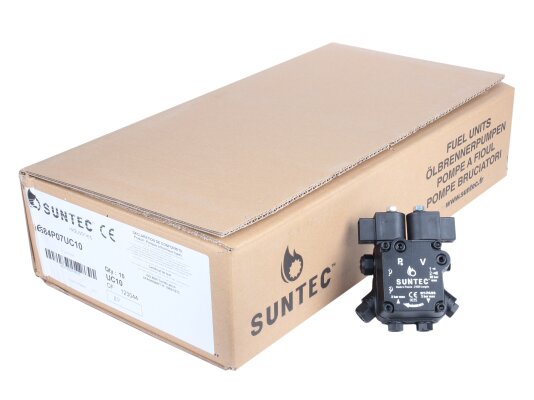

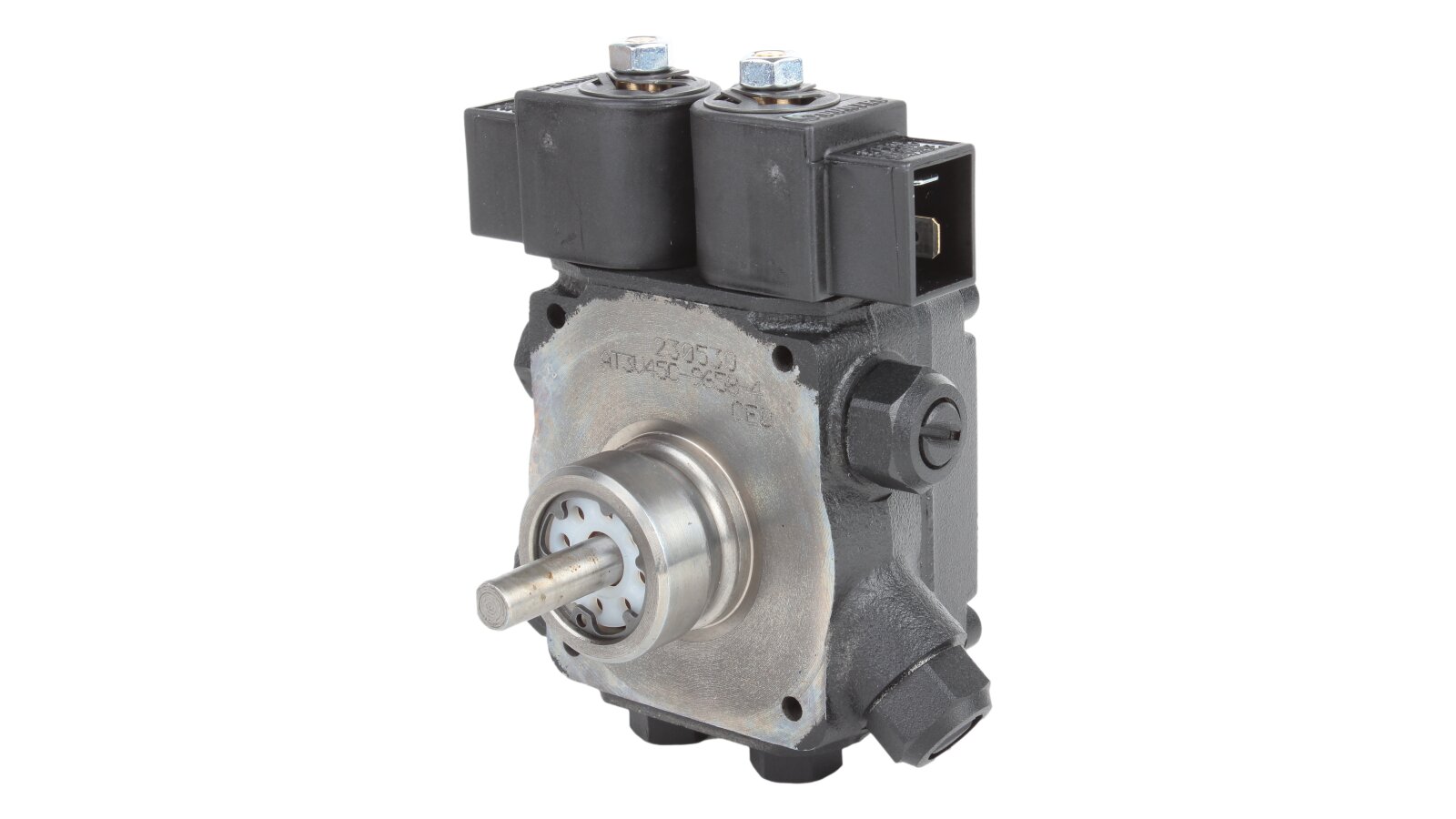

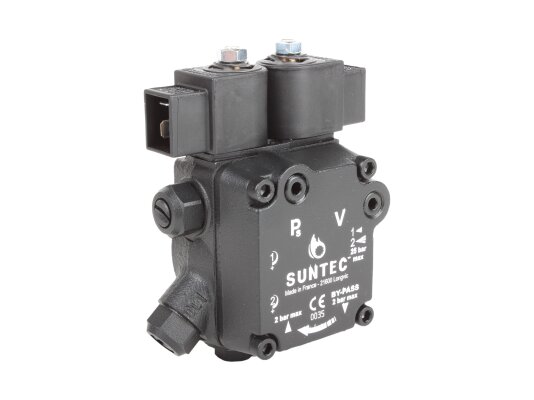

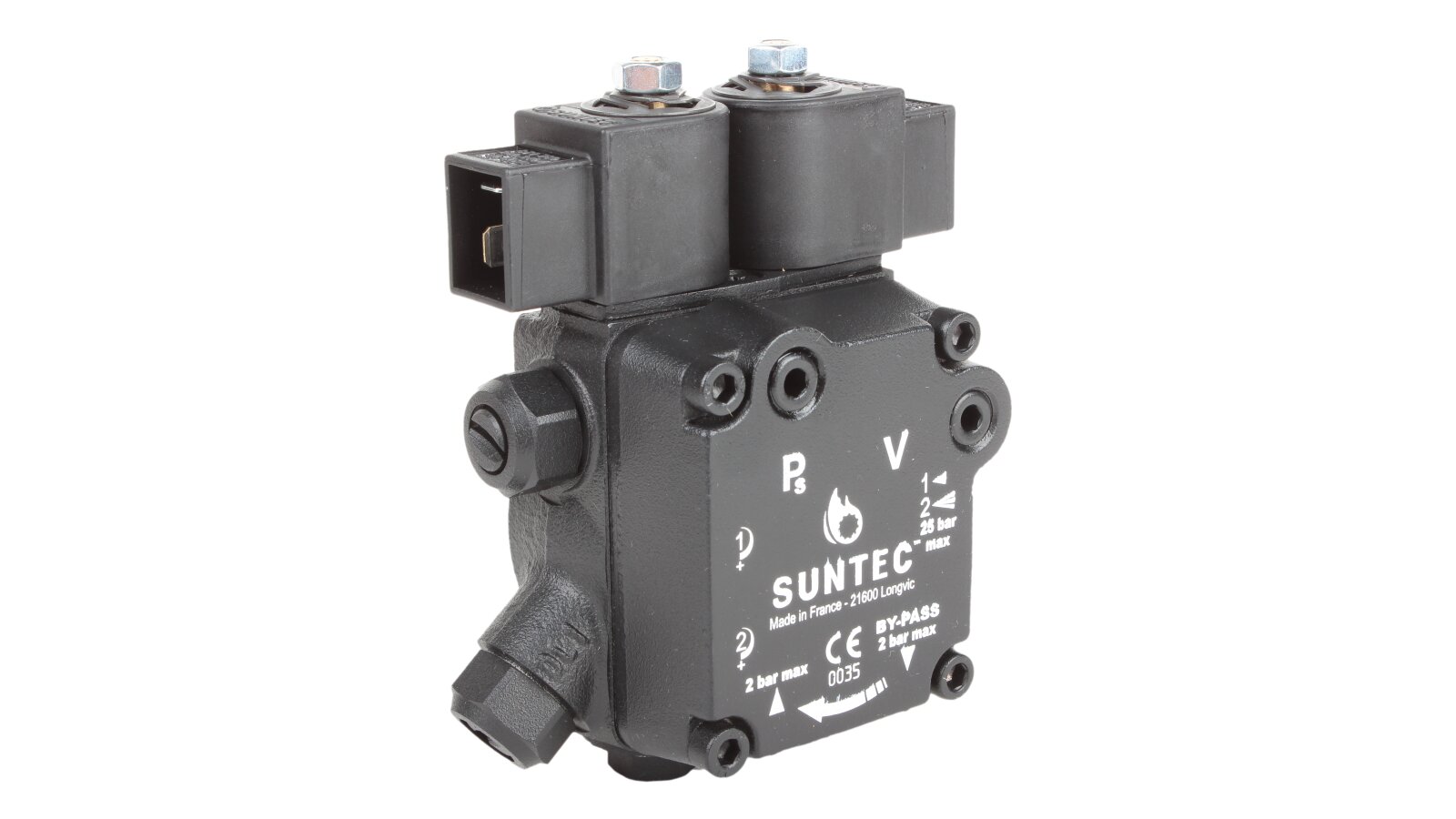

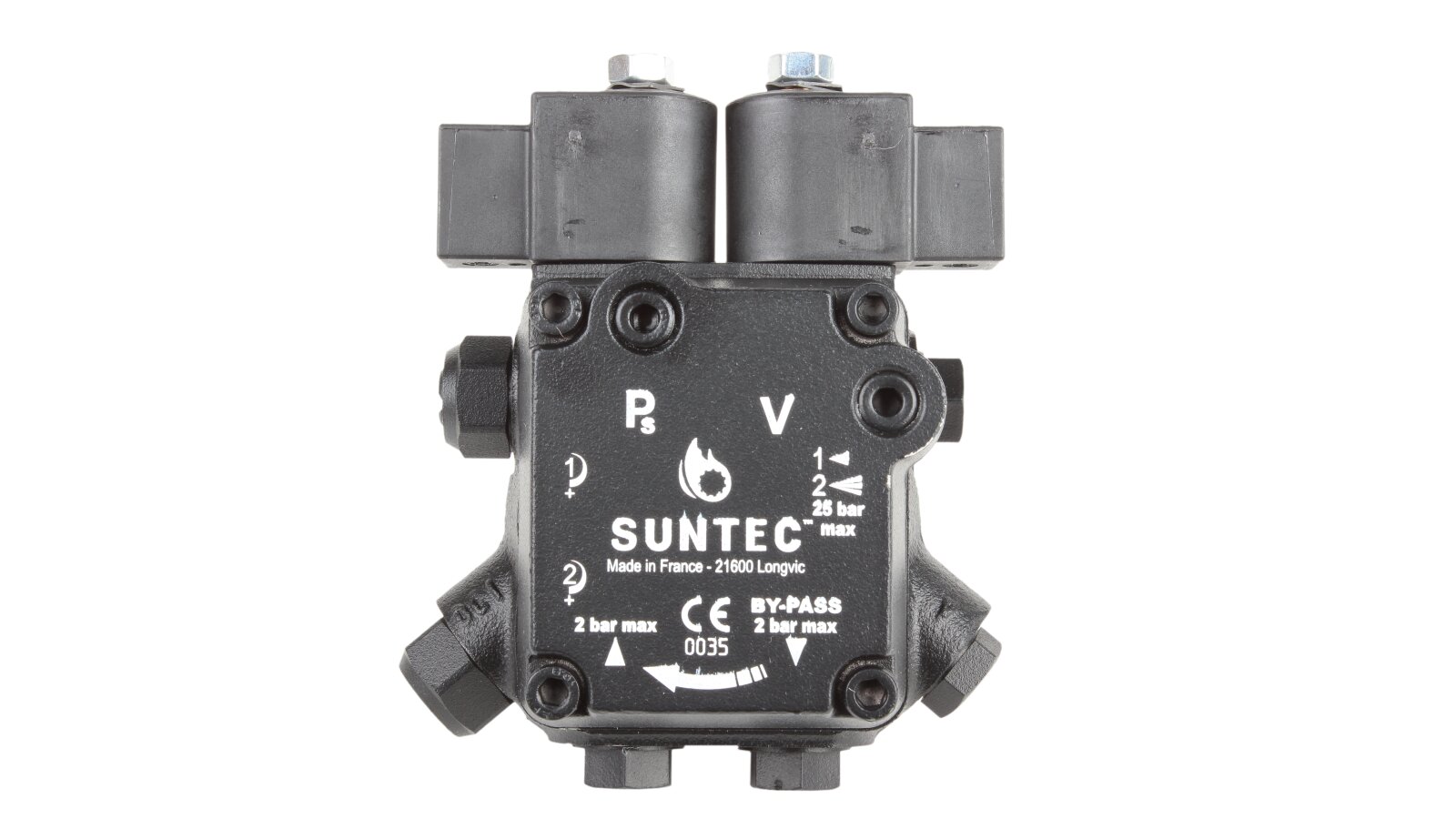

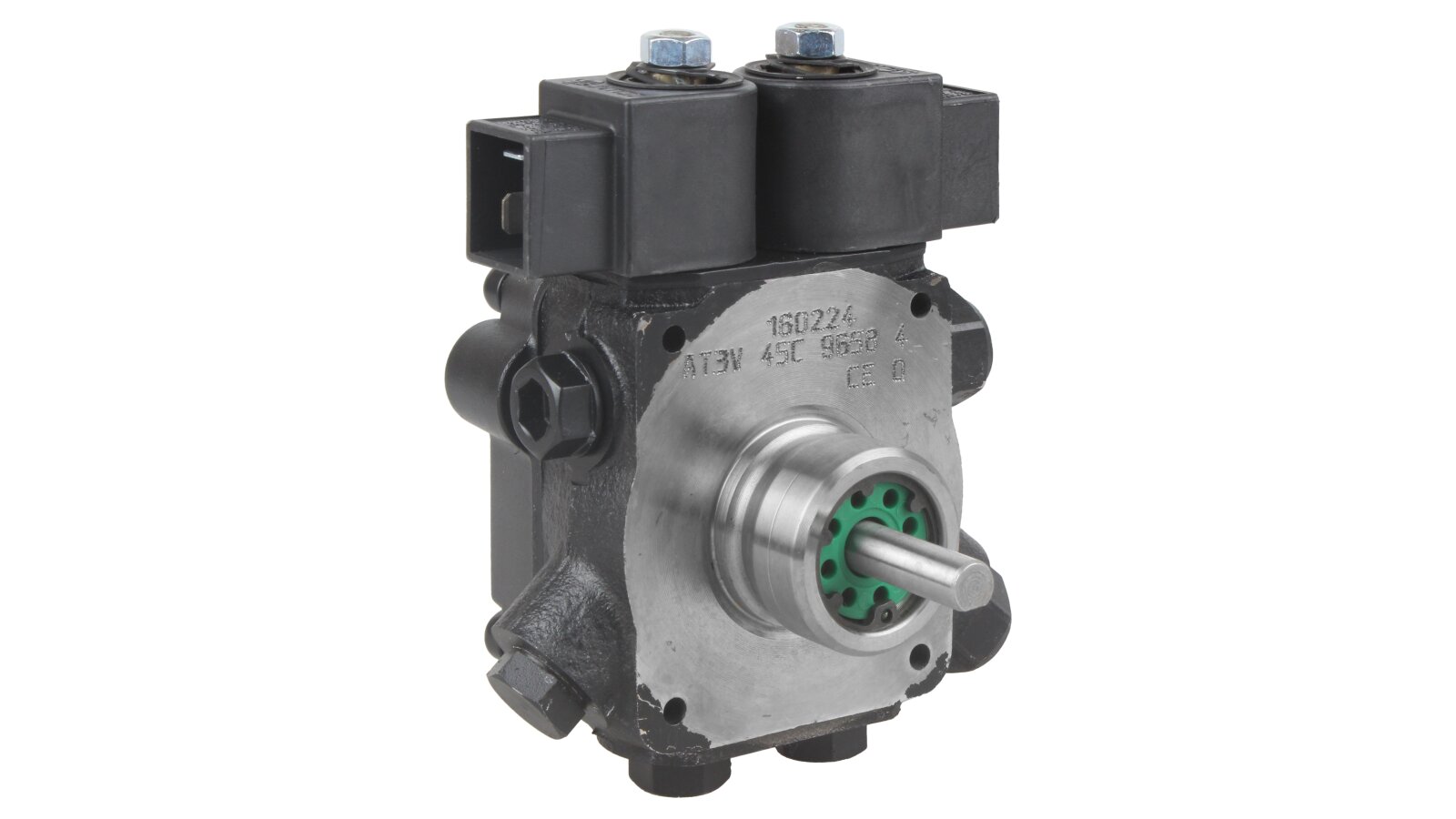

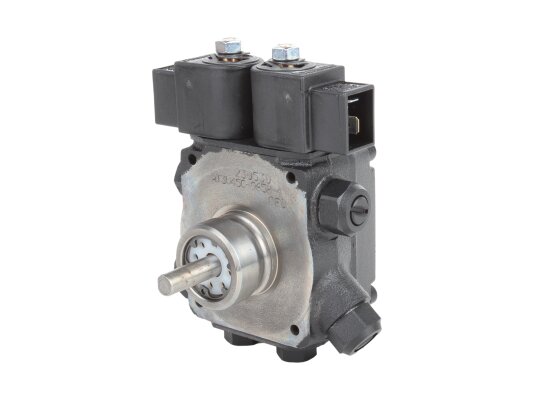

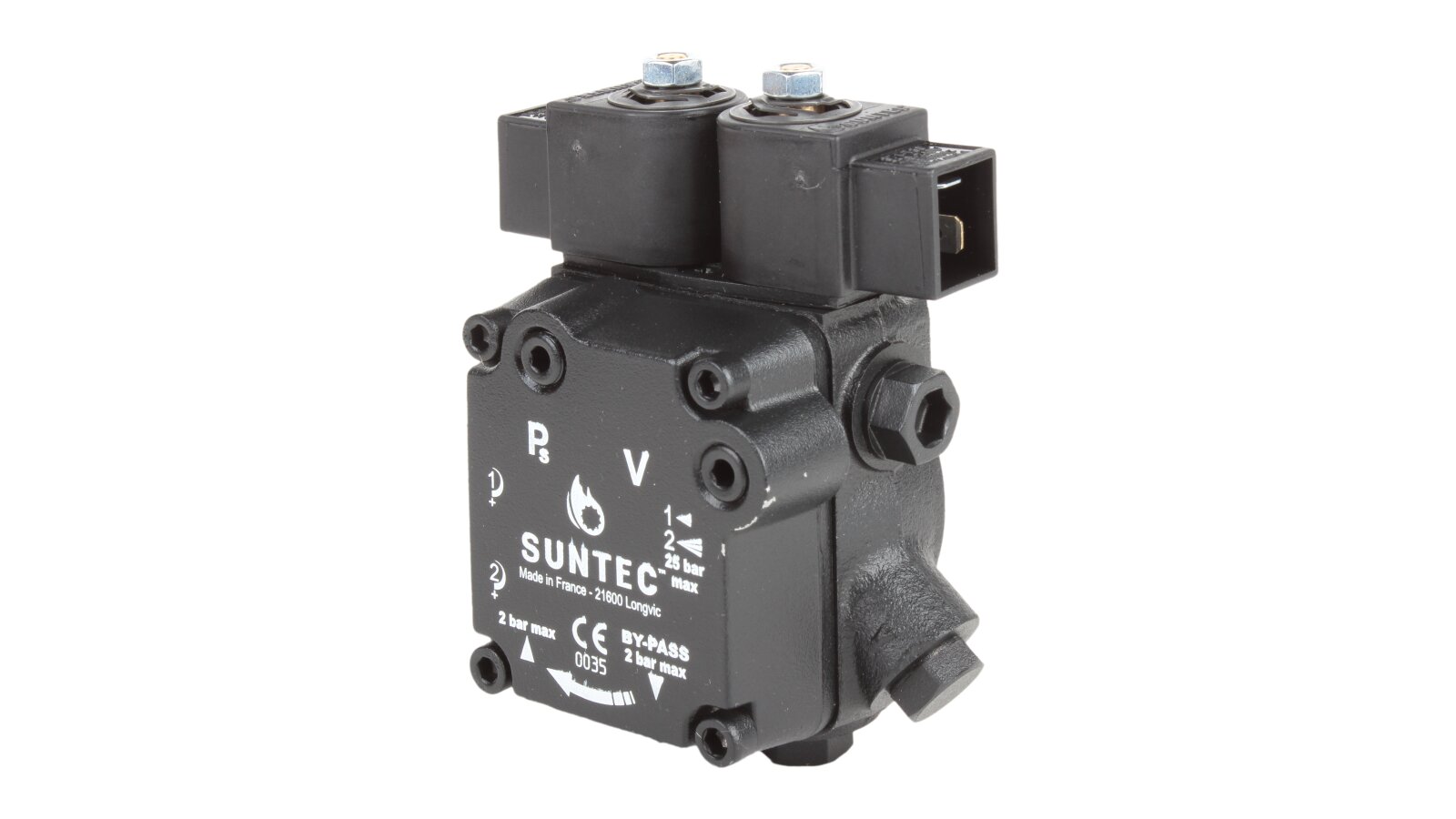

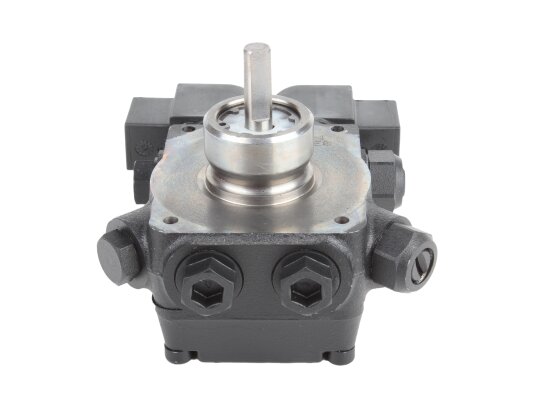

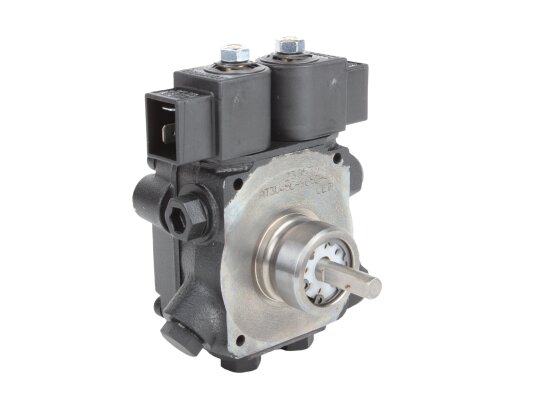

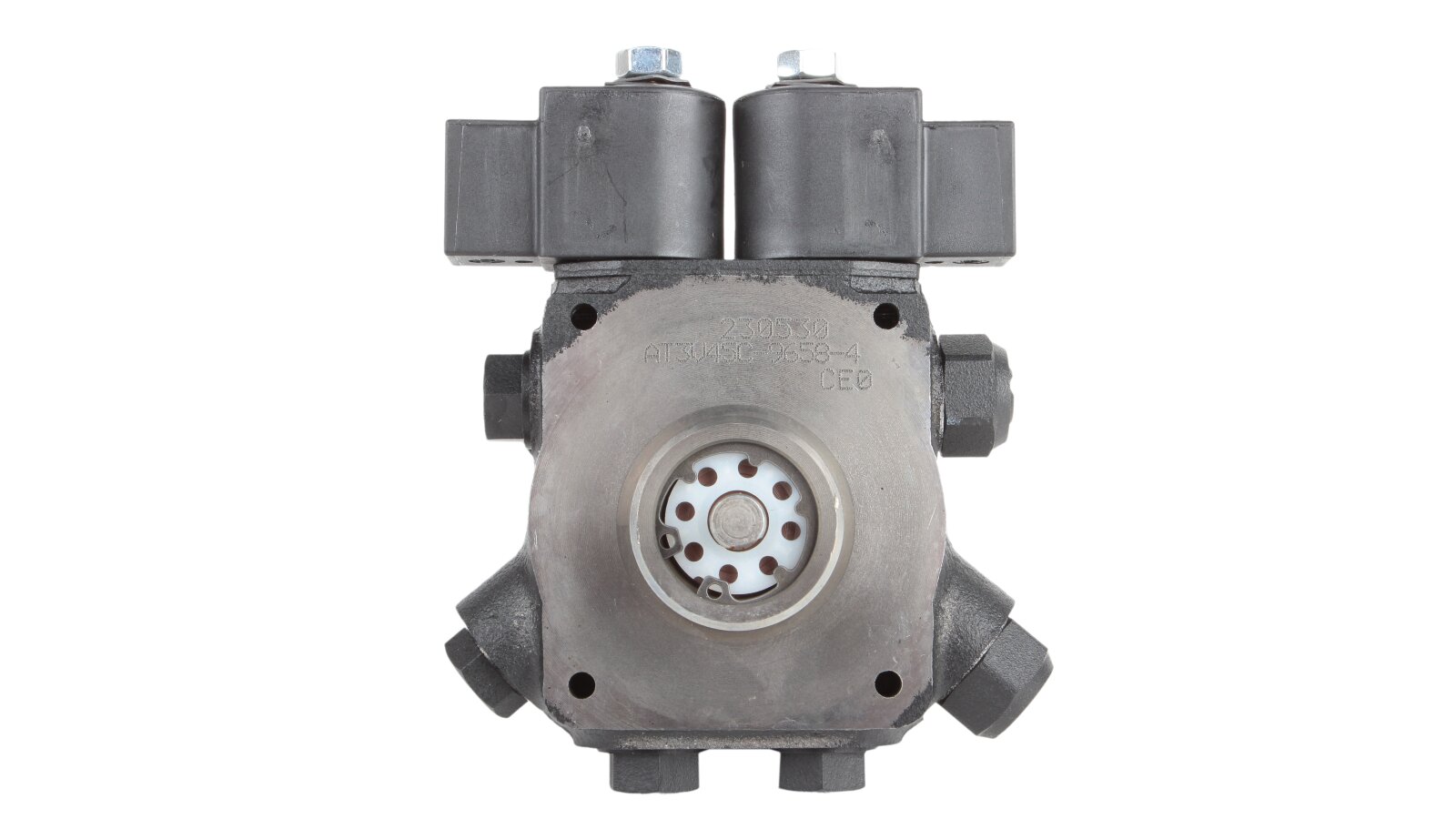

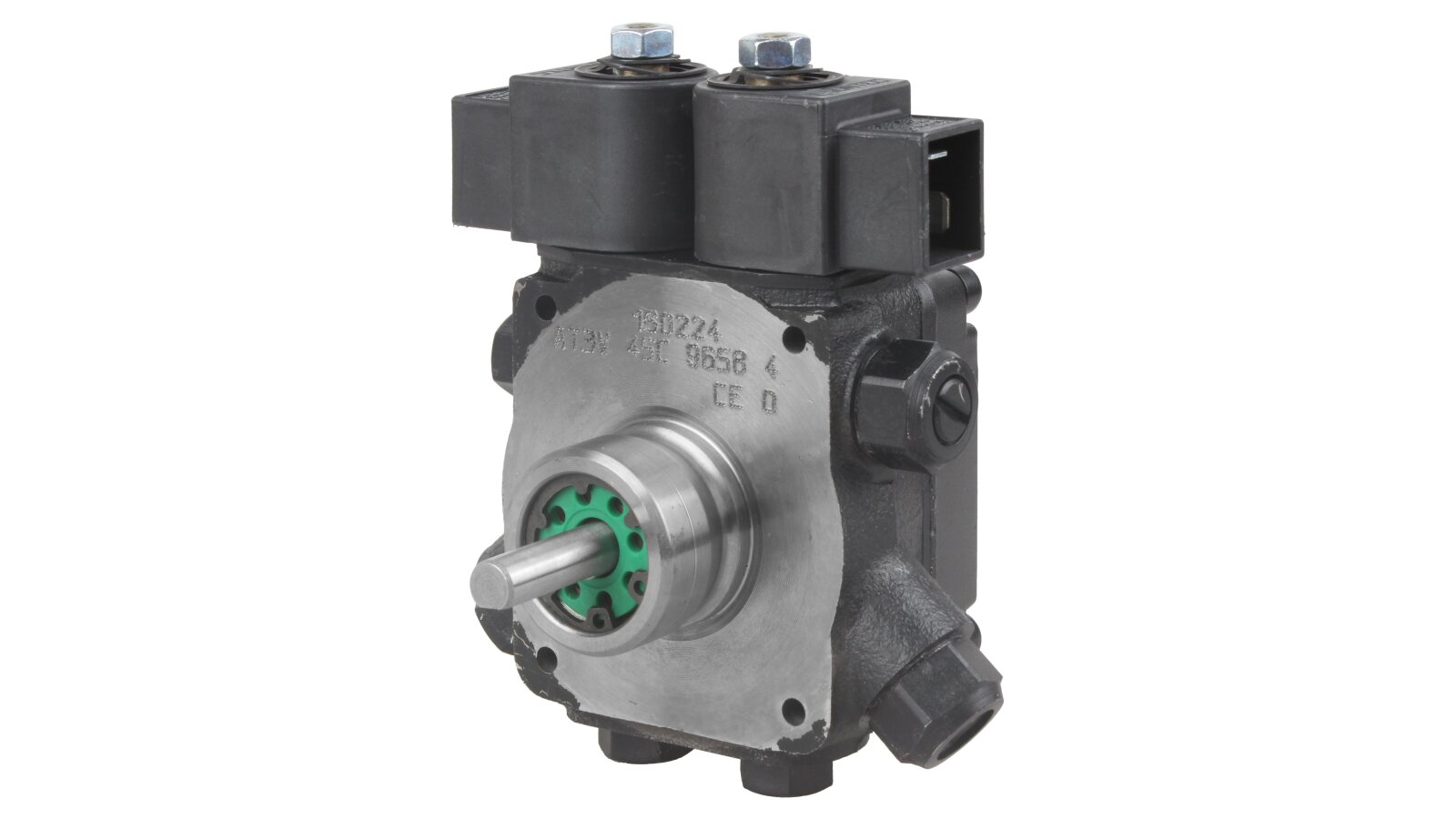

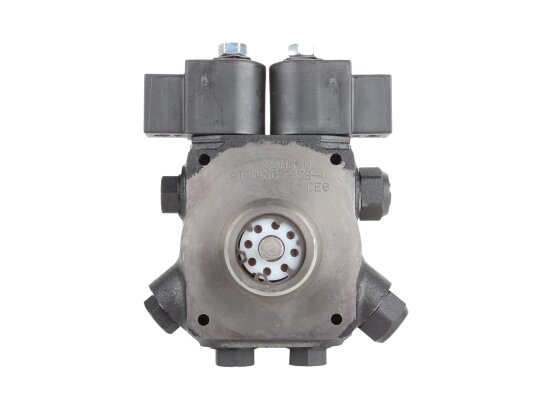

Burner Pump Suntec AT3 V 45 C 9658 4P 0700

Suntec

Alternative Part Number

Baltur

0005060003

AED 1,725

Oil Burner Pumps
Products code: 2304

Description

The dual-mode liquid fuel pump AT3 V 45 C 9658 4P 0700 is equipped with two electromagnetic valves with a locking function. The design has a special connection hole on the cover for connecting a pressure gauge that determines the pressure in the nozzle in high-pressure mode and discharge in low-pressure mode.

Purpose

The pump is used to equip heating burners that burn not only diesel fuel, but also environmentally friendly fuel - biodiesel. This is facilitated by seals made of a special material (Viton) used in the design.

Features and characteristics

  • Thanks to the standard sleeve connection with a diameter of 32 mm (EN 225), the model can be installed on diesel burners of many manufacturers, such as Lamborghini, Baltur, Weishaupt, Ecoflam, Cib Unigas, Riello, Elco and others.

  • The pump has a left-hand outlet to the nozzle. The rotation of the drive shaft is counterclockwise (marked "C").

  • The capacity is 46 l/h at a fuel pressure of 11 bar and a viscosity of 5 cSt.

  • The return fuel line when using a two-pipe system prevents the formation of air locks, removing them simultaneously with the fuel into the tank.

  • Maximum vacuum is 0.45 bar to prevent cases of air separation from the fuel.

  • The main working element is a gear pair, which are engaged with each other by a pinion and driven by the shaft of an electric motor. The working fluid is sucked from the tank, cleaned by a mesh filter from foreign inclusions of 150 µm in size and enters the spool valves under pressure.

  • The pressure modes are adjusted separately for each spool by turning the adjusting screws clockwise or counterclockwise.

  • A shut-off electromagnetic valve on the discharge line eliminates the need to install an external check valve.

The advantages are:

  • two fuel supply pressure modes, which can be controlled automatically;

  • low energy consumption;

  • standard threads on ports and outlets;

  • possibility of installation in one- or two-pipe systems;

  • preliminary fuel cleaning;

  • built-in shut-off electromagnetic valve.

On the website of the company "ANKAS" you can buy a fuel pump for the burner AT3 V 45 C 9658 4P 0700 and other components for heating systems at a reasonable price. All equipment presented for sale is tested, meets safety and reliability requirements, comes with an operating manual and a manufacturer's warranty.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 46 l/hType of pumped liquid: diesel, biodiesel fuel blend B10Operating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 2-stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AT3: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lPerformance for stage 2 at 11 bar and 5 cSt viscosity: 31 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 25 barFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54
