Burner Pump Suntec AT3 V 55 A 9618 4P 0700

Suntec

Alternative Part Number

Baltur

0005060082

AED 1,550

Oil Burner Pumps
Products code: 2243

Description

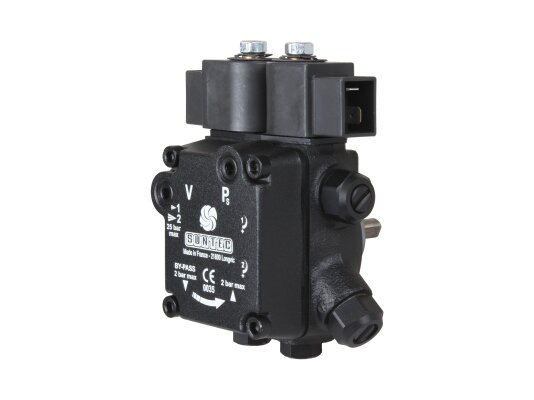

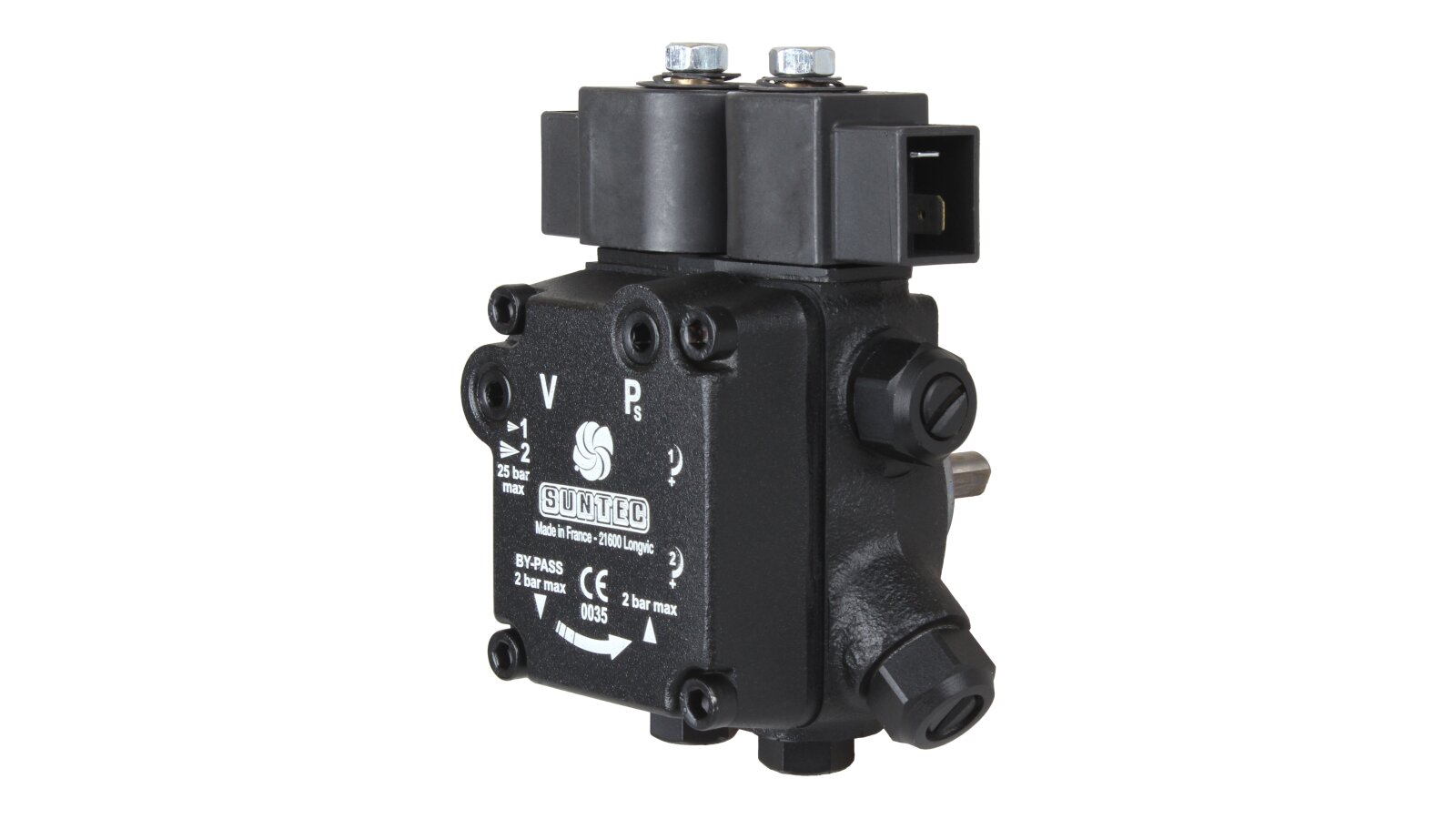

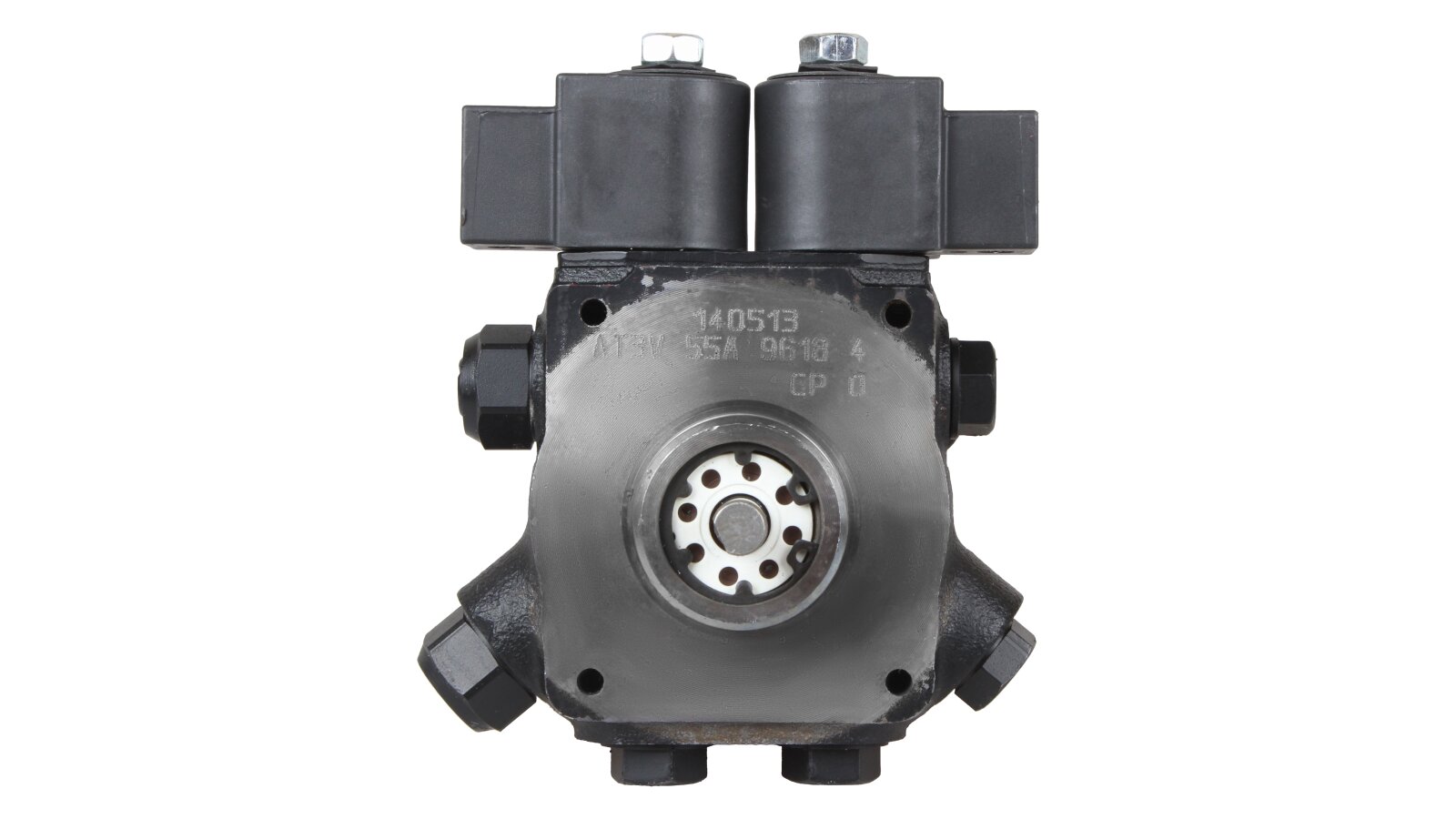

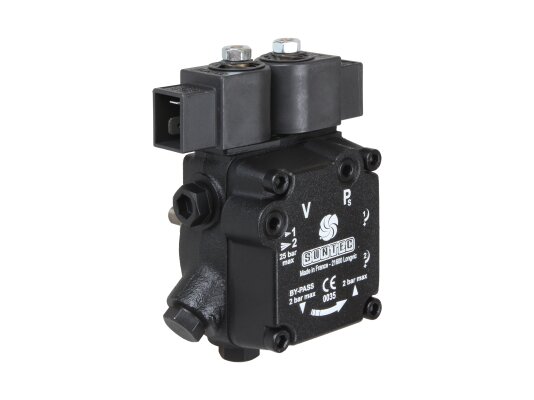

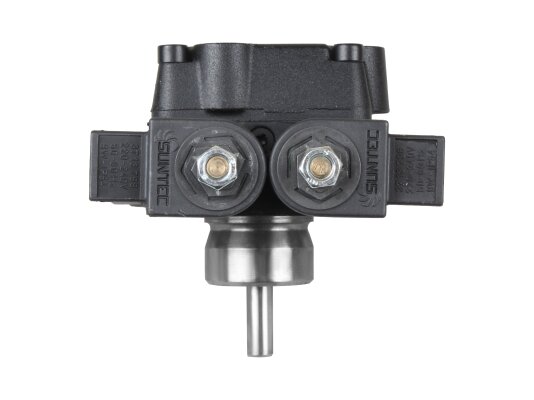

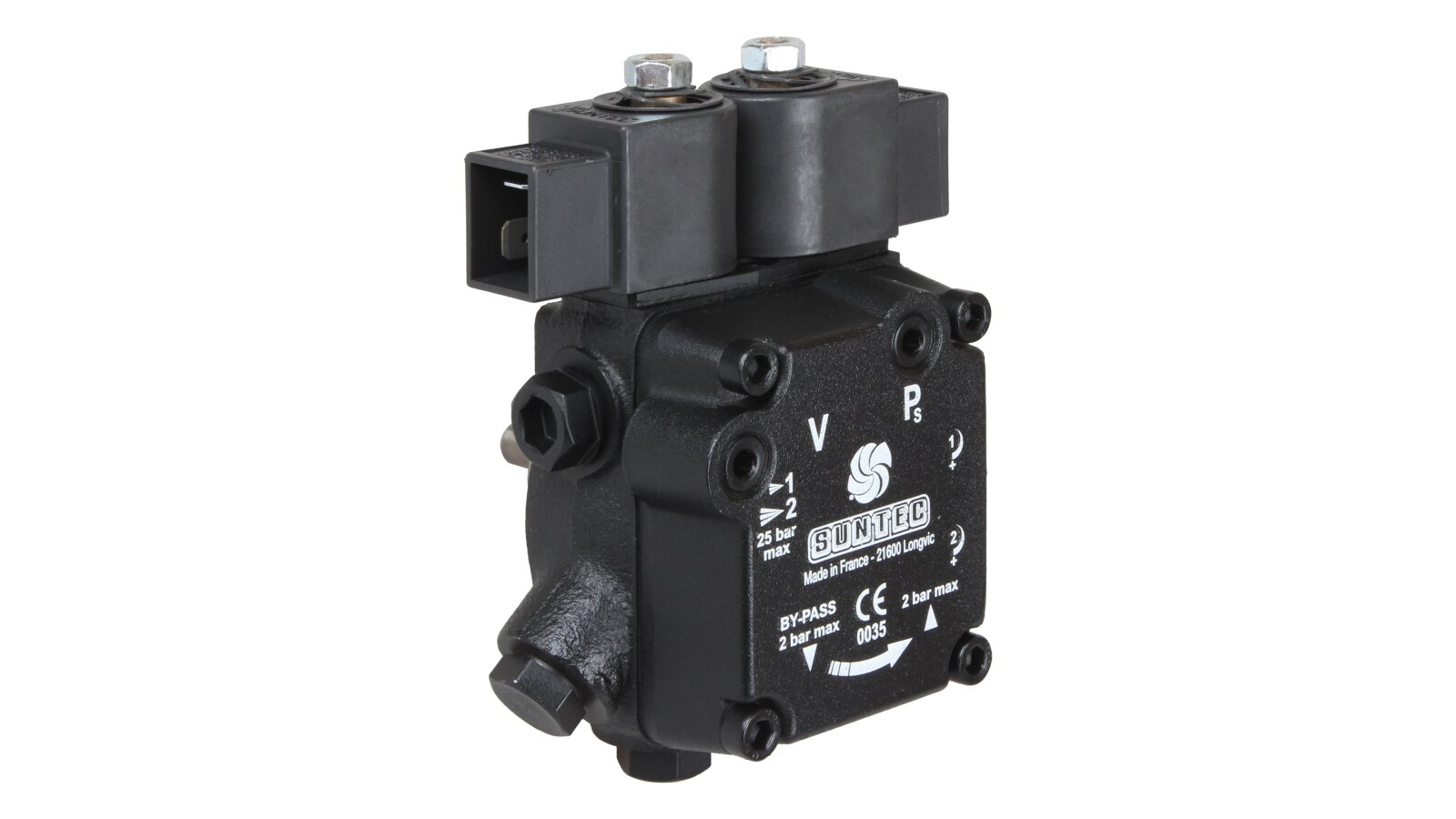

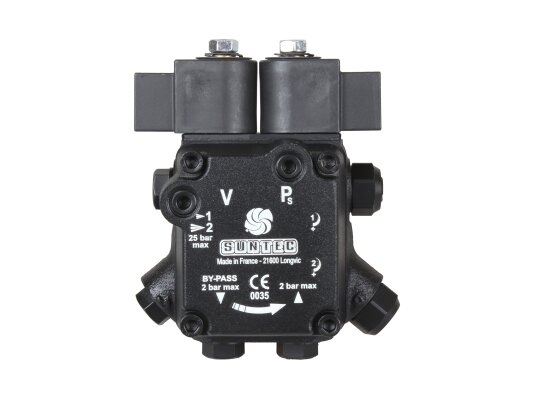

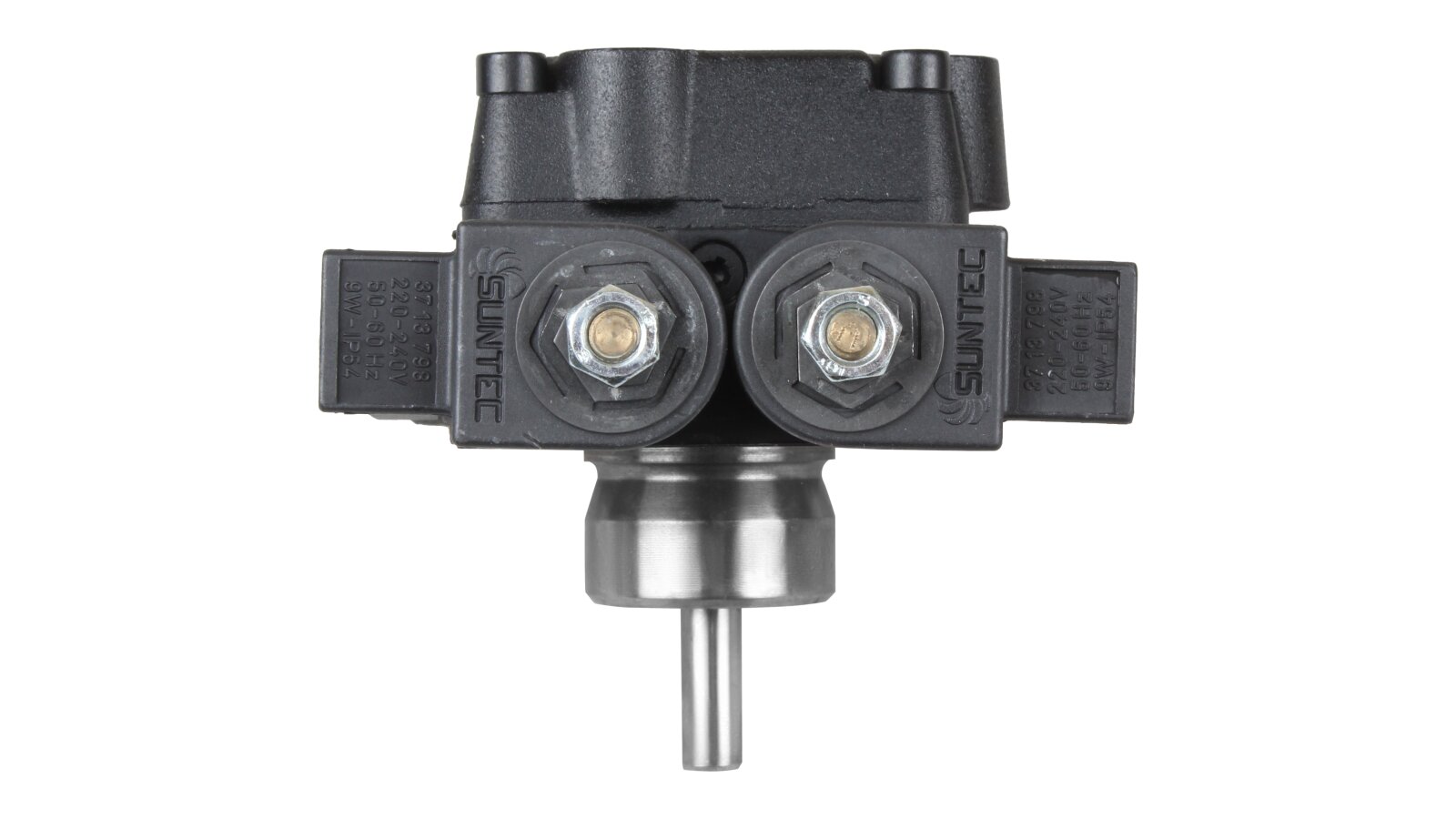

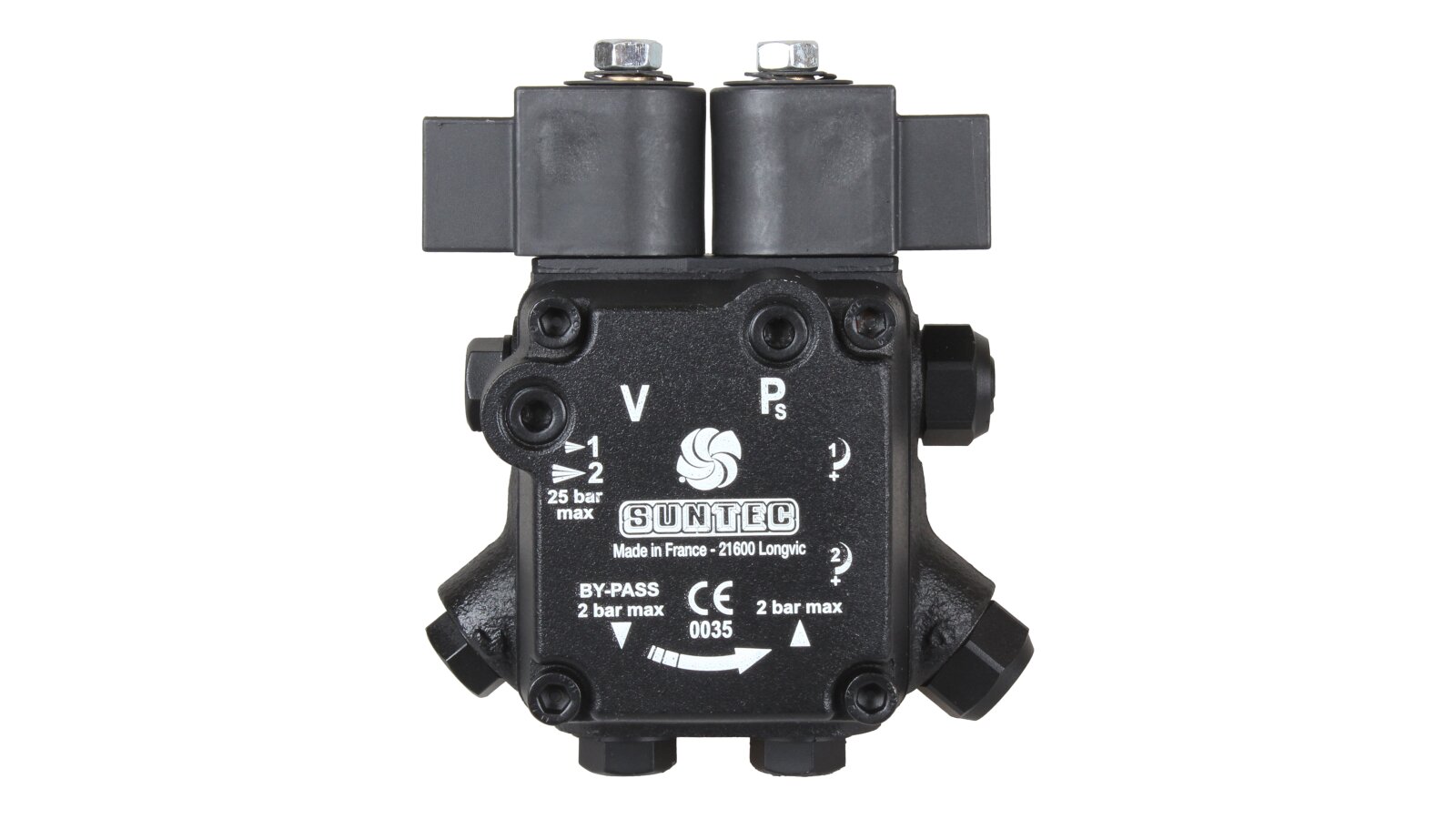

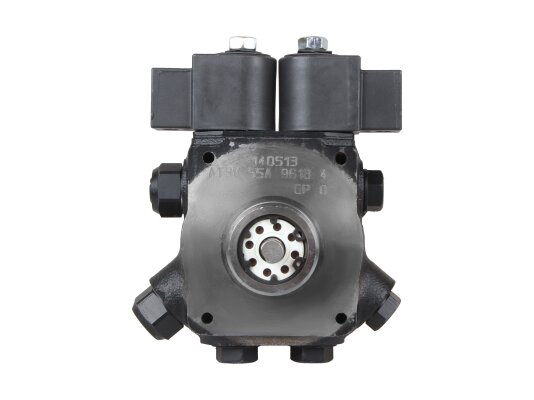

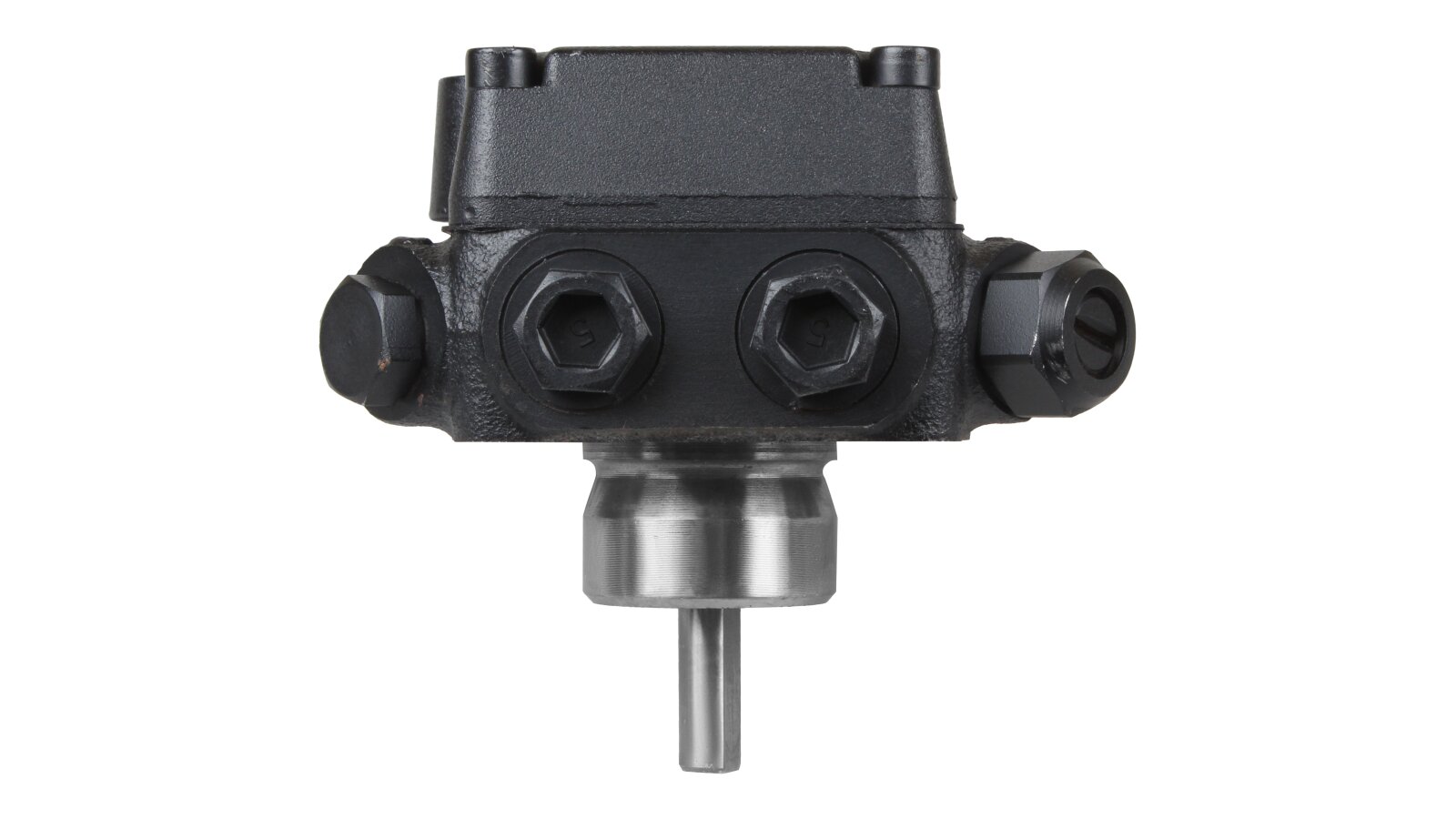

The AT3 V 55 A 9618 4P 0700 gear liquid fuel pump is equipped with two electromagnetic valves and operates in two pressure modes. The model has a special design that allows it to work with biodiesel and diesel fuel. The capacity is 62 l/h at a pressure of 11 atmospheres. Design with a right-hand outlet to the injector.

Features

The AT3 series pump is equipped with a special outlet for measuring the pressure in the injector only at the second pumping stage.

Thanks to the special shaft seal made of Viton, the unit can be used not only for pumping diesel fuel, but also environmentally friendly fuel - biodiesel.

The main working mechanism is a gear pair. The drive gear is mounted on the drive shaft and rotates clockwise. It is in constant engagement with the driven wheel. When rotating, the gear mechanism sucks fuel from the tank, passes it through a coarse filter and then pushes it to the spool valves.

The spool valves act as pressure limiters for the supplied fuel. Each valve is adjusted separately using screws, for the first stage in the range of 8-15 bar, for the second - 12-25 atmospheres.

The "normally open" EM bypass valve switches between low and high pressure.

The fuel that does not enter the injector line returns to the tank or to the suction (depending on the system configuration).

The shut-off EM valve shuts off the supply of the pumped liquid to the injector.

The advantages are:

  • the ability to pump diesel fuel and biodiesel;

  • 2 pressure modes;

  • wide adjustment range - from 8 to 25 atm.;

  • the ability to adjust without turning off the heating equipment;

  • standard holes for measuring instruments and in-line mounting;

  • fuel pre-filtration;

  • automatic stage switching.

The company "ANKAS" offers to buy a fuel pump for the burner AT3 V 55 A 9618 4P 0700 and other components for equipping heating systems at an affordable price. Pumps from the leading manufacturer Suntec are designed for trouble-free operation and intensive loads. Modern solutions and the latest technical base were used in the production of equipment.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 62 l/hType of pumped liquid: diesel, biodiesel fuel blend B10Operating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 2-stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AT3: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lPerformance for stage 2 at 11 bar and 5 cSt viscosity: 47 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 25 barFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54
