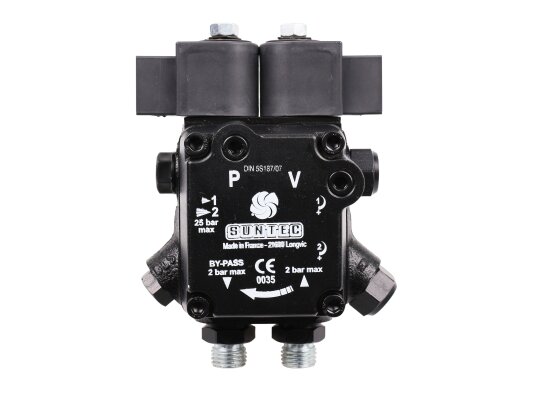

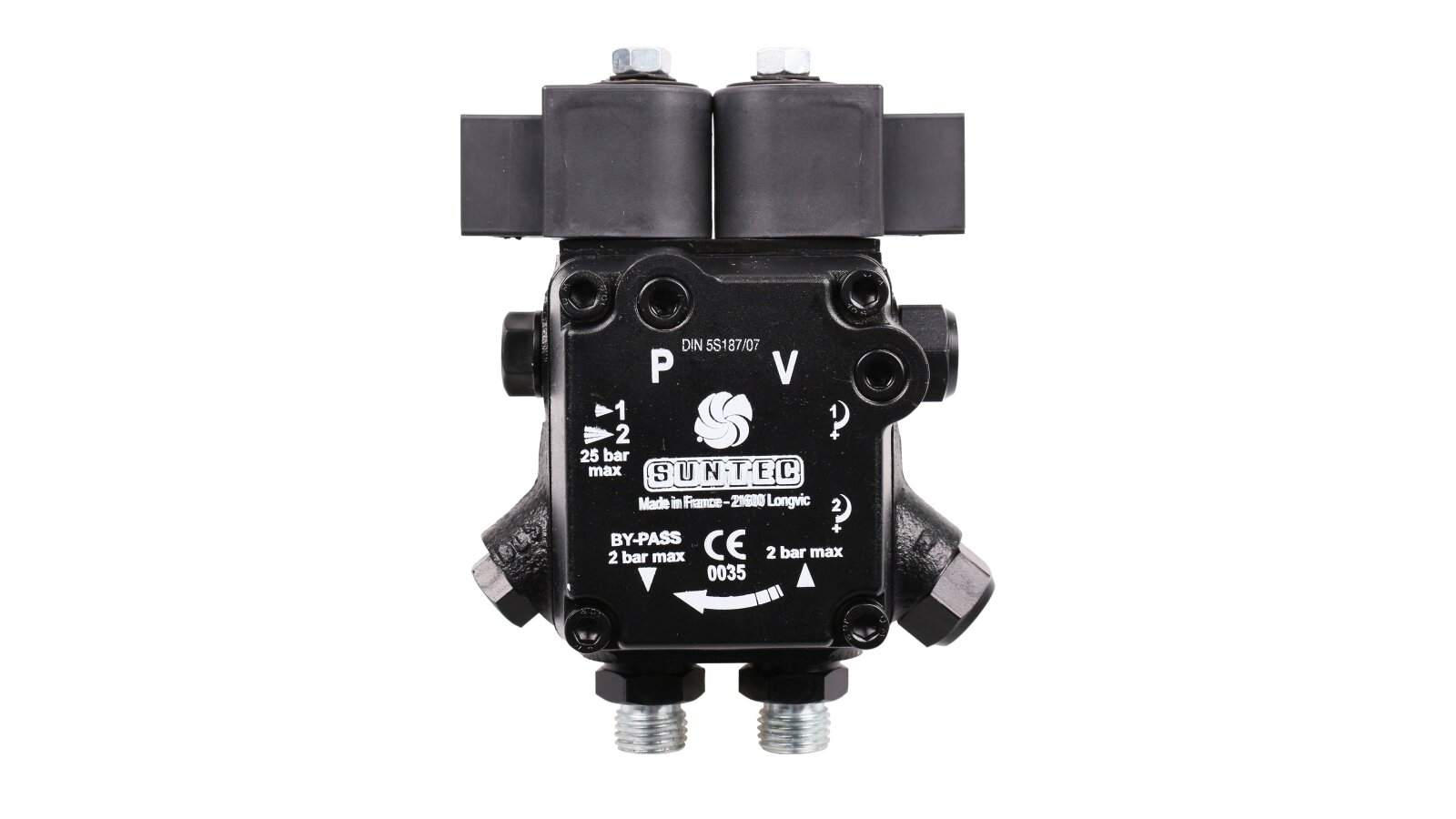

Burner Pump Suntec ATE2 V 55 D 9354 4P 0700

Suntec

AED 1,175

Oil Burner Pumps
Products code: 6861

Description

The Suntec ATE2 V 55 D 9354 4P 0700 pump is designed to pump a mixture of biodiesel fuel B10 and diesel fuel. It operates in two pressure modes. It is equipped with a shut-off electromagnetic valve with a locking function and a bypass electromagnetic valve for switching from one stage to another.

Features

  • The pump design is made in accordance with the European standard IP54, which eliminates the penetration of dust and moisture into the device. The nozzle connection pipe is on the right.

  • To control the low and high pressure modes, and the fuel supply pressure, the pump is equipped with electromagnetic and spool valves. The pressure can be adjusted without interrupting the work process.

  • Before entering the gear mechanism, the fuel is cleaned of abrasive particles of 150 microns in size, which maintains the integrity of the working parts and extends the service life of the equipment.

  • The shut-off electromagnetic valve is located in the nozzle line, which facilitates rapid response.

  • The pump is ready for installation in a 2-pipe system. When used for a single-pipe design, the bypass plug should be removed and a steel plug with a washer installed instead.

  • For safe pumping of fuel, the pump uses reliable slide and electromagnetic valves, and special seals.

Advantages:

  • Two-stage control mode;

  • Universality - for biodiesel and diesel fuel;

  • Quick-response electromagnetic shut-off valve;

  • Slide valves for pressure regulation;

  • Mesh filter for removing large impurities;

  • High level of protection against dust and moisture;

  • Single- and double-pipe connection;

  • Ports for connecting measuring equipment;

  • Uninterrupted service.

You can buy the Suntec ATE2 V 55 D 9354 4P 0700 pump and other components for assembling a heating boiler on our website. The equipment has been tested in factory conditions, meets reliability and safety requirements.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 62 l/hType of pumped liquid: diesel, biodiesel fuel blend B10Operating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 2-stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lPerformance for stage 2 at 11 bar and 5 cSt viscosity: 47 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 25 barFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54
