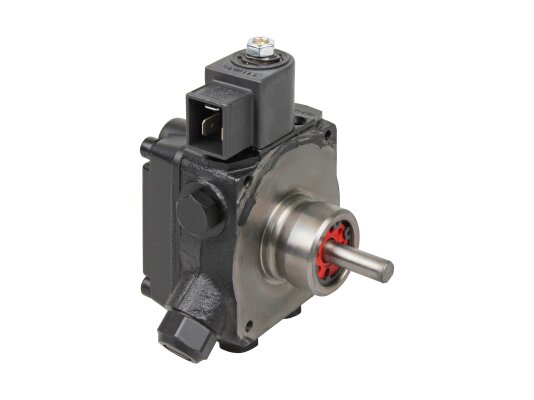

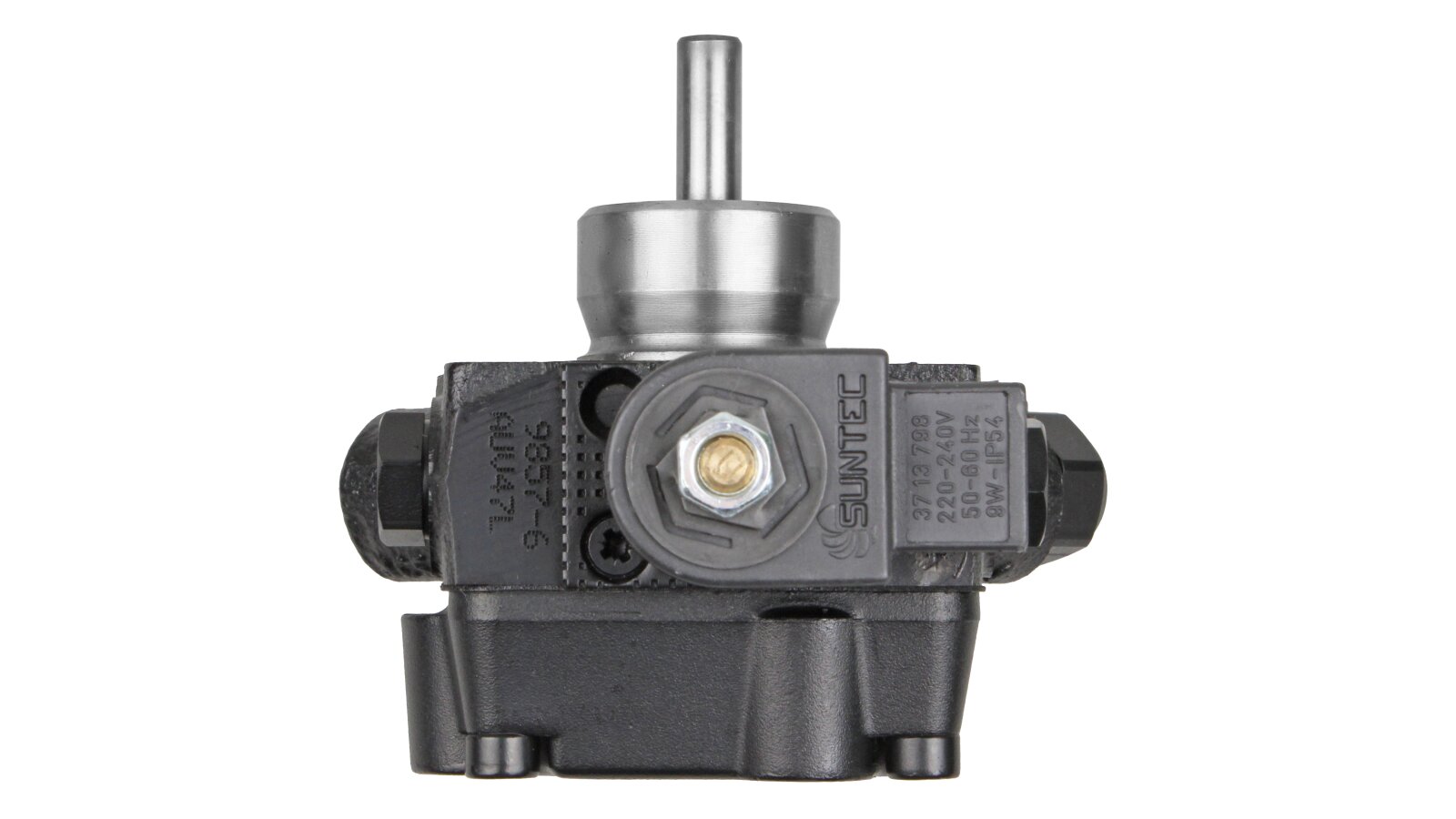

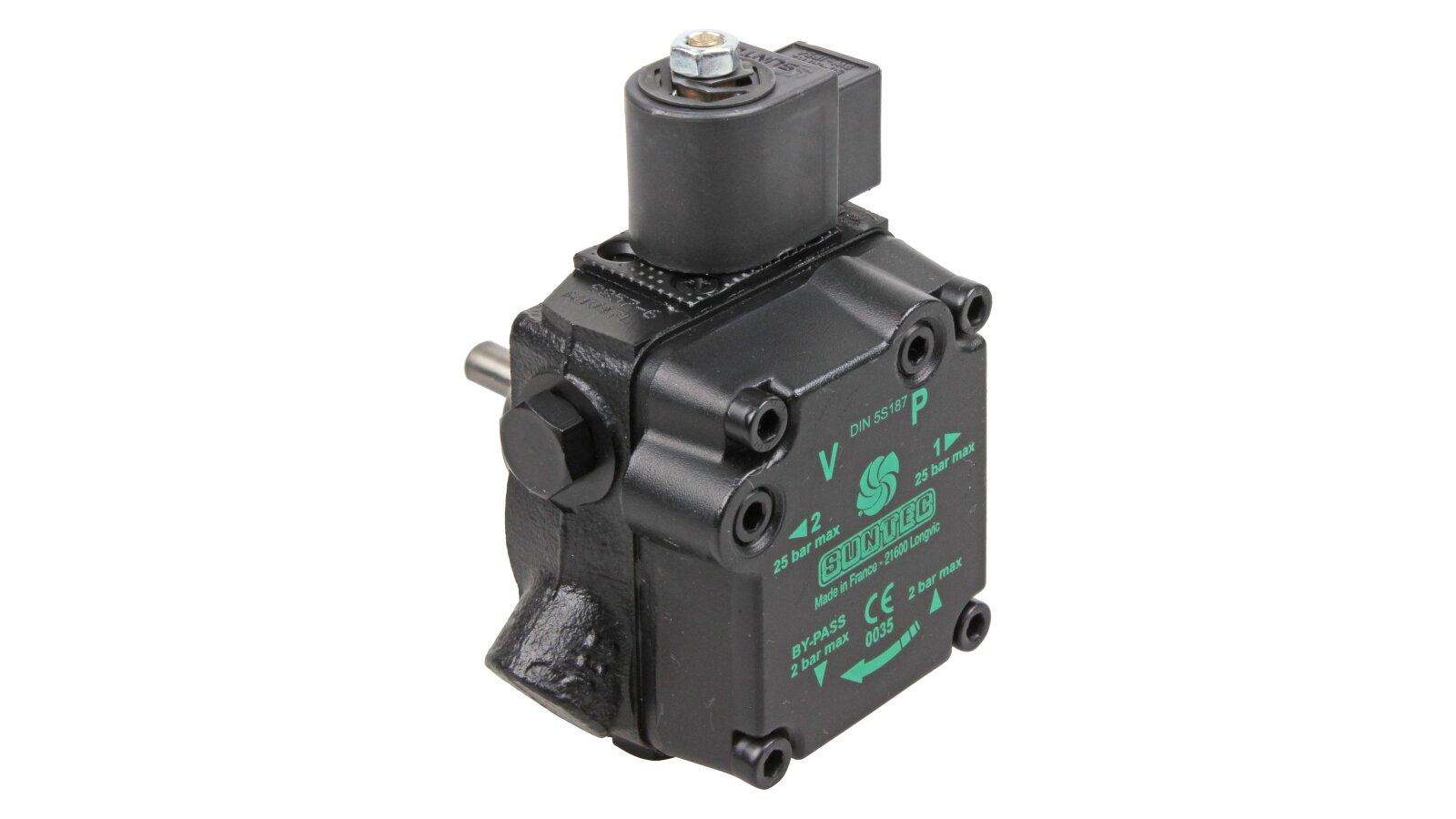

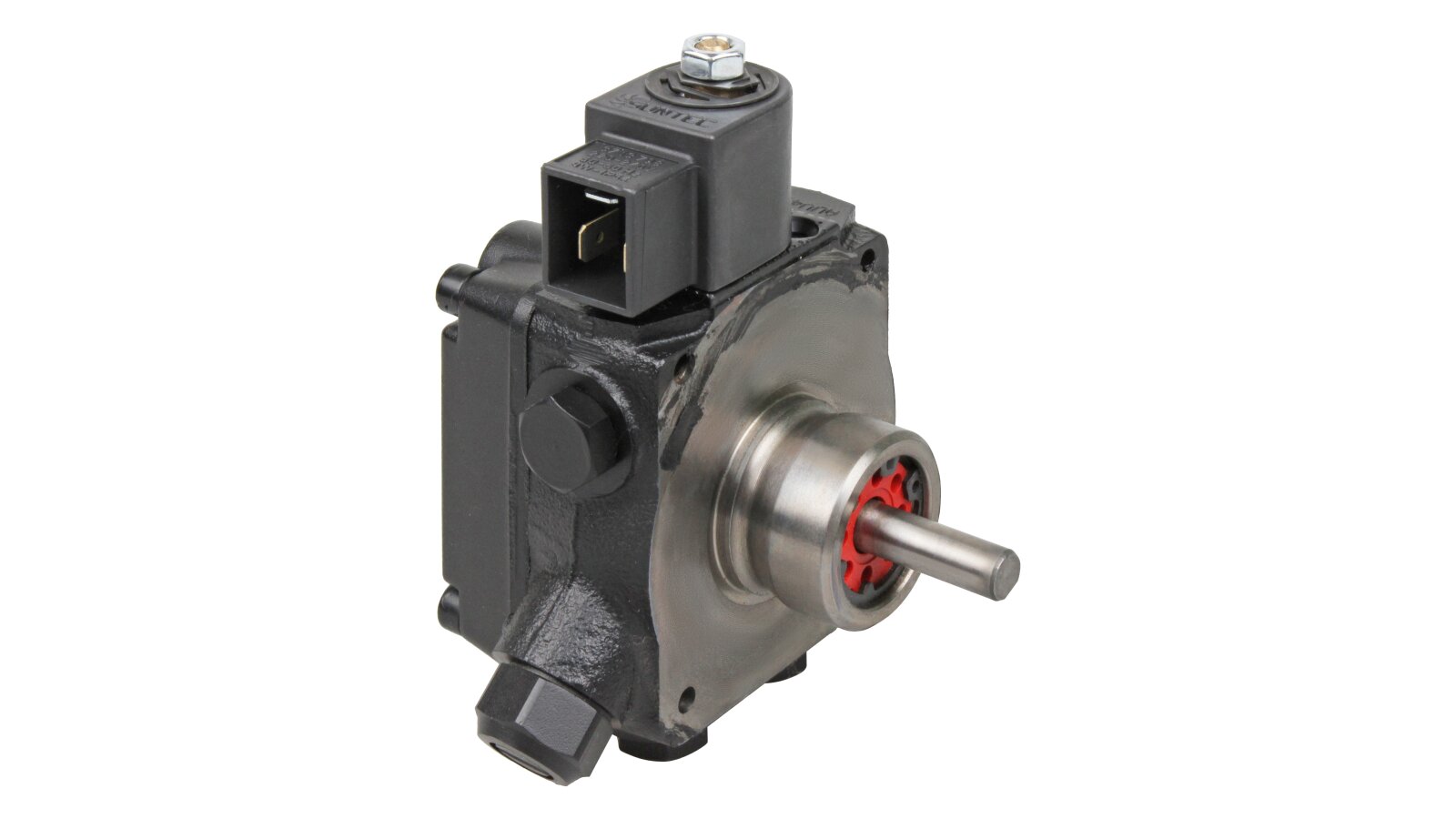

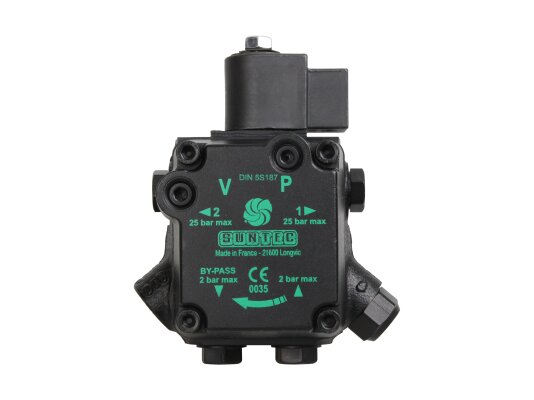

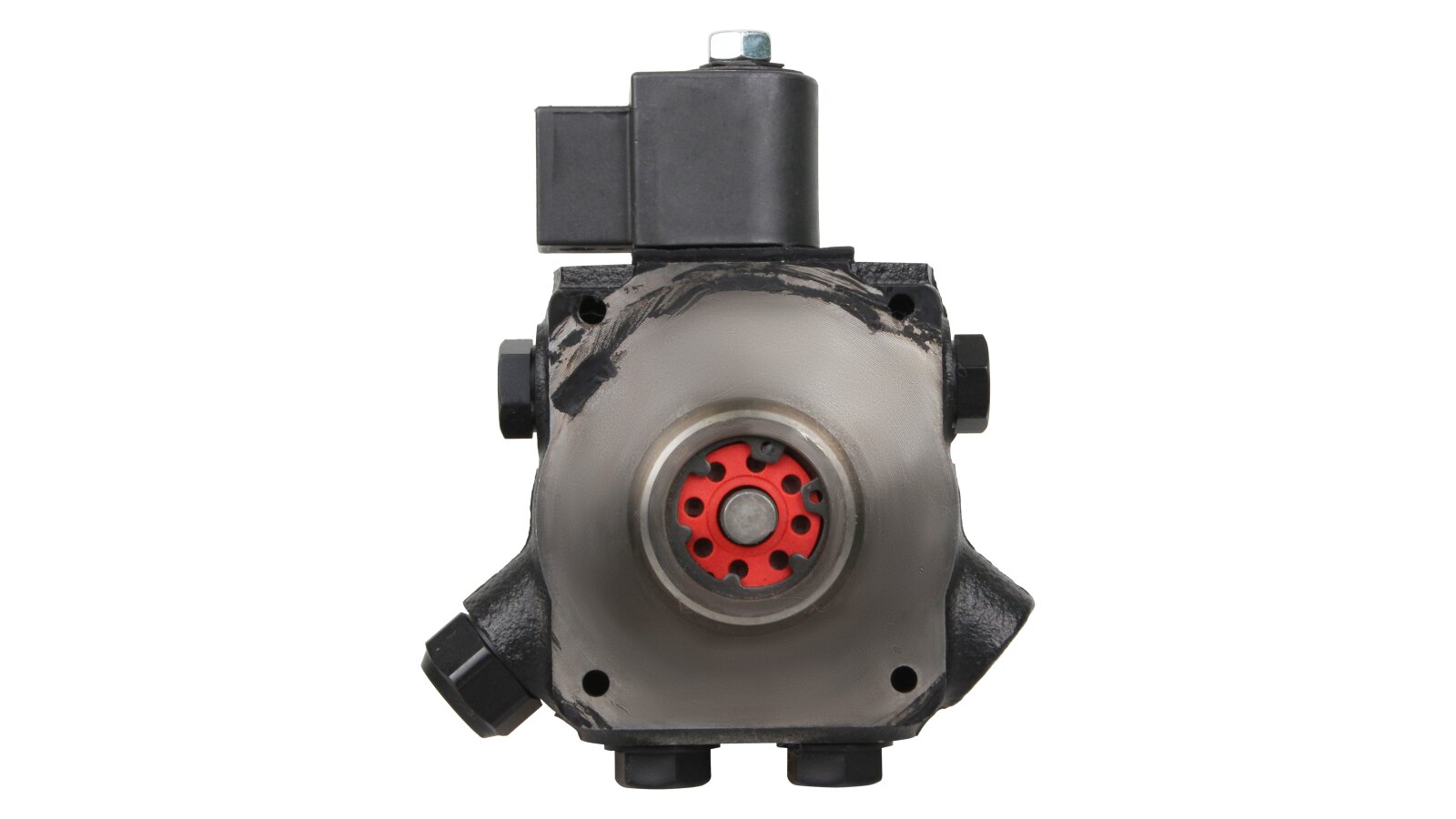

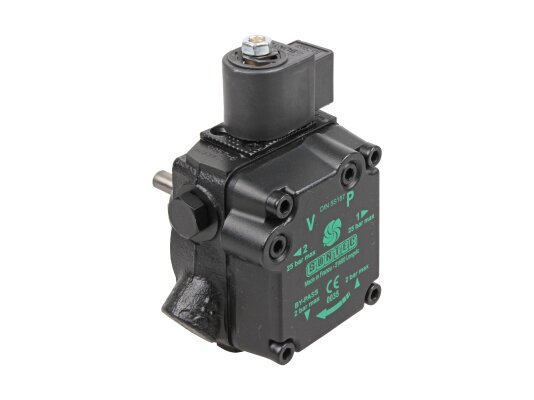

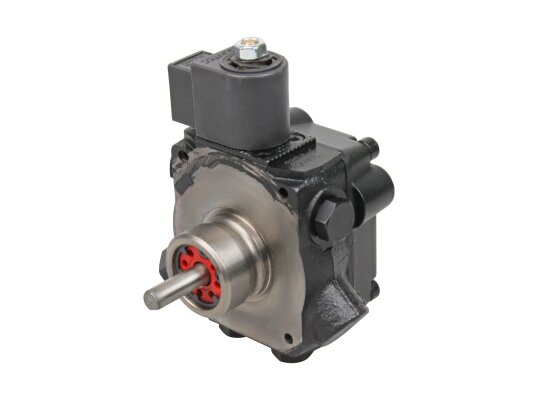

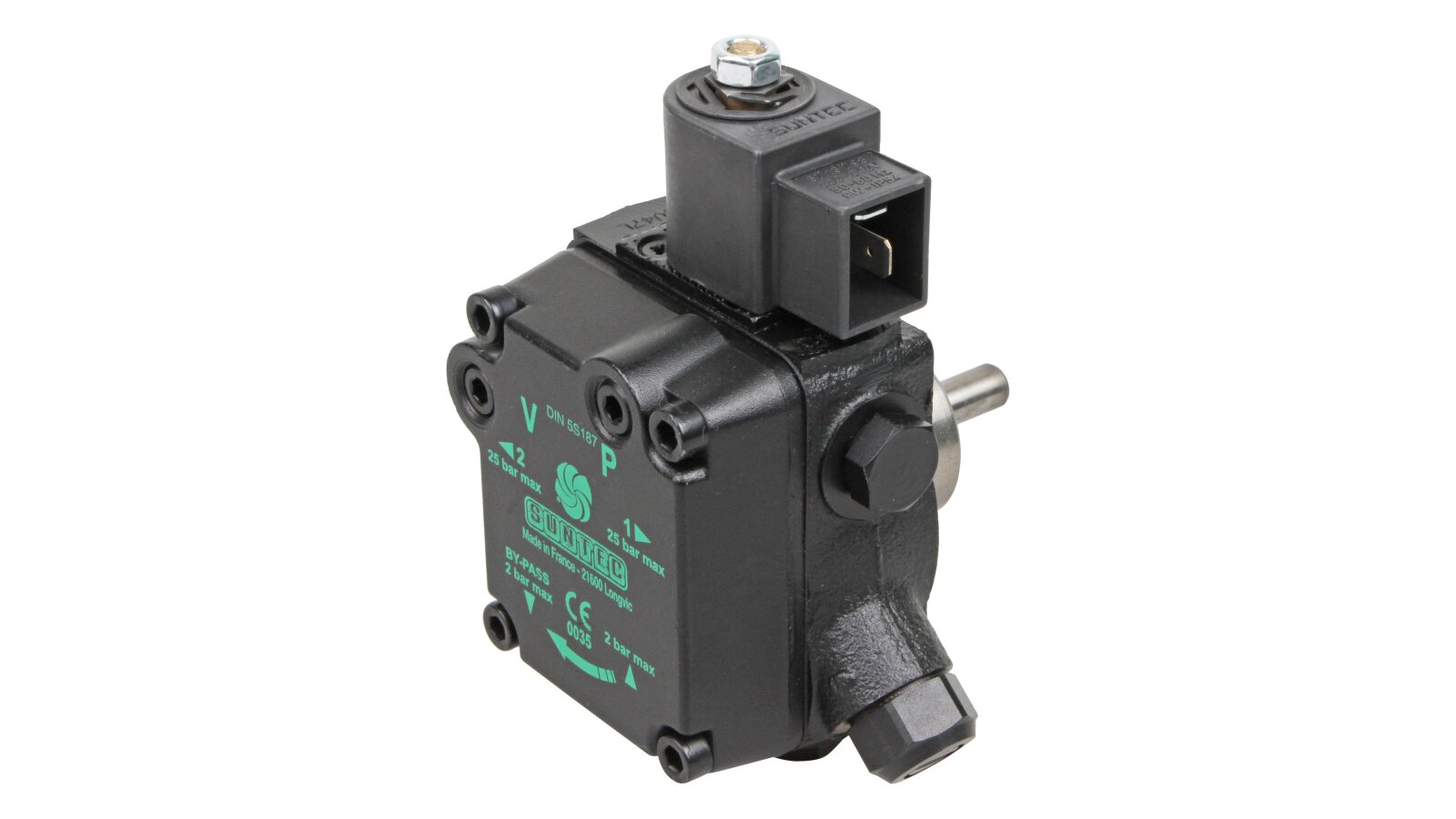

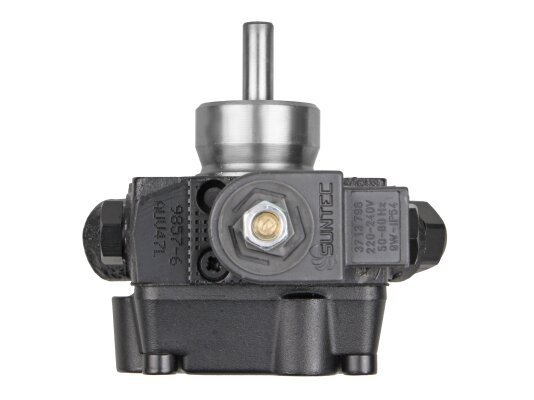

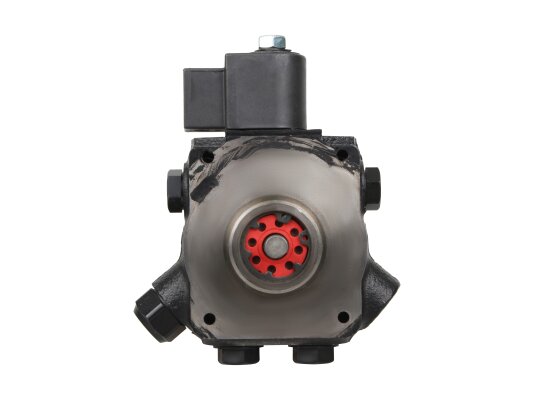

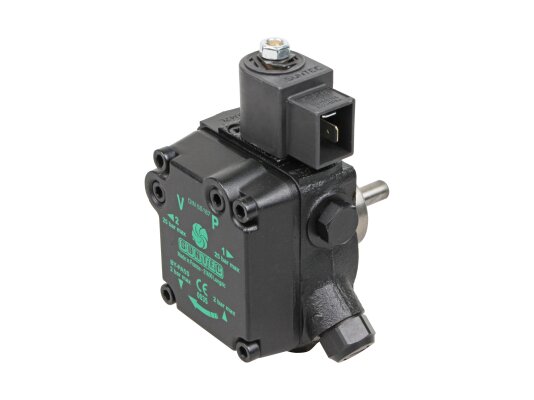

Burner Pump Suntec AU V 47 L 9857 6P 0500

Suntec
  • Discontinued
Oil Burner Pumps
Products code: 1215

Description

Single-stage liquid fuel pump AU V 47 L 9857 6P 0500 for pumping diesel fuel, kerosene and biodiesel is a special model developed by the European concern Suntec. Its popularity among repair crews and service centers is due to the replaceability of pumps of the AS 47 and AL 35 series. The device is equipped with an electromagnetic solenoid with a shut-off function, and the output to the injectors can be connected both on the right and on the left.

The company "ANKAS", which is a reliable supplier of industrial equipment from European manufacturers, offers to buy a burner fuel pump at an affordable price.

Technical features

  • The model is attached to the electric motor using a sleeve method with a landing diameter of 32 mm. Its drive axis rotates counterclockwise.

  • The pressure on the injector line is adjusted in the range from 4 to 25 atm thanks to the valve. All unclaimed fuel flows to the suction line or to the tank, depending on the connection configuration.

  • The unit's performance depends on the kinematic viscosity of the working fluid: when pumping kerosene, it is 24 l/h, when supplying biodiesel or diesel fuel, it reaches 44 l/h.

  • A special feature of the AU V 47 L 9857 6P 0500 liquid fuel pump is a shut-off electromagnetic valve. Its purpose is to stop the fuel supply to the injectors upon a signal from the controller. The locking function is triggered instantly and does not depend on the rotation speed of the electric drive.

  • To speed up the release of air before starting the device in a one-pipe system, it is recommended to use a spare outlet to the injectors and a port for connecting a pressure gauge. With a two-pipe configuration, this process occurs automatically.

Main advantages:

  • works with a wide range of flammable liquids — diesel fuel, biodiesel, kerosene;

  • press fit of the gear on the shaft;

  • standard threaded connections according to ISO 228/1 for connecting instrumentation — pressure gauge and vacuum gauge;

  • hermetic housing with IP54 protection rating will not allow mechanical particles, water and dust to penetrate into the device;

  • ability to connect to 1-pipe and 2-pipe fuel pipeline systems.

AU V 47 L 9857 6P 0500 is one of the most reliable liquid fuel pumps for heating burners, designed for long-term operation without significant costs.

Characteristics

Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 44 l/h2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hPump series: AU: replaces most AS 47 and AL 35 models. It has an integrated solenoid valve (type AL) withDirection of rotation (looking at the drive shaft): L: counterclockwise rotationStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 1 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 44 l/hPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hInstallation method: sleeve ∅ 32 mmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 4 to 25 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54Type of pumped liquid: diesel, kerosene, biodiesel fuel blend B10
