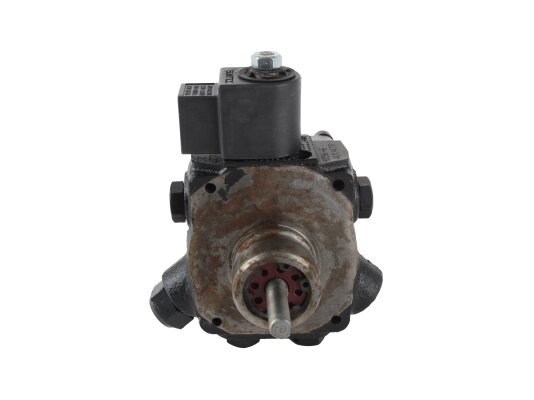

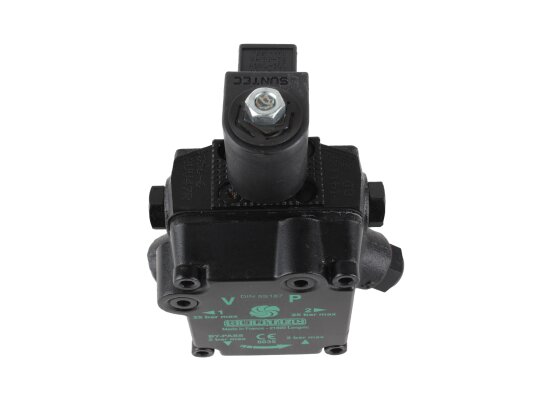

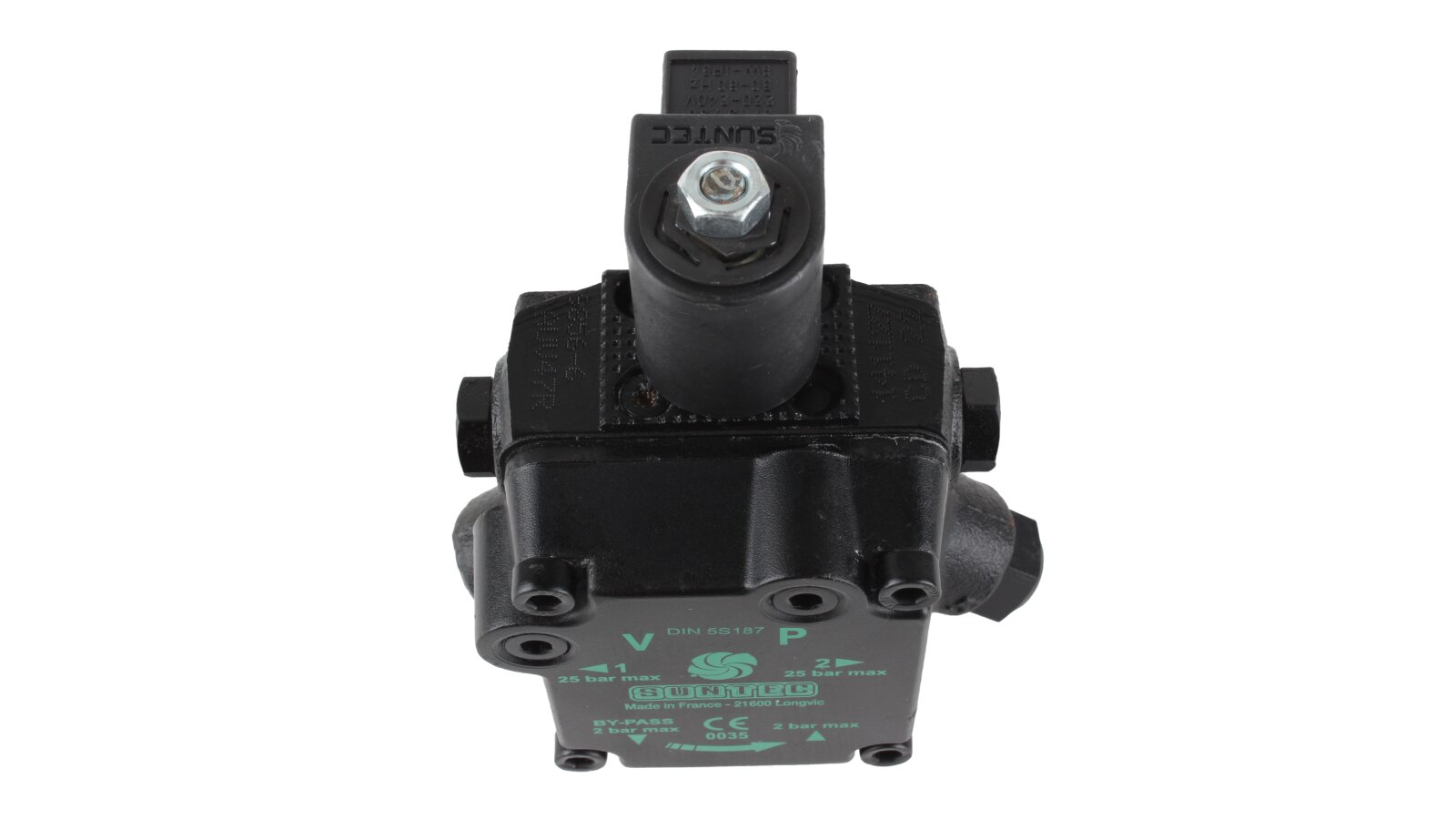

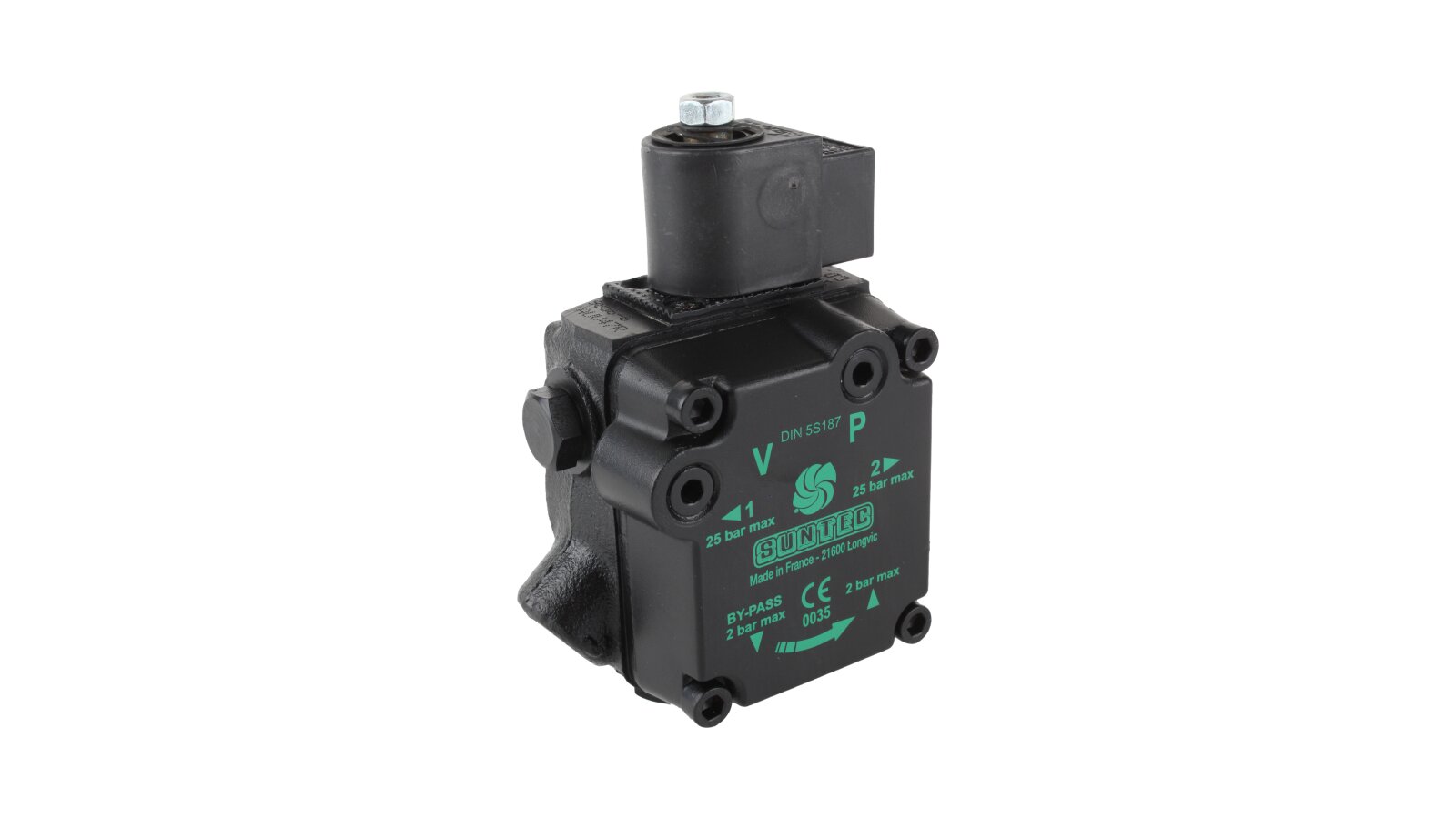

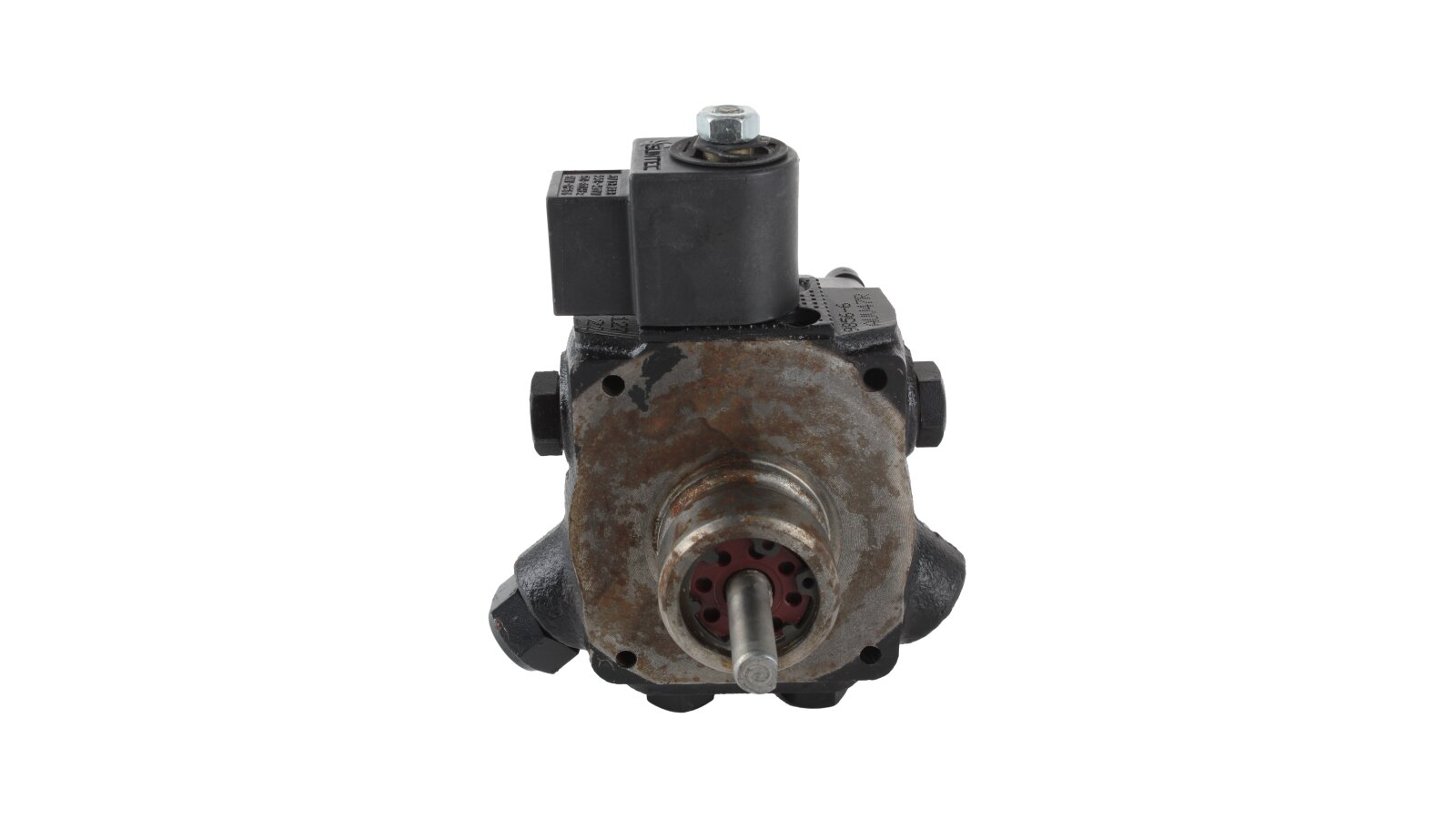

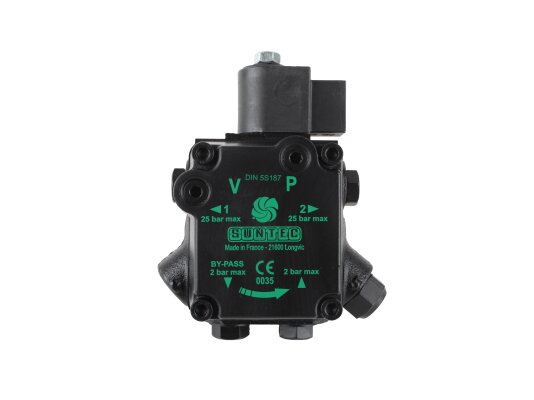

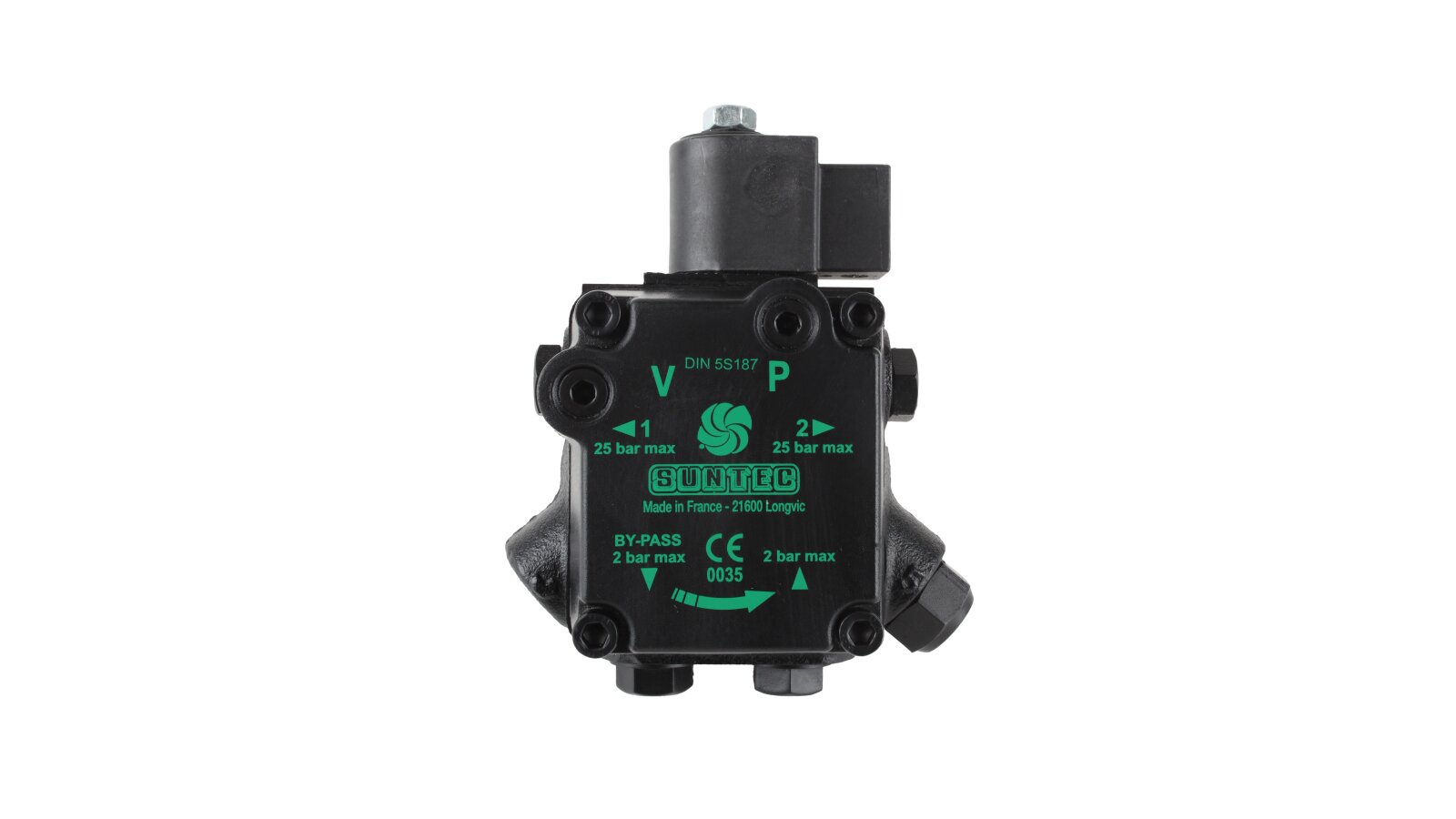

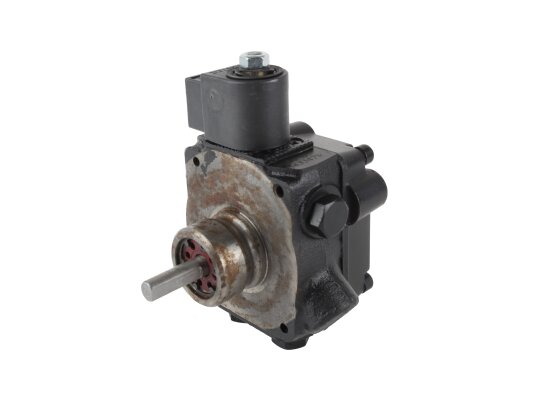

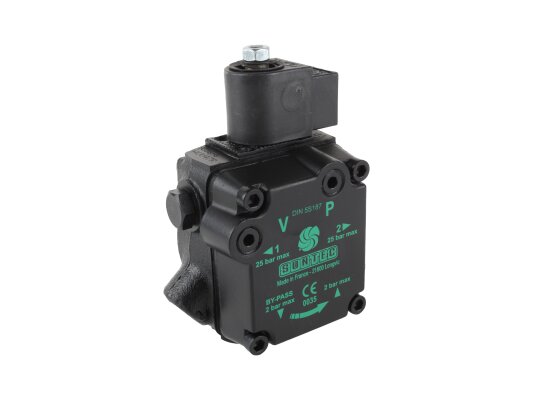

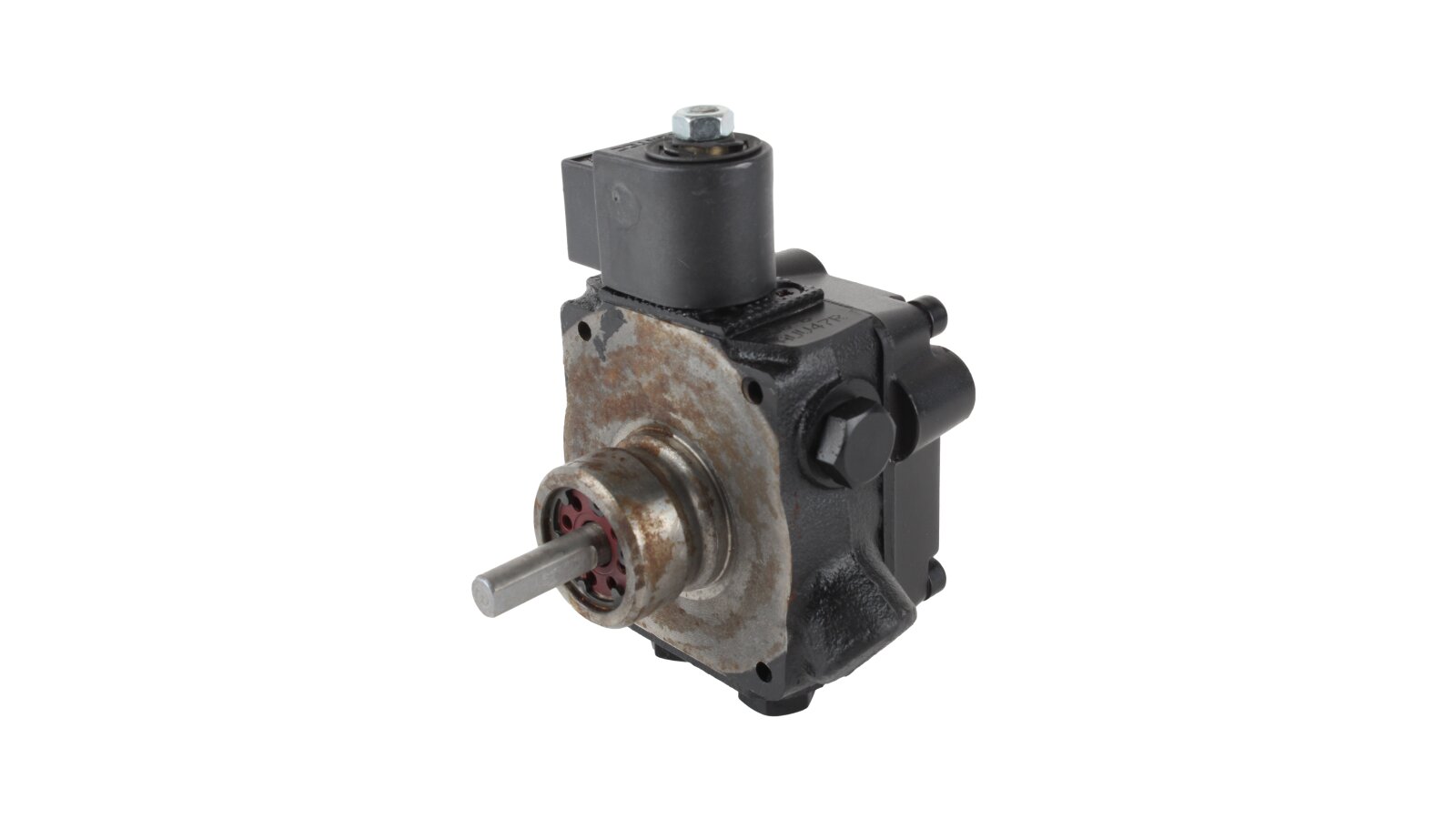

Burner Pump Suntec AU V 47 R 9856 6P 0500

Suntec

AED 1,350

  • Discontinued
Oil Burner Pumps
Products code: 1214

Description

The single-stage gear pump AU V 47 R 9856 6P 0500 with a maximum capacity of 44 l/h was developed by the French concern Suntec for supplying diesel fuel, kerosene and heating oil to the nozzle line of heating burners. The peculiarity of the model is its interchangeability with liquid fuel pumps of the AS 47 and AL 35 series, which makes it in demand by installation and repair teams.

In the online store of the company "ANKAS" equipment for heating burners Baltur, Lamborghini, Weishaupt, Elco and others is presented at a reasonable price. But before you buy a fuel pump for a diesel burner, check out the technical parameters of the models or get answers to your questions from our specialists.

Design features

  • The unit operates on the rotation of a gear pair, which allows fuel to be drawn from the fuel tank and pumped onto the injector line under pressure up to 2.5 MPa. Fuel not required during operation of the heating burner is returned through the control valve.

  • A special feature of the pump is its equipping with an electromagnetic solenoid with a locking function, which allows the supply to be instantly shut off by a signal from the control unit controller.

  • A detachable mesh filter is provided for preliminary cleaning of the working fluid from mechanical particles of 150 microns in size. It requires periodic cleaning with a soft brush or a brush. For better preparation of the fuel, a fine filter should be installed on the pressure fuel line.

Advantages of the model:

  • adapted for installation in both single-pipe and double-pipe lines;

  • can be used for fuel with a kinematic viscosity from 1 to 12 mm²/s;

  • simple process of air release through an unused outlet;

  • rigid fit of the gear pair on the shaft, which prevents their mechanical wear;

  • the presence of two ports for the outlet to the nozzle, which expands the replaceability of the device.

Liquid fuel pump AU V 47 R 9856 6P 0500 is a modern development of the European company Suntec, which is distinguished by its quality, reliability and versatility when completing heating burners. The products undergo pre-sale testing at the factory, accompanied by a technical passport and quality certificates.

Characteristics

Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 44 l/h2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hPump series: AU: replaces most AS 47 and AL 35 models. It has an integrated solenoid valve (type AL) withDirection of rotation (looking at the drive shaft): R: вращение по часовой стрелкеStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 1 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 44 l/hPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hInstallation method: sleeve ∅ 32 mmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 4 to 25 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54Type of pumped liquid: kerosene, diesel, biodiesel fuel blend B10
