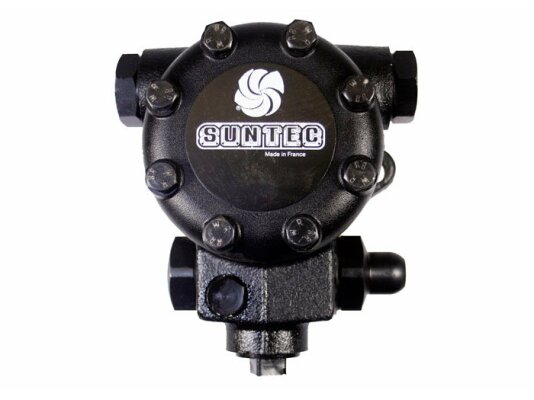

Burner Pump Suntec E 4 LA 1001 6P

Suntec

Alternative Part Number

Baltur R30780Baltur 30780
  • Discontinued
  1. Oil Burner Pumps

Description

Pump Suntec E 4 LA 1001 6P article: R30780 is used for burners with a capacity of 400 to 3000 kW, consuming biodiesel B10, diesel fuel, fuel oil. It has a reinforced design, resistance to high temperatures, and uninterrupted service. The pump is equipped with a pressure regulating valve with a locking function.

Features

  • The pump has a reinforced design that is resistant to high temperatures. In order to increase safety when pumping heated fuel, special shaft seals are used. The maximum fuel temperature inside the pump is +90 ºC.

  • Unclaimed fuel passes through a special cavity in the piston. The kit does not include a built-in filter. The nozzle connection is located on the left side.

  • The pump is equipped with a pressure regulating valve with a locking function. Automation of fuel supply will require the installation of an external electromagnetic valve.

  • The fuel pressure on the injector is regulated in a wide range, from 14 to 30 bar. At the factory, the pump is set to 20 bar. The performance depends on the viscosity of the fuel and the feed pressure.

Advantages:

  • wide functionality - pumps diesel fuel, biofuel, fuel oil;

  • heat-resistant, reinforced design;

  • special shaft seals;

  • wide range of pressure adjustment;

  • pressure regulating valve with shut-off function.

On our website you can buy the Suntec E 4 LA 1001 6P pump and other components for assembling heating systems and heating units. Use the advice of ANKAS specialists to select equipment and spare parts.

Characteristics

Torque: 0.3 N·mPerformance at 14 bar pressure and 75 cSt viscosity: 188 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 171 l/hInlet pressure: 1.5 barReturn pressure: 1.5 barShaft diameter: 11 mmNominal rotation speed: 2850 rpmFactory pressure setting: 20 barMaximum rotation speed: 3600 rpmModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpPump series: E: pressure regulationPressure gauge port: ⅛ inchVacuum gauge port: ½ inchDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 14 to 30 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, biodiesel fuel blend B10, sea ​​water
