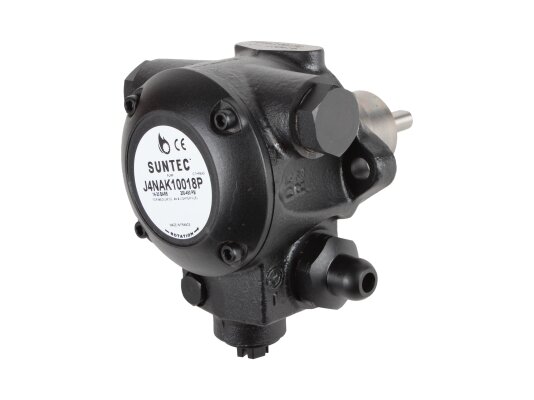

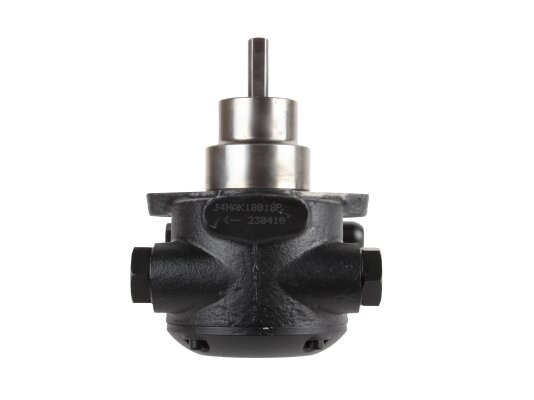

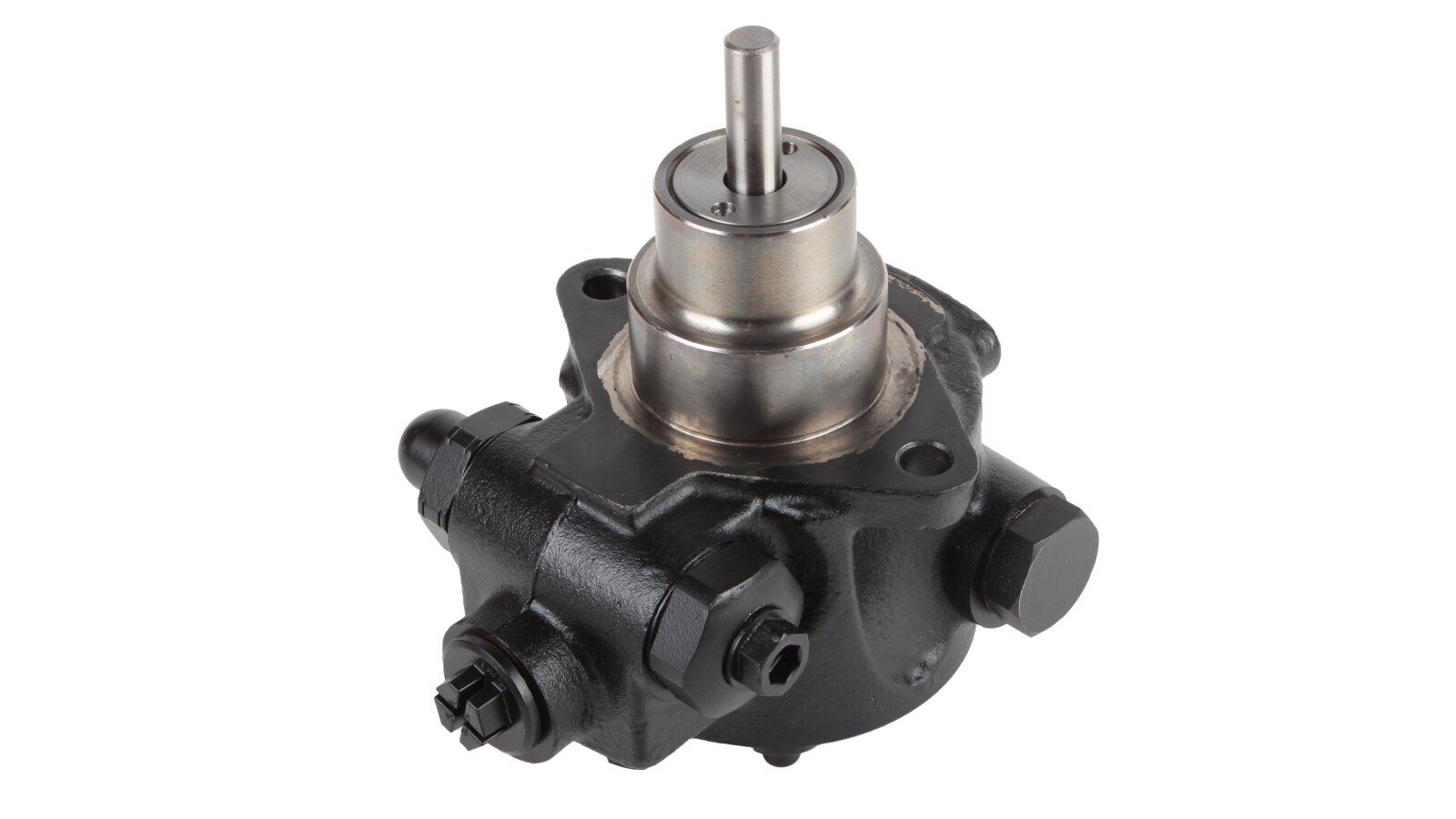

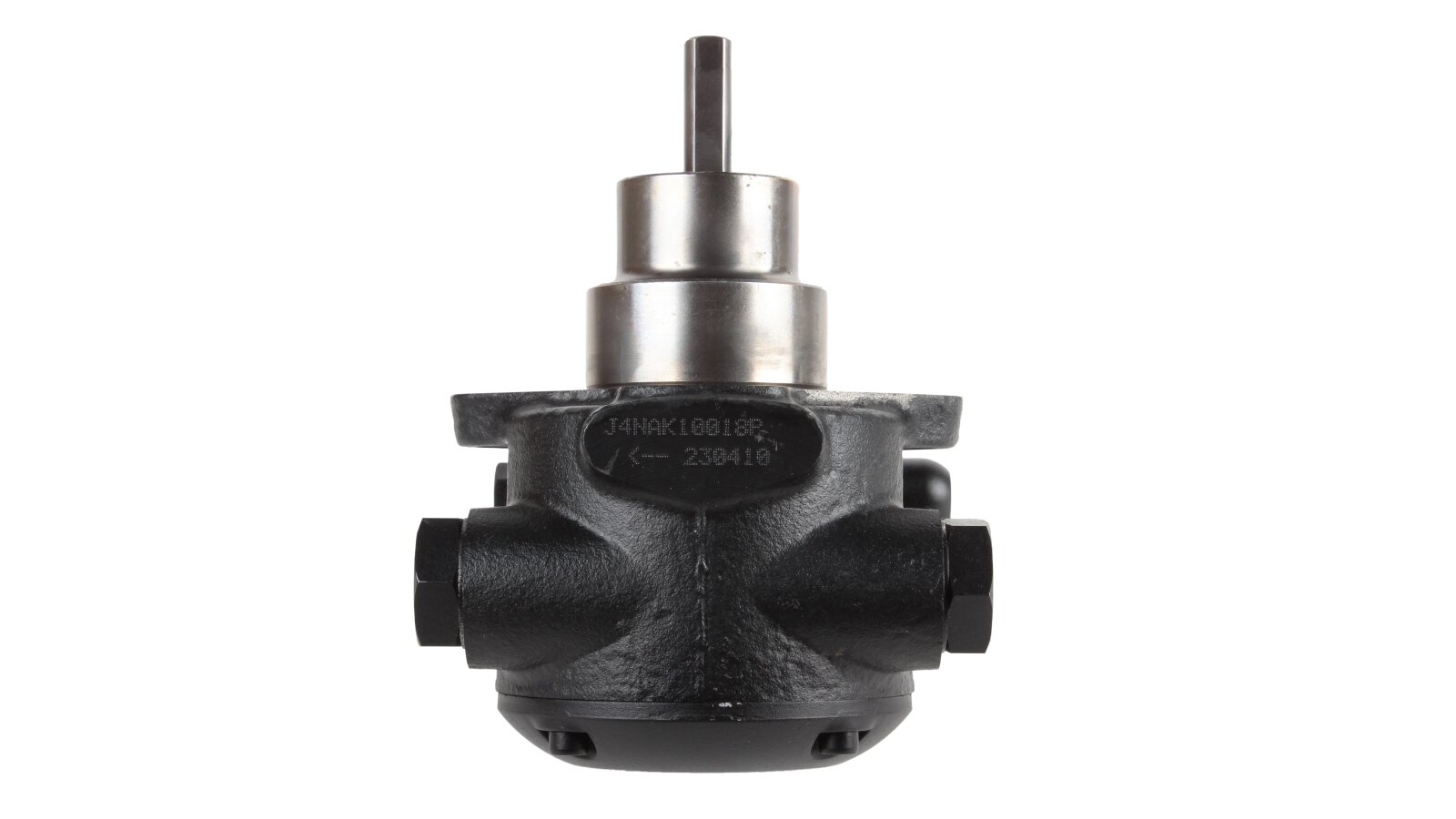

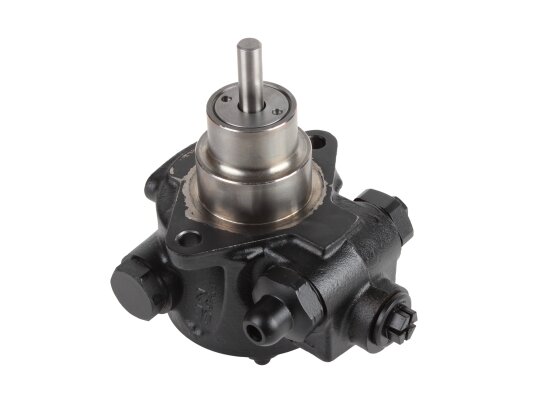

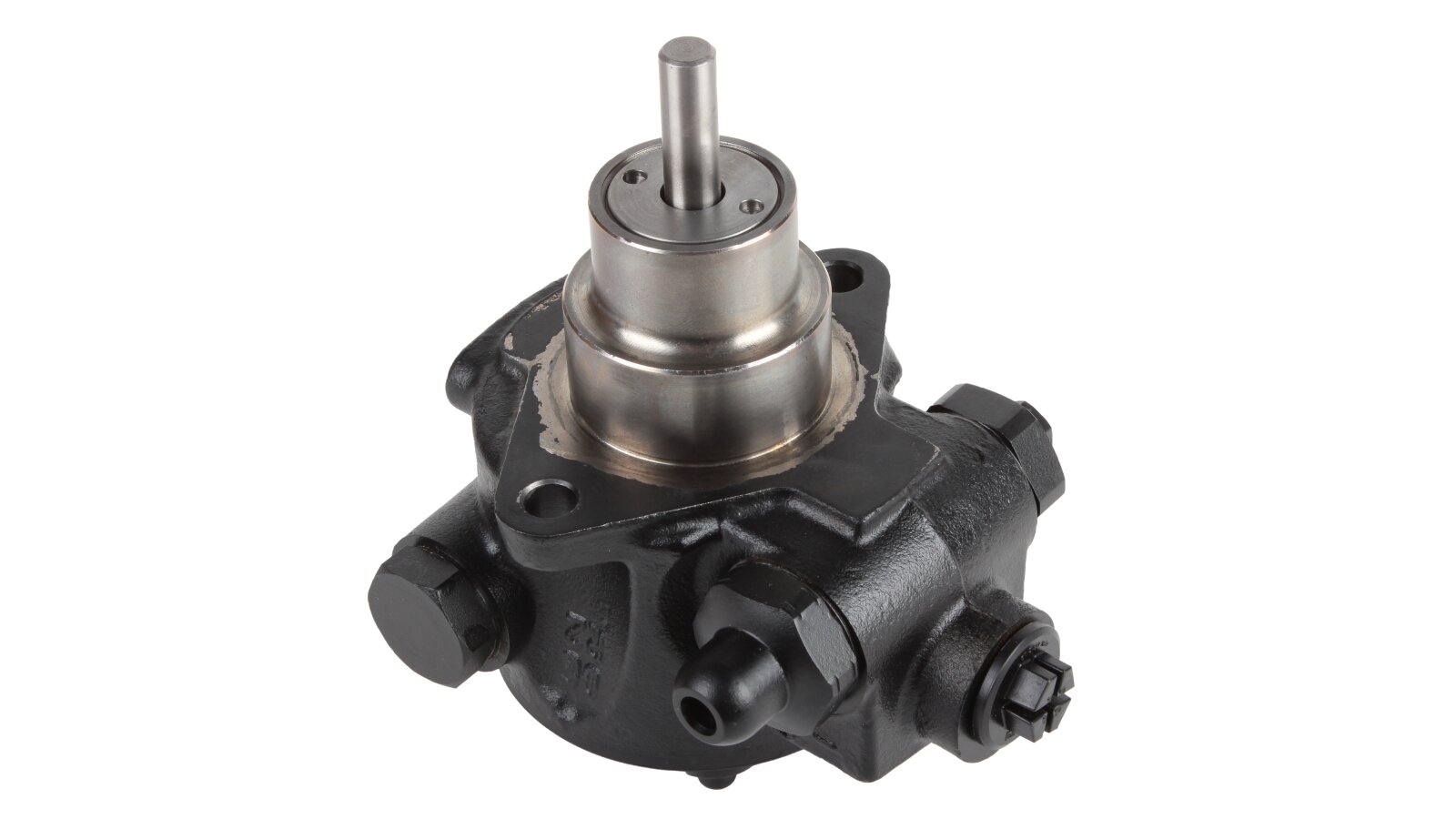

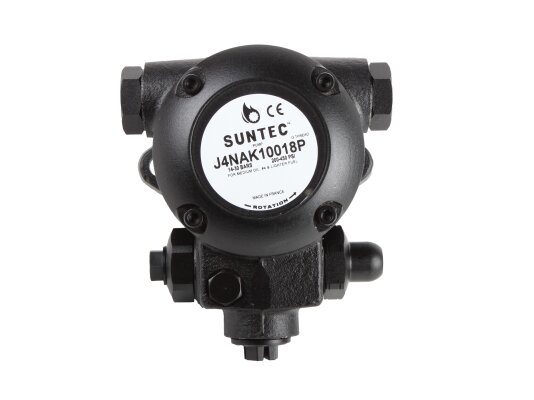

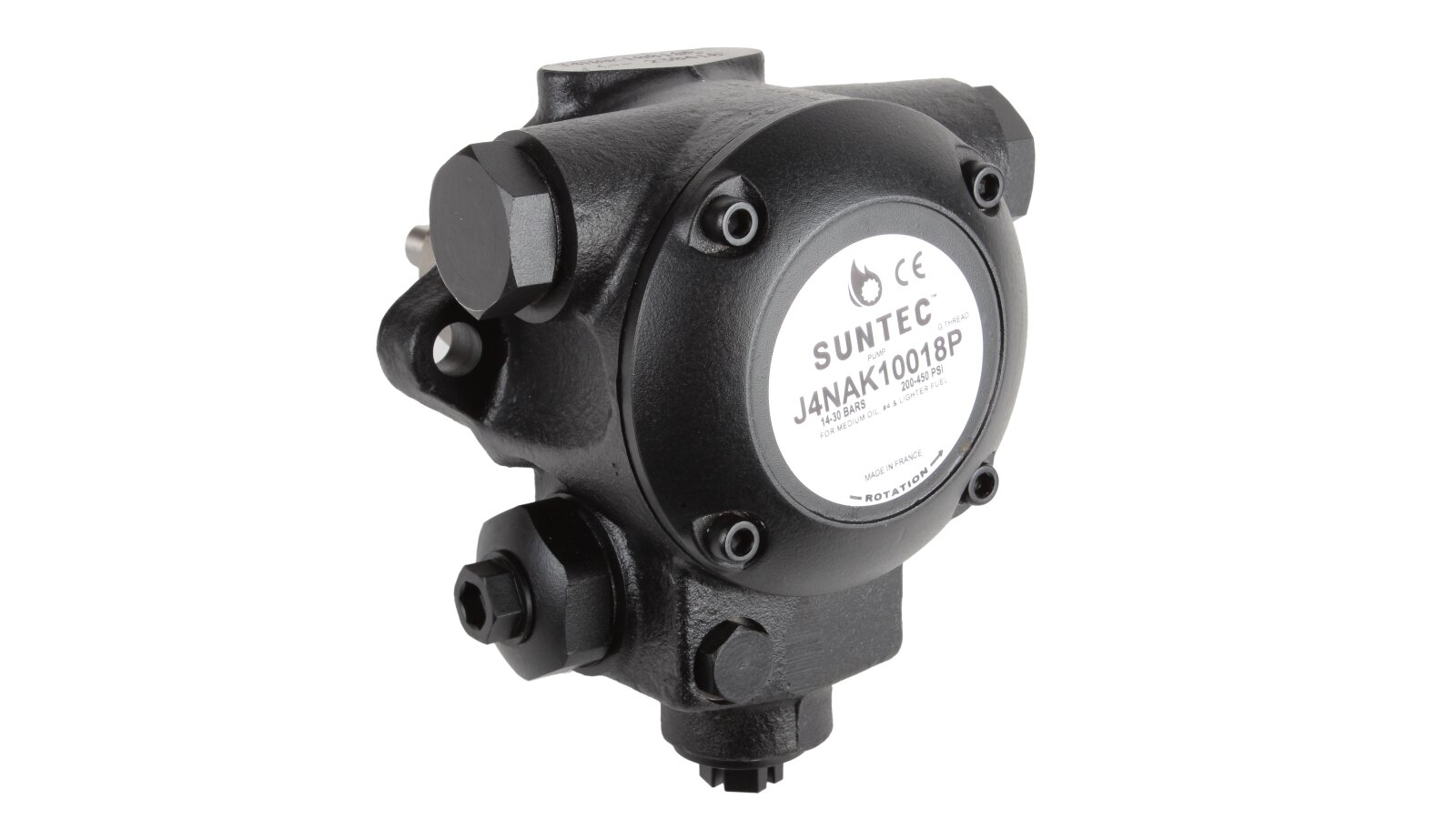

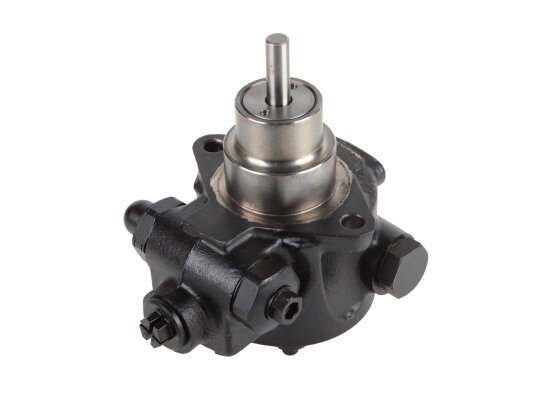

Burner Pump Suntec J 4 NAK 1001 8P

The Suntec J 4 NAK 1001 8P burner pump is highly reliable, versatile, and heat-resistant (suitable for fuel temperatures up to +90 °C). It is used in liquid fuel installations for pumping fuel with a viscosity of 3-75 cSt: fuel oil, biodiesel fuel mixture B10, diesel fuel, kerosene.

The Suntec J pump is used:

• in single-pipe and double-pipe systems;

• for pumping medium-viscosity fuel;

• mainly with an external electromagnetic valve.

The Suntec pump operating principle

The main working element is a gear mechanism that sucks fuel from the tank, passes it through the filter and pressure control valve and directs it to the nozzle. Thanks to the built-in filter, the gear pair is protected from damage by abrasive particles.

Fuel that does not pass through the injector is drained into the return line in a 2-pipe connection or returned to the suction line in a single-pipe system. In single-pipe systems, the bypass plug should be removed and the drain hole should be completely closed.

Features and benefits:

• versatility, works with fuel of various viscosities and types;

• pressure regulating valve with shut-off function;

• fuel injection under pressure of 14-30 bar, basic setting - 20 bar;

• resistance to elevated fuel temperatures (up to +90 °C);

• flanged connection method, diameter 54 mm;

• filtration capacity 550 μm, cleaning area 45 cm²;

• pipe thread for suction and return drain line;

• ports for connecting measuring equipment;

• installation in any orientation (without axle load);

• permissible pressure in the fuel suction/return drain line - no more than 1.5 bar;

• automatic removal of excess air in systems with two pipes.

Performance

The performance of the pump for the Suntec J 4 NAK 1001 8P burner depends on the pressure and viscosity of the fuel (is 177 l/h at 20 bar and 20 cSt).
