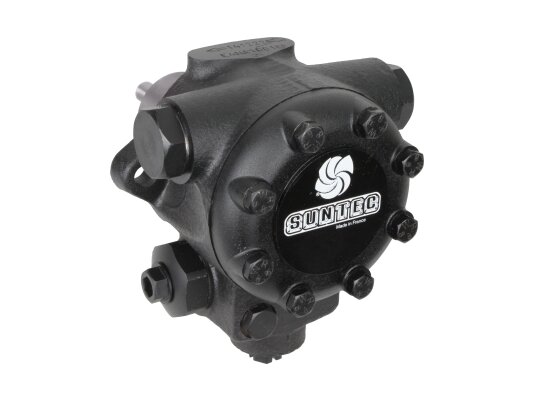

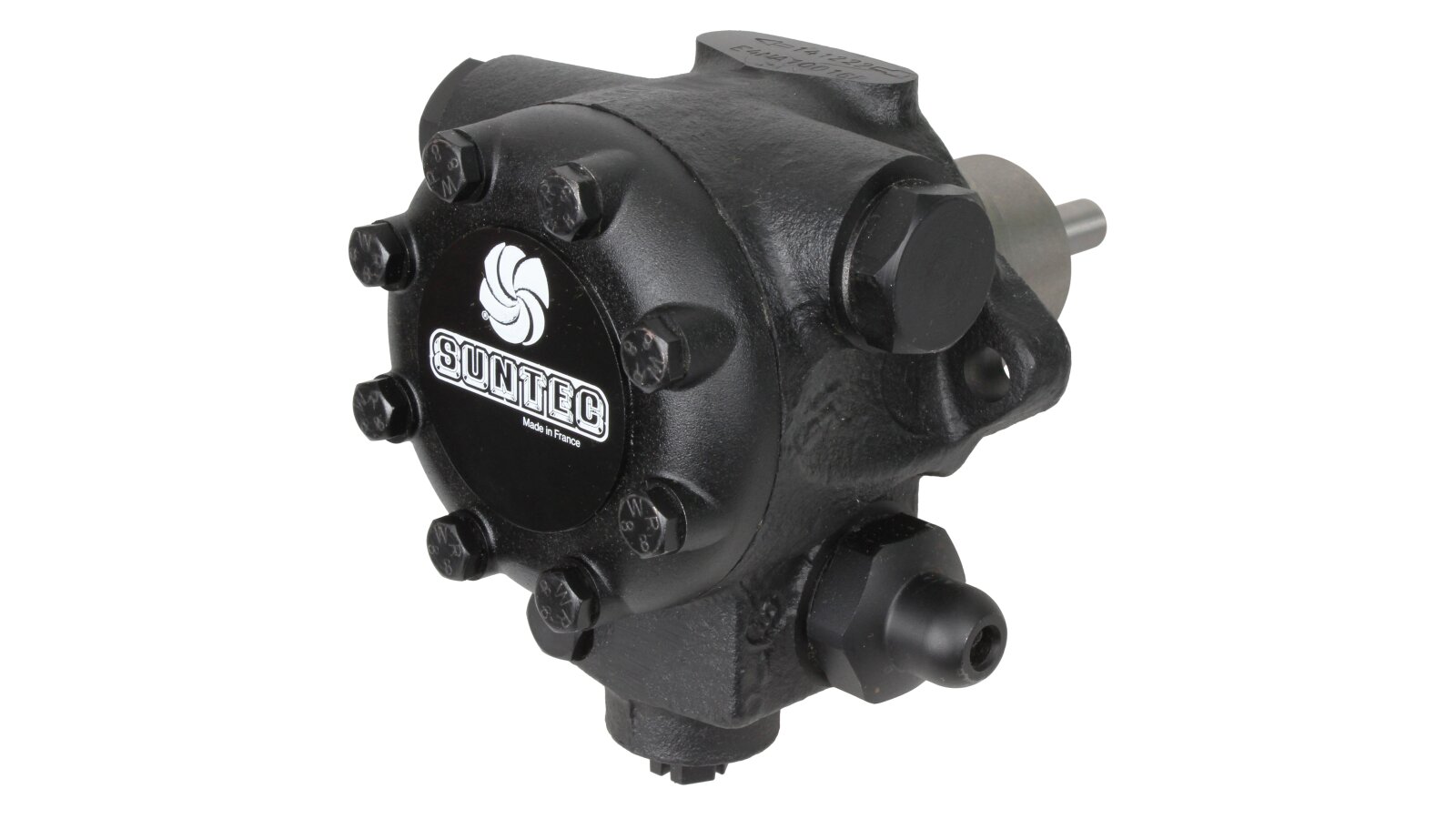

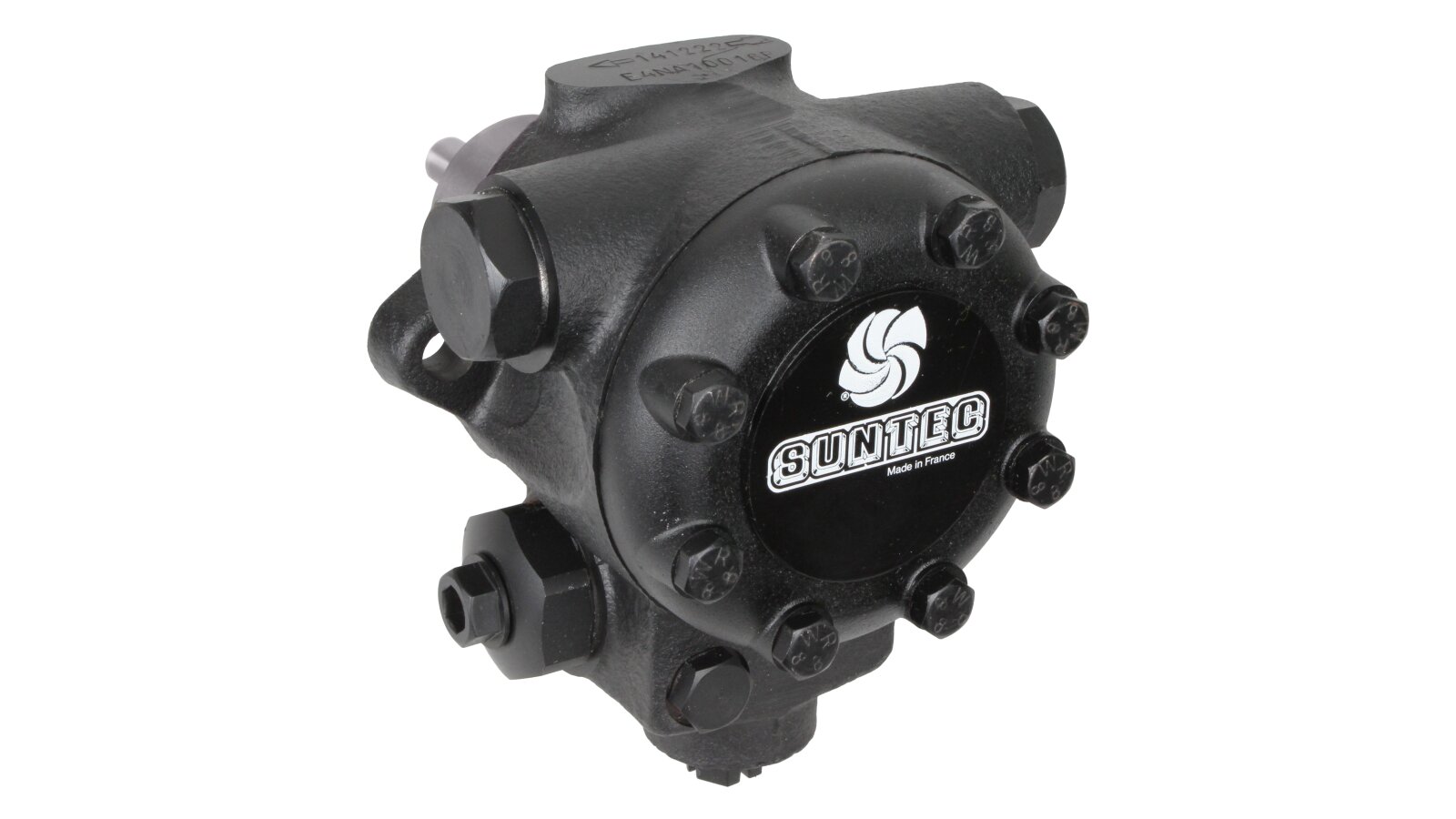

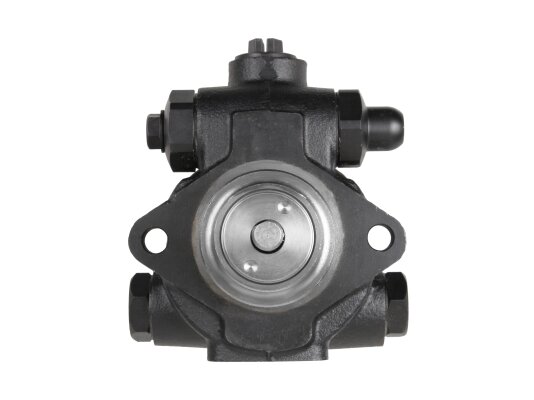

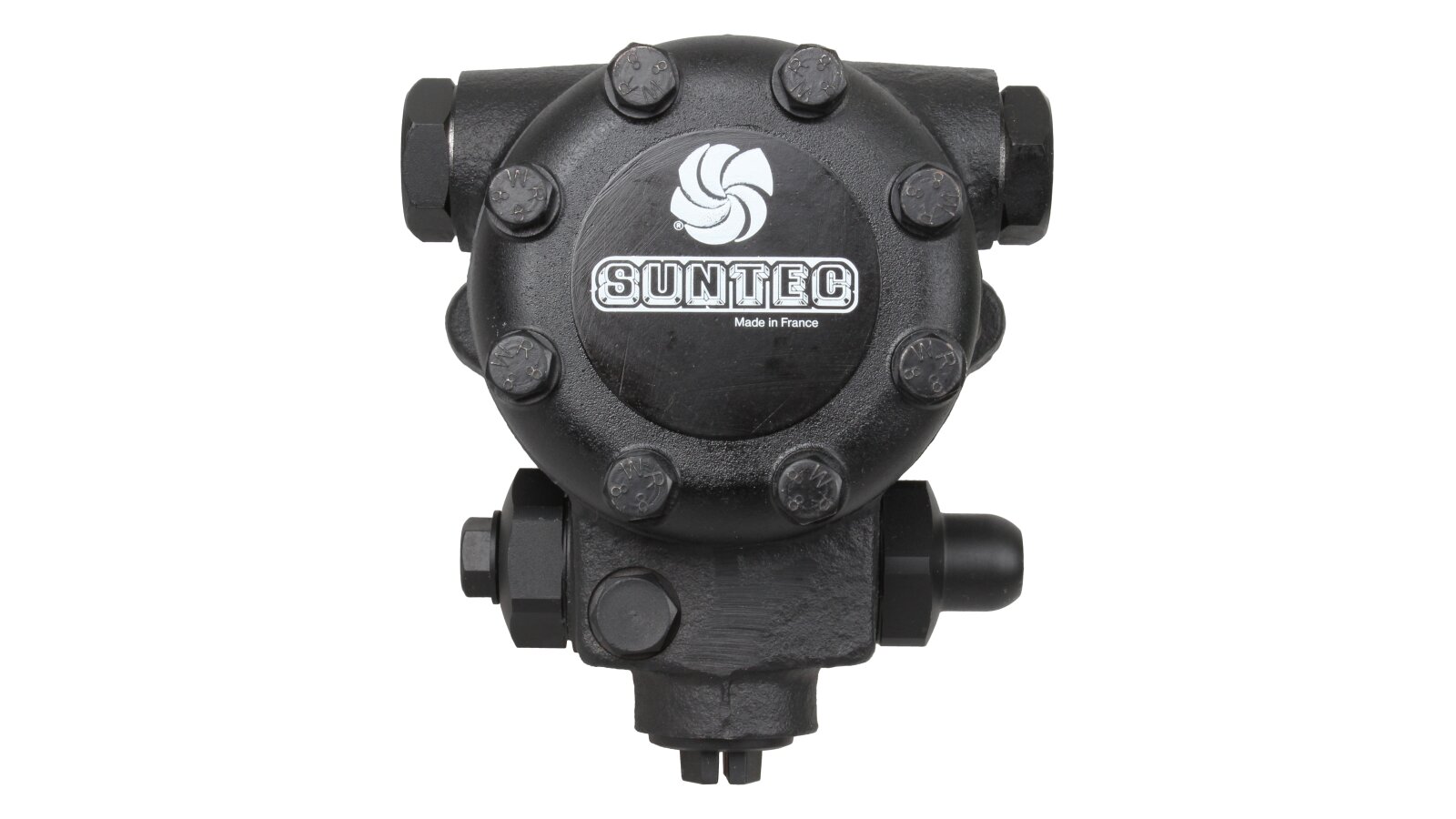

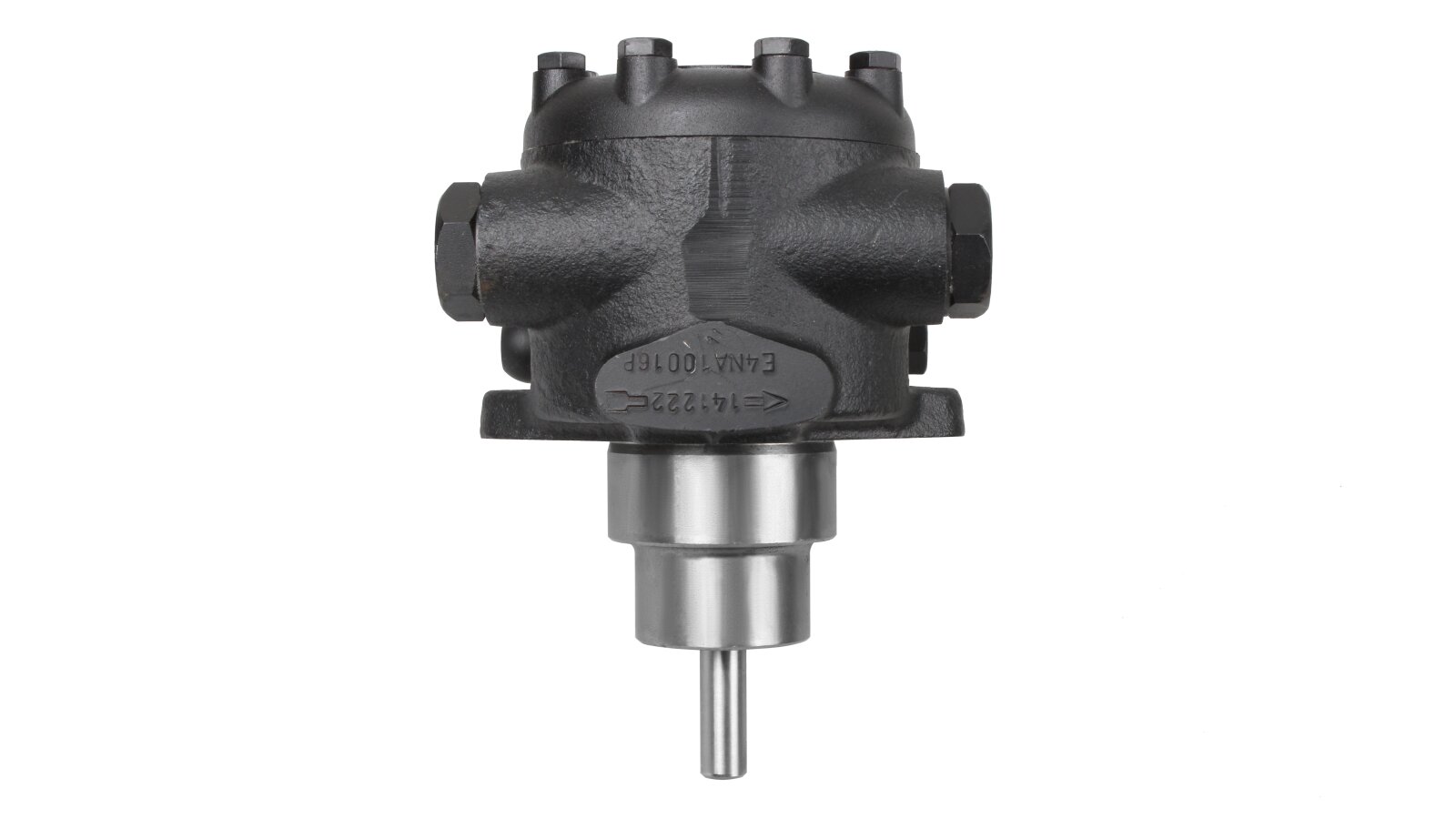

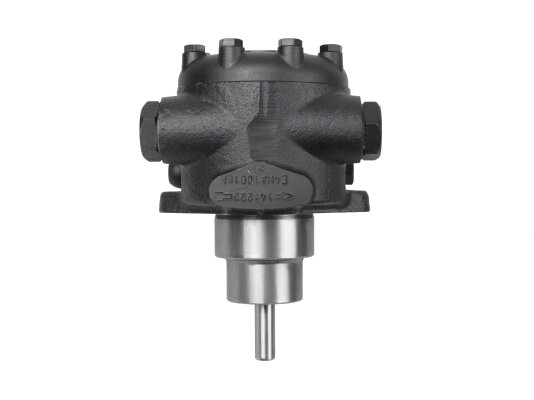

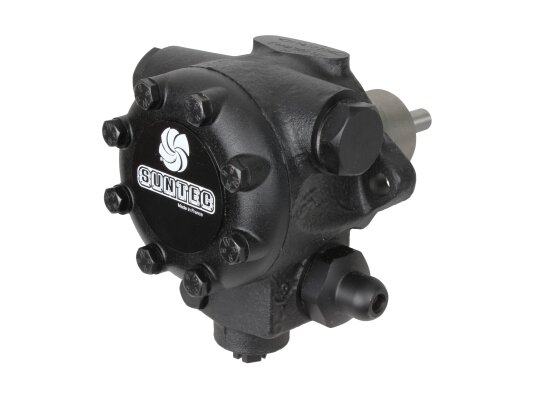

Burner Pump Suntec E 4 NA 1001 6P

Suntec

Alternative Part Number

Lamborghini 04013310FBR 258506
AED 2,550
  • Discontinued
  1. Oil Burner Pumps

Description

The universal fuel pump Suntec E 4 NA 1001 6P is designed for use in medium-power liquid fuel burners. It operates on diesel fuel and fuel oil with a viscosity of 3-75 cSt. The device is equipped with a valve that performs a locking function and regulates the fuel supply to the nozzle under pressure in the range of 14-30 atmospheres.

Design features

The mechanical part of the unit is represented by a gear device that extracts fuel from the tank when rotating. Before feeding the fuel to the nozzle, it is cleaned of large foreign impurities by a built-in 550 micron filter.

Important! The mesh insert requires regular cleaning with diesel fuel and a soft brush. When performing maintenance, do not forget to change the cover gasket.

A screw regulator is provided on the body to adjust the pressure in accordance with current tasks. When turning the screw clockwise, the pressure increases and vice versa. Factory setting – 20 atmospheres. Pump adjustment is performed under pressure gauge control.

Connection to the engine is performed using standard flange method. Compliance with EN225 standard expands the application possibilities of the unit. This standard is supported by many burner manufacturers.

The design of the Suntec E 4 NA 1001 6P pump is adapted for operation with elevated fuel temperatures, up to +90 degrees, and pumping fuel oil.

Main advantages:

  • High performance with compact dimensions;

  • Universality – operation with diesel fuel and fuel oil;

  • Possibility of installation in a system with two or one pipe;

  • Threaded ports for connecting a pressure gauge and vacuum gauge;

  • Built-in filter with extended cleaning area;

  • Wide range of operating temperatures, from 0 to +90 ºC;

  • Automatic air release in 2-pipe systems.

You can buy a Suntec E 4 NA 1001 6P fuel pump from us at an affordable price. The online catalog presents Suntec equipment and accessories designed for intensive use. To get advice on selecting equipment, choose a convenient way to contact us.

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 177 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 20 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, biodiesel fuel blend B10, diesel
