Description

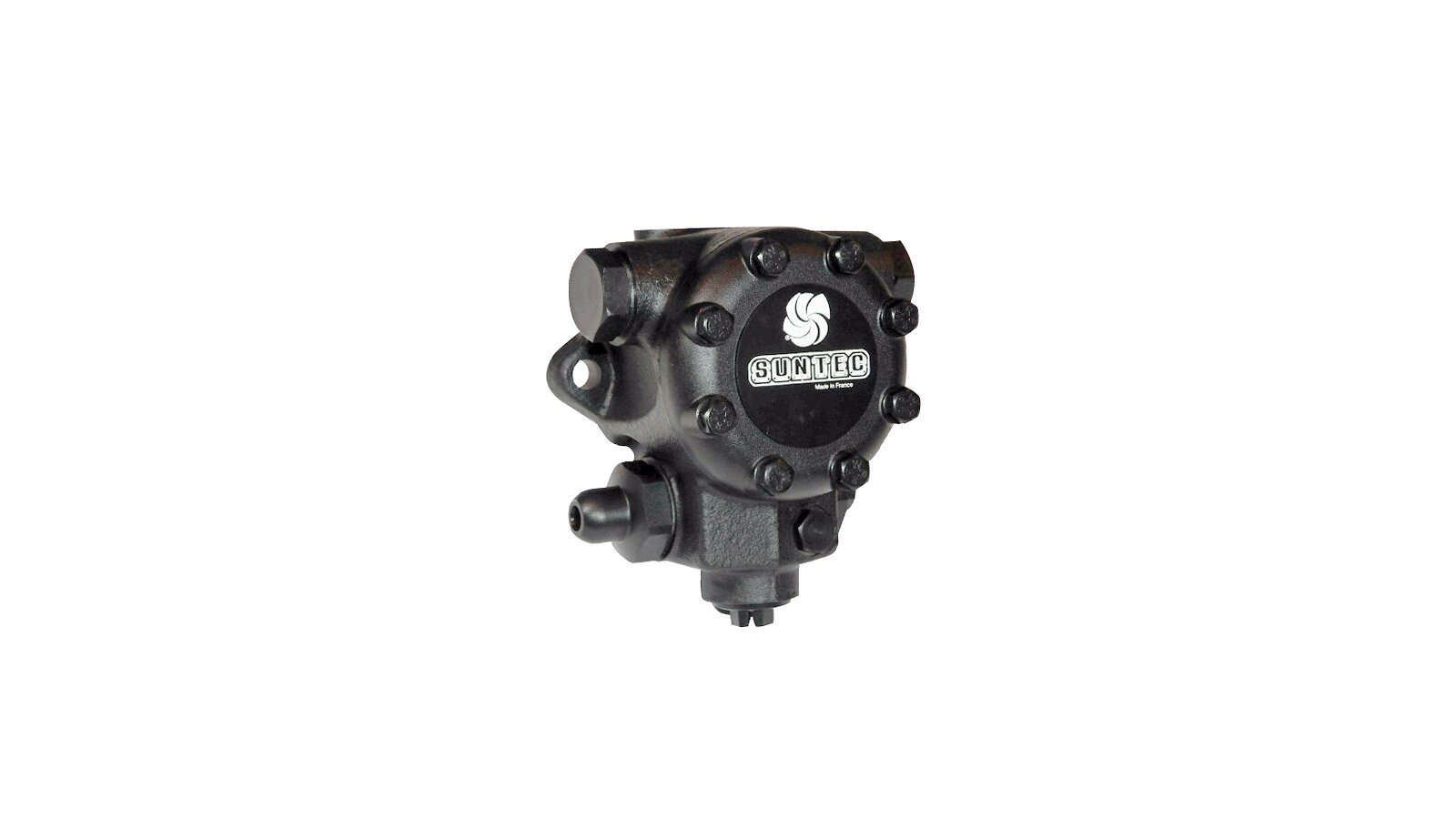

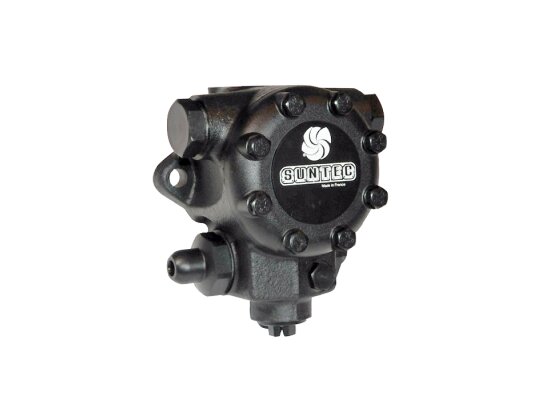

The Suntec E 4 NA 1069 7P gear fuel pump is installed in medium-power burners operating on diesel fuel and fuel oil. The reinforced housing design is designed to operate with high fuel temperatures. Heat resistance is achieved through the use of a special sealing material. It is possible to install a heater to facilitate starting.
Design features
The pump is ready for installation in a two-pipe system. Connection to a single-pipe design requires removing the bypass plug and shutting off the return pipeline.
A special feature of the model is the presence of a bypass hole in the injector line, the function of which is to reduce the risk of overpressure when working with heated fuel oil. There is no locking function. To implement it, you need to purchase an external EM valve.
The pressure is adjusted using a screw on the housing in a wide range of 14-30 atm. The Suntec E 4 NA 1069 7P fuel pump is set to 20 bar by default. A pressure gauge and vacuum gauge are used to control the working fluid pressure. Standard diameter ports are provided on the body for their connection.
A wear-resistant gear mechanism is responsible for sucking fuel from the tank and feeding it to the control valve, and then to the nozzle.
To protect the gear pair, a mesh filter is mounted at the fuel inlet, holding any inclusions with a size of 550 microns. It is necessary to regularly wash the mesh from dirt using clean diesel fuel and a soft brush. Important! Do not forget to change the cover gasket during each filter maintenance.
Safe operation with fuel heated to +130 degrees is ensured by the use of special seals.
A standard hole is provided for installing an electric heater, which simplifies starting the burner. The device is placed in the most convenient place - contact with the fuel is excluded and maximum heat transfer is achieved. Please note! The heater is switched on in advance so that the fuel has time to heat up. After heating the working fluid, it can be switched off or left on to maintain the optimum fuel temperature.
Important advantages are:
Adaptation for working with different types of fuel with a viscosity of 3-75 cSt, including fuel oil;
Heat-resistant housing for safe pumping of heated fuel;
Built-in filter element for removing abrasive impurities;
A wide range of pressure adjustment using a screw tightener;
Standard-sized threaded ports for connecting a pressure gauge and vacuum gauge;
The ability to install in burners of many brands;
Automatic air bleed in two-pipe systems.
Our line includes a wide range of equipment at affordable prices for completing burners of different capacities. To assemble a heating system, we offer to buy a Suntec E 4 NA 1069 7P fuel pump and all the necessary accessories. Call us - we will select the optimal equipment based on your needs.
