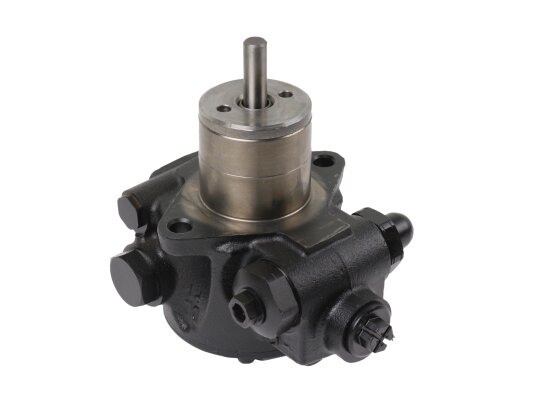

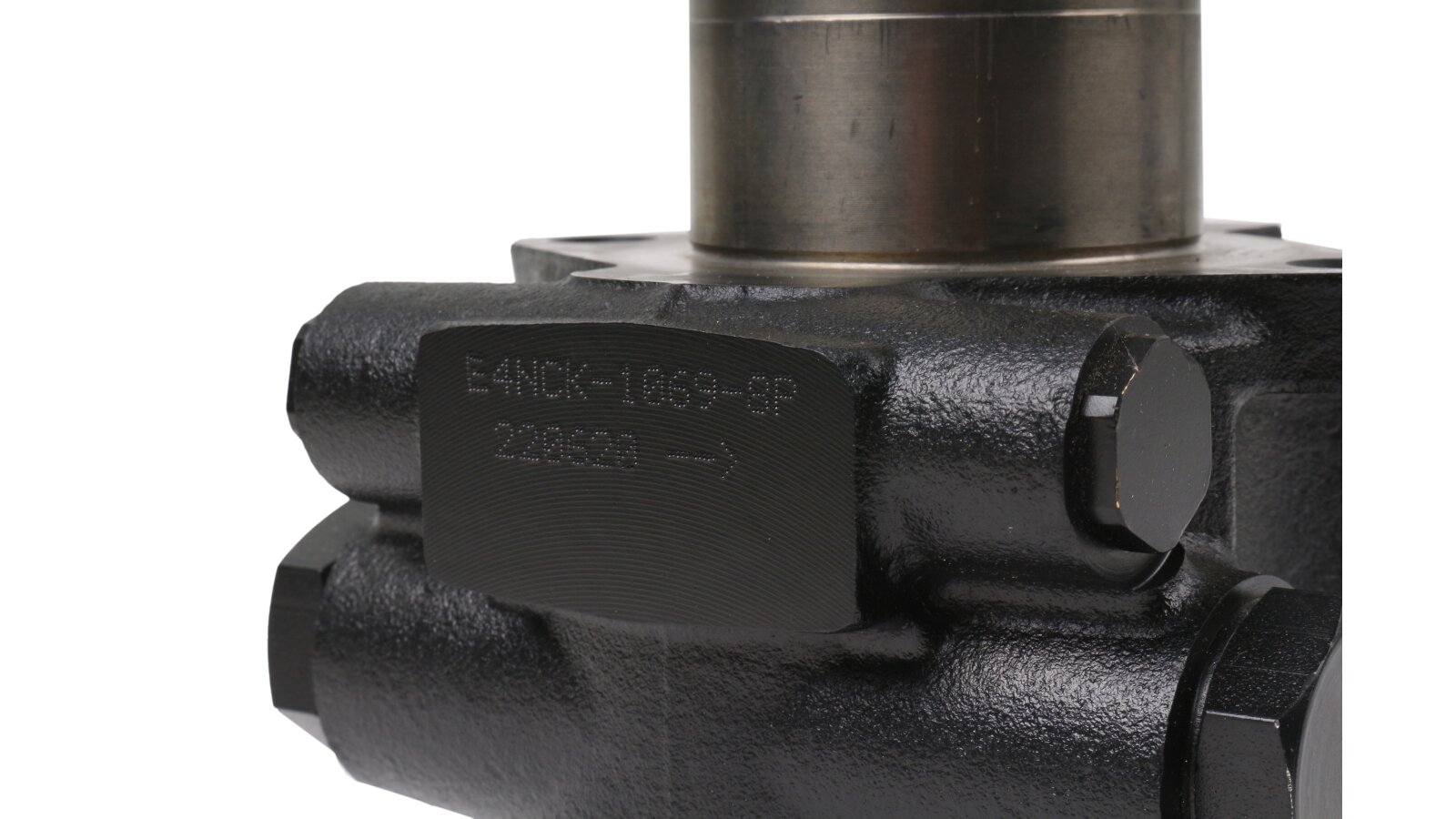

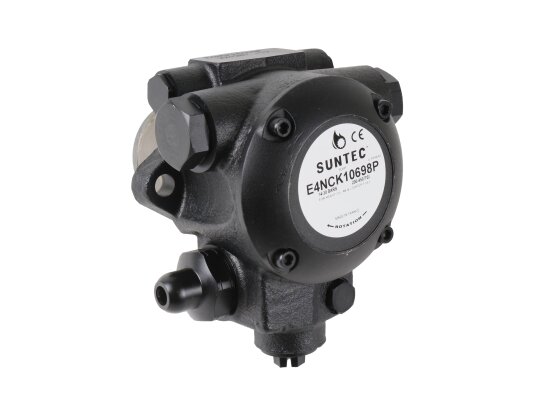

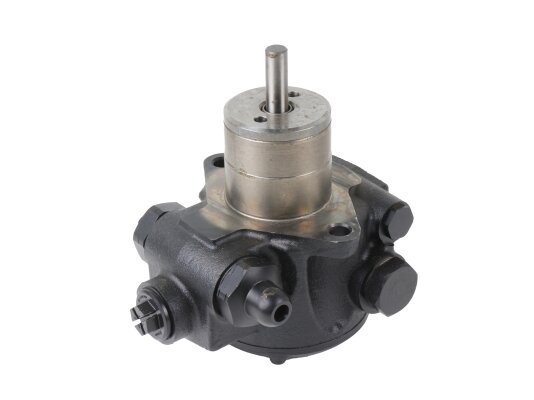

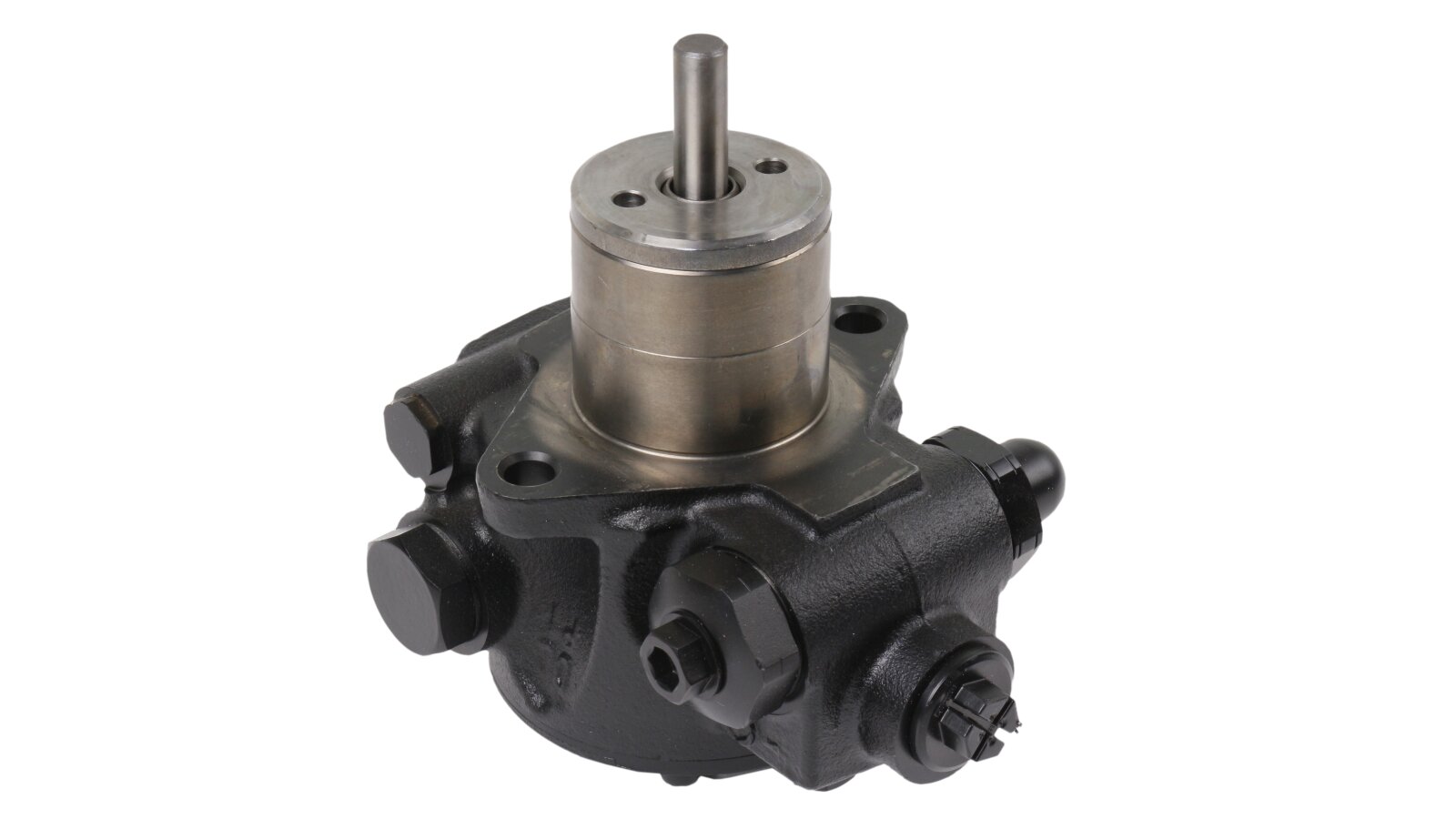

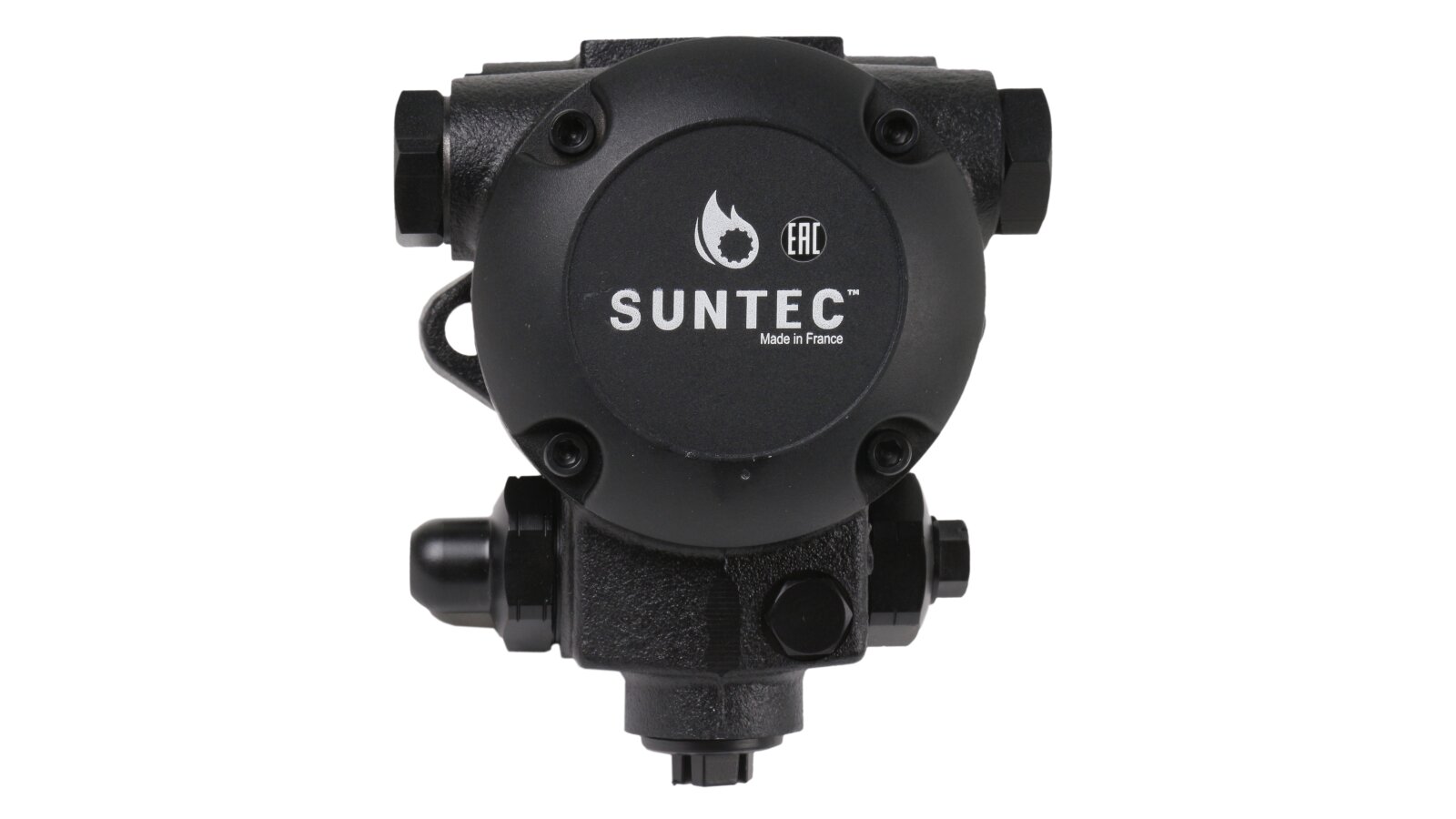

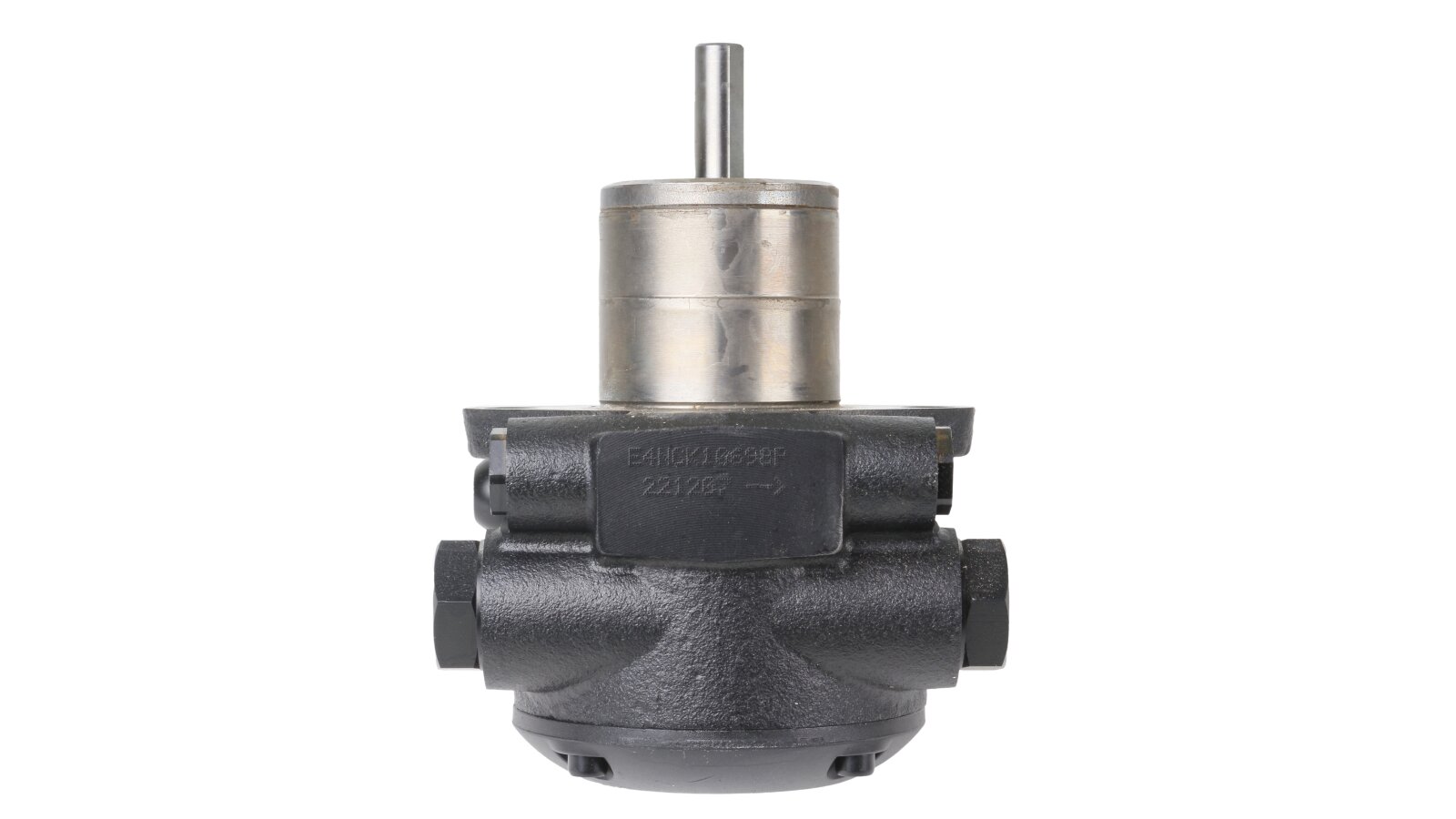

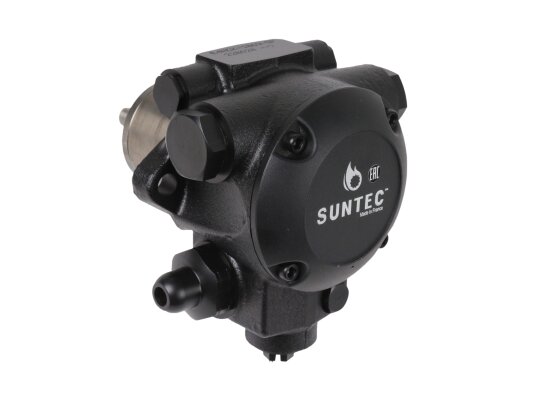

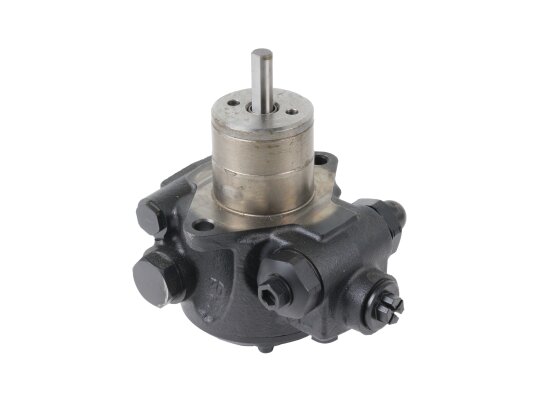

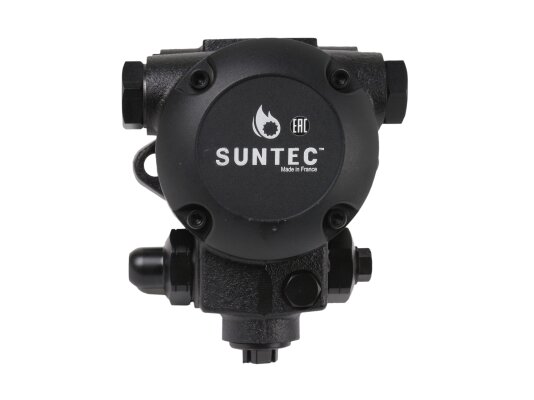

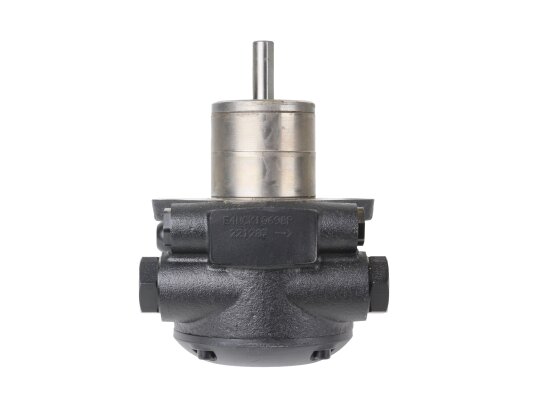

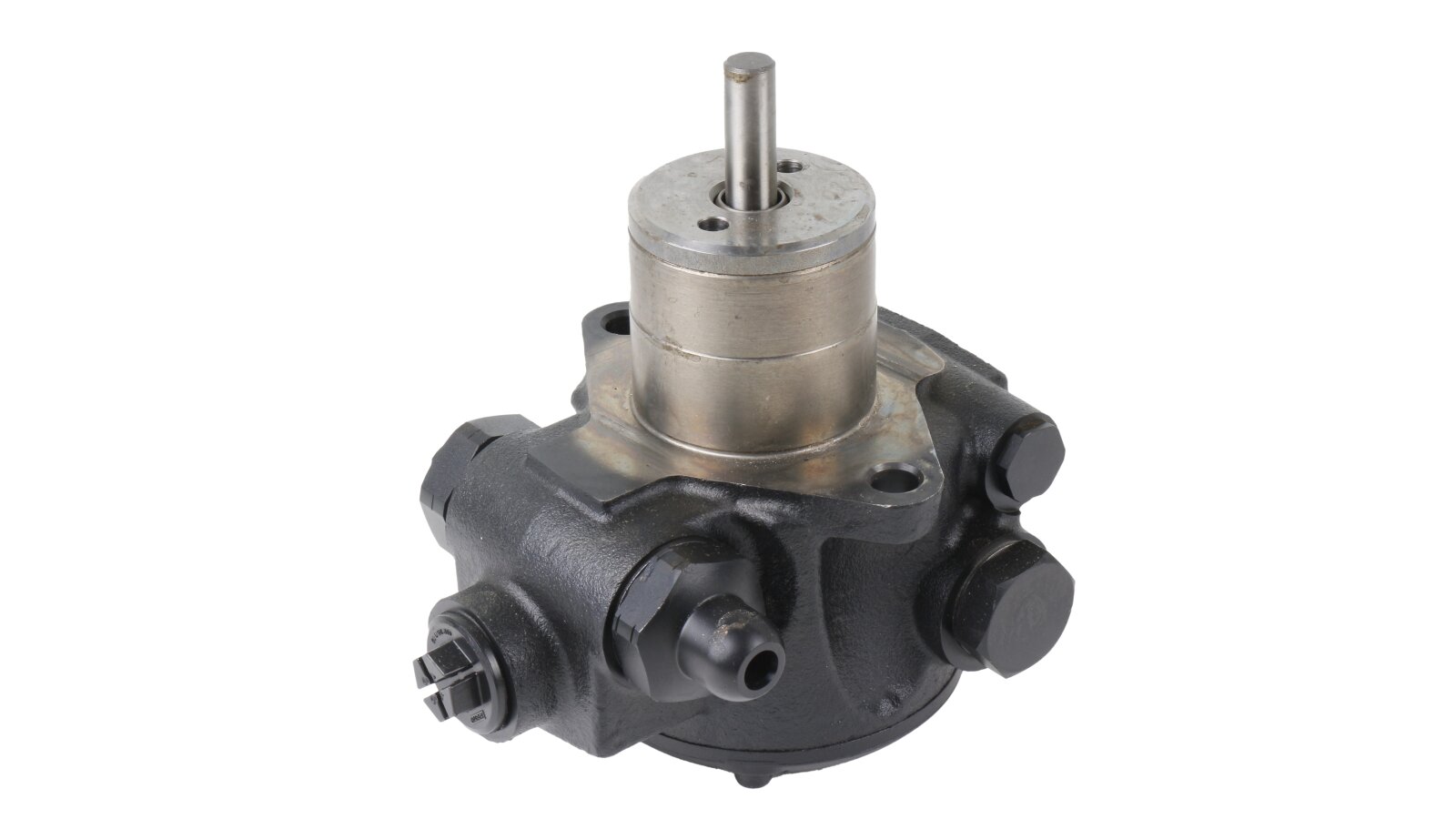

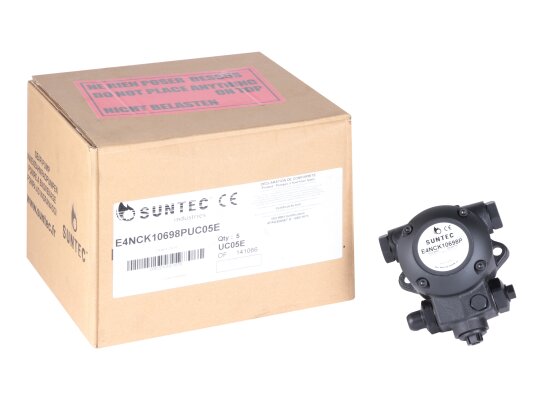

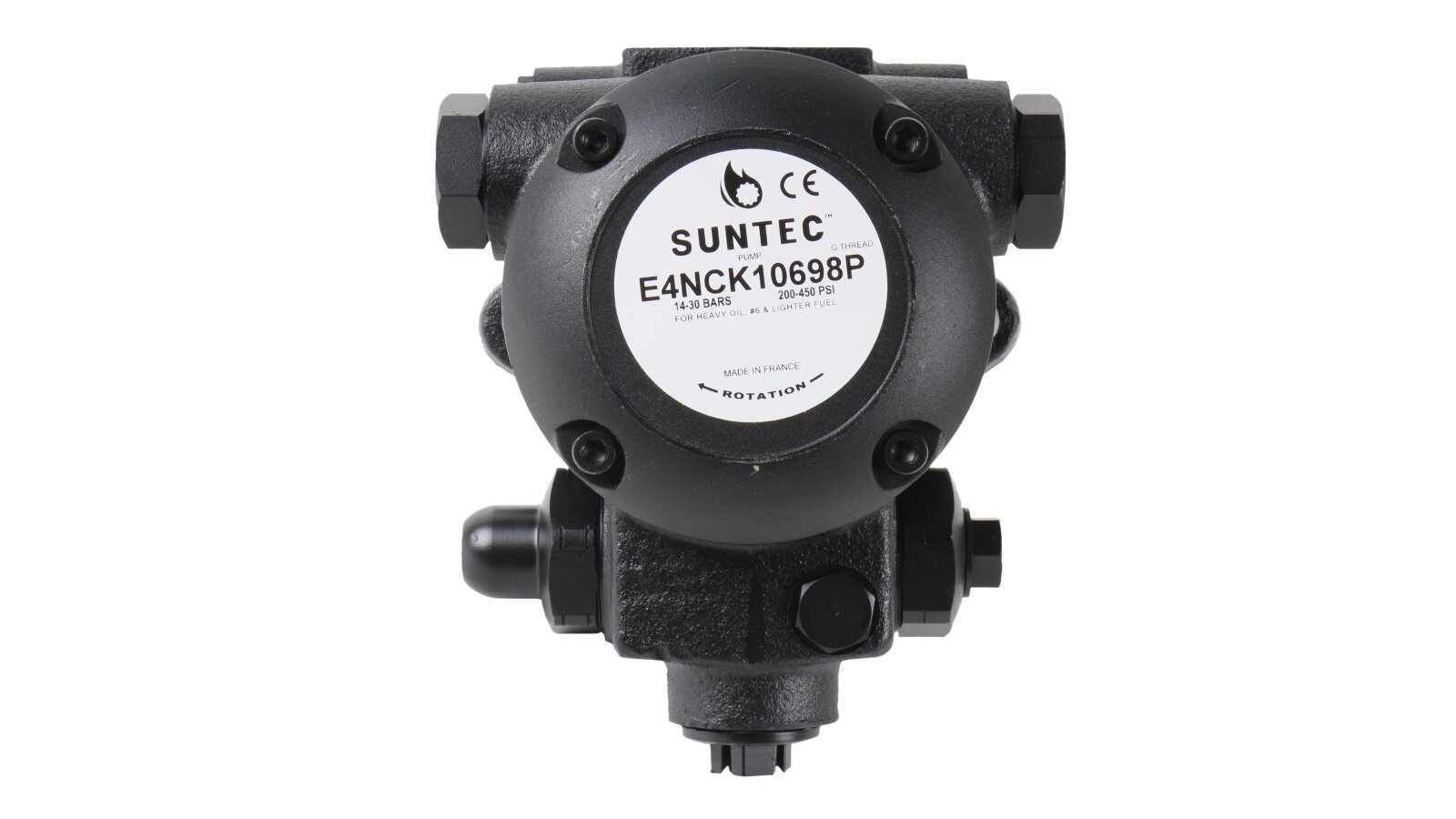

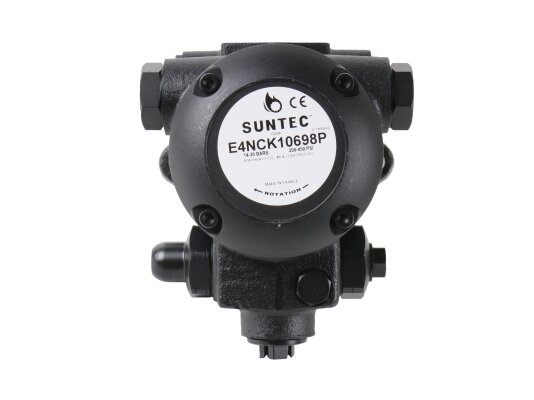

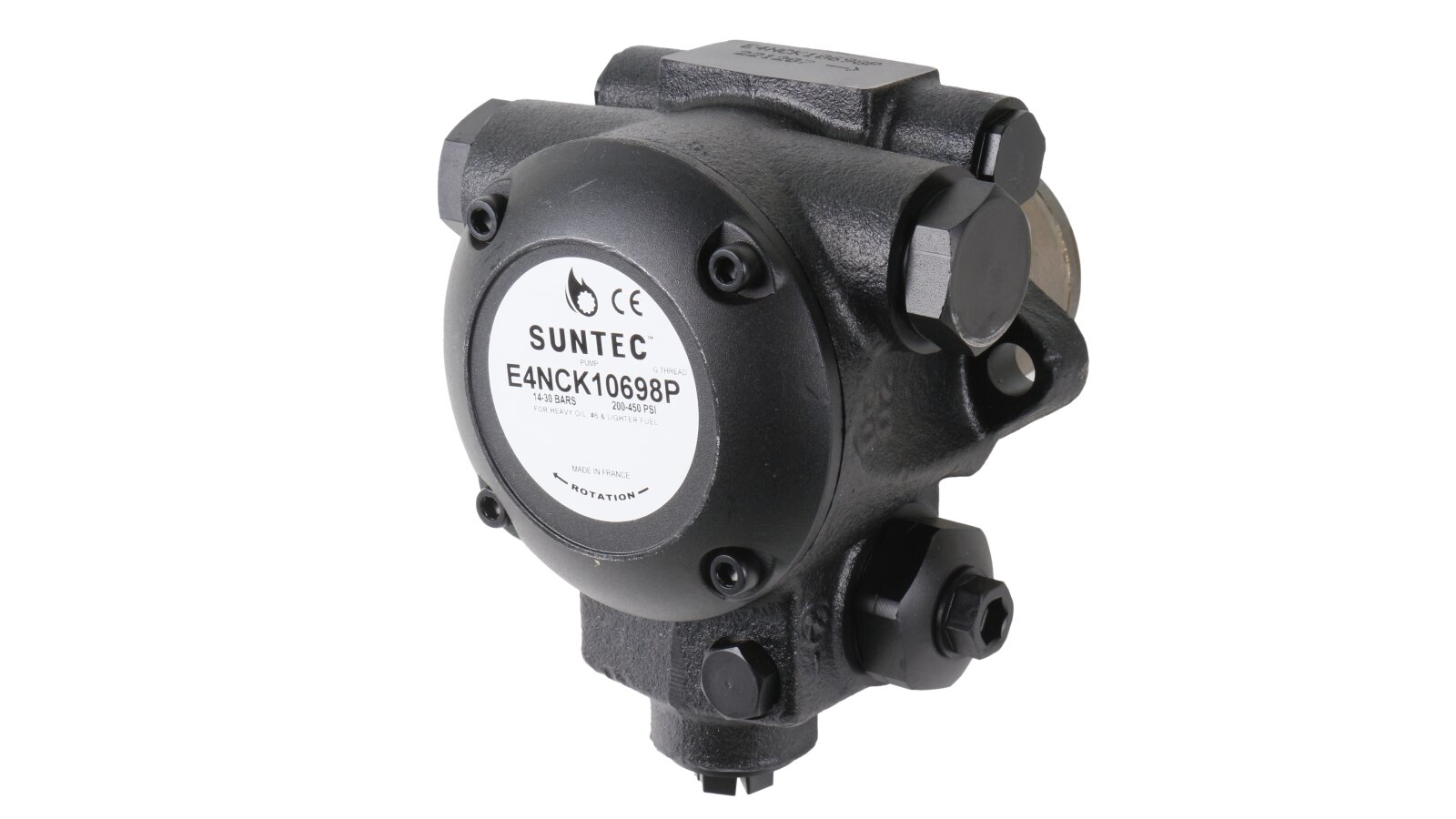

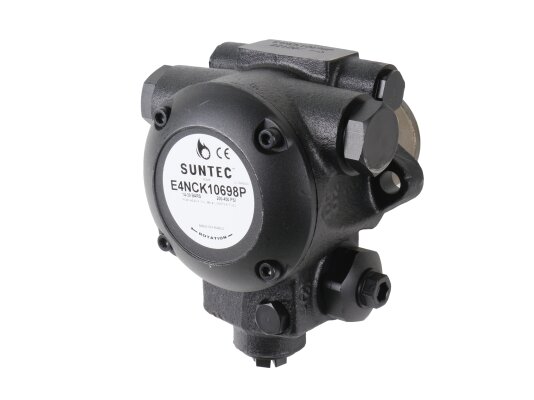

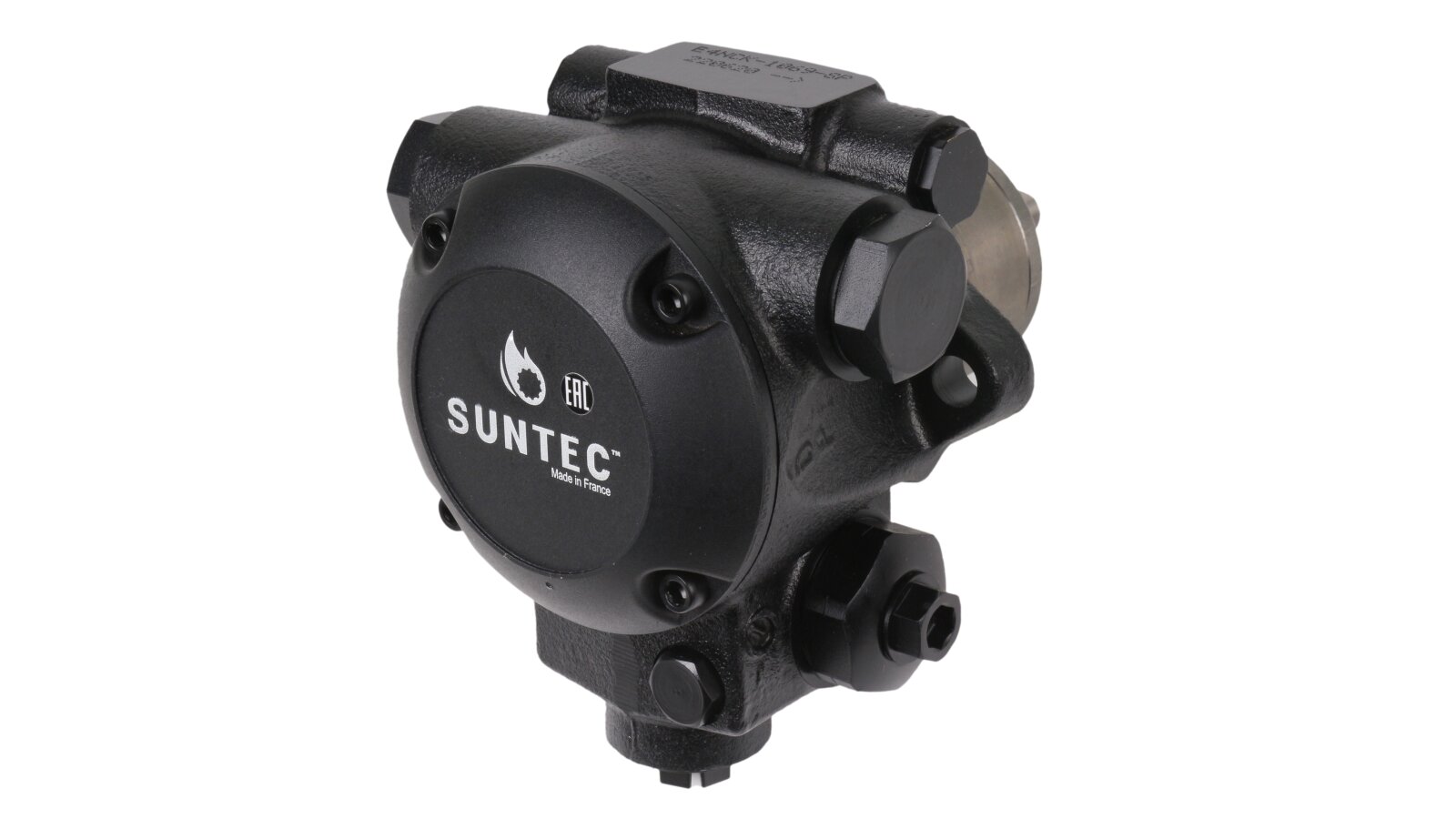

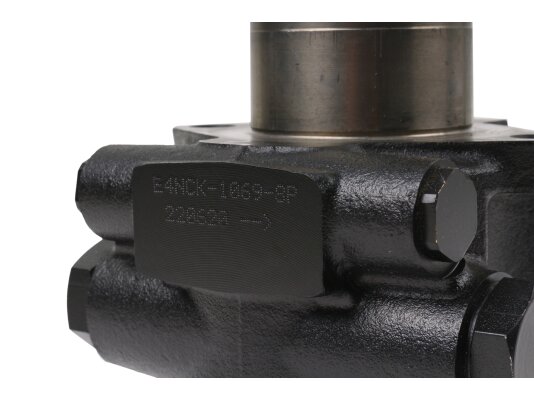

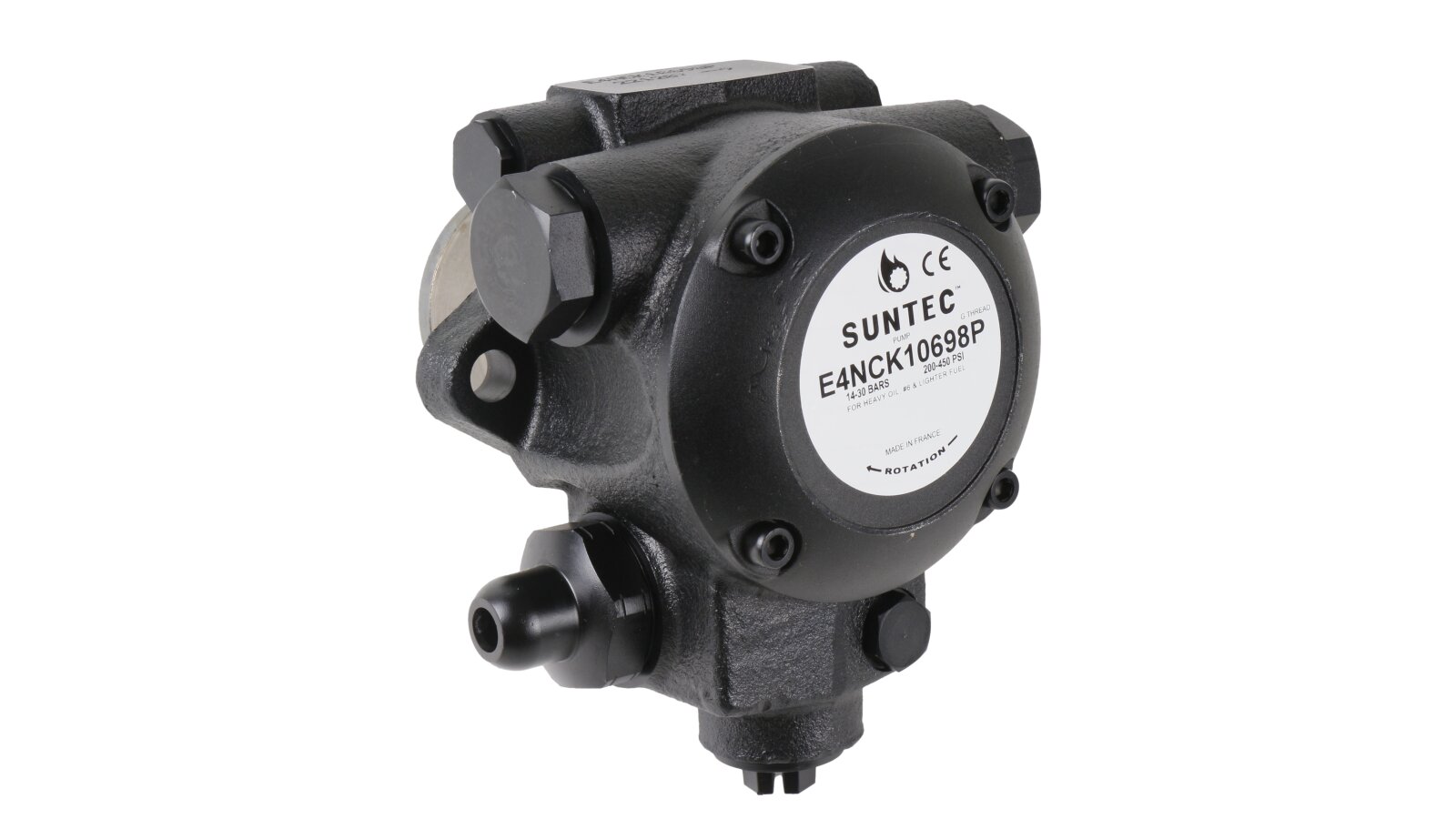

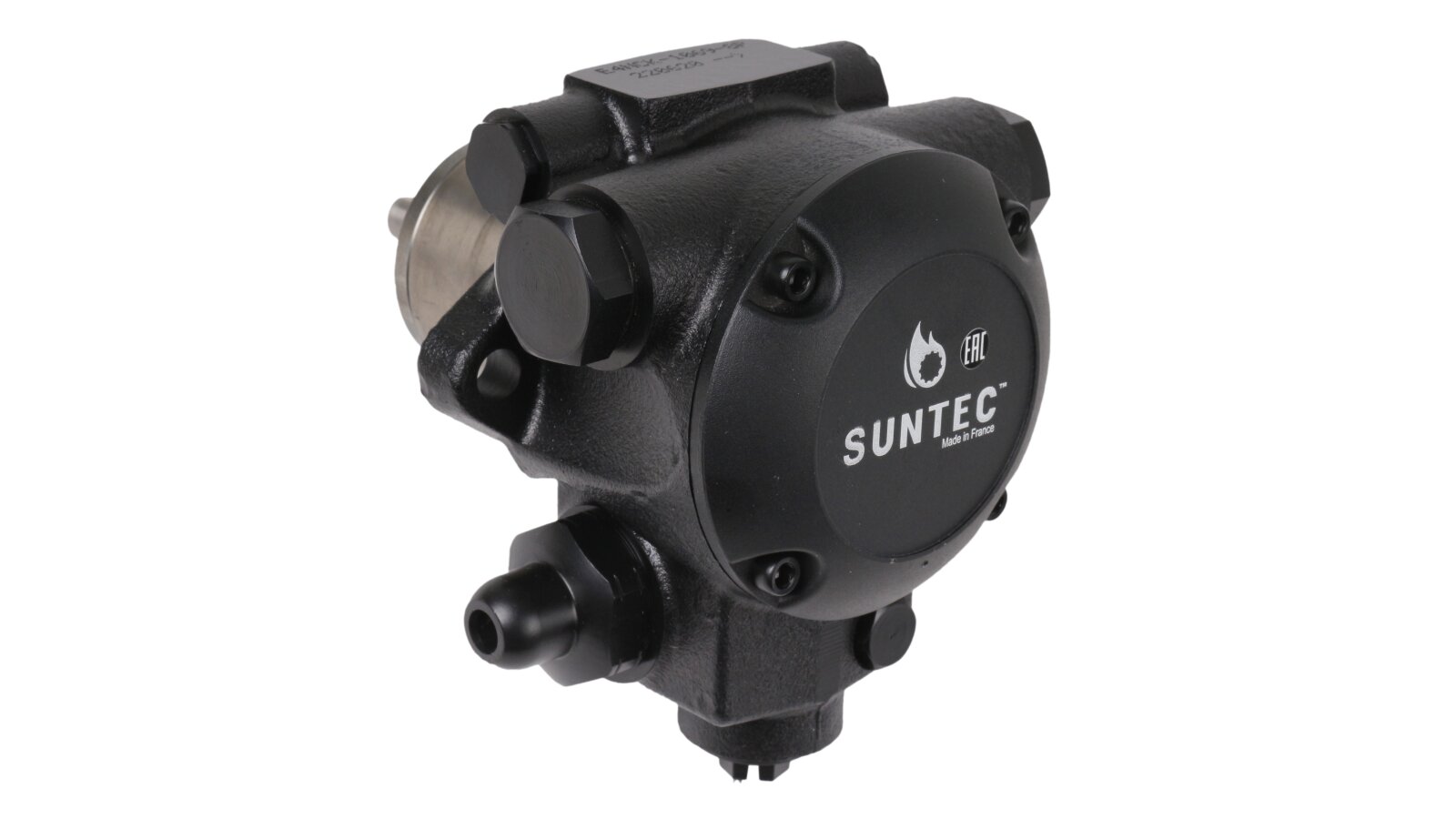

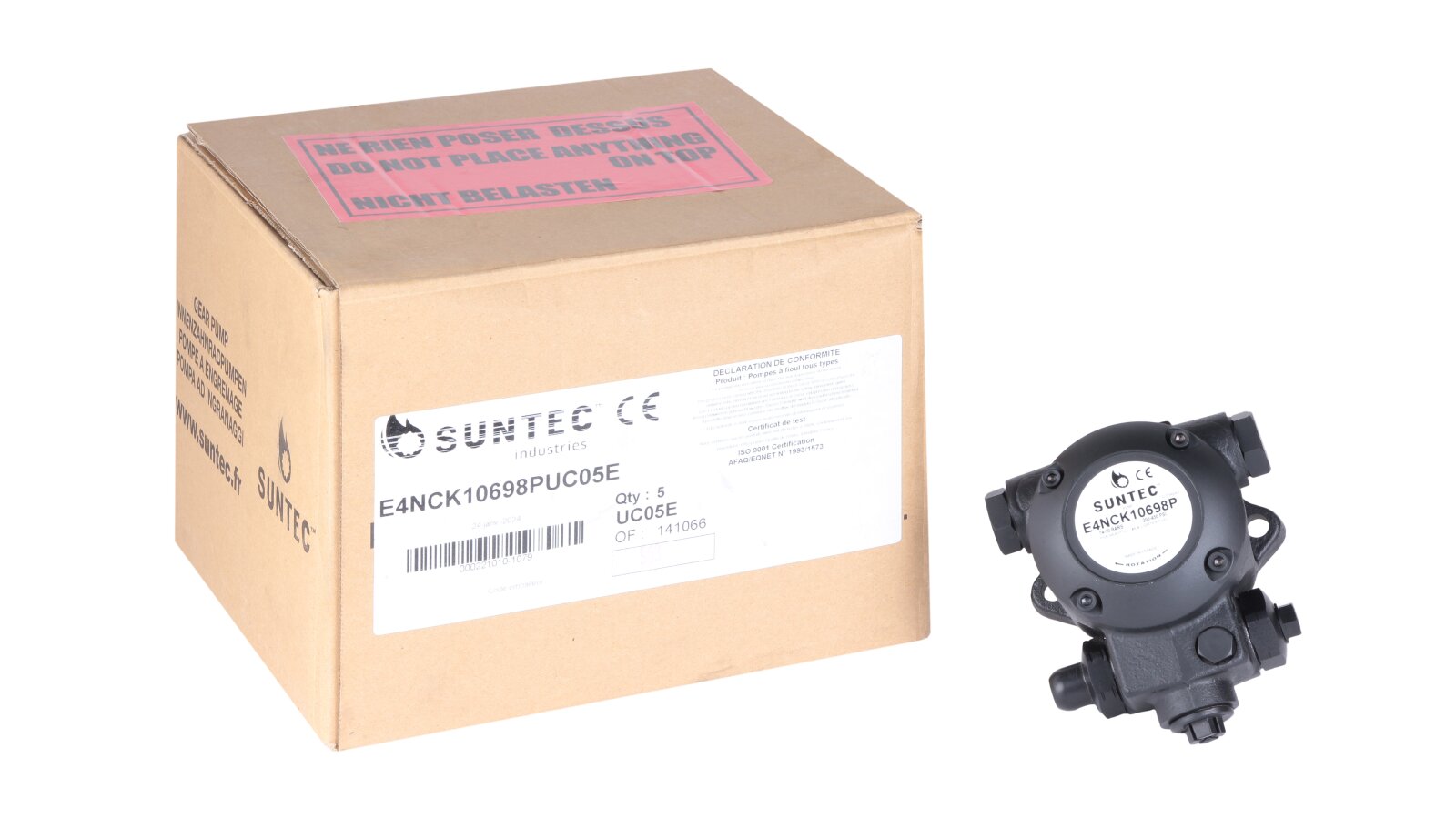

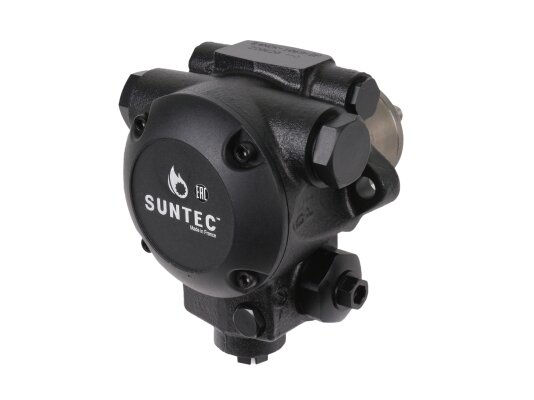

Burner Pump Suntec E 4 NCK 1069 8P

Suntec

AED 2,250

Oil Burner Pumps
Products code: 55393

Description

The Suntec E 4 NCK 1069 8P burner pump is adapted for operation under high-temperature conditions and heavy loads. It is capable of pumping fuel oil and other types of heavy fuel when operating medium-power burners. The advantage of the model is the ability to install an electric heater to reduce the viscosity of the fuel and facilitate starting.

E 1069 Series

The pumps of this series are equipped with a pressure regulating valve without a shut-off function. It is implemented through an external device (purchased separately).

The installation location is for single-pipe and dual-pipe fuel pumping systems. In the basic assembly, the drain hole is protected by a bypass plug. When used for a single-pipe installation, it must be unscrewed and the outlet closed.

The E 1069 series pump is prepared for mounting a heater (according to EN 50262) for preliminary fuel preparation, which facilitates starting. The heating device is located so as to give off maximum heat and not come into contact with the pumped fuel.

Features:

  • universal application, for diesel fuel, fuel oil, medium-viscosity fuel;

  • high performance, 180 l/h at a viscosity of 20 cSt and a pressure of 20 bar;

  • for systems with a return line or single-pipe installations;

  • pressure regulating valve without shut-off function;

  • feed pressure setting range 14-30 bar, factory setting - 20 bar;

  • fuel temperature inside the pump - maximum +130 ºC;

  • special shaft sealing material for high-temperature operation;

  • external solenoid valve with flow interruption function (upon additional request);

  • bypass hole in the injector line for pressure relief;

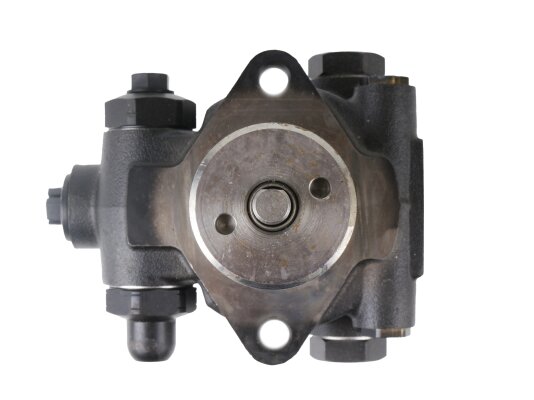

  • flange mounting method, ∅ 54 mm;

  • flow cleaning from coarse particles more than 550 µm contained in the fuel;

  • 1/2 inch thread for connecting the suction, return pipe;

  • holes for connecting measuring equipment;

  • fixation in the system in any position;

  • pressure in the suction and return lines - no more than 3.5 bar.

You can buy a pump for the Suntec E 4 NCK 1069 8P burner with additional equipment - an external shut-off electromagnetic valve.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOil temperature: from 0 to 130 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 180 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 20 barOperating viscosity: from 3 to 75 mm²/sNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 3.5 barInlet pressure: 3.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mType of pumped liquid: diesel, sea ​​water
