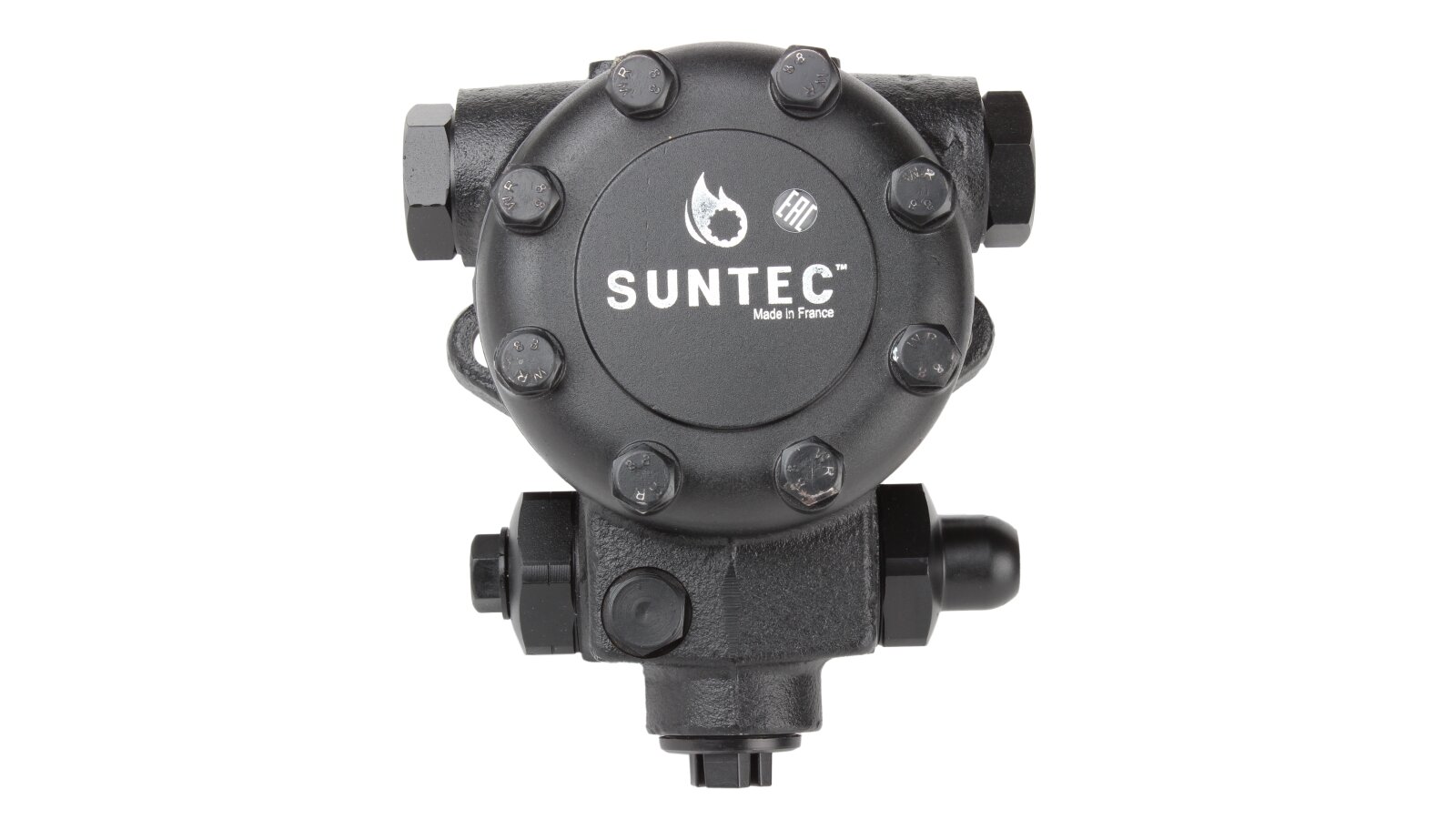

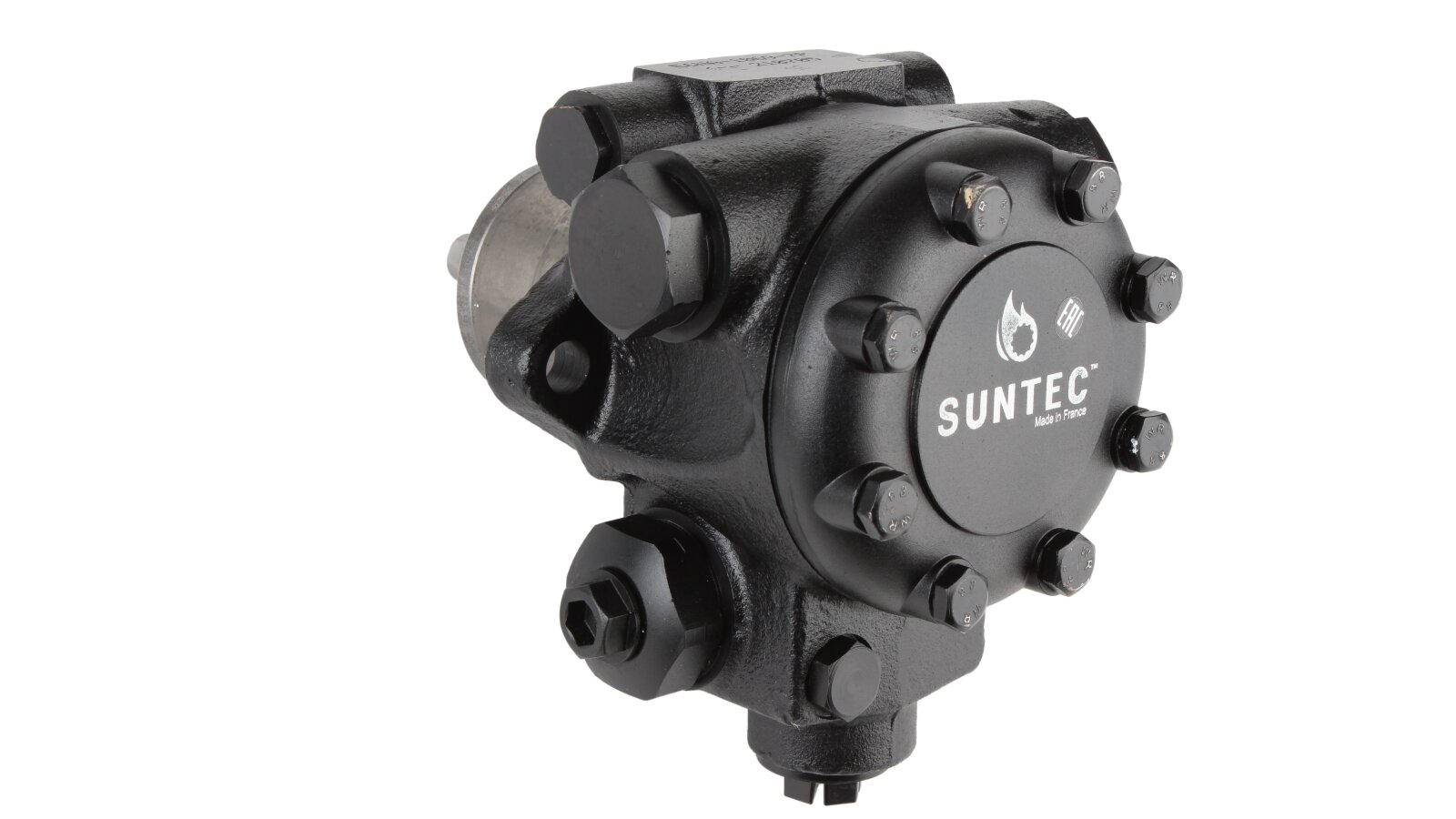

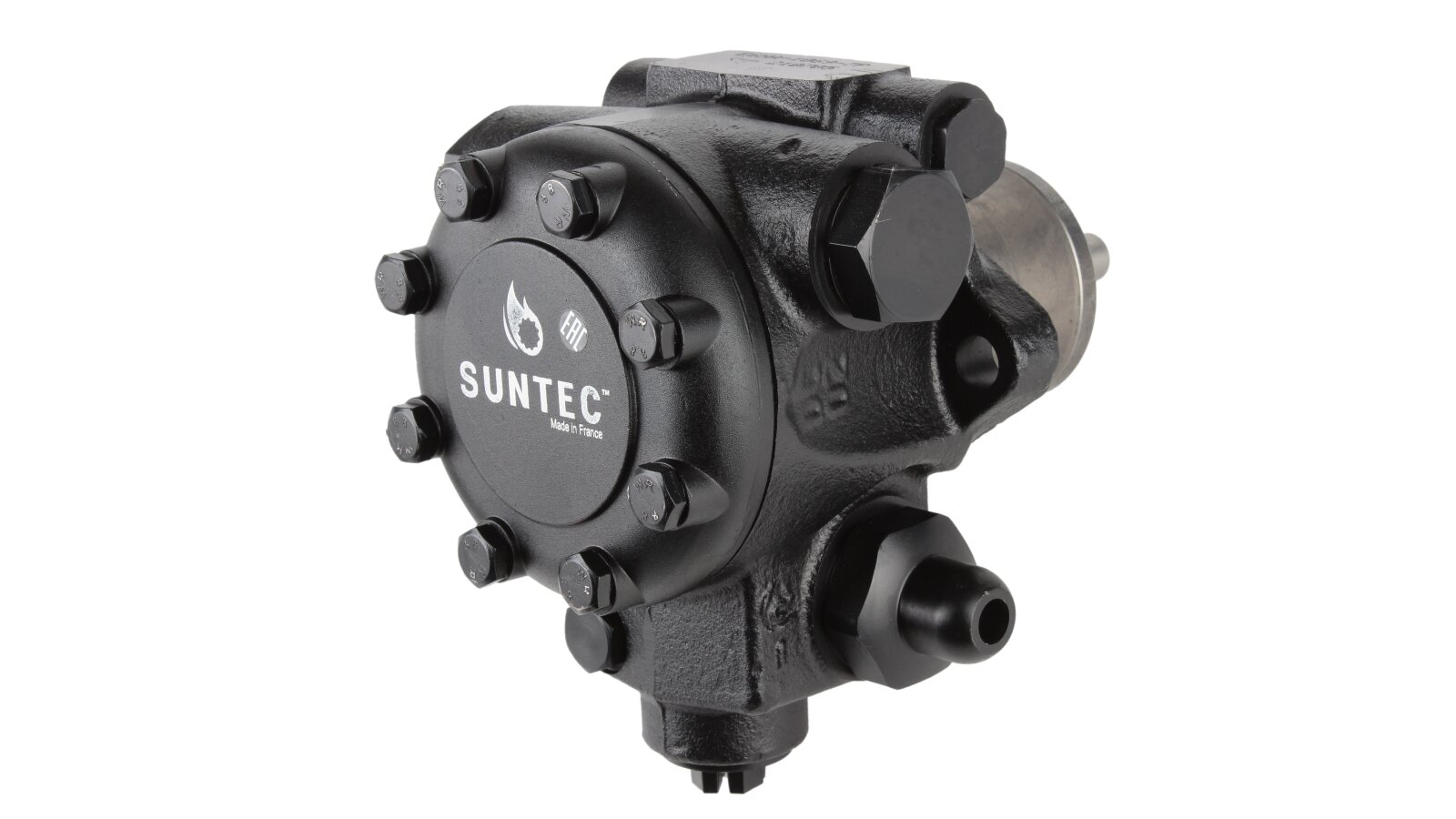

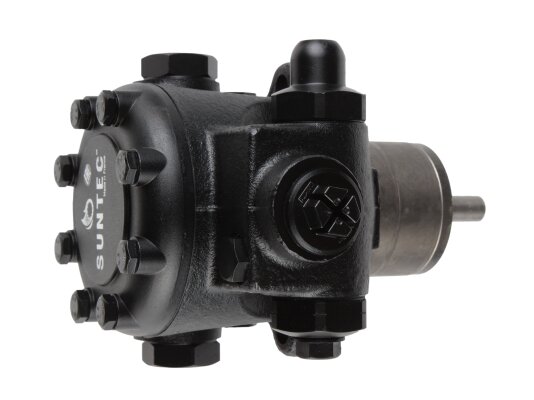

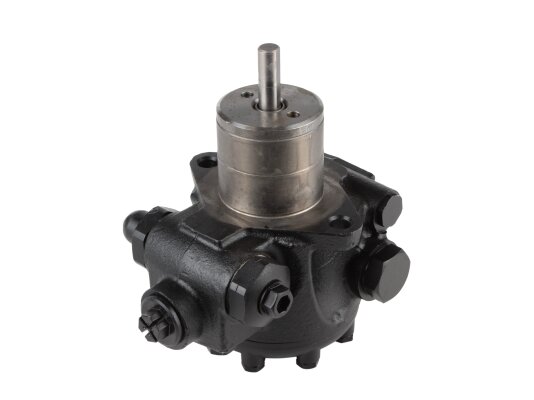

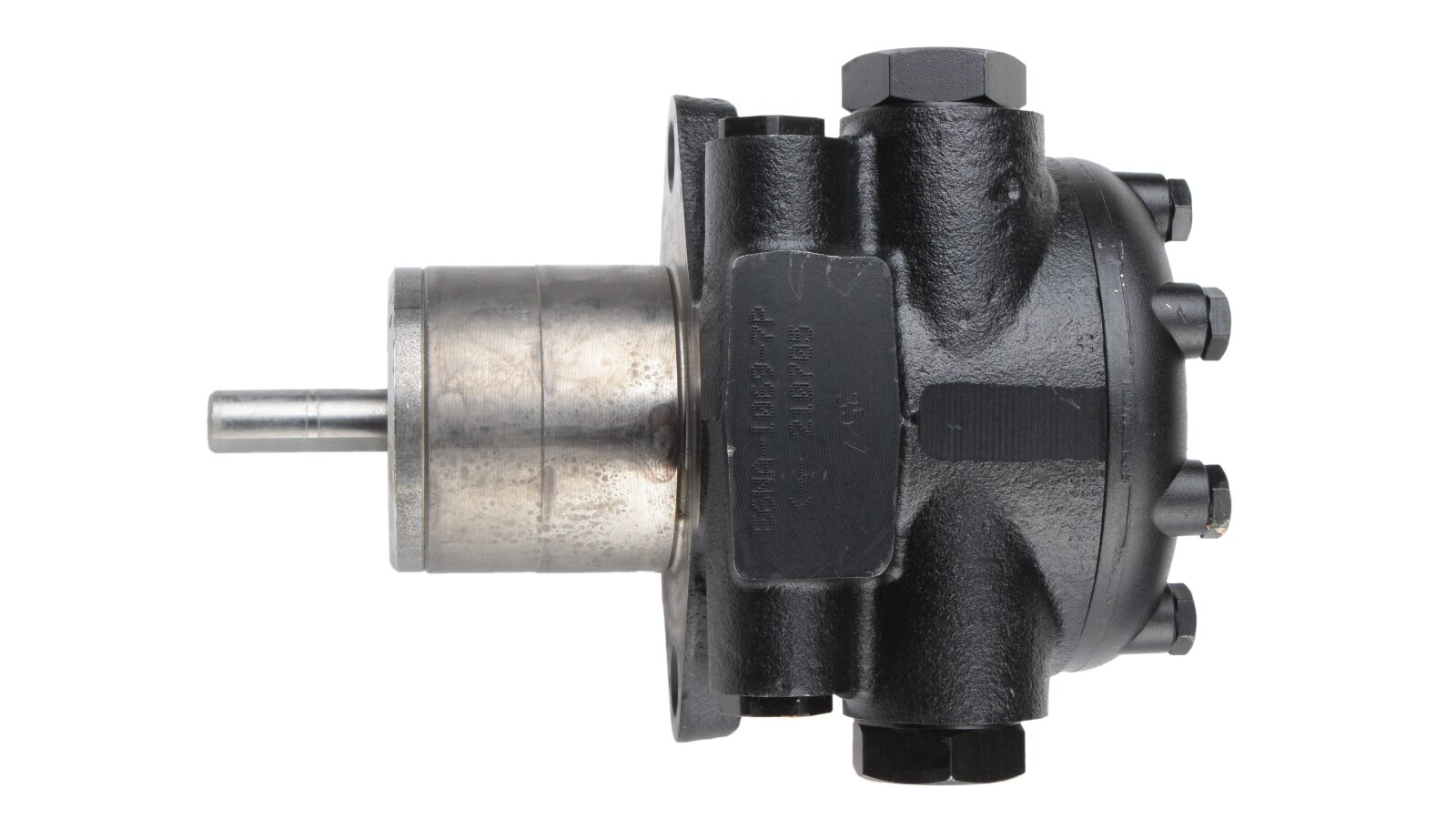

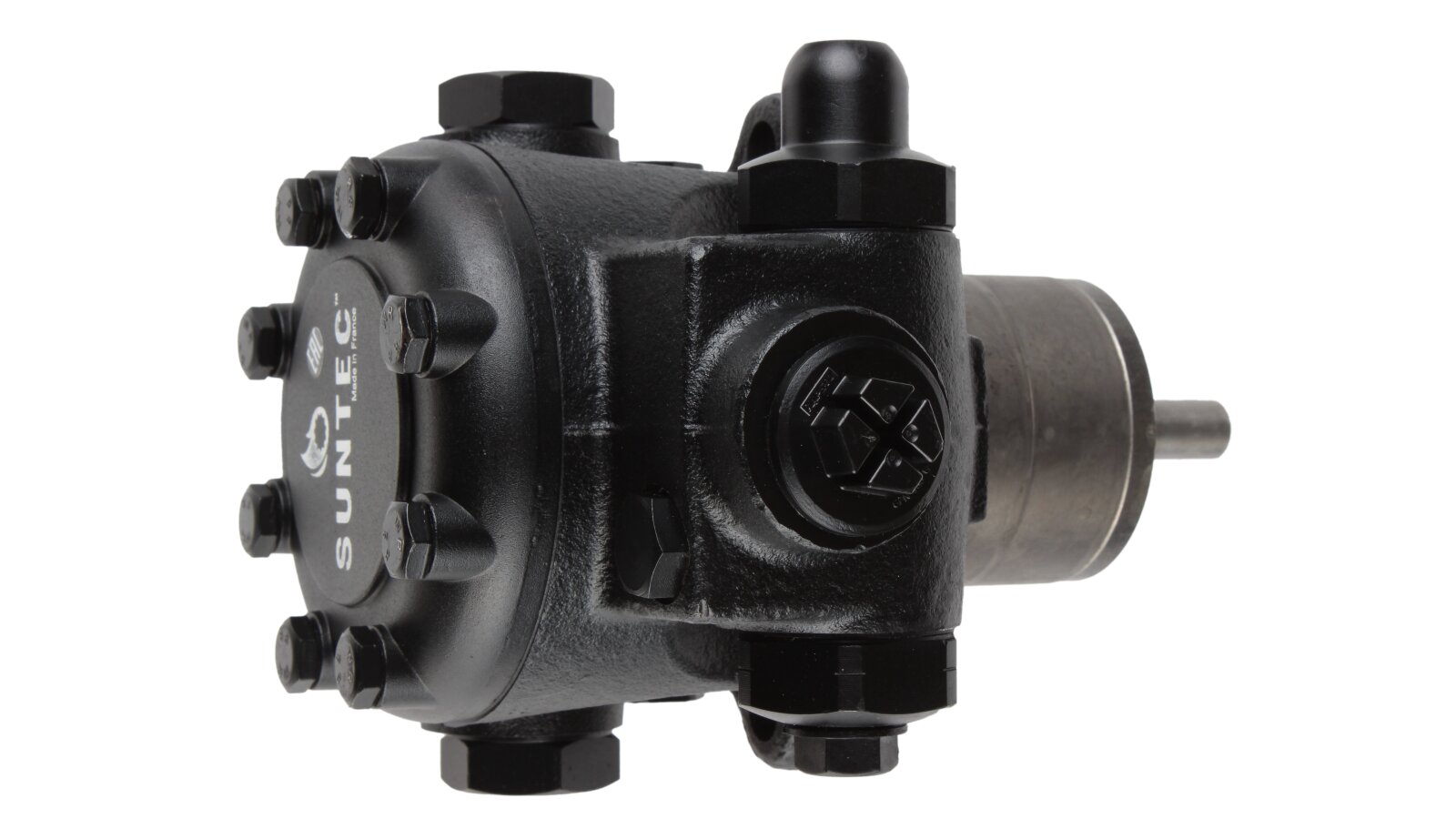

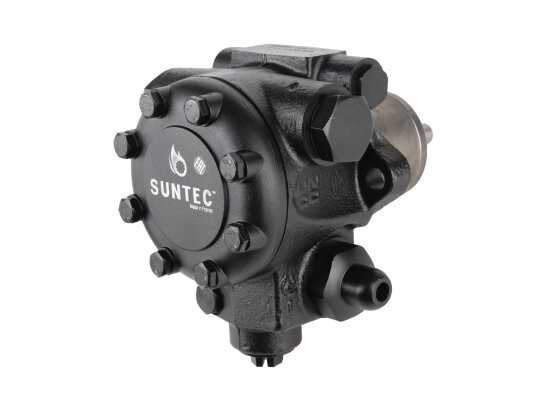

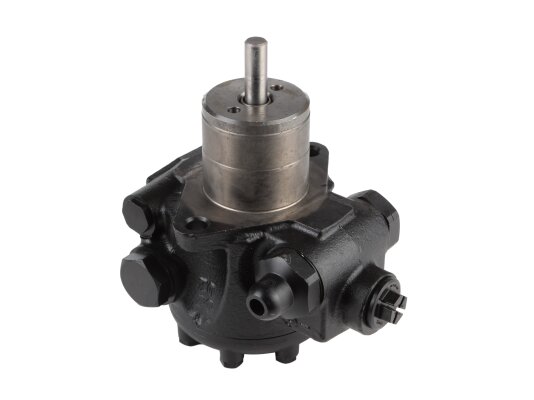

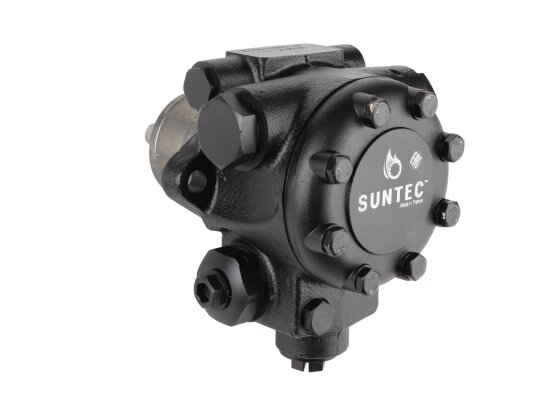

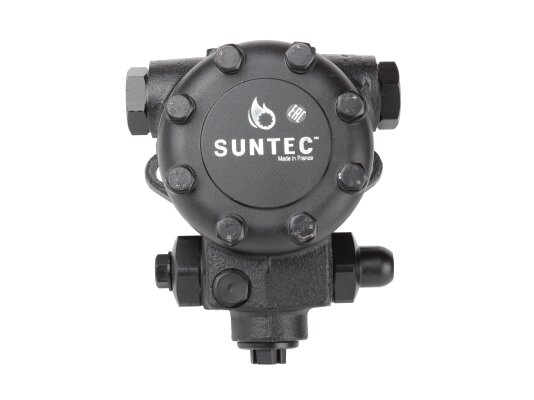

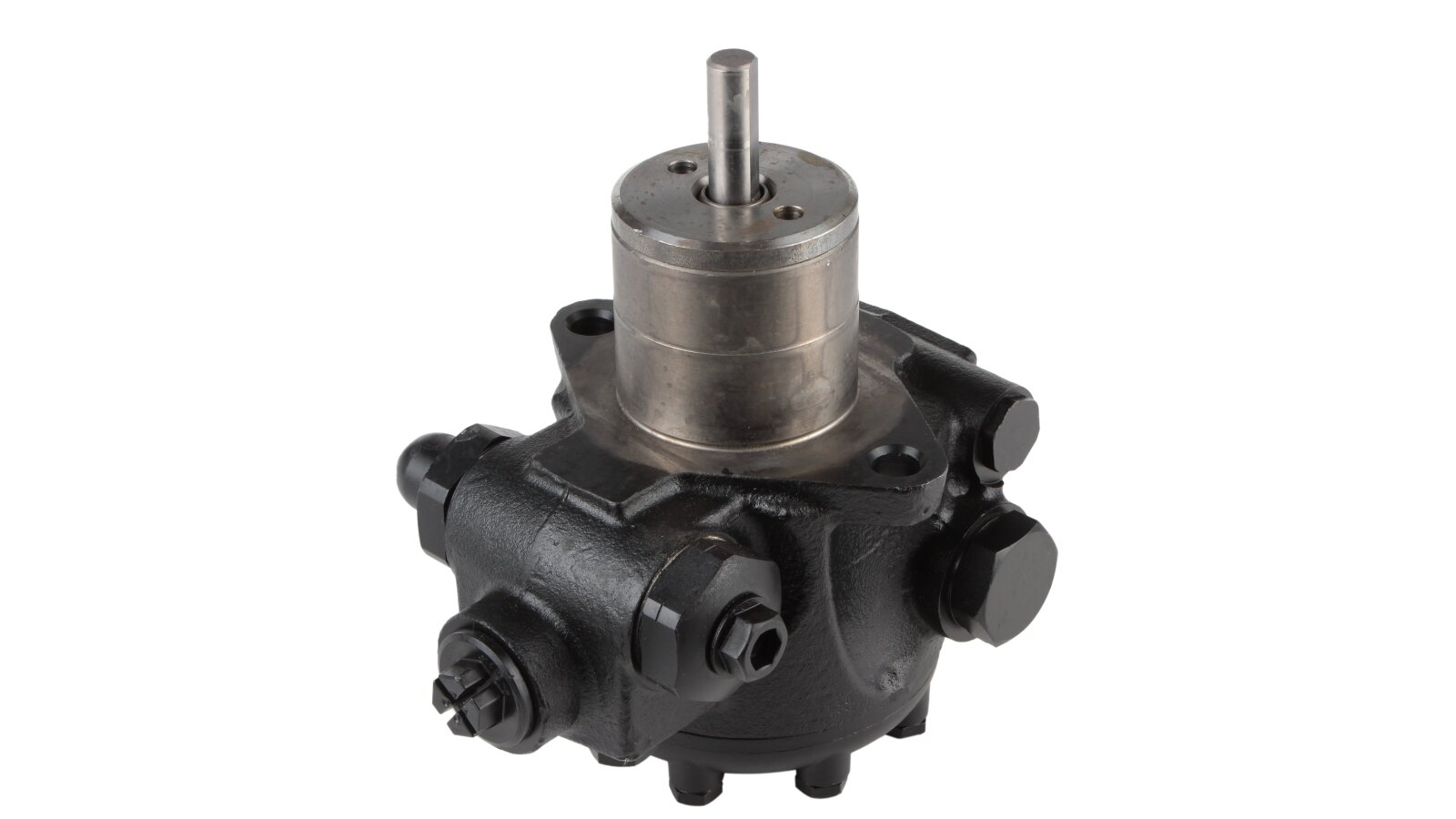

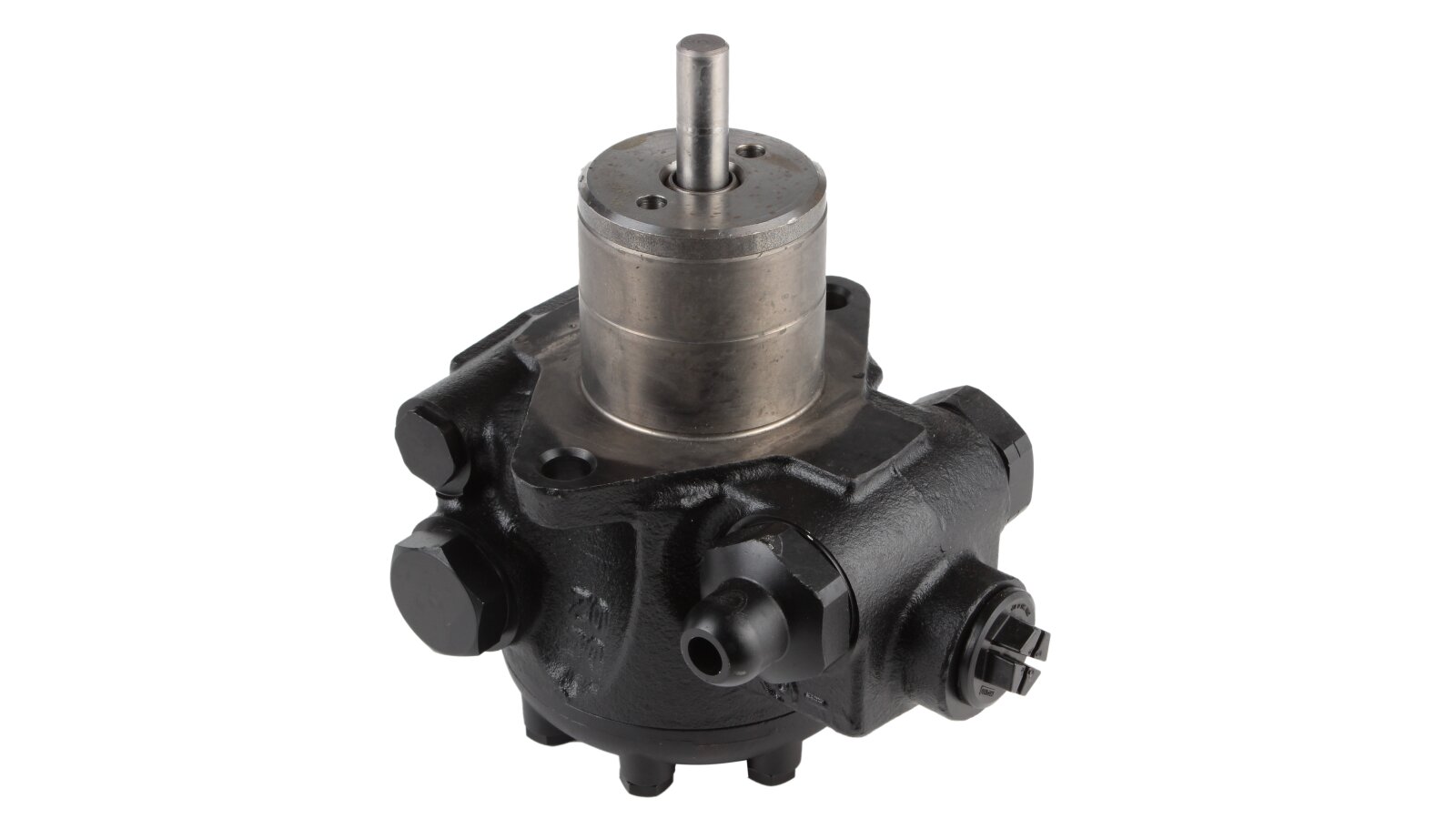

Burner Pump Suntec E 6 NA 1001 6P

Suntec

Alternative Part Number

Lamborghini 04013280FBR 258507
AED 2,650
  • Discontinued
  1. Oil Burner Pumps

Description

The Suntec E 6 NA 1001 6P fuel pump is an effective equipment for equipping heating systems in commercial, industrial and large domestic premises. Suitable for Elco, Weishaupt, Lamborghini and Baltur burners and other brands that operate on diesel fuel and fuel oil. The fuel feed rate of 20 cSt at a pressure of 20 bar is 265 l/h. The built-in valve regulates the pressure on the nozzle and ensures locking.

Design features

The pump design is adapted for pumping medium-viscosity fuel heated to +90 degrees.

The main unit is a toothed pair of gears that moves fuel from the tank to the valve and then to the nozzle under a fixed pressure. In the basic version, the pump is set to 20 atm., but this value can be changed by turning the screw on the body left / right. Range: 14-30 bar. When adjusting, use a pressure gauge.

To monitor the correctness of the device settings, the body has threaded ports of standard diameter: G⅛" for a pressure gauge and G½" for a vacuum gauge, in accordance with ISO 228/1.

The Suntec E 6 NA 1001 6P fuel pump is designed for 2-pipe systems - a bypass plug is located in the return line hole. It must be removed and the drain channel must be closed if the unit is used for a 1-pipe installation.

A mesh filter is mounted on the suction line to protect the gears from wear and breakage. It retains all impurities of a size of 550 µm, not allowing them to enter the device.

Attention! During operation of the pump, it is necessary to regularly remove contaminants using diesel fuel and a soft brush. Do not forget to change the cover gasket every time.

The main advantages of the device:

  • high fuel supply speed;

  • valve locking function;

  • large cleaning area of ​​the mesh filter – 45 cm²;

  • pressure adjustment by tightening the screw, range 14-30 bar;

  • versatility – pumping fuel oil, diesel fuel with a viscosity of 3-75 cSt;

  • heat-resistant materials for working with fuel heated to +90 ºC;

  • the ability to choose a connection scheme – 2 or 1 pipe.

The Suntec E 6 NA 1001 6P fuel pump is suitable for completing burners of many modern brands, which you can buy on our website at an affordable price. Do not forget to carefully compare the characteristics with the burner specification. If you have any difficulties with choosing equipment, contact us!

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 265 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 20 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, biodiesel fuel blend B10, diesel
