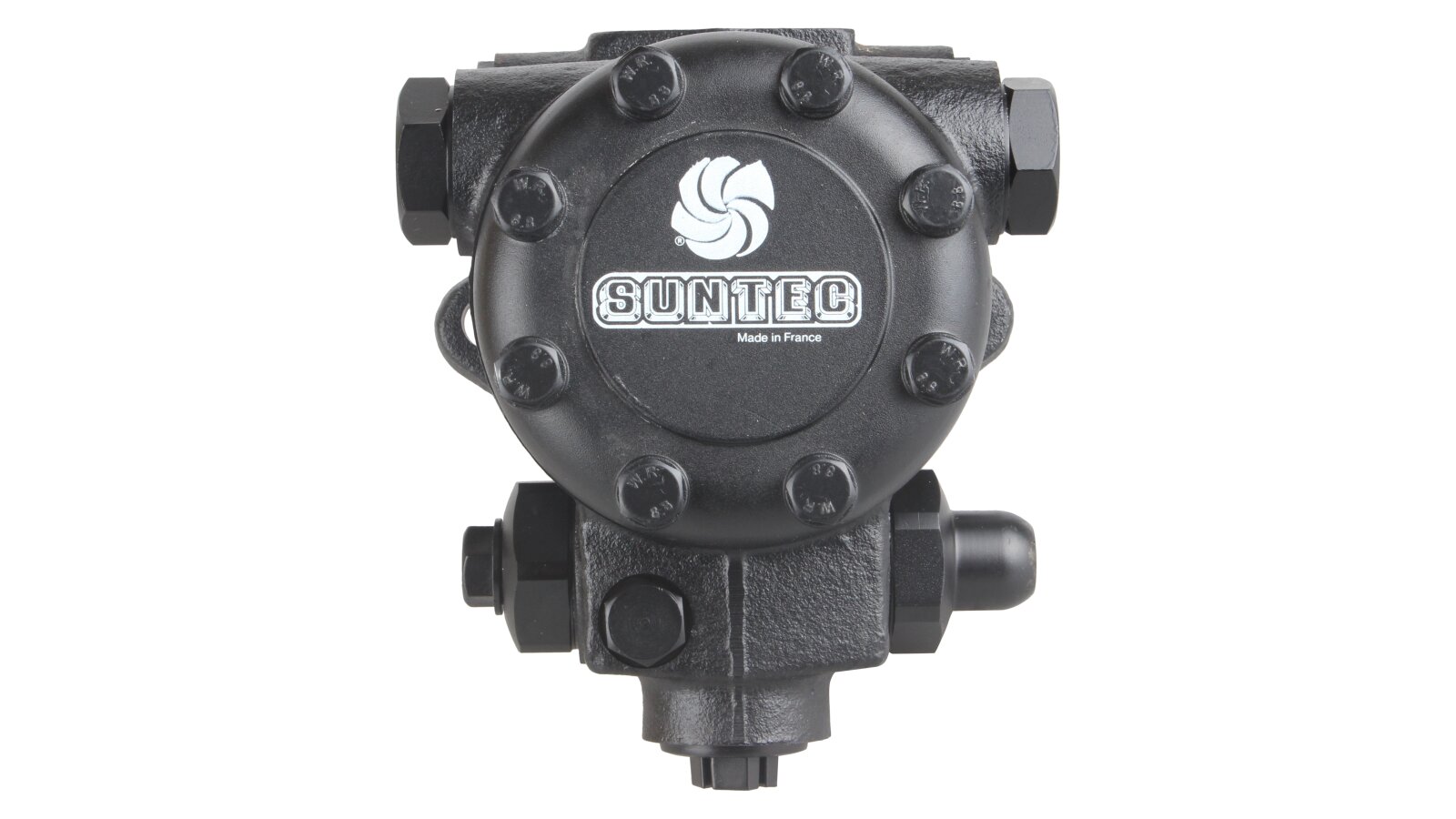

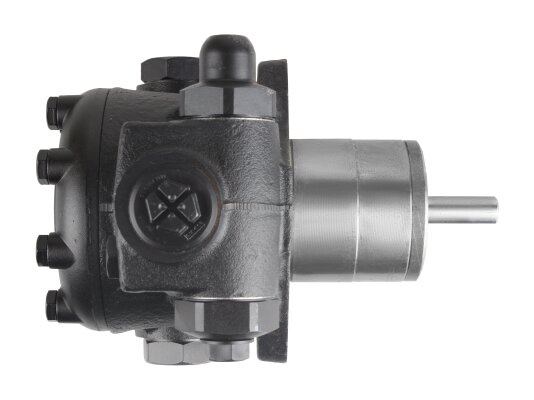

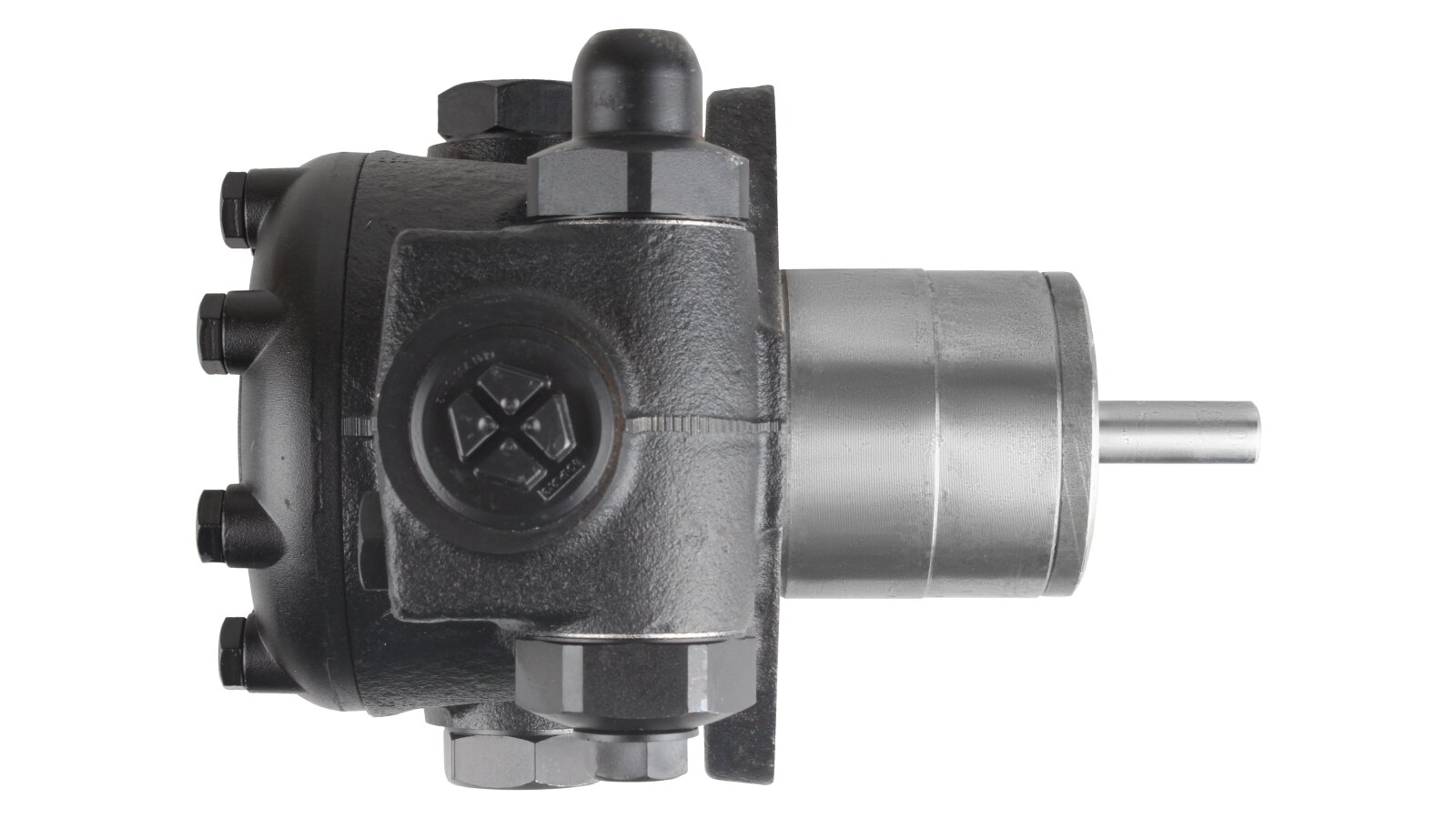

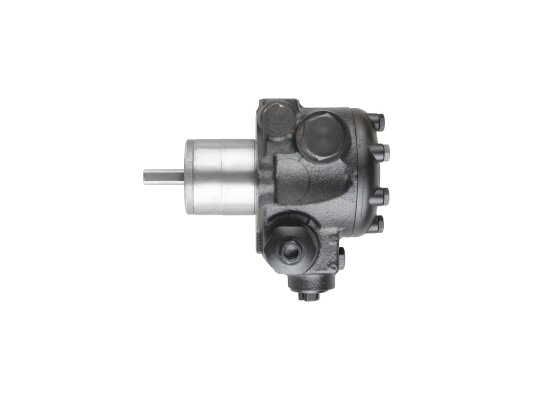

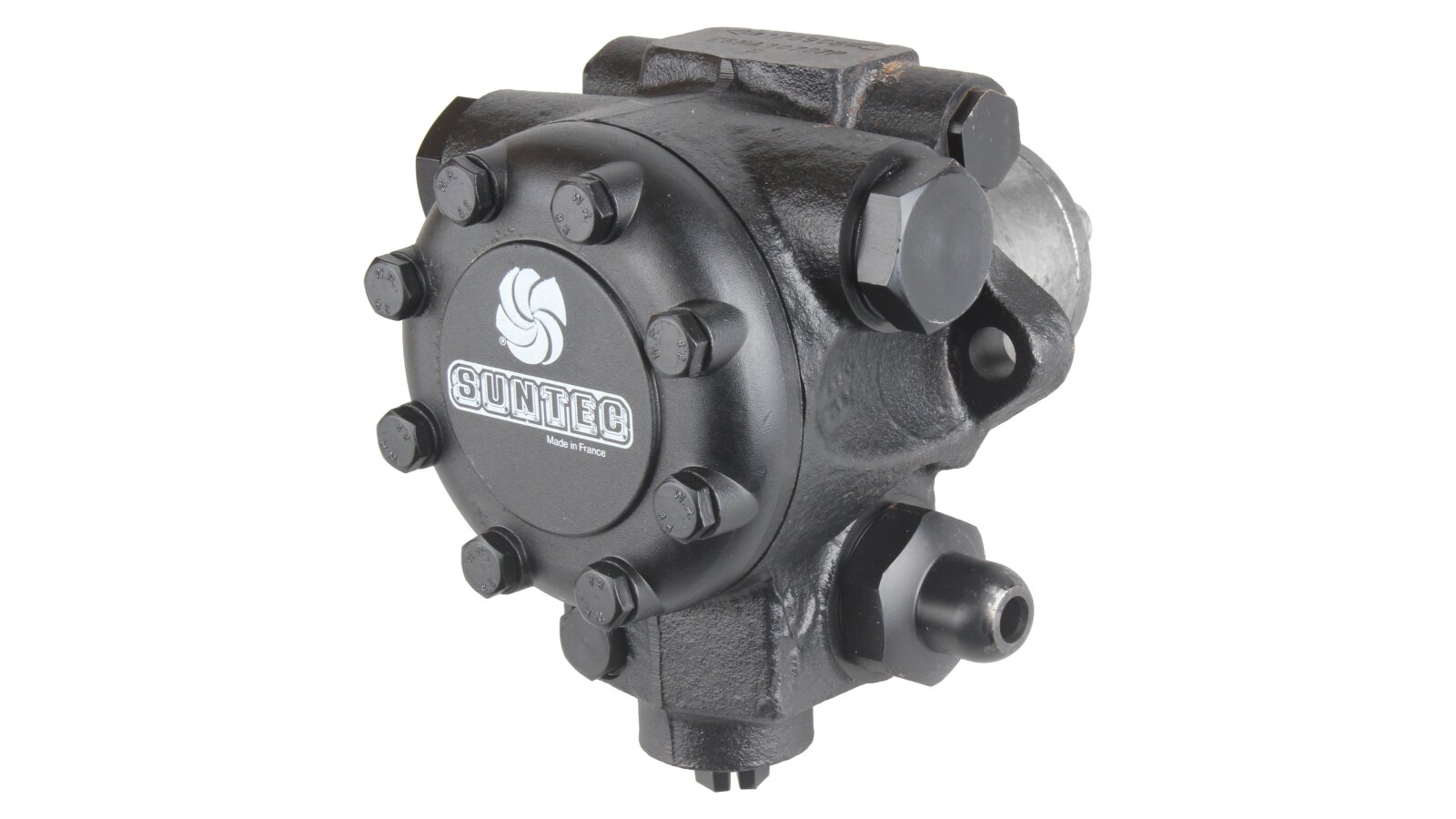

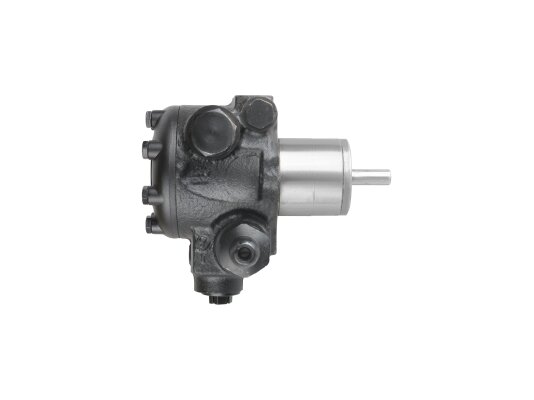

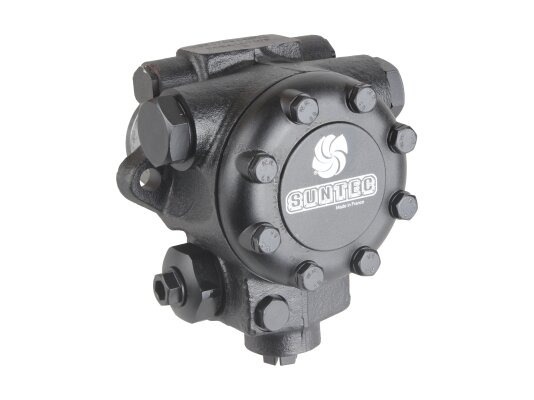

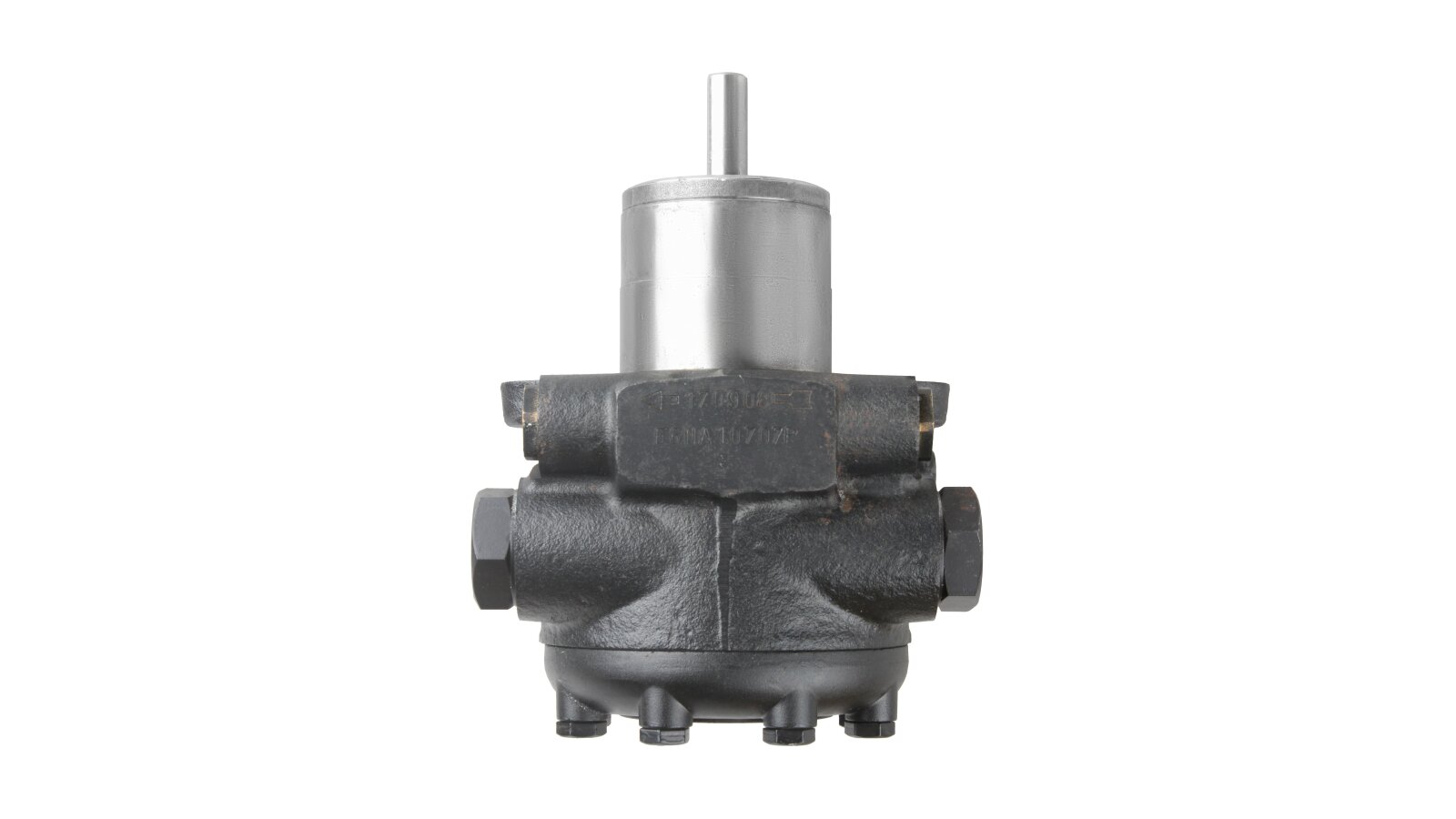

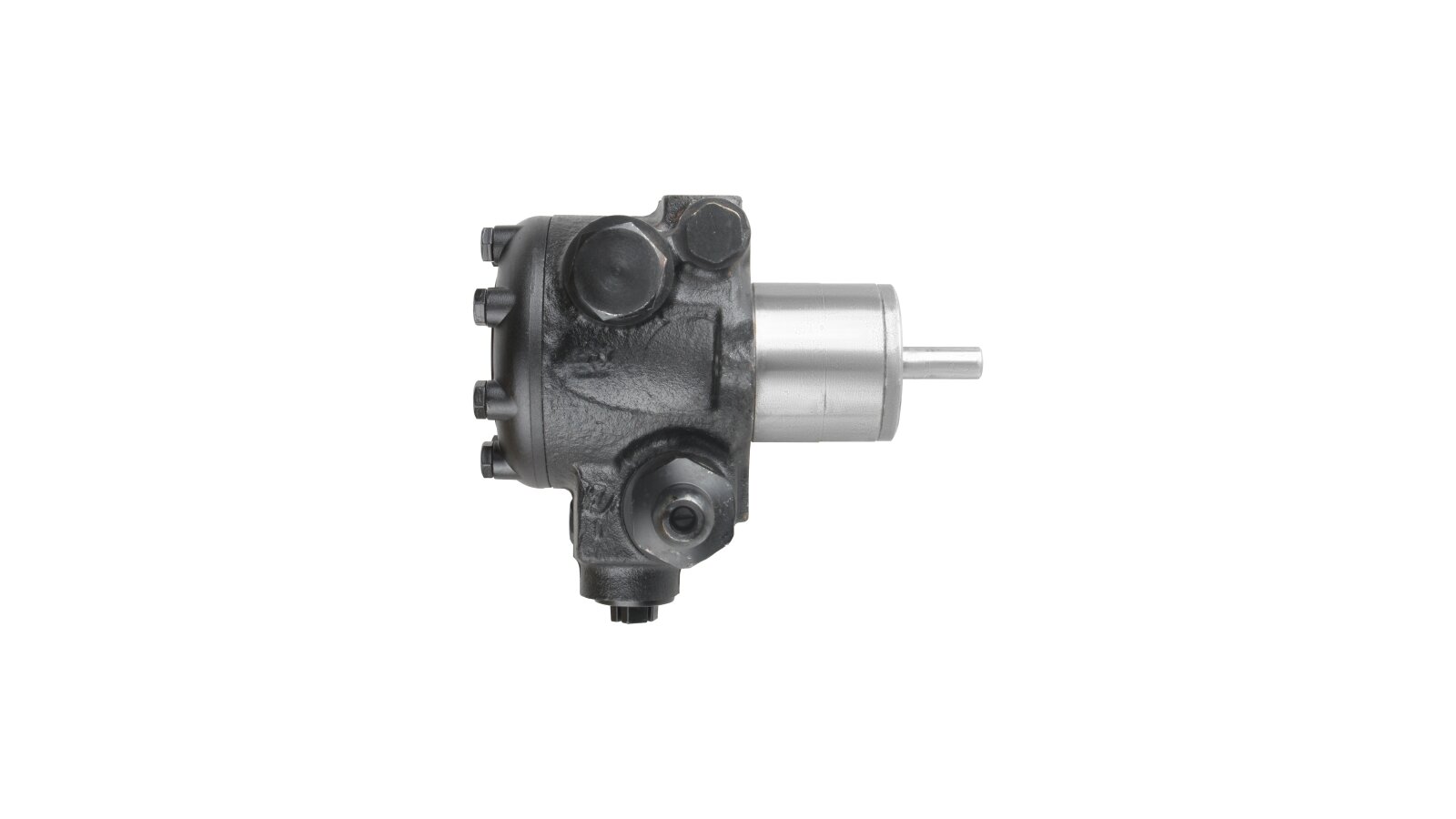

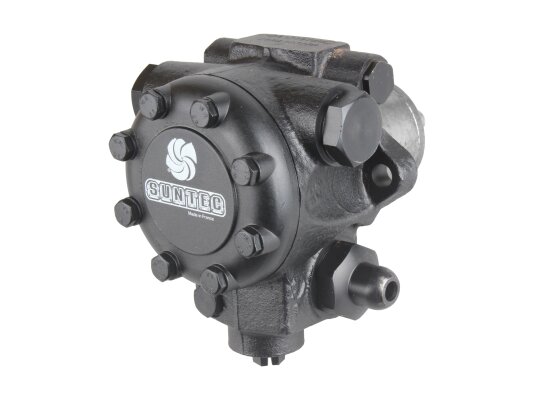

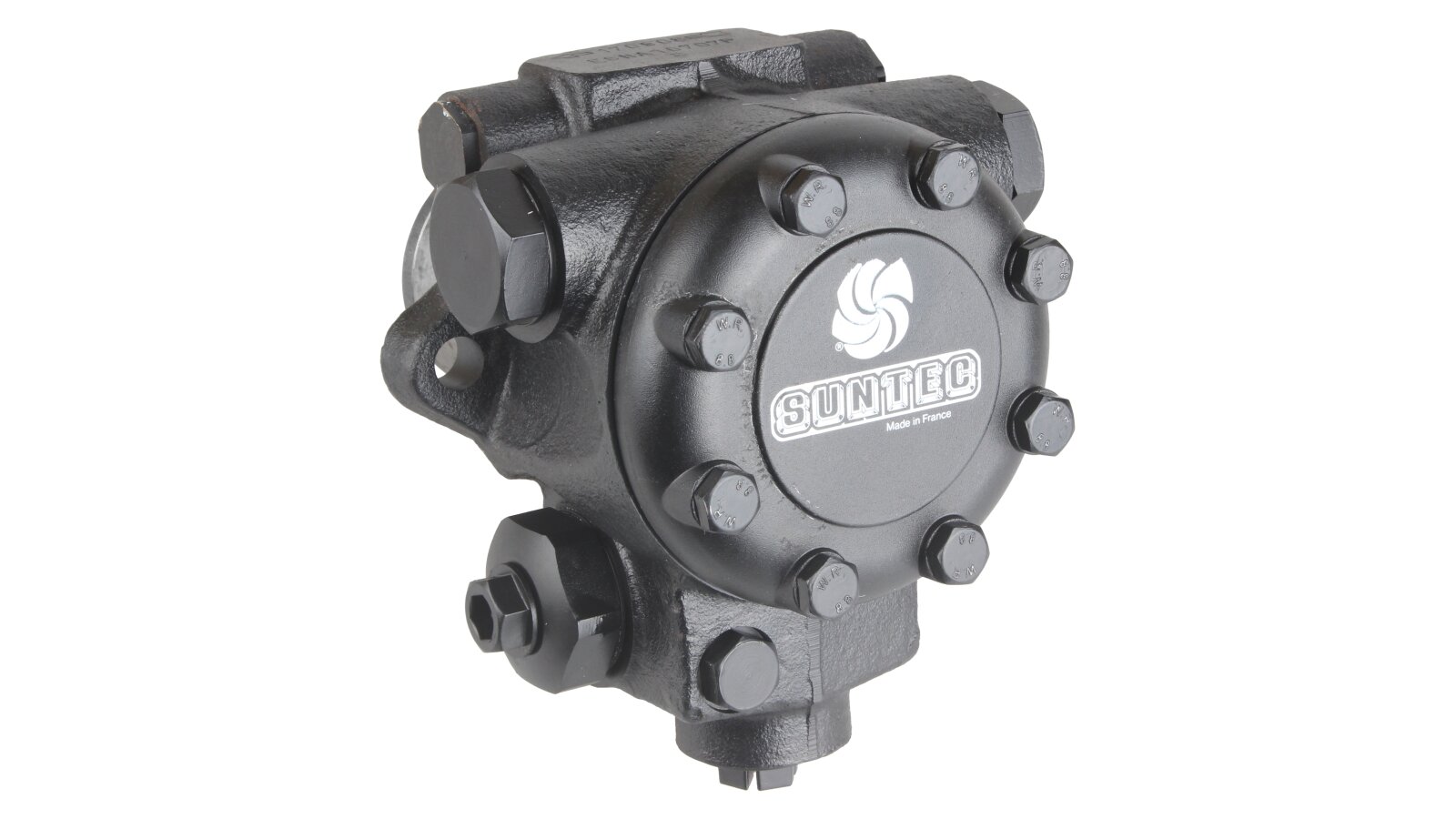

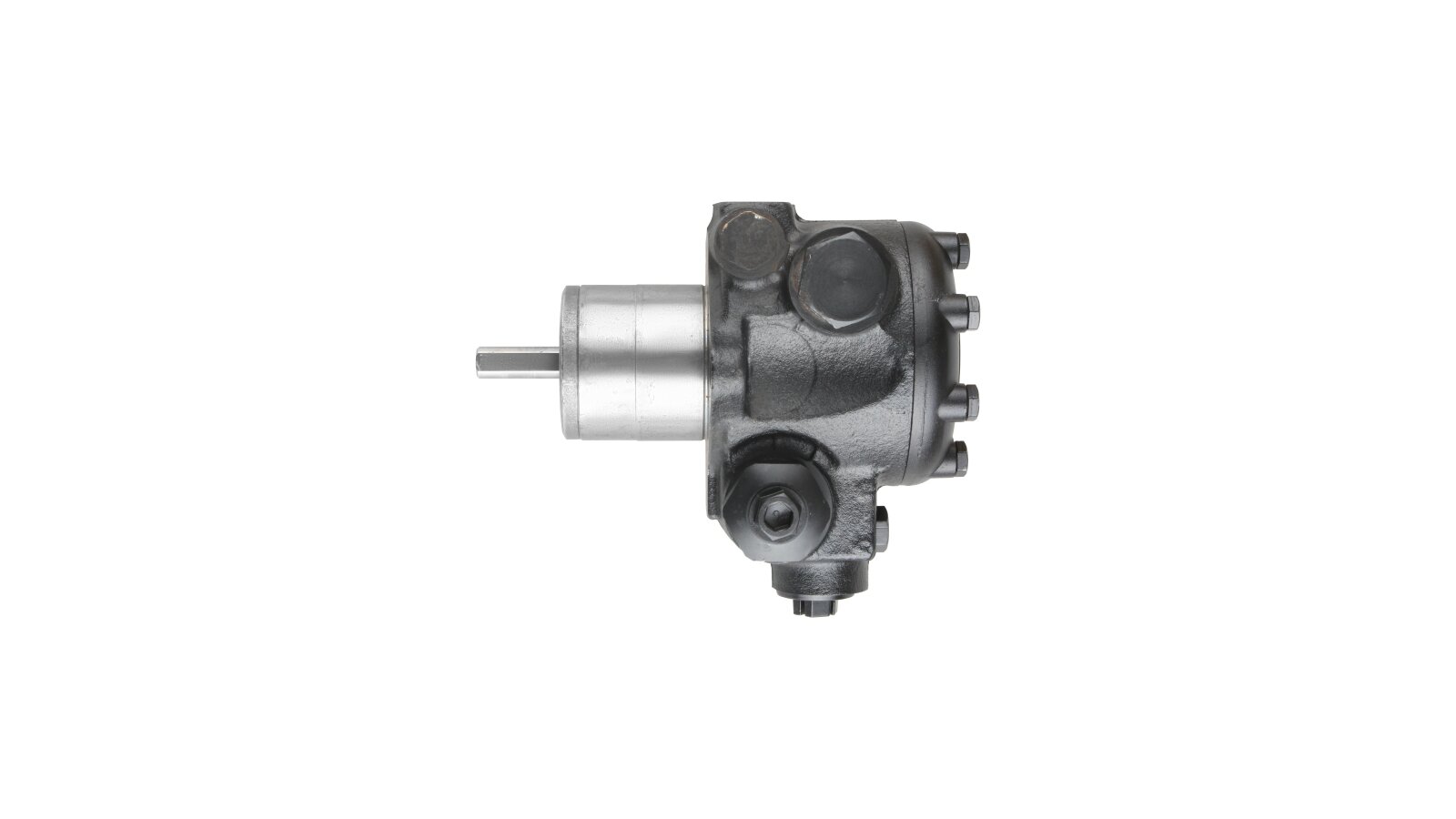

Burner Pump Suntec E 6 NA 1070 7P

Suntec

Alternative Part Number

FBR 258503
  • Discontinued
  1. Oil Burner Pumps

Description

The Suntec E 6 NA 1070 7P fuel pump is a high-performance equipment for working with diesel fuel and fuel oil with a viscosity of 3-75 cSt. The built-in valve performs 2 functions at once: it regulates the pressure on the injector and ensures that the flow is locked. A special hole on the body is provided for mounting a 50-80 W heater, which facilitates starting.

Design features

The pump is heat-resistant; special materials and shaft seals were used in its manufacture. The maximum fuel temperature inside the device is +130 degrees.

A 12 mm diameter seat is made for installing the heating element. The convenient location of the device guarantees the best heat transfer and safety of operations, since direct contact with the fuel is excluded.

Attention! The device should be turned on in advance of starting the pump to reduce the load on the gears. Once the desired temperature has been reached, it can be switched off or left on continuously to maintain the optimum fuel temperature during regular burner shutdowns. Remember that the pipeline, filters and pumped fuel are heated separately.

The gear pair is protected from abrasive impurities - a mesh filter with a cell size of 550 µm is installed in the suction line. It is necessary to clean the filter regularly and, at the same time, replace the cover gasket.

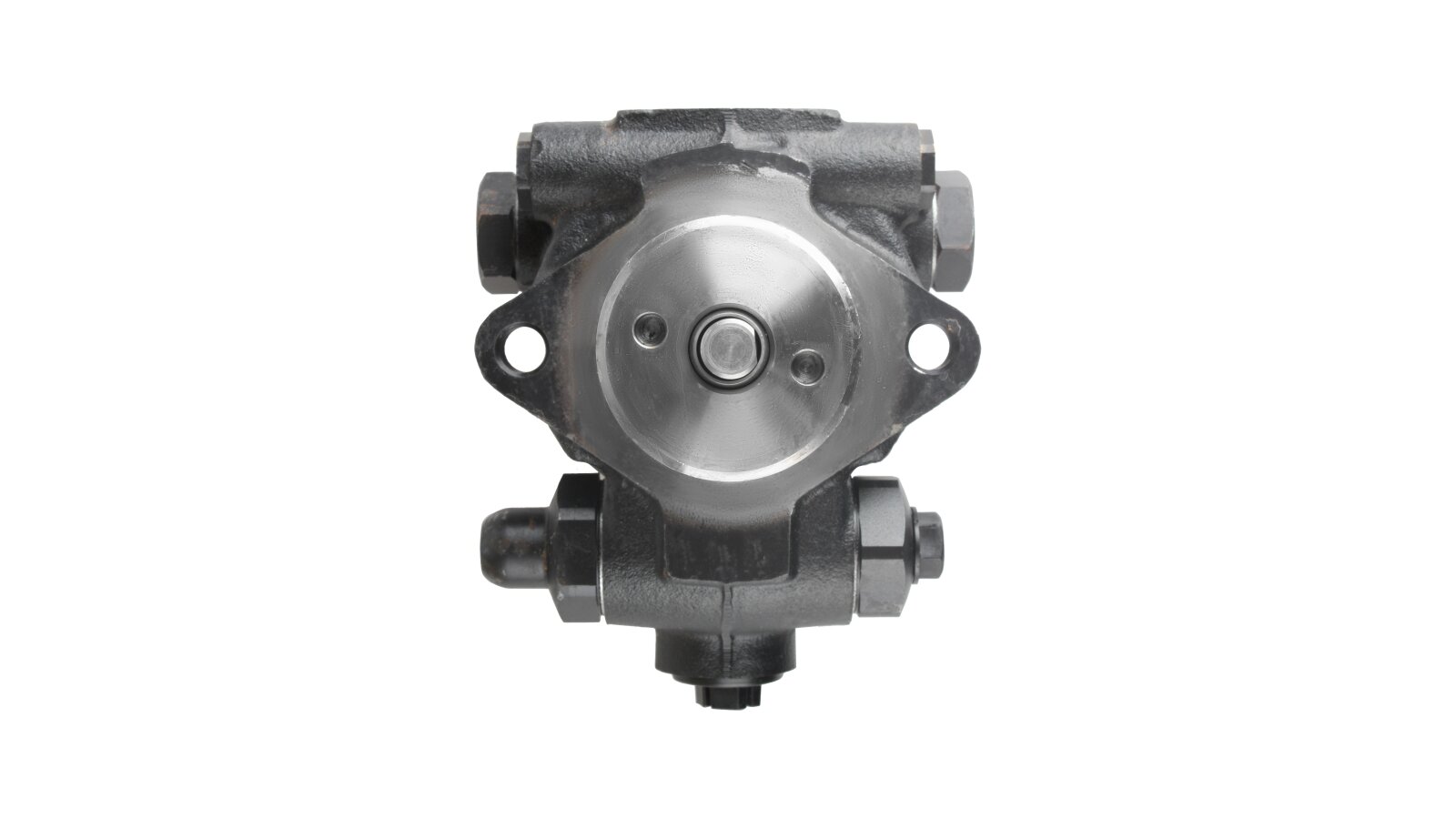

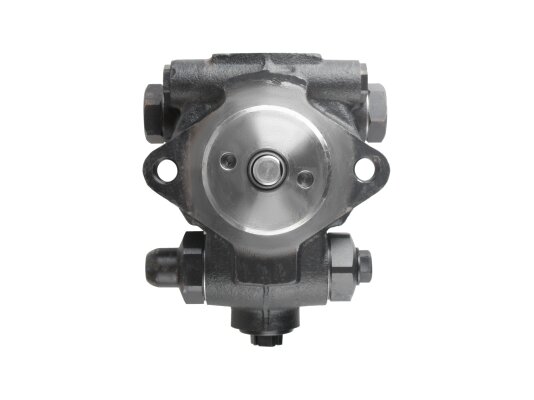

The Suntec E 6 NA 1070 7P pump is installed in the system using a flange with a diameter of 54 mm. The connection complies with the EN 225 standard, supported by many burner manufacturers.

Advantages:

  • works with fuel of different viscosity (diesel fuel, fuel oil);

  • high fuel feed rate - 263 l / h at a viscosity of 20 cSt, a pressure of 20 bar;

  • installation in burners of many brands;

  • accessible pressure adjustment in the range of 14-30 bar;

  • threaded holes for connecting measuring instruments;

  • fuel cleaning from abrasive inclusions of 550 microns;

  • special design for high-temperature conditions (up to + 130ºC);

  • installation of a heater for easy start-up of the device.

Suntec E 6 NA 1070 7P fuel pump is the optimal solution for completing heating equipment operating on fuel oil and diesel fuel. On the website you can buy pumps of various modifications and auxiliary equipment at an affordable price. All Suntec products have passed test checks and trials, meet safety and reliability requirements.

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 130 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 263 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 20 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 3.5 barInlet pressure: 3.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, biodiesel fuel blend B20, diesel
