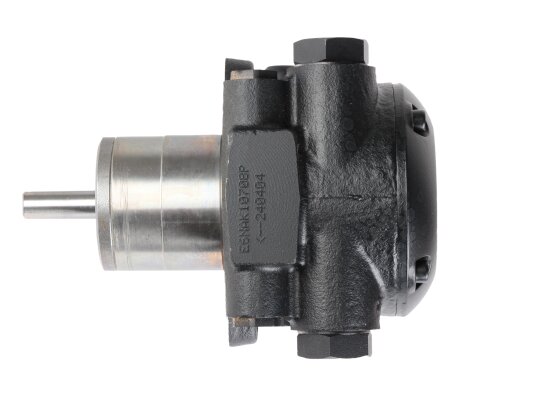

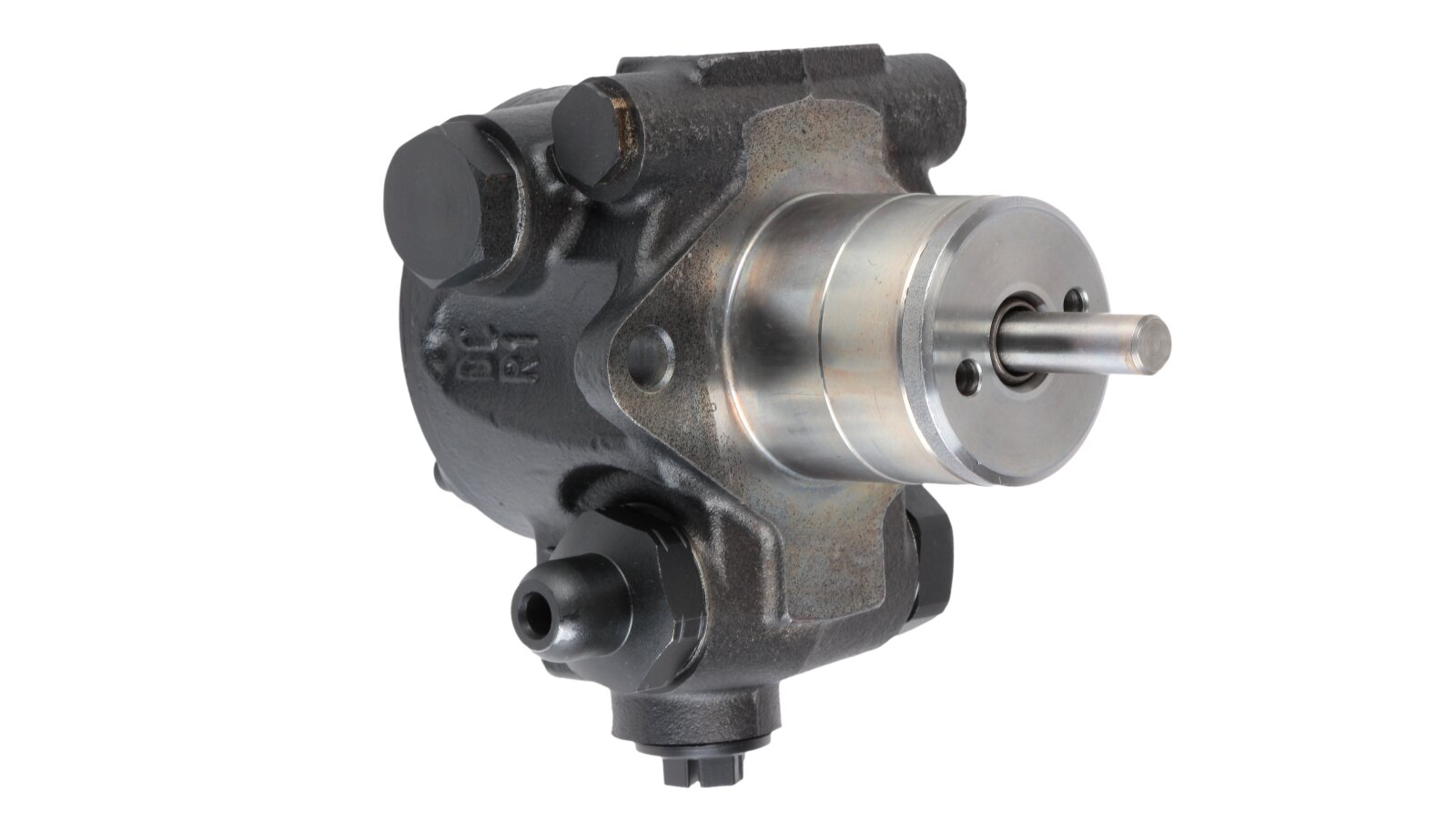

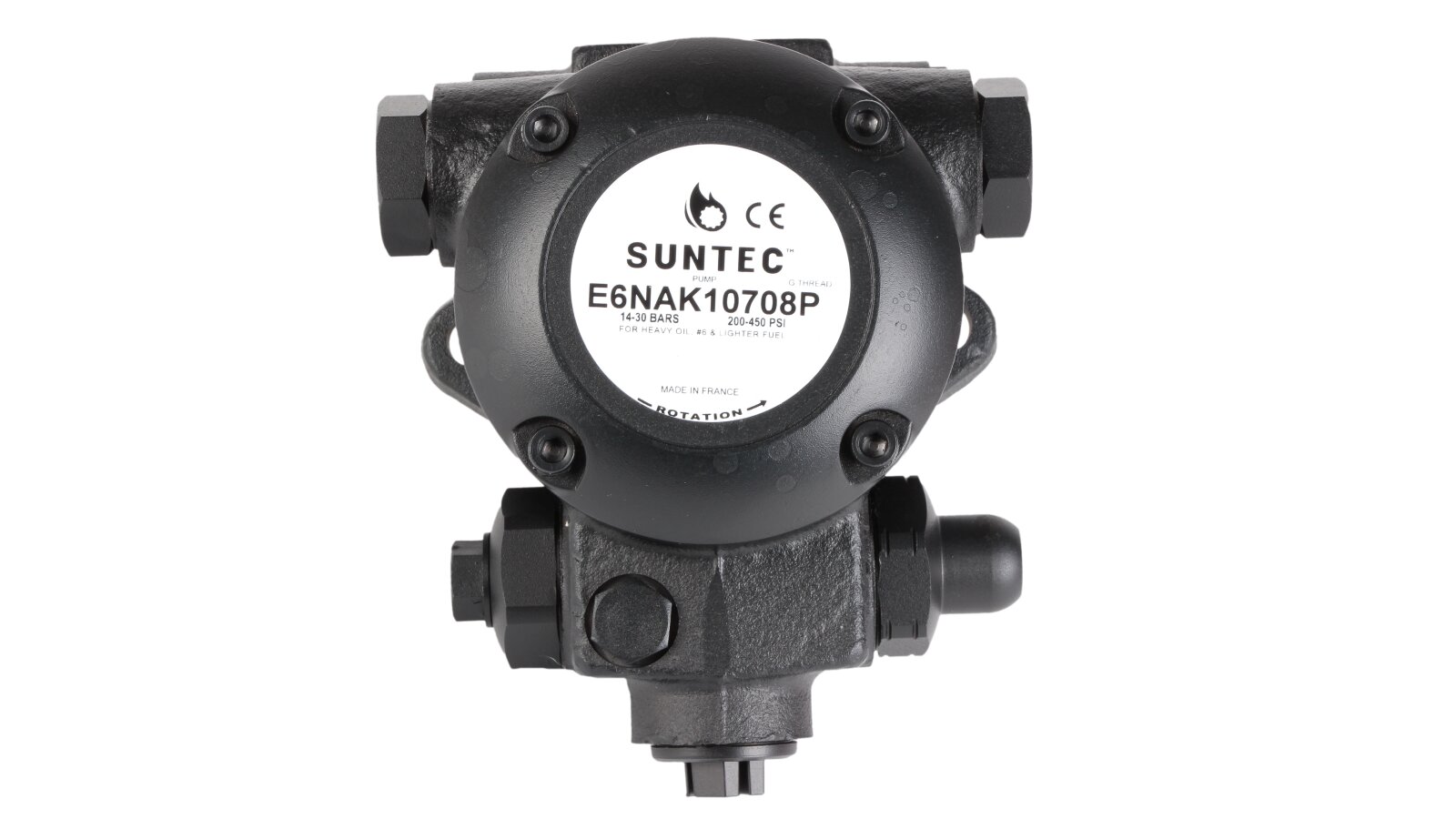

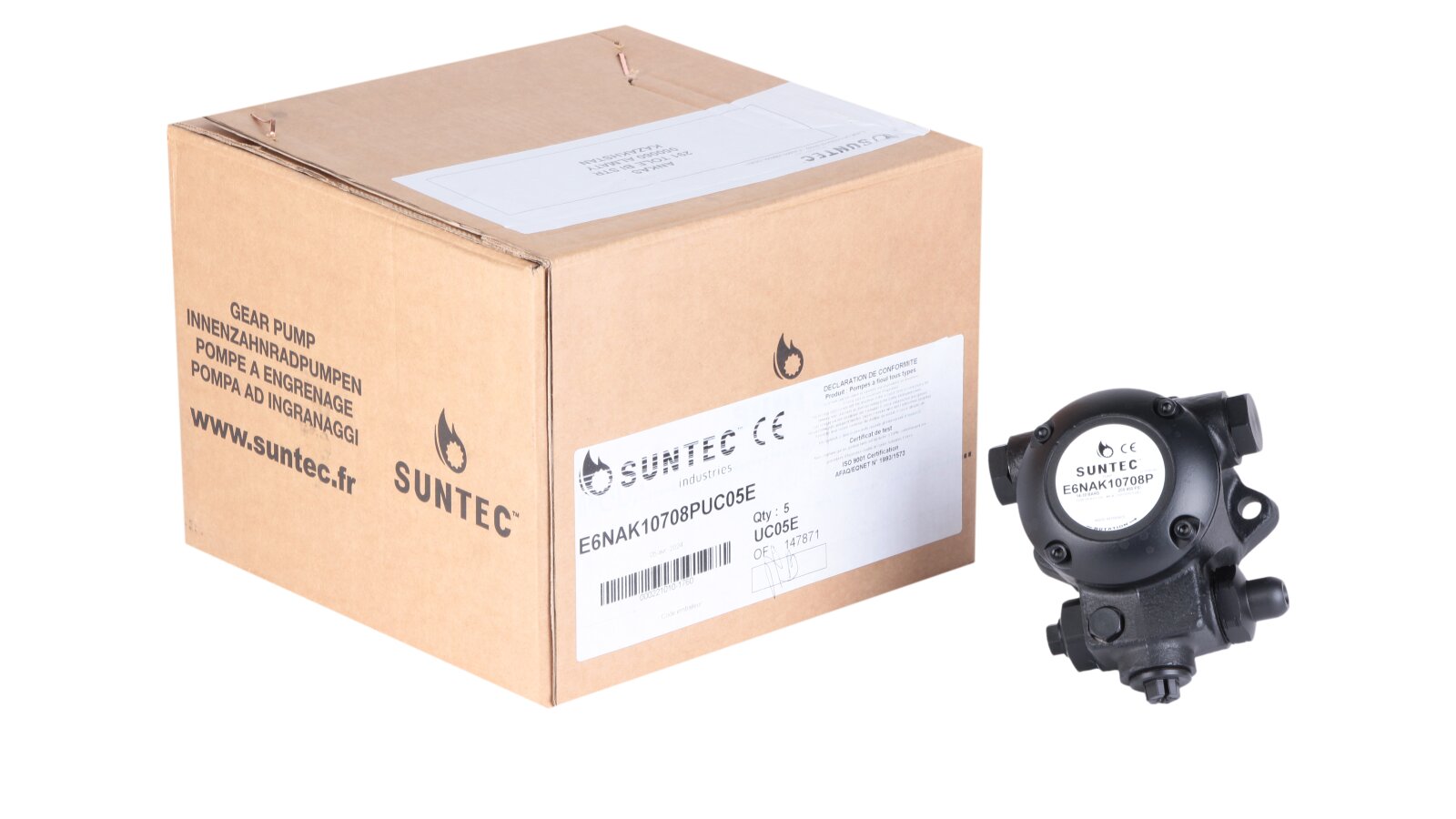

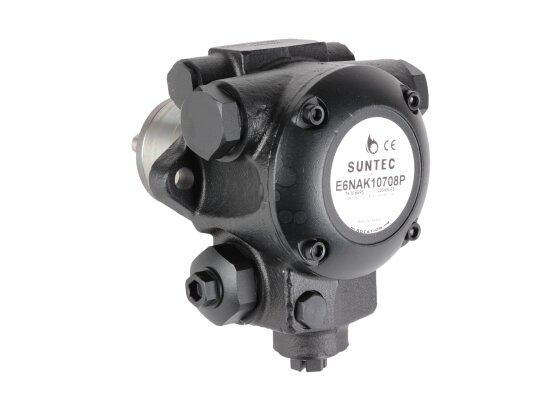

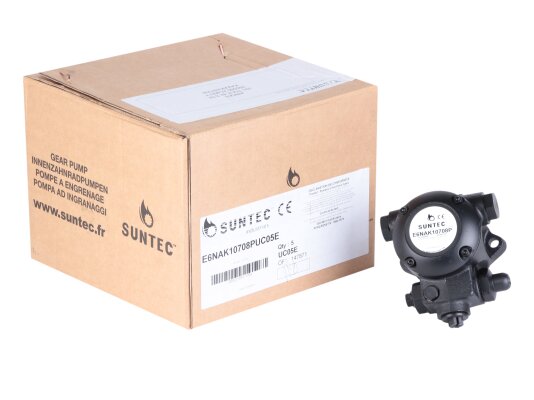

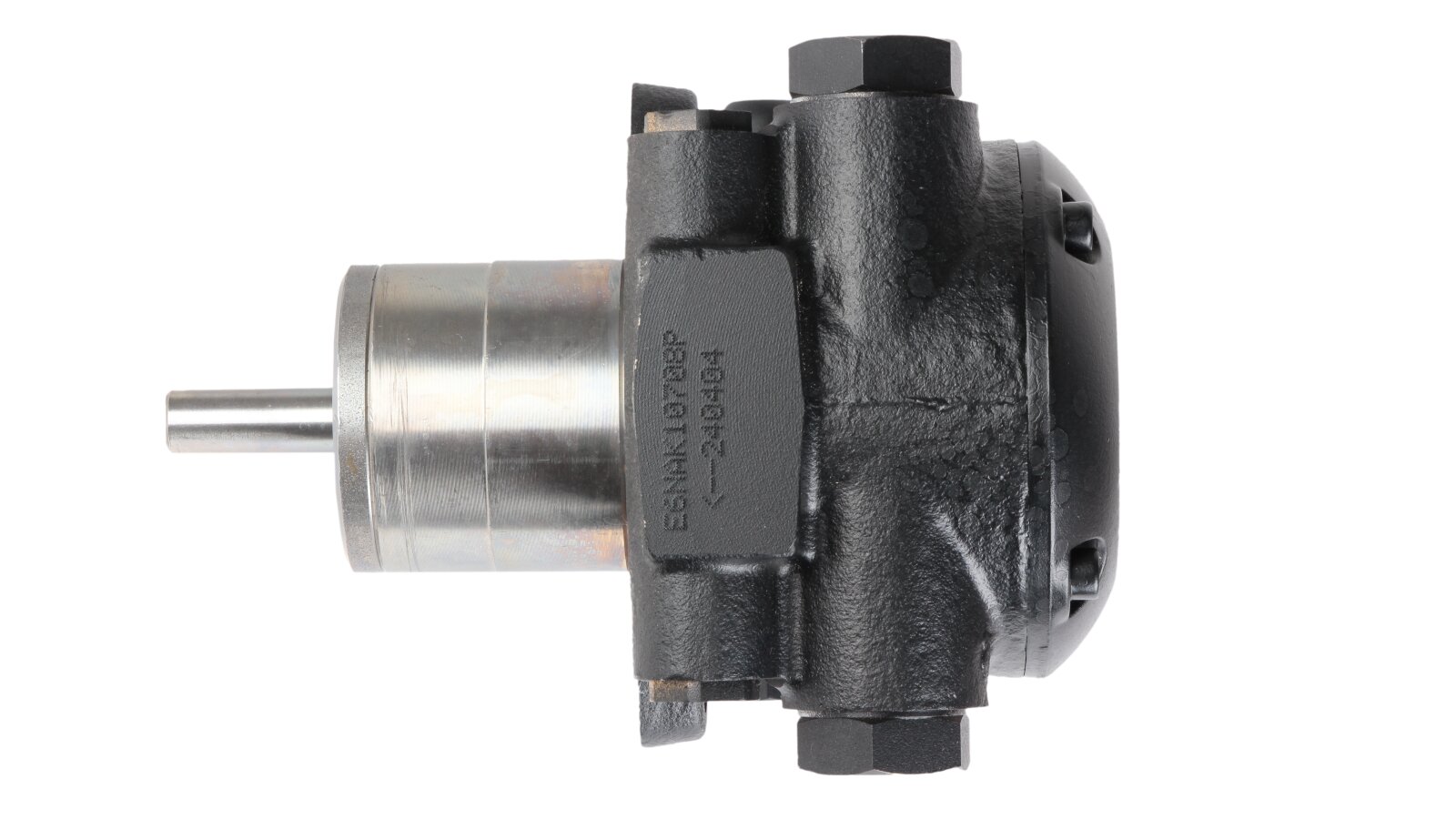

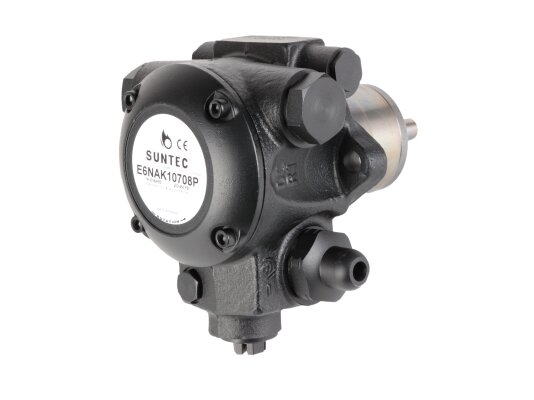

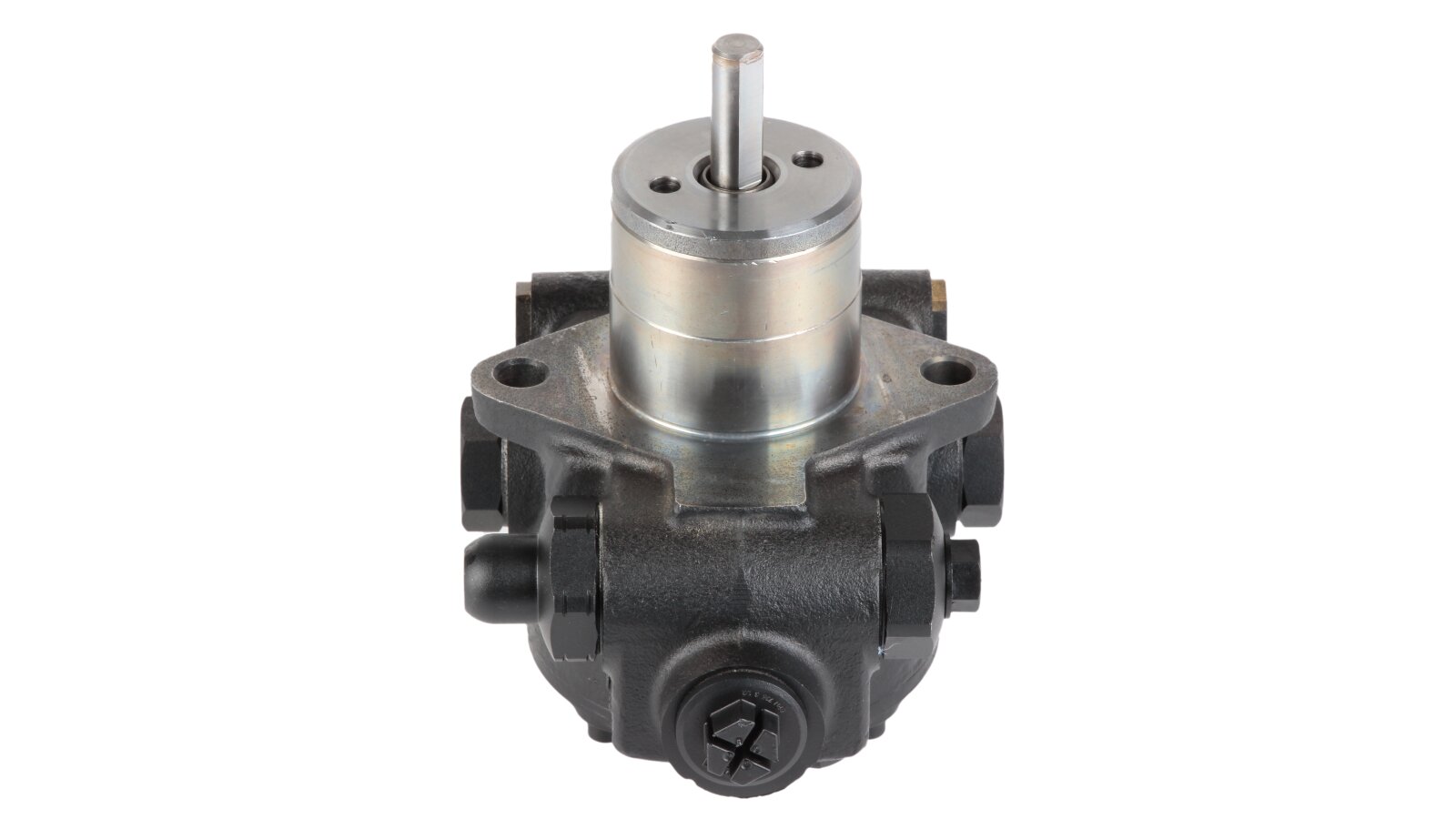

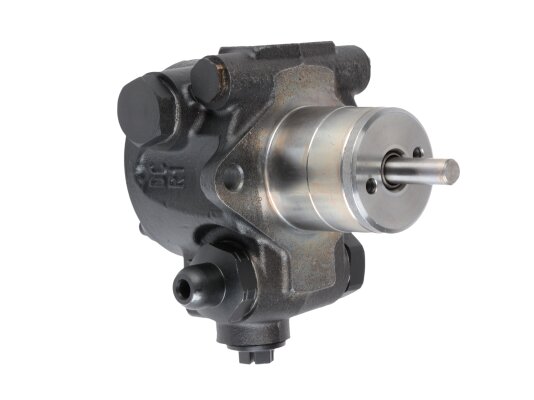

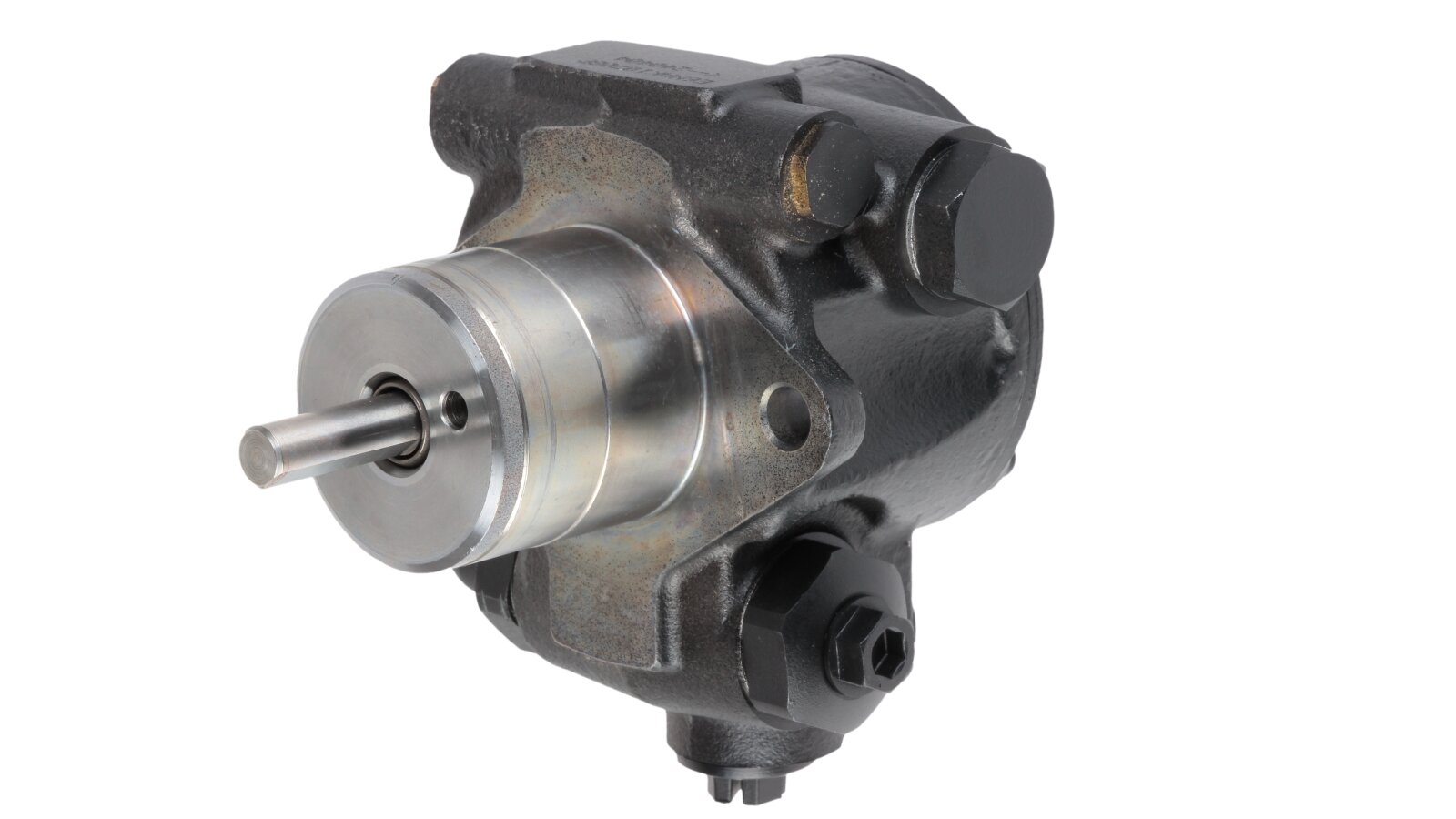

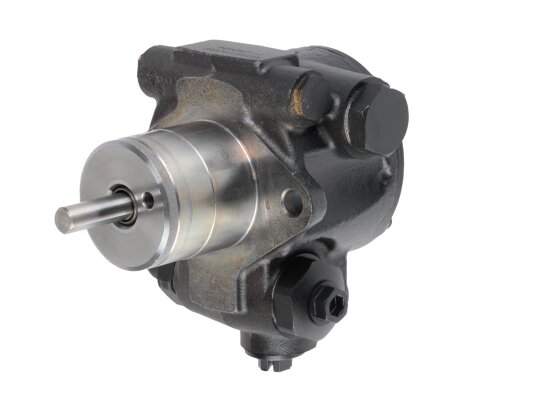

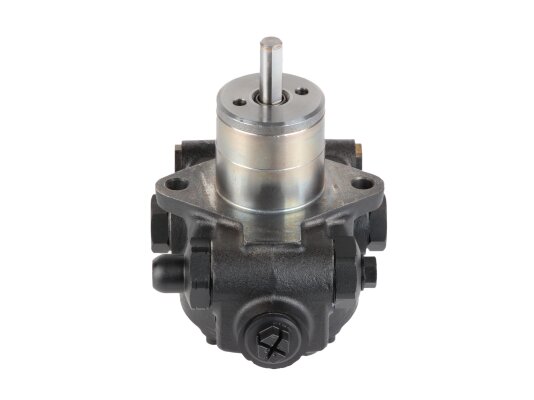

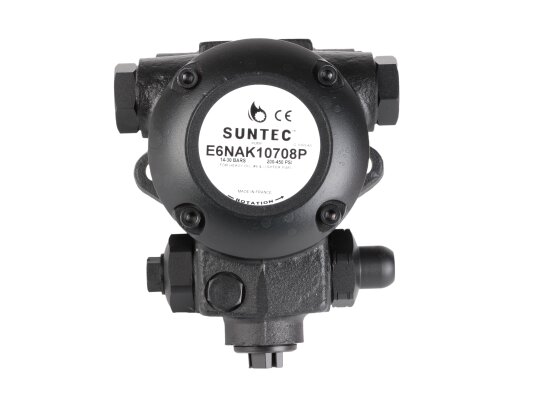

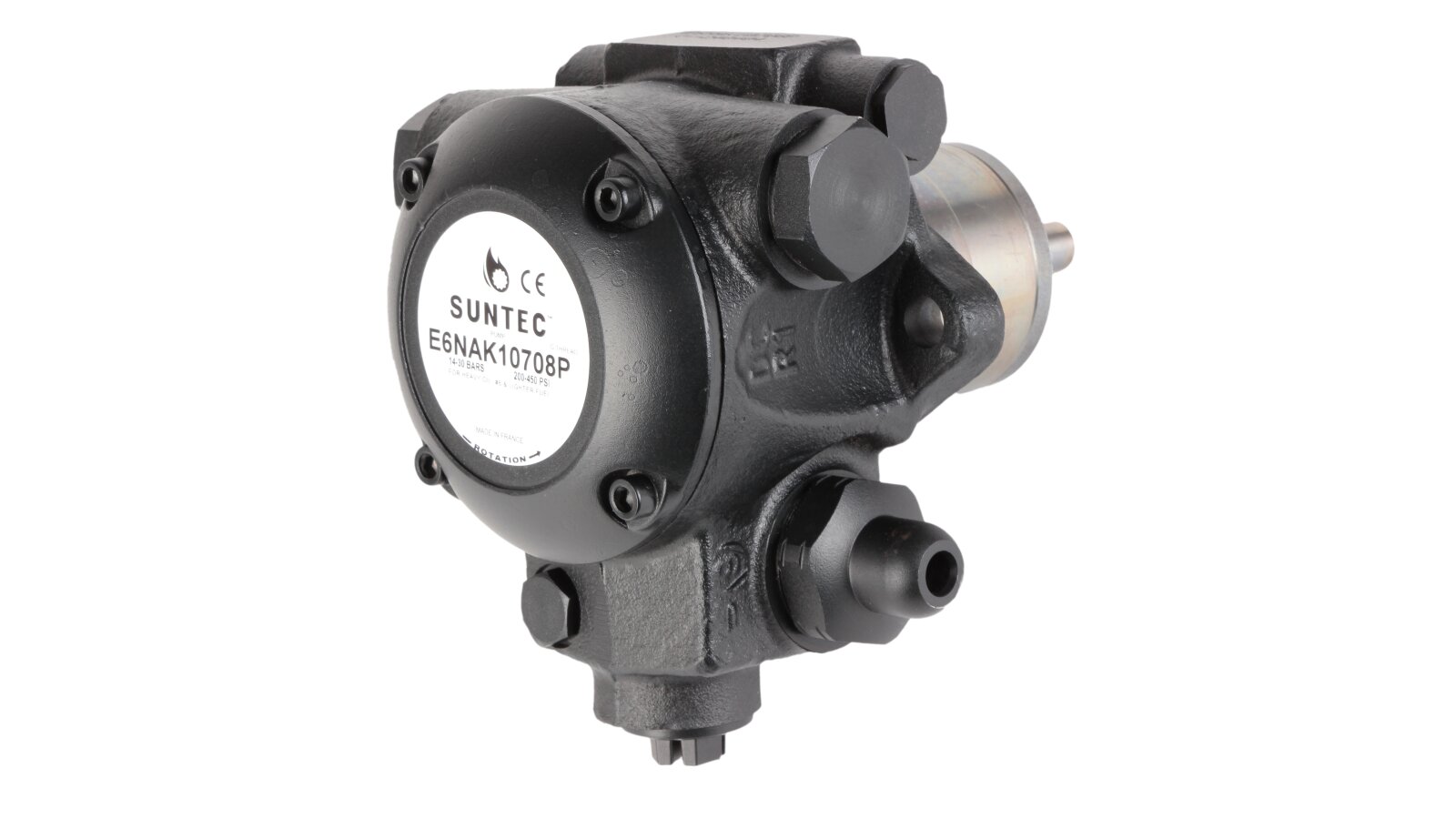

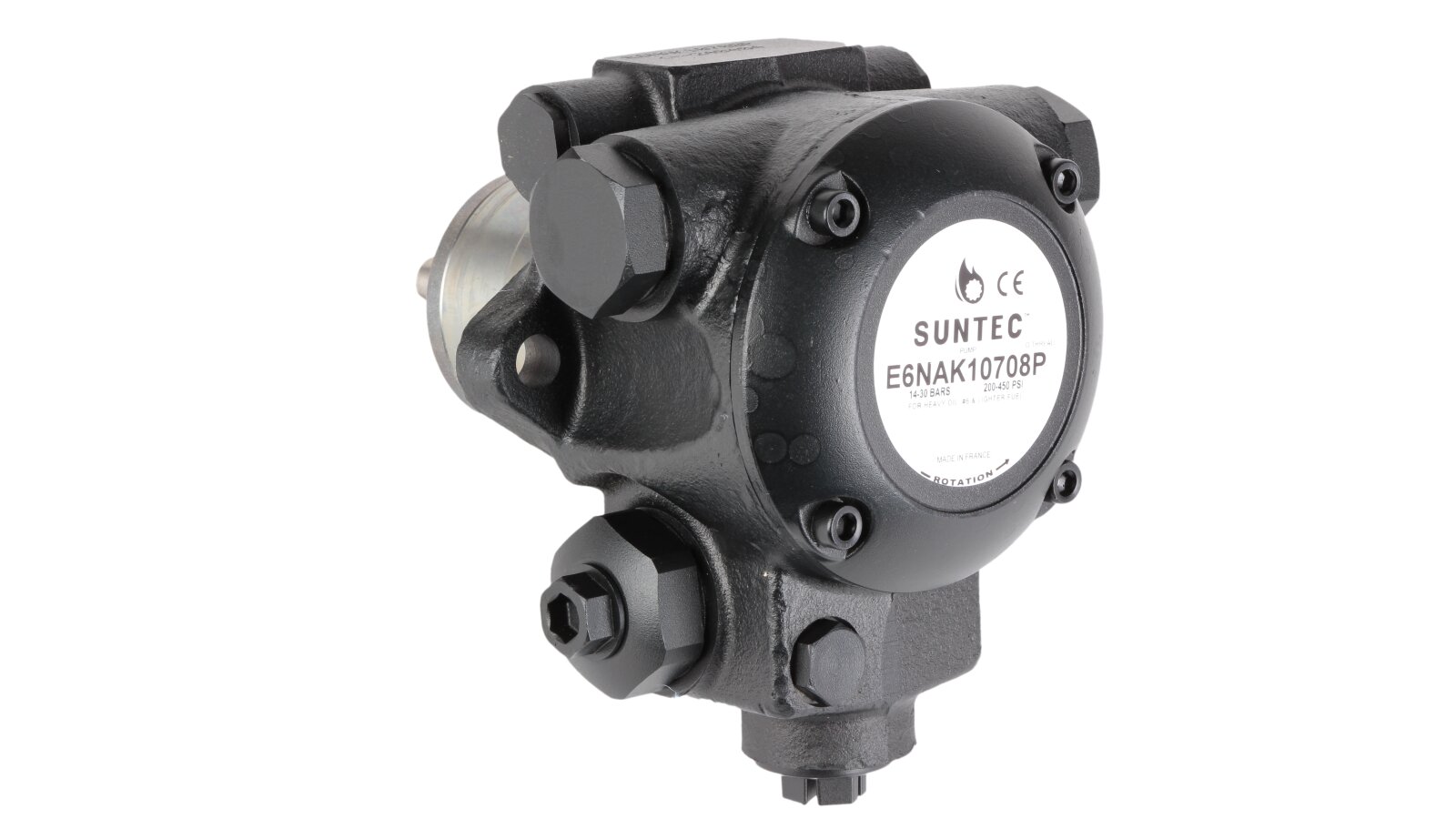

Burner Pump Suntec E 6 NAK 1070 8P

Suntec

AED 3,575

Oil Burner Pumps
Products code: 61728

Description

The Suntec E 6 NAK 1070 8P burner pump is manufactured taking into account heavy loads and difficult operating conditions. It is capable of pumping diesel fuel, biodiesel B20 mixture, kerosene, fuel oil. To facilitate cold starting, the design is adapted for installation of a heating device. The pump is equipped with a pressure regulating valve with a shut-off function. It is mainly used in systems with an external solenoid valve.

Features and main parameters:

  • Pumping fuel with a viscosity of up to 75 cSt;

  • The possibility of using in systems with one or two pipes;

  • Wear-resistant, heat-resistant design;

  • Special shaft seals for high-temperature applications;

  • Built-in pressure regulating valve with flow interruption function;

  • Pressure adjustment from 14 to 30 bar, default - 20 bar;

  • Fuel temperature - up to +130 ºC;

  • Flanged mounting method, ∅ 54 mm;

  • flow rate of 263 l/h at a viscosity of 20 cSt and a pressure of 20 bar;

  • integrated filter to protect gears from abrasive particles from 550 µm;

  • ½ inch threaded holes for connection to the suction and return pipe;

  • ports for connecting a pressure gauge and vacuum gauge;

  • placement in any position (eliminate axle load);

  • automatic bleed of excess air with 2-pipe connection;

  • pressure in the suction and return pipe - no more than 3.5 bar.

E 1070 Series

The E 1070 series burner pump is equipped with a double-acting valve: it regulates the fuel pressure and shuts off the flow. A filter with a cleaning area of ​​45 cm² is installed at the inlet, which protects the gear mechanism from damage and jamming. The gear pair provides fuel suction from the tank, moves it through the filter to the control valve, and then to the injector line.

The pump is ready for connection to a 2-pipe system. A bypass plug is mounted in the return line hole. It must be unscrewed and replaced with a blind one when used in single-pipe installations.

Fuel heating device

The design of the pump for the Suntec E 6 NAK 1070 8P burner is designed for installation of a heater. It can be installed on the right or left. The heating element significantly simplifies cold starting, reduces the load on the main components. It is turned on in advance to heat the fuel to the optimum temperature.

Characteristics

Factory pressure setting: 20 barOil temperature: from 0 to 130 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 263 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 3.5 barInlet pressure: 3.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, biodiesel fuel blend B20, diesel, kerosene
