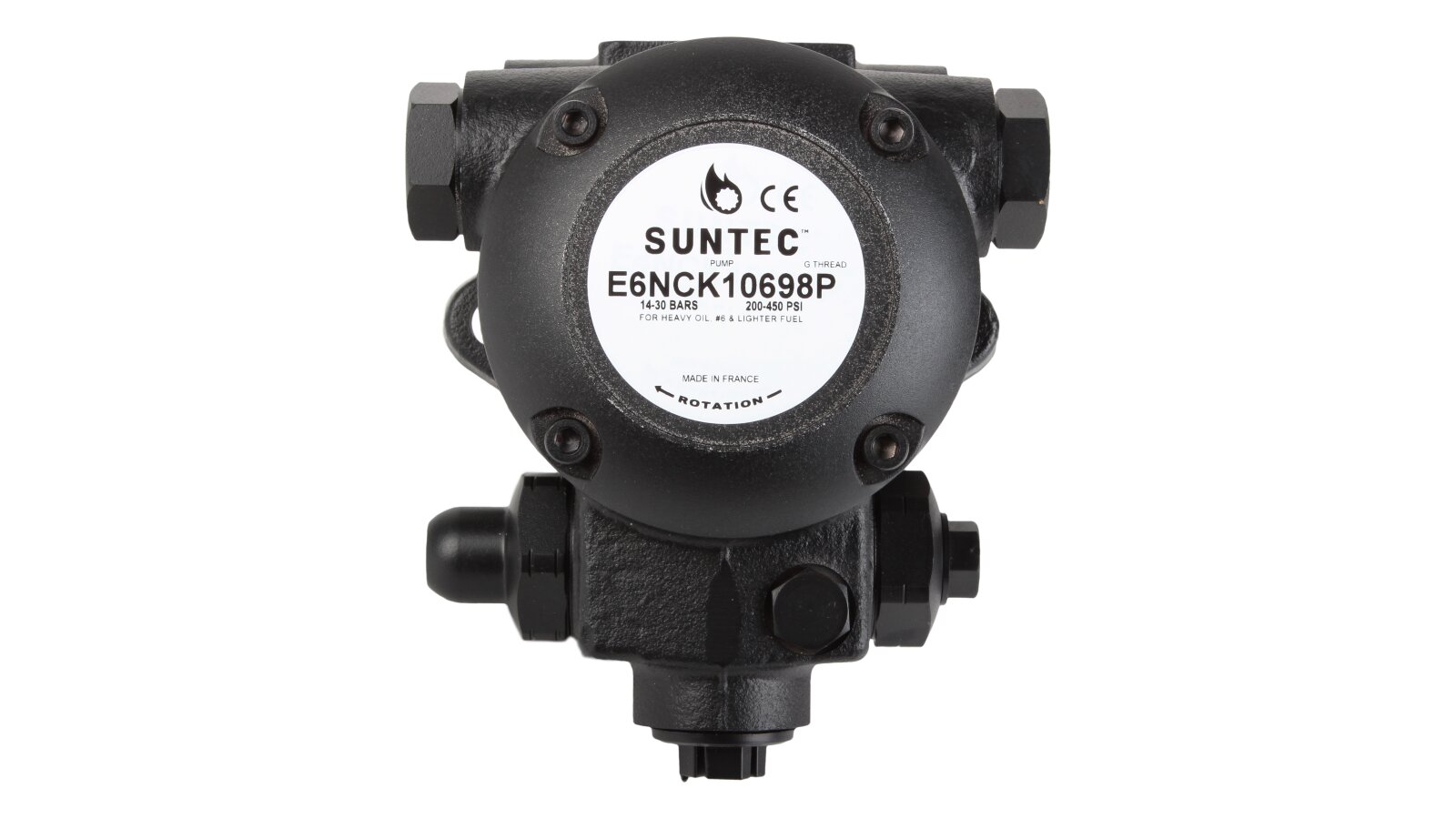

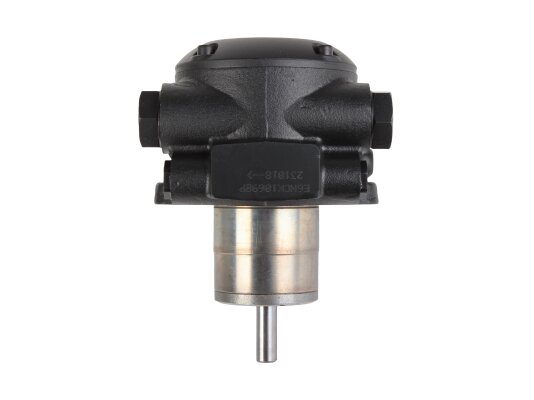

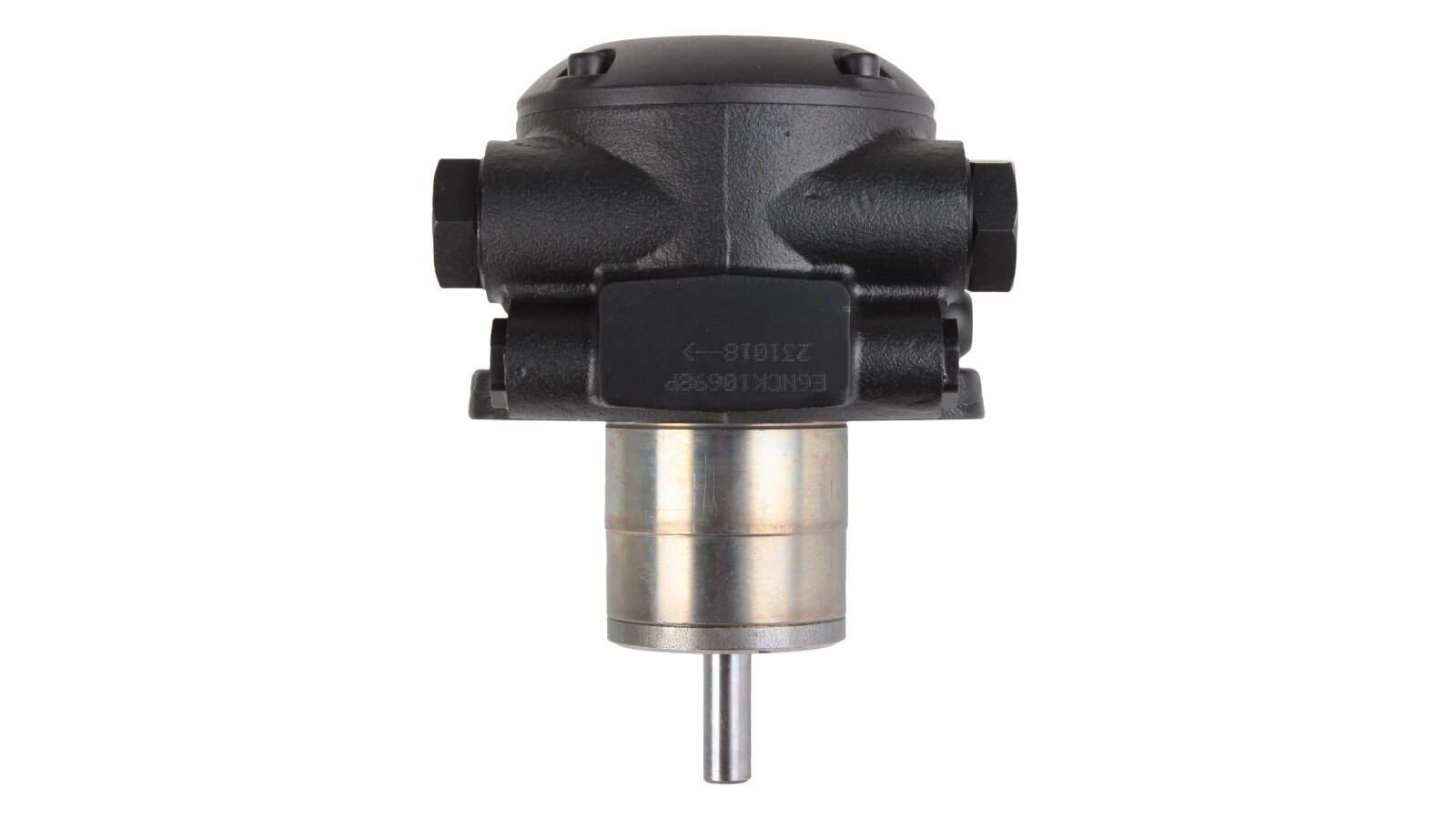

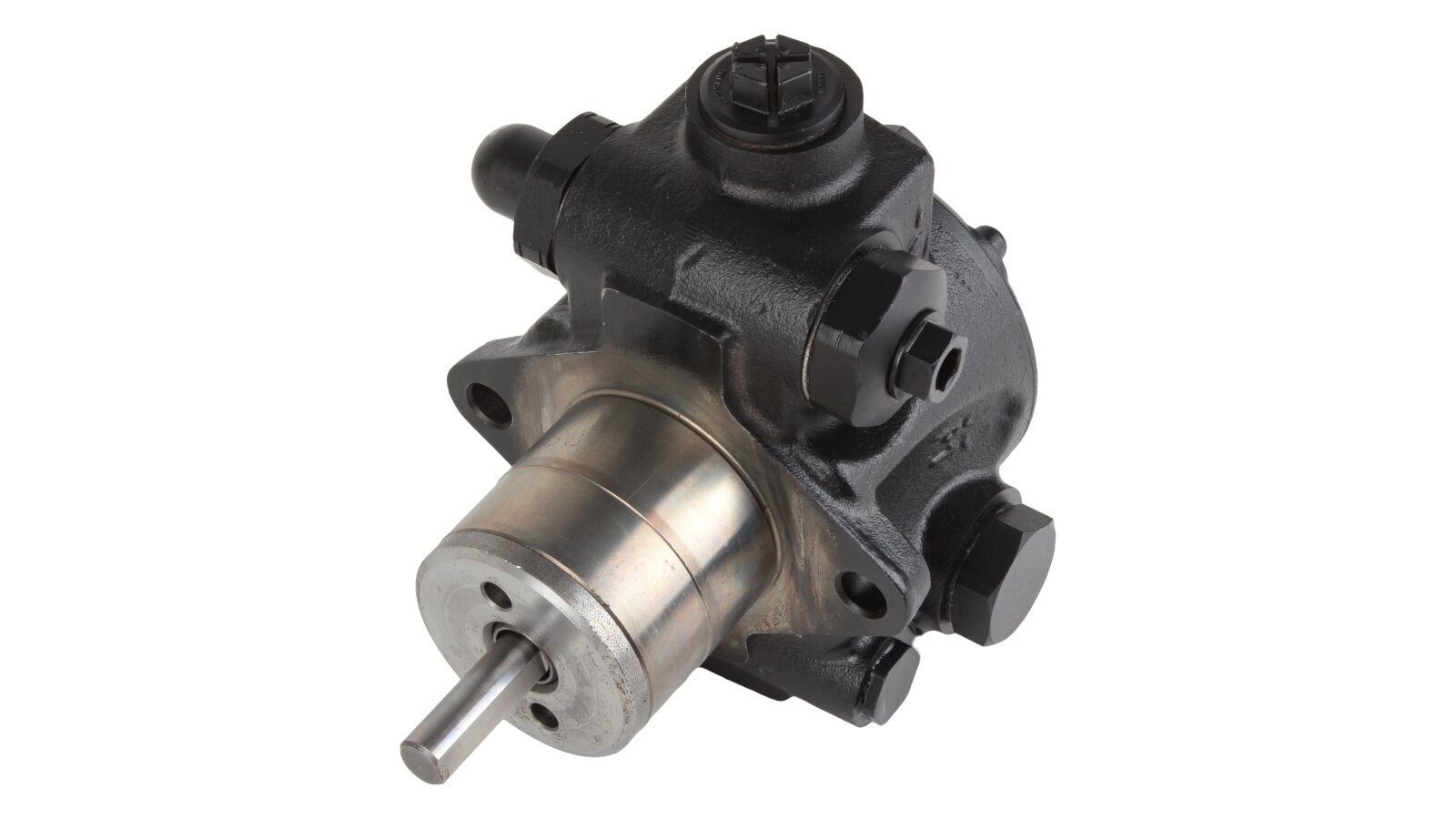

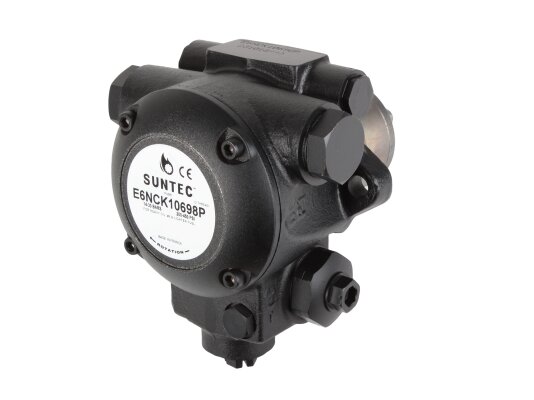

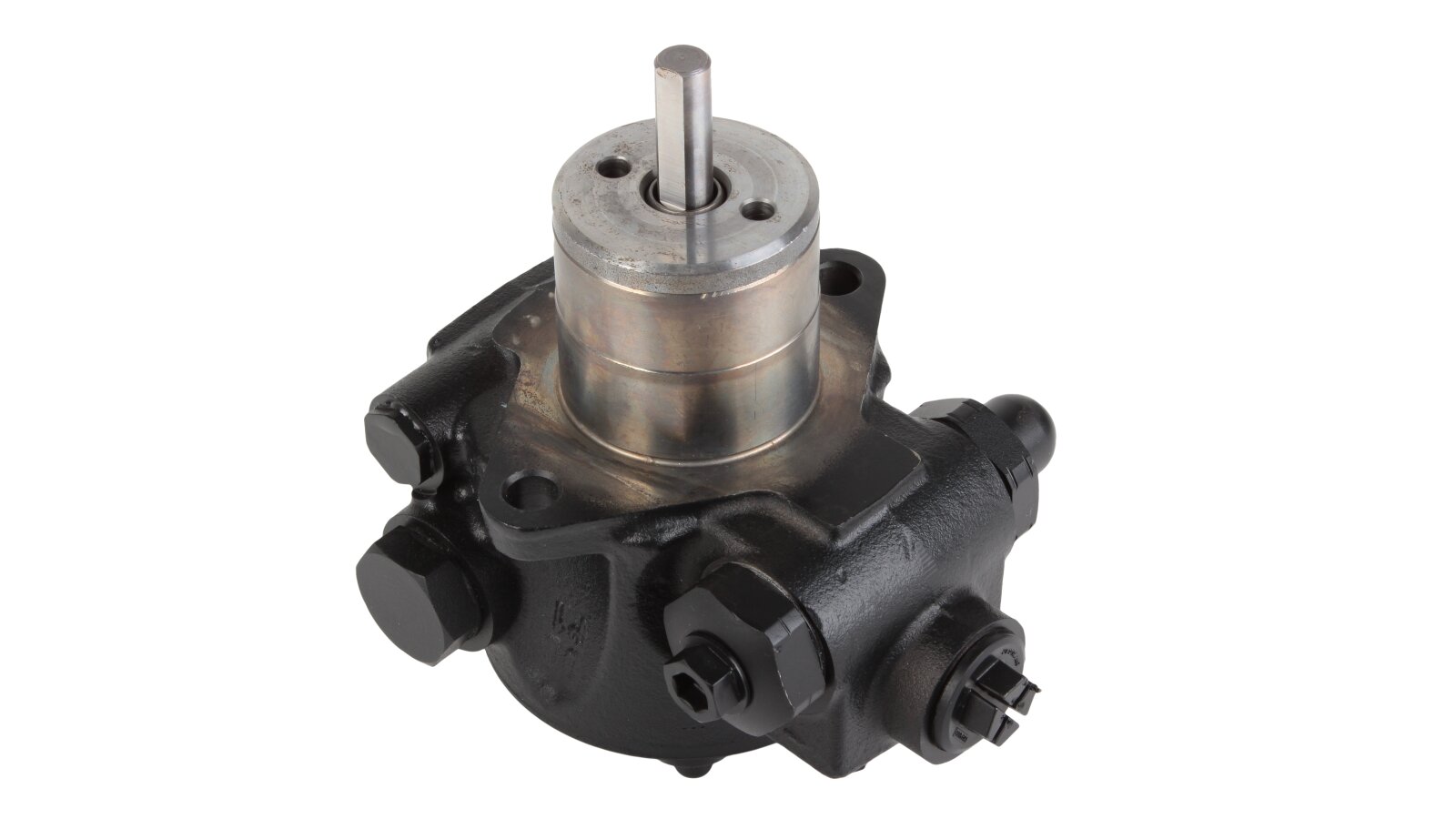

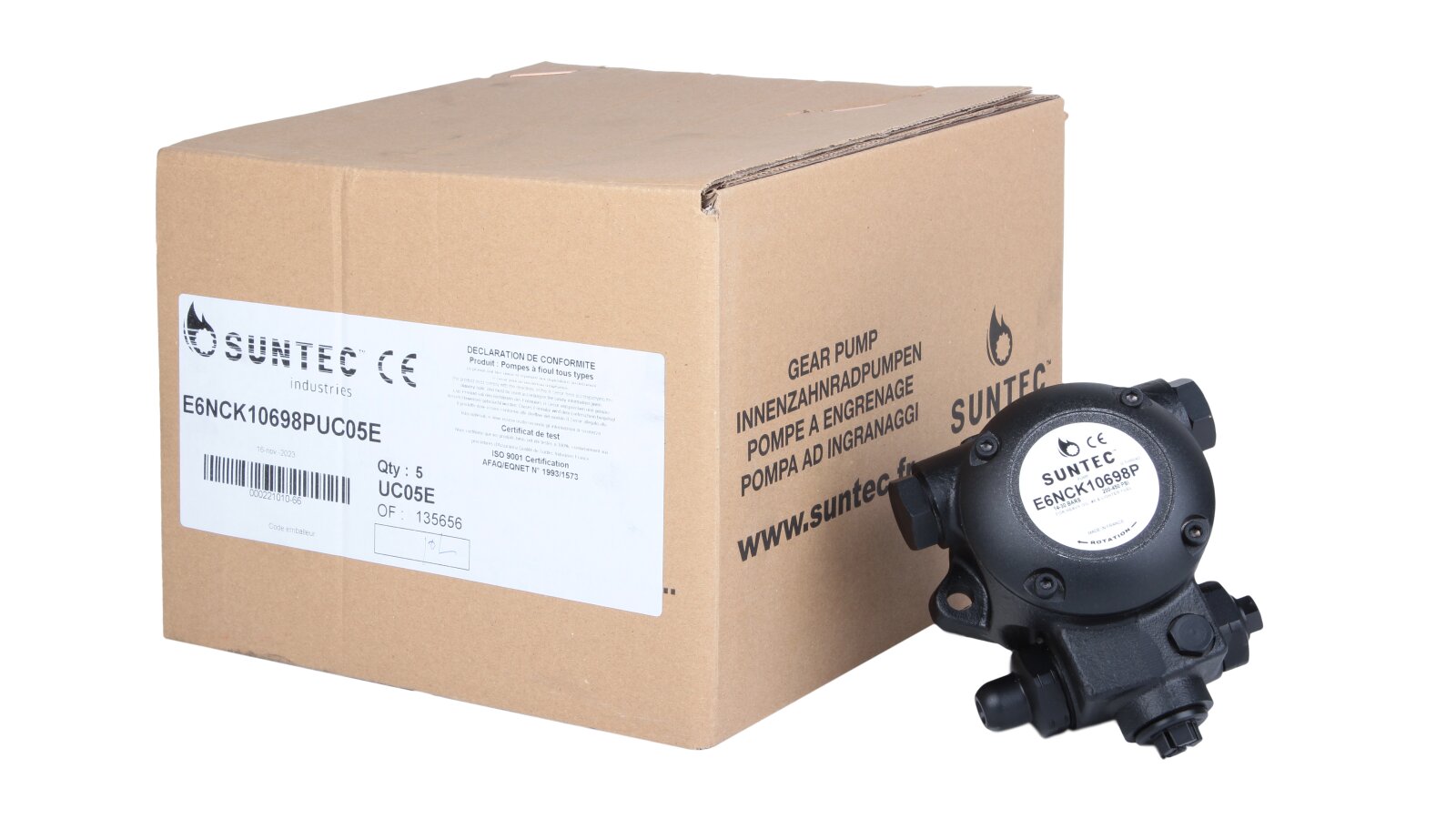

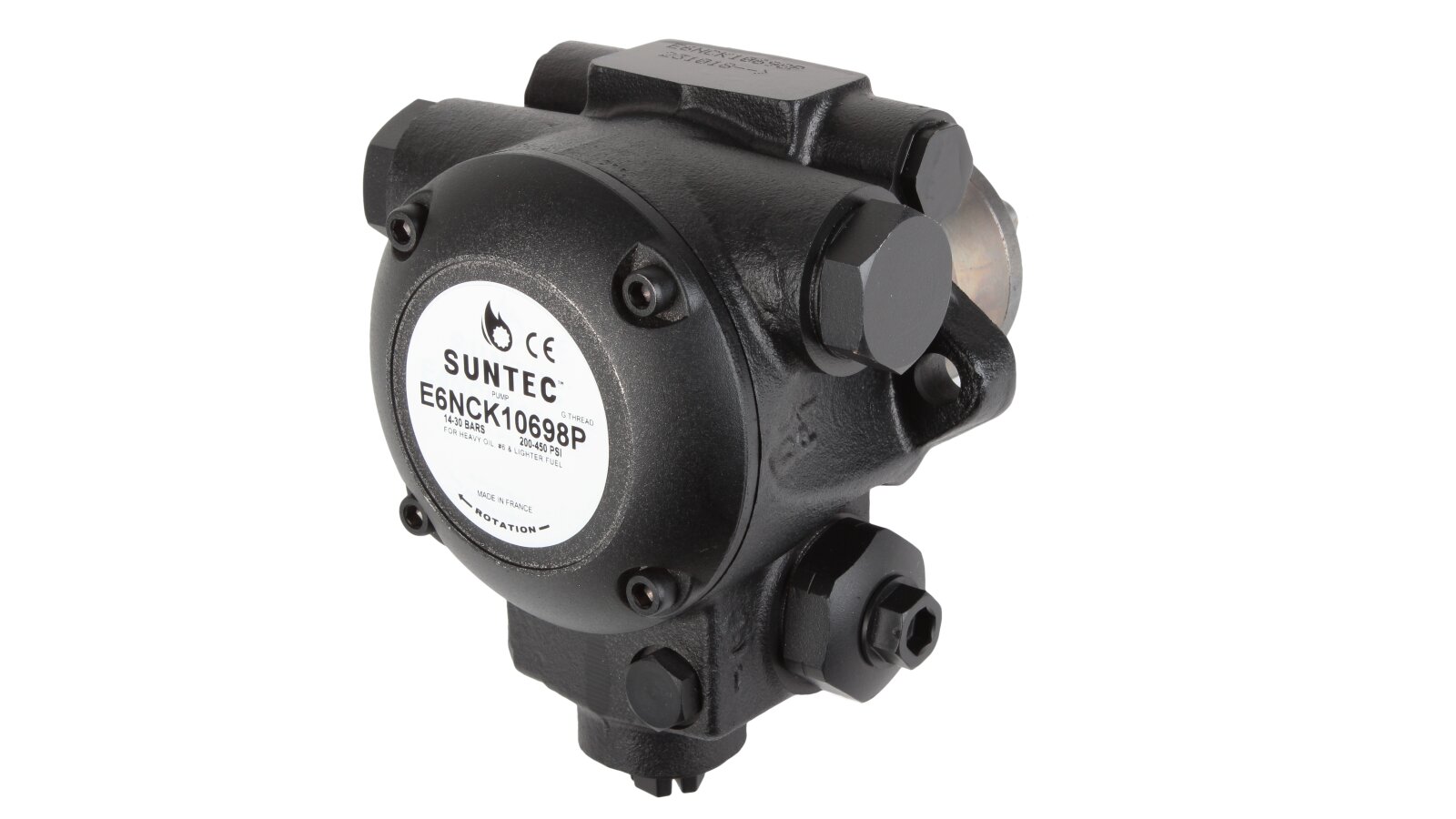

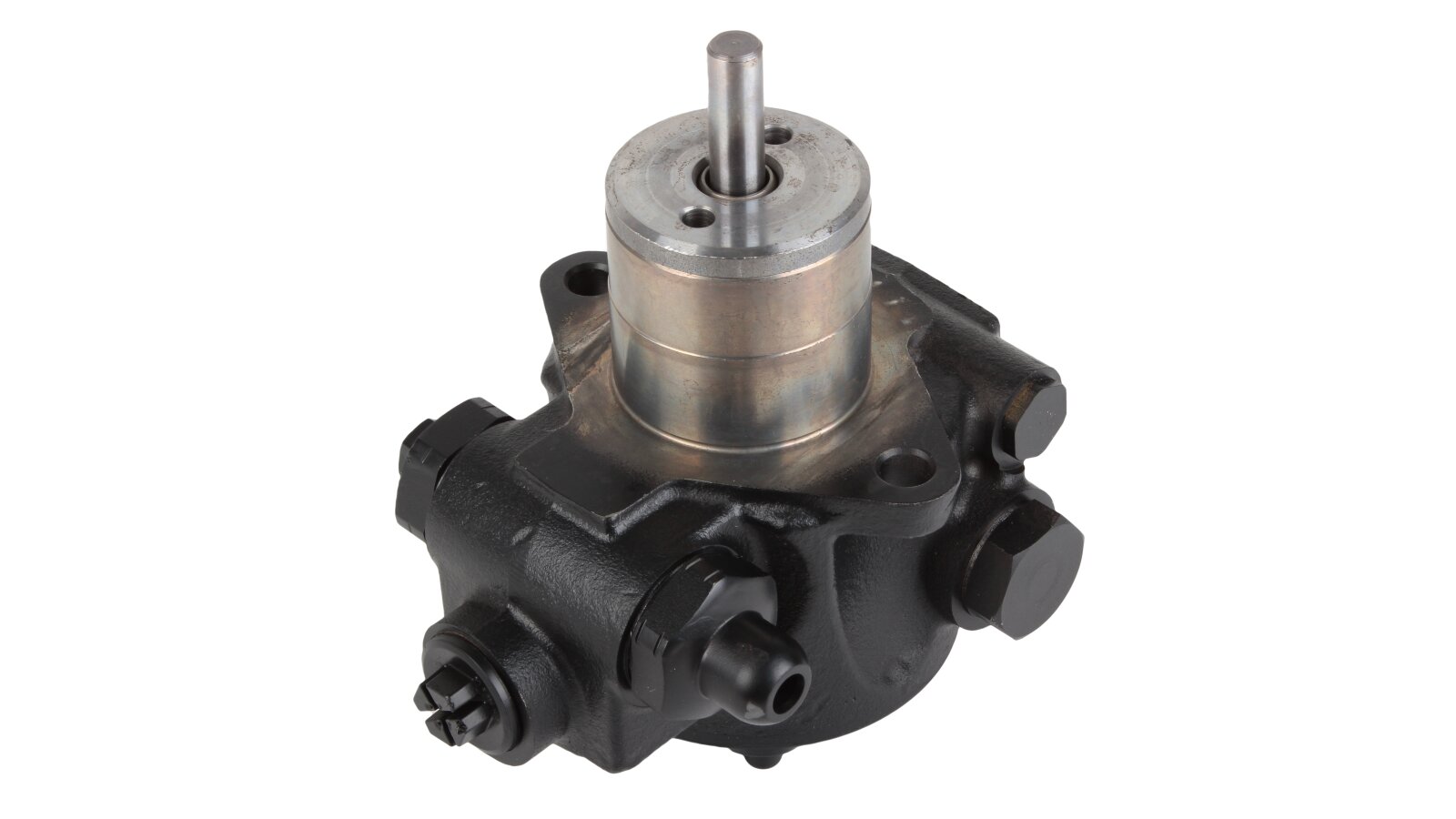

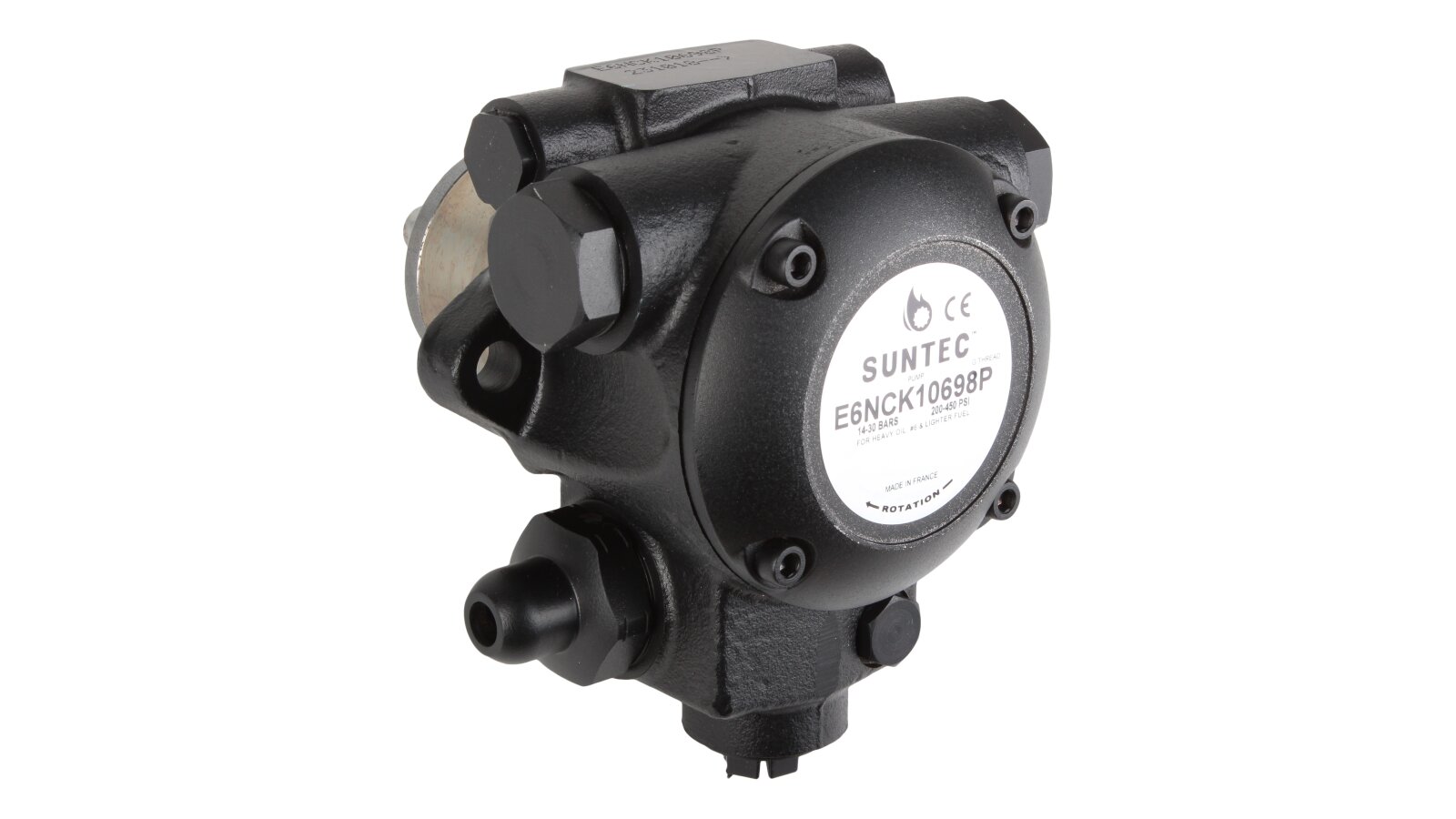

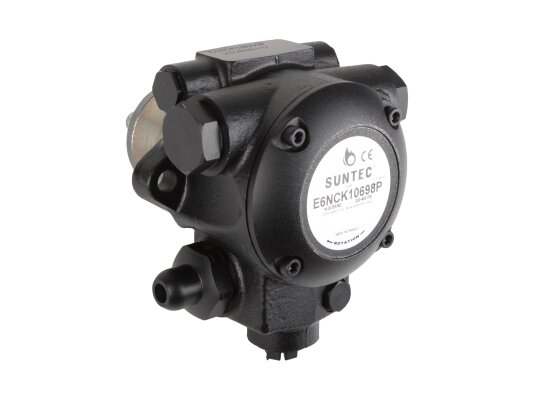

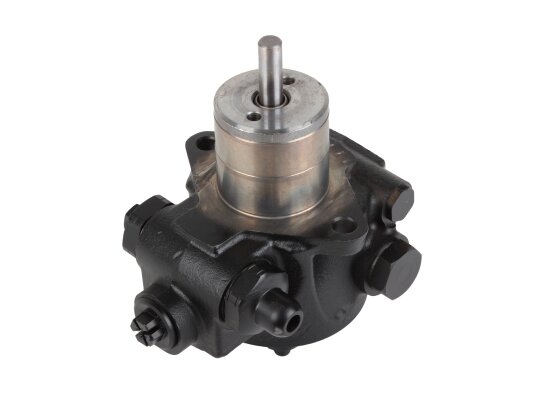

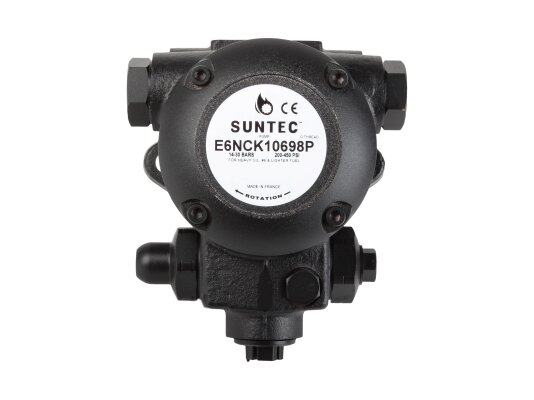

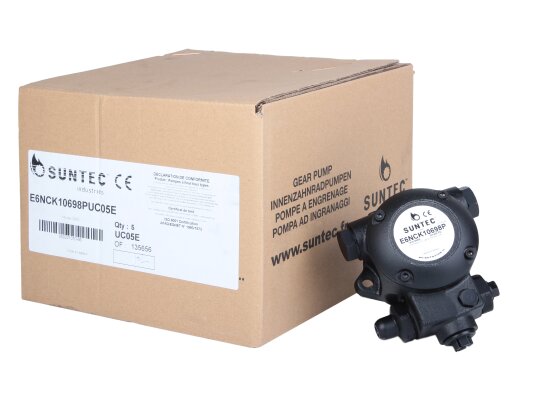

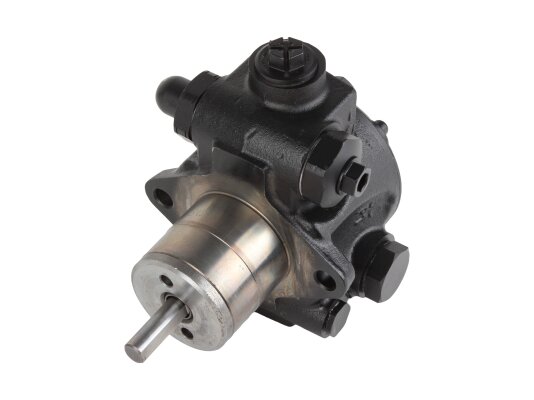

Burner Pump Suntec E 6 NCK 1069 8P

Suntec

AED 2,575

Oil Burner Pumps
Products code: 61724

Description

The Suntec E 6 NCK 1069 8P burner pump is specially designed for working with fuel oil and other types of heavy fuel. It is designed for installation of a heater, high-temperature exposure and difficult operating conditions. To protect the working mechanism from damage, a filter is installed at the pump inlet that holds impurities from 550 microns in size.

Features:

  • versatility, working with diesel fuel, fuel oil, medium-viscosity fuel;

  • high pumping speed, 263 l/h at a viscosity of 20 cSt and a pressure of 20 bar;

  • for single-pipe and double-pipe installations;

  • built-in pressure regulating valve without shut-off function;

  • feed pressure adjustment in the range of 14-30 bar, basic - 20 bar;

  • working environment temperature - up to +130 ºC;

  • external locking device (solenoid valve, additional request);

  • bypass hole in the injector line to relieve excess pressure;

  • flange mounting, ∅ 54 mm;

  • fuel filtration from contaminants larger than 550 µm;

  • threaded holes for connecting the suction and return pipes, ½ inch;

  • ports for connecting pressure and vacuum pressure monitoring devices;

  • the possibility of installation in any position;

  • pressure in the suction and return lines is no more than 3.5 bar.

Series E 1069

The pump of the U 1069 series has a built-in pressure regulating valve. There is no shut-off function. An external electromagnetic valve is used to shut off the flow.

In the basic assembly, the pump is ready for connection to a 2-pipe system. A plug is mounted in the bypass line hole. It must be unscrewed and the drain closed when used in installations with one pipe.

The design provides a place for installing an electric heater. Preliminary preparation of the fuel facilitates starting. The heating device is positioned so as to give off maximum heat and not come into contact with the pumped fuel.

A special shaft seal is used for safe operation of the Suntec E 6 NCK 1069 8P burner pump under high-temperature conditions.

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withOil temperature: from 0 to 130 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 263 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 20 barModel type: without electromagnetic valveNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 3.5 barInlet pressure: 3.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, kerosene, sea ​​water
