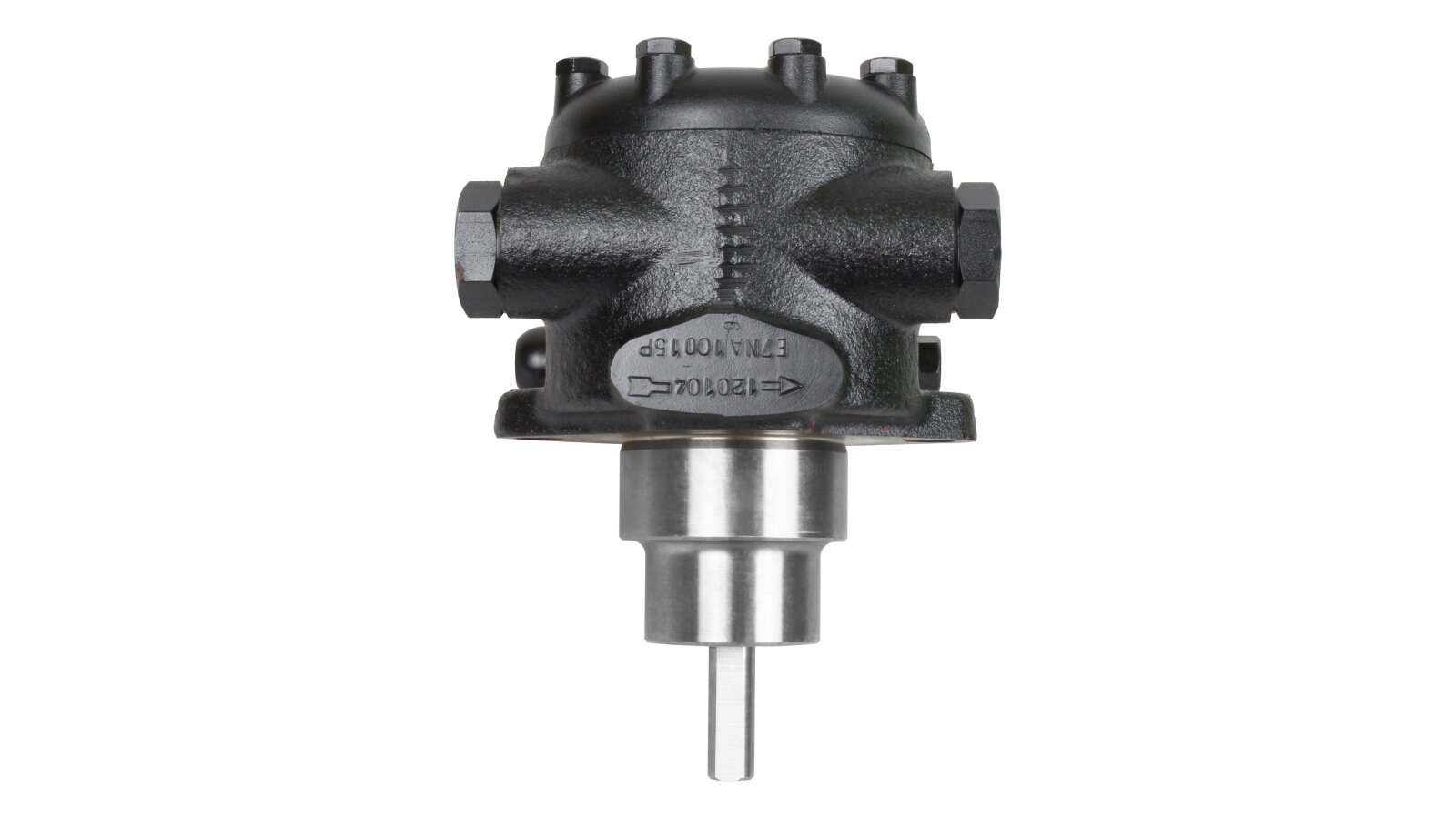

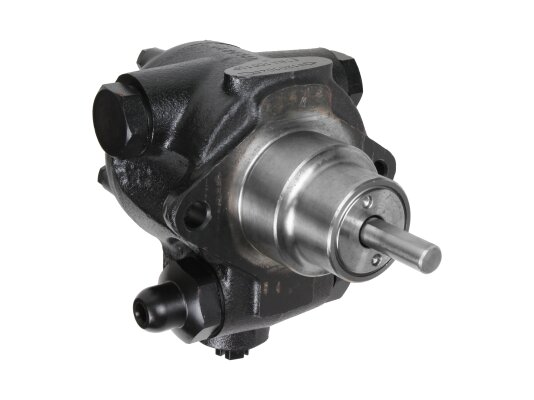

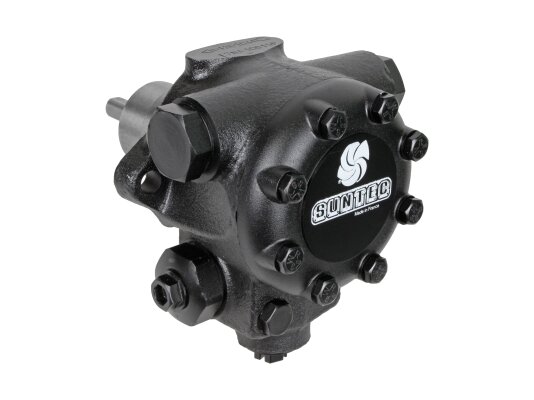

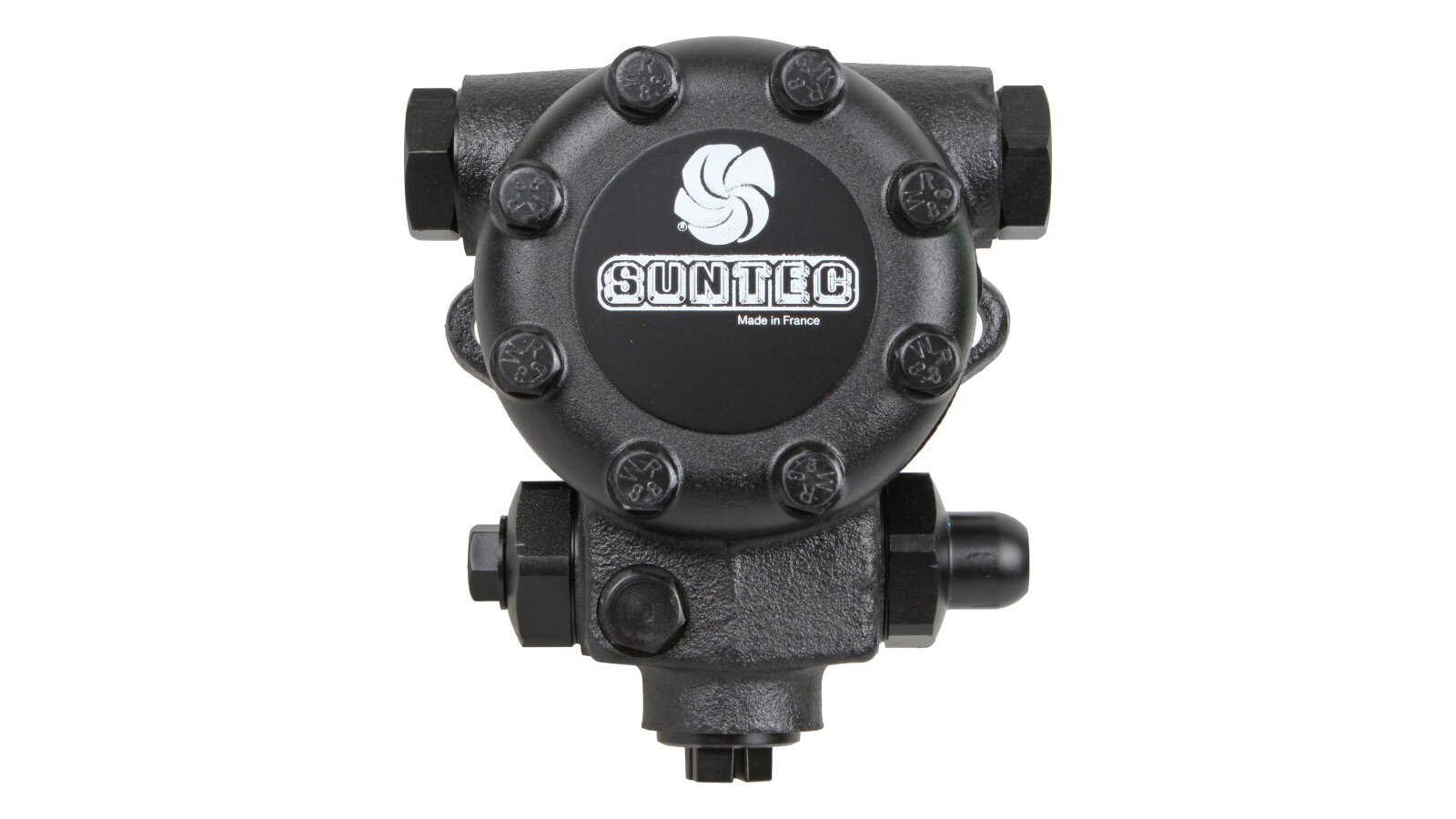

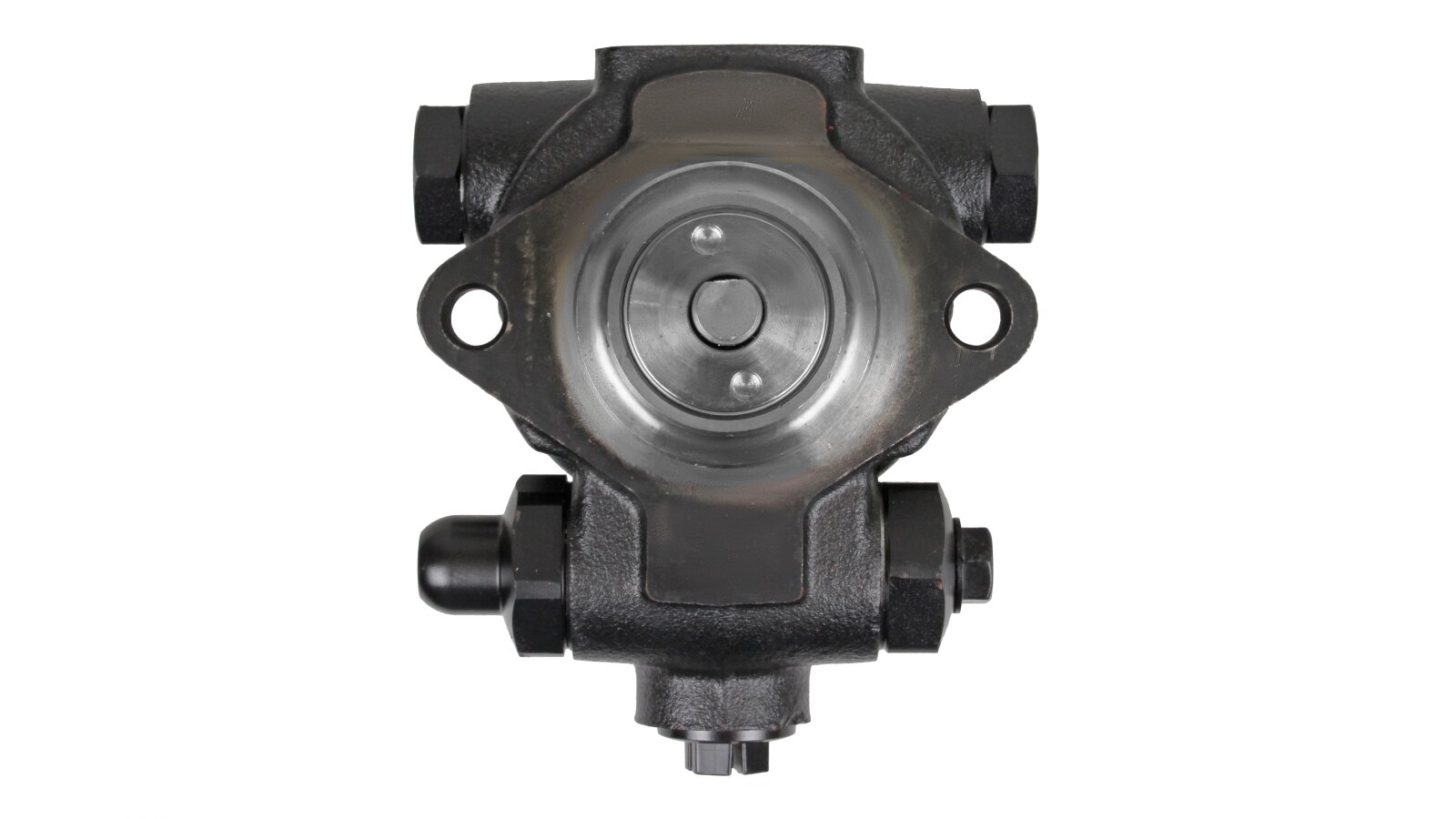

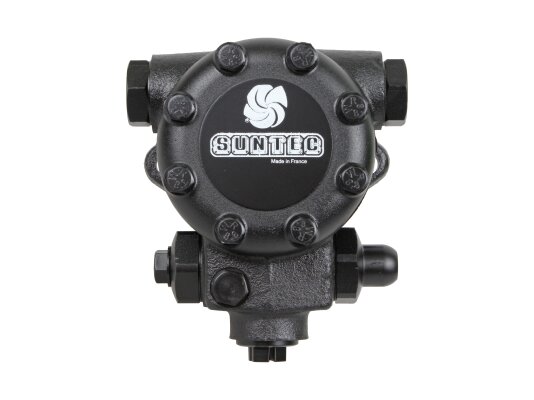

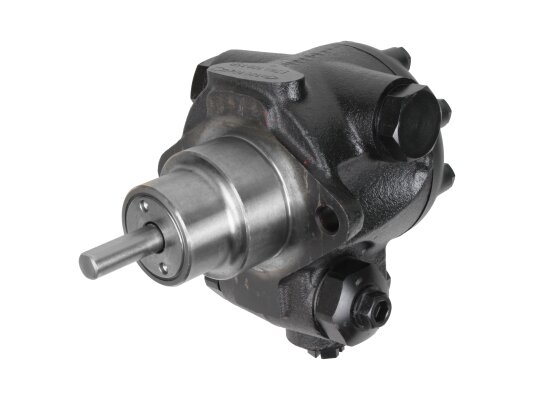

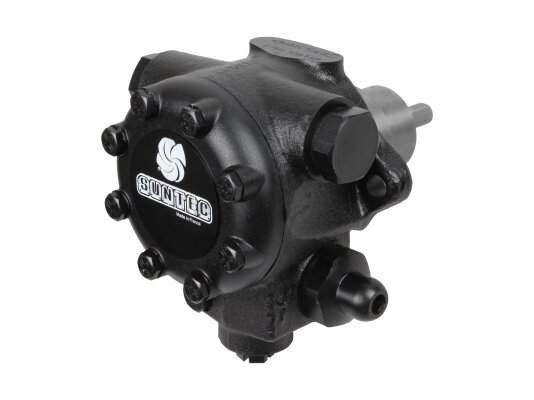

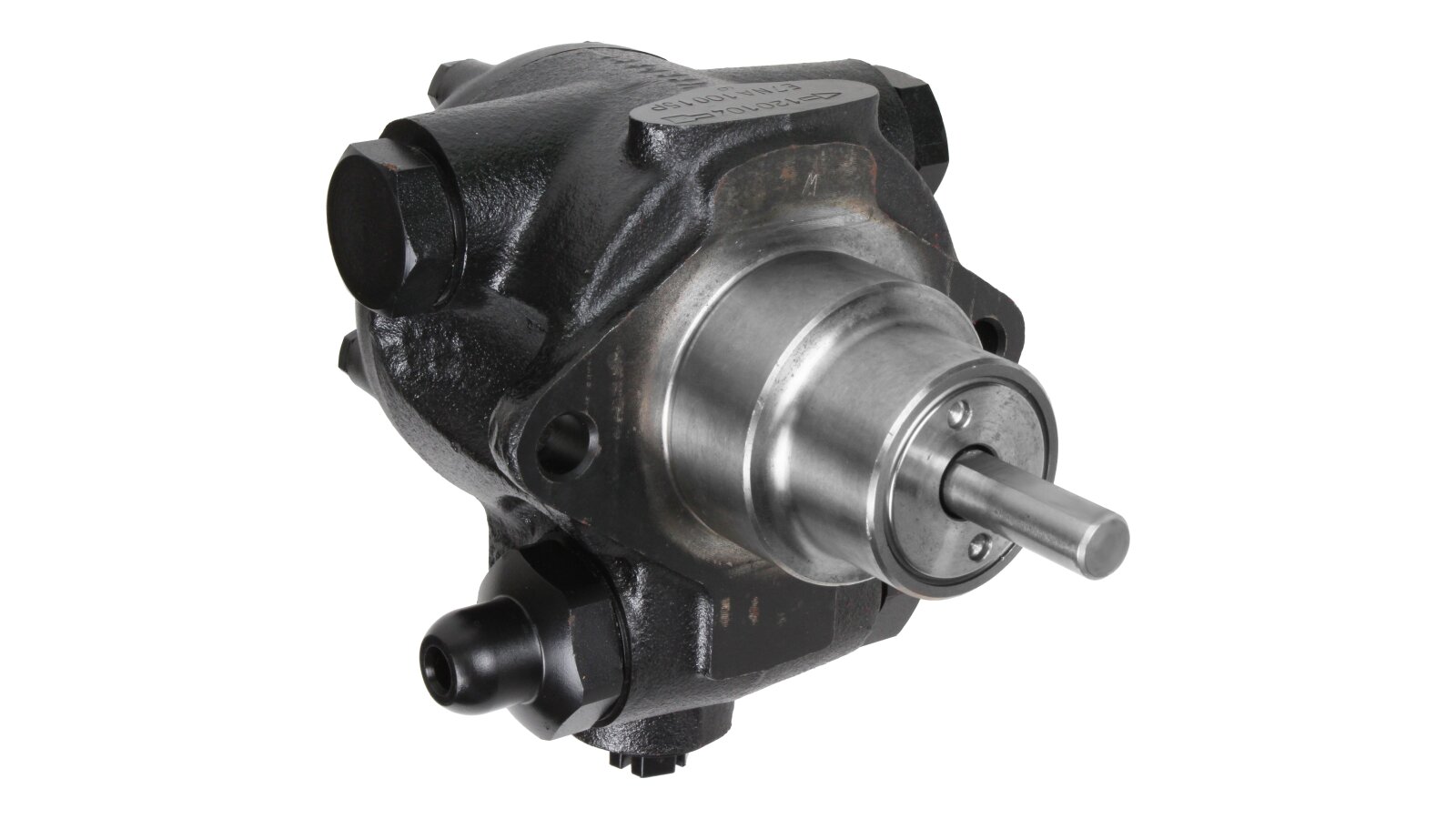

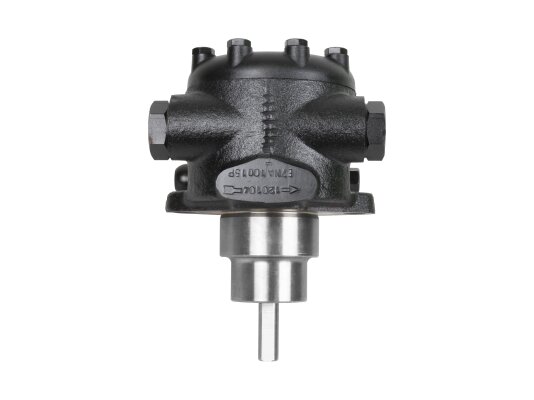

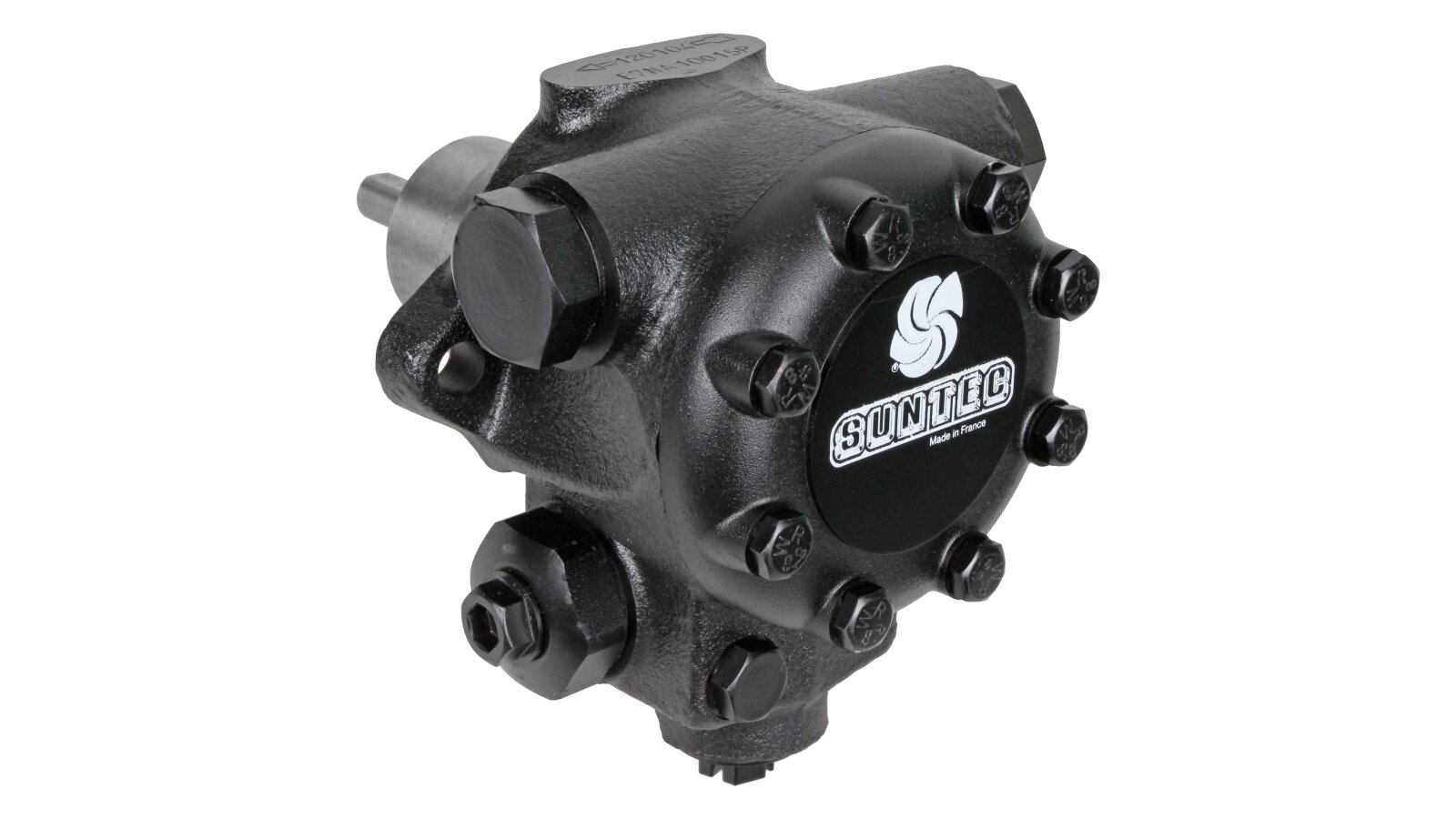

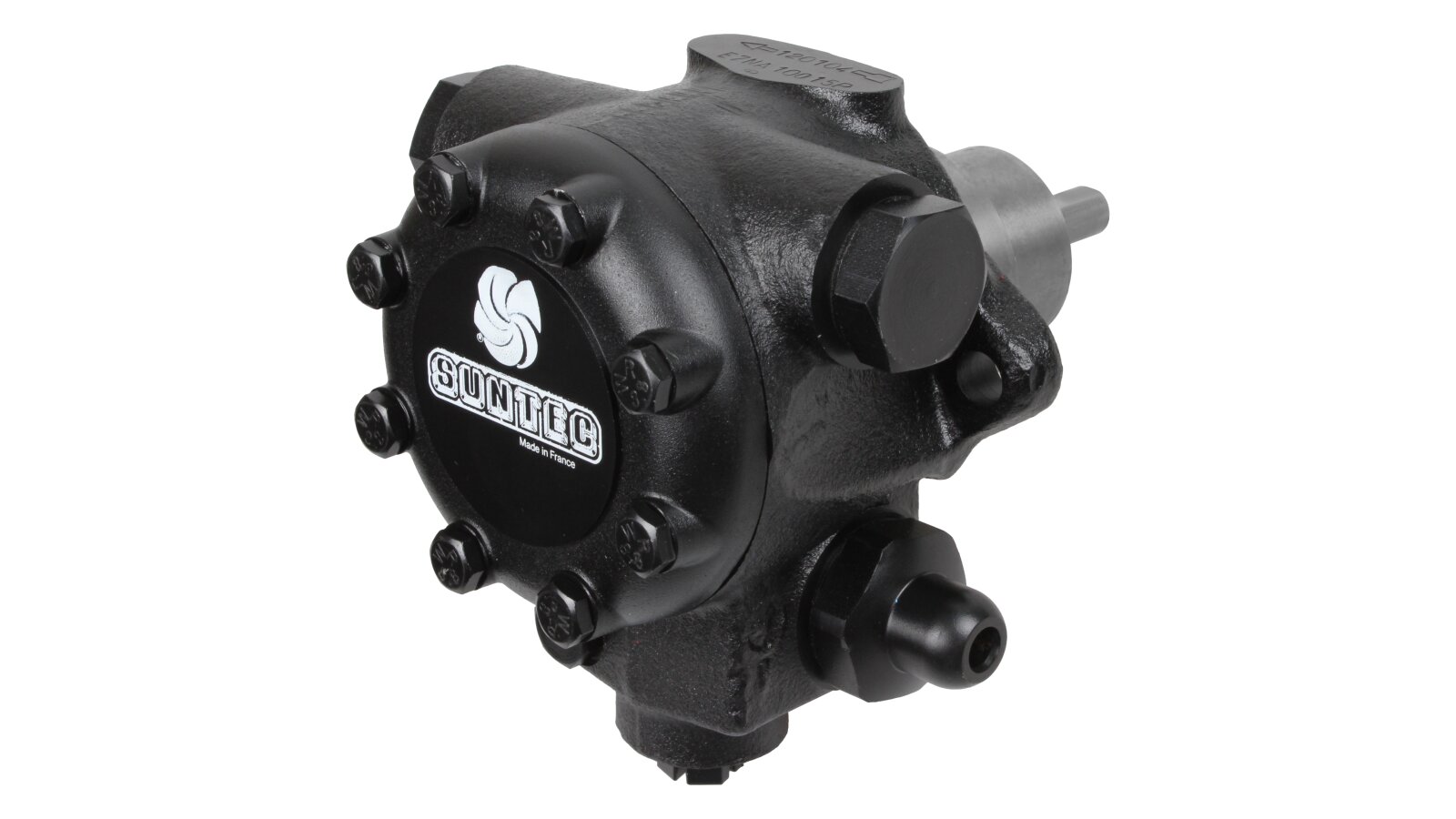

Burner Pump Suntec E 7 NA 1001 5P

Suntec

Alternative Part Number

Lamborghini 04012580
  • Discontinued
  1. Oil Burner Pumps

Description

The high-performance fuel pump Suntec E 7 NA 1001 5P pumps 355 liters of 20 cSt fuel per hour at a pressure setting of 20 bar. Refers to basic models, which are equipped with a valve that performs two functions: blocking the flow and regulating the supply pressure within 14-30 atm. The pump is used in medium-power burners operating on fuel oil and diesel fuel.

Device Features

The Suntec E 7 NA 1001 5P fuel pump is set by default to 20 atm. The pressure on the nozzle can be changed using the adjusting screw, turning it left / right. When adjusting the pressure, use a pressure gauge to avoid equipment failure.

The main functional organ is a gear mechanism that moves fuel from the tank to the nozzle. For its protection, a coarse filter with a mesh insert is installed in the suction part. All abrasive particles in the form of sand, dirt, rust with a size of 550 microns remain at the entrance to the device, which helps to increase the service life.

The pump is configured for a two-pipe connection scheme. When using the device as part of single-pipe installations, the bypass plug must be removed and the drain hole must be blocked.

The equipment is installed using a flange connection with a diameter of 54 mm, corresponding to the European standard EN 225. It is supported by most burner manufacturers, which expands the scope of use of the pump.

The advantages of the model are:

  • highly efficient fuel supply;

  • work with different types of fuel and viscosity within 3-75 cSt;

  • increased heat resistance - the fuel temperature in the pump is maximum +90 ºC;

  • built-in locking function;

  • mesh filter with an increased working area of ​​up to 45 cm²;

  • the ability to adjust the pressure using a regulator in the range of 14-30 bar;

  • a simple and reliable way to connect to the engine.

The Suntec catalog presents various models of pumps and additional accessories for the formation of reliable heating systems. You can buy a Suntec E 7 NA 1001 5P fuel pump and other products of the European brand at an affordable price from us. The correct choice of components is the key to reliable operation of the entire boiler unit. Check the compliance of the device characteristics with the burner specification or contact us for advice.

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 355 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 20 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, biodiesel fuel blend B10, sea ​​water
