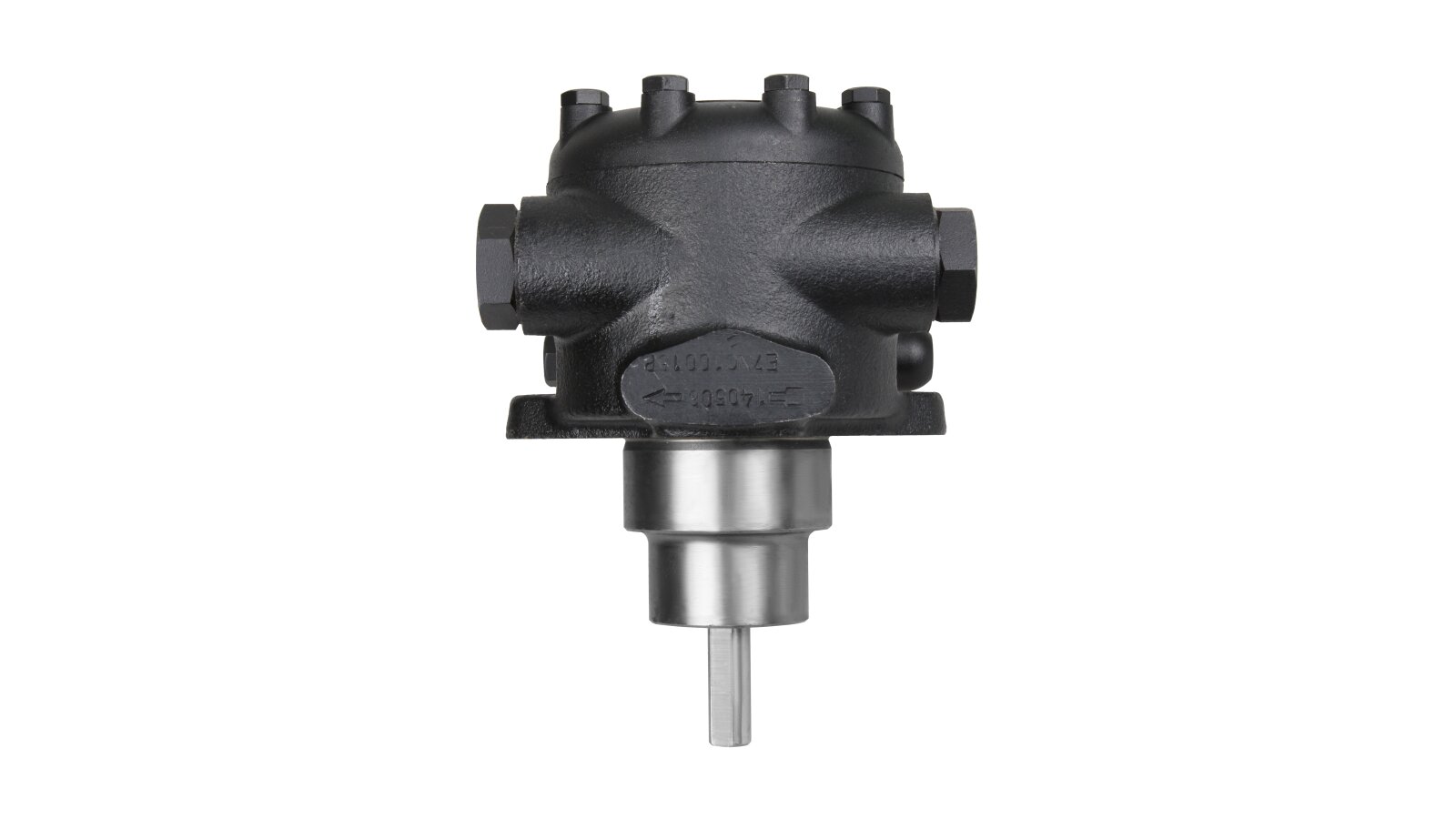

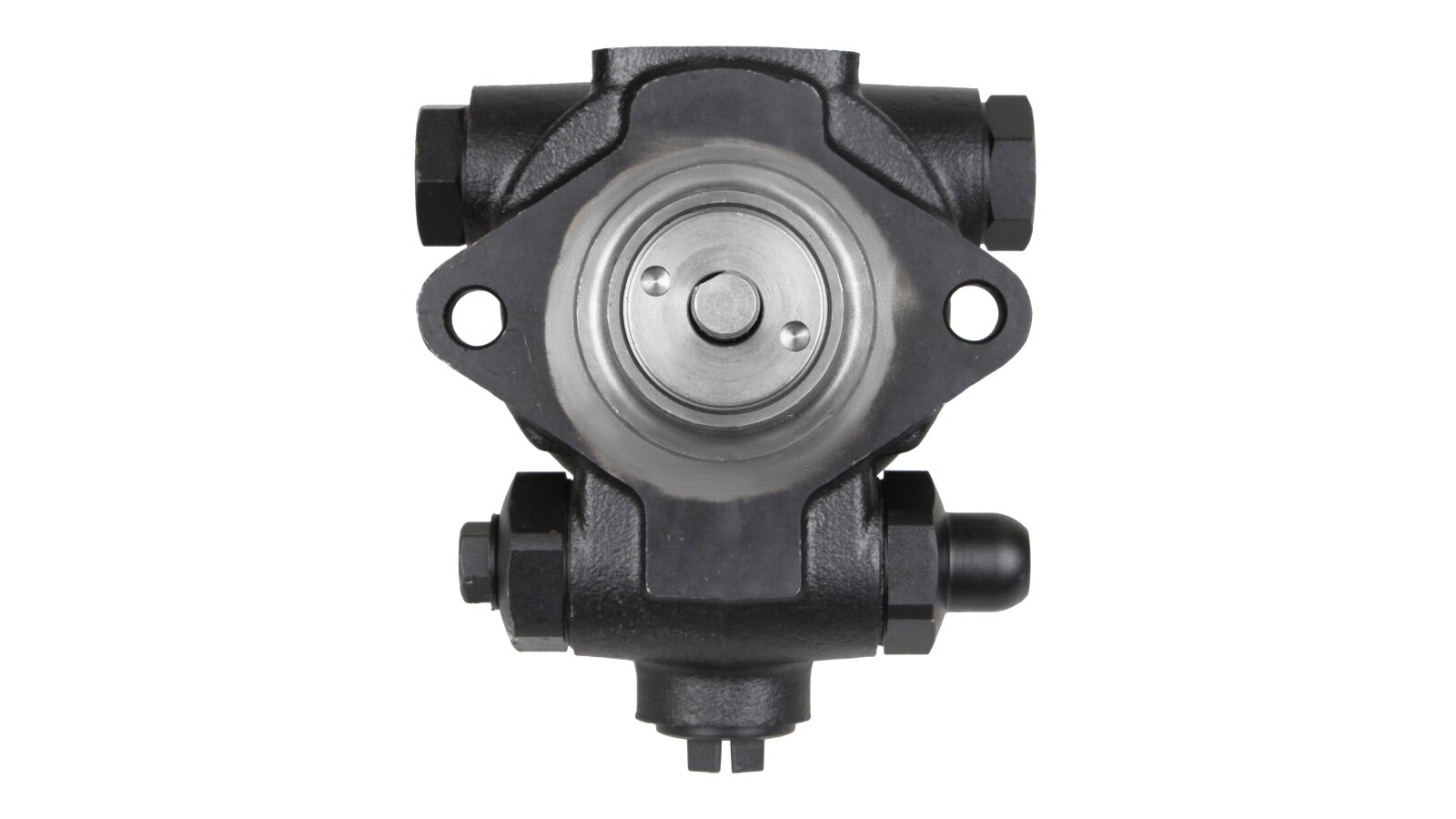

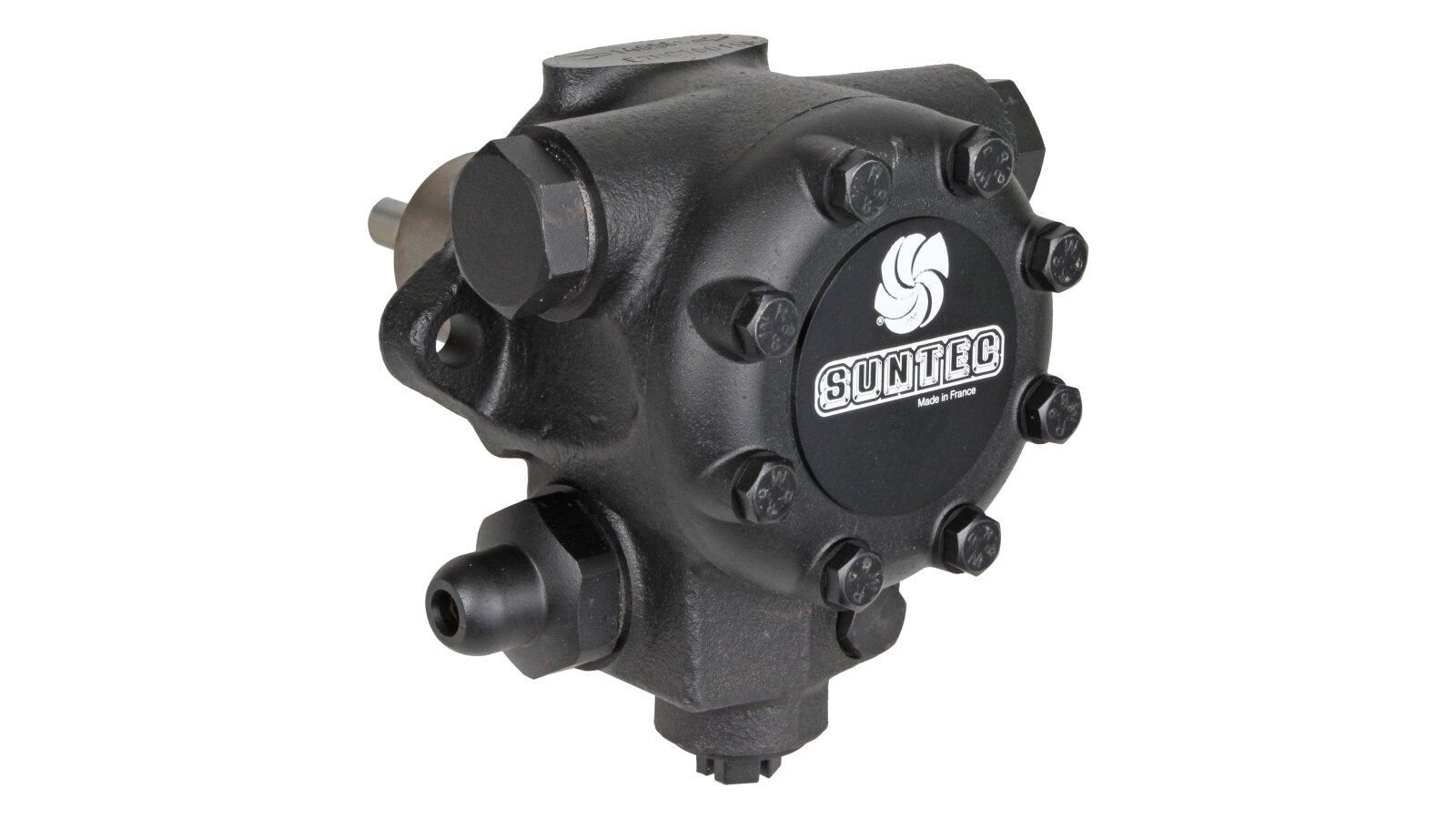

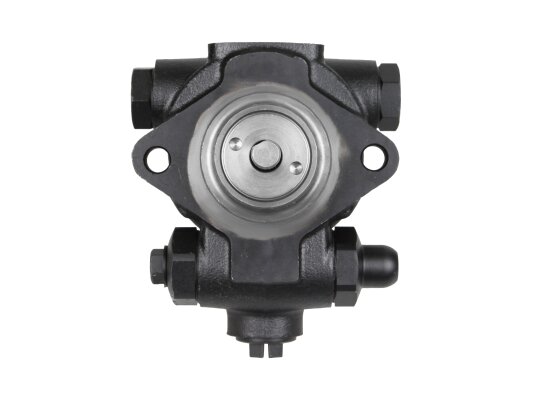

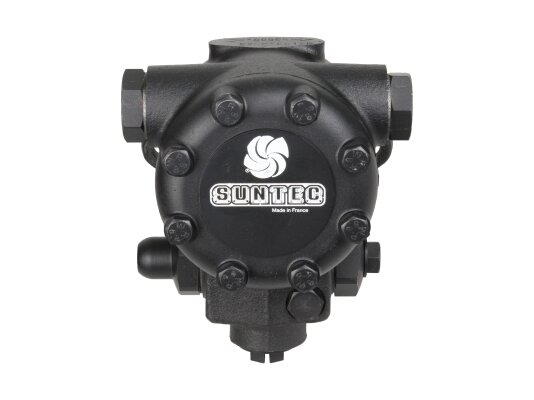

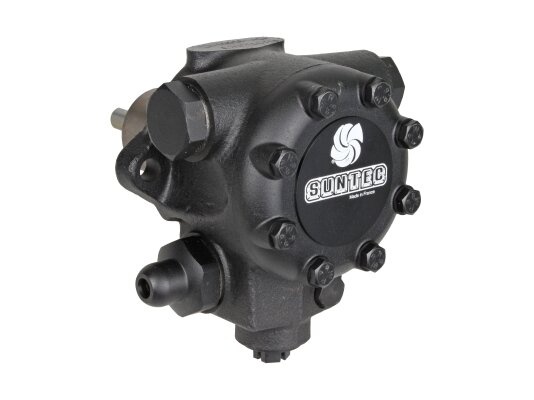

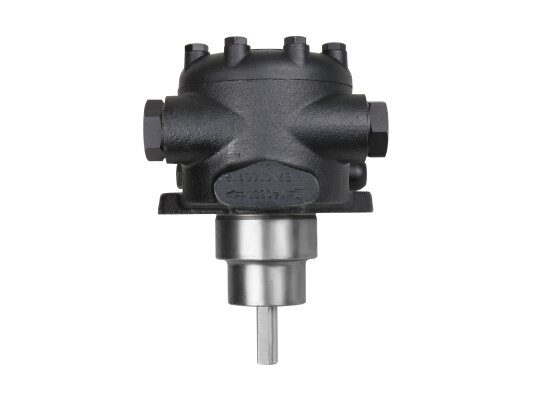

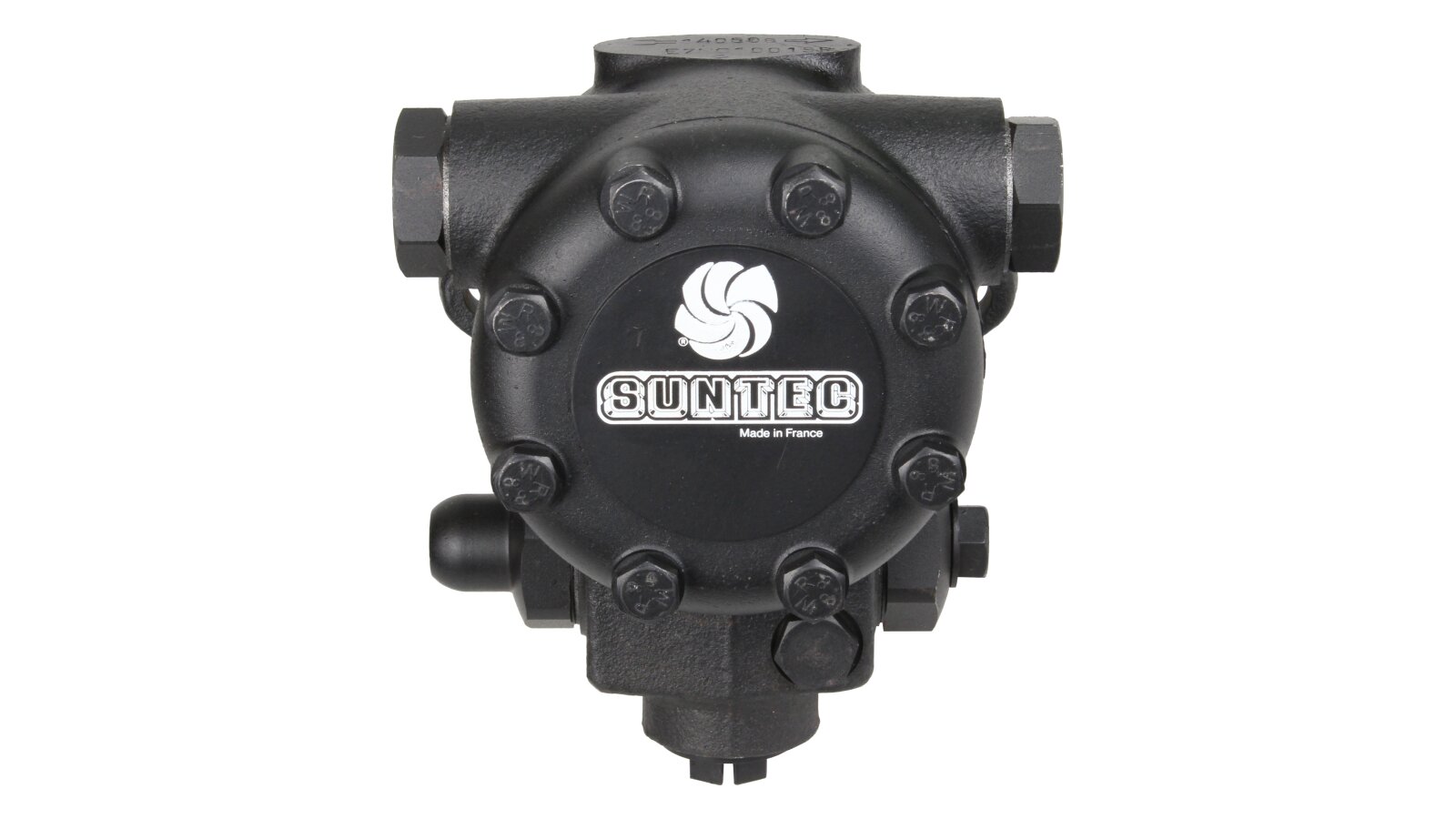

Burner Pump Suntec E 7 NC 1001 5P

Suntec

Alternative Part Number

Baltur

0005950032

CIB Unigas

2590106

AED 3,550

  • Discontinued
Oil Burner Pumps
Products code: 1288

Description

The Suntec E 7 NC 1001 5P fuel pump provides high-speed supply of working fluid to the injector. Within one hour, it pumps 355 liters of fuel with a viscosity of 20 cSt when the pressure is set to 20 atmospheres. The basic model is supplied complete with a valve that regulates the pressure on the injector and simultaneously performs a shut-off function. It is used to complete medium-power burners included in residential and industrial heating systems.

Design and features

The design is adapted to work with elevated fuel temperatures, maximum +90 degrees.

To adjust the pressure in the permissible range (14-30 bar), a special screw is provided on the body, turning it left and right, you can change the factory setting (20 bar). You should check the correct operation of the pump using a pressure gauge.

The basic version of the Suntec E 7 NC 1001 5P fuel pump is suitable for two-pipe installations. If the device is used as part of a single-pipe system, it is necessary to unscrew the bypass plug and completely close the drain channel.

The gear mechanism is protected from the negative impact of abrasive particles contained in the fuel - a 550 micron filter is mounted in the suction line.

The connection to the engine is carried out using a flange of a standard diameter of 54 mm. Compliance with the EN 225 standard ensures the versatility of the pump. It can be used to complete most burners of well-known brands.

The main advantages are:

  • high efficiency of fuel supply;

  • pressure locking and adjustment function;

  • universal purpose (diesel fuel, fuel oil);

  • independent adjustment of pressure on the nozzle in the range of 14-30 atm.;

  • increased heat resistance;

  • fuel purification from mechanical impurities from 550 microns in size;

  • installation variability - for two- and one-pipe systems;

  • standard ports and outputs for control and measuring instruments and piping.

The Suntec catalog is represented by a wide range of equipment and accessories for the formation of reliable heating systems. Before buying a Suntec E 7 NC 1001 5P fuel pump, compare the parameters with the requirements of the burner manufacturer to ensure smooth operation and long service life of the device.

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 355 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 20 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, biodiesel fuel blend B10, sea ​​water
