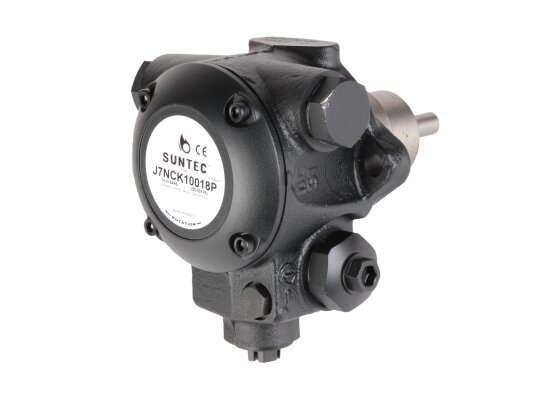

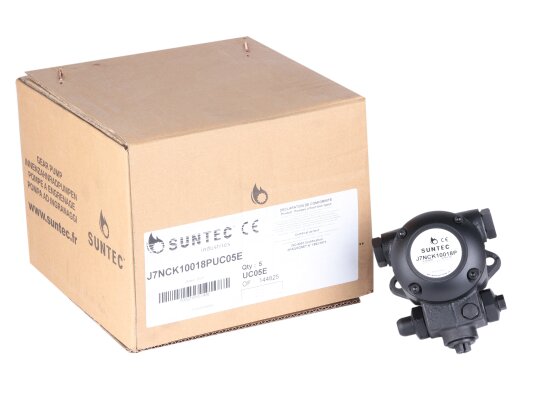

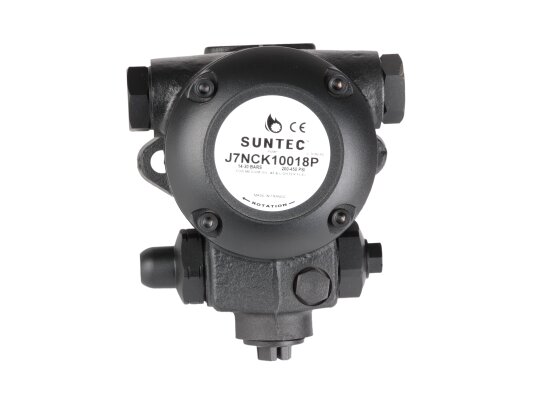

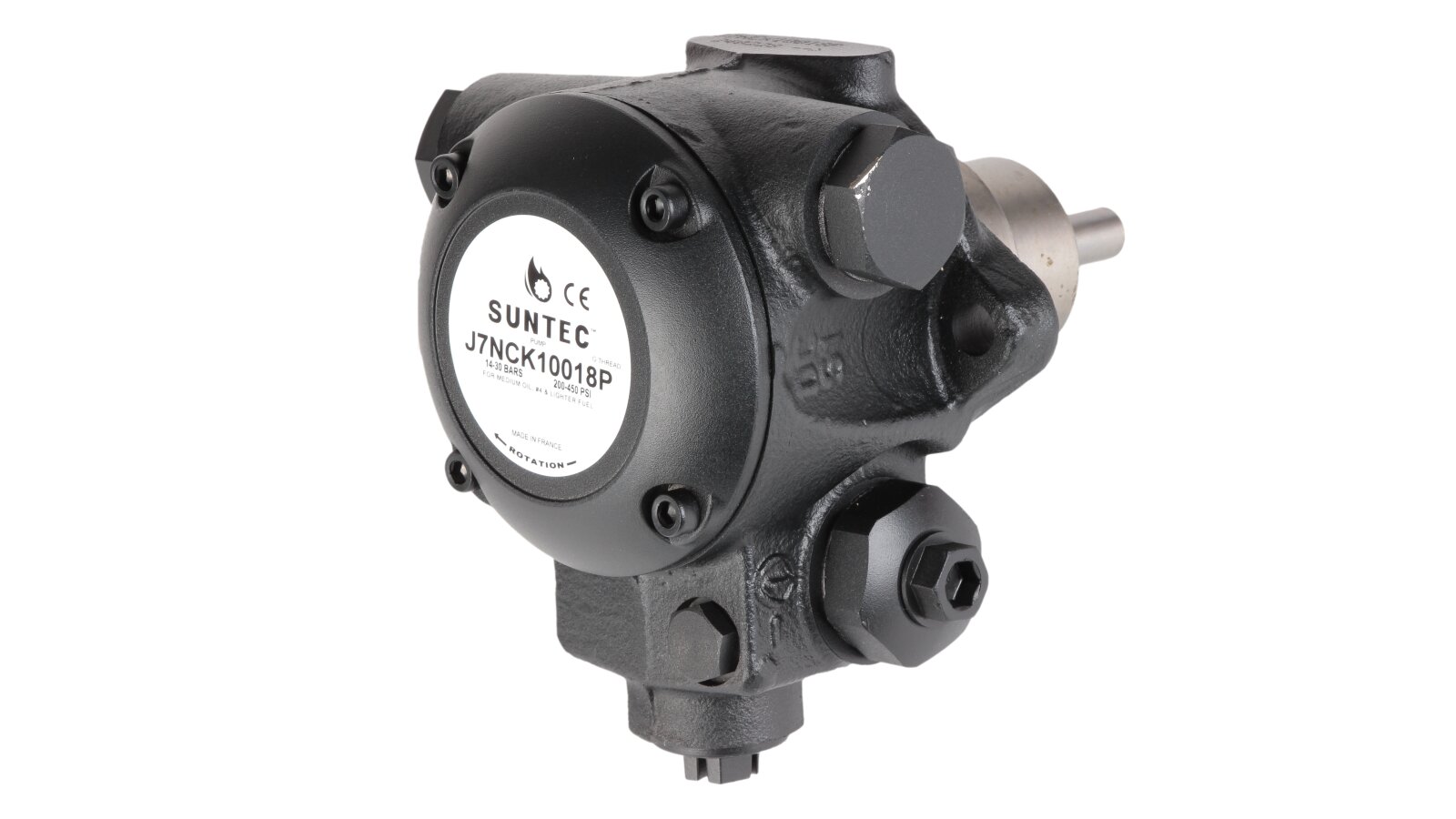

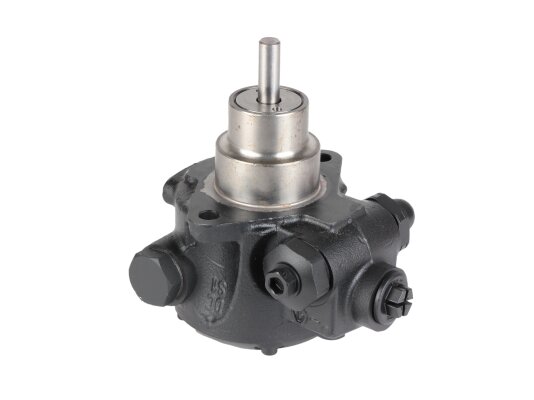

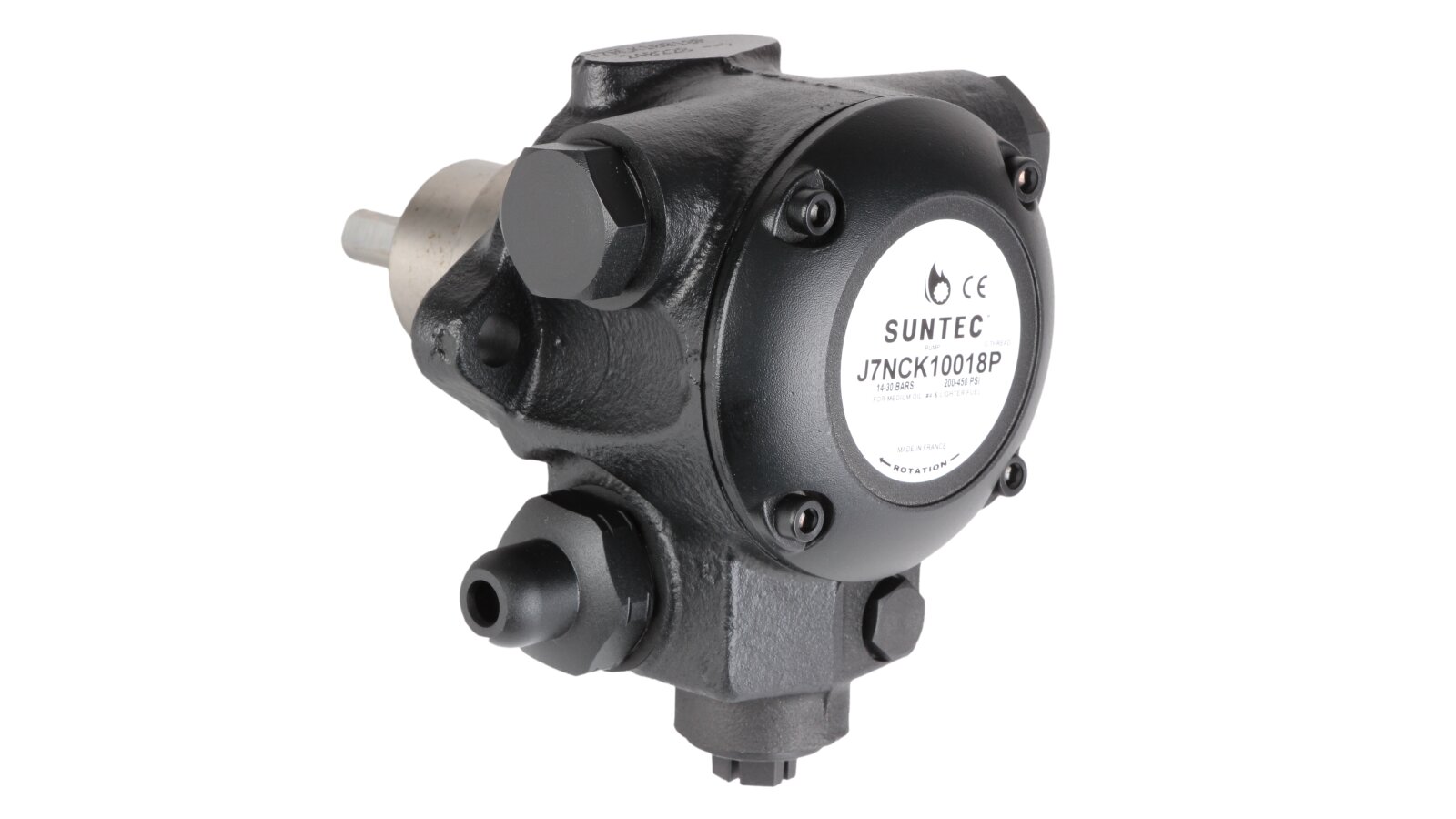

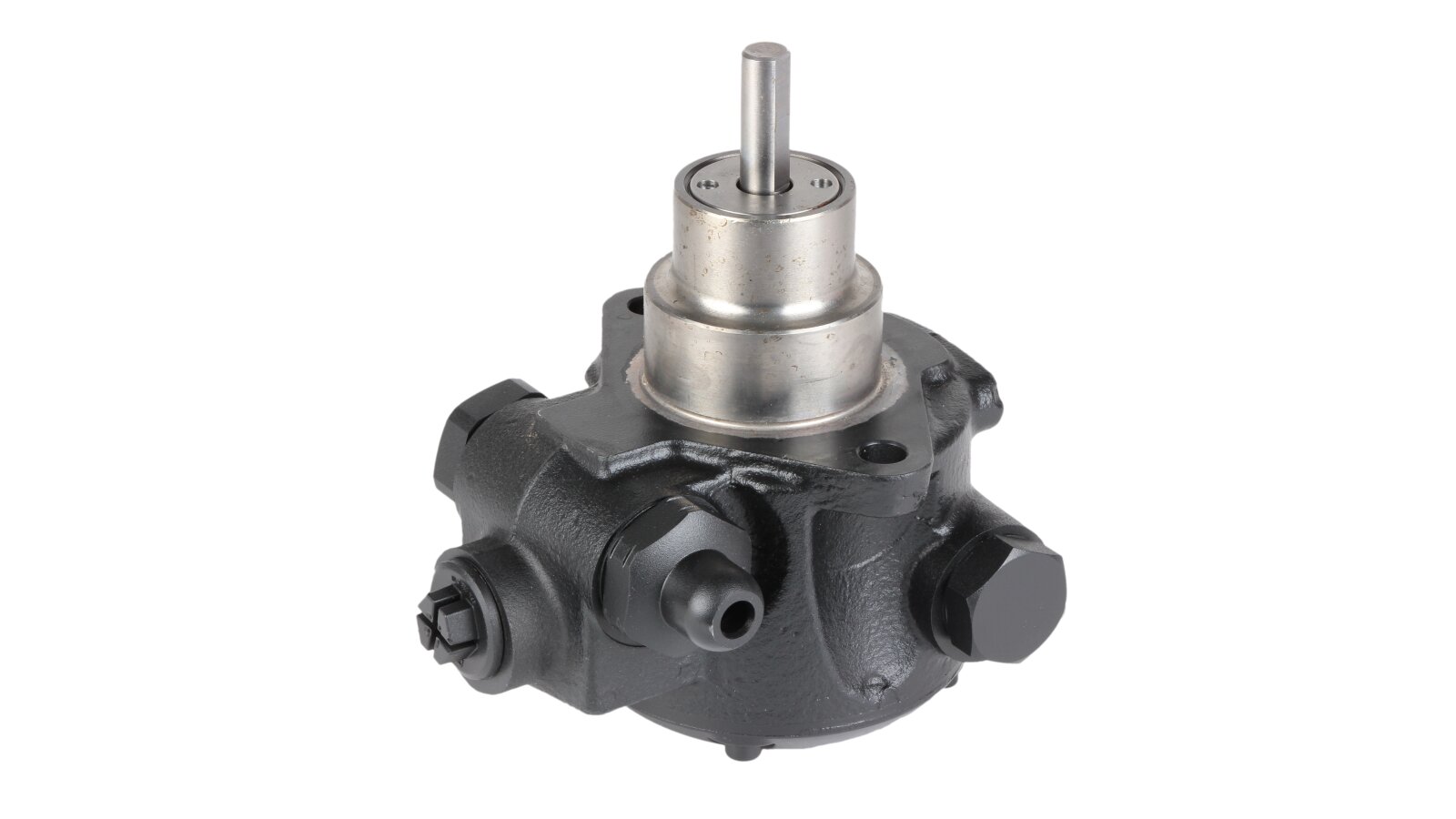

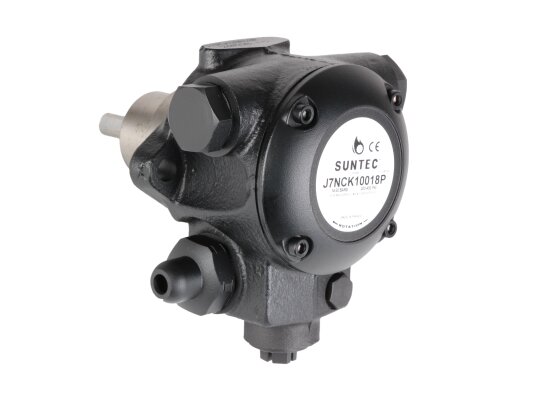

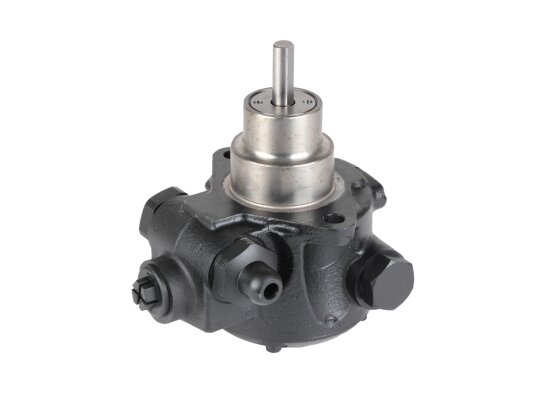

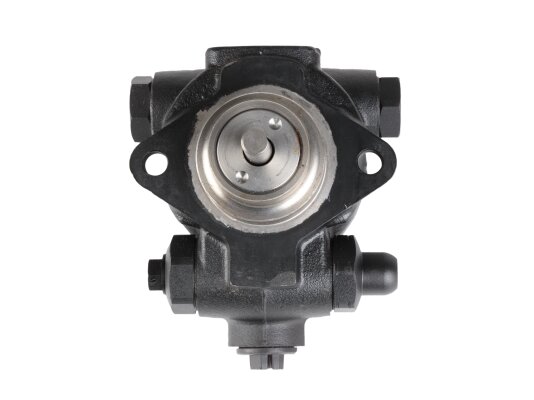

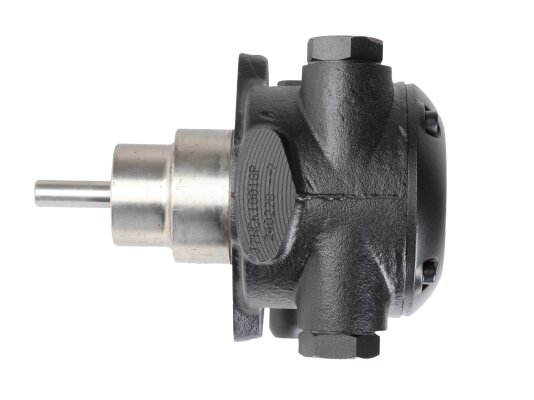

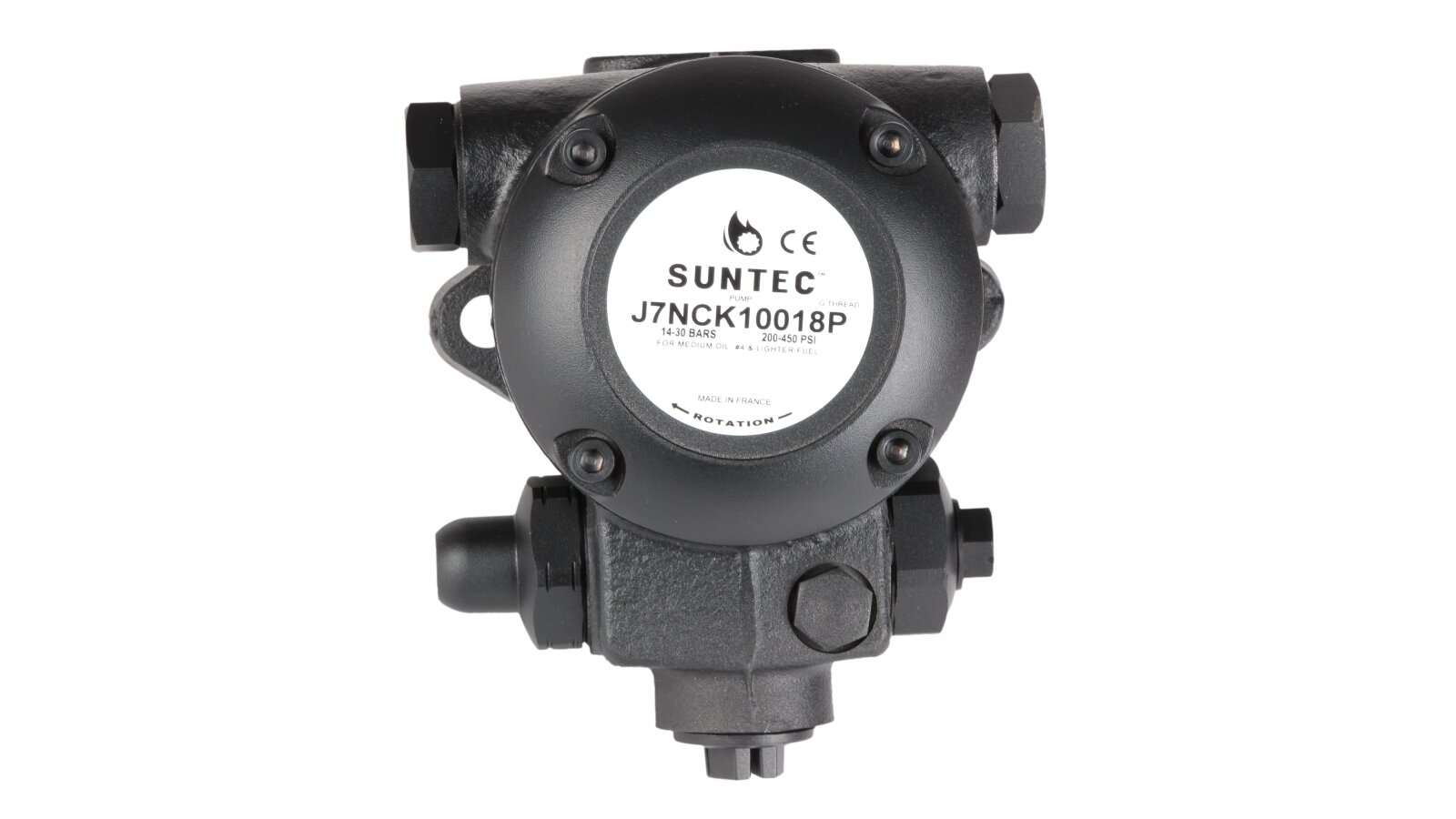

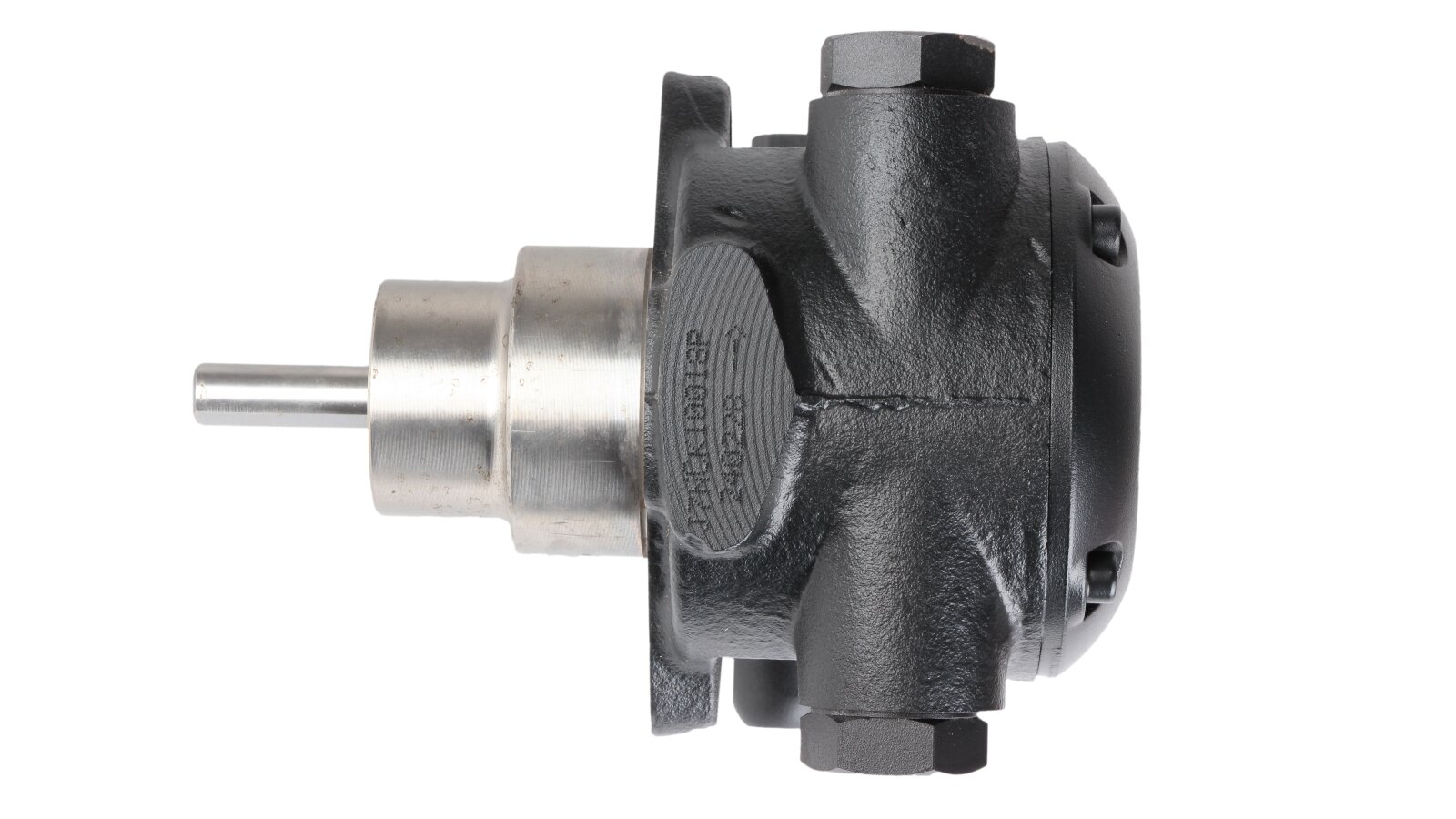

Burner Pump Suntec J 7 NCK 1001 8P

Suntec

AED 3,350

Oil Burner Pumps
Products code: 61734

Description

The Suntec J 7 NCK 1001 8P burner pump is a high-performance equipment for industrial boiler plants. It is used to supply a mixture of biodiesel fuel B10, diesel fuel, kerosene, fuel oil and other fuels with a viscosity of up to 75 cSt to the nozzle. The pumping rate depends on the pressure and viscosity characteristics of the pumped medium, and is 355 l/h at 20 bar and 20 cSt.

The Suntec J pump is designed for use:

  • in single-pipe and two-pipe systems;

  • for pumping medium-viscosity fuel;

  • in installations with an external solenoid valve.

Operating principle

The gear mechanism is the main unit of the pump, which takes the greatest load. When rotating, it sucks fuel from the tank and supplies it to the pressure regulating valve, and then to the nozzle line. At the inlet to the pump cavity, the fuel is freed from rust, debris, sand and other abrasive particles using a filter, which eliminates jamming and damage to the working unit.

Fuel that does not reach the injector is sent to the return line in a 2-pipe connection or returned to the suction line in single-pipe units. In the basic assembly, a bypass plug is screwed into the drain channel hole. With a single-pipe wiring scheme, the bypass plug should be removed and the hole closed with a steel plug.

Features and benefits:

  • universal application;

  • built-in pressure regulating valve with shut-off function;

  • fuel supply under pressure of 14-30 bar, basic setting - 20 bar;

  • suitable for pumping fuel at temperatures up to +90 ° C;

  • flange mounting, diameter 54 mm;

  • capacity - 355 l / h at a medium viscosity of 20 cSt and a pressure of 20 bar;

  • filtering capacity of the mesh insert is 550 µm;

  • high reliability and wear resistance of the gear mechanism;

  • pipe thread for connection to the suction and return lines;

  • outlets for connecting measuring instruments - pressure gauge and vacuum gauge;

  • installation in any position, excluding the load on the axle;

  • pressure in the suction/return line is no higher than 1.5 bar.

Air exhaust

Automatic exhaust of excess air through the return line is provided. When using the Suntec J 7 NCK 1001 8P burner pump in a single-pipe system, excess air is released through the open port of the pressure gauge.

Characteristics

Factory pressure setting: 20 barOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: J: control valve with locking functionPerformance at 20 bar pressure and 20 cSt viscosity: 355 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, biodiesel fuel blend B10, sea ​​water, kerosene
