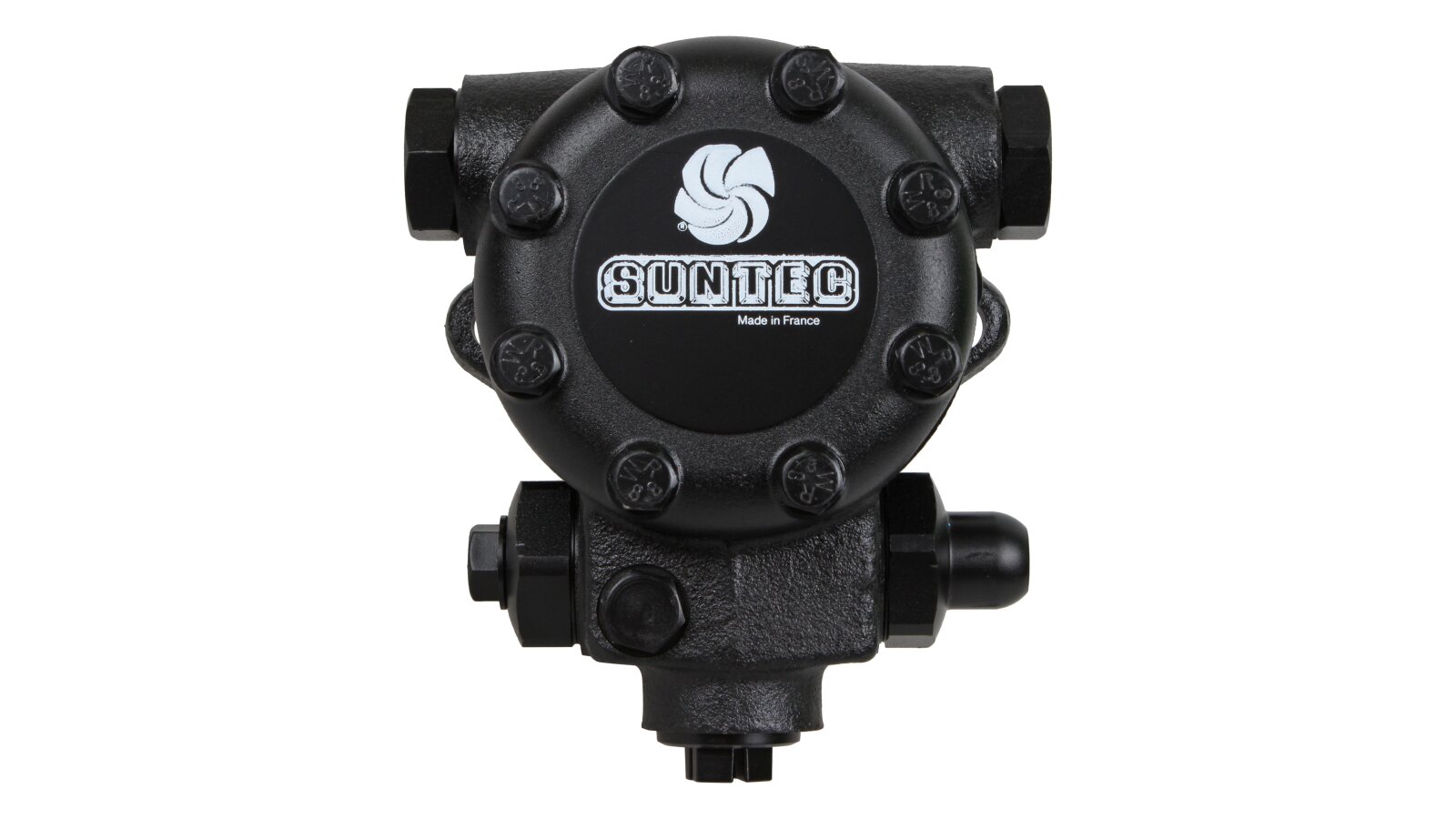

Burner Pump Suntec E 7 NС 1070 7P

Suntec
  • Discontinued
  1. Oil Burner Pumps

Description

The Suntec E 7 NC 1070 7P pump is designed for high-temperature exposure, pumps fuel with a temperature of up to +130ºC. This model shows high feed capacity - 360 l / h at a pressure of 20 bar and a viscosity of 20 cSt. Universal equipment is used to work with diesel fuel, fuel oil, biodiesel fuel mixture B20. The pump is equipped with a pressure regulating valve with a locking function. The fuel heater simplifies the start of the burner, for the installation of which a landing place is provided.

Features

  • The pump design is designed for increased loads, intensive use and high-temperature exposure. In the manufacture of the pump, special seals are used for safe pumping of heated fuel.

  • The gears move the fuel to the nozzle, protected from early wear and damage by a 550 µm filter. Abrasive particles such as sand, dirt and rust do not penetrate into the device, they are filtered out at the inlet.

  • A special feature of this model is the presence of a special place for installing an electric heater. The heating device liquefies the fuel, reducing the load on the working mechanism, which contributes to a quick start and long service life of the equipment. The heater must be turned on in advance to heat the fuel to the optimum temperature.

  • The pressure regulating valve simultaneously performs the shut-off function. At the factory, the pump is set to 20 bar. The feed pressure can be adjusted in the range of 14-30 atmospheres.

  • In the basic version, the pump is ready for integration into a 2-pipe system. If there is no return line, the bypass plug should be removed and the drain point should be plugged.

  • Unused fuel is returned to the tank or to the gear pair, according to the pipeline layout diagram.

  • Standard ports are provided in the housing for connecting the pressure gauge and vacuum gauge.

Advantages:

  • high-performance fuel supply;

  • universality – suitable for fuel oil, diesel fuel, biodiesel;

  • place for placing a heater, simplifying the start-up

  • pressure control valve with flow shut-off;

  • wide range of pressure adjustment on the injector;

  • fuel cleaning before entering the gears;

  • standard ports for measuring devices;

  • increased heat resistance and strength of the structure;

  • reliable flange connection.

The Suntec E 7 NC 1070 7P pump is tested and tested at the factory, fully complies with European safety and reliability requirements. Comes with a factory warranty and a package of accompanying documentation.

Characteristics

By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 130 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 360 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 20 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 3.5 barInlet pressure: 3.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, biodiesel fuel blend B20, sea ​​water
