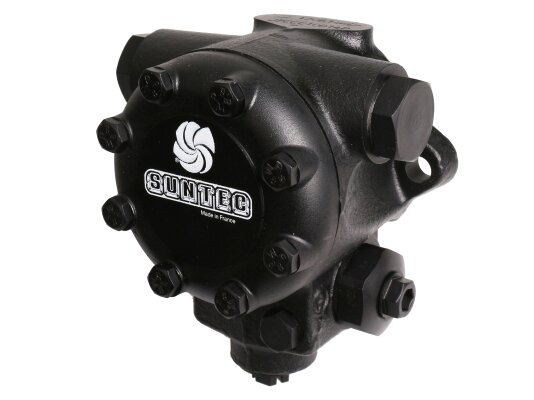

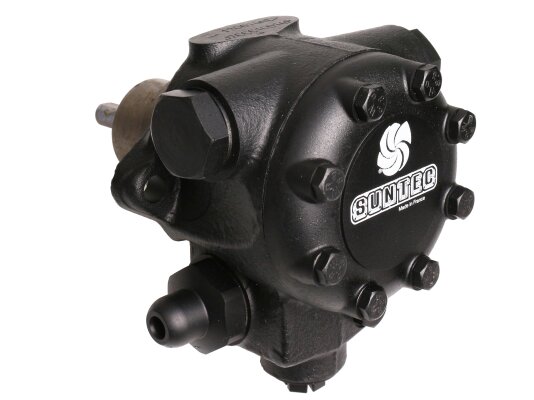

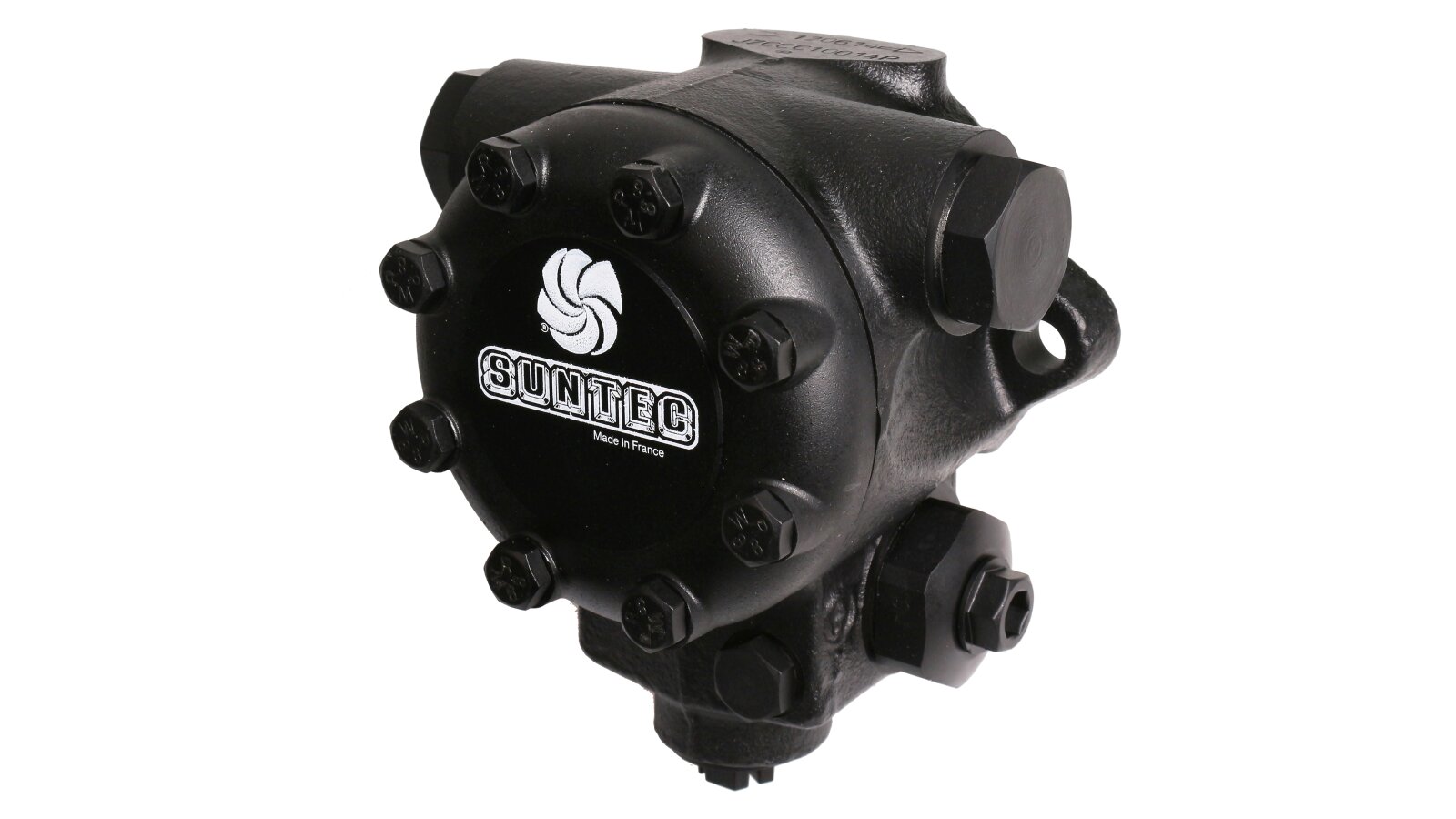

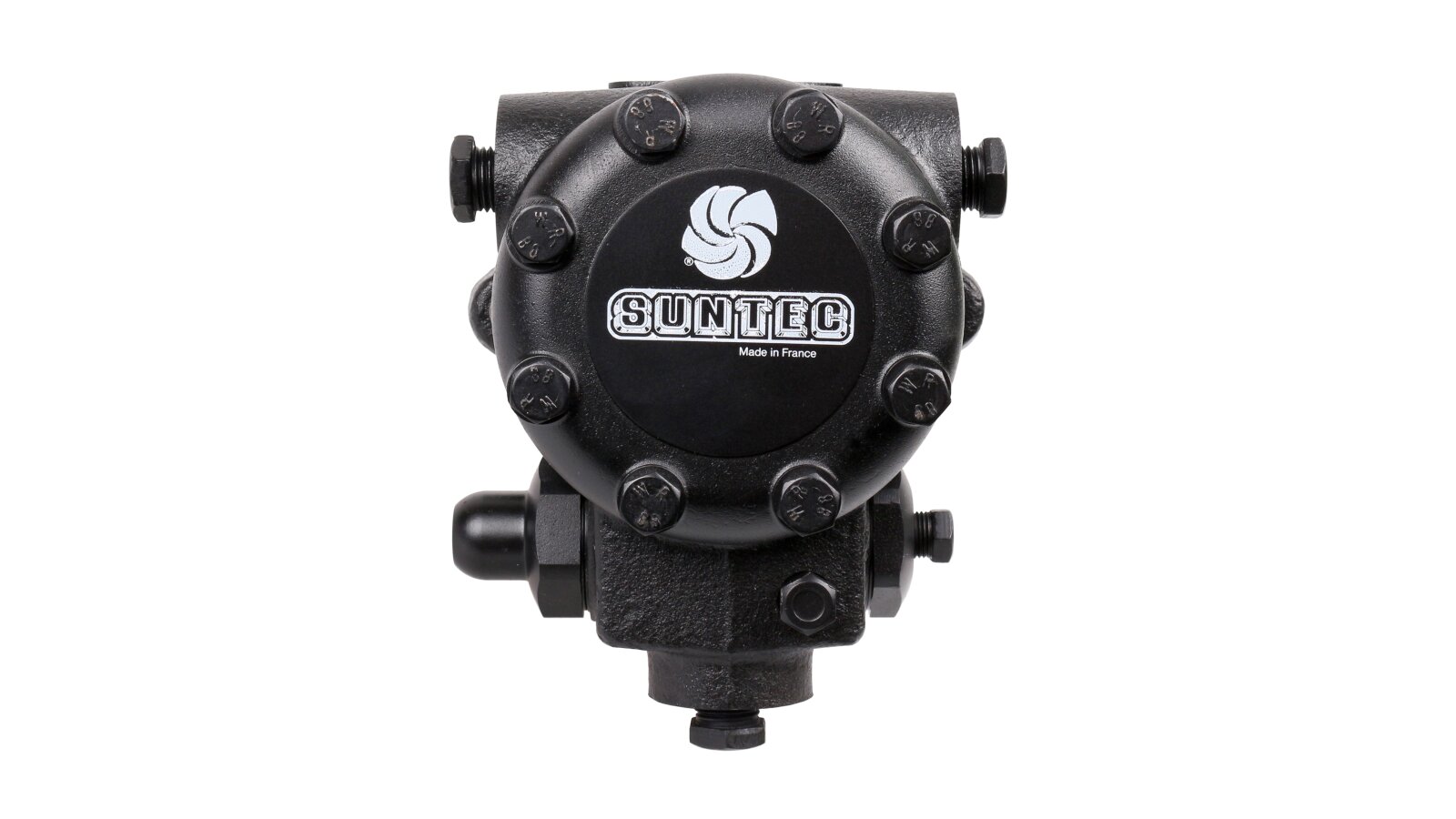

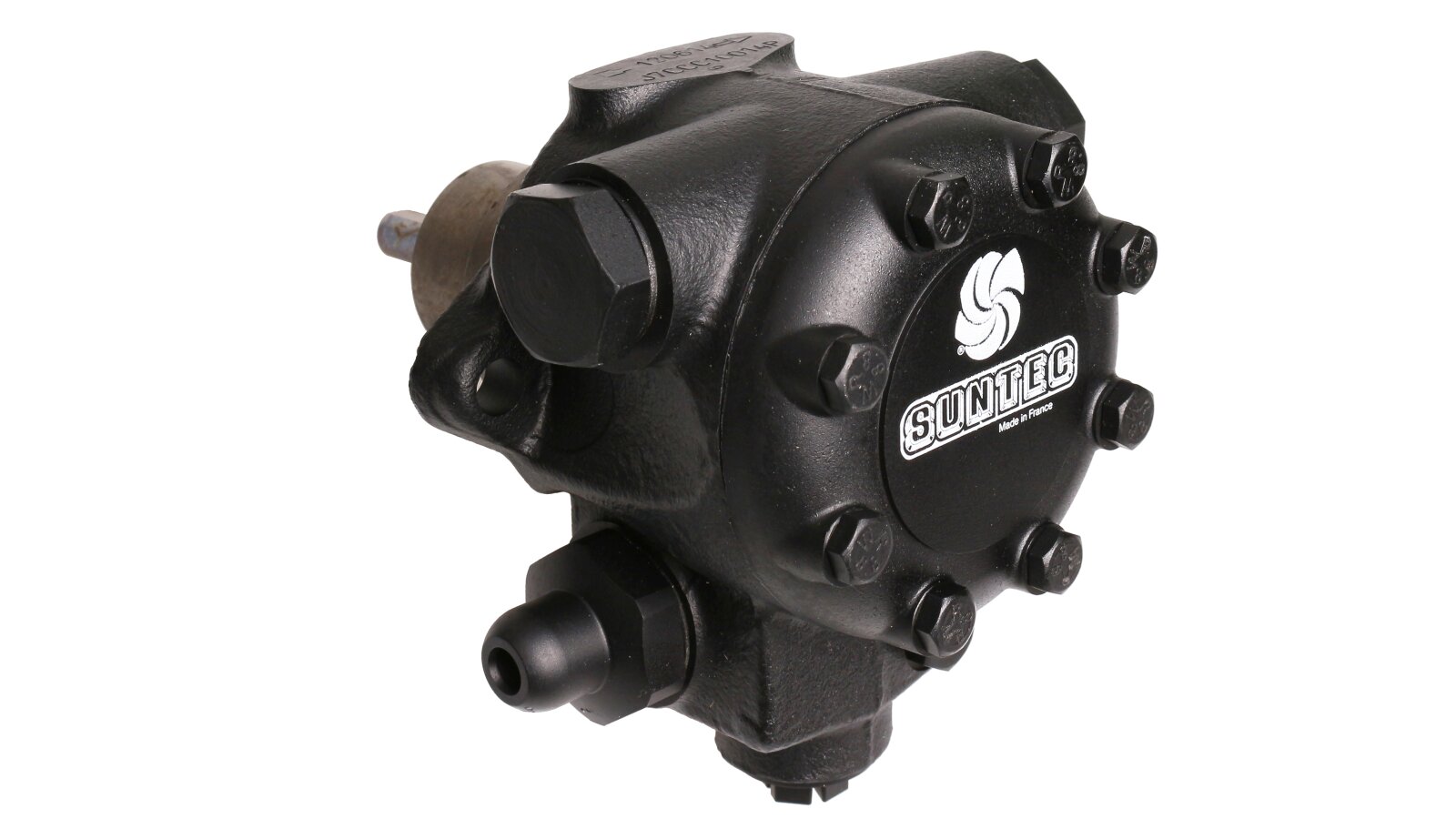

Burner Pump Suntec J 6 CCC 1001 5P

Suntec

Alternative Part Number

Ecoflam

65075776

Ecoflam

65322981

010000089500

P136

3012485

  • Discontinued
Oil Burner Pumps
Products code: 1260

Description

We offer an affordable solution for equipping medium-power burners - the Suntec J 6 CCC 1001 5P fuel pump with increased reliability and heat resistance. The model is equipped with a valve that regulates the supply pressure in the range of 10-21 bar. A locking function is provided. The pump is suitable for boiler units operating on diesel fuel and medium-viscosity fuel (up to 75 cSt).

Features and design

The main functional unit - the gear mechanism is protected from wear by a built-in filter. The mesh insert holds foreign impurities of 170 microns or more in size, preventing them from penetrating inside the device. Regular cleaning of the mesh from dirt and replacement of the cover gasket are required.

The basic version involves installing the Suntec J 6 CCC 1001 5P pump in a system with two pipes. When choosing a single-pipe connection scheme, it is necessary to remove the bypass plug from the drain hole and completely close the channel.

The valve regulates the pressure and ensures the fuel supply is stopped/started. Automatic pumping of the working fluid can be implemented by installing an external electromagnetic valve (optional).

The pressure is adjusted using the regulator located on the body. By turning the screw left and right, you can change the factory setting (12 bar) within 10-21 atmospheres. To avoid pump failure, use a pressure gauge.

The fuel pump is popular due to:

  • high fuel supply rate - 226 l/hour at a pressure of 20 atm.;

  • universal purpose - pumps diesel fuel and other types of medium-viscosity fuel;

  • the ability to adjust the pressure taking into account current tasks;

  • increased heat resistance and reliability of the design;

  • removal of abrasive impurities from 170 microns from the pumped liquid;

  • standard ports according to ISO 228/1 for a pressure gauge, vacuum gauge and outlets to the pipeline;

  • choice of system configuration – two or one pipe.

By filling out a simple order form, you can buy at an affordable price a Suntec J 6 CCC 1001 5P fuel pump and all the necessary components for creating a reliable heating system. Call us if you have any questions about the selection of equipment.

Characteristics

Maximum rotation speed: 3600 rpmInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 170 µmStrainer: Open area: 45 cm²Pump series: J: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 226 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 21 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mType of pumped liquid: medium viscosity fuel, diesel
