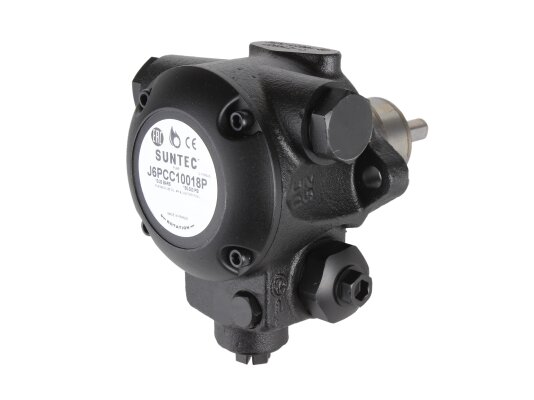

Burner Pump Suntec J 6 PCC 1001 8P

Suntec

Alternative Part Number

Ecoflam

65075776

Ecoflam

65322981

010000089500

P136

3012485

AED 3,050

Oil Burner Pumps
Products code: 55490

Description

The Suntec J 6 PCC 1001 8P burner pump is an efficient pumping equipment for liquid fuel systems. It pumps fuel to the nozzle under high pressure, up to 21 bar. Suitable for working with diesel fuel and medium-viscosity fuel. The kit includes a valve that performs two functions: pressure regulation and flow shut-off.

Features and main parameters:

  • working environment – ​​medium-viscosity fuel, DT;

  • for liquid fuel systems with one or two pipes;

  • in the basic version – with a bypass plug in the return line;

  • external solenoid valve;

  • with a valve that regulates the pressure and interrupts the flow;

  • operating range: 10-21 bar, factory setting – 12 bar;

  • fuel temperature in the pump – maximum +90 ºC;

  • flanged connection method, ∅ 54 mm;

  • productivity – 226 l/h at a medium viscosity of 5 cSt and a pressure of 20 bar;

  • wear-resistant working unit;

  • fuel filter at the pump inlet with 170 μm cells;

  • threaded connection with the suction and return line, ½ inch;

  • ports for measuring pressure and vacuum pressure by instrumentation;

  • the possibility of installation in any orientation, excluding the load on the axle;

  • automatic removal of excess air with a 2-pipe connection;

  • pressure in the suction and return line is not higher than 1.5 bar.

The Suntec J 6 PCC 1001 8P burner pump is adapted for a two-pipe connection, but can also be installed in systems without a return line after replacing the bypass plug with a blind one.

Characteristics

Pump series: J: control valve with locking functionType of pumped liquid: medium viscosity fuel, dieselPressure gauge port: ⅛ inchPerformance at 14 bar pressure and 20 cSt viscosity: 270 l/hPerformance at 14 bar pressure and 75 cSt viscosity: 273 l/hPerformance at 20 bar pressure and 20 cSt viscosity: 260 l/hPerformance at 20 bar pressure and 5 cSt viscosity: 226 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 207 l/hPerformance at 30 bar pressure and 75 cSt viscosity: 274 l/hVacuum gauge port: ½ inchStrainer: Open area: 97 cm²Strainer: Opening size: 170 µmOil temperature: from 0 to 90 °C in the pumpModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulating and cut-offOperating viscosity: from 2 to 75 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 256 l/hDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftTorque: 0.3 N·mSuction and return line: ½ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ¼ inchInlet pressure: 1.5 barReturn pressure: 1.5 barShaft diameter: 11 mmNozzle pressure range: from 10 to 21 barFactory pressure setting: 12 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 54 mmNominal rotation speed: 2850 rpm
