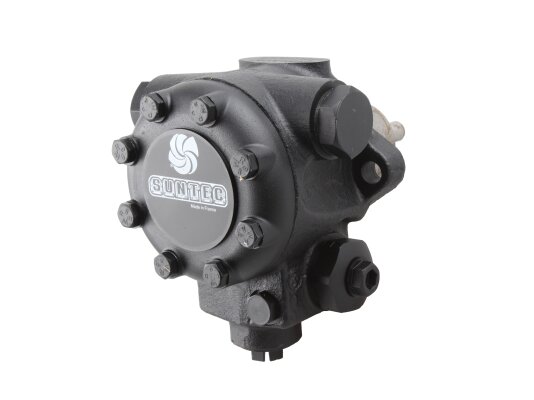

Burner Pump Suntec J 6 CCE 1002 5P

Suntec

AED 3,500

  • Discontinued
Oil Burner Pumps
Products code: 1262

Description

For heating systems of large domestic and industrial premises, we offer to buy a fuel pump Suntec J 6 CCE 1002 5P with a built-in pressure regulating valve. This model is universal in terms of installation in the system - thanks to the use of the European standard EN 225, it is suitable for burners of most modern brands. The capacity is 226 l / h when working with a fuel viscosity of 5 cSt and a pressure setting of 20 atmospheres.

Features of the device

The model stands out for the location of the bypass hole. It is located in the nozzle line, so the function of locking / unlocking the flow is absent. It can be implemented using an external electromagnetic valve, purchased additionally.

In the factory configuration, the Suntec J 6 CCE 1002 5P pump is ready for a two-pipe connection. If you use the unit in a single-pipe design, the bypass plug must be removed and the drain channel must be closed.

The working element - the gear mechanism is designed for long-term use and intensive operation. To protect it, a detachable mesh filter is mounted at the inlet of the working fluid. It holds any foreign particles with a size of 170 microns. The manufacturer recommends regular maintenance of the filter and at the same time changing the cover gasket.

The discharge pressure is easy to adjust using a screw tightening. The regulator is located on the body. Use a pressure gauge to avoid breaking the equipment.

The advantages of the model are:

  • universal purpose - working with diesel fuel and fuel with a viscosity of 2-75 cSt;

  • efficient fuel supply to the injector;

  • pressure adjustment using a screw on the body from 10 to 30 atmospheres;

  • increased catch area of ​​​​the mesh filter - 45 cm²;

  • increased heat resistance - fuel temperature inside the pump up to +90 ºC;

  • standard connection method used by manufacturers of burner devices.

Suntec is the world's N1 brand for pumps. Affordable price, impeccable performance characteristics and low maintenance requirements ensure high popularity of this equipment in the professional environment. On our website you can buy a fuel pump Suntec J 6 CCE 1002 5P and any other equipment from a European manufacturer for assembling reliable boiler units.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOil temperature: from 1 to 90 °C in the pumpStrainer: Opening size: 170 µmStrainer: Open area: 45 cm²Pump series: J: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 226 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 30 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mType of pumped liquid: medium viscosity fuel, diesel
