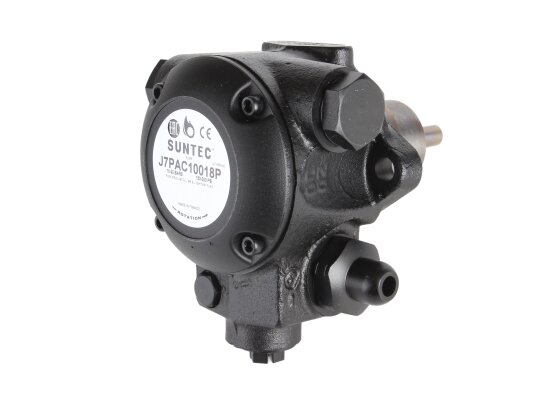

Burner Pump Suntec J 7 PAC 1001 8P

Suntec

AED 3,350

Oil Burner Pumps
Products code: 55489

Description

The Suntec J 7 PAC 1001 8P burner pump is used in liquid fuel systems for high-pressure injection of medium-viscosity and diesel fuel to the injector. Adapted for a two-pipe connection, but can also be built into systems without a return line after replacing the bypass plug with a blind one. The gear mechanism is protected from jamming by a mesh filter that holds all foreign impurities at the pump inlet. The kit includes a pressure regulating valve with a locking function. An electromagnetic valve is not provided (an external device is used).

Features and main parameters:

  • working environment - medium-viscosity fuel;

  • use in systems with one or two pipes;

  • in the basic assembly - with a bypass plug in the drain hole;

  • external electromagnetic valve;

  • built-in pressure regulating valve with a flow shut-off function;

  • discharge pressure range: 10-21 bar, default - 12 bar;

  • fuel temperature in the pump cavity – maximum +90 ºC;

  • flange connection, ∅ 54 mm;

  • capacity – 287 l/h at a medium viscosity of 5 cSt and a pressure of 20 bar;

  • high-wear-resistant gear mechanism;

  • removal of impurities from the pumped fuel of 170 µm;

  • threaded connection method with the suction and return lines, ½ inch;

  • ports for a pressure gauge and vacuum gauge and correct equipment adjustment;

  • the ability to mount in any position, excluding the load on the axle;

  • automatic release of excess air with a 2-pipe connection;

  • pressure in the suction pipe and return line is not higher than 1.5 bar.

The Suntec J 7 PAC 1001 8P burner pump is designed for long-term operation and significant loads. It is necessary to regularly clean the filter from contaminants to avoid a decrease in productivity and overload.

Characteristics

Maximum rotation speed: 3600 rpmInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 90 °C in the pumpStrainer: Opening size: 170 µmStrainer: Open area: 97 cm²Pump series: J: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 287 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 21 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mType of pumped liquid: medium viscosity fuel, diesel
