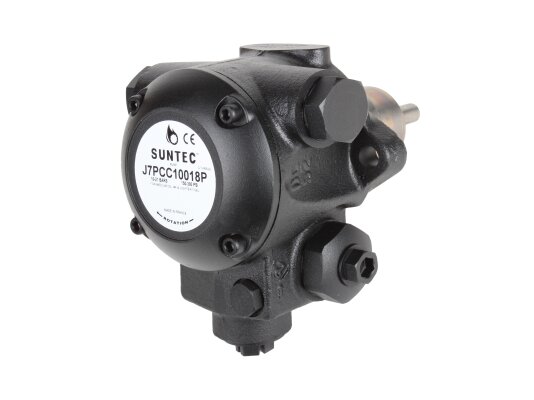

Burner Pump Suntec J 7 PCC 1001 8P

Suntec

AED 3,350

Oil Burner Pumps
Products code: 61725

Description

The Suntec J 7 PCC 1001 8P burner pump is highly efficient and reliable equipment for liquid fuel boiler installations. It pumps fuel under high pressure at a rate of 287 l/h (at a viscosity of 5 cSt and a pressure of 12 bar). The pump includes a valve that regulates the pressure taking into account the specified parameters and ensures flow shut-off.

Main parameters and features:

  • Pumped medium - diesel fuel, medium-viscosity fuel, viscosity up to 75 cSt;

  • working range: 10-21 bar;

  • filter insert cell size - 170 μm;

  • pressure regulating valve, flow interruption function;

  • suction/return line connection parameters - 1/2 inch;

  • reliable flange connection ∅ 54 mm;

  • ports for connecting a pressure gauge and vacuum gauge and correct pump adjustment;

  • installation in any position, excluding pressure on the axis;

  • for systems with an external solenoid valve;

  • automatic air bleeding with a 2-pipe connection;

  • pressure at the flow inlet / in the return pipe - 1.5 bar.

Suntec J 7 design

In the factory version, the Suntec J 7 PCC 1001 8P pump is ready for operation in two-pipe systems. The bypass plug is placed in the return hole for operation on two pipes. It should be removed with a key and hermetically sealed off the return drain channel when using the pump for a one-pipe system.

The design is designed for pumping fuel heated to +90 ºC. The main working unit is a pair of gears. To protect the mechanism, a mesh serviceable filter is placed at the flow inlet, which prevents sand, rust and other debris from entering the pump cavity.

Characteristics

Pump series: J: control valve with locking functionType of pumped liquid: medium viscosity fuel, dieselSolenoid valve consumption: от 275 Вт при 5 сСт /10 бар до 625 Вт при 5 сСт /30 бар WPerformance at 14 bar pressure and 20 cSt viscosity: 312 l/hPerformance at 14 bar pressure and 75 cSt viscosity: 373 l/hPerformance at 20 bar pressure and 20 cSt viscosity: 306 l/hPerformance at 20 bar pressure and 5 cSt viscosity: 287 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 281 l/hPerformance at 30 bar pressure and 75 cSt viscosity: 340 l/hPressure gauge port: ⅛ inchStrainer: Open area: 97 cm²Strainer: Opening size: 170 µmOil temperature: from 0 to 90 °C in the pumpModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulating and cut-offOperating viscosity: from 2 to 75 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 325 l/hNominal rotation speed: 2850 rpmTorque: 0.3 N·mSuction and return line: ½ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ¼ inchInlet pressure: 1.5 barReturn pressure: 1.5 barShaft diameter: 11 mmNozzle pressure range: from 10 to 21 barFactory pressure setting: 12 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 54 mmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftVacuum gauge port: ½ inch
