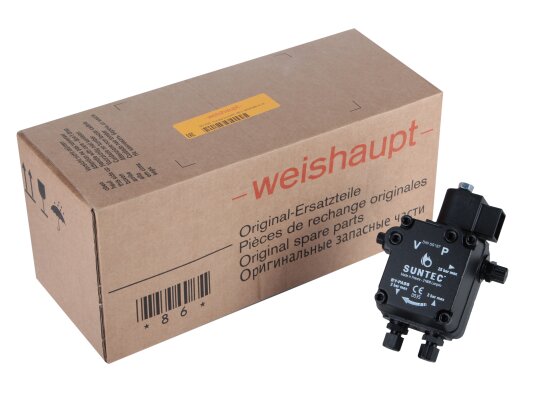

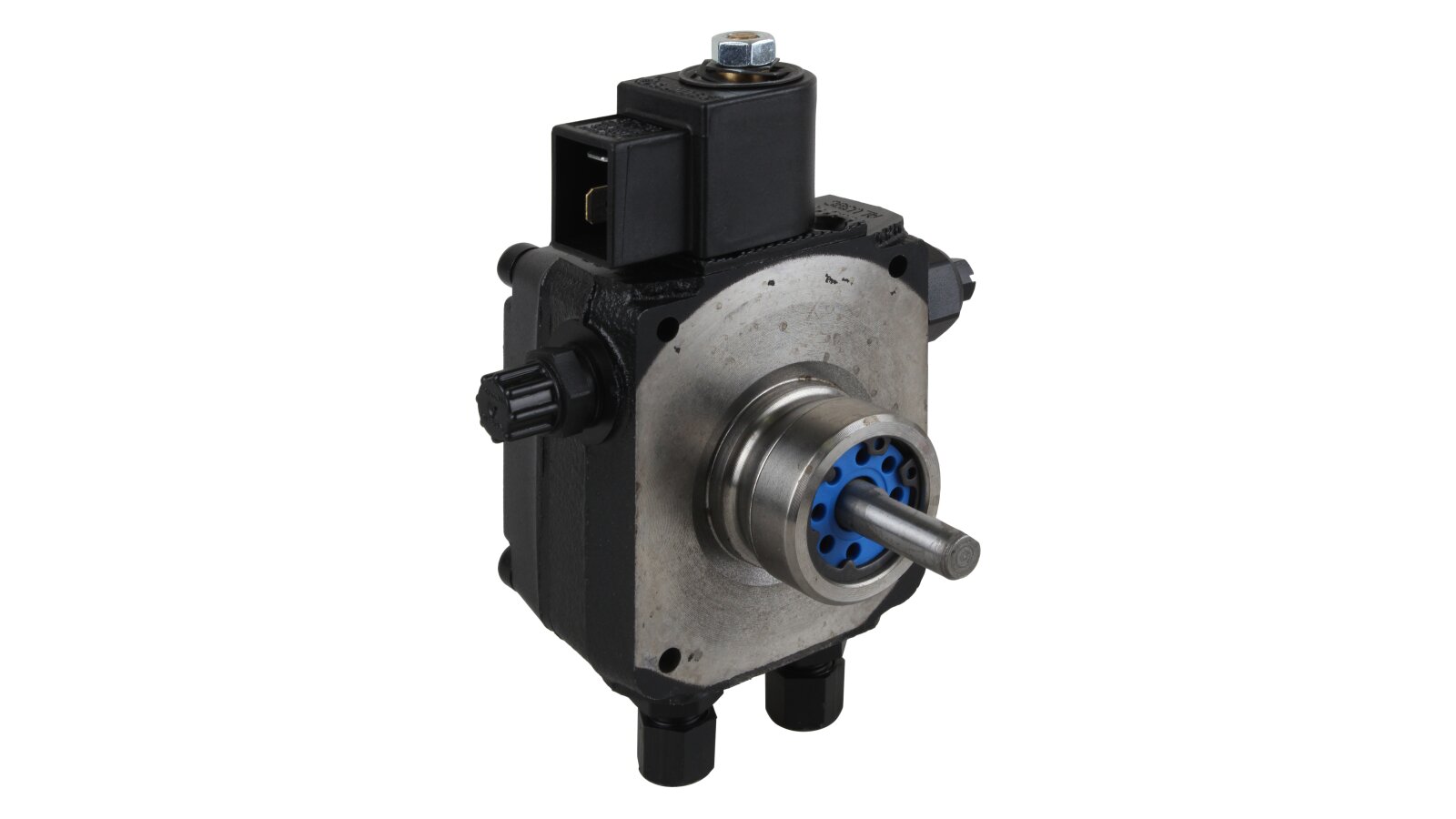

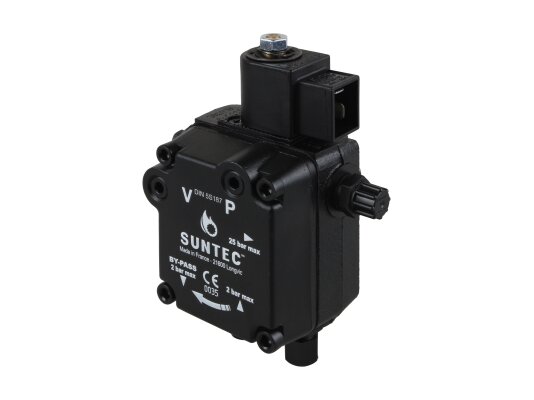

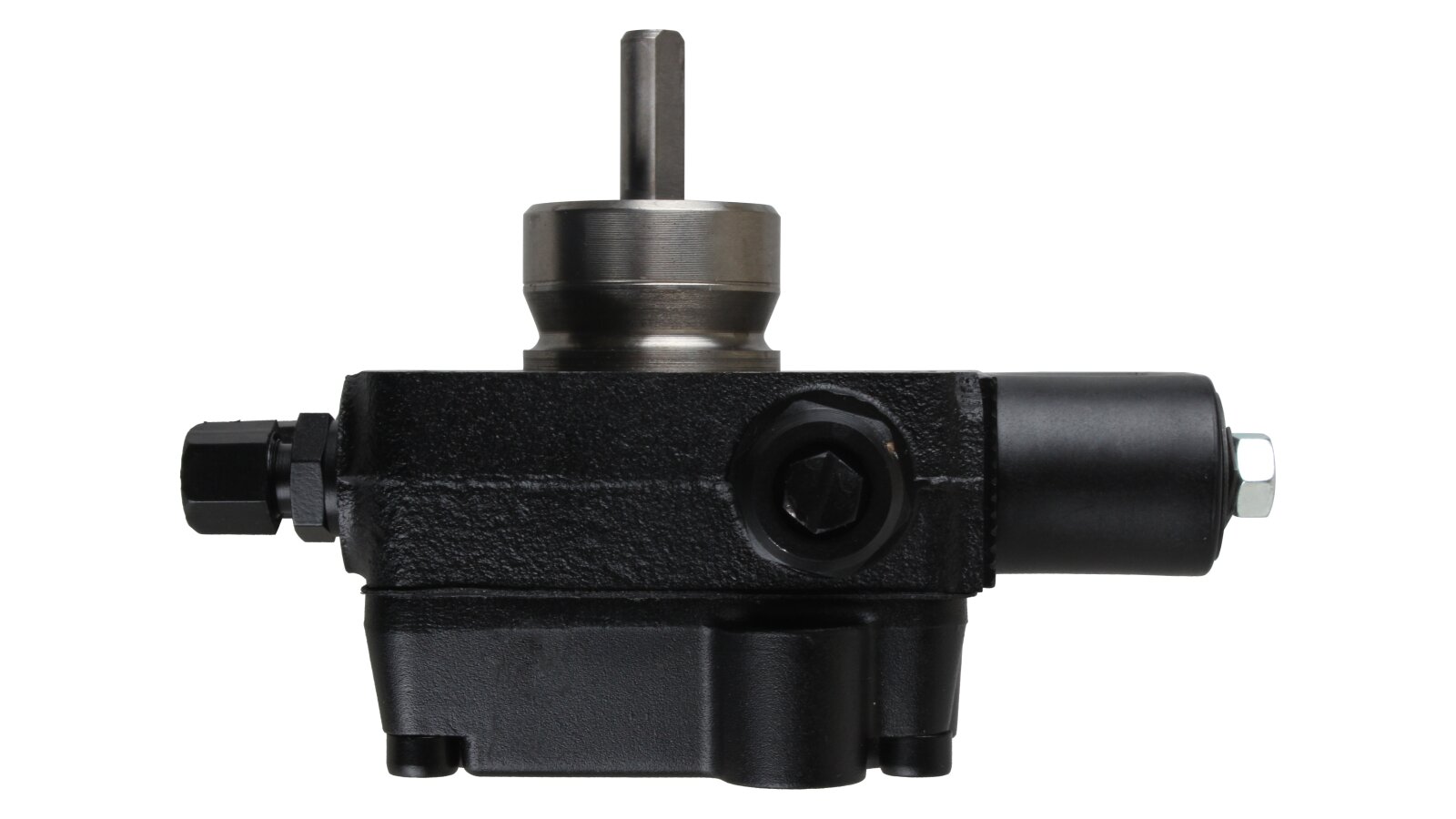

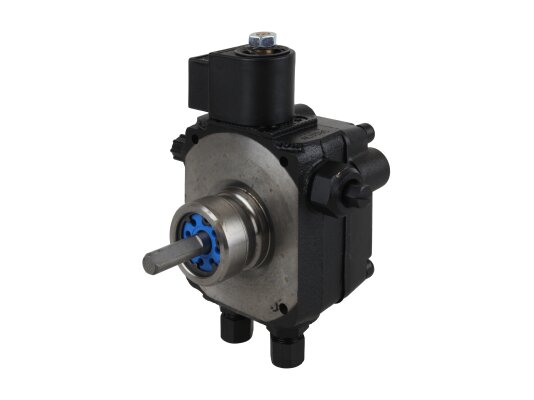

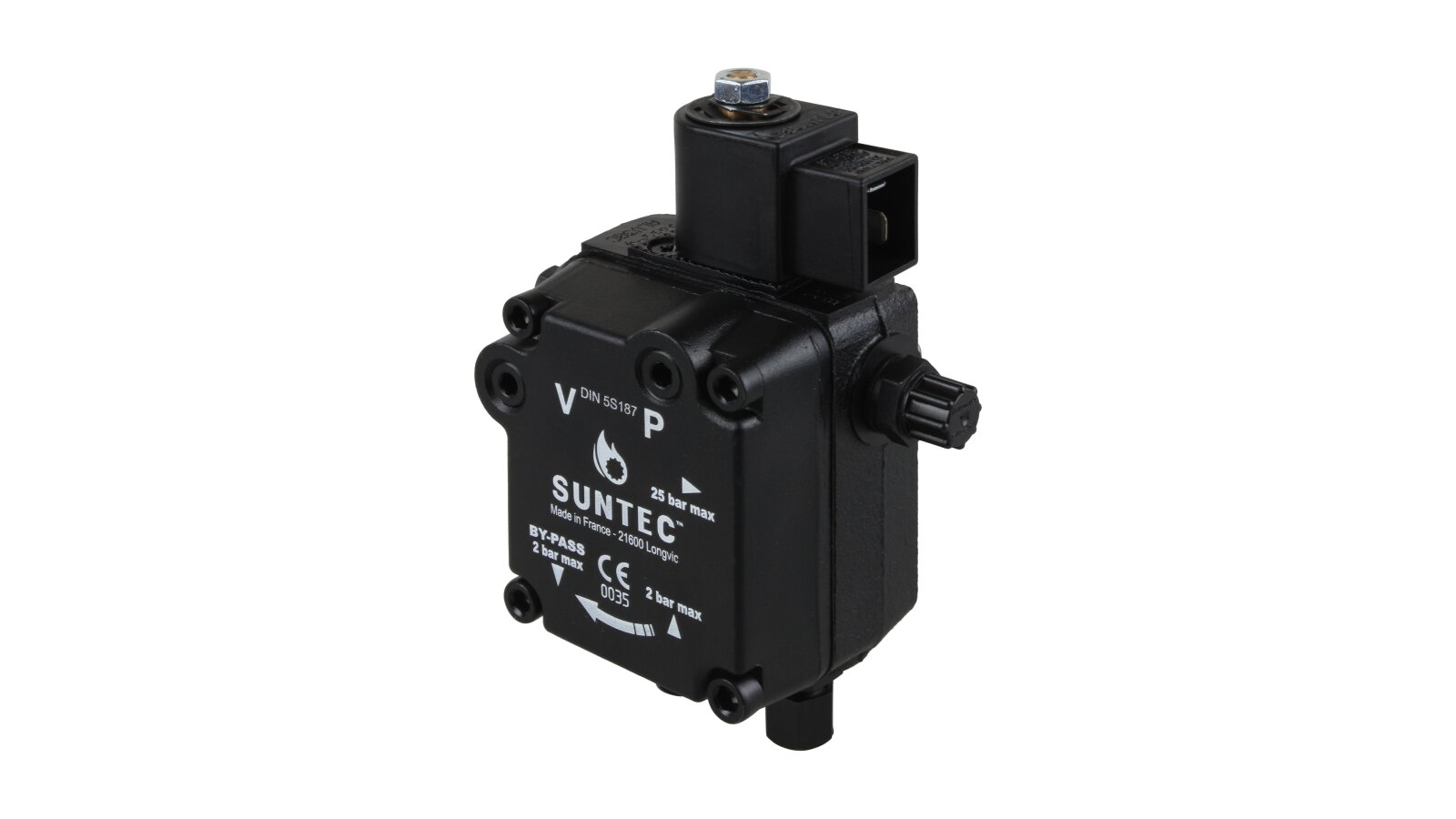

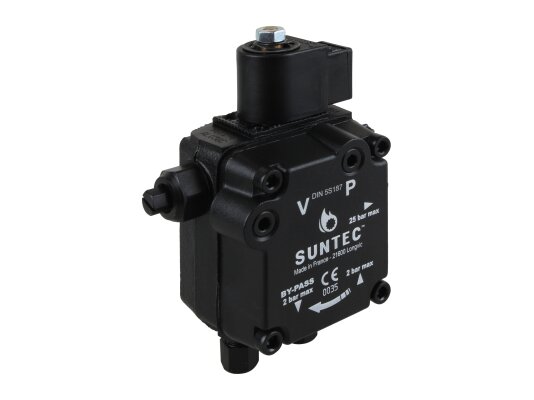

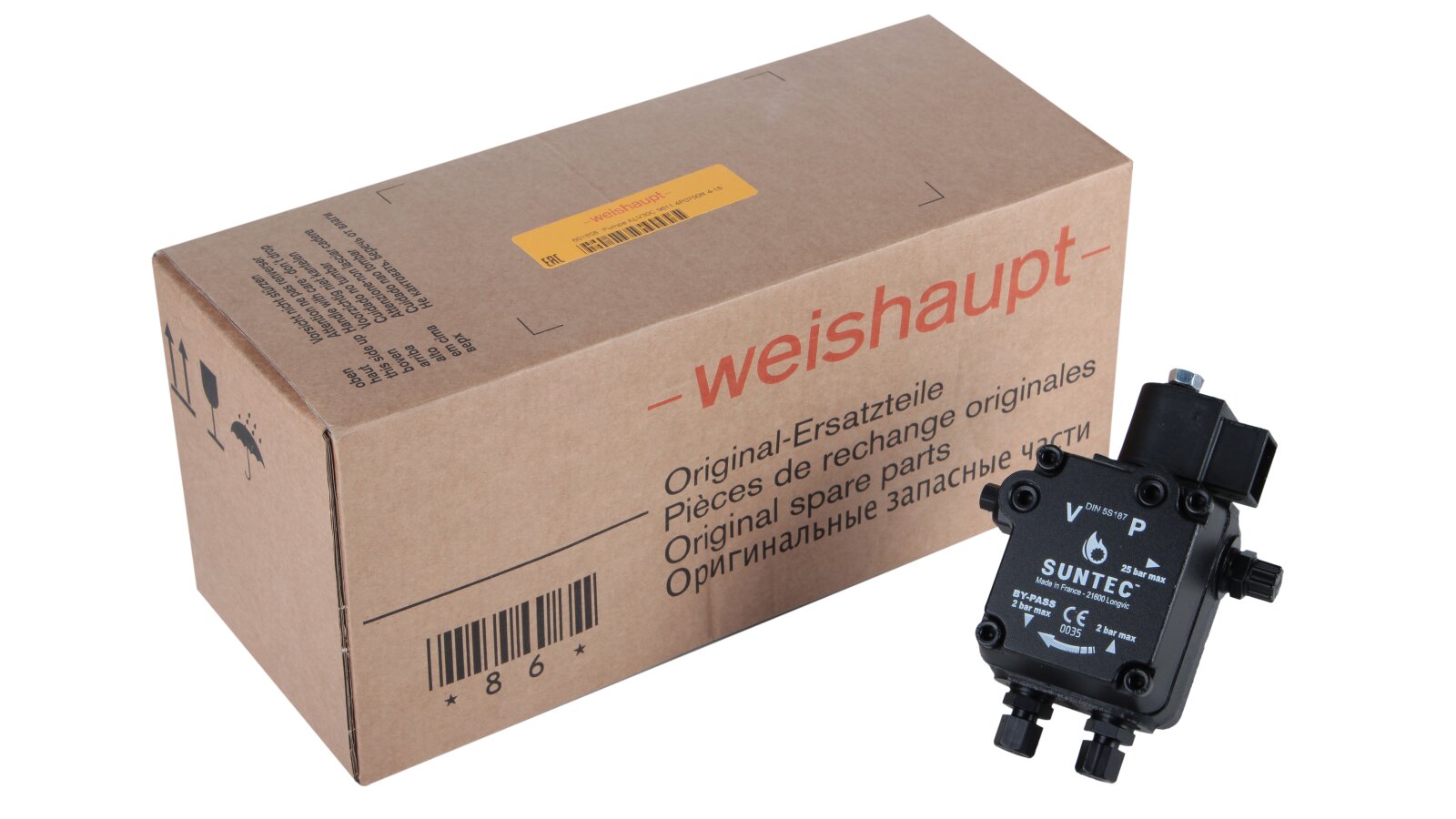

Burner Pump Weishaupt AL V 30 C 9611 4P 0700, 601858

Weishaupt601858

Alternative Part Number

Weishaupt

We601858

Weishaupt

We60185-8

AED 1,000

Oil Burner Pumps
Products code: 8557

Description

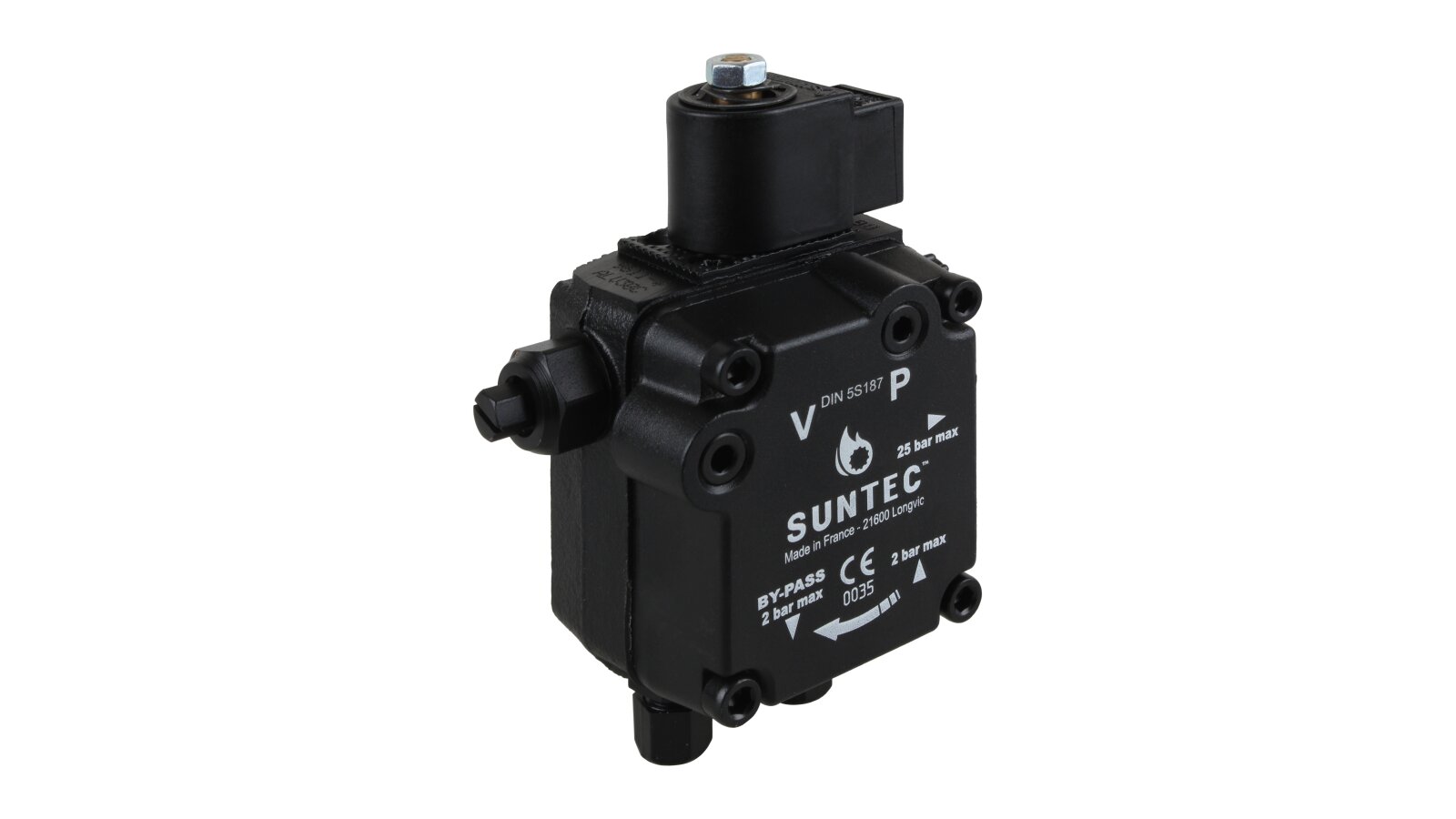

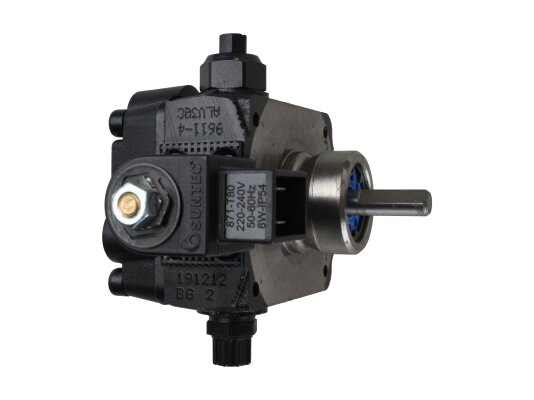

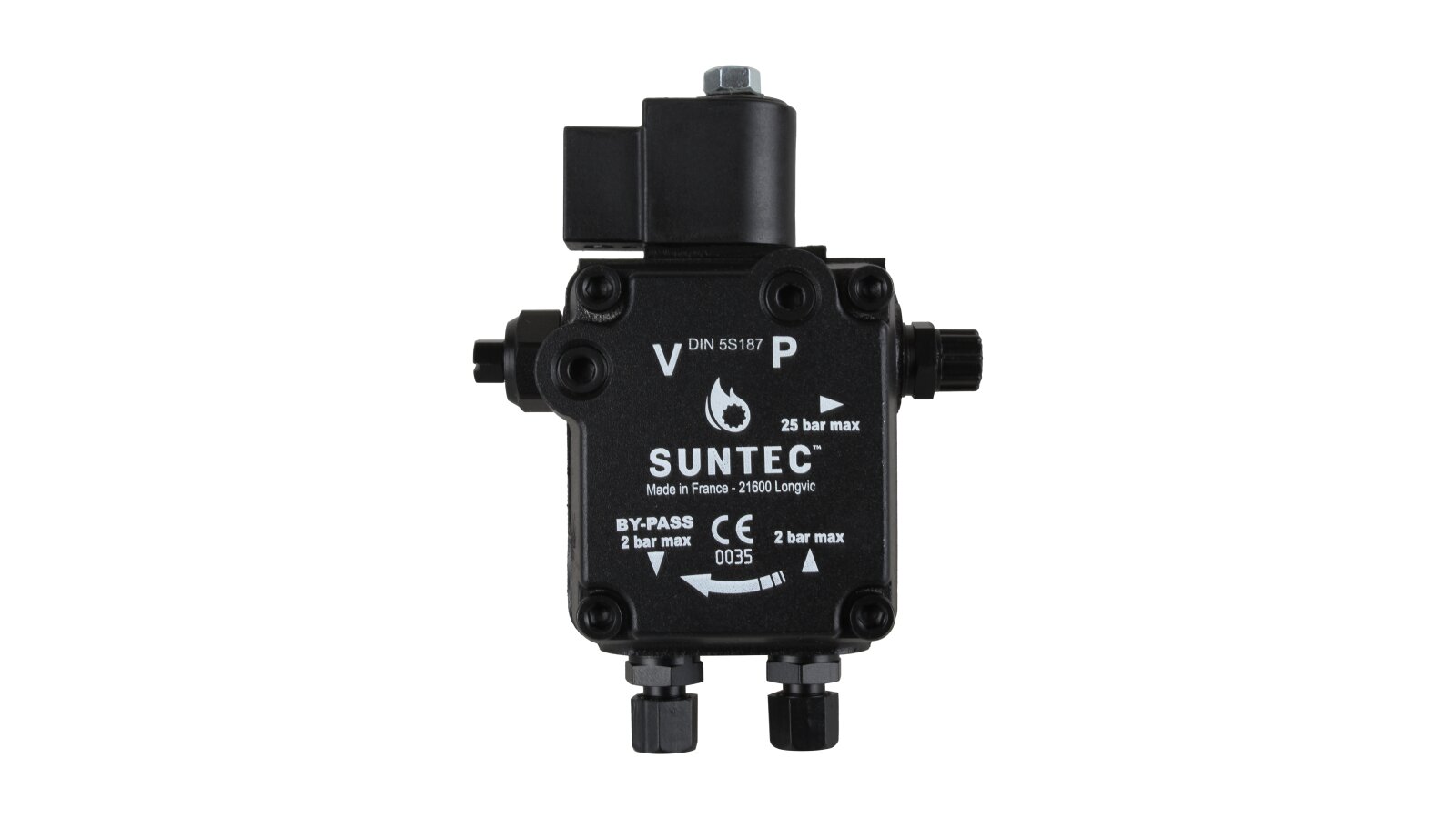

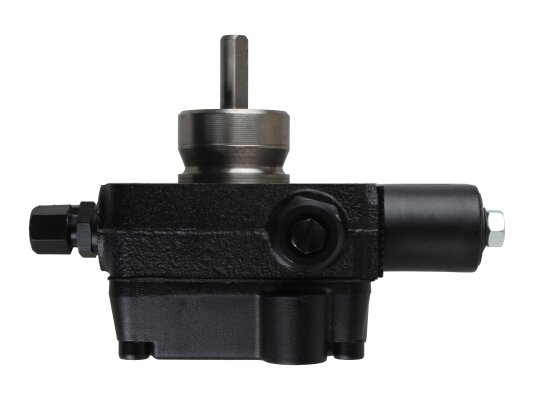

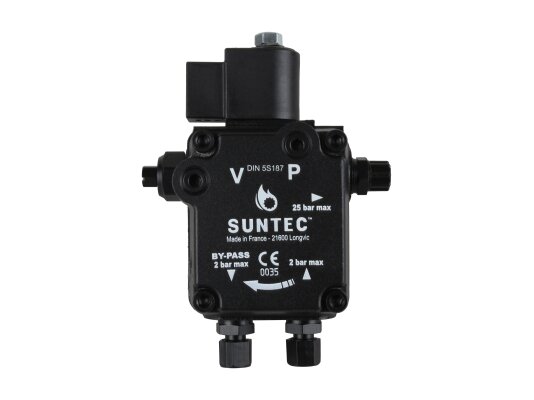

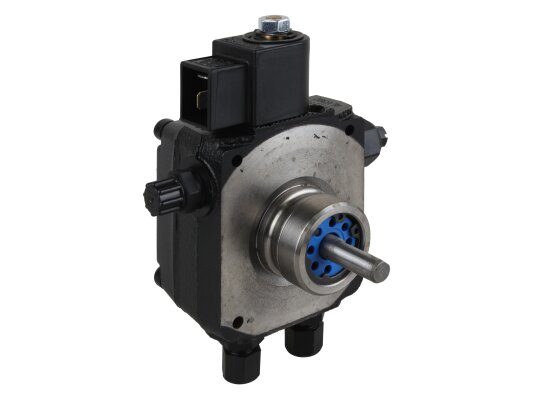

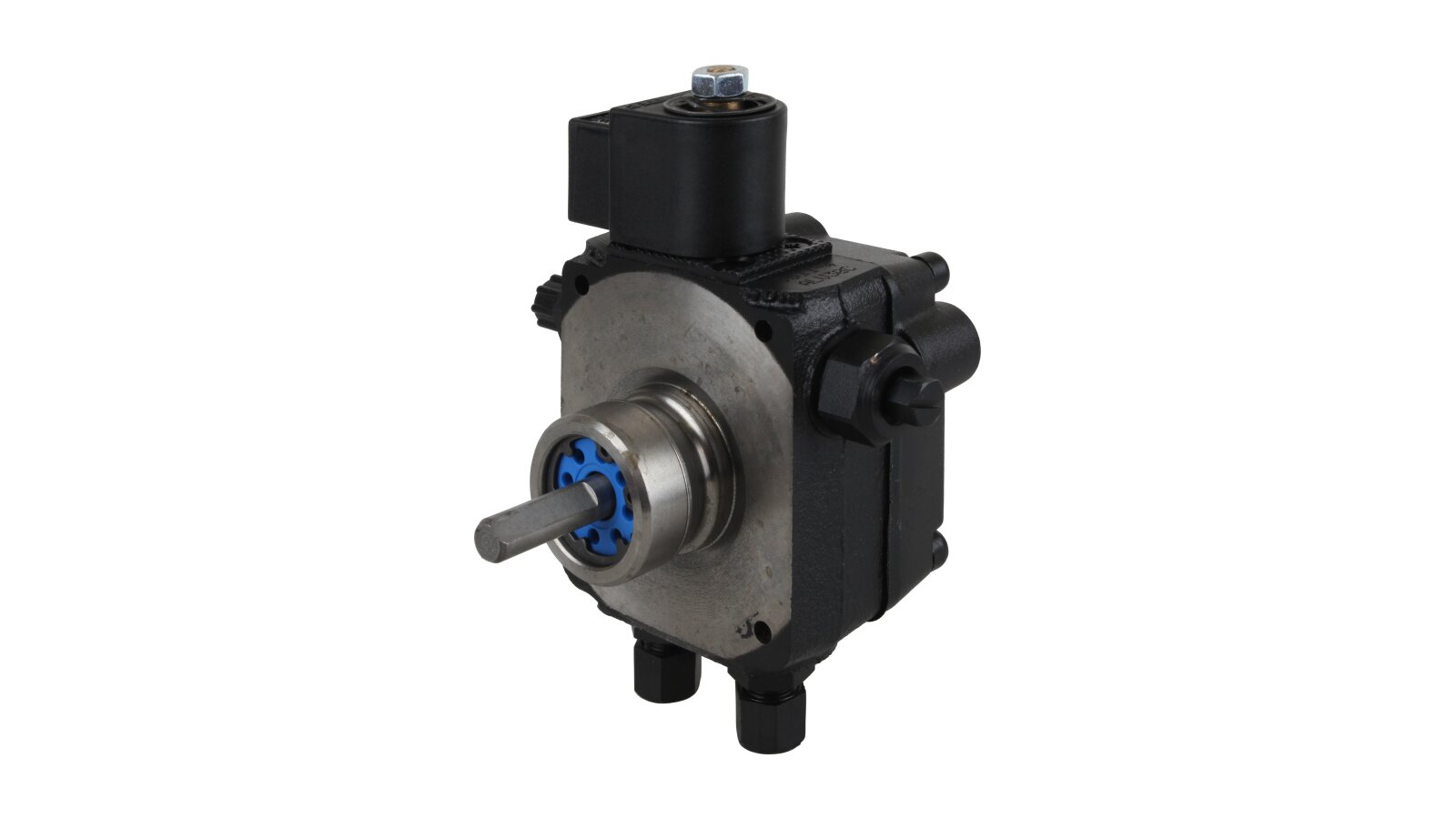

The Suntec AL V 30 C 9611 4P 0700R pump pumps diesel fuel and a mixture of biodiesel fuel B10. Comes complete with a locking electromagnetic valve with a shut-off function. It is characterized by reliable performance, stable operation, and long service life.

Features

  • The pump design is made in accordance with the IP54 standard. Dust and moisture do not penetrate inside the device, which contributes to reliable operation.

  • The gear mechanism responsible for pumping fuel from the tank to the injector line is protected from jamming and damage by a built-in filter. The mesh insert removes from the fuel all mechanical particles larger than 150 microns that can harm the working unit.

  • The electromagnetic "normally closed" valve is located in the injector line, which contributes to very fast response.

  • The pump is used to assemble a one-pipe and two-pipe system. With a two-pipe fuel pipeline, the bypass plug is installed in the return line, with a single-pipe, it is replaced with a steel plug with a washer.

  • Excess fuel is returned to the tank or to the gear pair, according to the pipeline layout diagram.

  • High-quality seals contribute to the safe operation of the pump. The pump is mounted using a ∅ 32 mm sleeve connection (EN 225 standard), which allows it to be installed in burners of most manufacturers.

Advantages:

  • pumping diesel fuel and biodiesel B10;

  • optimal performance;

  • blocking EM valve with a locking function;

  • dust and moisture-proof housing (IP54);

  • universal mounting method;

  • filter mesh for removing mechanical particles from the fuel;

  • installation variability - in systems with one or two pipes;

  • standard ports for connecting instrumentation;

  • uninterrupted, reliable service.

We offer to buy the Suntec AL V 30 C 9611 4P 0700R pump and other components for burners on the ANKAS website. Use the professional advice of our specialists when choosing equipment.

Characteristics

Manufacturer Part Number: 601858Performance at 11 bar pressure and 5 cSt viscosity: 40 l/hType of pumped liquid: diesel, biodiesel fuel blend B10Operating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 40 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftMaximum pressure of the solenoid valve: 25 barTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 4 to 18 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: sleeve ∅ 32 mmDegree of protection: IP54
