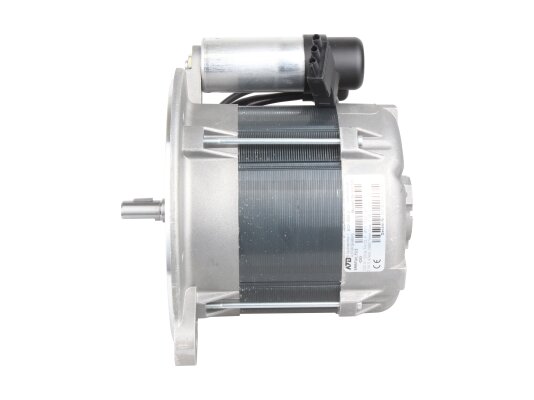

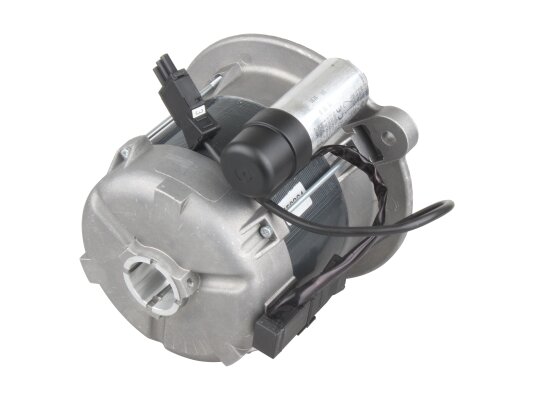

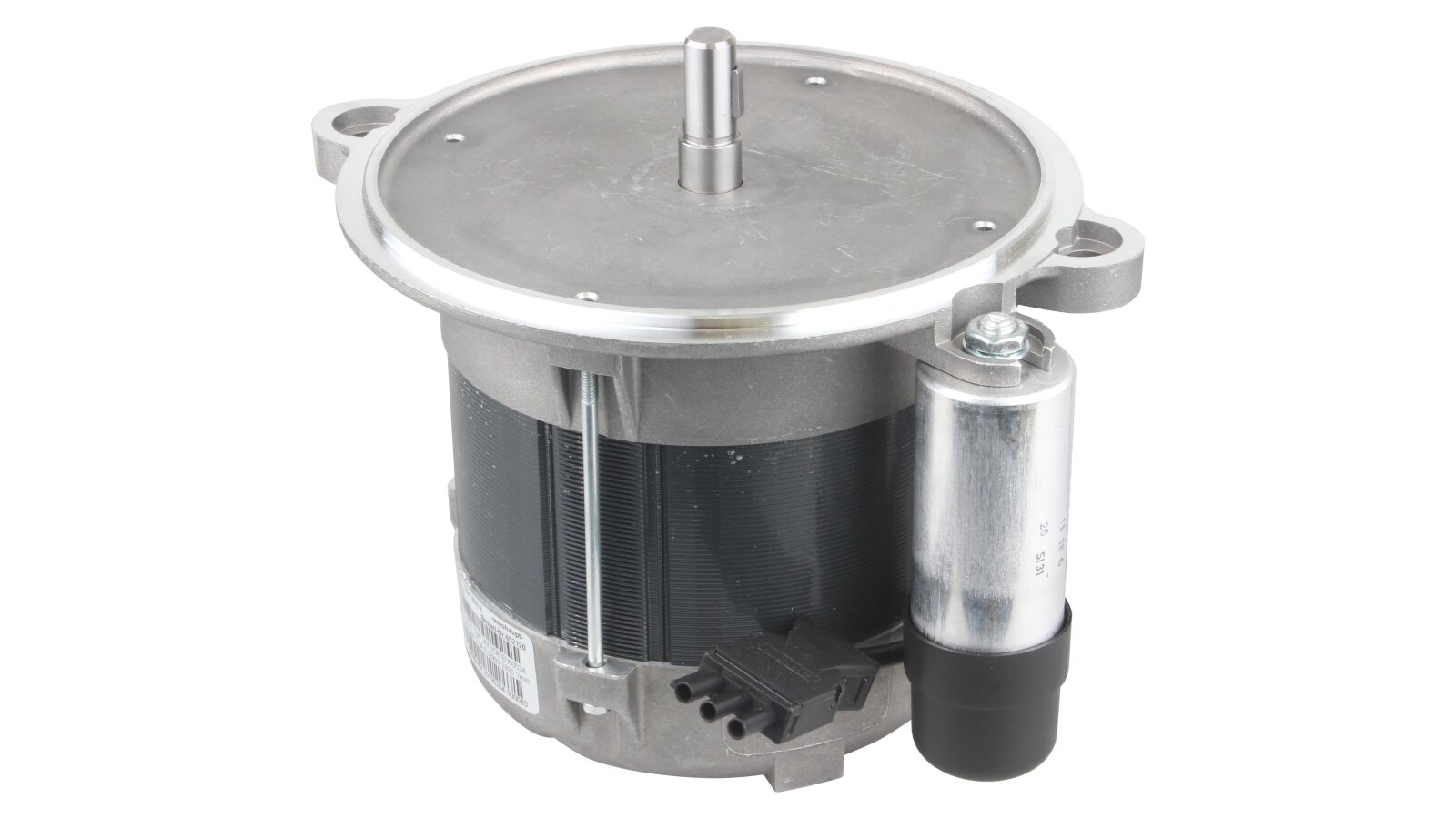

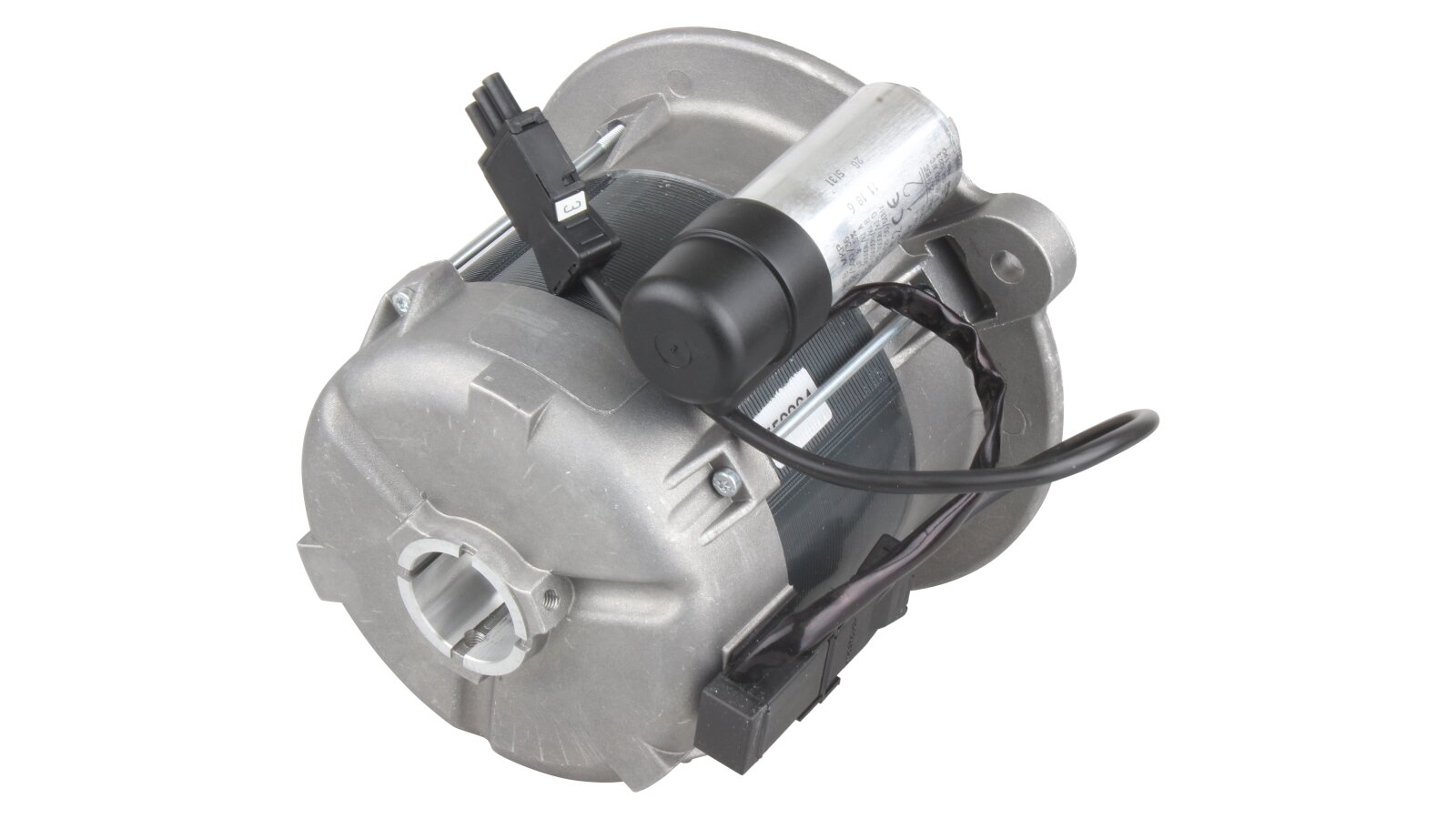

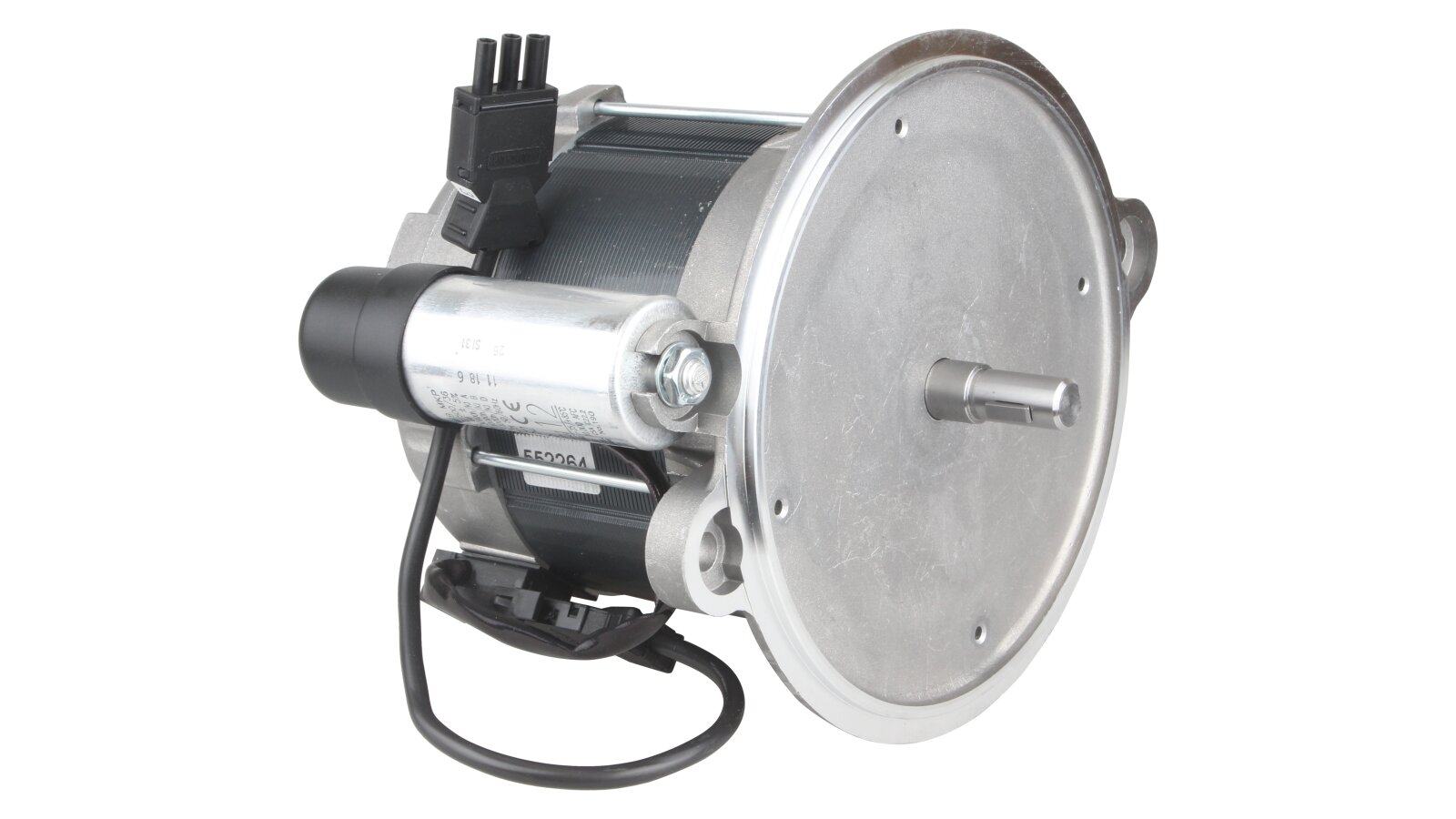

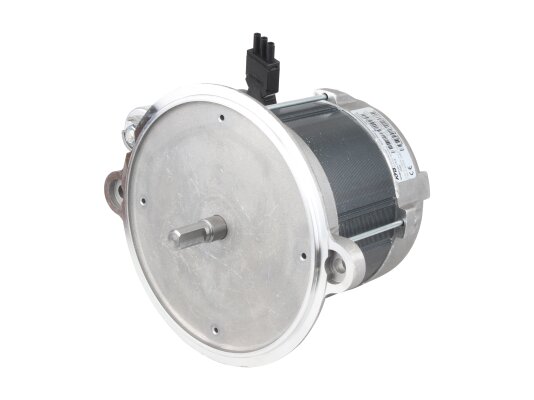

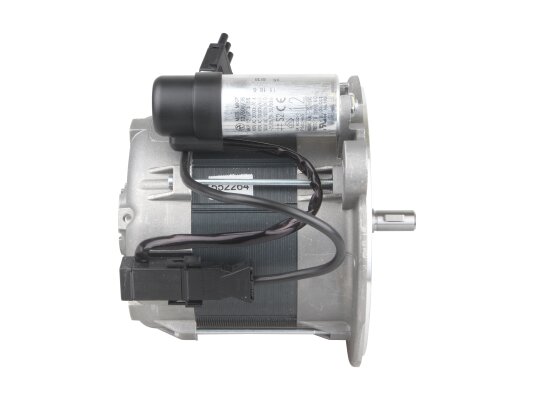

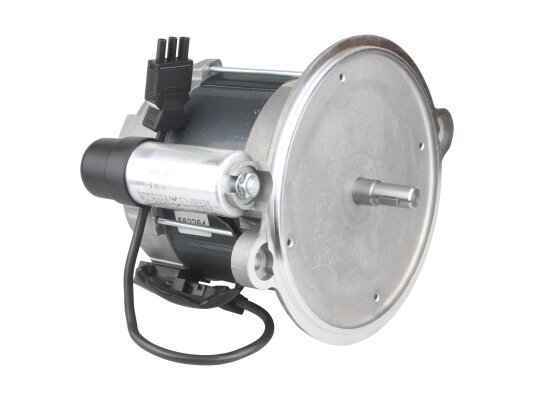

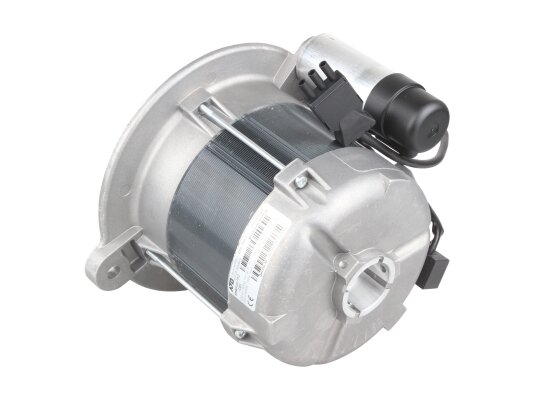

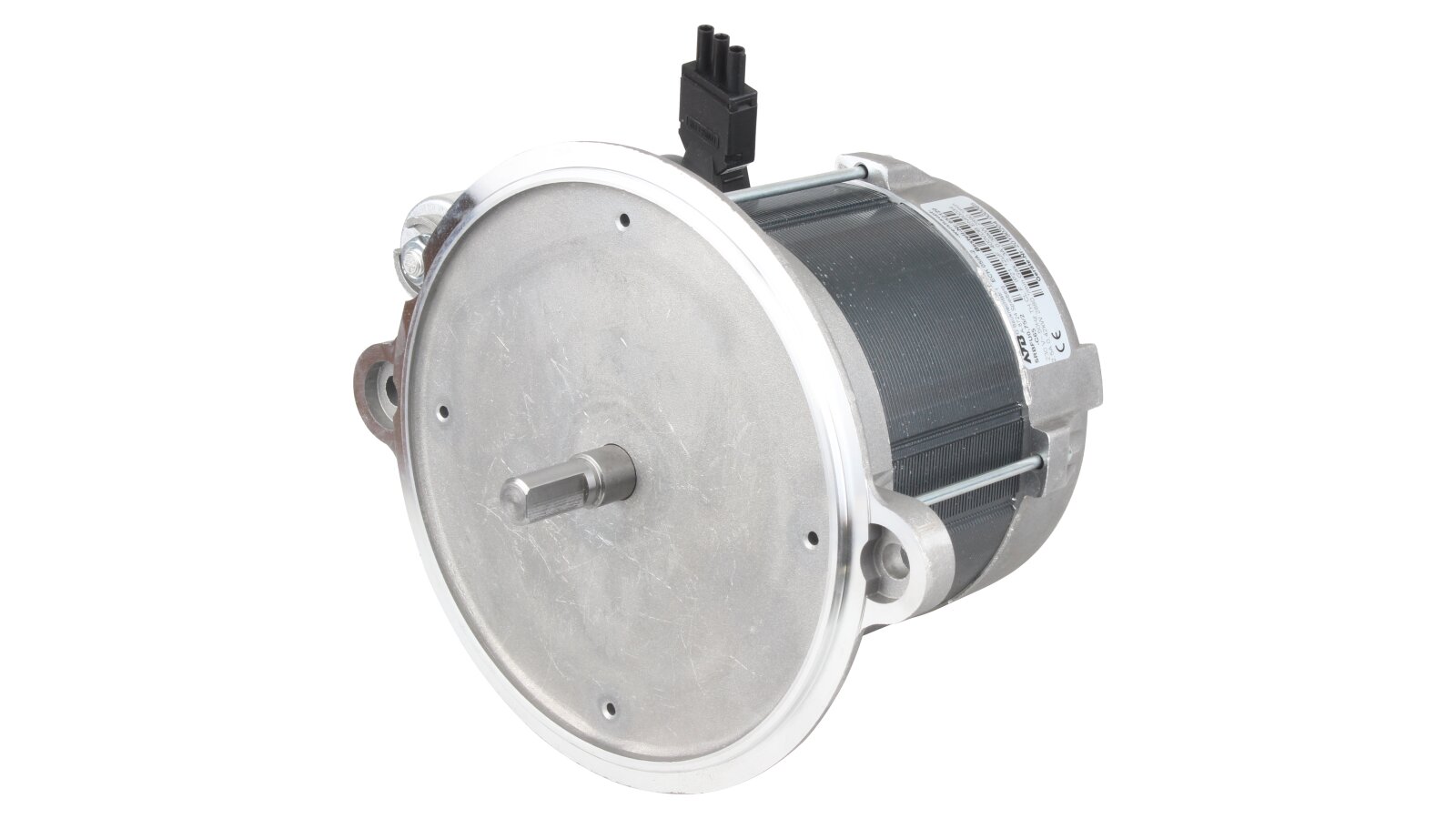

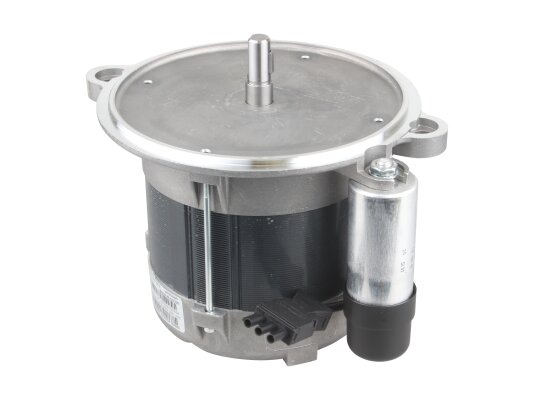

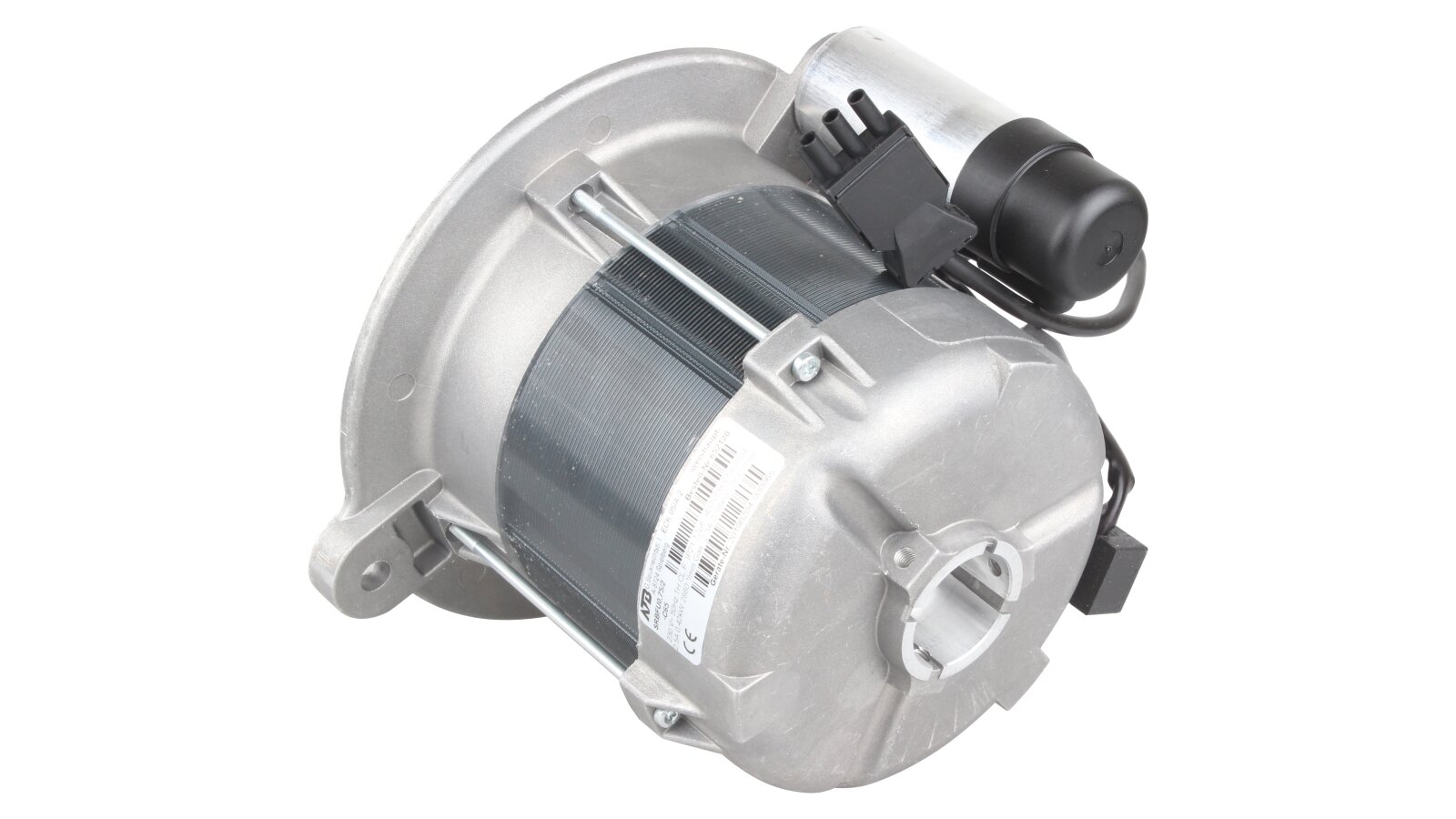

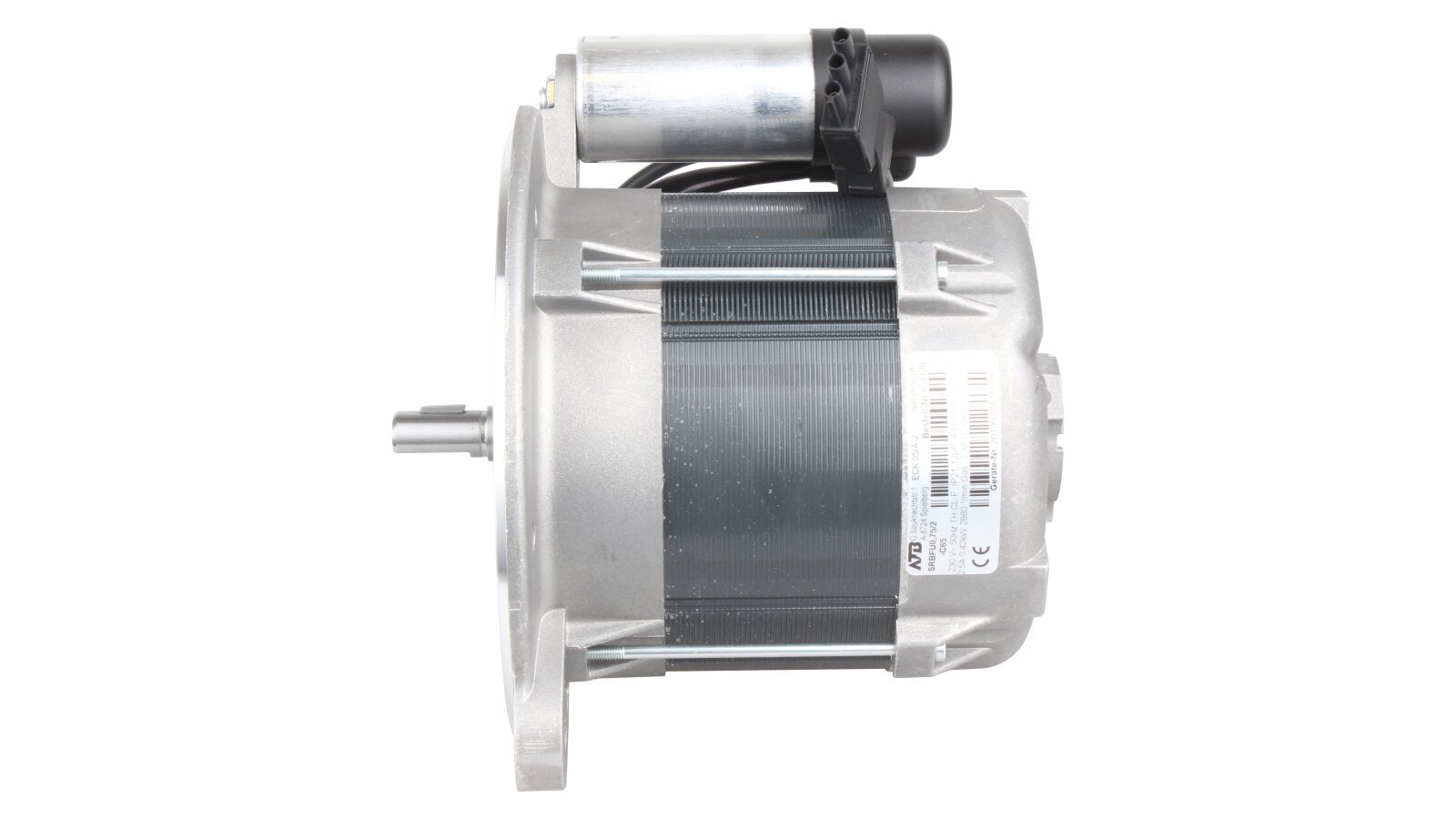

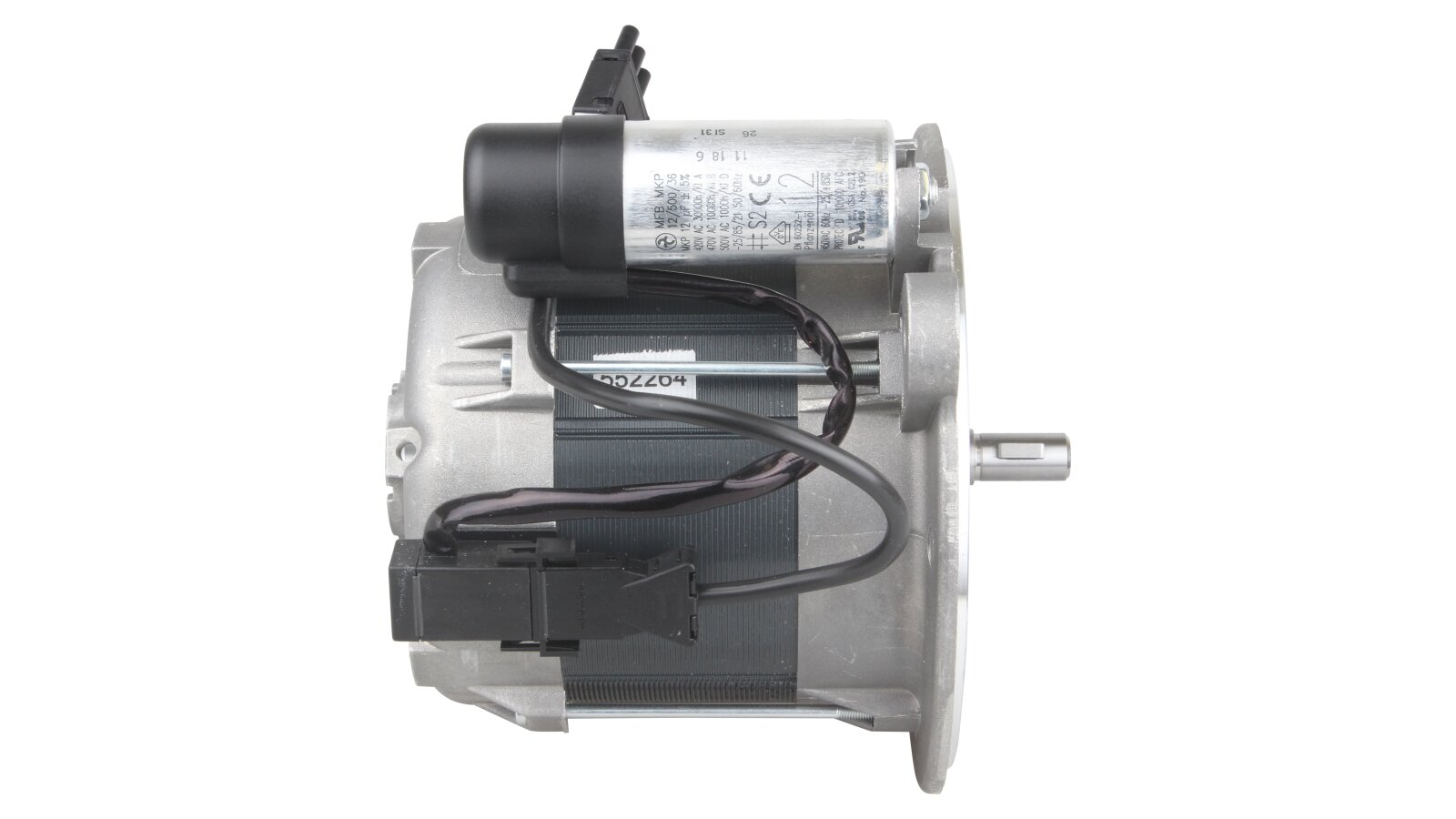

Motor Weishaupt ECK05/A-2

Weishaupt652120

Alternative Part Number

Weishaupt

We652120

  • Discontinued
Burner Motors
Products code: 54469

Description

The Weishaupt ECK05/A-2 electric motor, art. 652120 with a squirrel-cage rotor is designed to equip forced-air gas and liquid fuel burners. It is equipped with a starting capacitor with a capacity of 12 μF to increase the torque at the moment of starting and to equalize the voltage parameters. The equipment is highly resistant to corrosion, overheating, and is made of wear-resistant materials. Conforms to the EN 60034 standard.

Features:

  • power supply from a single-phase 230 V power supply;

  • corrosion-resistant, highly reliable design;

  • power 420 W / 380 W depending on the application;

  • with a connected 0.28 m power supply cable;

  • start using a power contact, frequency converter;

  • casing made of cast aluminum, resistant to corrosion;

  • dust and moisture protection level - IP 21;

  • insulation heat resistance class F;

  • maximum heating temperature of the stator winding +155°;

  • standard shaft Ø12.7 mm.

For uninterrupted operation of the Weishaupt ECK05/A-2 electric motor, it is necessary to exclude exposure to moisture, voltage surges and ensure an optimal temperature regime.

Characteristics

Manufacturer Part Number: 652120Electric power: 380 / 420 WAmperage: 2.3 / 2.5 ACurrent frequency: 50 HzShaft diameter: 12.7 mmElectric power: 0.38 / 0.42 kWCapacitor capacity: 12 µFLength of power cable: 280 mmShaft length: 15 mmDegree of protection: IP21Insulation class of wires: FVoltage: 220 V
