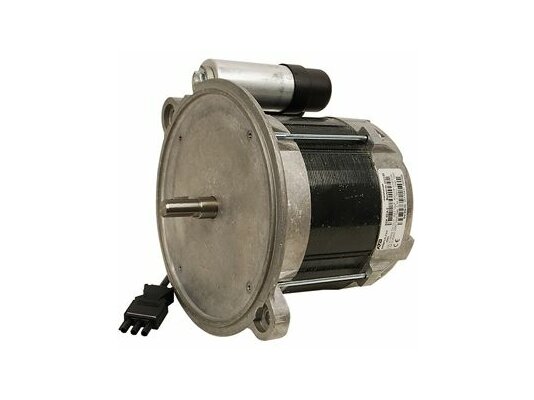

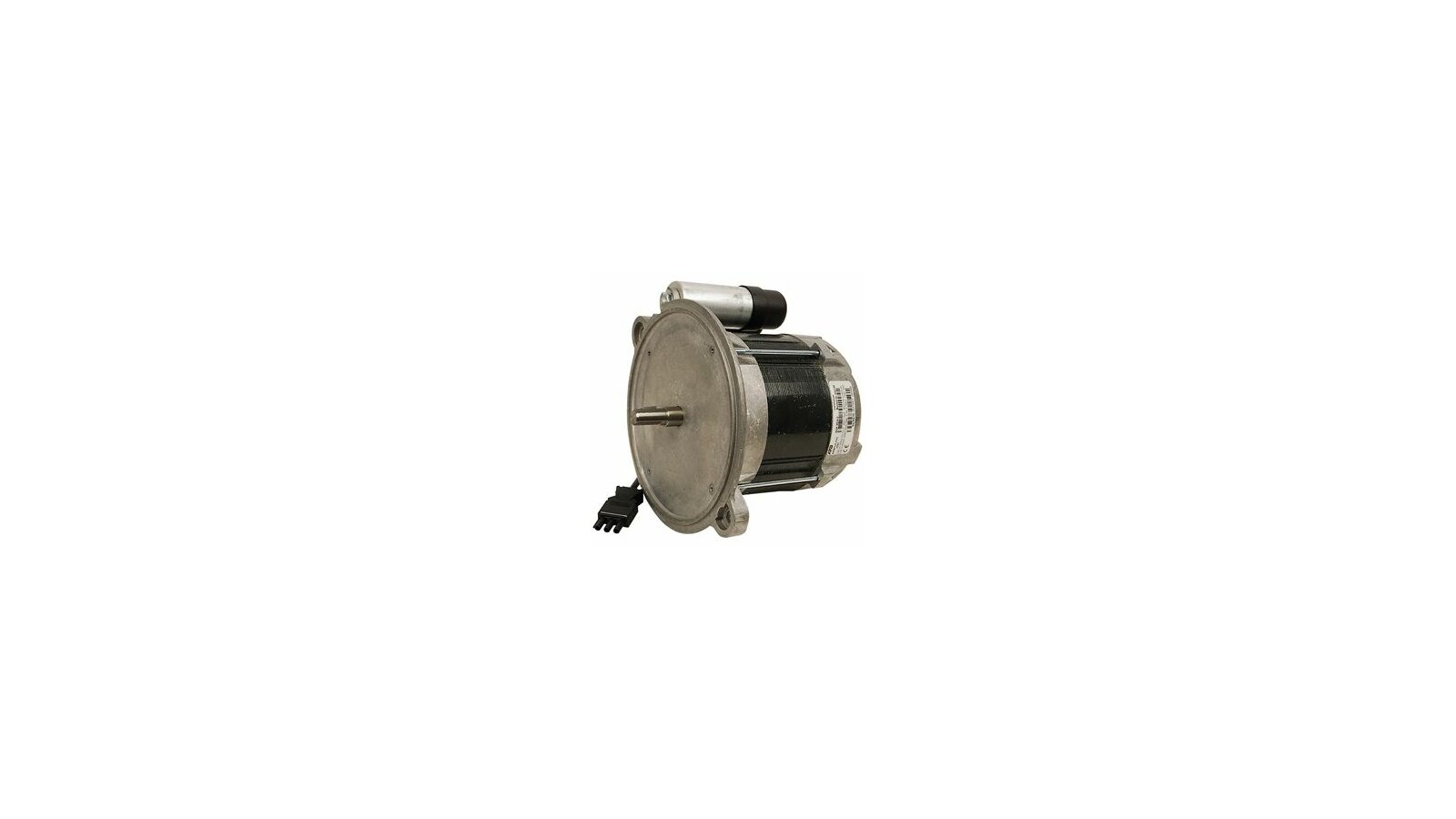

Motor Weishaupt ECK05/F-2

Electric motor Weishaupt ECK05/F-2, art: 652044 is used to complete blown gas and liquid fuel burners. The device with a squirrel-cage rotor is manufactured according to European electrical safety standards. Equipped with a proprietary starting capacitor with a capacity of 12 μF to increase the torque at the moment of starting and to equalize the voltage parameters. The motor is made of reliable components, resistant to loads and overheating.

Features:

• Operating voltage 230 V;

• Corrosion-resistant design of high reliability;

• Power 420W/380W depending on the area of ​​application;

• With an attached power cable 0.28 m;

• Start using a power contact, frequency converter;

• Reliable housing made of cast aluminum, resistant to corrosion;

• Dust and moisture protection level - IP21;

• insulation heat resistance class F, permissible heating of the stator winding up to +155°;

• standard shaft Ø12.7 mm.

For reliable and long-term service of the Weishaupt ECK05/F-2 electric motor, it is necessary to exclude exposure to moisture, voltage drops and create optimal temperature conditions taking into account the manufacturer's recommendations.
