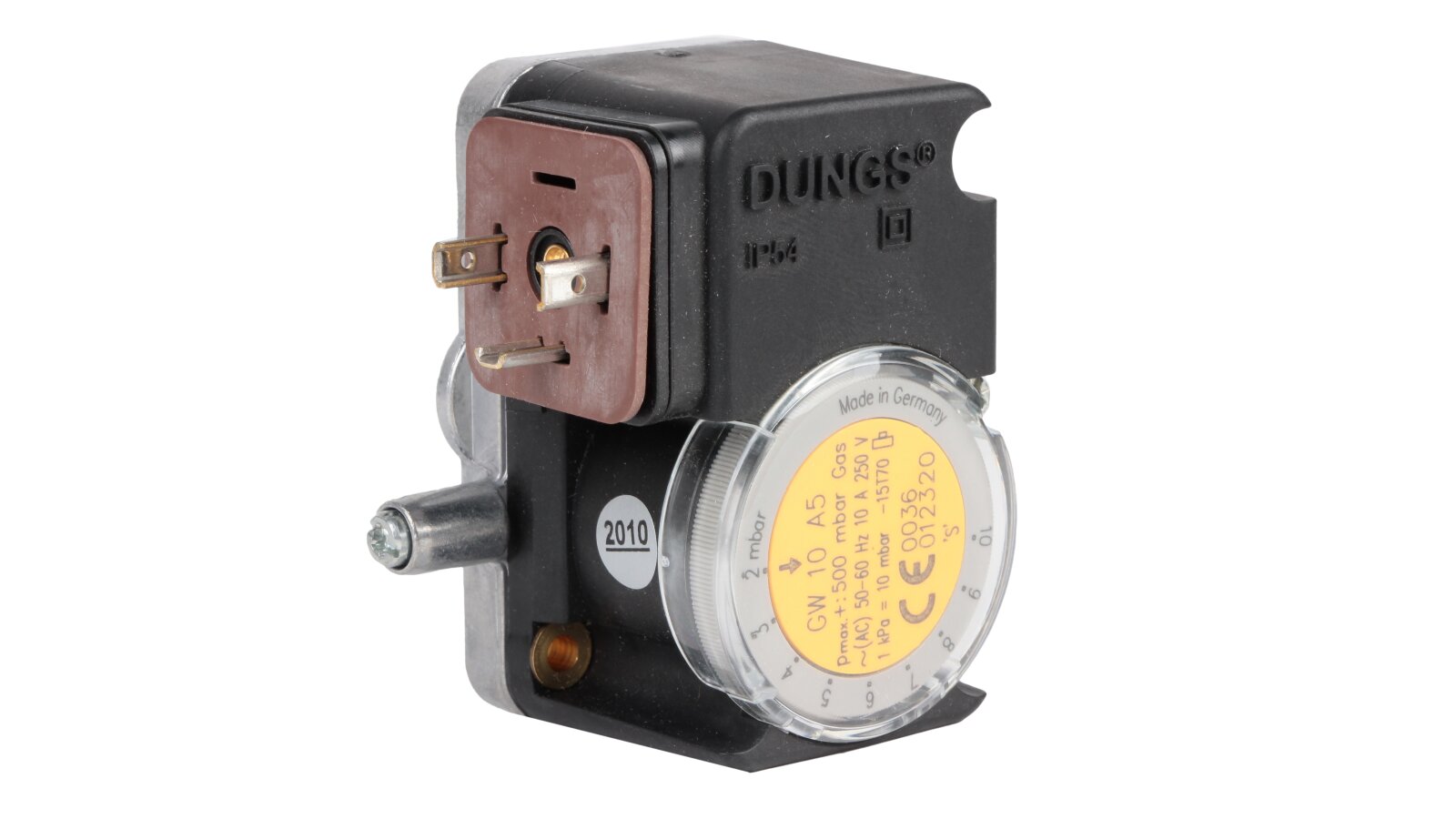

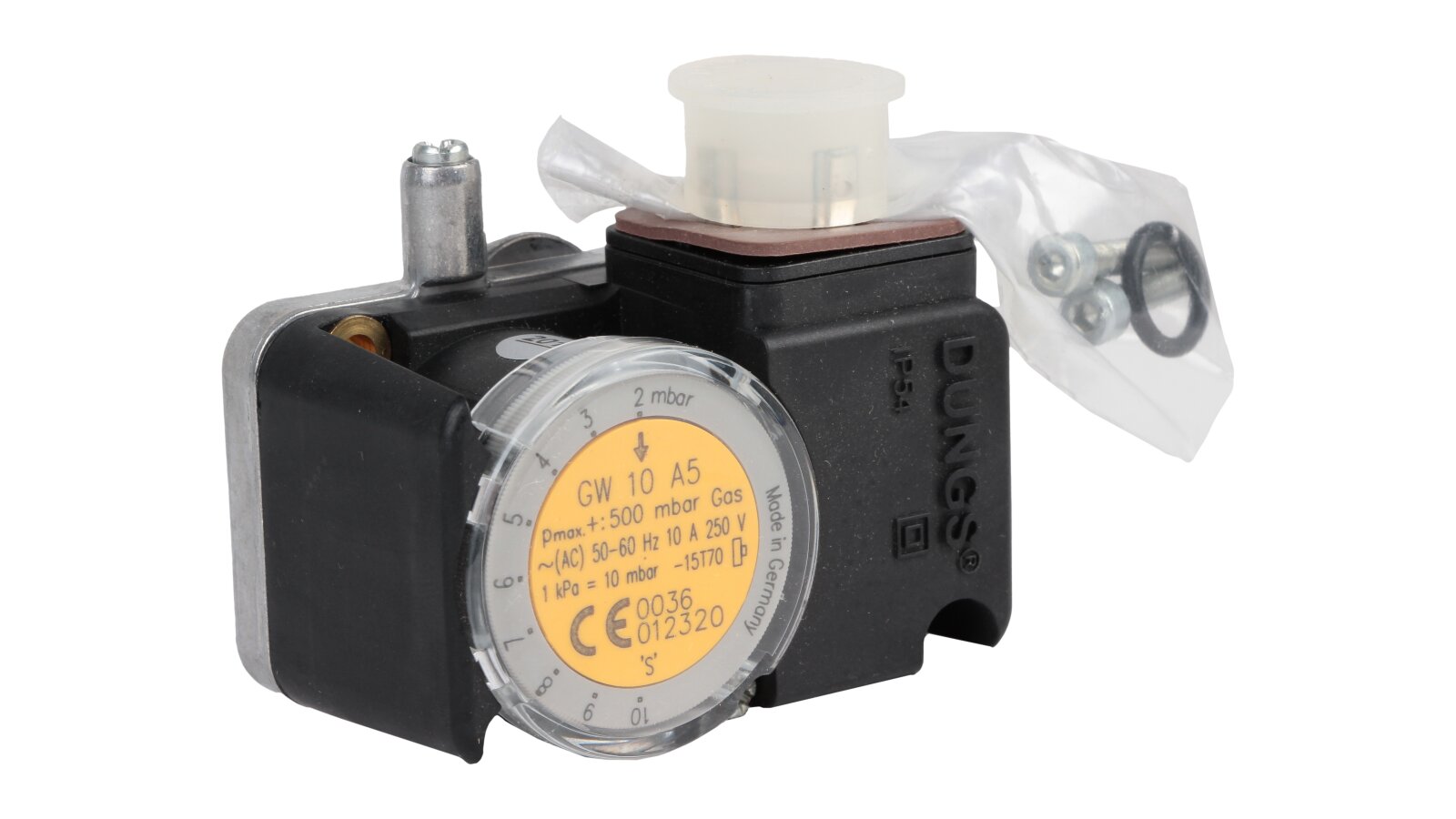

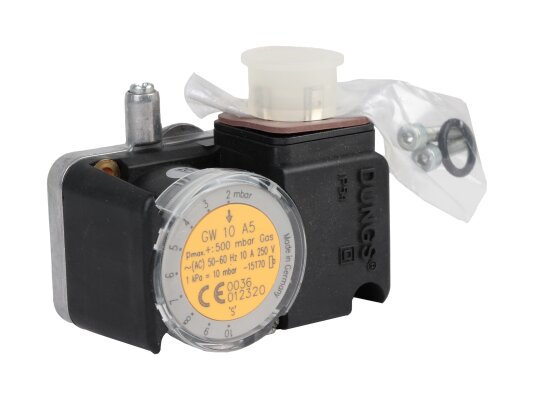

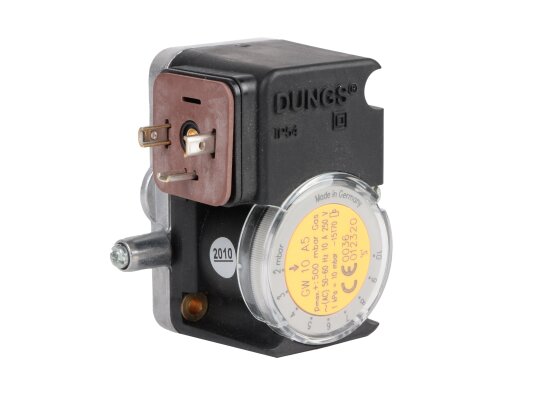

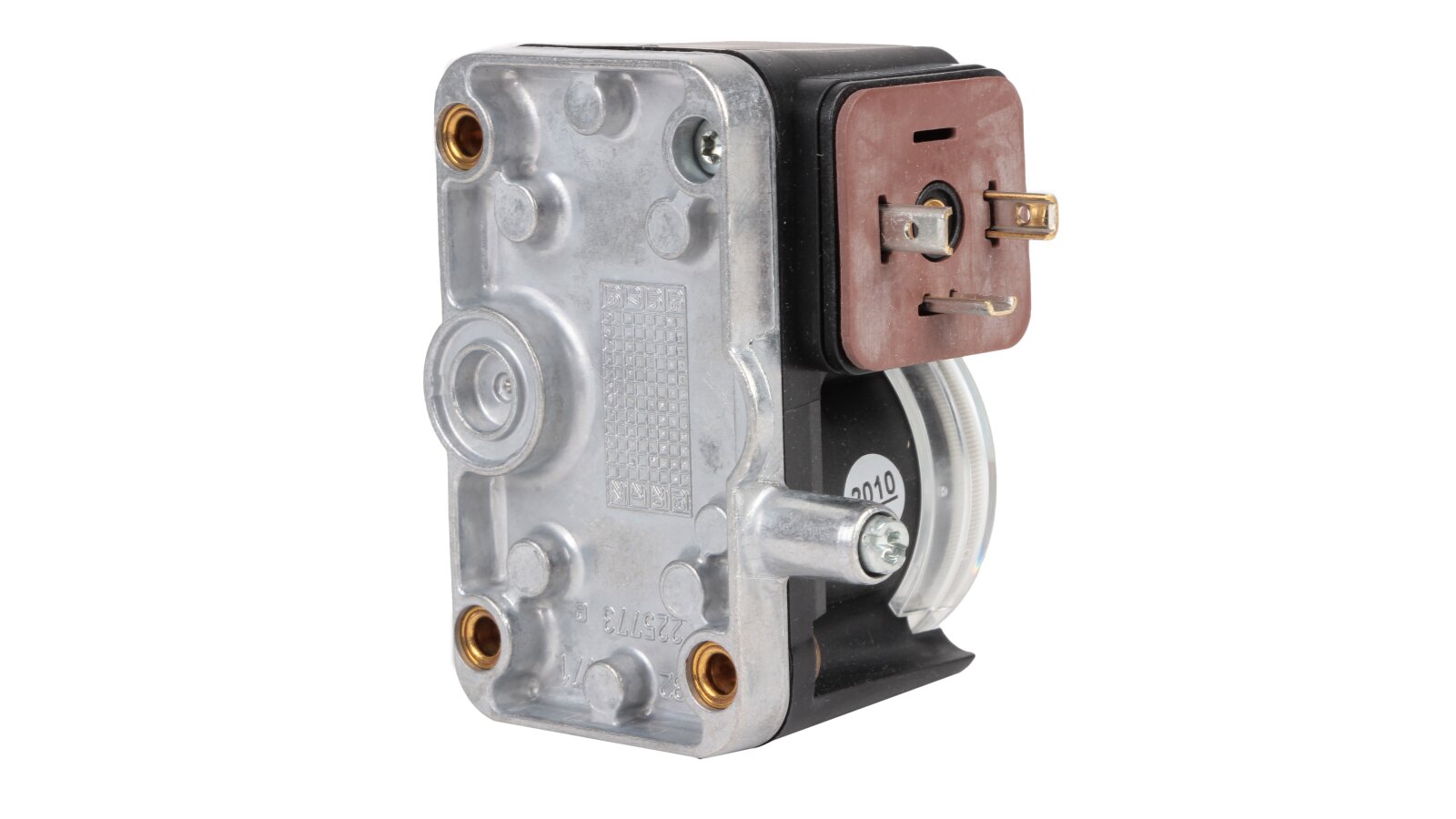

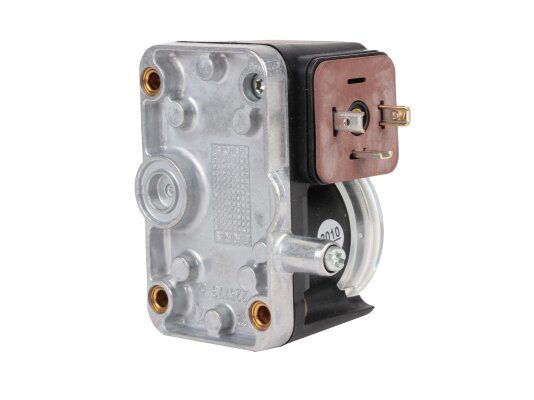

Pressure switch Dungs GW 10 A5

Dungs272350

Alternative Part Number

1768836464

FBR

172751

AED 405

Pressure Switches
Products code: 16686

Description

The Dungs GW 10 A5 gas pressure switch is used to equip combustion units with a maximum pressure of 500 mbar. The device is manufactured in accordance with EU standards and has a certificate of conformity according to EN 1854. The sensor switches the circuit on, off or toggles it to a certain pressure value when the actual pressure changes. The relay is used to monitor excess pressure/vacuum pressure.

Features

  • The Dungs GW 10 A5 relay is triggered at the switching point and transmits a signal to the burner automation. The design of the device allows it to be used at temperatures from -15°C to +70°C.

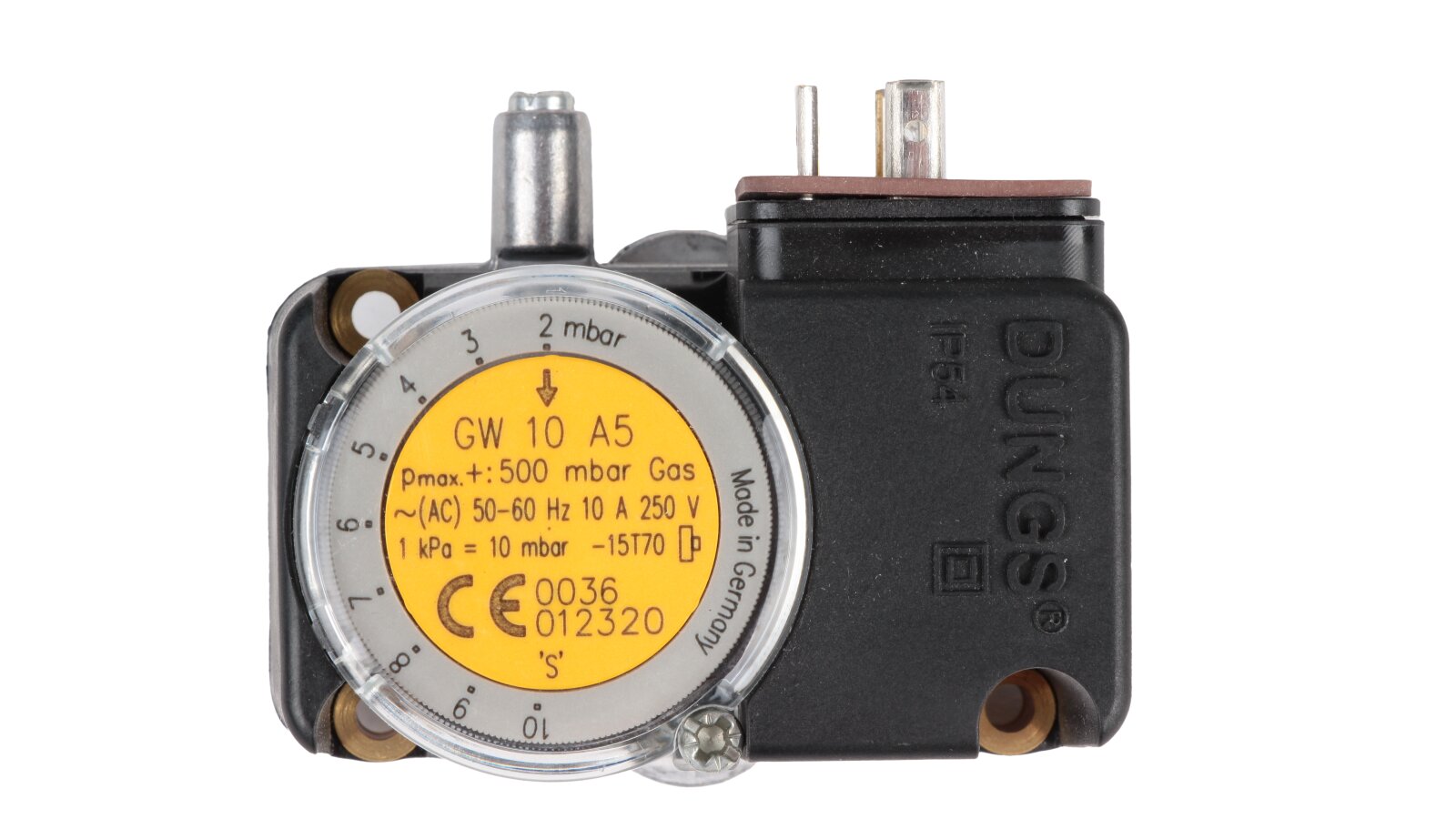

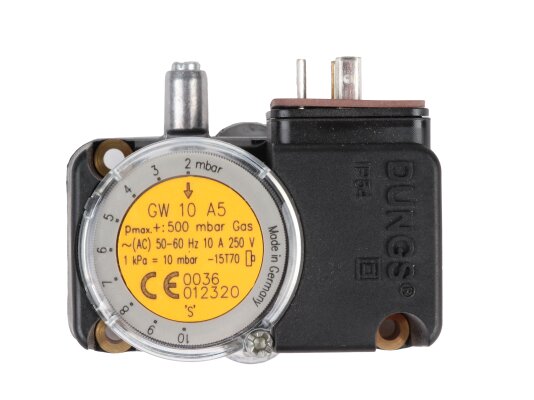

  • The switch is adjusted manually using an adjustment disk with digital markings. Setting range: from 2 to 10 mbar, response range – 1.5 mbar.

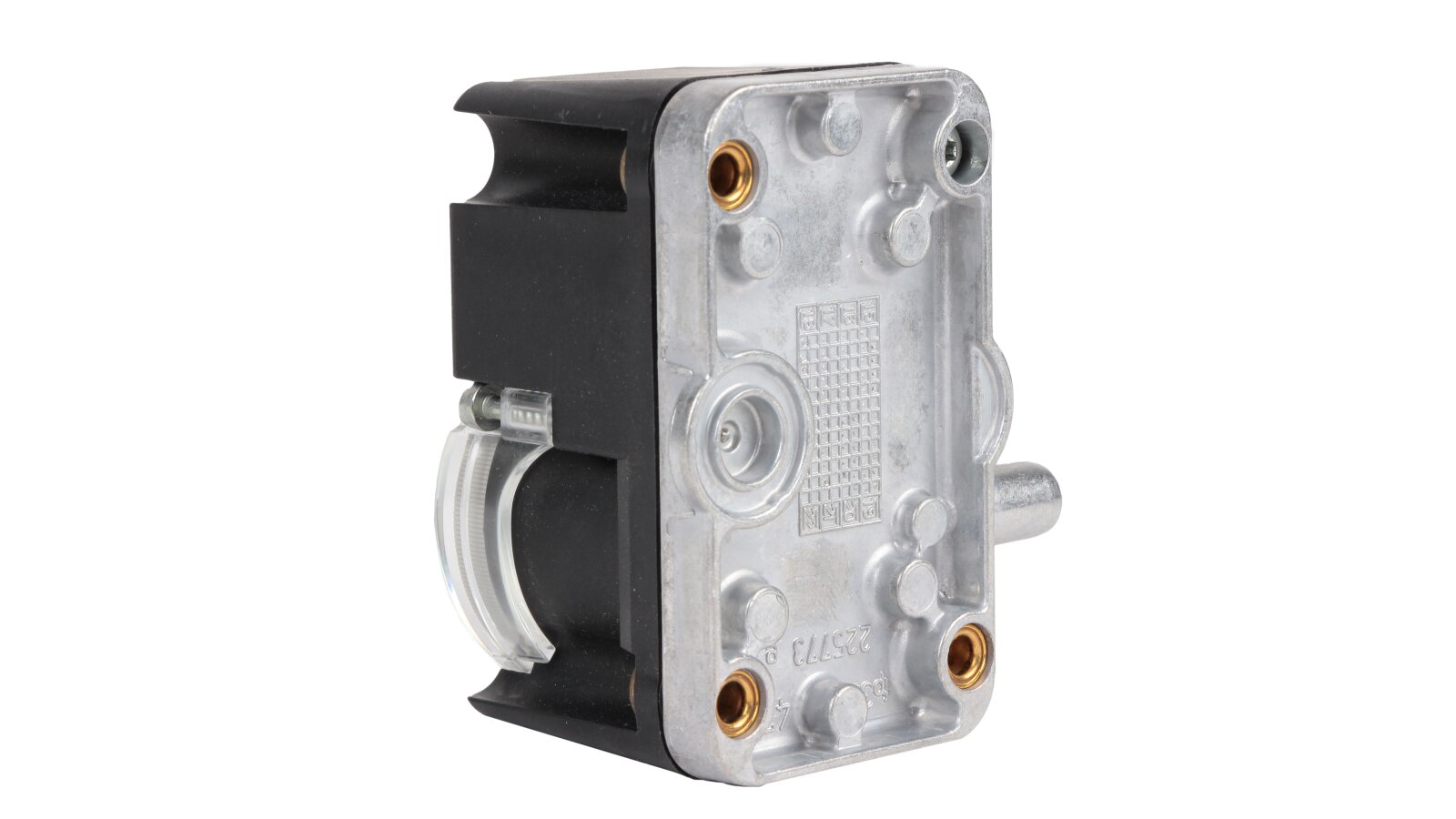

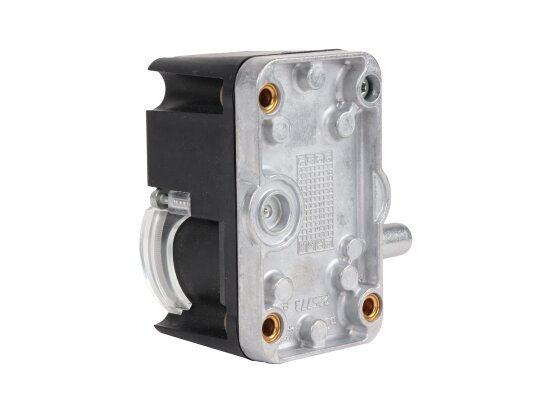

  • The aluminum housing of the relay provides reliable protection against mechanical impacts, water and dust particles. Electrical contacts are protected according to IP 54. The switch is made of polyamide, the membrane is NBR. Switching contact is Ag.

  • The device reliably performs its functions at ambient and working environment temperatures from -15°C to +70°C.

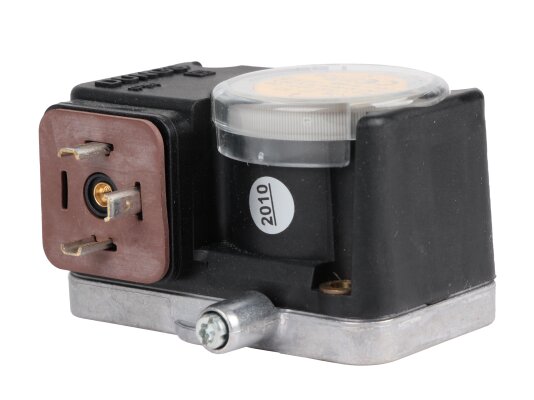

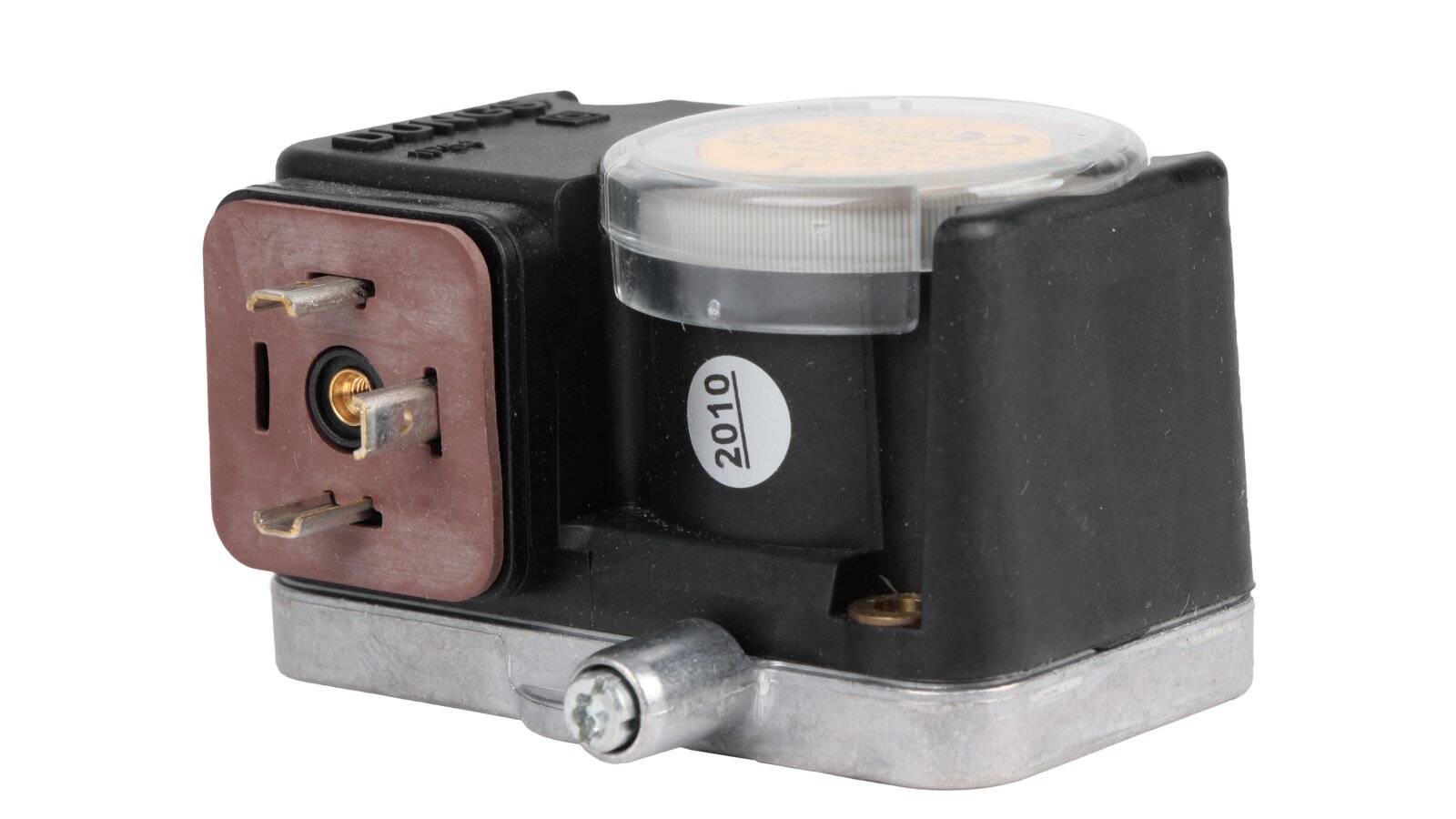

  • The relay is easy to install and connect. A plug connection is provided for linear sockets according to DIN EN 175 301-803 with protective insulation, without grounding.

Advantages:

  • Impact-resistant aluminum housing;

  • Stable response;

  • Protection of electrical contacts according to IP 54;

  • Reliable operation in a wide temperature range;

  • Easy installation in a gas pipeline.

Installation

The relay is mounted in the gas line vertically (optimal position) or in another position. If you select an orientation other than the recommended one, the sensor will switch the circuit at a higher or lower pressure value from the set one, within ≤ ±15%. On the website you can buy a gas pressure relay Dungs GW 10 A5 article 272350 and other elements of gas automation. All products have passed safety and reliability tests, are supplied with a guarantee and installation and operation documents.

Characteristics

Manufacturer Part Number: 272350Working environment: flammable gasesOperating ambient temperature: from -15 to 70 °CMaximum working pressure: 500 mbarResponse range: from 0 to 1.5 mbarAdjustment range: from 2 to 10 mbarType of connection: DIN plugFor controlling: excess pressure / vacuum pressureDegree of protection: IP54
