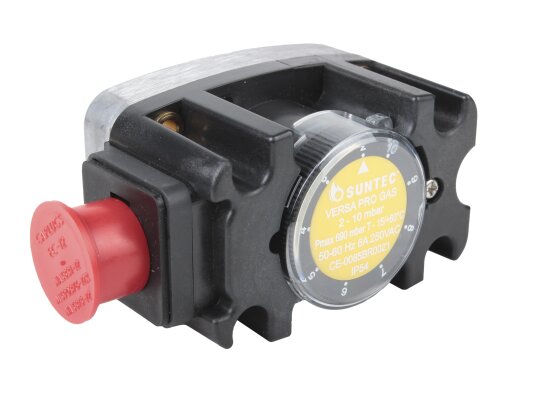

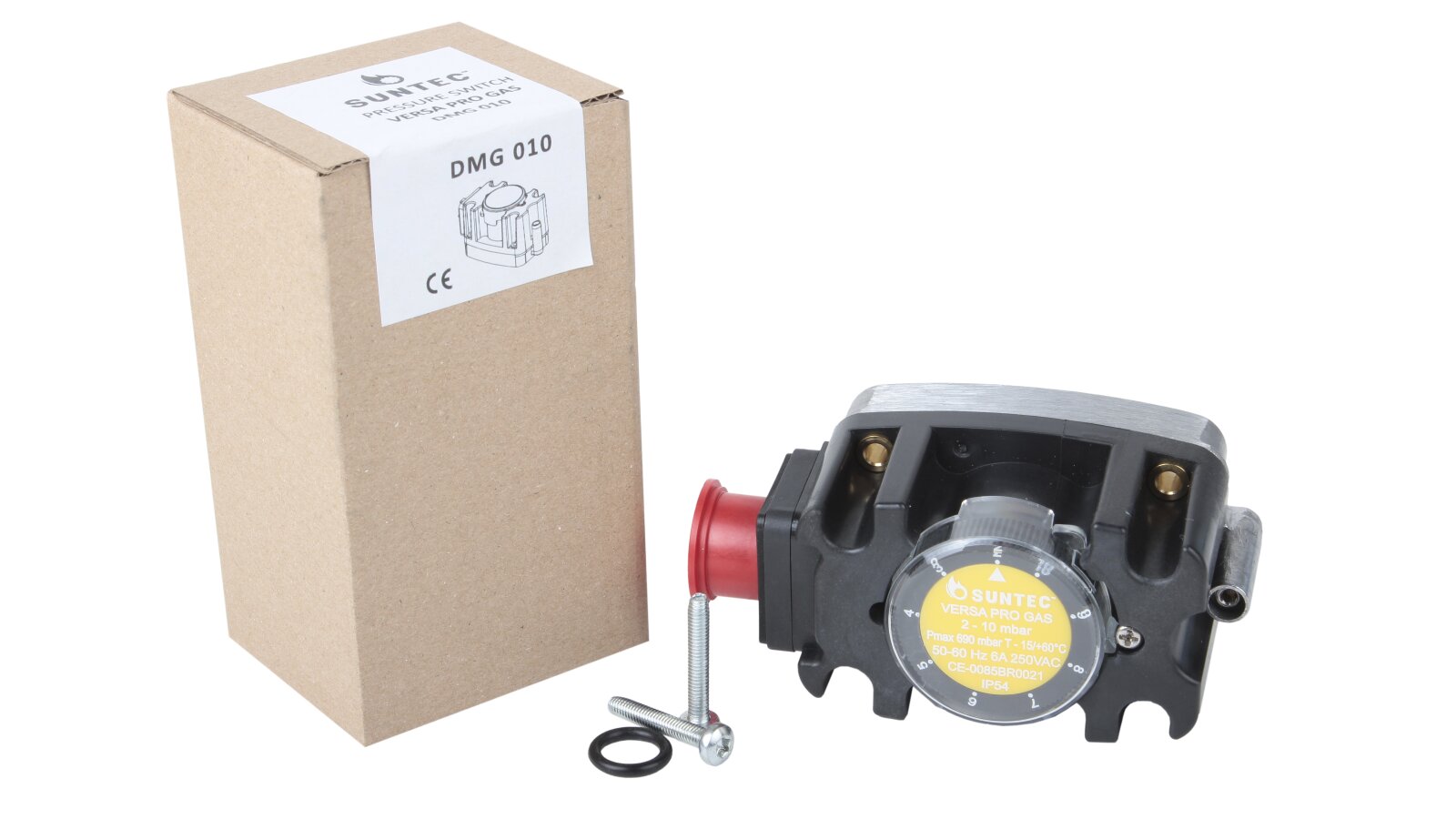

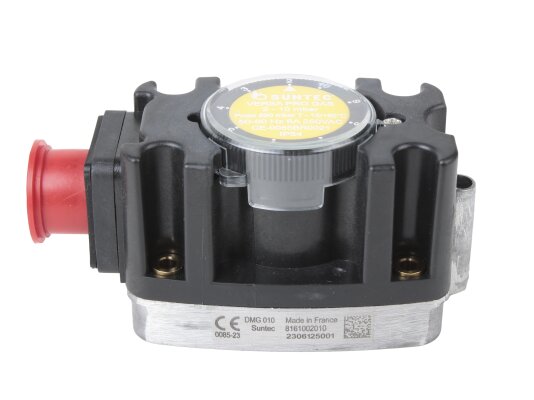

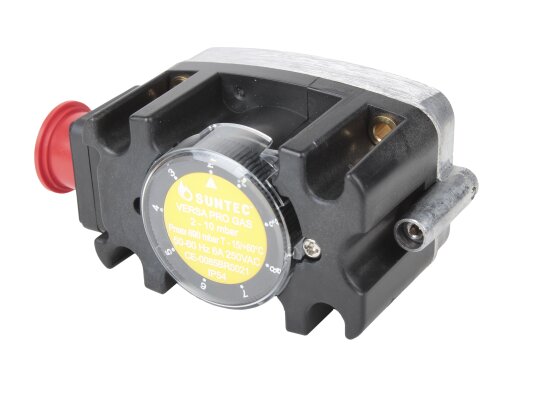

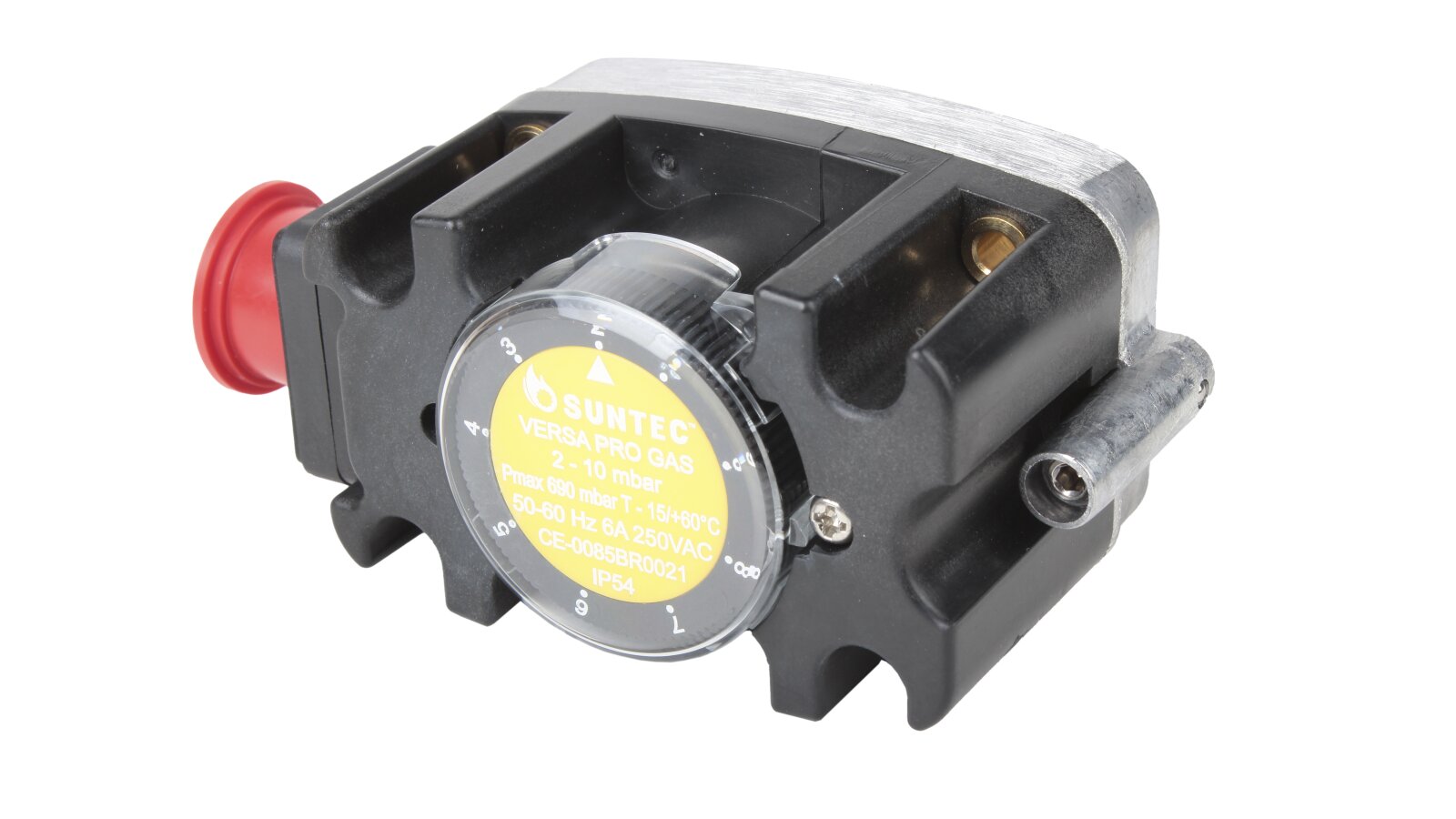

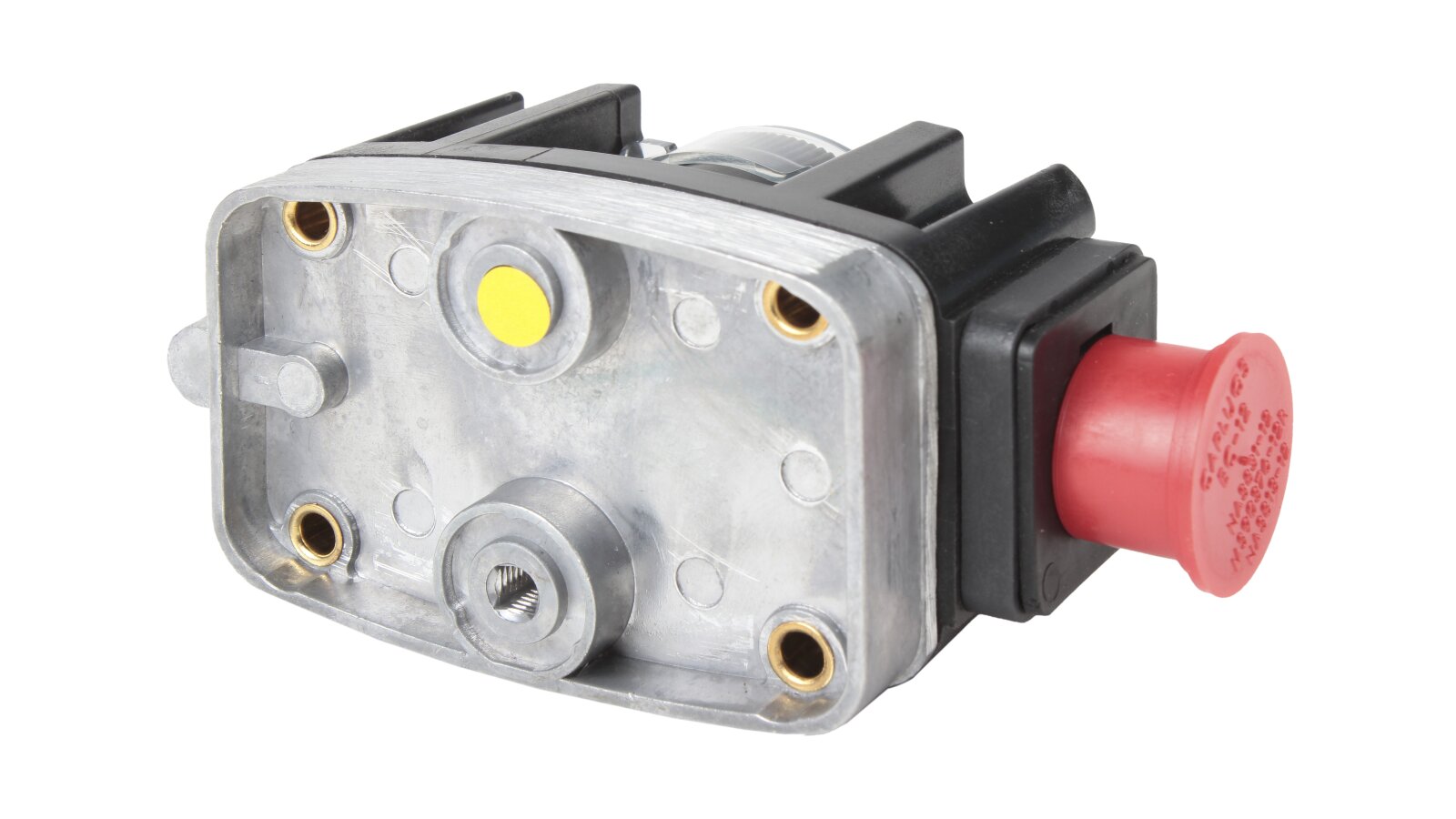

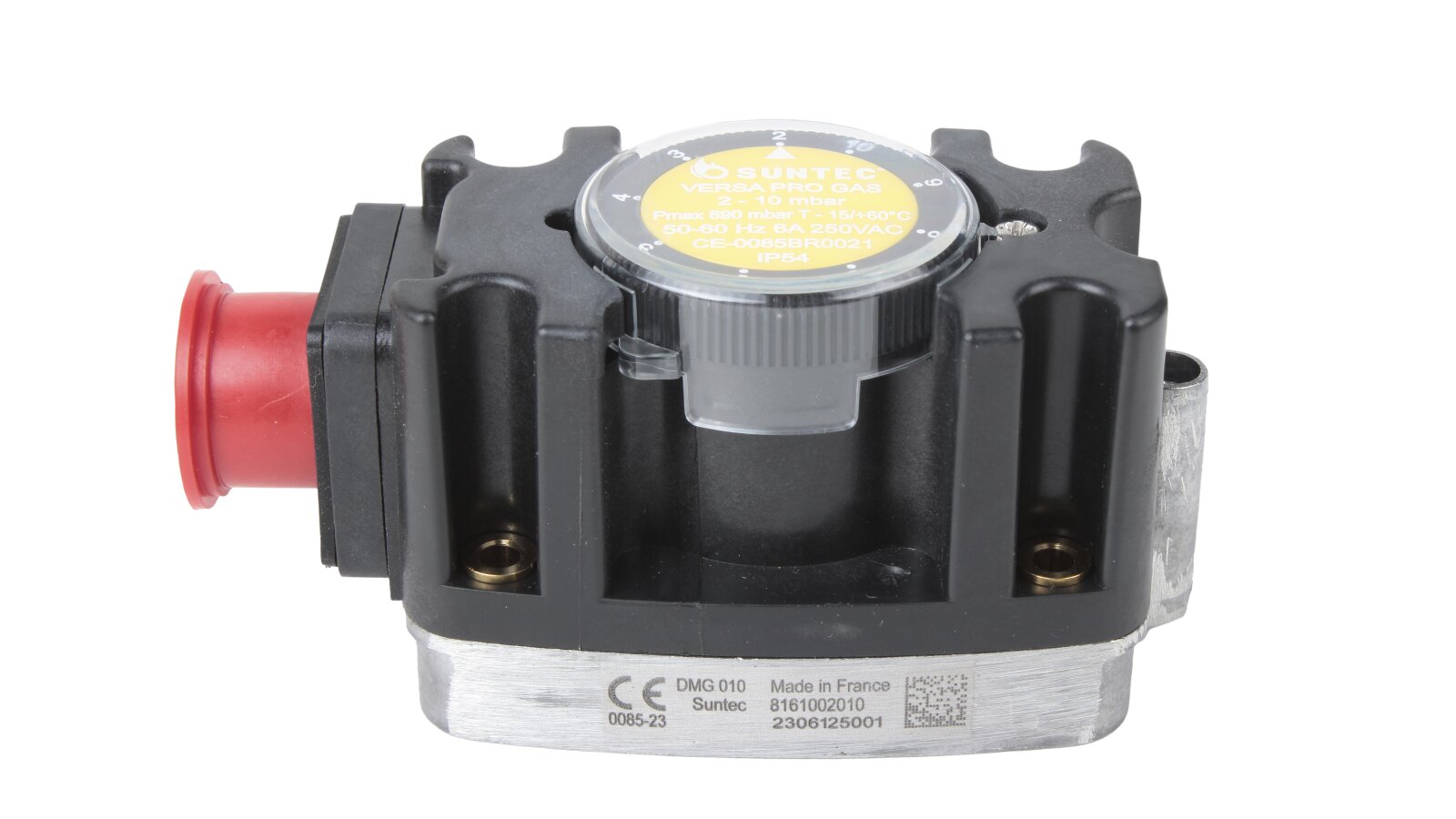

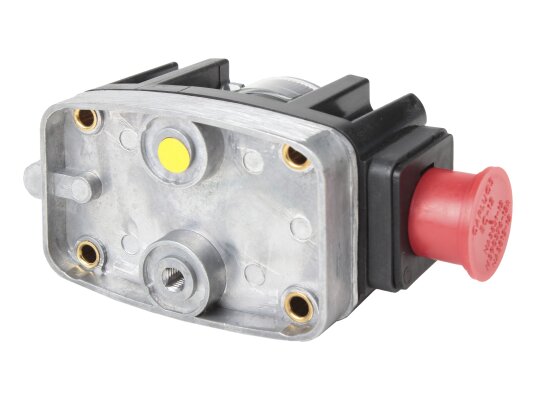

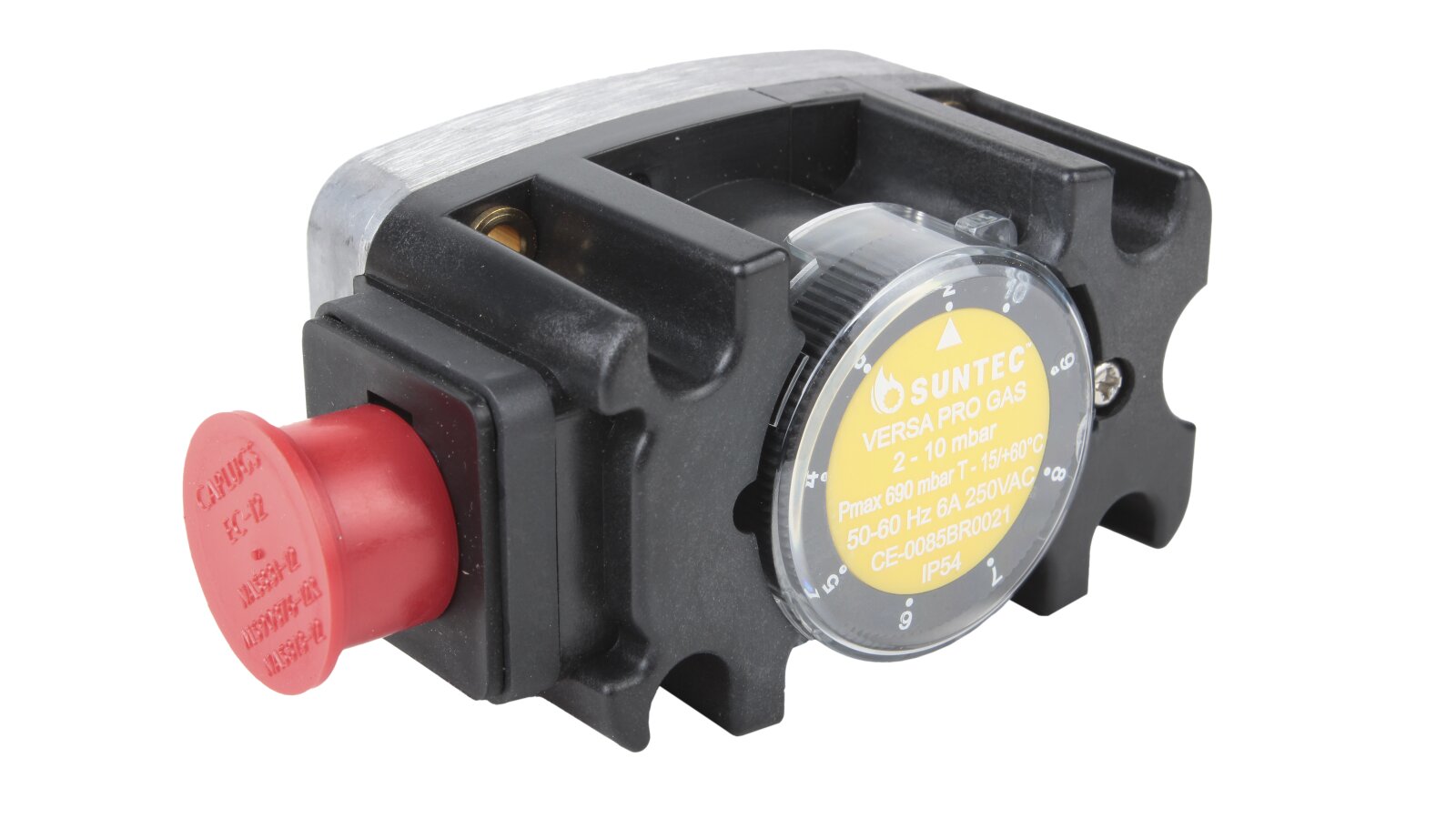

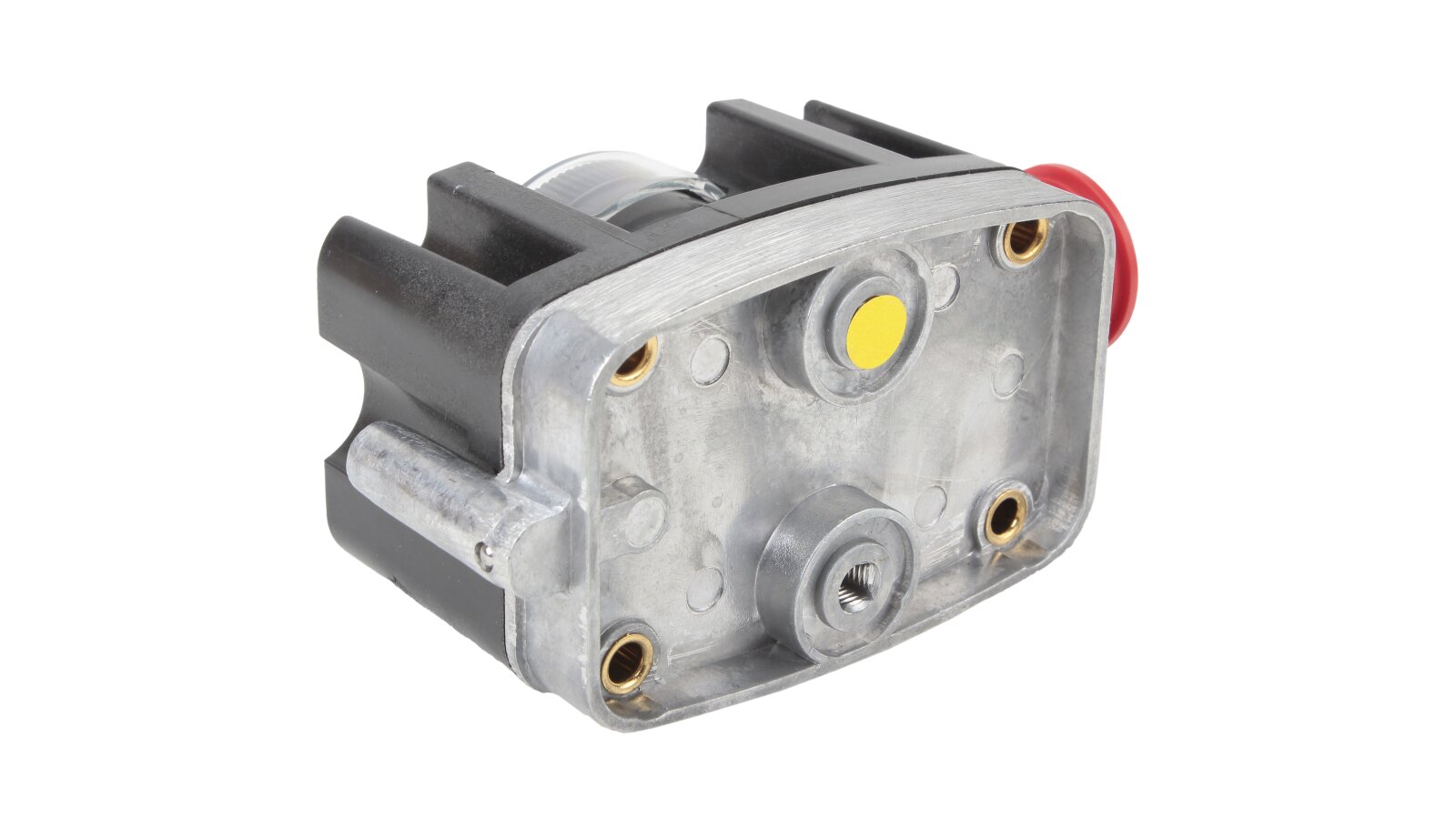

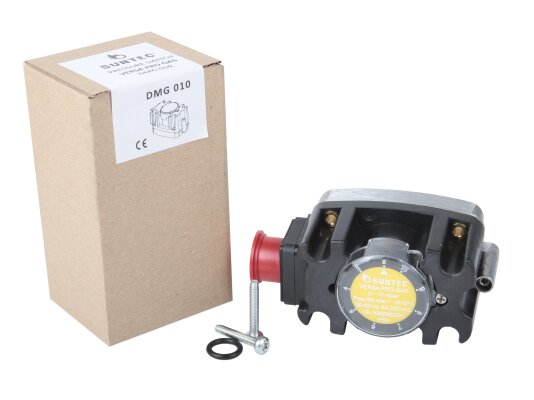

Pressure switch Suntec DMG 010

The Suntec DMG 010 pressure switch, art: 8161002010, is designed to equip automatic gas supply control systems during operation of industrial gas units. It is installed on the gas valve. The sensor responds to changes in excess and vacuum pressure, turns on or off the electrical circuit when the pressure drops below or rises above the set value. The switching mechanism is characterized by high response accuracy, operates stably at sub-zero temperatures. The parameters are adjusted using a wheel with a setting scale.

Main characteristics and features:

• for monitoring the pressure of combustible gas;

• reliable switching mechanism;

• setting the switching pressure in the range of 2-10 mbar;

• adjustable hysteresis, range 0-1.5 mbar.

• compact dimensions, facilitating installation;

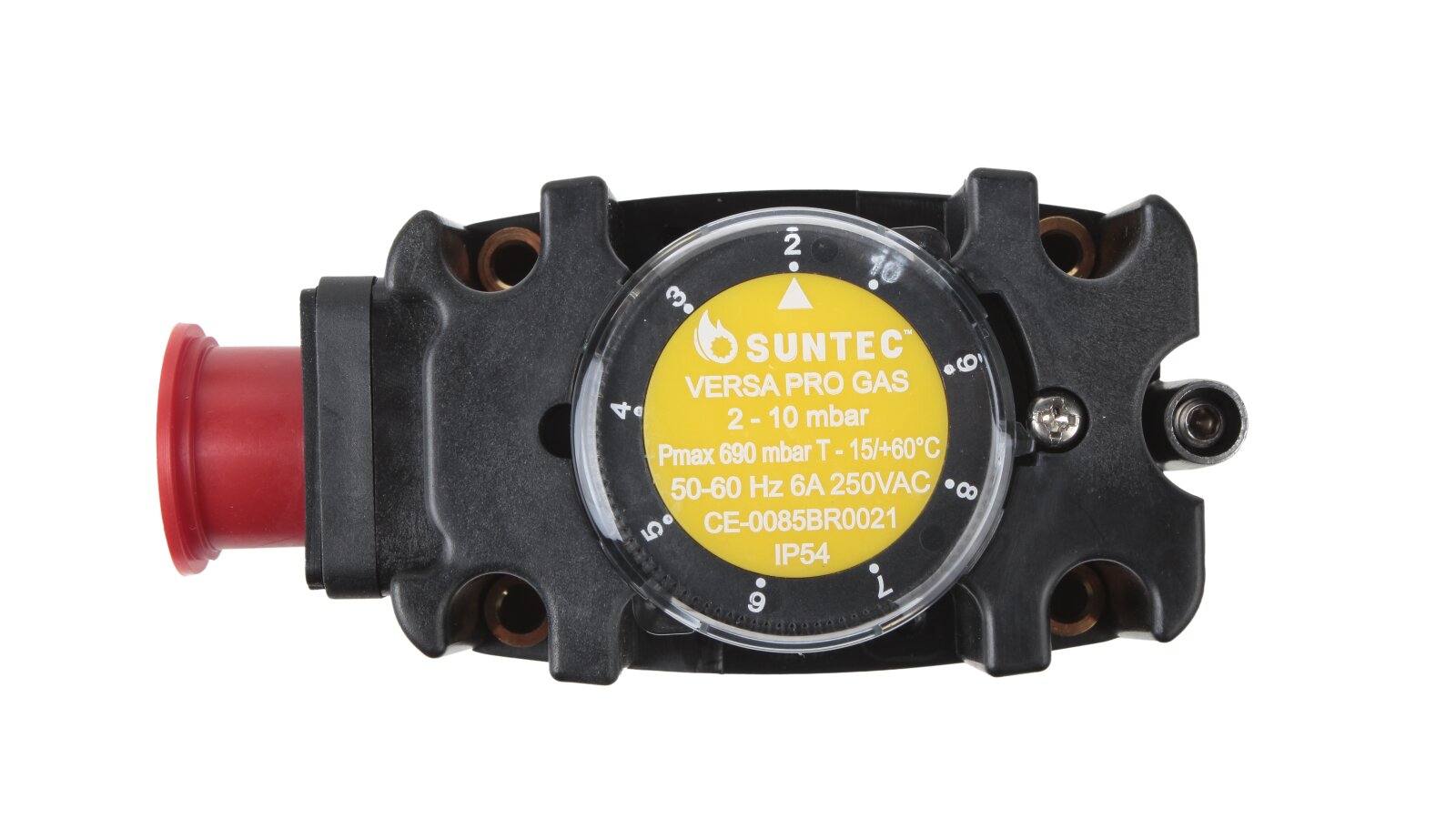

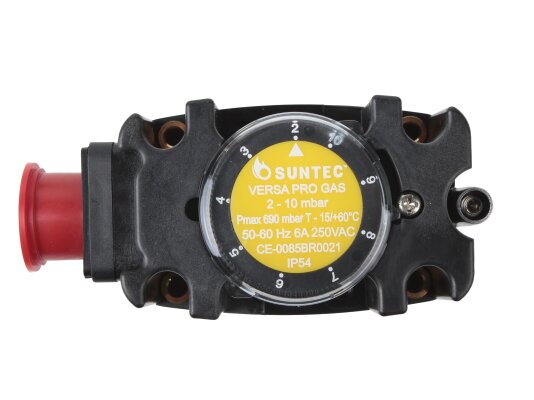

• setting parameters using a regulator and an easy-to-read digital scale;

• automatic reset;

• reliable design, resistance to mechanical and temperature influences;

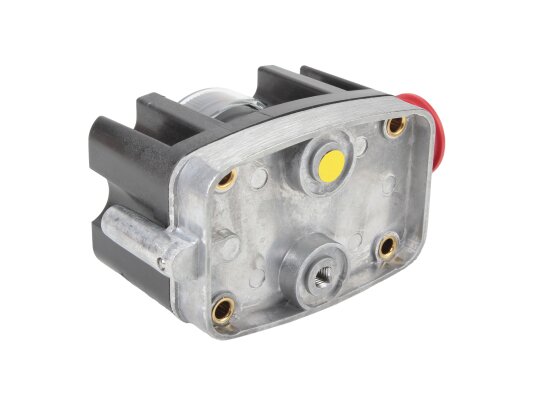

• Cast aluminum base, gas-tight polymer casing;

• removable transparent regulator cover;

• protection of electrical contacts from dust/splashing water according to IP 54;

• for systems with gas pressure up to 690 mbar;

• quick and reliable connection via DIN plug;

• fastening using sealing rings.

The pressure switch is designed for operating temperatures from -15 to +60°C.

Advantages:

• stable, precise switching;

• smooth manual adjustment of the switching point;

• reliable design, gas-tight casing;

• adjustable hysteresis;

• protection of contacts from dust and moisture class IP 54;

• compact dimensions.

Application

The Suntec DMG 010 pressure switch is used in burners, boilers, heat generators burning gas of family I-III according to EN 437.
