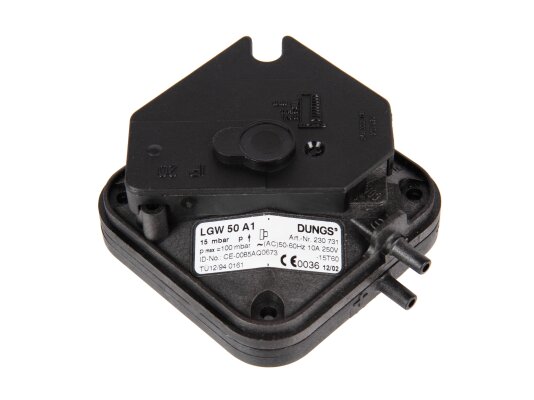

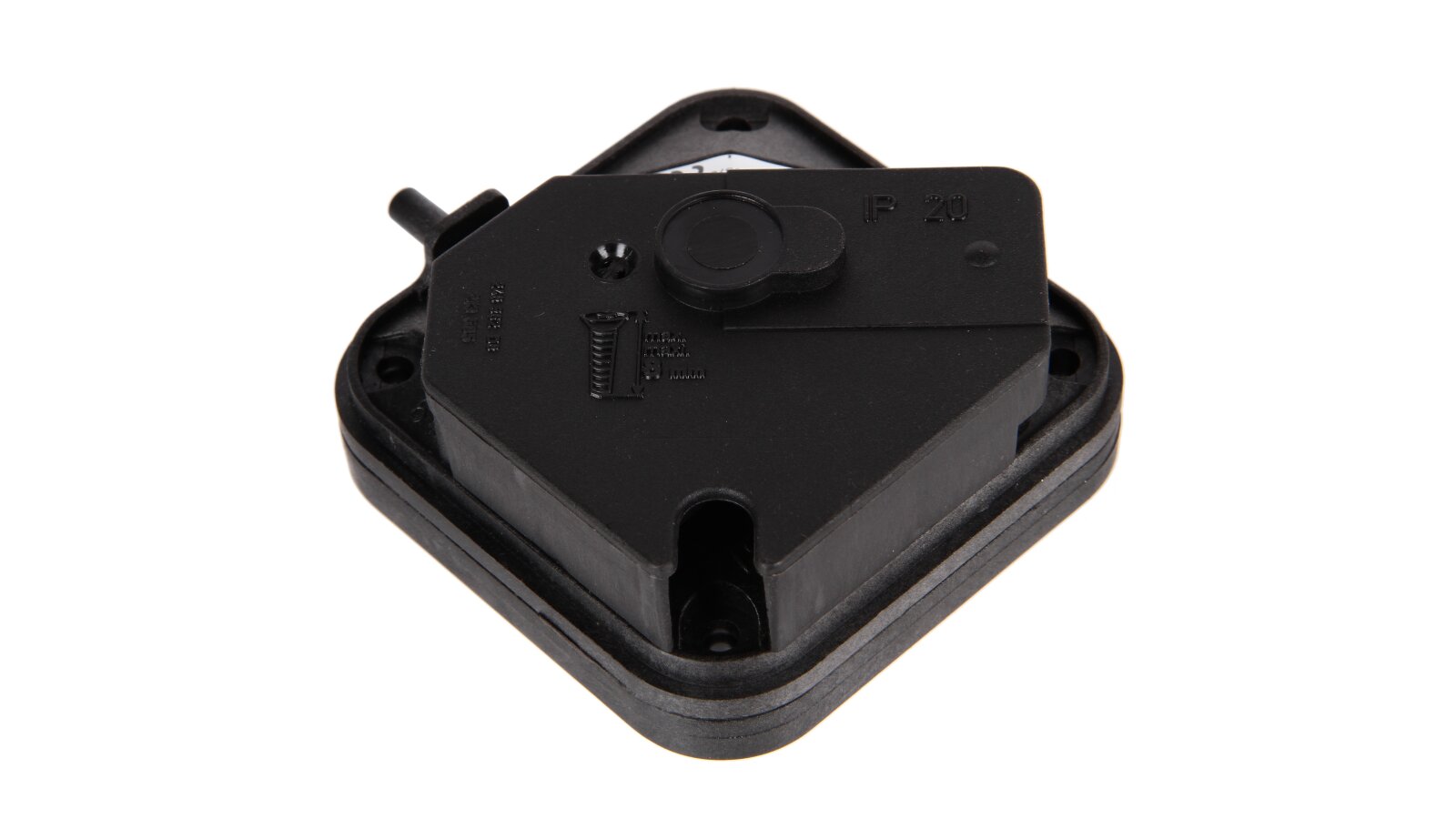

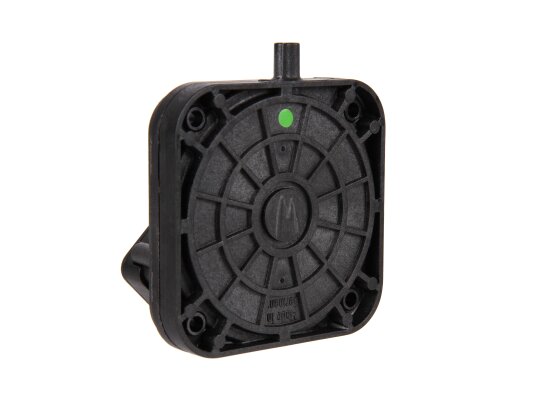

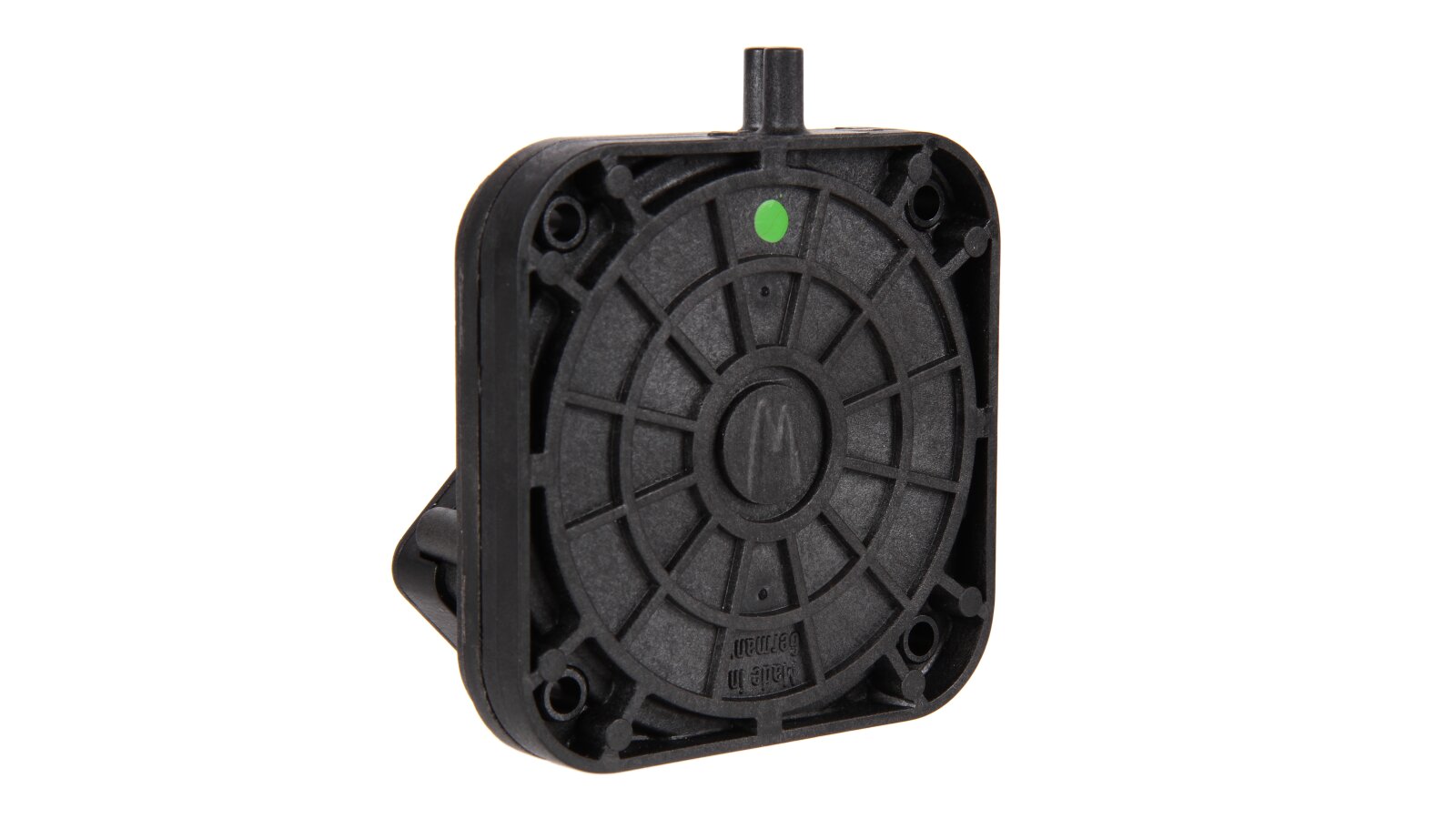

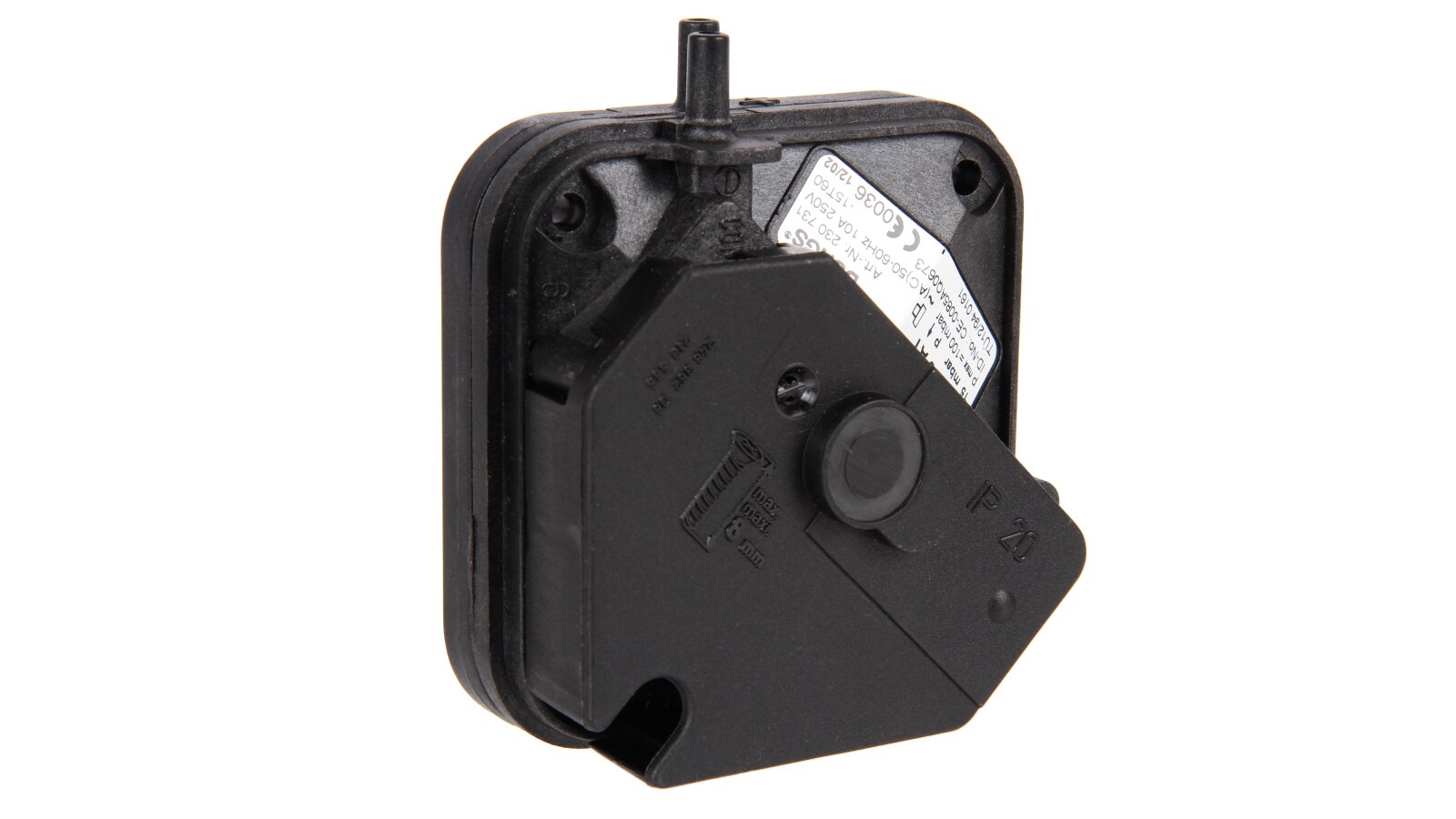

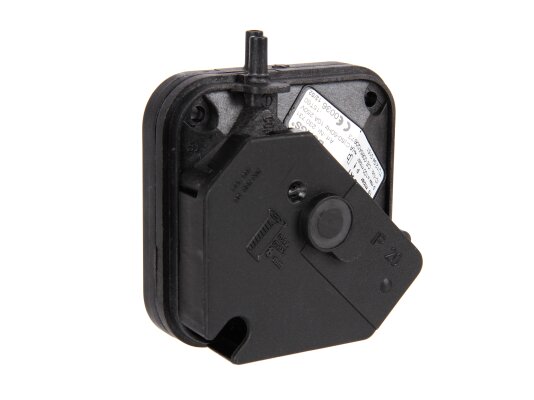

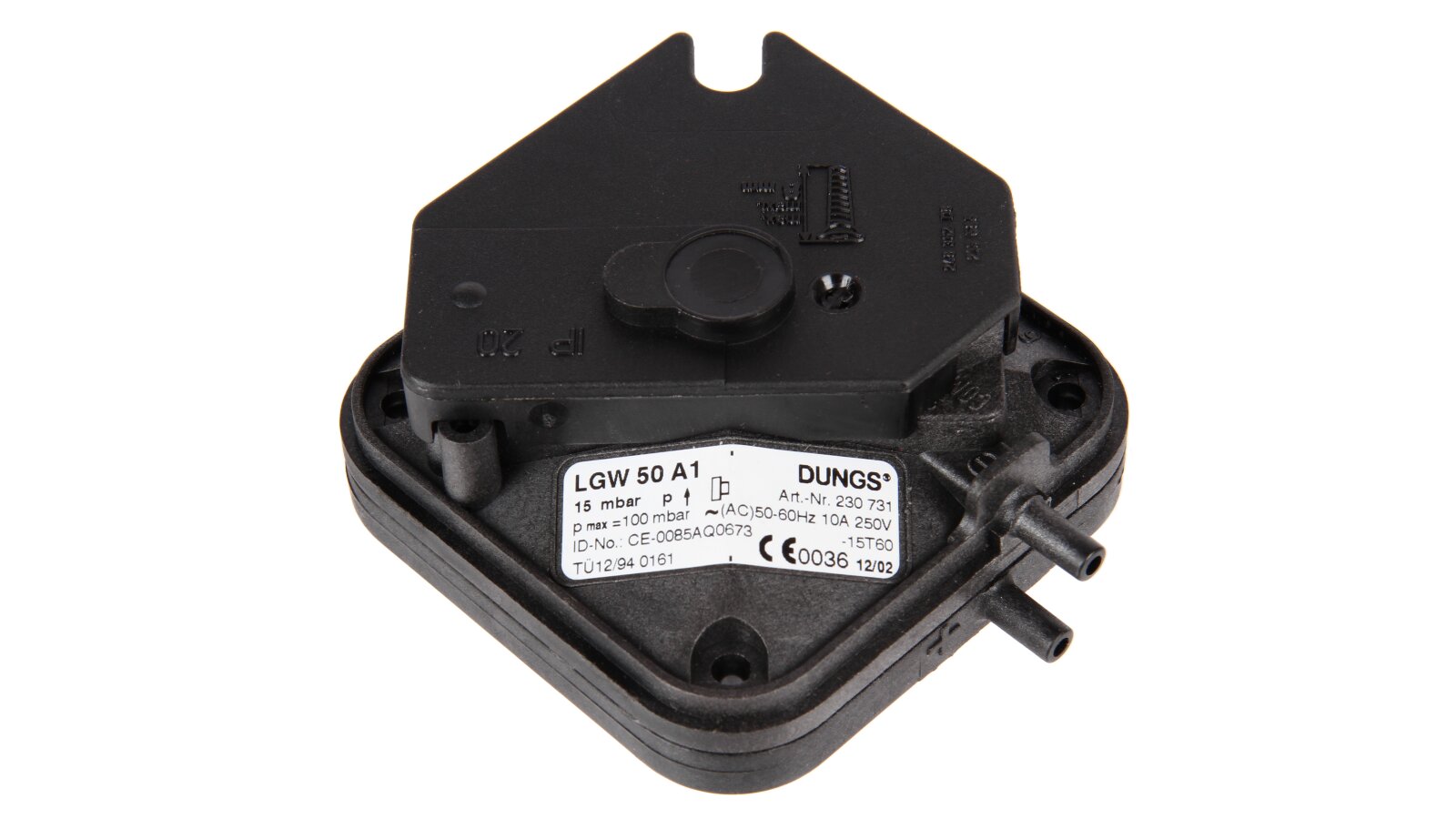

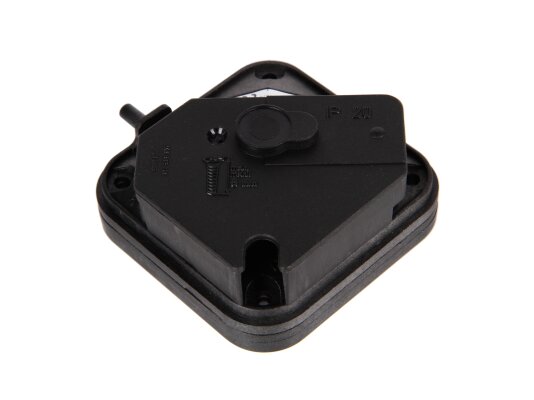

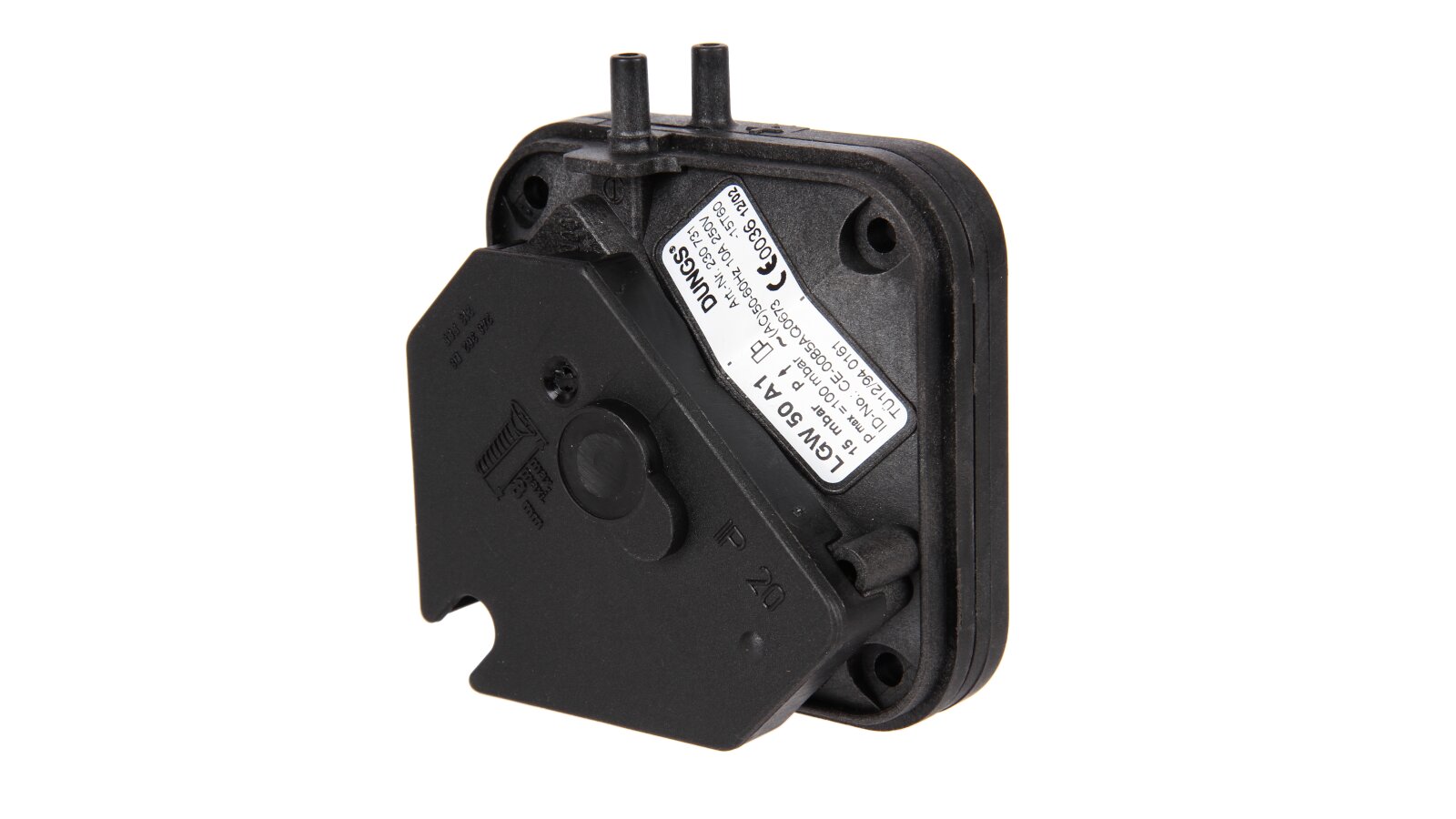

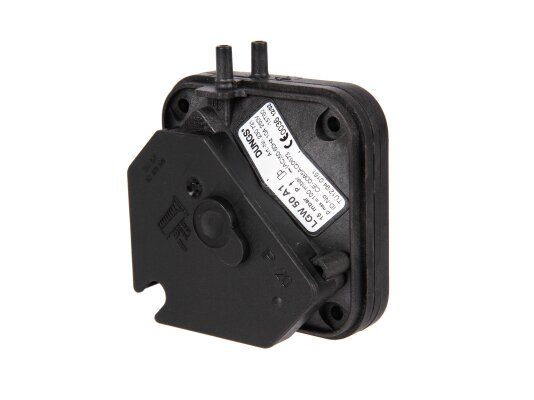

Pressure switch Dungs LGW 50 A1

Dungs

Alternative Part Number

Q108/5

AED 240

  • Discontinued
Pressure Switches
Products code: 16706

Description

The factory-set Dungs LGW 50 A1 pressure switch is used to monitor differential gas and air pressure. It is in demand when equipping safety systems for combustion units, air conditioning and ventilation devices. The device operates smoothly thanks to a special switching system. It is manufactured according to EN 1854.

Key data

  • Supply pressure: no more than 100 mbar.

  • Controlled medium: air/non-aggressive gas.

  • Adjustment in the range: 2.5-50 mbar.

  • Response within: 0-1 mbar.

  • Standard pressure setting: 15 mbar

  • Operating mode: -15…+85 °C.

Features

The differential sensor has a built-in microswitch that is triggered when the set parameters are reached, which leads to closing/opening/switching of electrical contacts. The switching point is adjusted using a screw.

The relay is made of polycarbonate (housing, switch) and NBC (membrane). The height of the product is 32.2 mm. Electrical protection complies with the IP 20 standard.

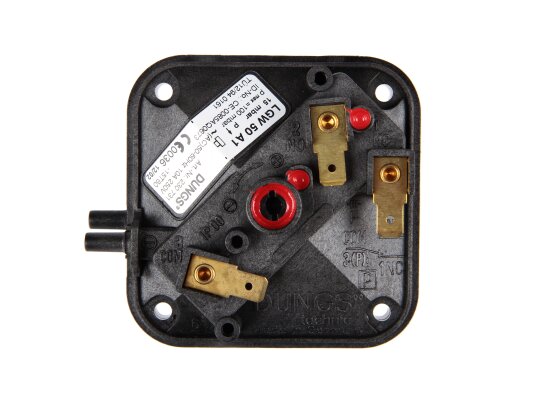

Connecting nipples for impulse hoses are provided. Electrical connection is 3-pin, FASTON 6.3x0.8 mm.

Advantages:

  • precise, stable response;

  • high electrical protection class;

  • basic parameter setting;

  • manual adjustment in a wide range;

  • universal purpose.

In the ANKAS store, you can buy the Dungs LGW 50 A1 pressure relay and other devices for industrial automation systems. Unconditional German quality and reasonable prices increase the attractiveness of Dungs products.

Characteristics

Working environment: air, neutral gasesOperating ambient temperature: from -15 to 85 °CMaximum working pressure: 100 mbarFactory setting: 15 mbarResponse range: from 0 to 1 mbarAdjustment range: from 2.5 to 50 mbarType of connection: Faston 6.3x0.8 mmFor controlling: differential pressureDegree of protection: IP20
