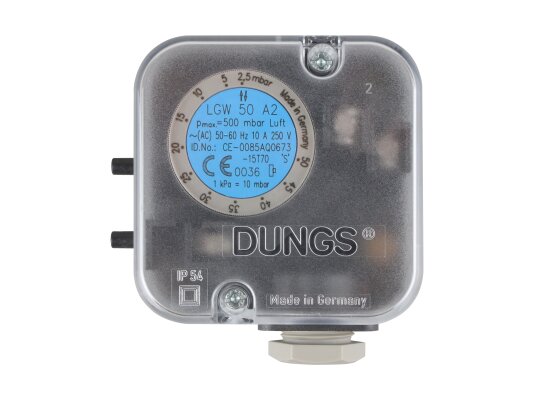

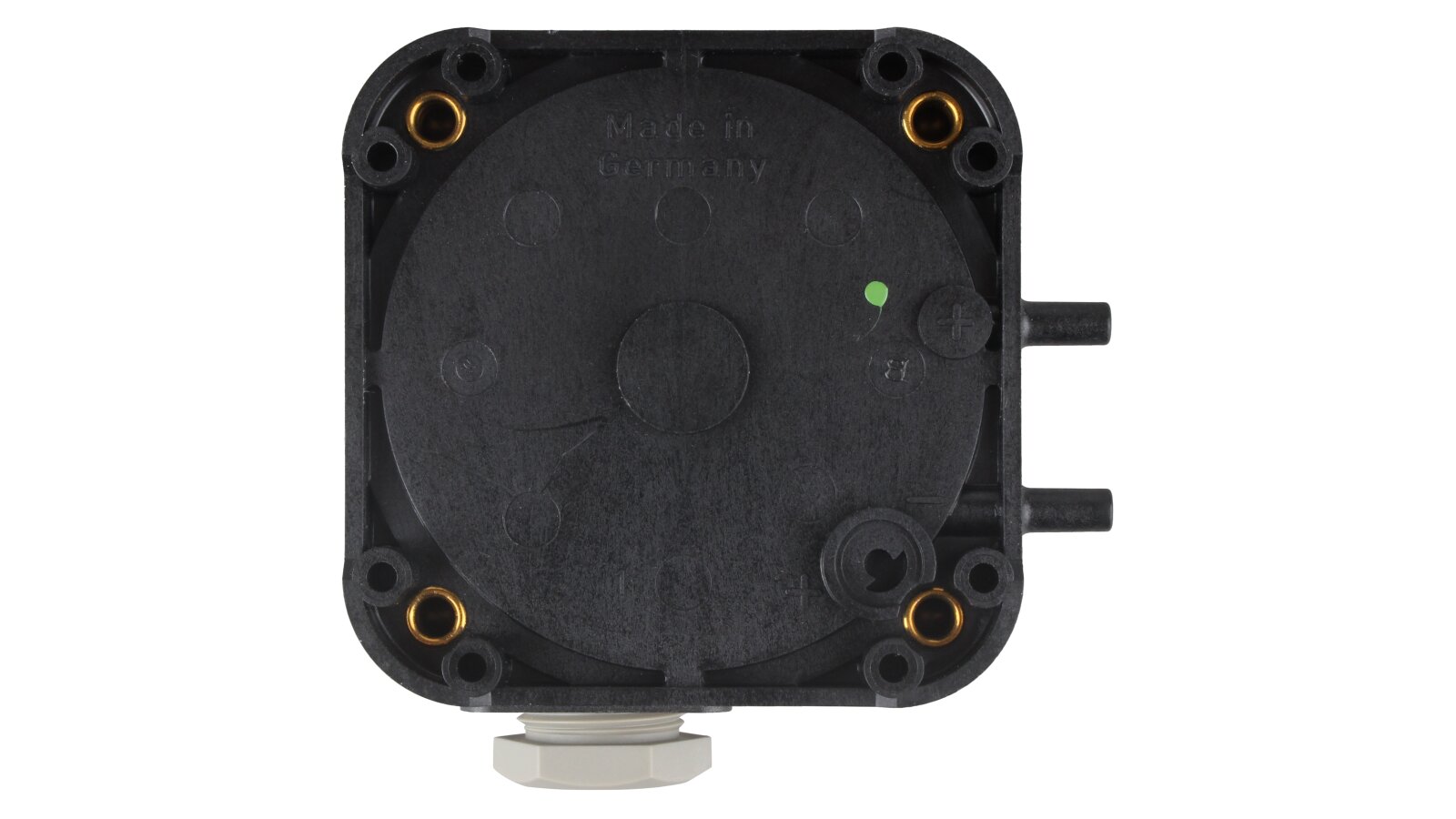

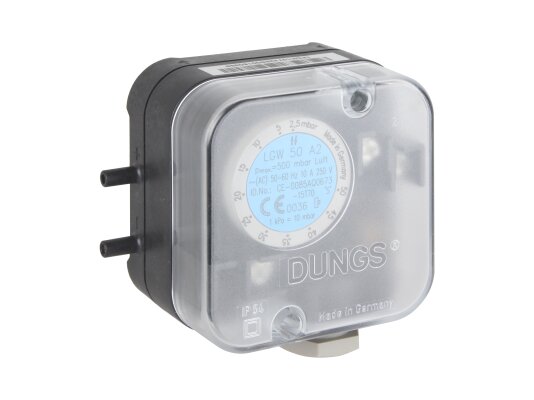

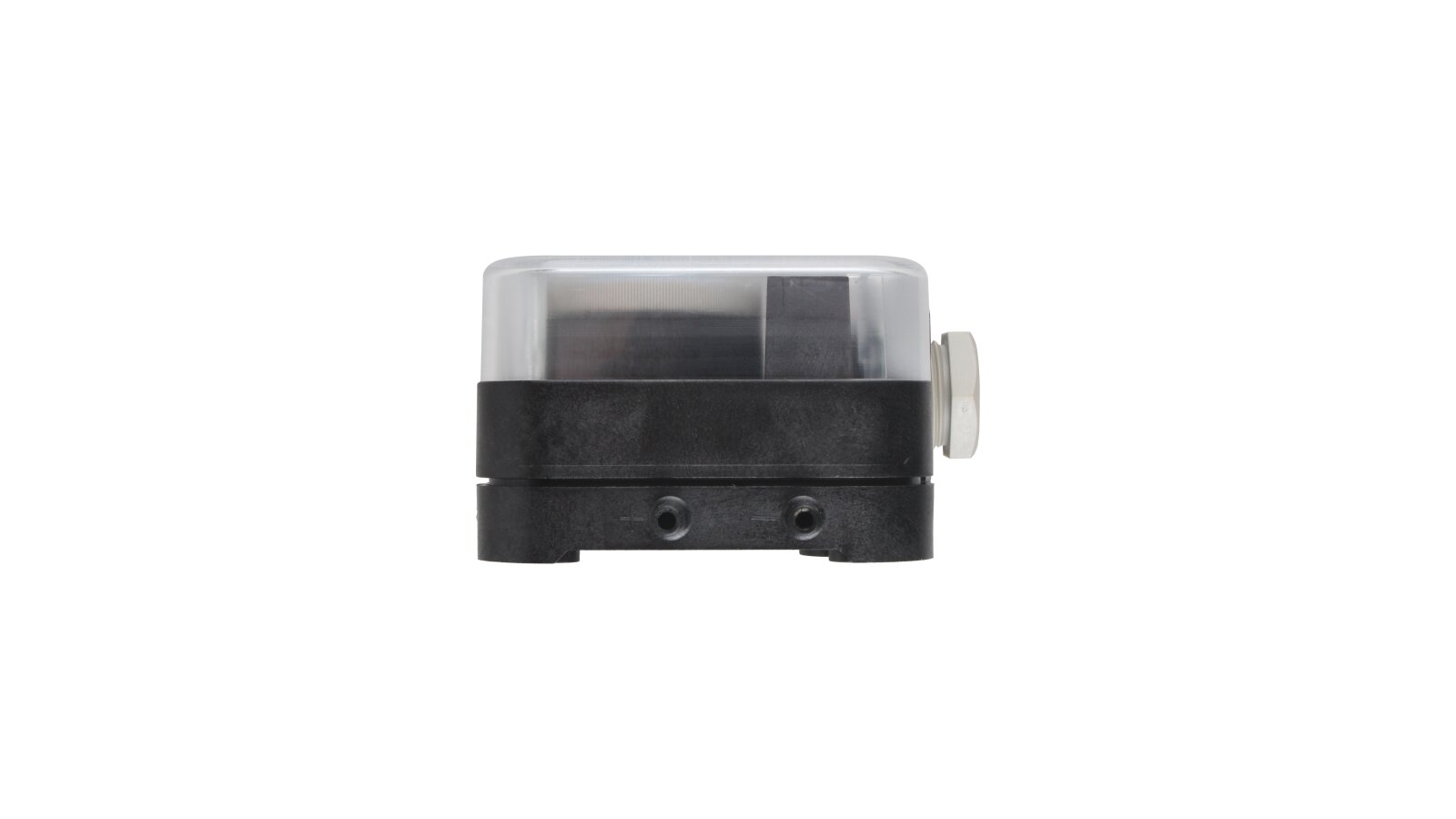

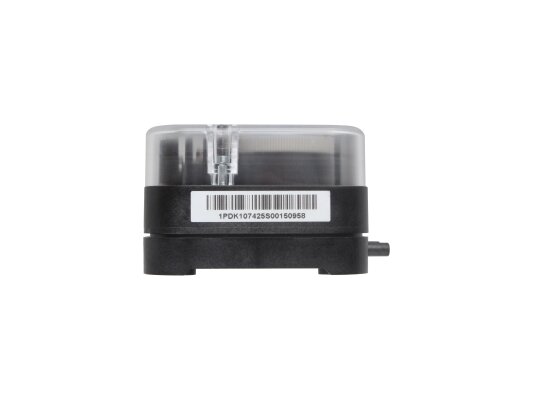

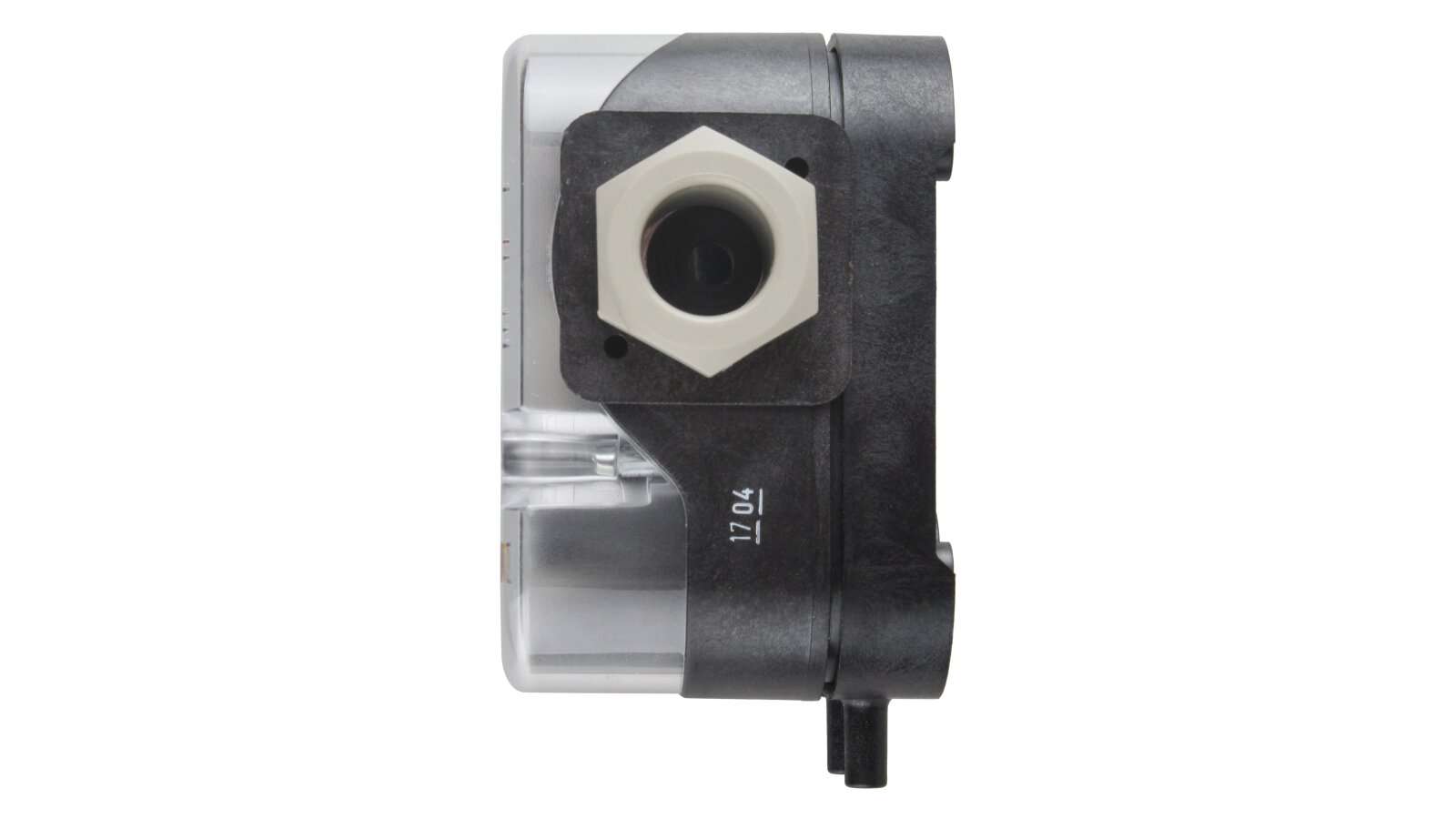

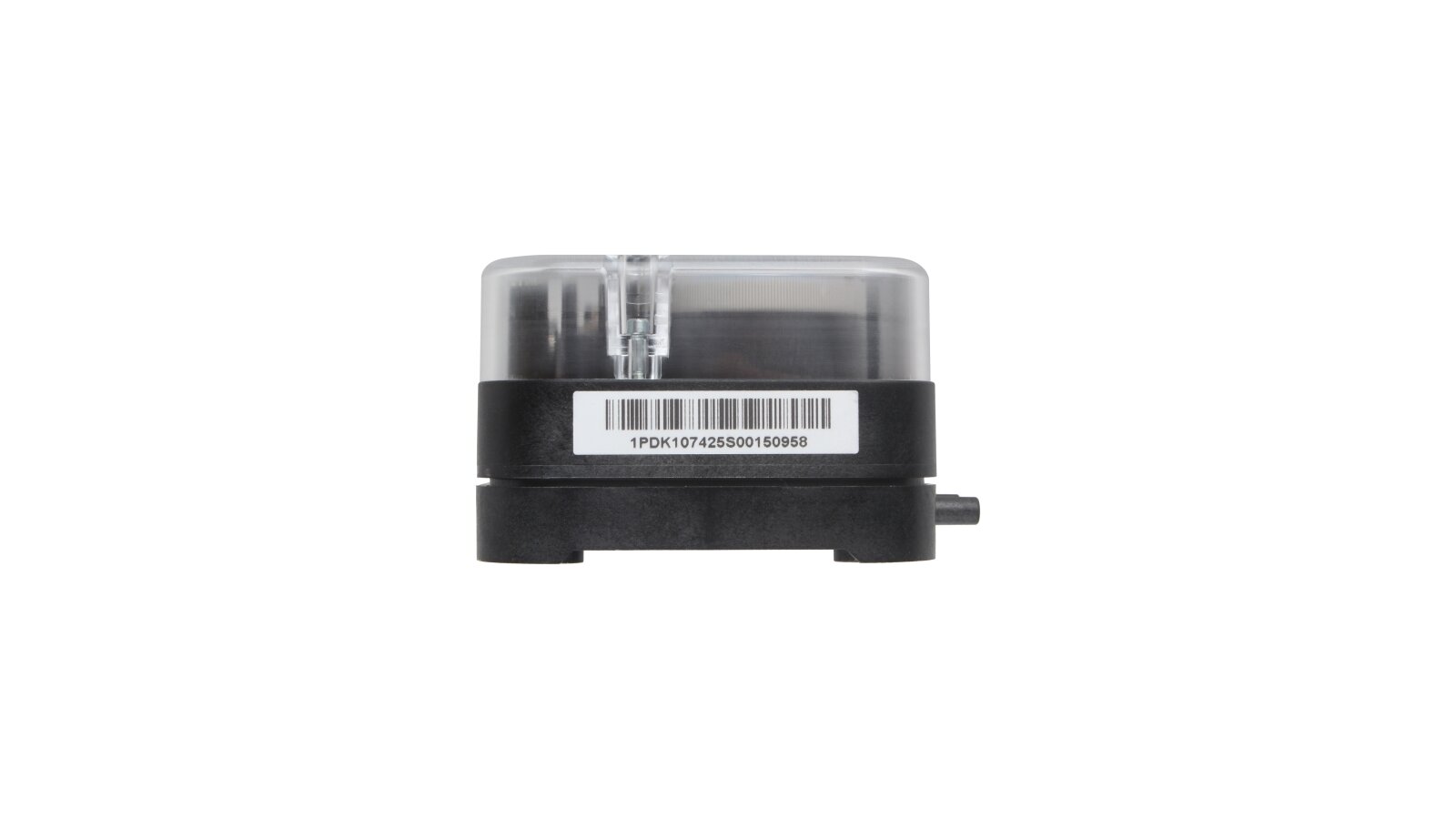

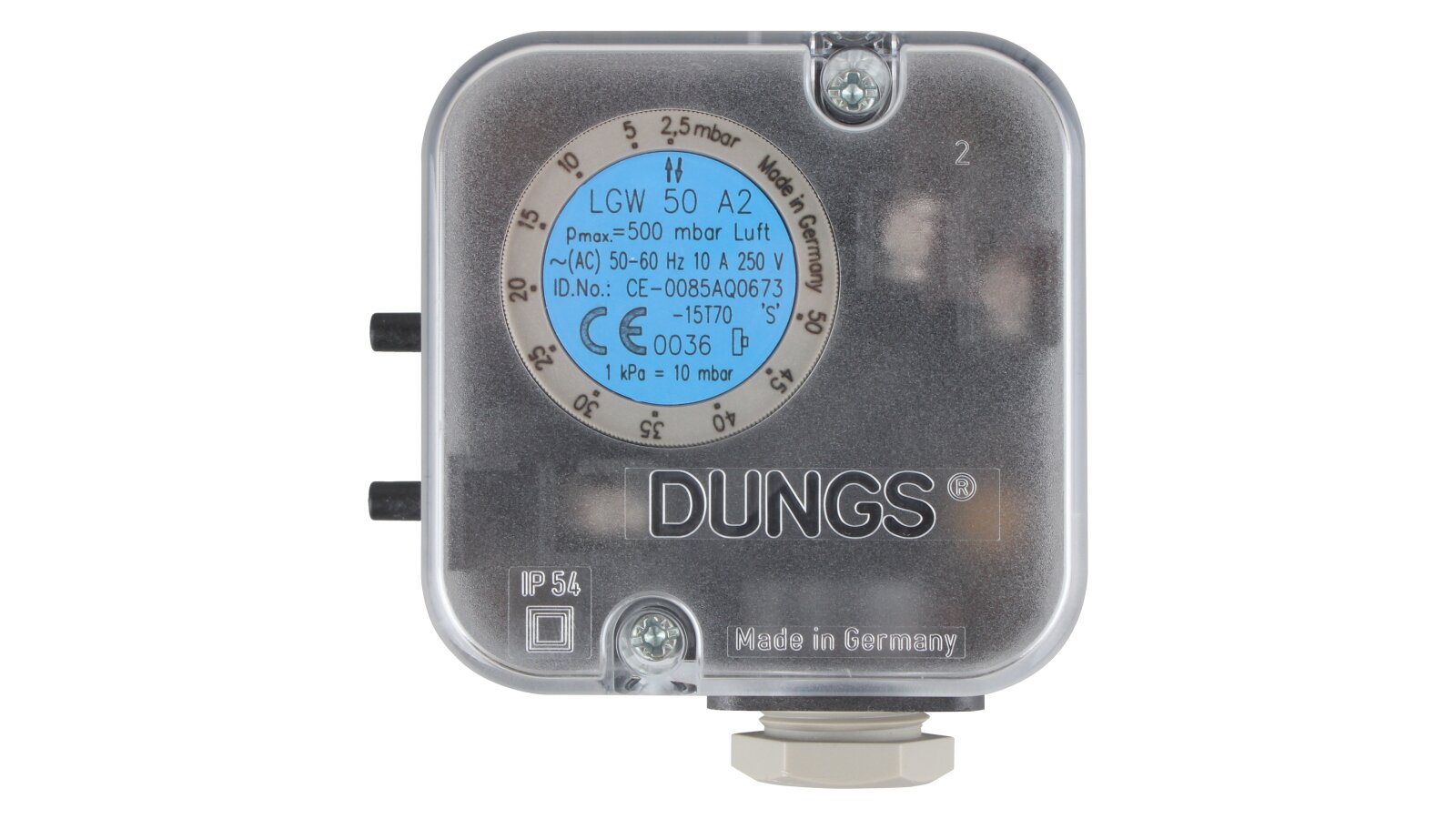

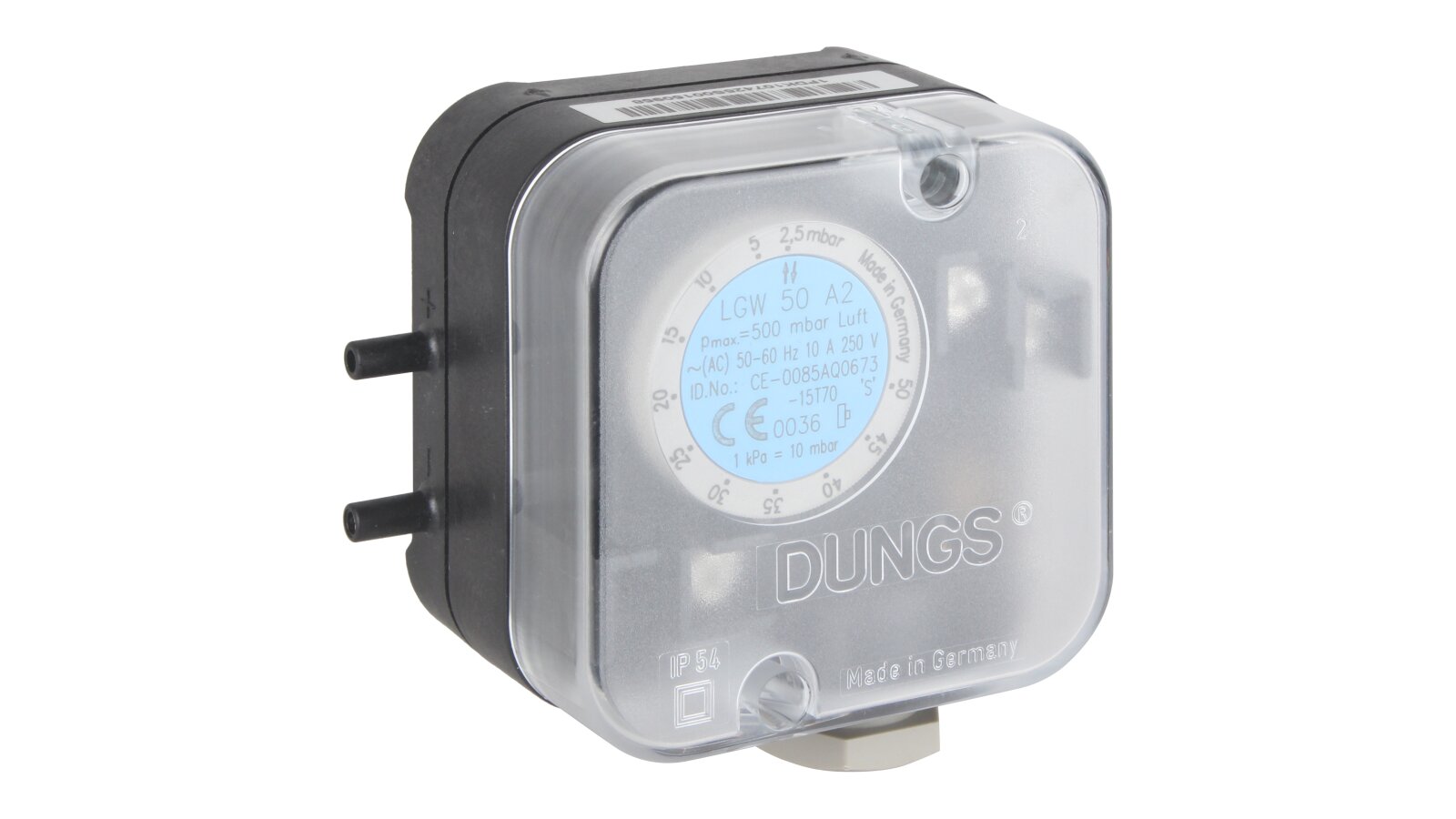

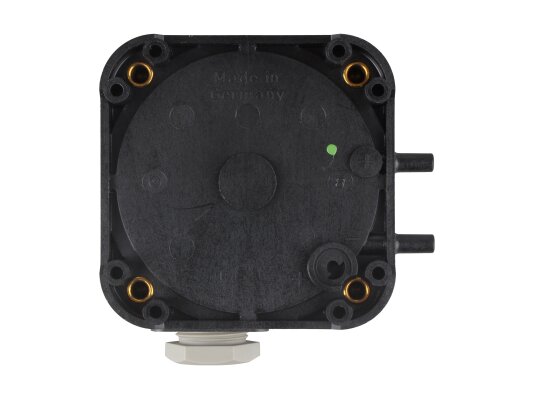

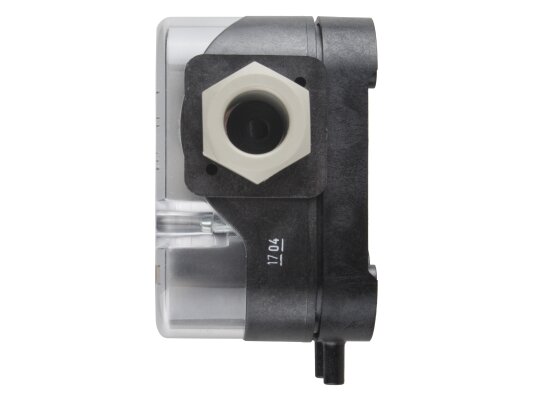

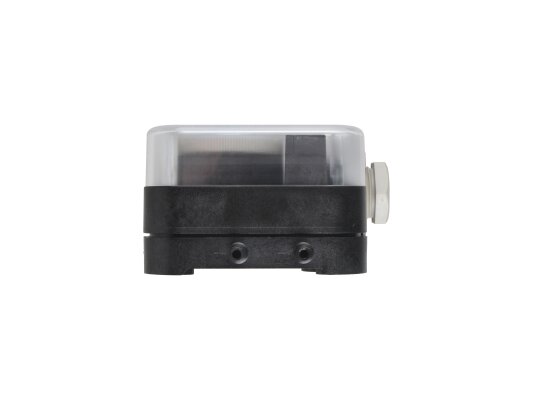

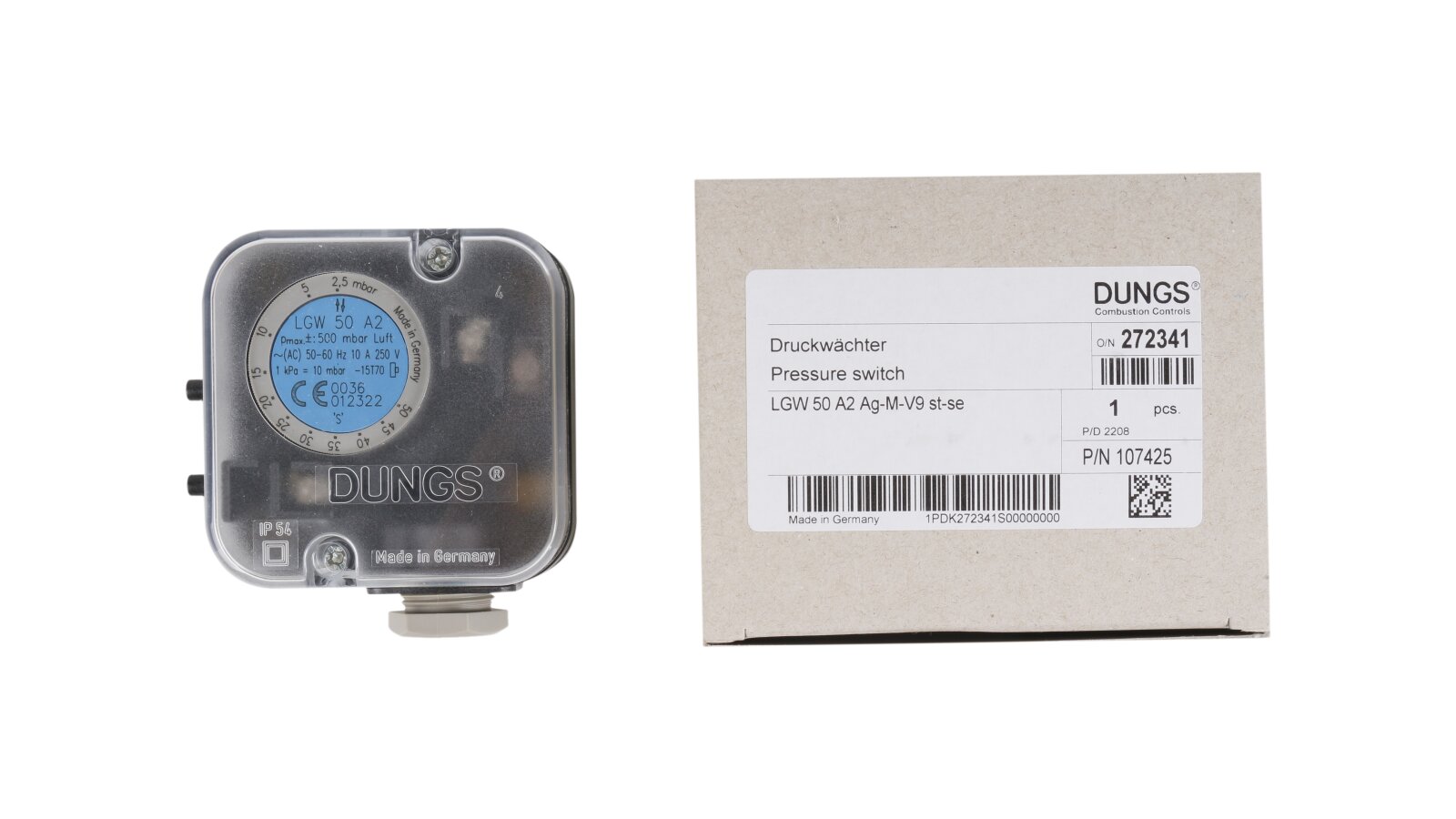

Pressure switch Dungs LGW 50 A2 M

Dungs272341

Alternative Part Number

Q108/52

Giersch

47-90-26723

AED 335

Pressure Switches
Products code: 16699

Description

To control discharge pressure, vacuum pressure, differential pressure, we offer to buy the Dungs LGW 50 A2 pressure switch (terminal connection) - a compact device of the German brand. The device is an indispensable component in the safety systems of gas units. It can be used for air conditioning and ventilation systems.

Operating parameters:

  • Class: S in accordance with EN 1854.

  • Maximum working pressure: 500 mbar.

  • Medium: air, non-aggressive gases (except flammable gases).

  • Setting in the range: 2.5-50 mbar.

  • Differential: 0-1 mbar.

  • Operating temperature: -15 ° C to + 70 ° C.

Design and operating principle:

The switch is triggered by an increase / decrease in the set pressure value. The contacts are turned on / off / switched and a signal is transmitted to the control unit.

An adjustment wheel and a marking scale are provided for selecting the response point.

The sensor-relay is equipped with a highly sensitive NBR membrane. The housing is made of polycarbonate and has compact installation dimensions.

The protection of electrical contacts complies with the European standard IP 54. If necessary (separate order), reinforced insulation of the housing (class IP 65) is possible.

Installation of the Dungs LGW 50 A2 pressure switch terminals article 272341 in the standard position does not affect the response point. In case of a change in orientation (horizontal, inverted or intermediate), switching will occur at a pressure higher/lower than the set one by ± 0.5 mbar.

Advantages:

  • highly sensitive membrane;

  • manual adjustment of parameters using a disk and scale;

  • IP 54 protection of electrical contacts;

  • wide range of applications;

  • long service life;

  • low maintenance requirements;

  • reasonable price.

The company "ANKAS" presents a wide range of equipment and components for burners Lamborghini, Baltur, Elco, Wieshaupt, Ecoflam, Riello and many other brands. ANKAS specialists will help you quickly select equipment for your boiler installation. Call or write your question in the chat.

Characteristics

Manufacturer Part Number: 272341Working environment: air, neutral gasesOperating ambient temperature: from -15 to 70 °CMaximum working pressure: 500 mbarResponse range: from 0 to 1 mbarAdjustment range: from 2.5 to 50 mbarType of connection: Cable entry M20Operating principle: differentialFor controlling: vacuum pressure, discharge pressure, differential pressureDegree of protection: IP54
