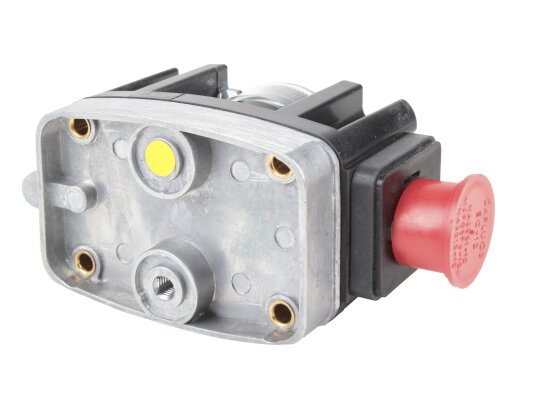

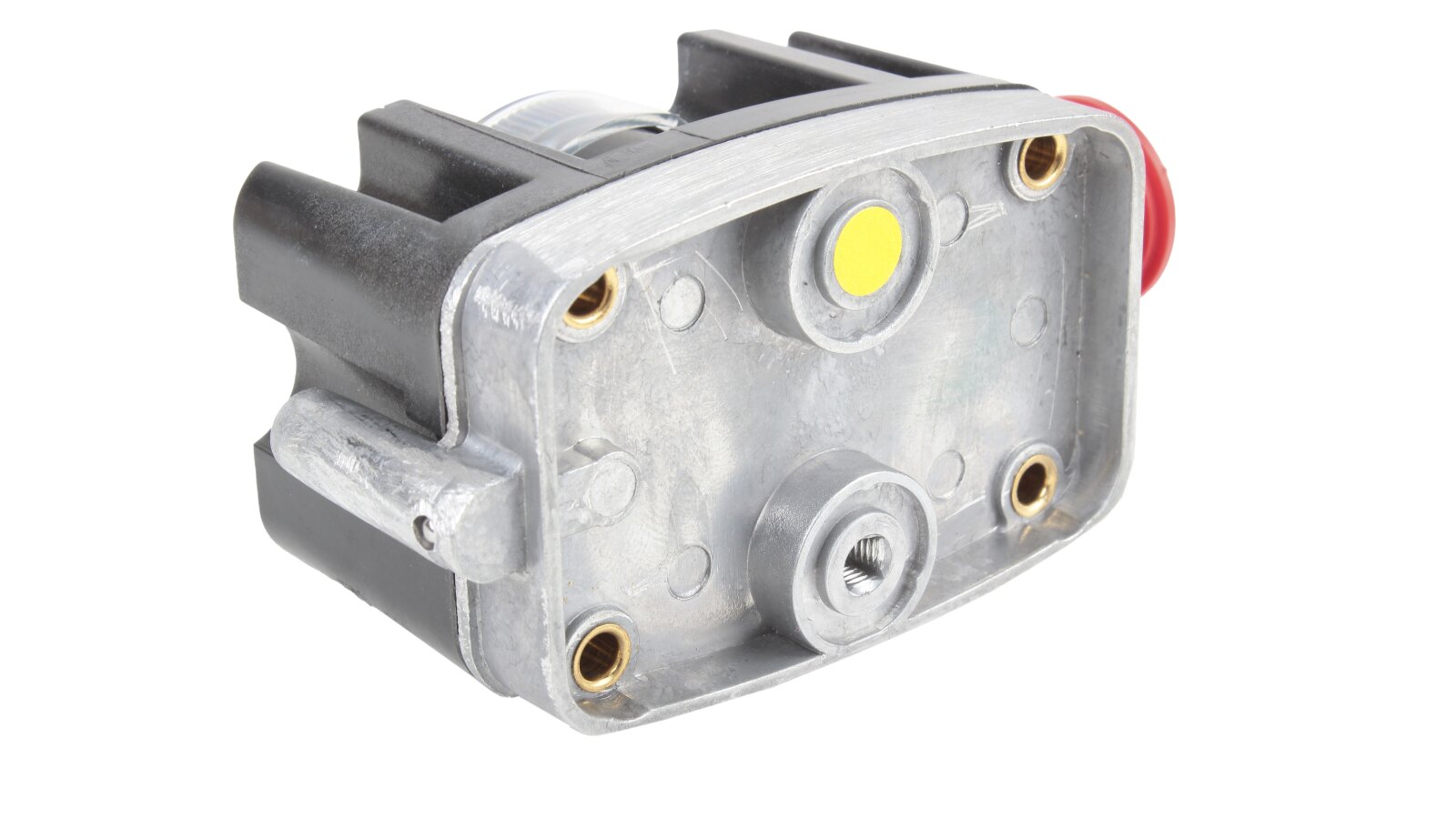

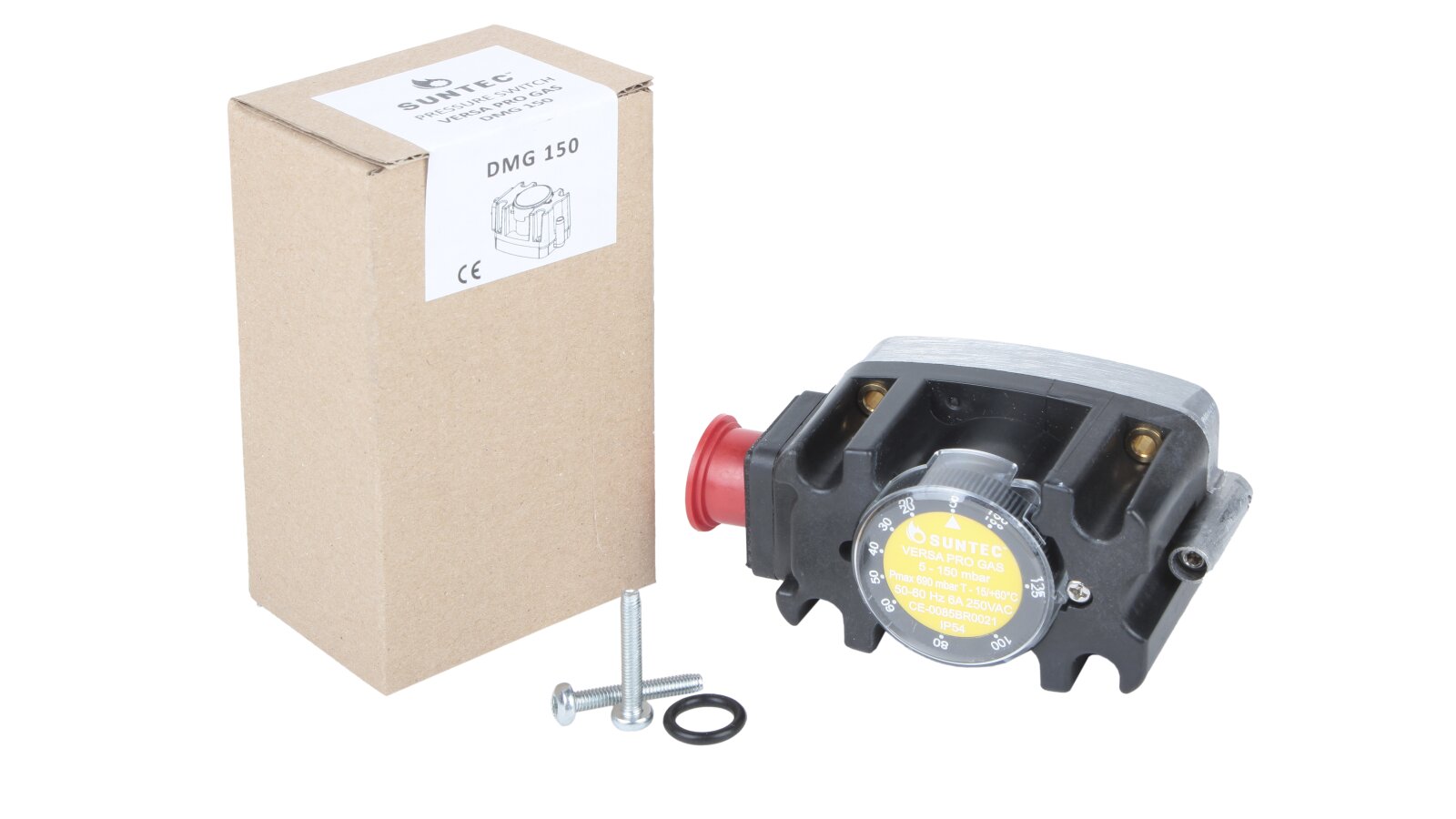

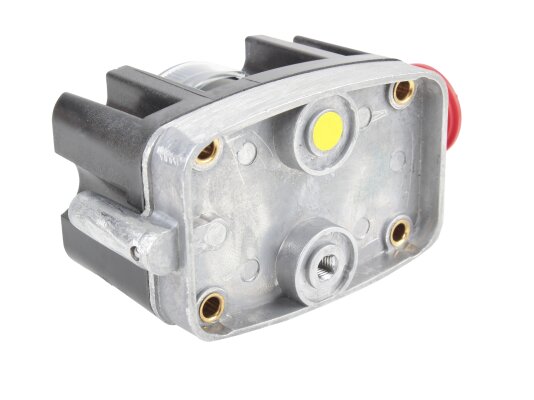

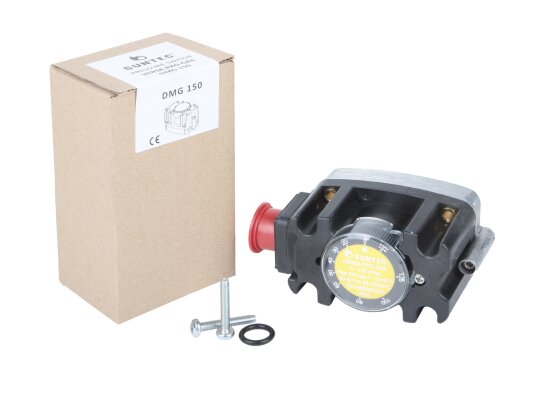

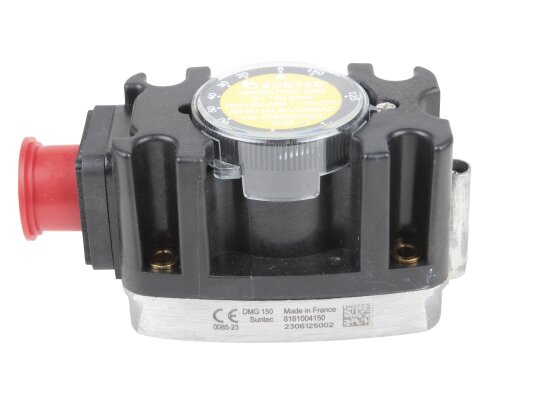

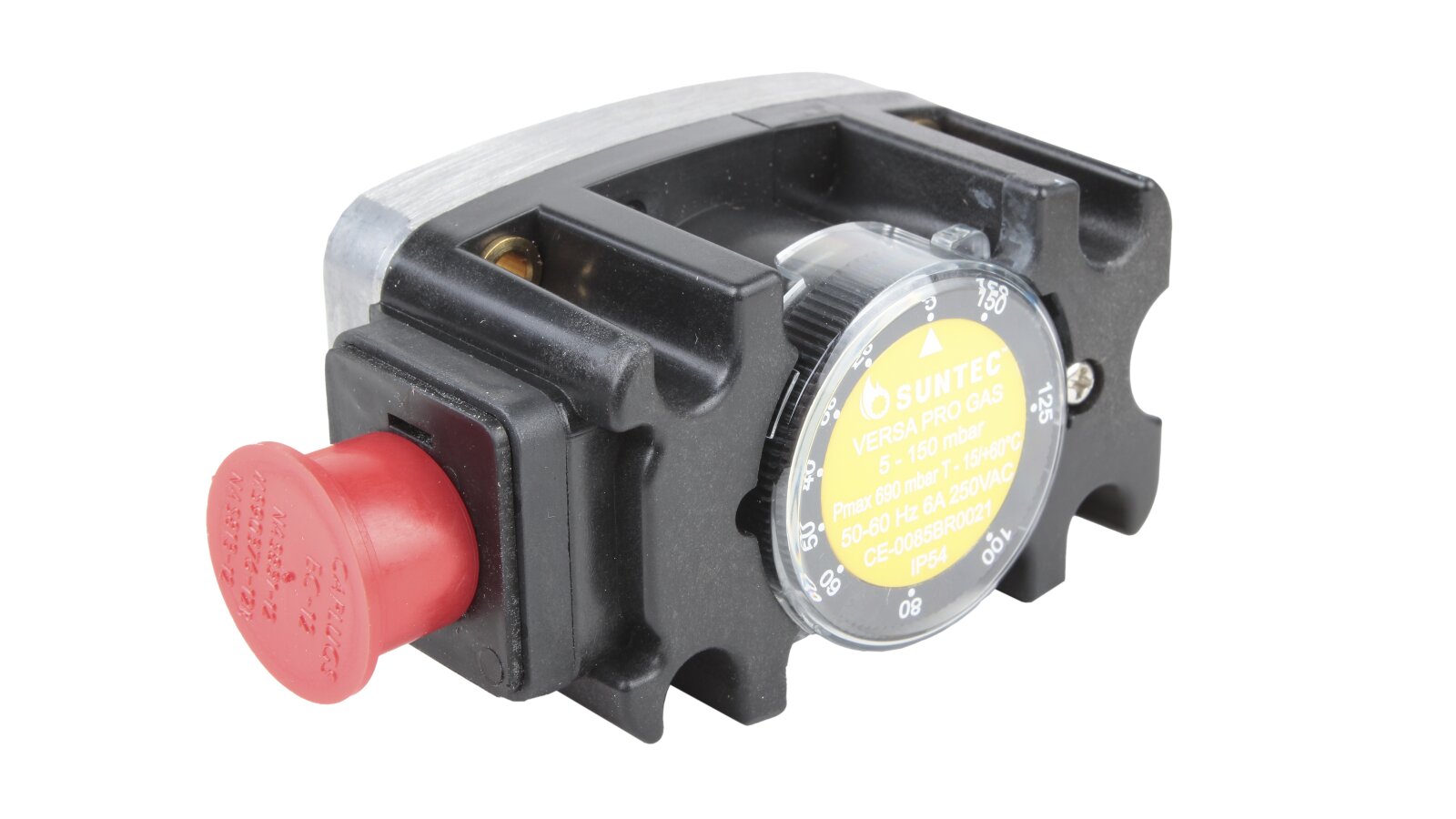

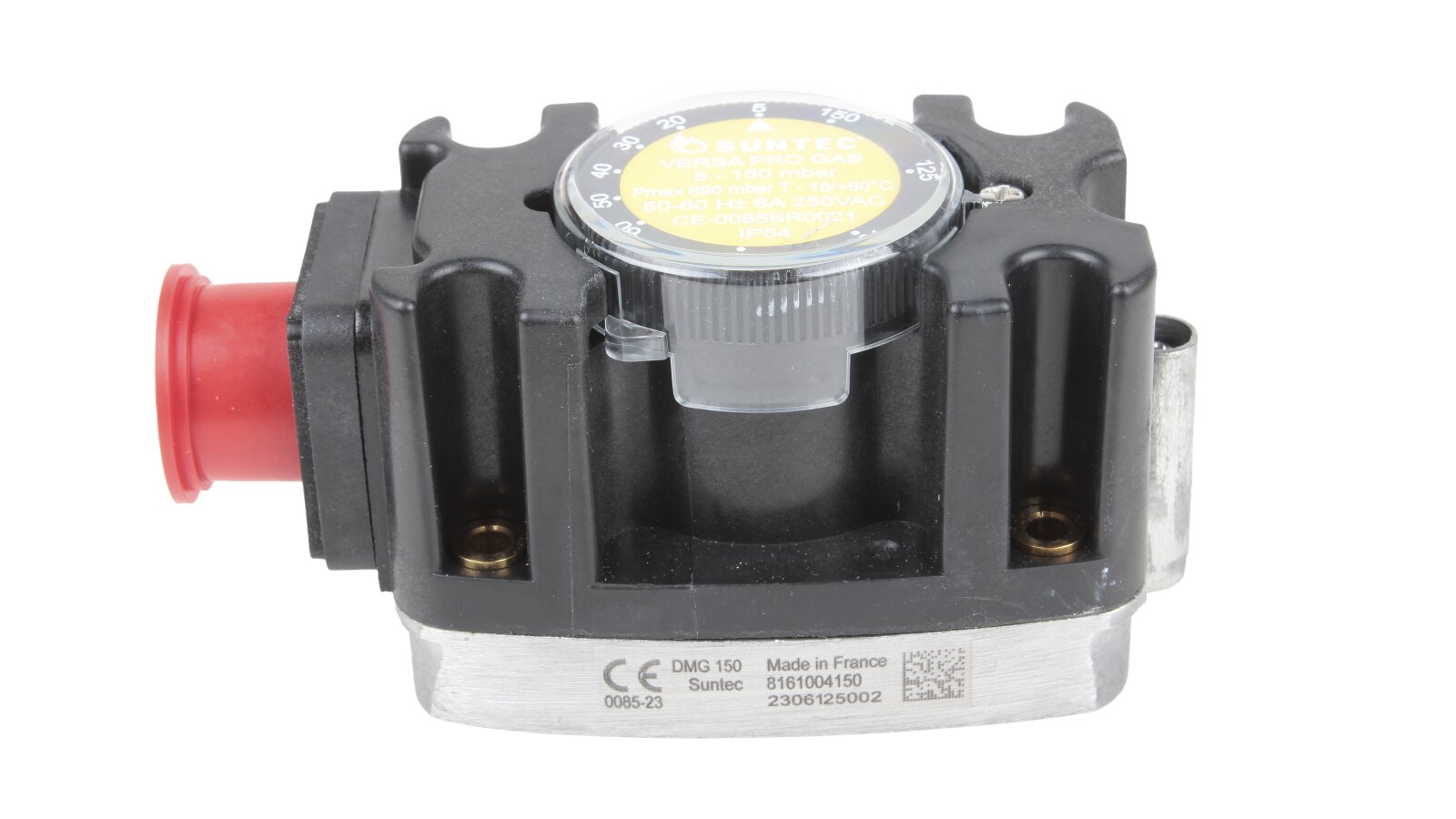

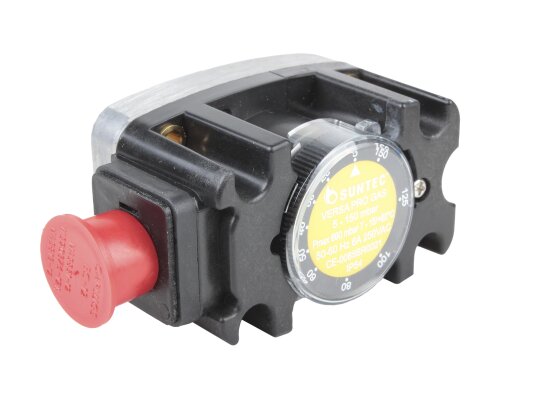

Pressure switch Suntec DMG 150

The Suntec DMG 150 pressure switch, art: 8161004150, is characterized by high switching accuracy, compactness, ease of installation and adjustment. It is built into the burner automation systems to control excess pressure and gas vacuum pressure. Smoothly adjusted in the range of 5-150 mbar by rotating the adjustment disk with a digital scale. Hysteresis is set within 0-10 mbar. The contacts close or open when the pressure drops below or rises above the set value.

Main parameters and features:

• for equipping automatic systems of gas equipment;

• maximum pressure - 690 mbar;

• reliable switching mechanism;

• adjustable hysteresis, elimination of frequent switching;

• accurate, stable response;

• small dimensions of the sensor for mounting on the gas valve;

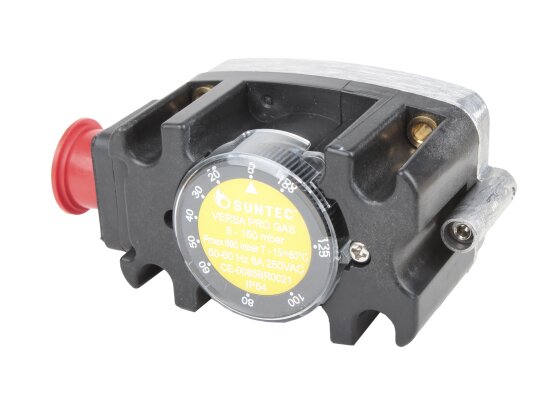

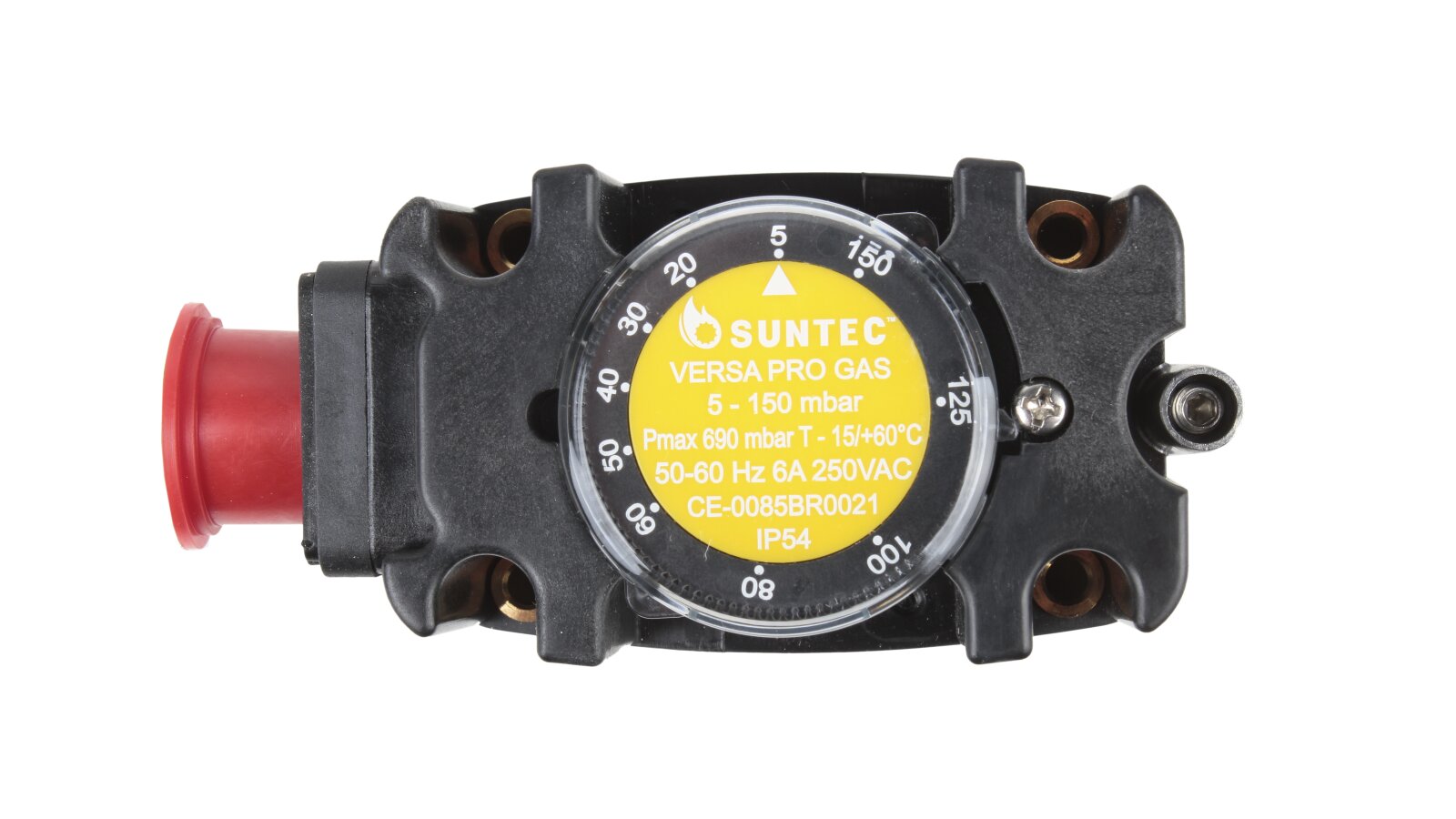

• convenient access to the settings from above using a disk regulator with numbers;

• automatic reset;

• connection via DIN plug;

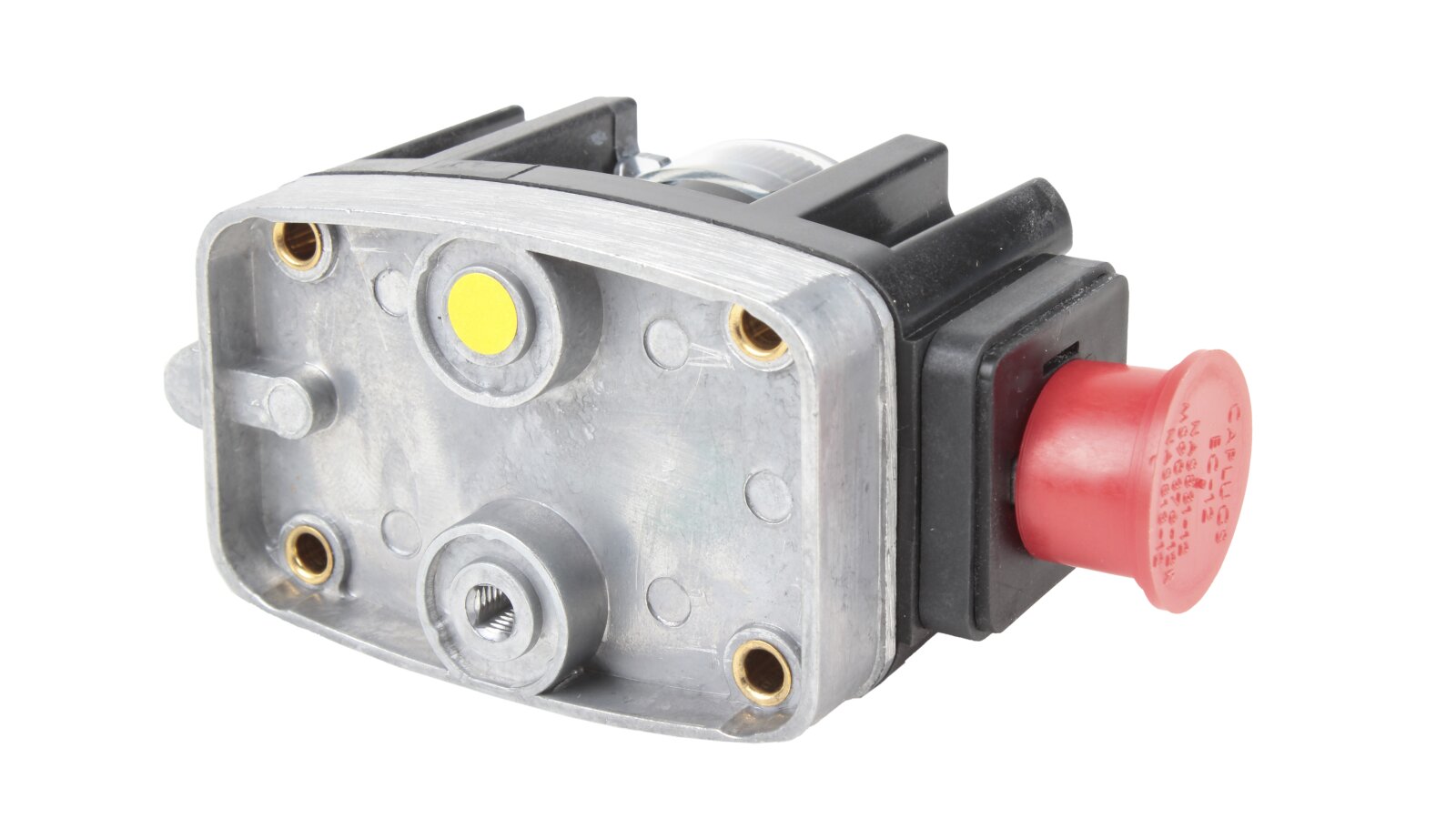

• cast housing made of aluminum alloy and high gas-tight polymer casing;

• removable transparent regulator cover;

• IP 54 class impermeability of the outer shell;

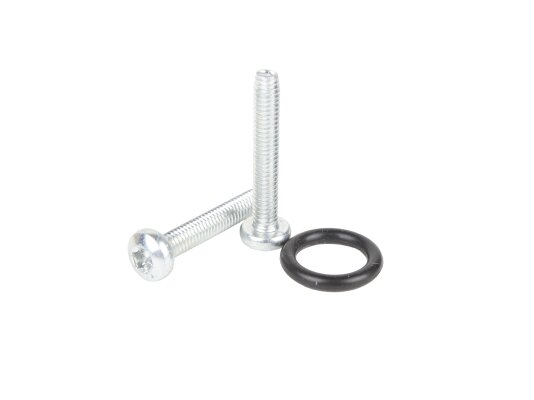

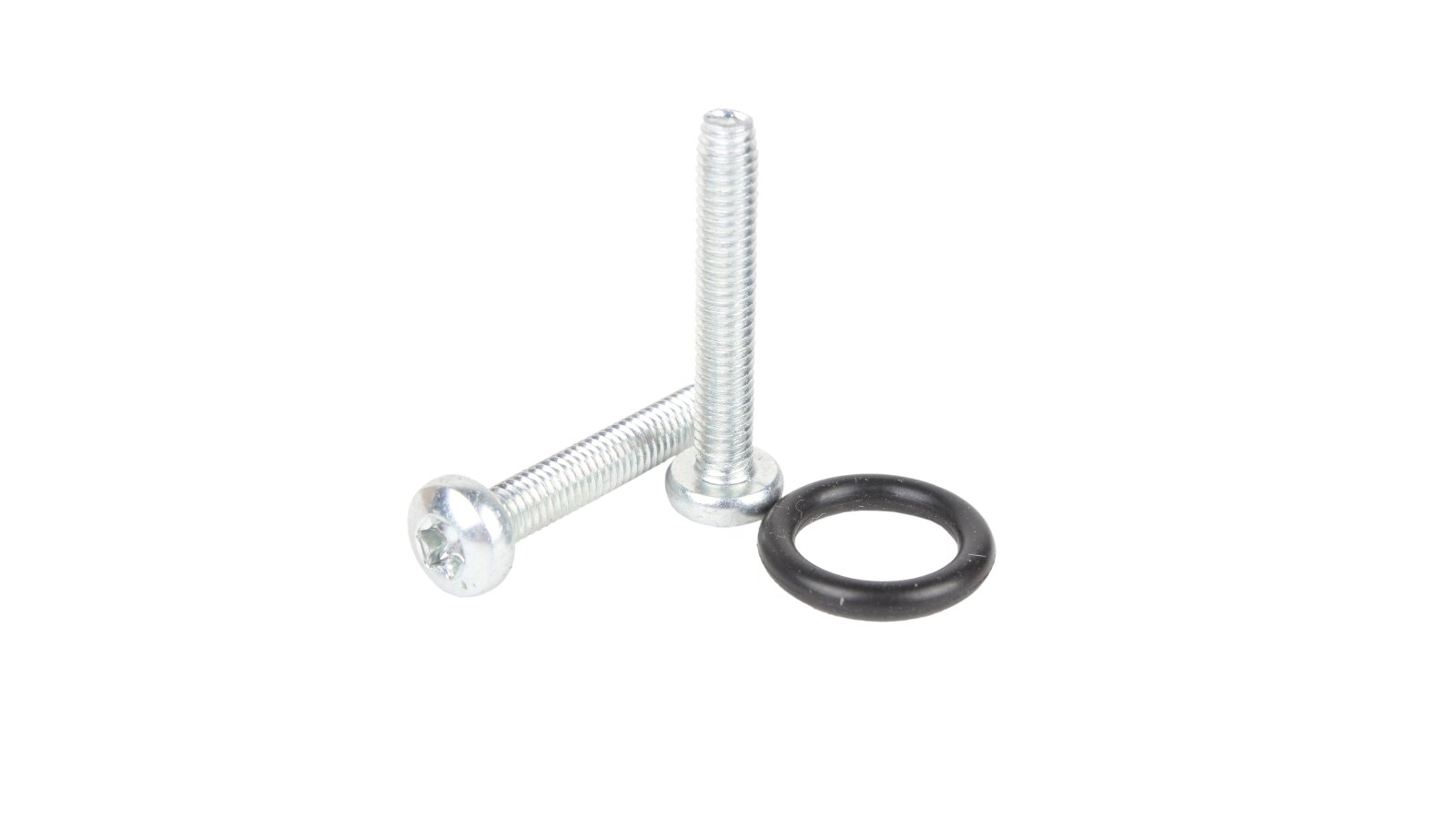

• fastening using sealing rings.

The DMG series pressure switch is designed to operate in ambient temperatures from -15 to +60°C. When installing and operating the sensor, avoid exposure to moisture and solar radiation.

Advantages:

• error-free operation;

• compact housing with a cast metal base;

• protection against contact, dust, splashes of water according to IP 54;

• gas-tight design;

• convenient regulator on top of the housing;

• stable switching at temperatures down to -15°C.

Application

The Suntec DMG 150 pressure switch is built into gas supply automation systems for burners, boilers, heat generators and other industrial equipment burning gas of family I-III according to EN 437.
