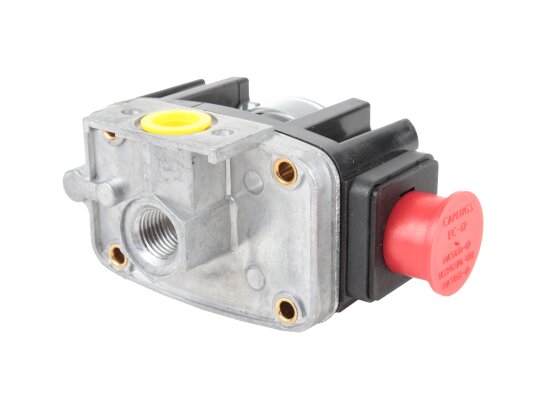

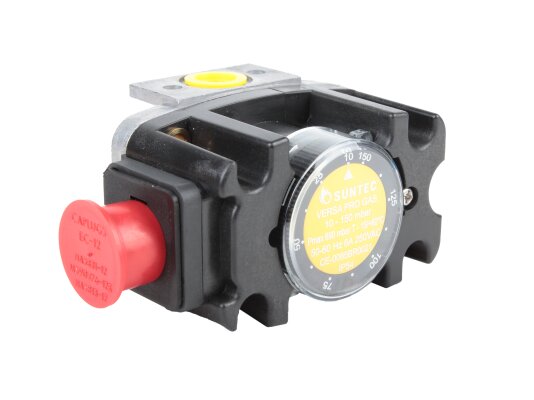

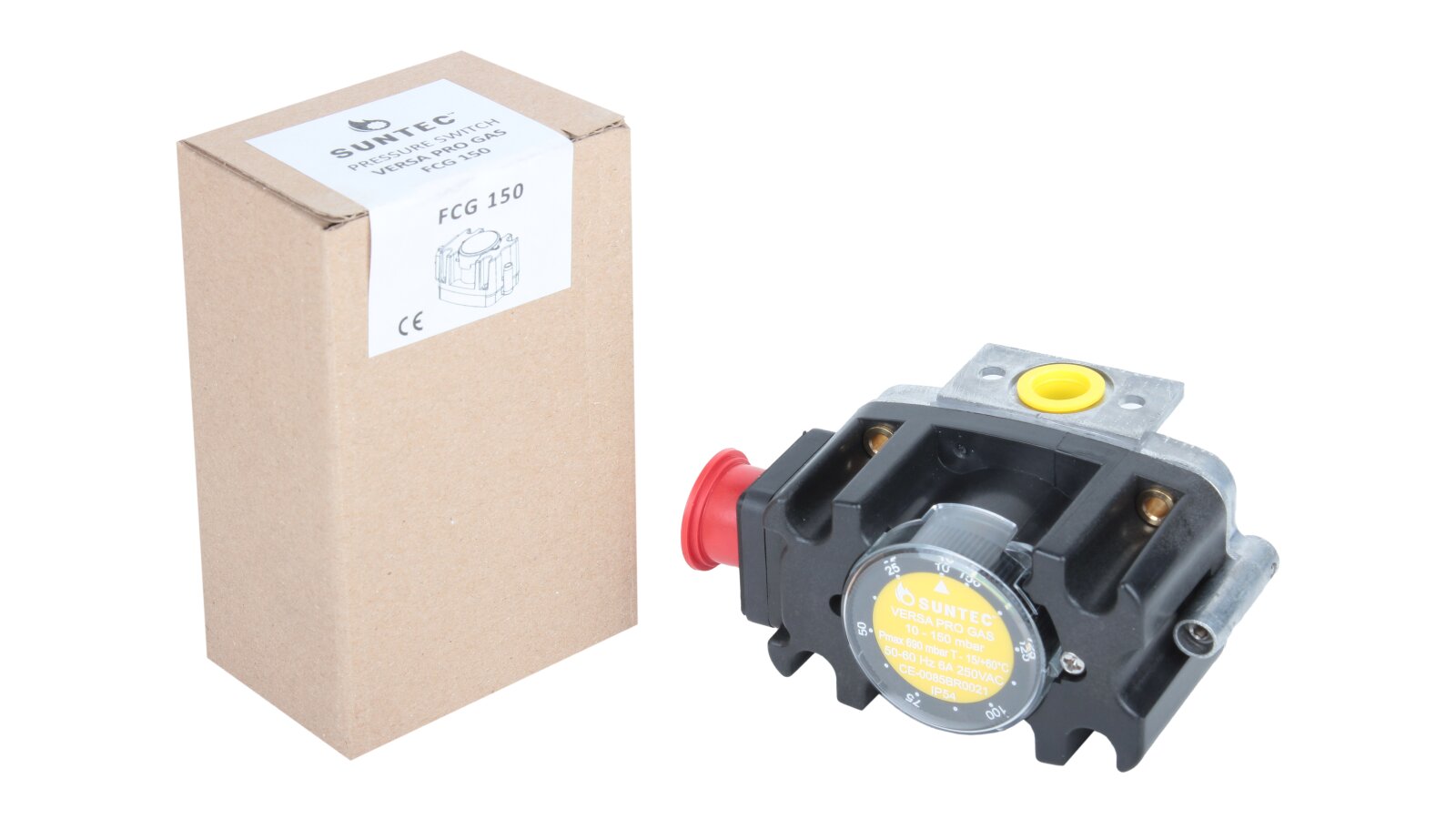

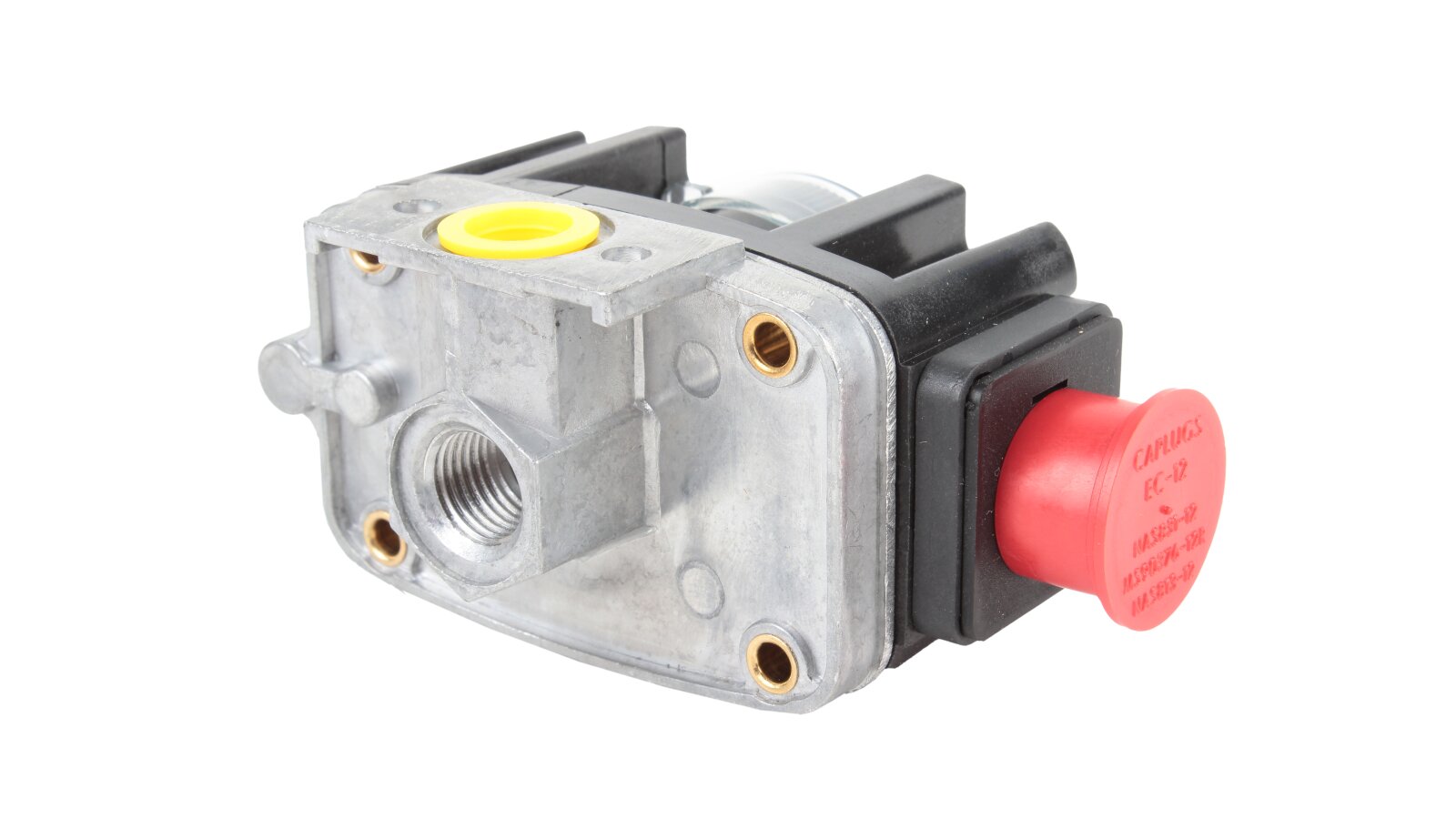

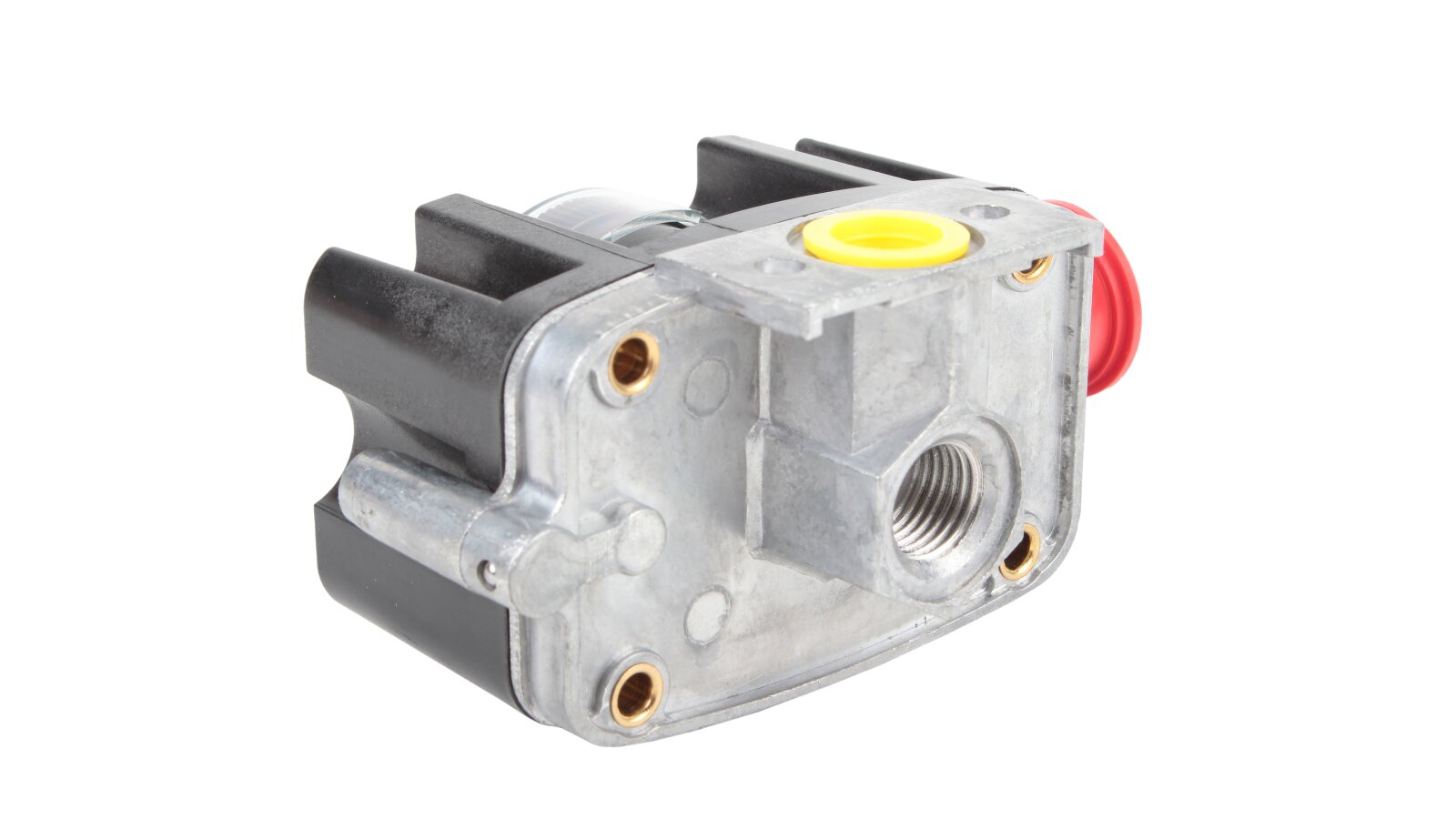

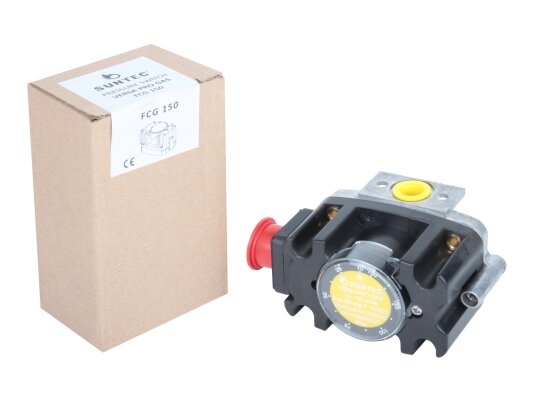

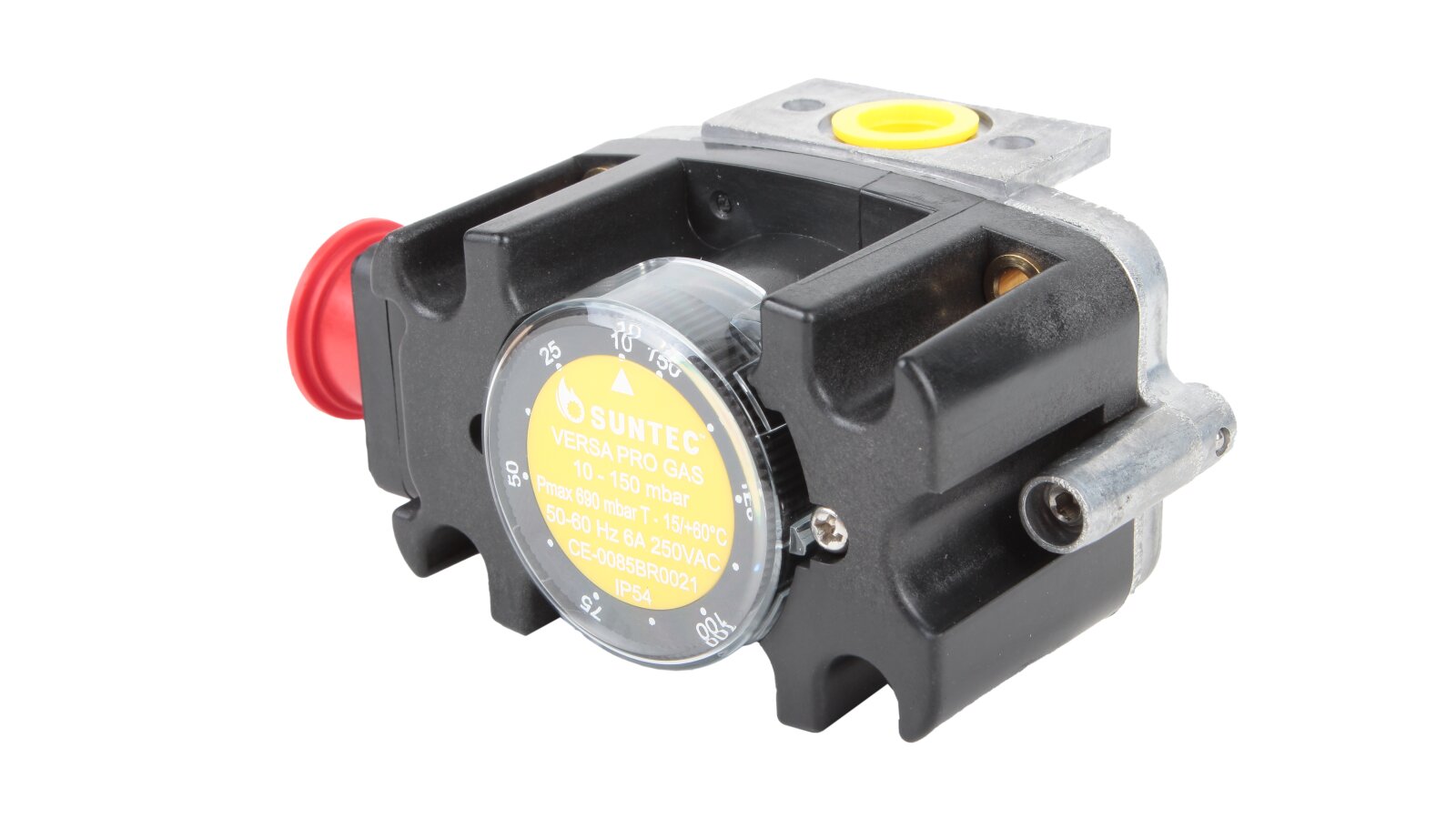

Pressure switch Suntec FCG 150

The Suntec FCG 150 pressure switch, art: 8171009150, is compact, easy to set up parameters, and has high response accuracy. Made from high gas-tight materials. It is used to equip automatic gas flow control and monitoring systems during operation of industrial installations with a medium pressure of up to 690 mbar.

Setting and switching

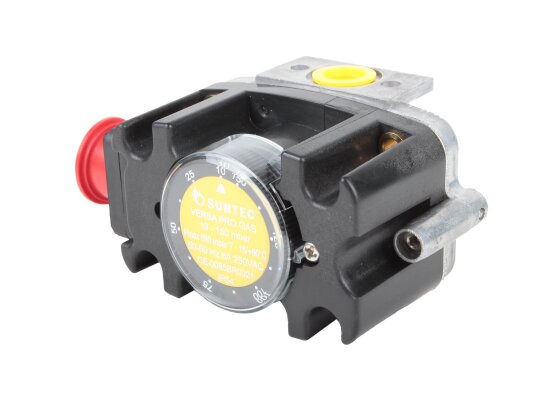

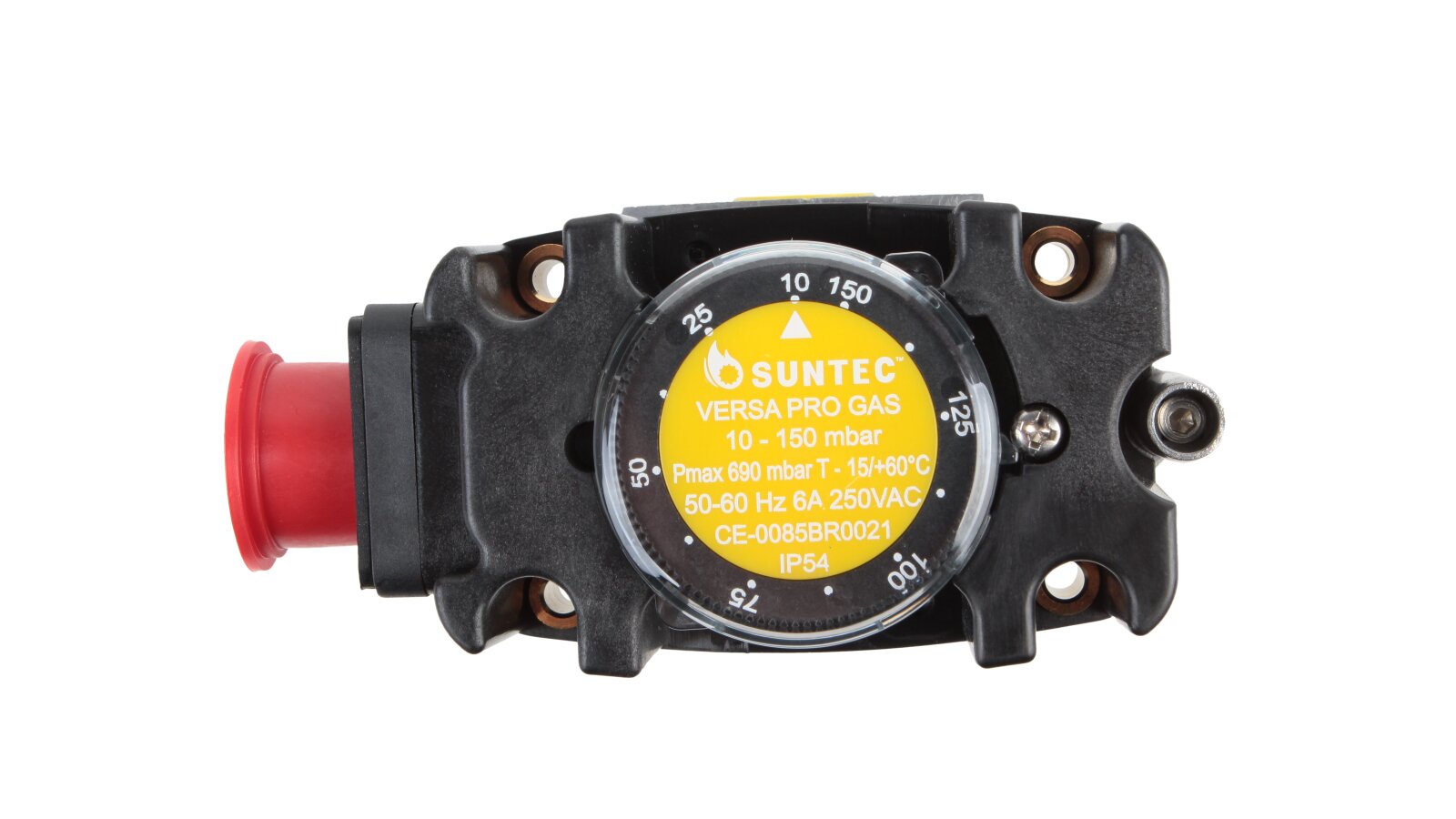

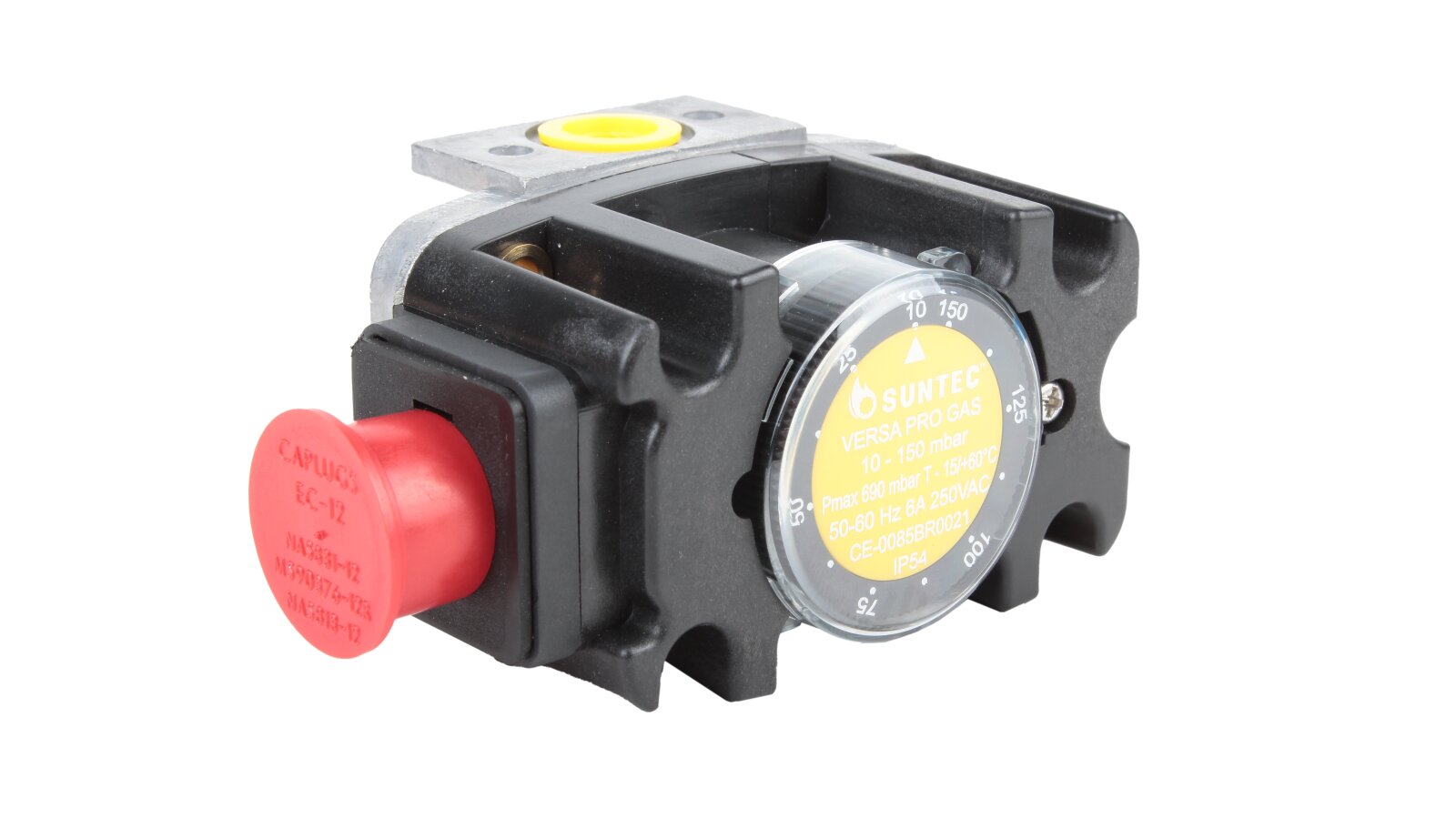

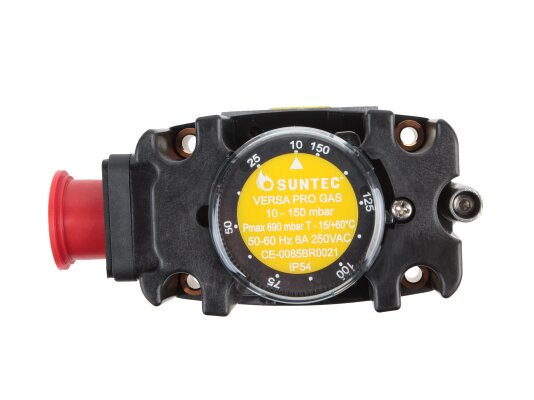

The sensor-relay is equipped with a regulator with a scale for precise and easy parameter setting. It closes or opens contacts if the pressure in the system drops below or rises above the set value. It is possible to change the response accuracy in the range of 0-3 mbar.

Design and installation

The switching mechanism and sensitive membrane are protected from external influences by a robust compact housing made of die-cast aluminum and polymer. Electrical protection complies with the IP 54 standard. During operation, it is necessary to prevent water from getting on the housing and exposure to solar radiation.

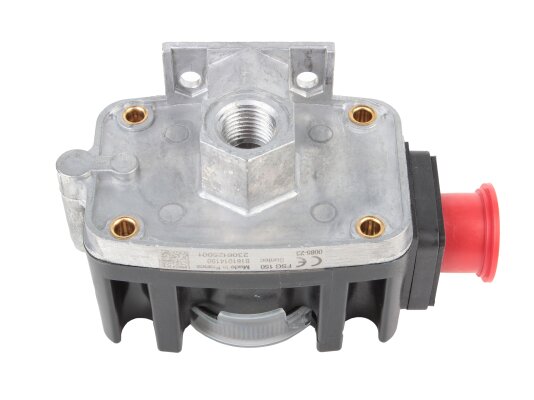

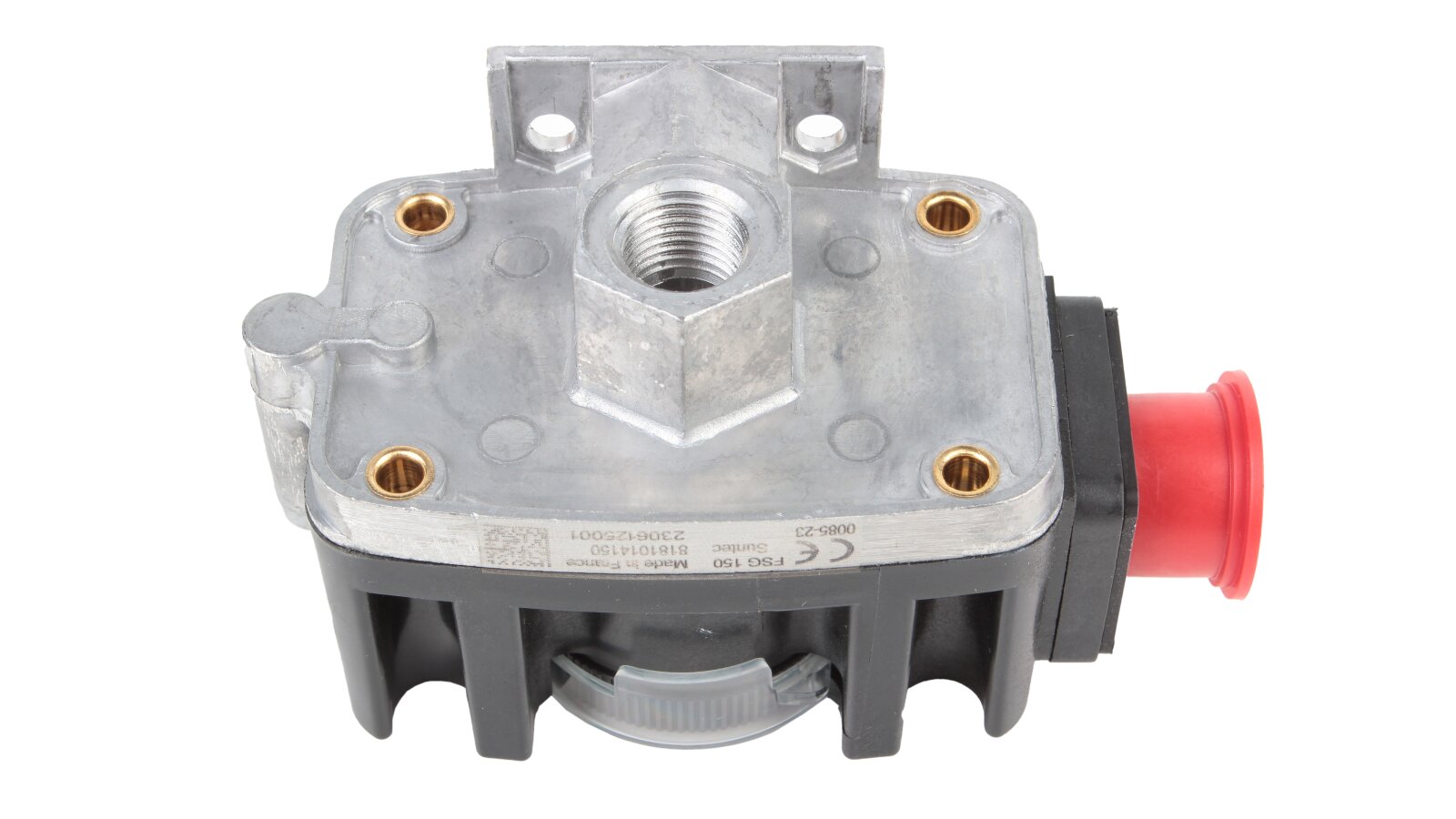

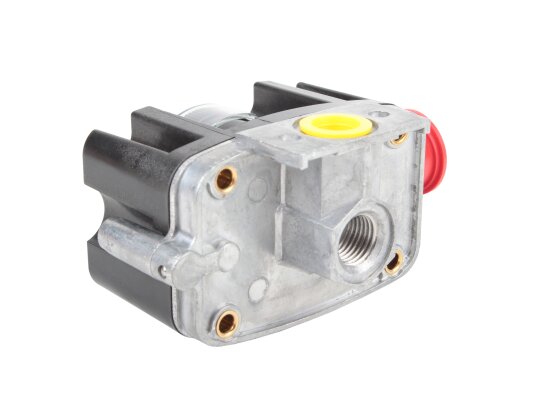

The sensor is fixed to the gas valve. The Rp ¼" threaded connection ensures simple and reliable installation in the system. Reliable and quick connection is made via a DIN plug. The relay operates stably at ambient temperatures from -15 to +60 °C.

Advantages:

• reliable switching system;

• precise adjustment without a pressure gauge;

• compact dimensions that simplify installation;

• IP54 electrical protection of contacts;

• wide range of operating temperatures.

To buy the Suntec FCG 150 pressure relay and other equipment for furnace units, fill out an online application. Additional information can be obtained from our consultants.
