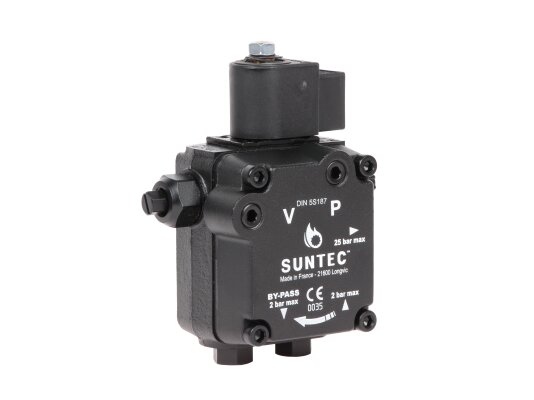

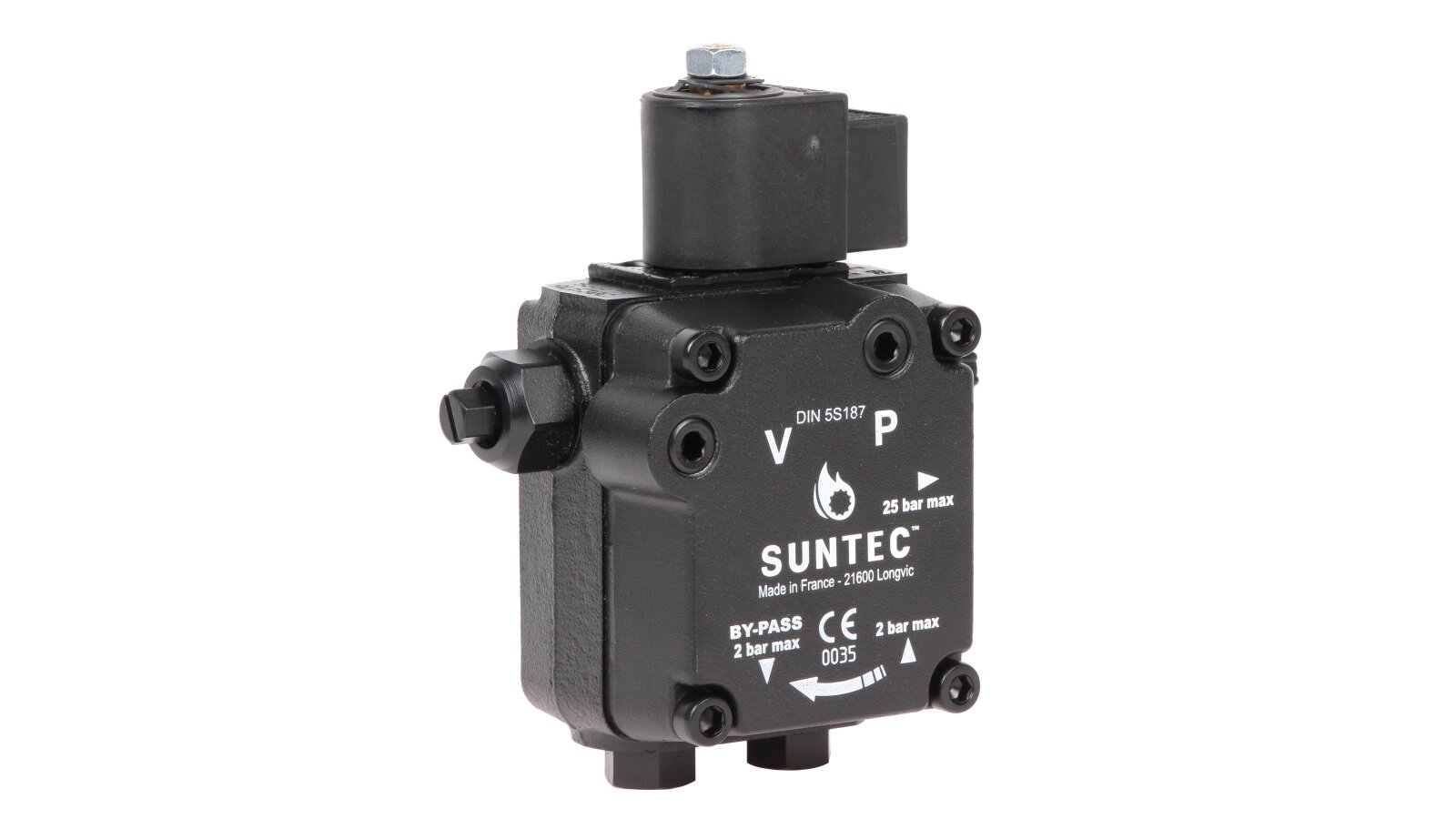

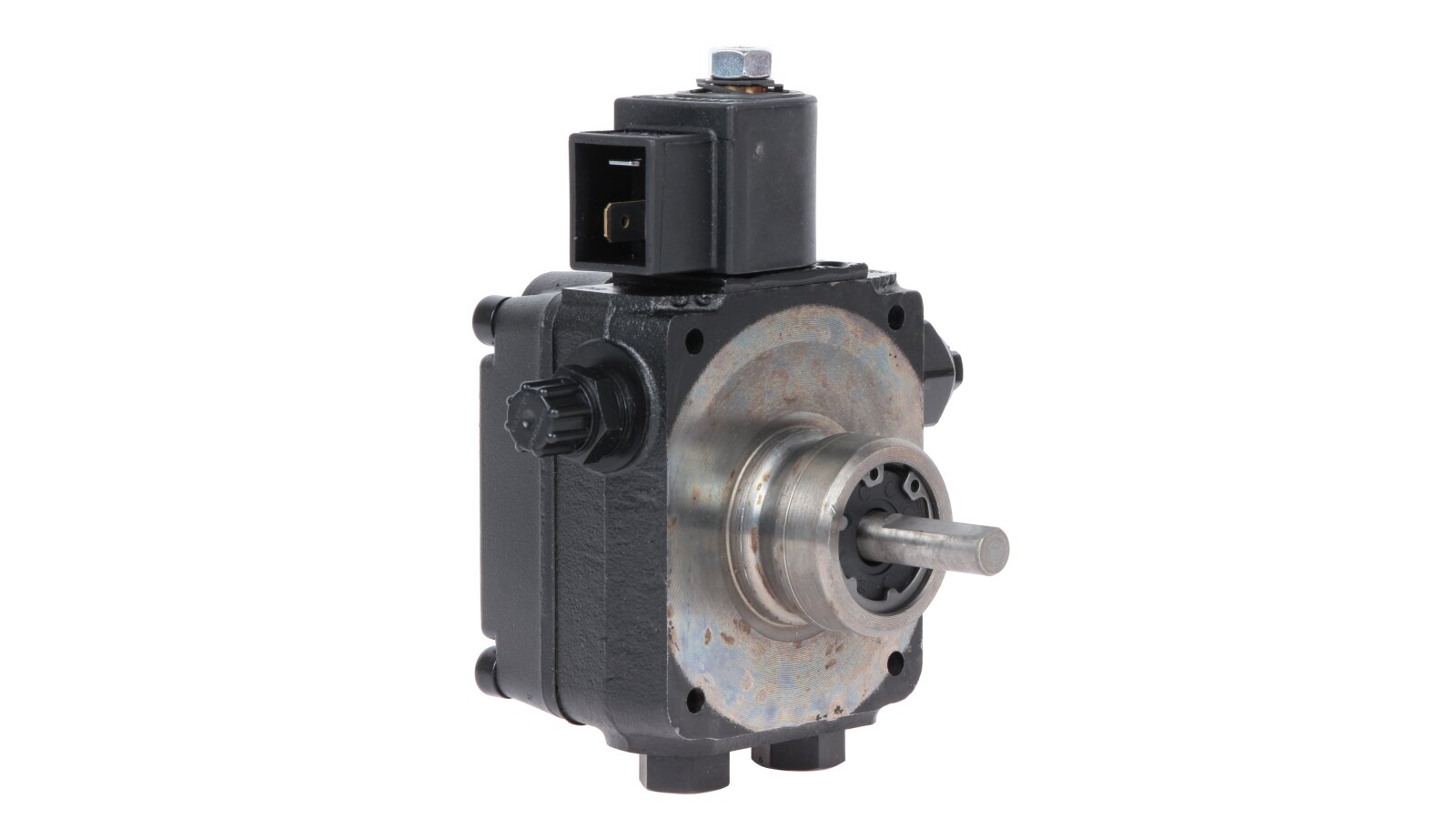

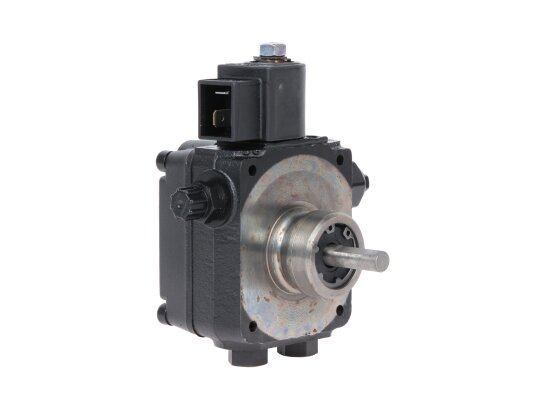

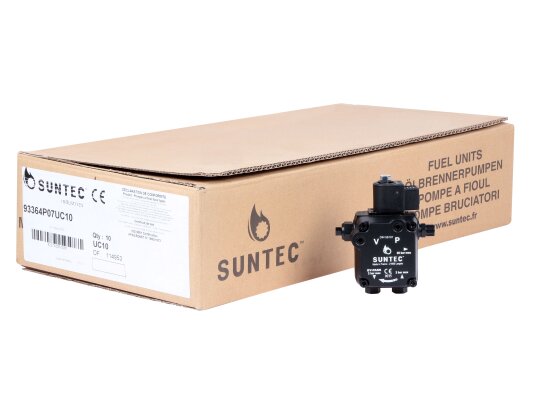

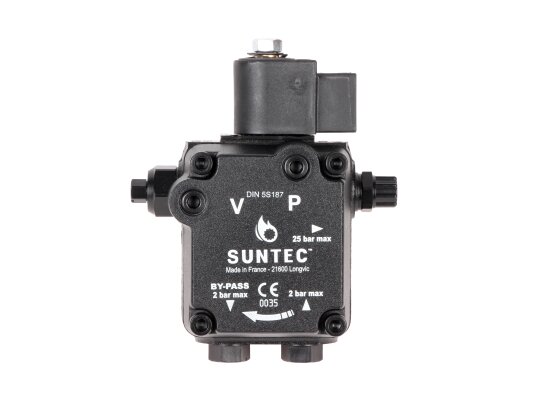

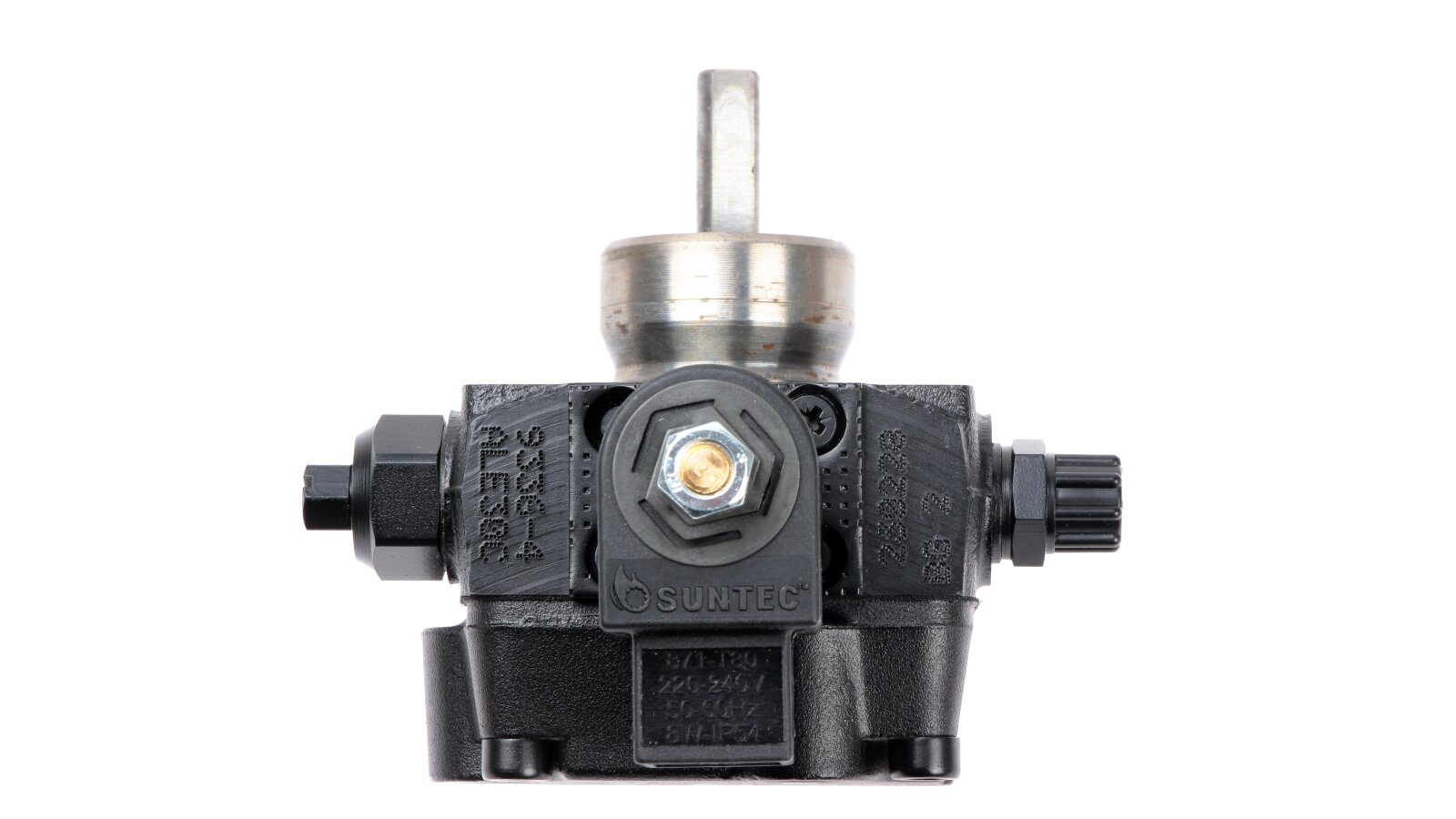

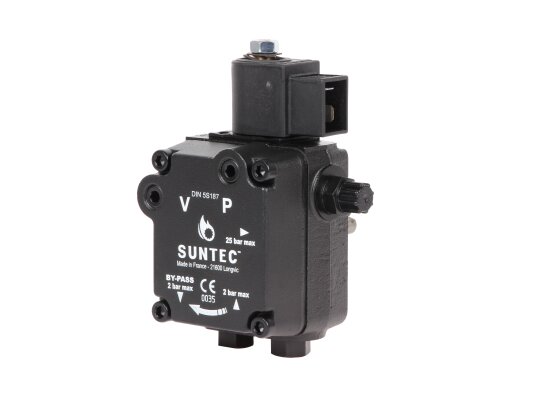

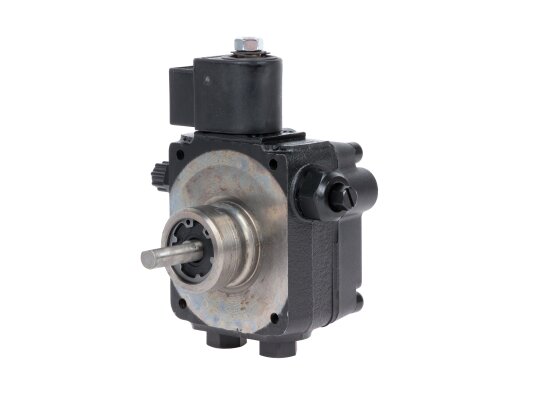

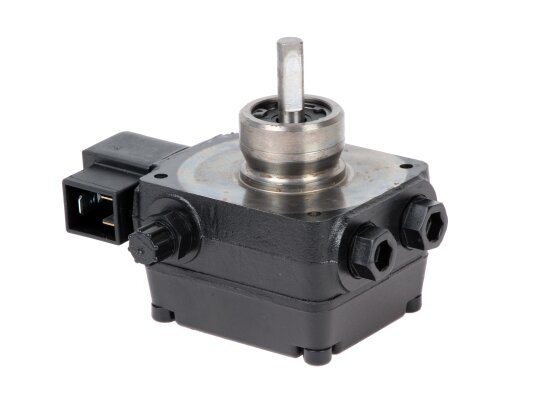

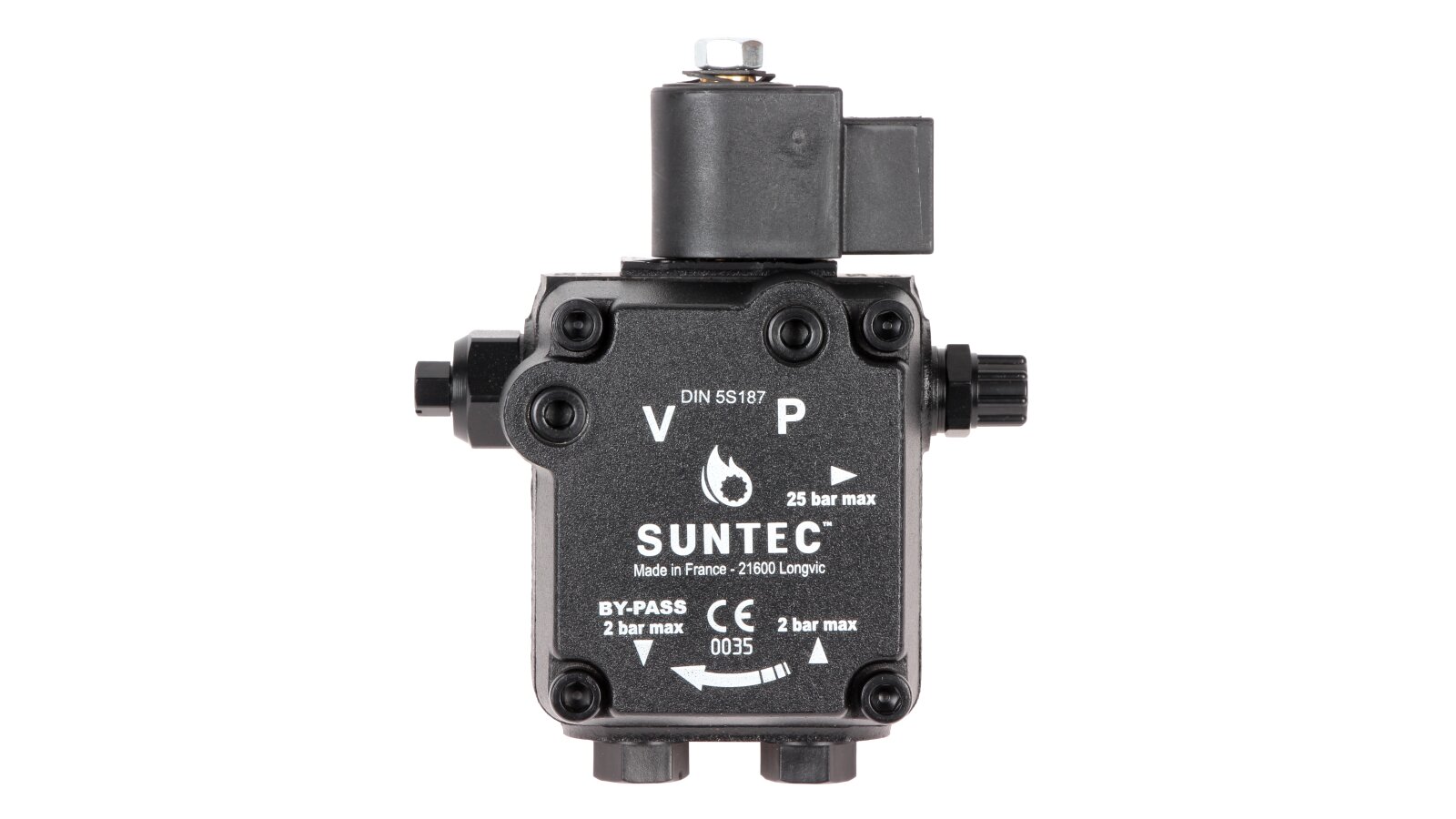

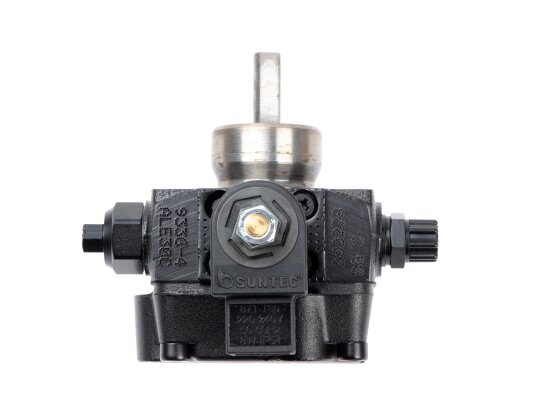

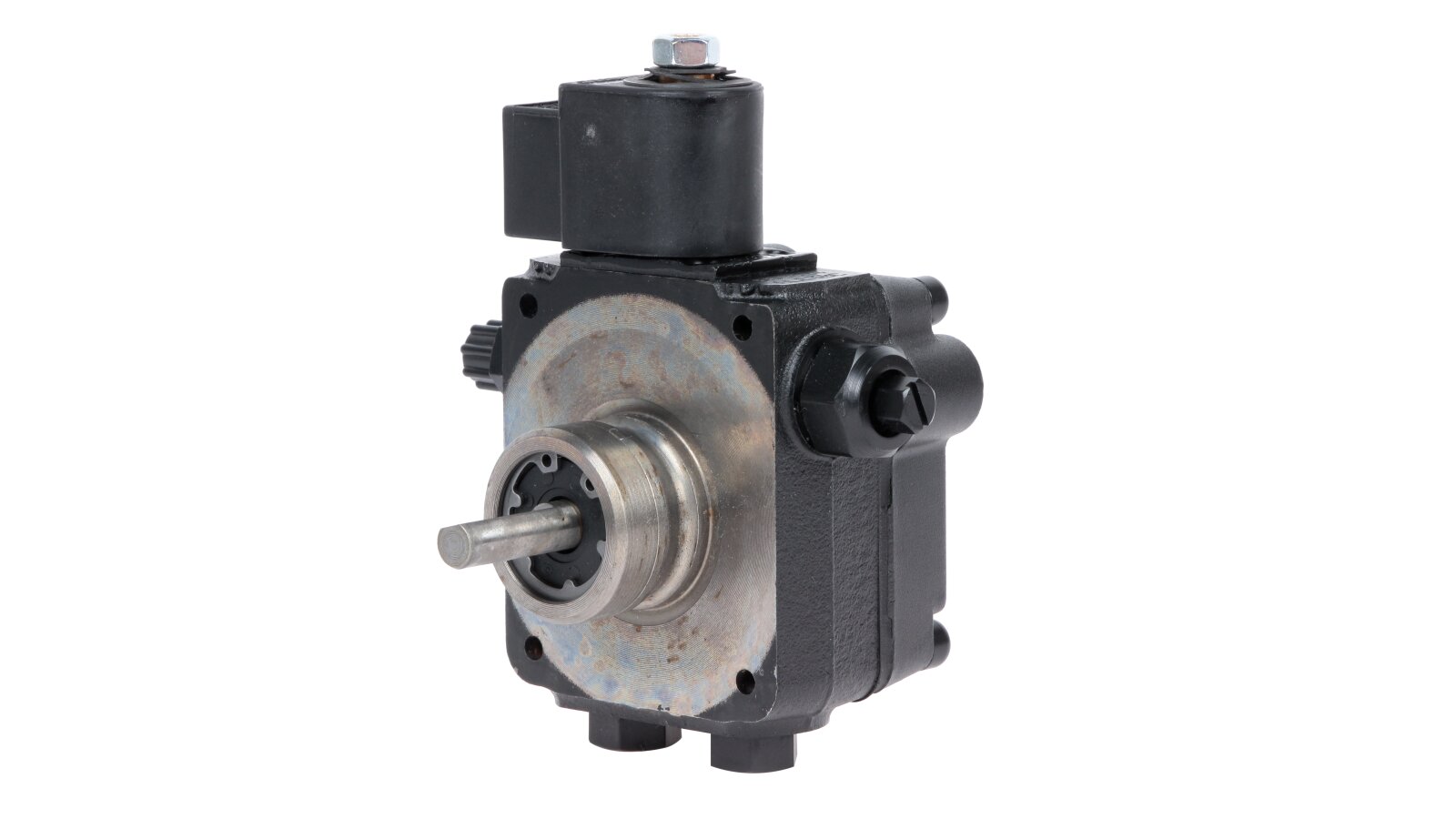

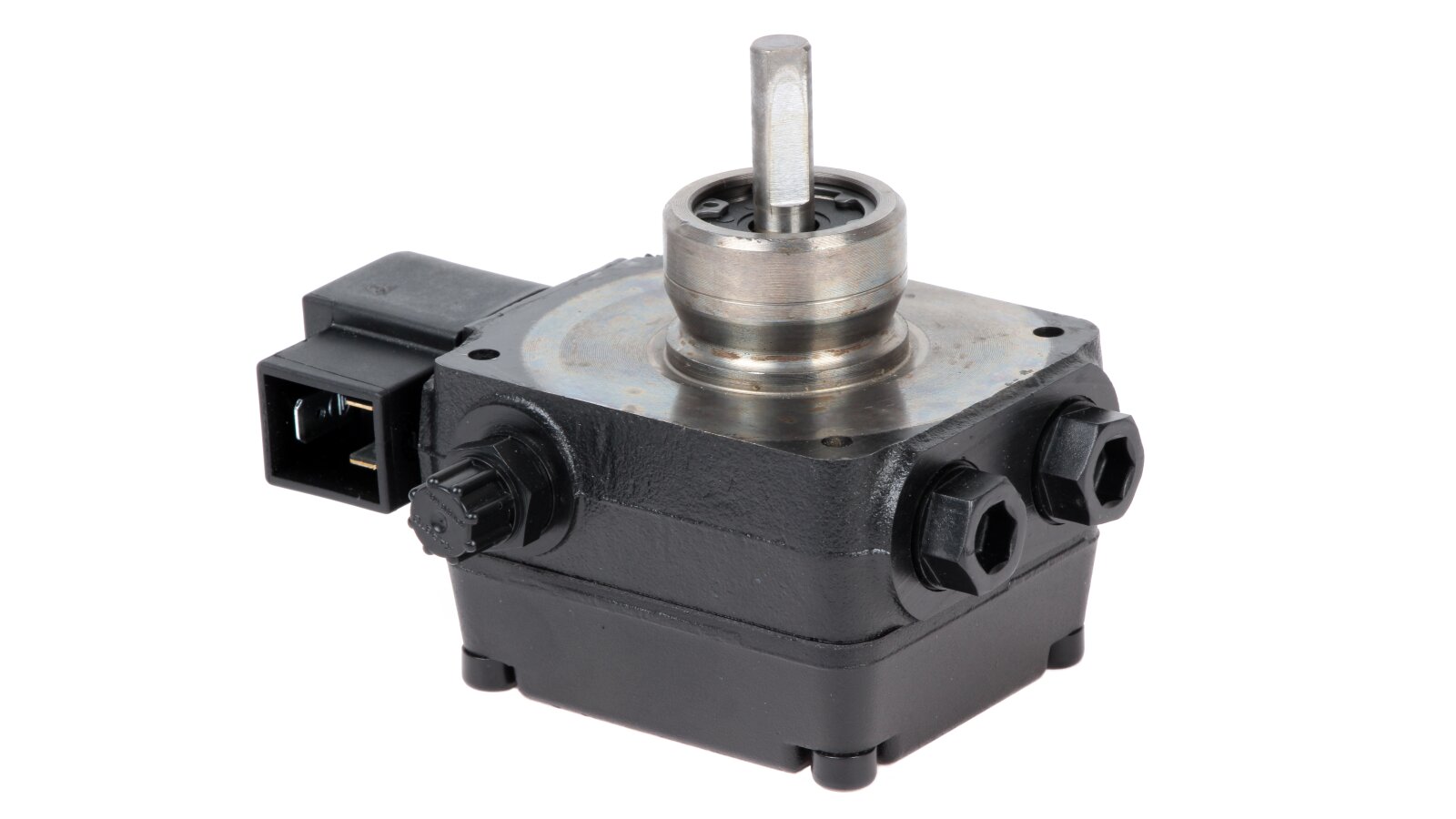

Burner Pump Suntec ALE 30 C 9336 4P 0700

Suntec

AED 975

Oil Burner Pumps
Products code: 6662

Description

The ALE 30 C 9336 4P 0700 diesel pump is designed to complete equipment used for heating residential and commercial premises. A special feature of this series of products is the presence of an electromagnetic blocking valve with a built-in check valve in the design. This design provides the function of locking and pressure relief in the nozzle line.

Operating principle

The working element is a gear pair rotating counterclockwise at a nominal speed of 2850 rpm. The engine is connected using a sleeve method, diameter 32 mm.

Diesel fuel pumped from the tank is cleaned of abrasive particles of 150 µm and fed through a shut-off electromagnetic valve to the nozzle line under pressure from 8 to 15 bar.

Excess fuel is sent through a pressure regulating valve to the tank in a 2-pipe connection scheme or to the suction line in installations with one pipe.

Important! The manufacturer recommends installing an additional fine filter on the pressure part for maximum protection of the injectors from clogging and early wear.

Key advantages:

  • Blocking function and pressure relief of the working fluid;

  • Standard outlets and ports for measuring equipment according to ISO 228/1;

  • Sleeve installation method according to EN 225;

  • Preliminary fuel cleaning with a mesh filter with a closed area of ​​6 cm²;

  • Possibility of adjusting the feed pressure in the range of 8-15 atmospheres;

  • Use in systems with one or two pipes.

To complete the fuel equipment of most popular brands, the ANKAS company offers to buy a Suntec pump for ALE 30 C 9336 4P 0700 burners and other equipment at an affordable price. Our consultants will help you choose the right model.

Characteristics

Torque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: ALE: blocking solenoid valve with shut-off function and pressure relief device in line fPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: diesel
