Burner Pump Suntec ALE V 30 C 9300 4P 0700 R

Suntec
  • Discontinued
  1. Oil Burner Pumps

Description

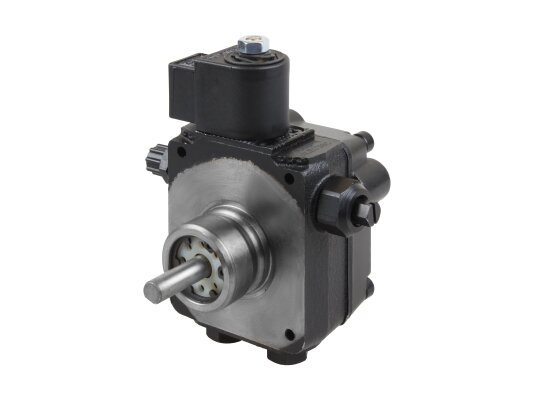

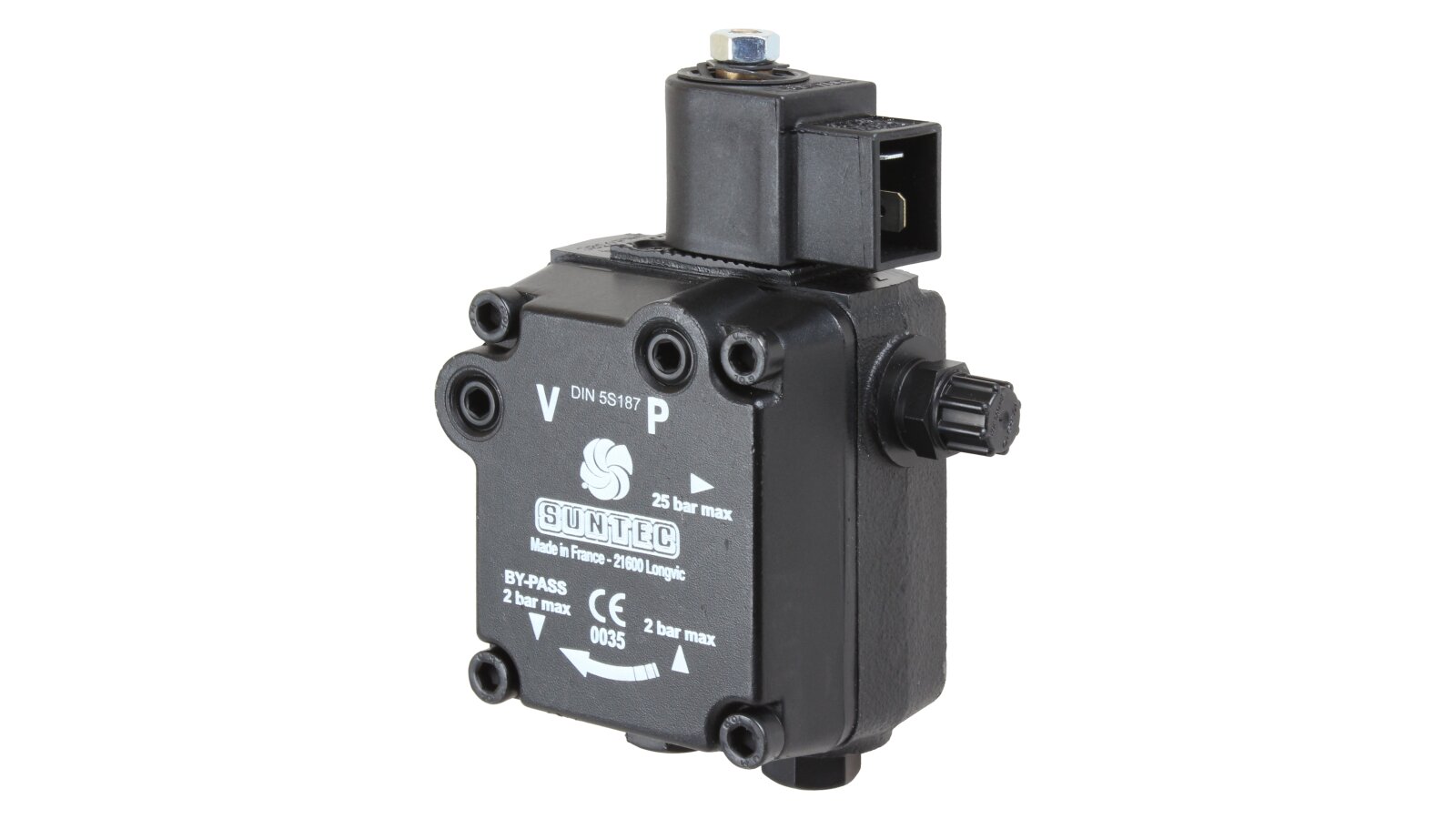

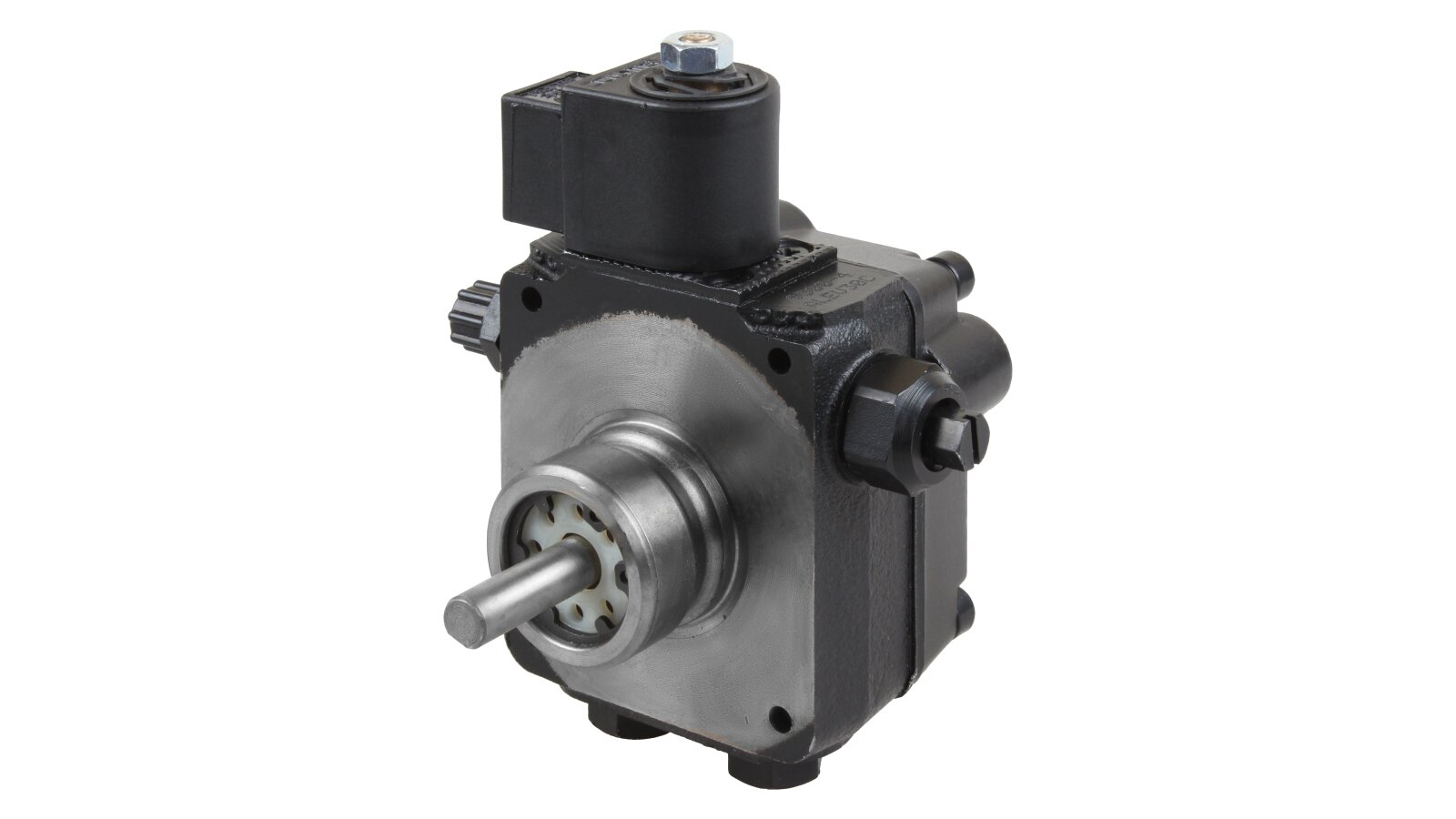

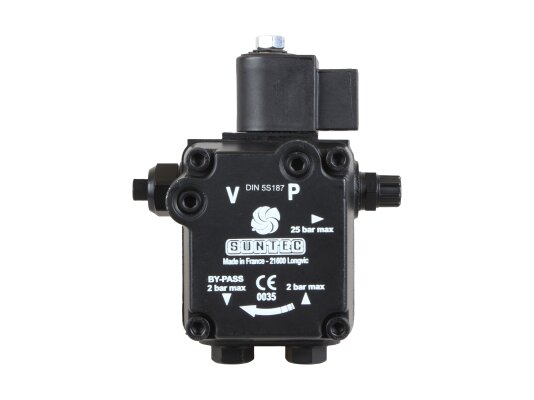

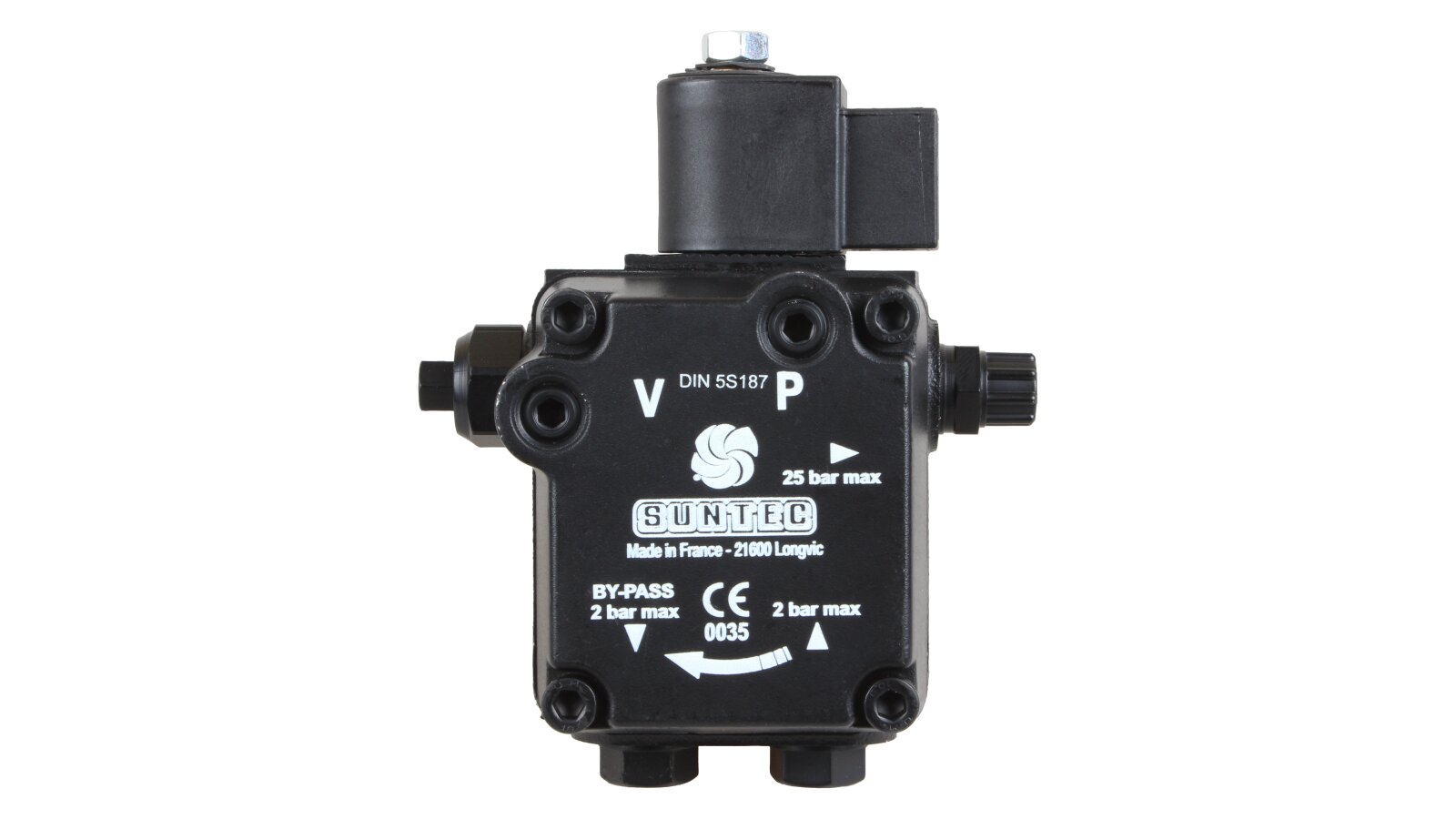

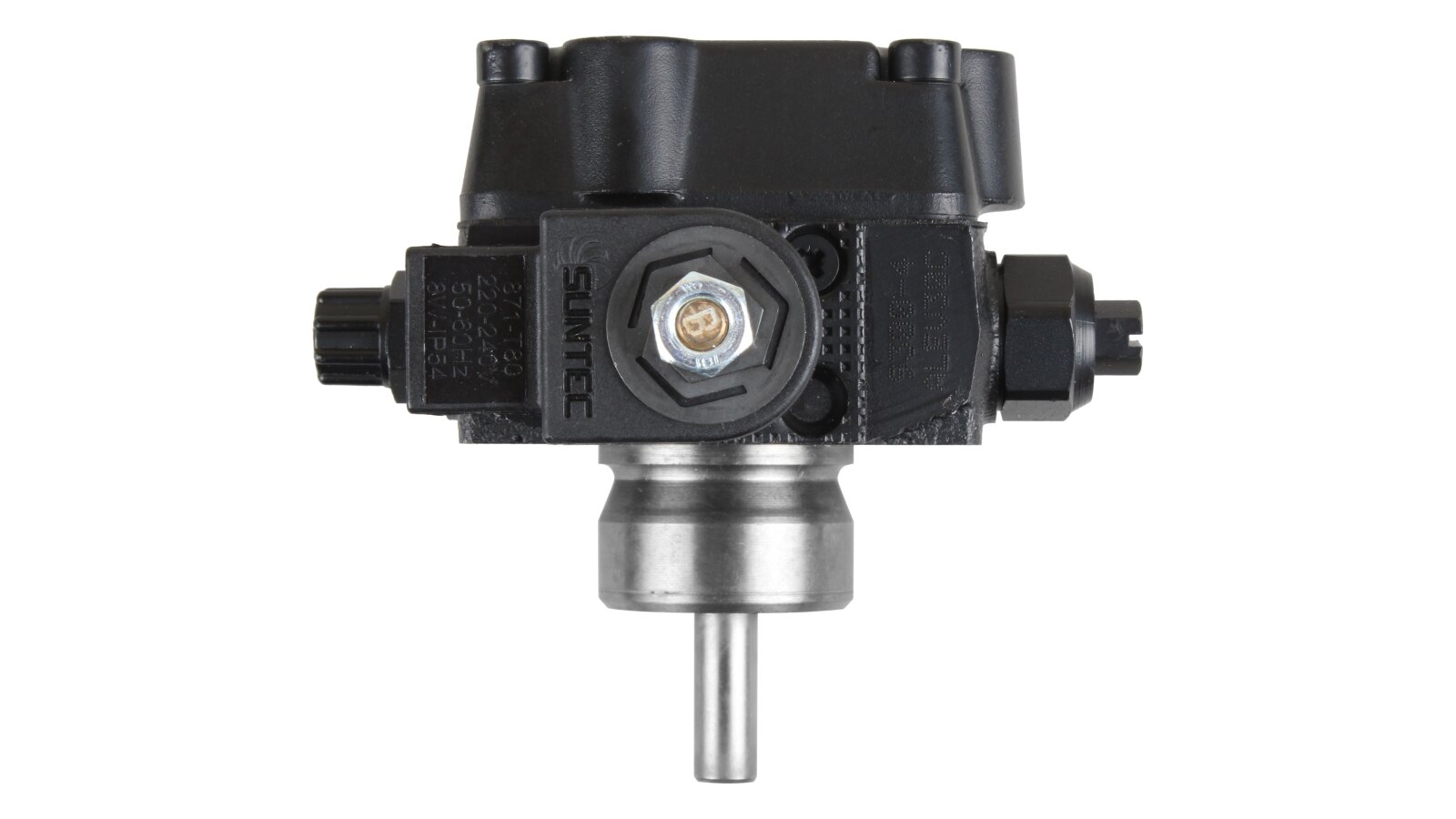

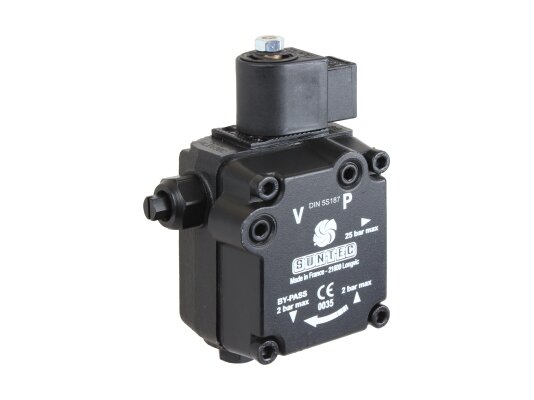

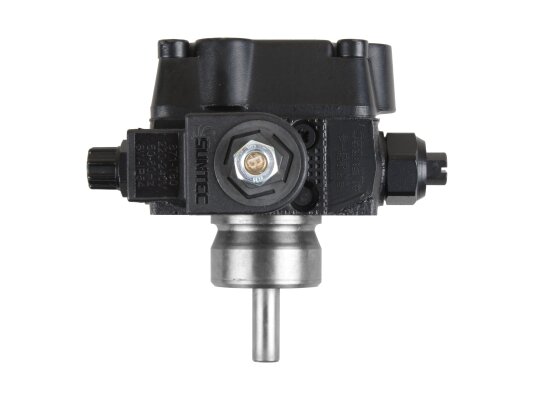

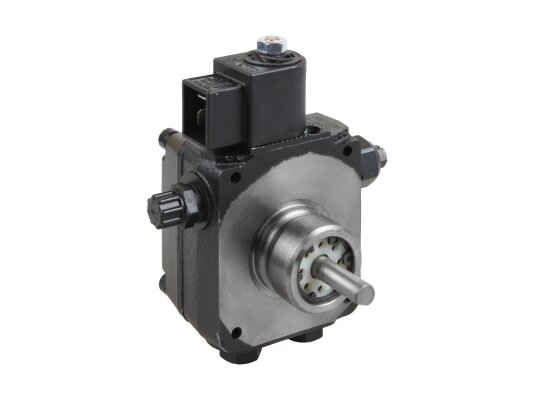

The Suntec ALE V 30 C 9300 4P 0700 R pump, article number: 601857-WE, can pump diesel fuel and biodiesel under pressure up to 15 atmospheres. A special feature of this model is the electromagnetic valve with a locking function, which is combined with a check valve responsible for relieving pressure in the injector line. The pump capacity is 40 l / h at a pressure of 11 atmospheres and a fuel viscosity of 5 cSt. Universal fit expands the application possibilities of the equipment.

Features

The pump is capable of pumping biodiesel thanks to Viton shaft seals. Prepared for a 2-pipe connection scheme. When dismantling the bypass plug and installing a blind valve, it is possible to create a one-pipe system. Air in 2-pipe designs is removed automatically. The normally closed electromagnetic valve is located in the injector line and is characterized by rapid response. The outlet pipe for connection to the nozzle is located on the left side of the housing.

Design and parameters

  • The pump housing is manufactured according to the IP41 dust and moisture protection standard. The main working element is a gear mechanism, which is responsible for pumping fuel from the tank to the nozzle.

  • The electromagnetic valve in active mode opens the fuel supply to the nozzle. In the closed position, the fuel returns to the suction line or is sent to the tank, depending on the connection scheme (single- or two-pipe system).

  • The gear mechanism is protected from premature failure by a built-in mesh filter. All abrasive impurities of 150 microns or more in size are retained at the inlet, preventing malfunctions of the heating equipment. To filter out smaller particles, the manufacturer recommends installing a fine filter after the pump.

  • The regulating valve maintains the pressure at the required level. The pump is adjusted to 9 bar. Taking into account individual needs, it is possible to adjust the fuel pressure on the injector in the range of 8-15 bar

  • A 32 mm diameter sleeve connection is provided for pump installation, supported by most modern burner manufacturers.

Advantages:

  • functionality – pumping diesel fuel and biodiesel;

  • instantaneous response of the EM valve in any engine operating mode;

  • mesh filter for gear protection;

  • function of locking and relieving excess pressure;

  • universal fit;

  • standard ports for measuring devices;

  • pressure adjustment from 8 to 15 atmospheres;

  • optimal performance;

  • installation in two- and one-pipe systems.

The Suntec ALE V 30 C 9300 4P 0700 R pump, like all products of the French company, is distinguished by reliability and safety in operation, long service life. The ANKAS website presents all the necessary components for creating an effective heating system. For assistance in selecting equipment and spare parts, please contact our consultants.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 40 l/hType of pumped liquid: diesel, biodiesel fuel blend B10Operating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: ALE: blocking solenoid valve with shut-off function and pressure relief device in line fSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmDegree of protection: IP41Torque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barBypass valve opening pressure: 3.5 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 15 bar
