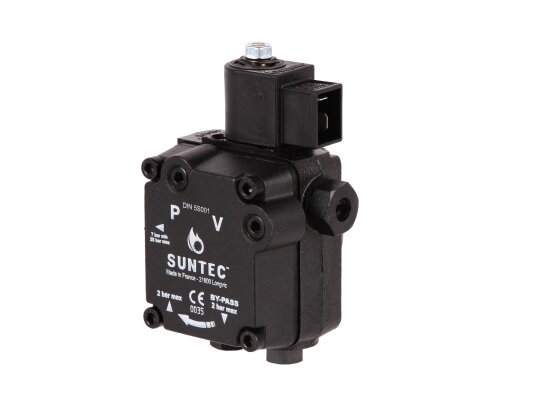

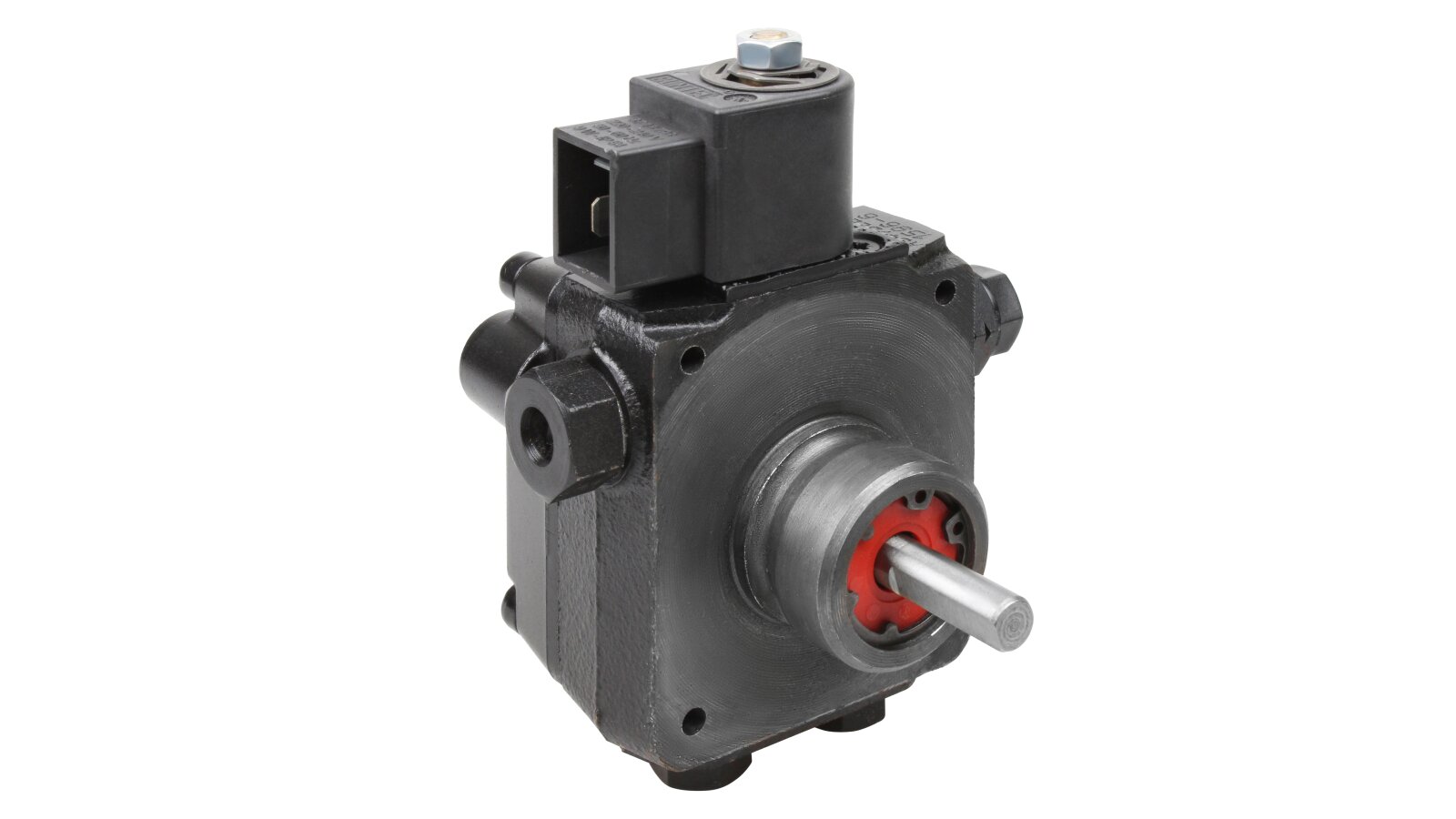

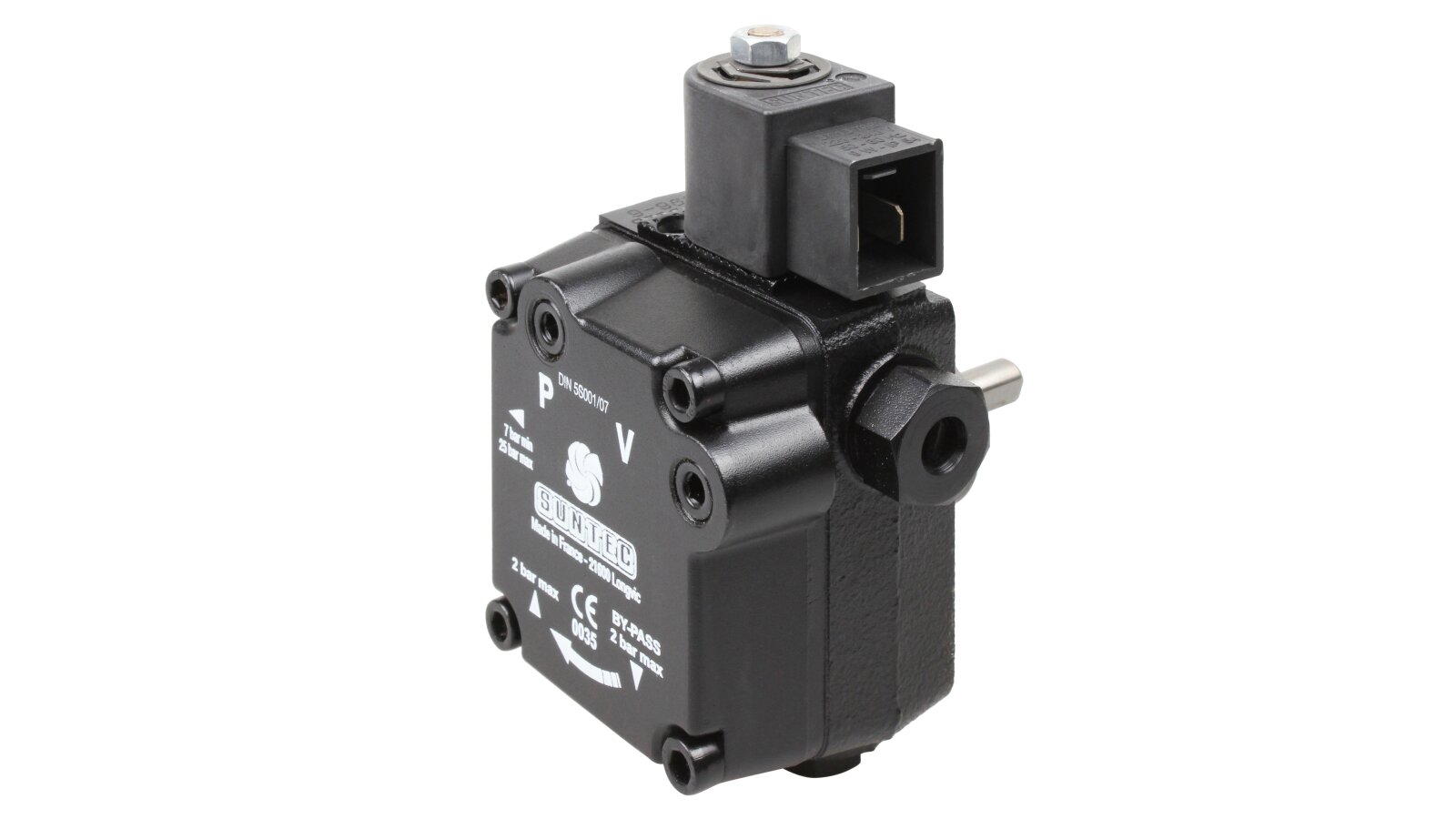

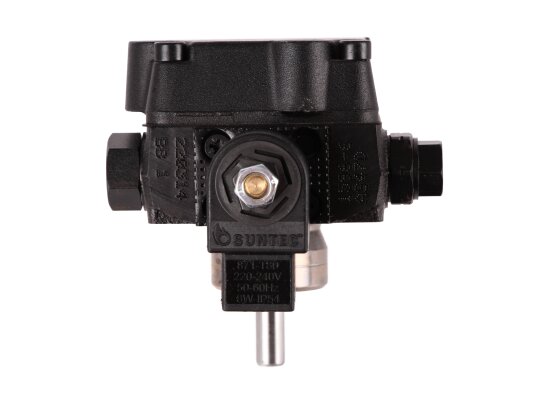

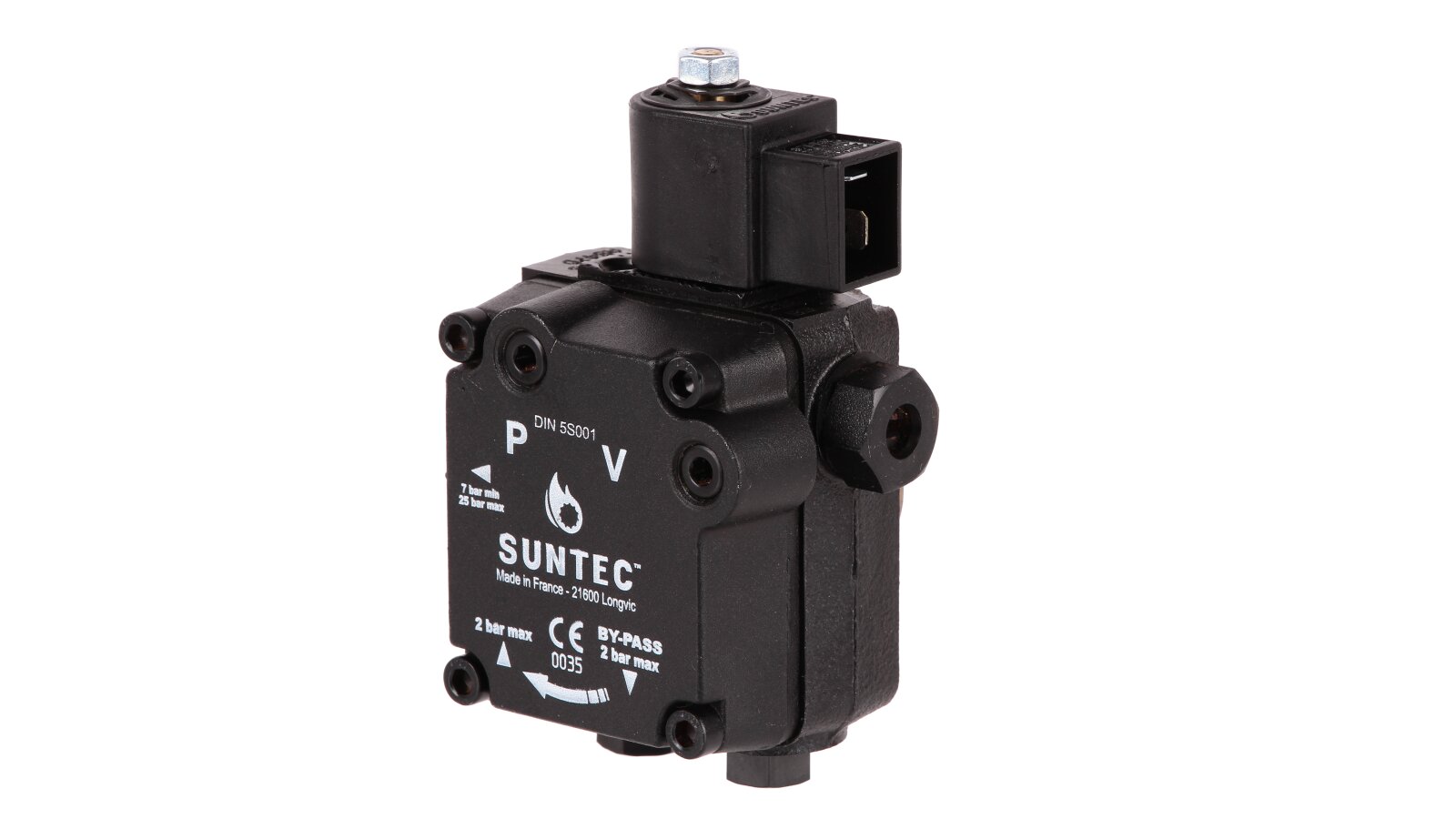

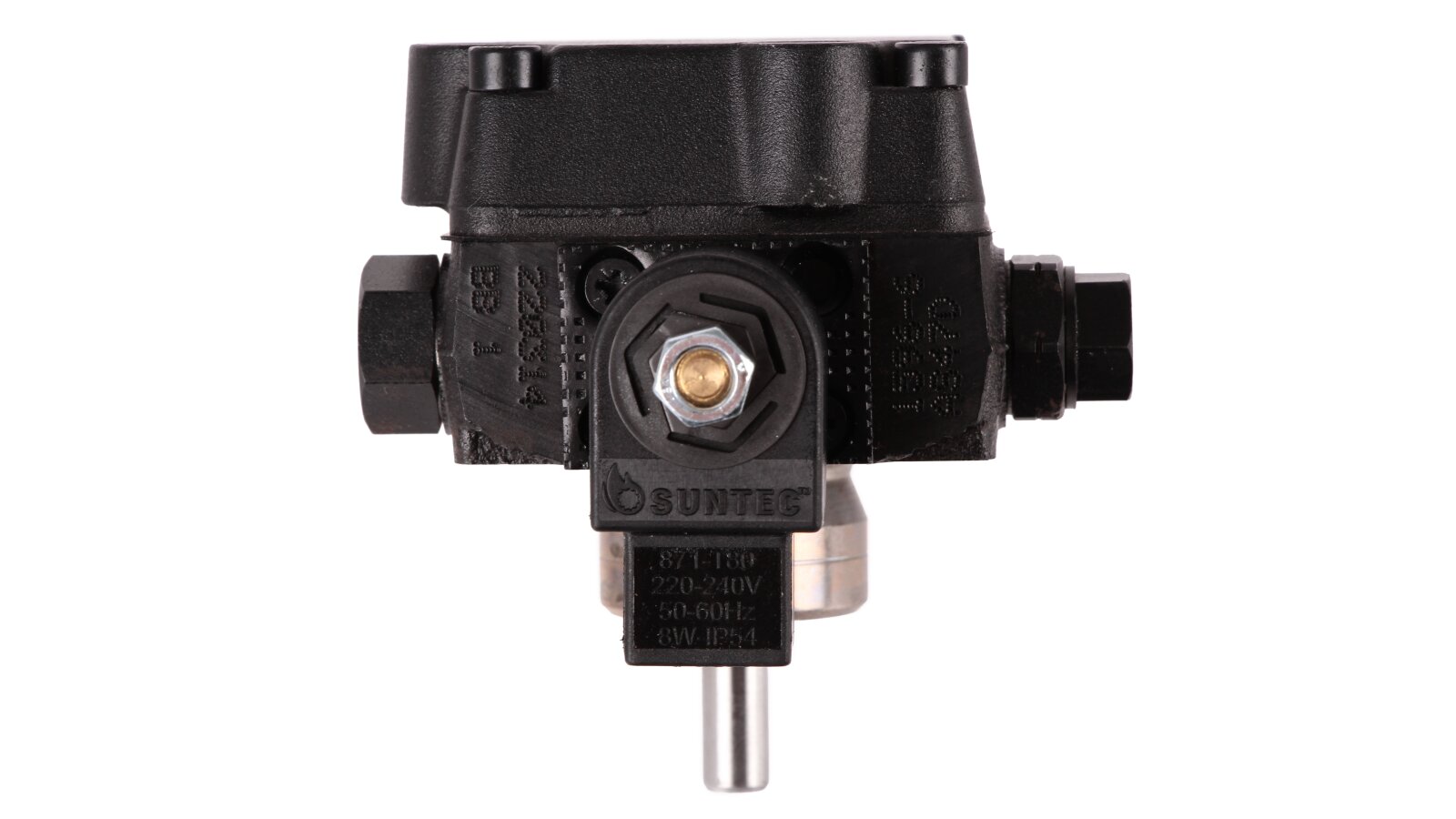

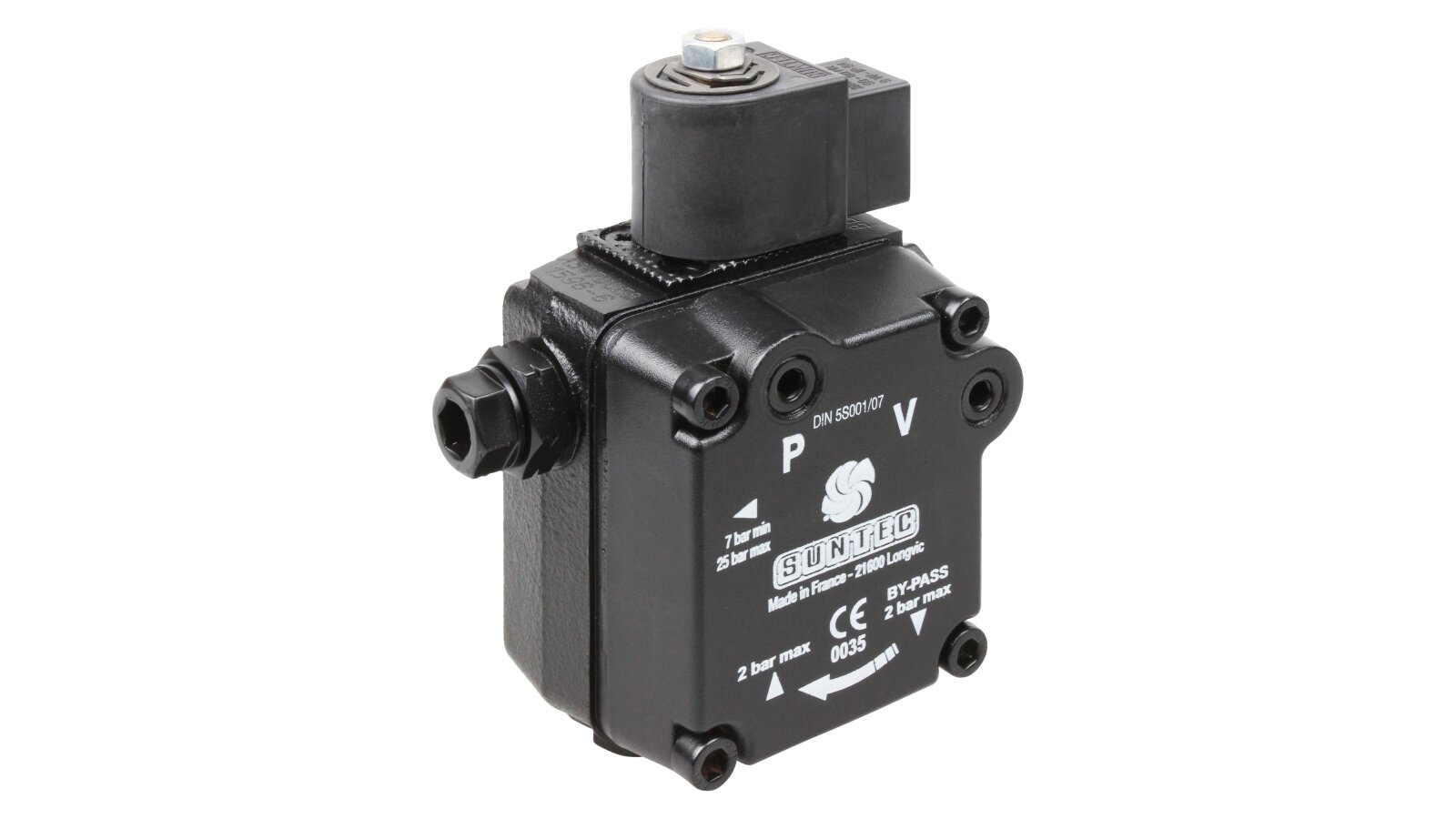

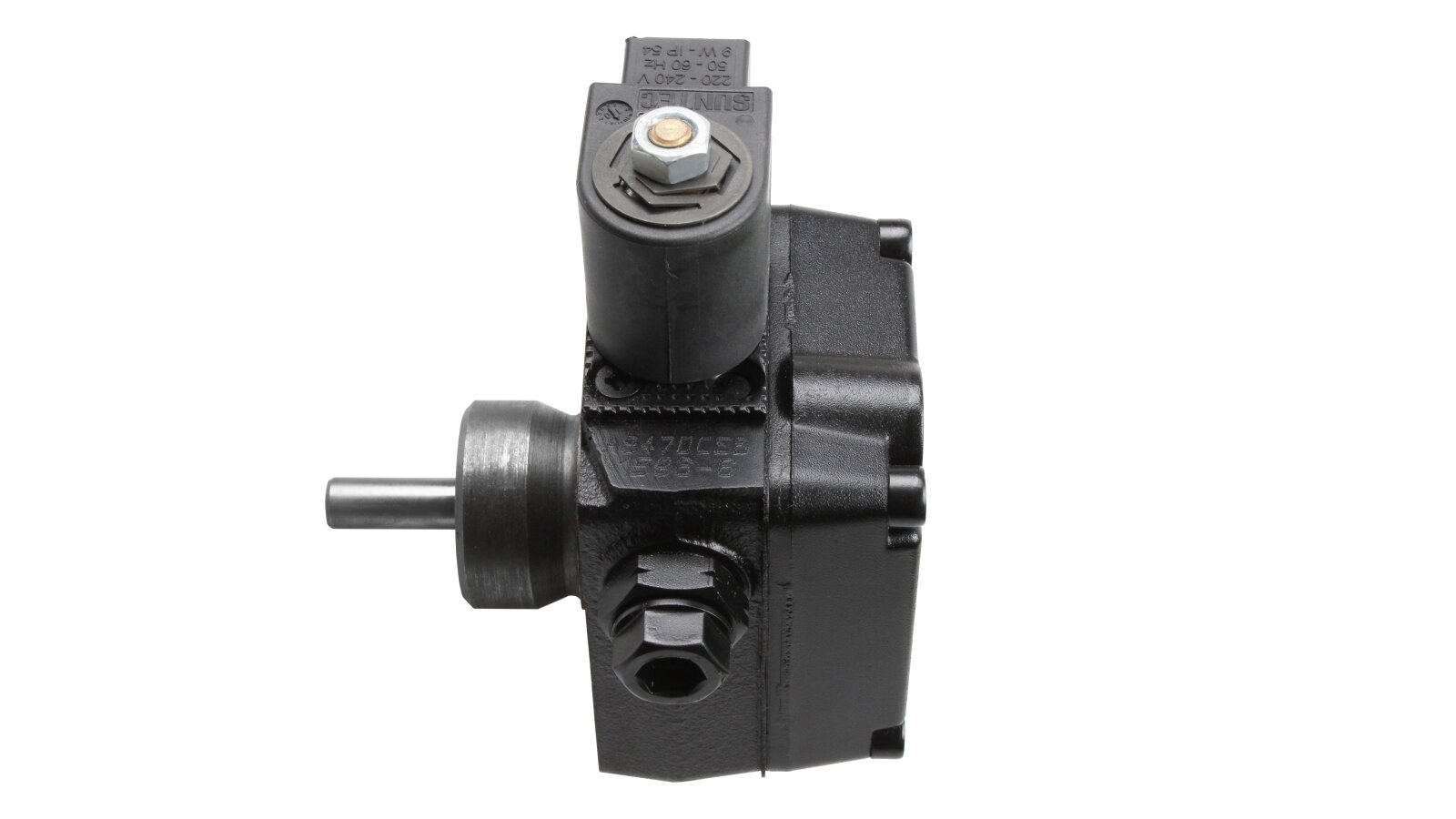

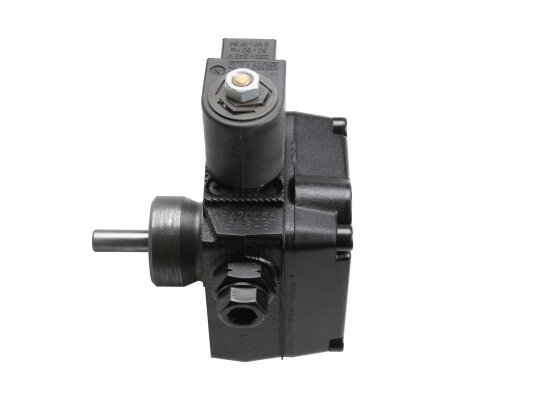

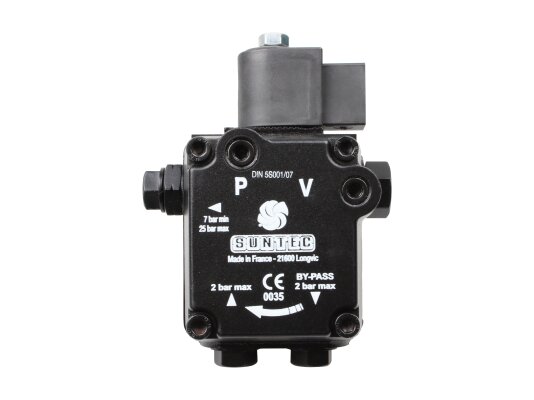

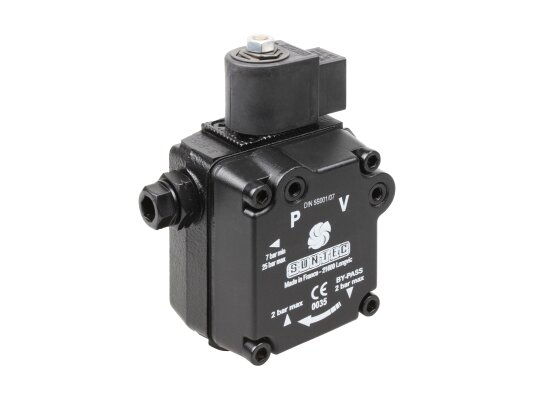

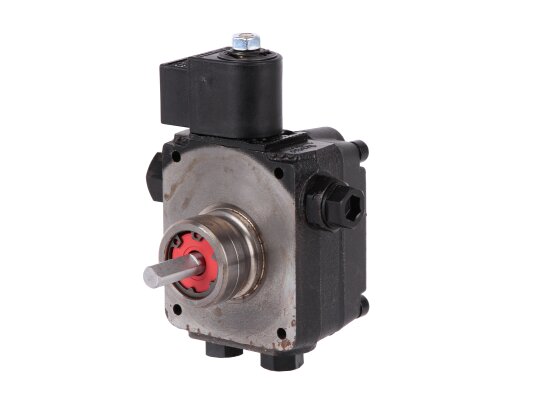

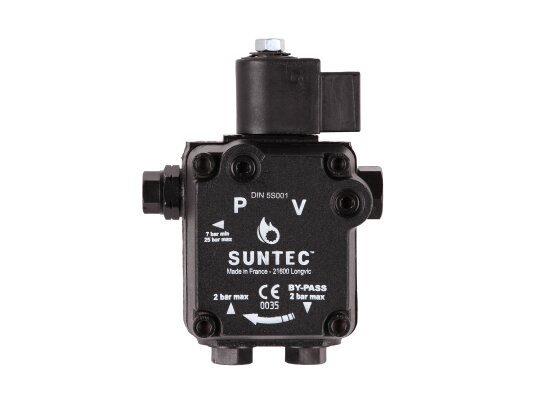

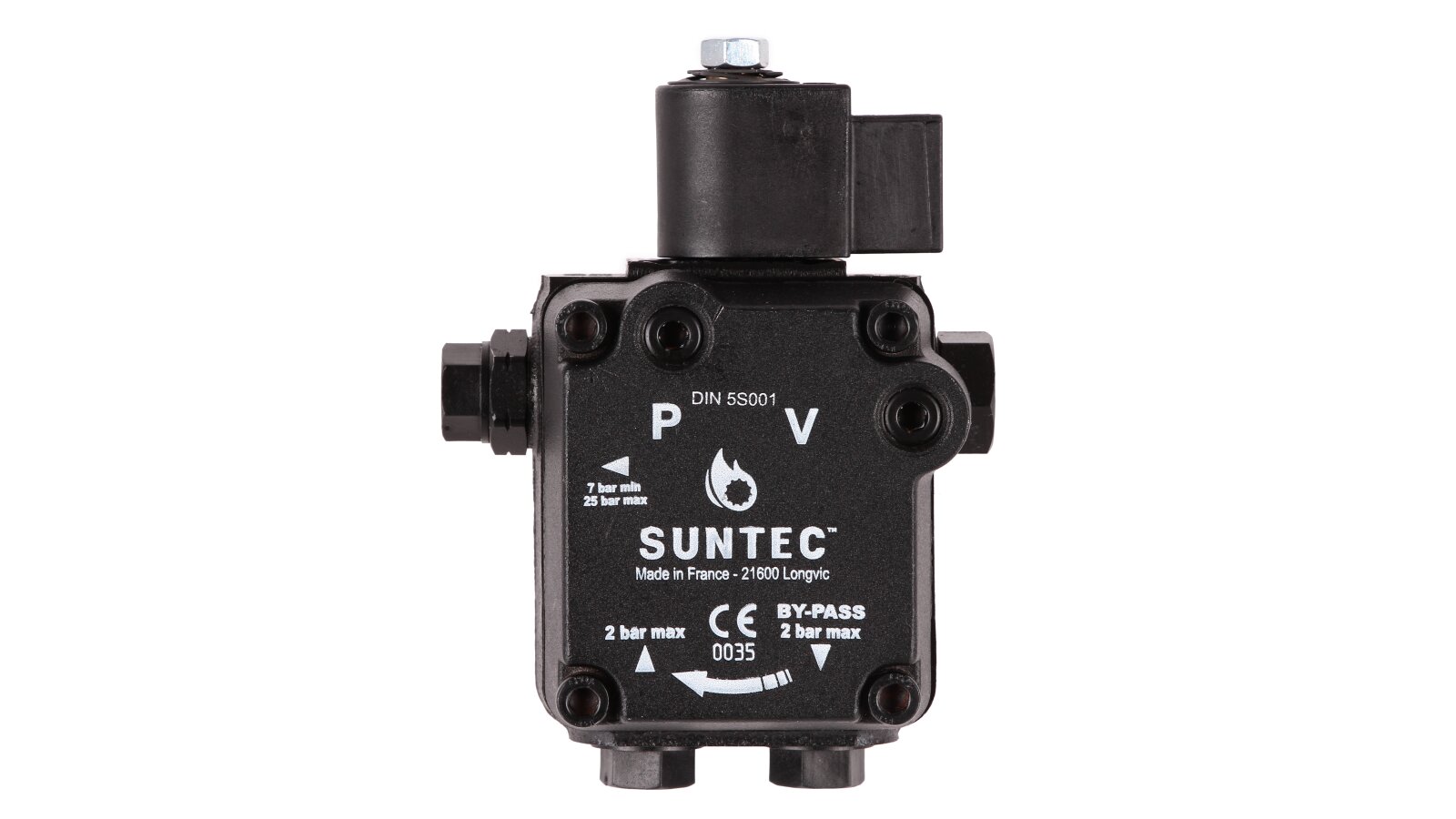

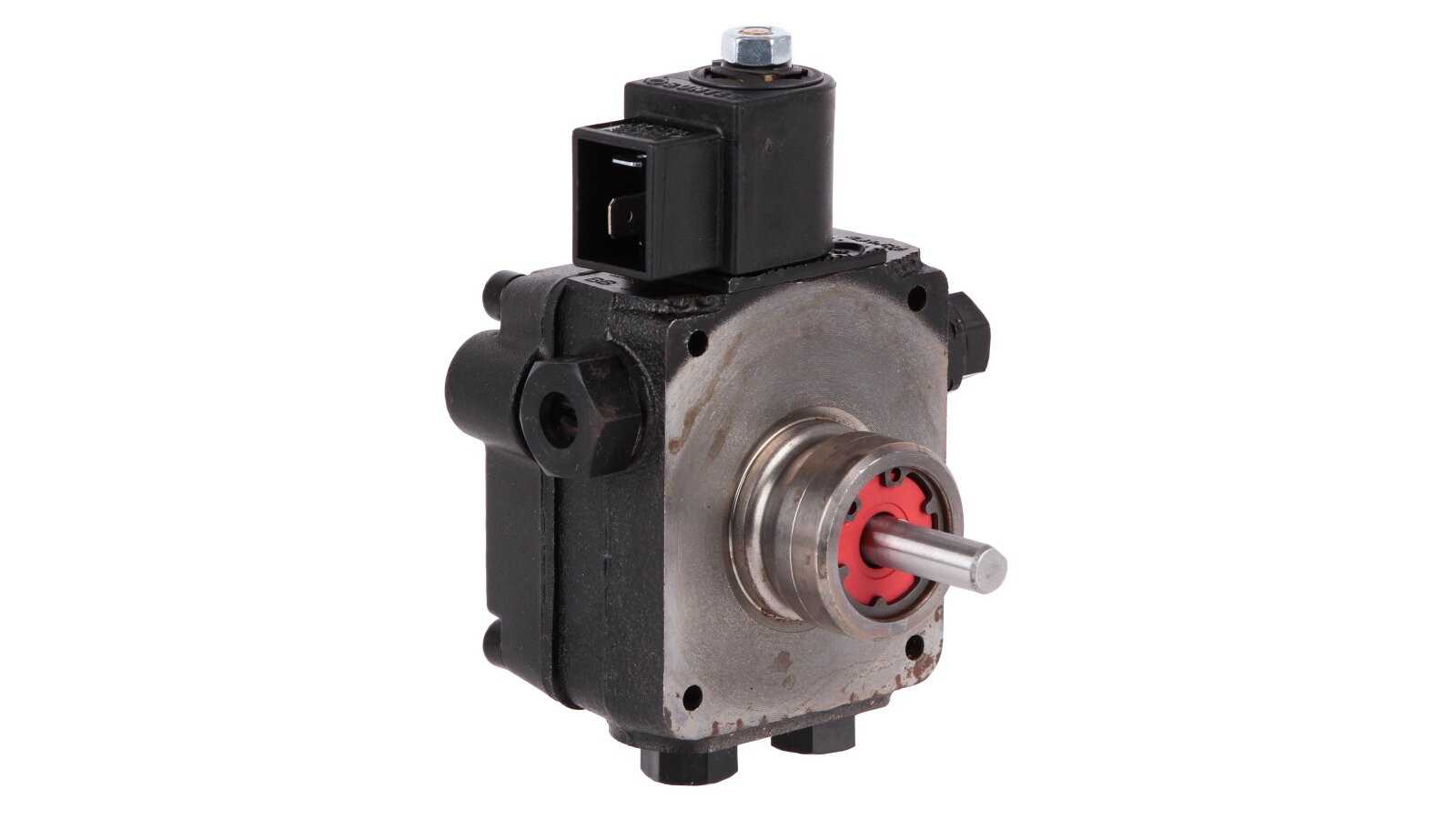

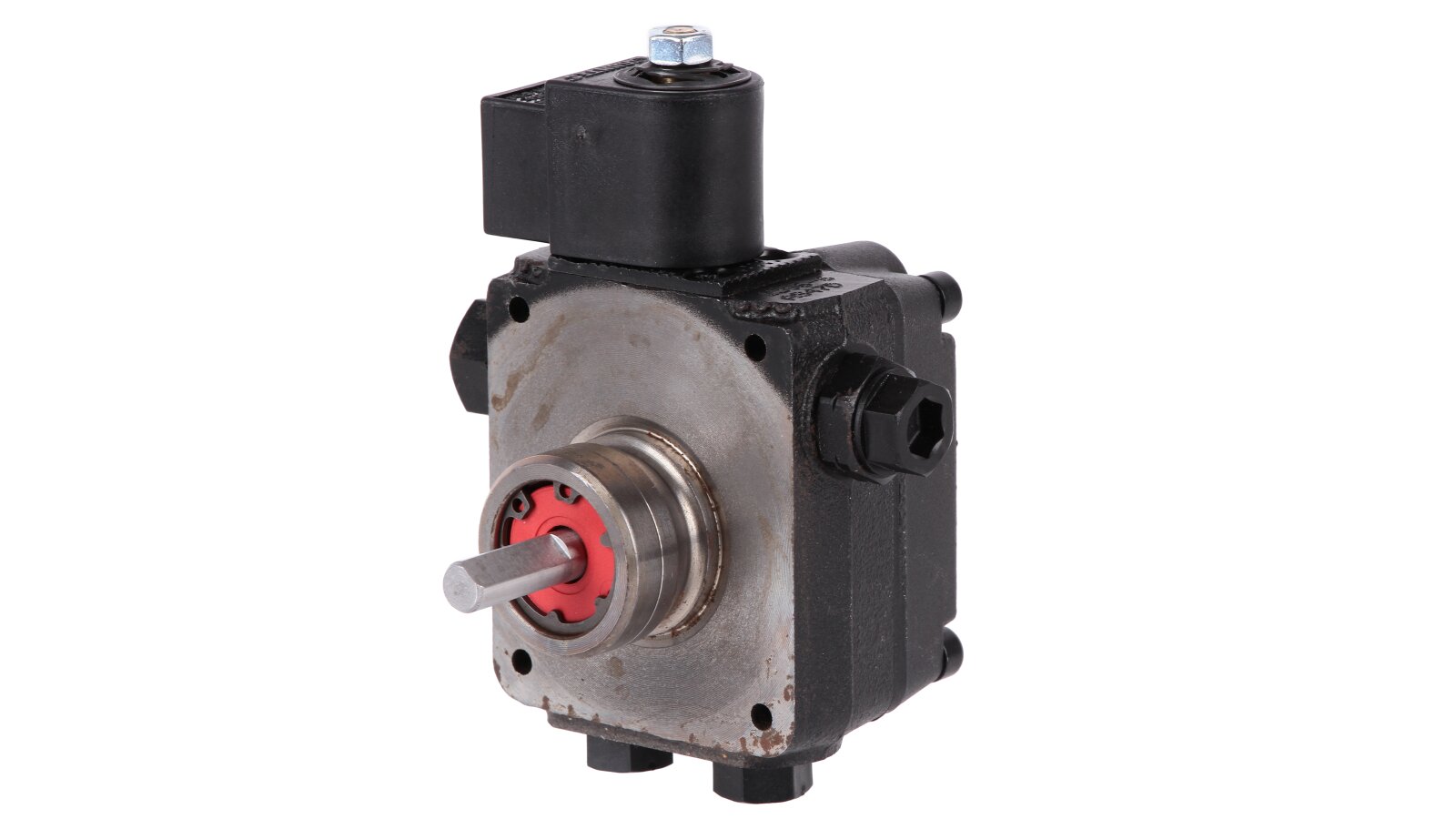

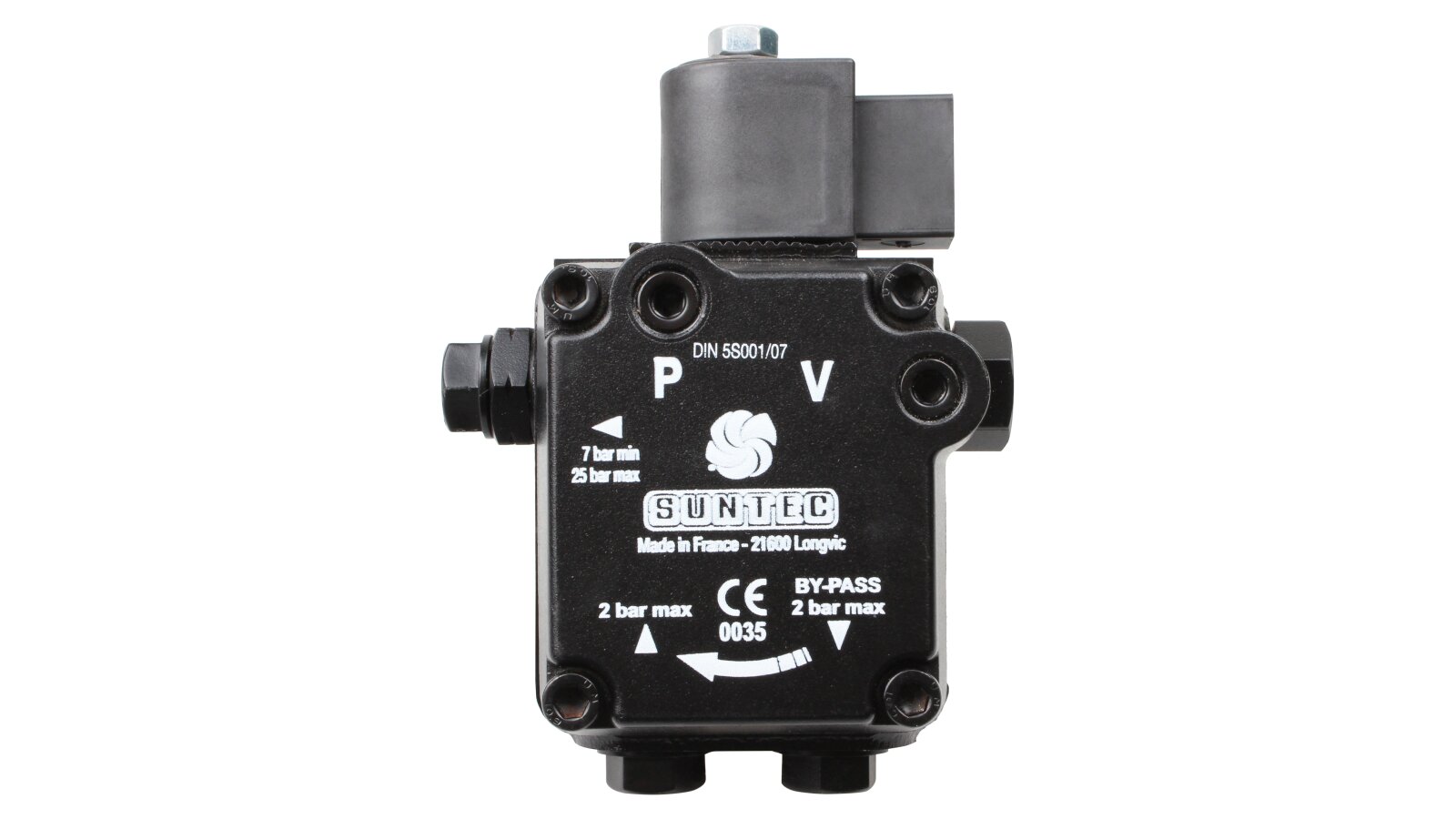

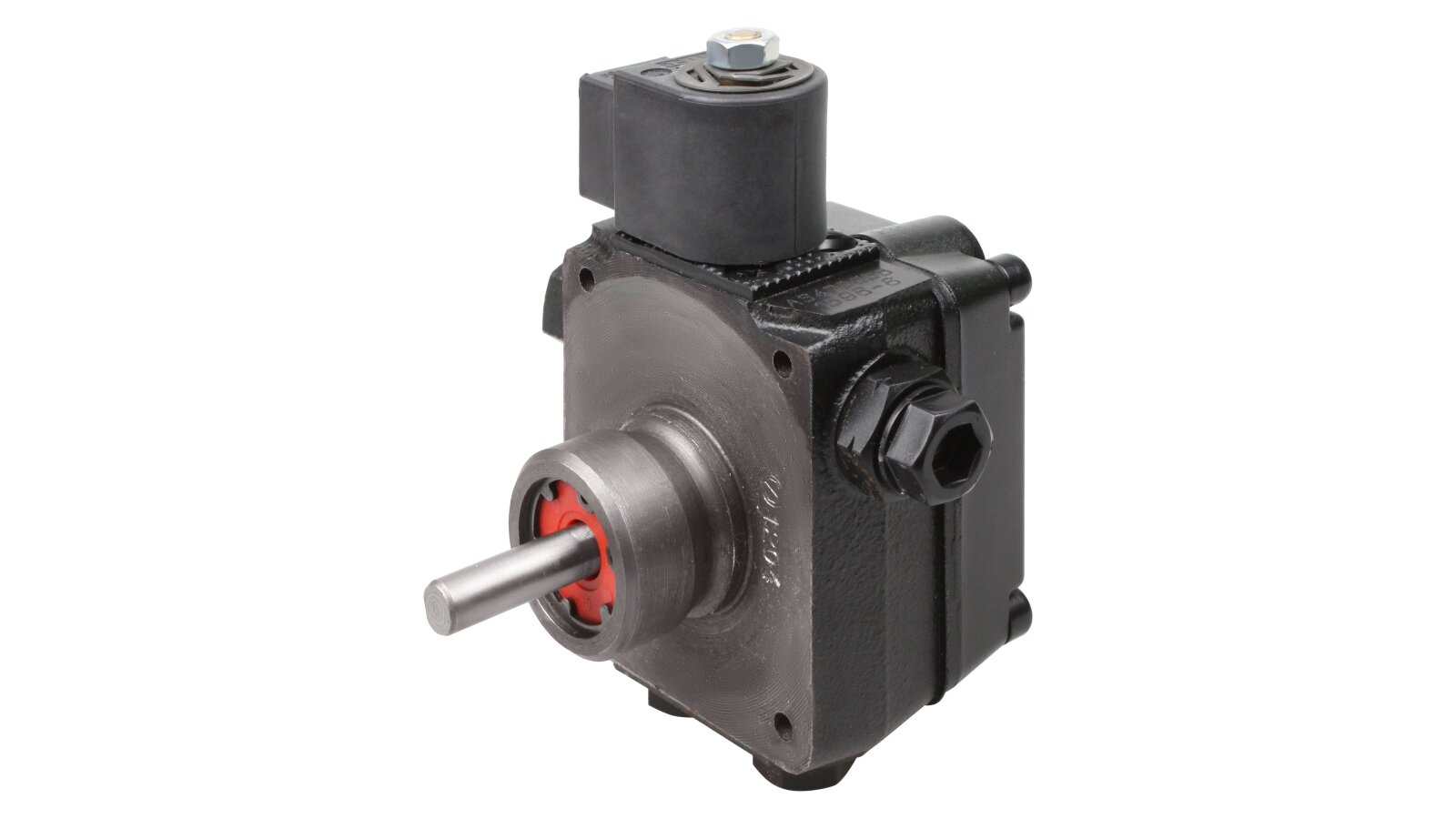

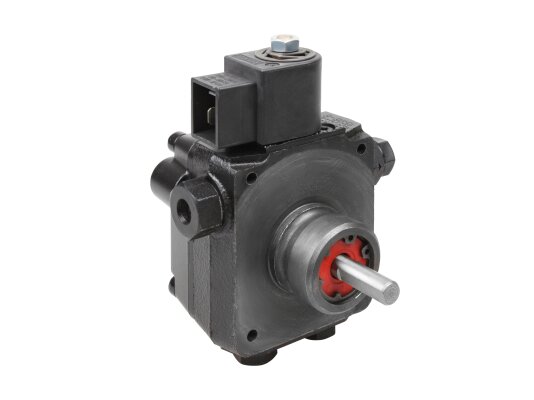

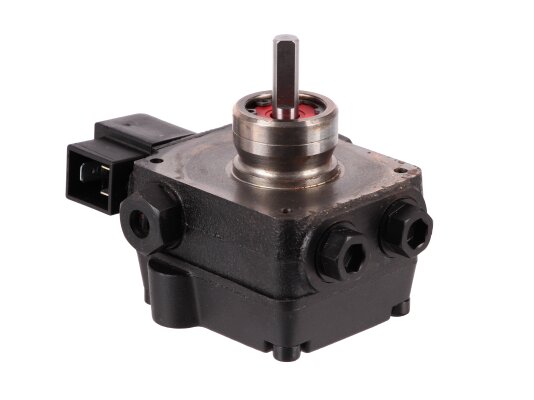

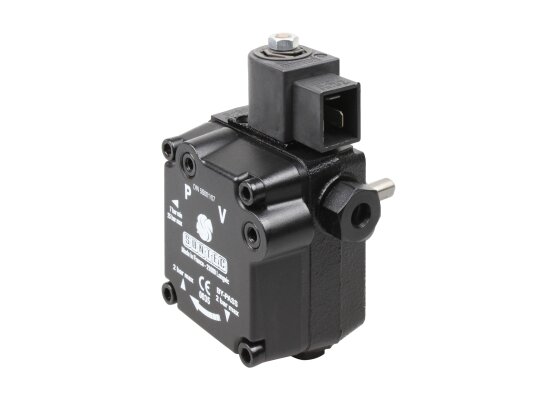

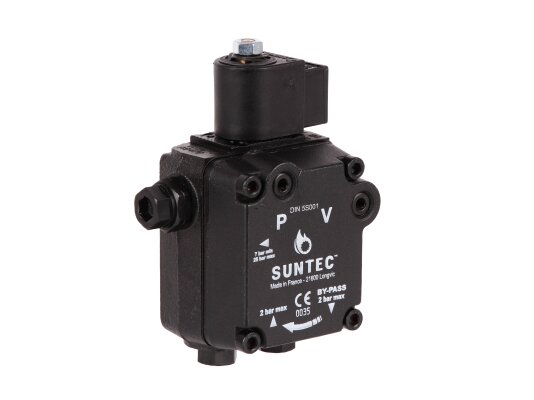

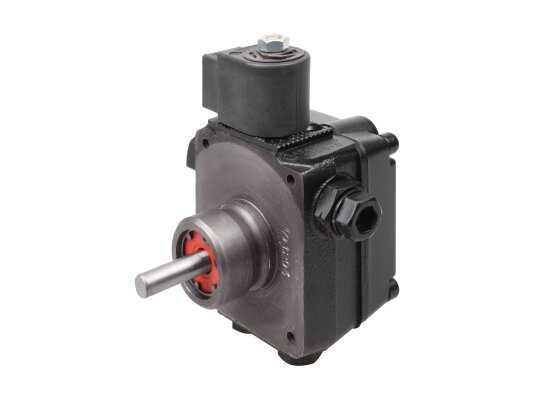

Burner Pump Suntec AS 47 D 1596 6P 0700

Suntec

AED 650

Oil Burner Pumps
Products code: 1202

Description

Liquid fuel pump for diesel burners from the French manufacturer Suntec AS 47 D 1596 6P 0700 is a representative of the AS series. It includes single-stage units with a shut-off electromagnetic valve and a slide valve. The device has a right-hand outlet for delivery, and the mechanism shaft rotates counterclockwise (type D). It is used in heating burners with a capacity of up to 1000 kW from well-known manufacturers: Weishaupt, Elco, Baltur, Lamborghini and others.

Before buying a Suntec fuel pump for a diesel burner, carefully read its technical parameters and clarify questions with our manager. The ANKAS company website presents only high-quality industrial equipment from a European manufacturer.

Design features

  • The main unit of the unit is a mechanism consisting of a gear pressed onto a shaft and a wheel with an internal arrangement of teeth. The gear pair receives torque from an external drive — an electric motor. The operating principle consists of sucking fuel from a tank and moving it to the injector pressure line through a control valve.

  • The pressure of diesel fuel supplied to the injector is set within the range from 7 to 14 bar using a slide valve with a spring-loaded piston and an adjusting screw. The function of switching the supply mode is assigned to the electromagnetic solenoid of the bypass. In the normal position, it opens the flow of diesel fuel to drain (idle). When switched on, it disconnects the bypass and discharge lines (working stroke).

  • Preliminary cleaning of fuel from mechanical suspensions larger than 150 microns is assigned to a dismountable mesh filter. It requires regular cleaning with a soft brush and rinsing in kerosene.

Advantages of the model:

  • simple and reliable design of a single-stage pump;

  • built-in electromagnetic valve of the "normally open" type;

  • automatic air release in a two-pipe configuration;

  • wide range of fuel pressure on the injector - from 0.7 to 1.4 MPa;

  • removable mesh filter protects the mechanism from wear and jamming.

All burner pumps from Suntec, including the AS 47 D 1596 6P 0700 model, have a quality certificate and are manufactured in accordance with modern requirements for industrial equipment. The company uses the latest methods of metal processing, manufacturing of polymer elements and electronic components. After assembly, all products undergo rigorous tests for strength and stability in operation, are checked for factory defects. Only after this, the goods of the French concern Suntec go on sale.

Characteristics

Direction of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 39 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barTorque: 0.1 N·mMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barSuction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchType of pumped liquid: dieselDegree of protection: IP54Solenoid valve voltage: 220-240V~, 50-60Hz
