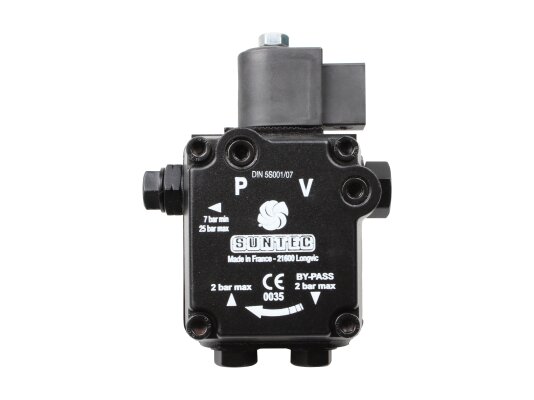

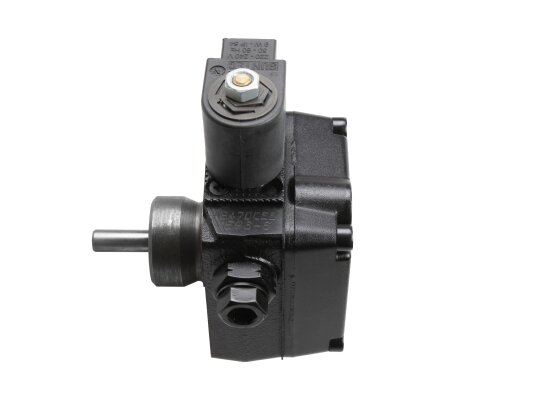

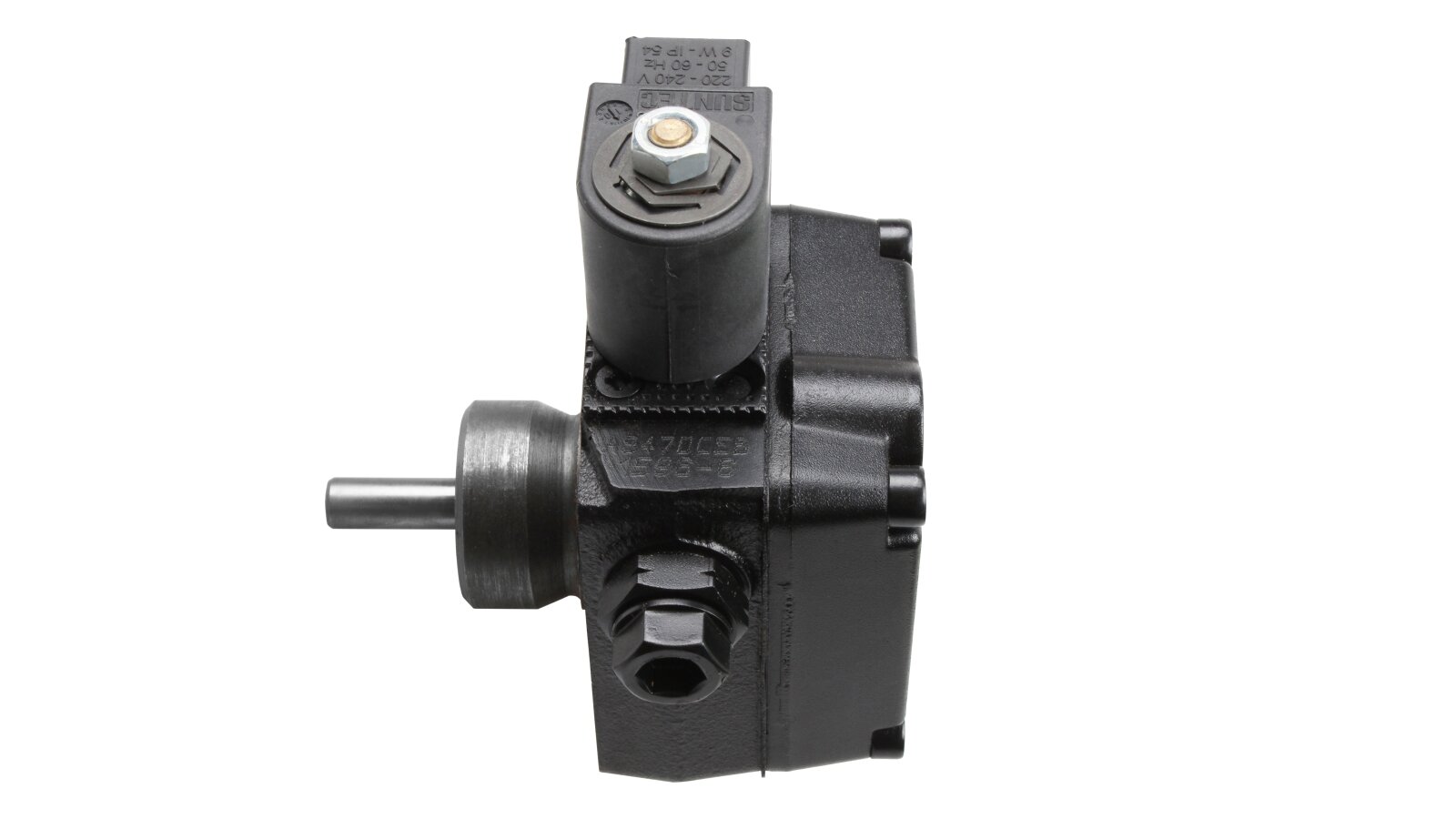

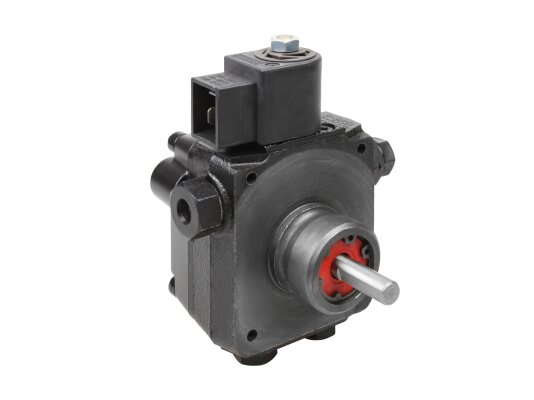

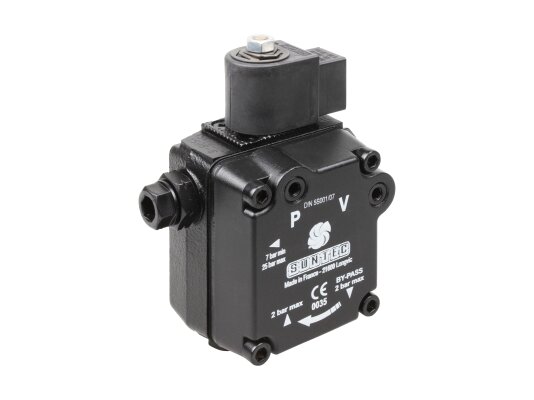

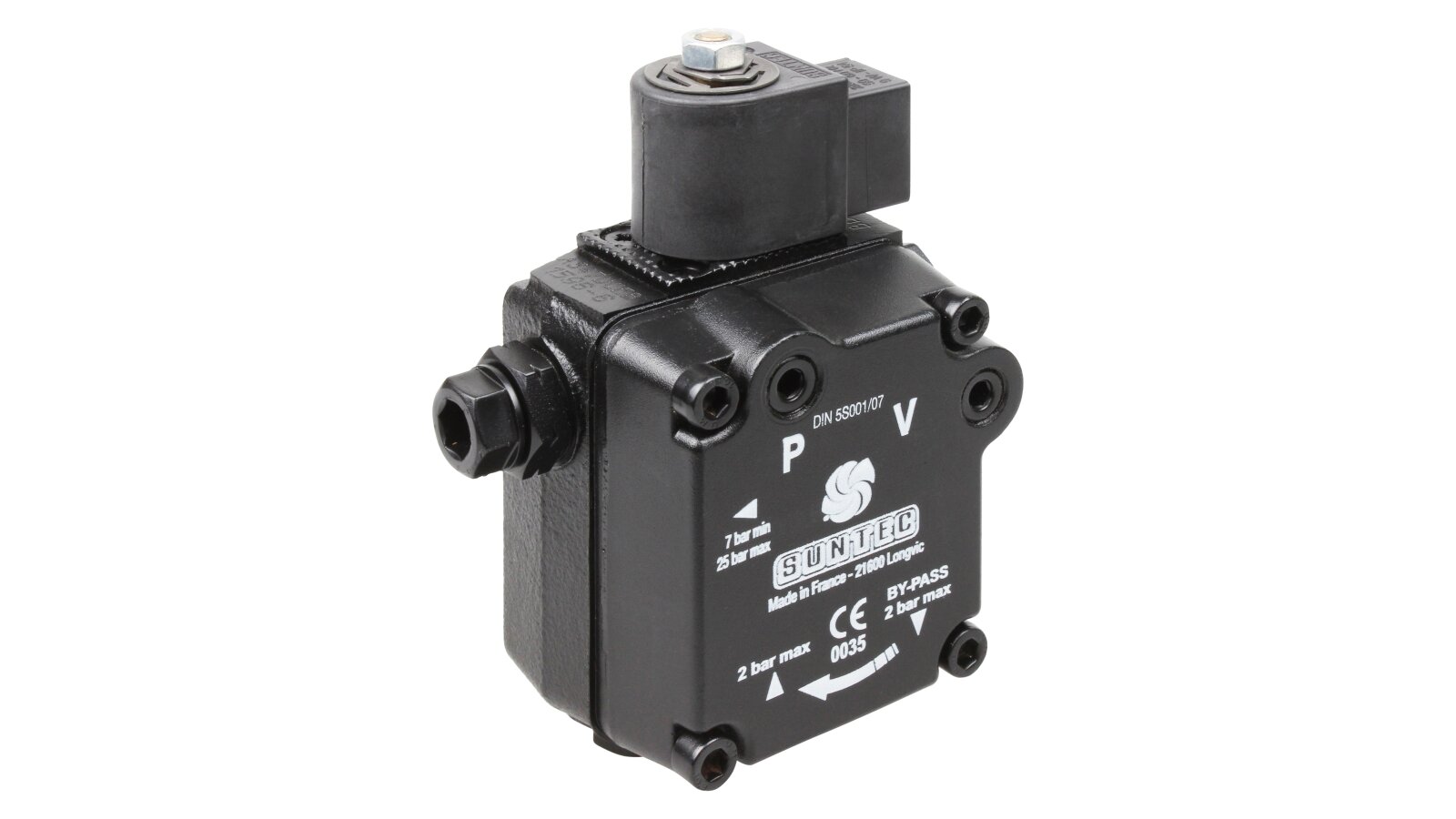

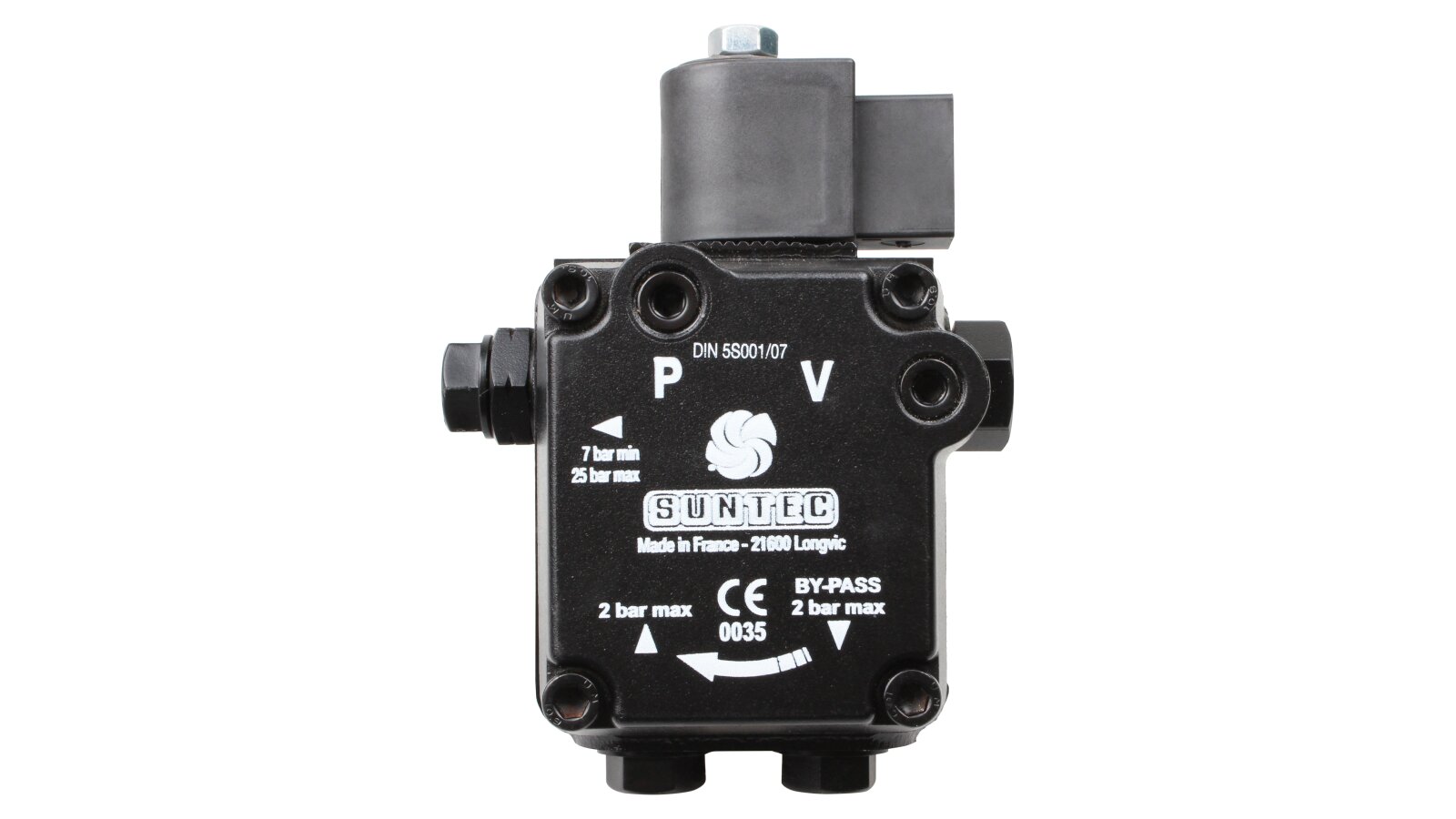

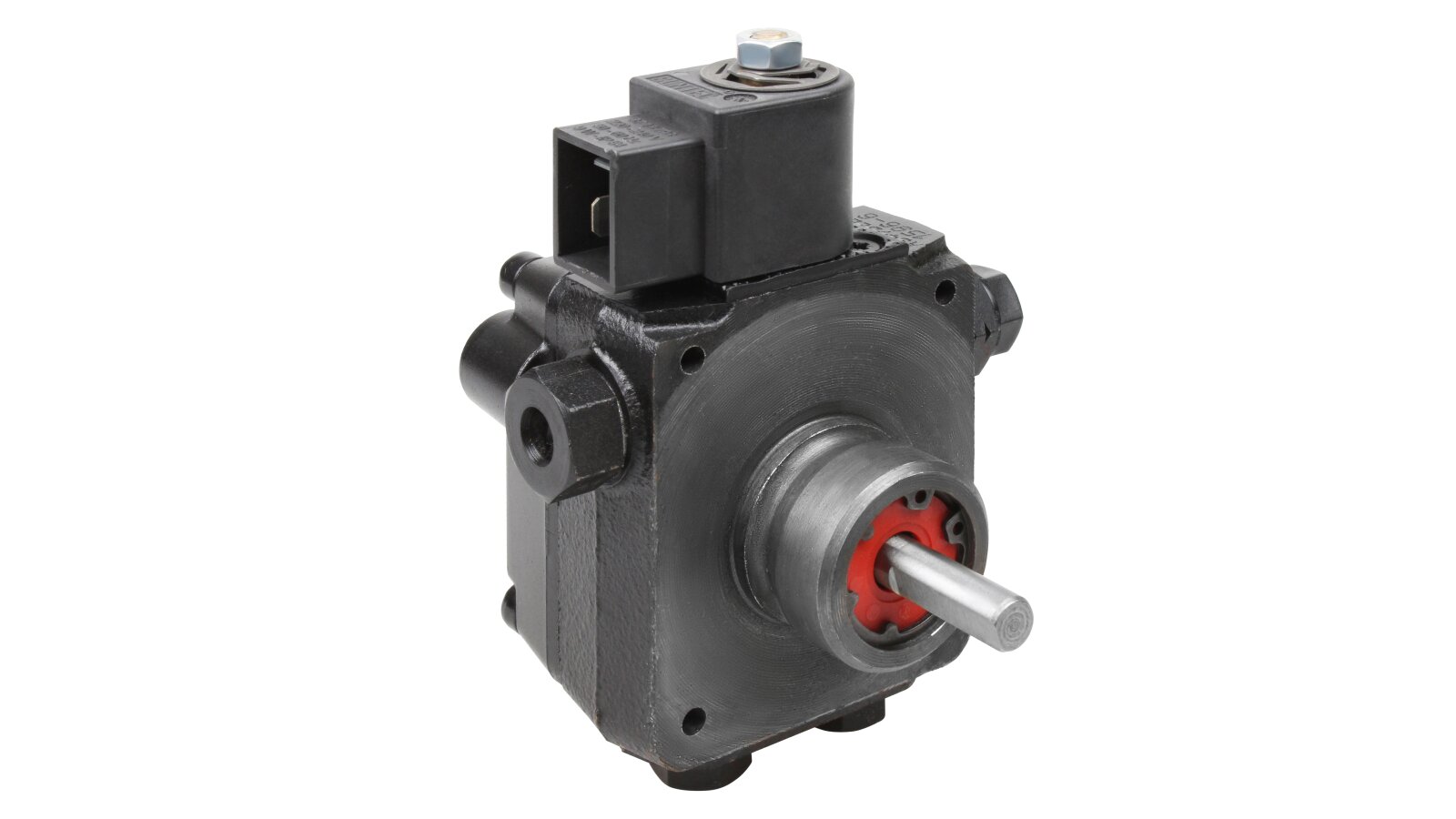

Burner Pump Suntec AS V 47 D 1696 6P 0700

Suntec

Alternative Part Number

Elco

13010118

AED 975

Oil Burner Pumps
Products code: 10004

Description

The Suntec AS V 47 D 1696 6P 0700 pump is used to pump diesel fuel and a B10 biodiesel fuel mixture. The pump includes a solenoid valve that acts as a shut-off valve for quickly interrupting and resuming the fuel supply when operating at any speed.

Features

  • The pump is manufactured in accordance with the IP54 dust and moisture protection standard, which contributes to the uninterrupted service of the equipment. The nozzle attachment pipe is located on the right.

  • A gear mechanism moves fuel from the tank to the nozzle through a built-in filter and a pressure regulating valve.

  • A filter with a working area of ​​6 cm² retains all abrasive particles larger than 150 microns, which prevents damage to the working unit. To maintain the pump's performance, it is necessary to periodically wash the mesh insert from dirt.

  • The electromagnetic "normally open" valve, due to its placement in the nozzle line, is characterized by a quick response. When it is inactive, the bypass channel is open, the fuel returns to the tank or passes to the suction line, depending on the fuel line layout. In the active position, the valve closes the drain channel, and fuel is supplied to the injector.

  • The pressure can be adjusted to meet needs (7-14 atm.). The pump is set at 9 bar at the factory. The performance depends on the set pressure and viscosity of the fuel.

  • The pump is configured for installation in a 2-pipe system. To create a fuel line without a return line, the bypass plug is unscrewed, and the drain is blocked with a steel plug with a washer.

  • A Ø32 mm sleeve connection (European standard EN 225) is provided for connection to the engine, which expands the scope of application of the pump.

Advantages:

  • electromagnetic valve with a locking function;

  • pumping diesel fuel and biodiesel;

  • fuel cleaning before entering the gears;

  • one- and two-pipe connection;

  • universal installation according to European standard EN 225;

  • standard ports for instrumentation;

  • high level of dust and moisture protection of the housing (IP54);

uninterrupted, long-lasting service.

The Suntec AS V 47 D 1696 6P 0700 fuel pump is factory tested, supplied with a company warranty and detailed instructions.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Pump series: AS: pressure regulation and bypass solenoid valveDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightSolenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hInstallation method: sleeve ∅ 32 mmStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulating and cut-offOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 39 l/hMaximum rotation speed: 3600 rpmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread), ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 7 to 14 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54
