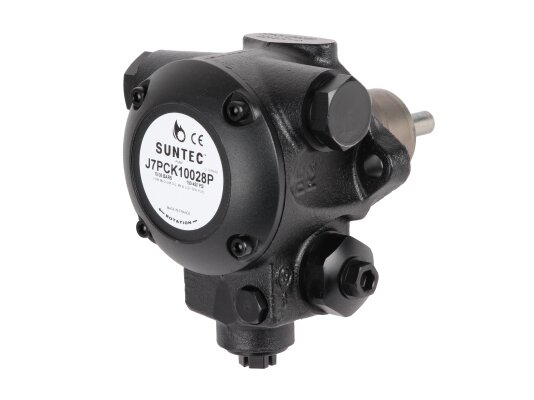

Burner Pump Suntec J 7 PCK 1002 8P

Suntec

AED 3,350

Oil Burner Pumps
Products code: 55494

Description

The Suntec J 7 PCK 1002 8P burner pump is used for medium- and high-power industrial systems. It is designed to pump medium-viscosity fuel under pressure up to 30 bar. The pump includes a pressure regulating valve without a shut-off function. An additional external valve is required for its implementation.

Parameters and features:

  • working environment – ​​diesel fuel, medium-viscosity fuel;

  • design adapted for elevated fuel temperatures, up to +90 ºC;

  • for liquid fuel installations of 1-pipe and 2-pipe configurations;

  • in the basic assembly - with a bypass plug in the return drain pipe;

  • for systems with an external solenoid valve providing a shut-off function;

  • built-in valve regulating pressure taking into account the specified parameters;

  • working range: 10-30 bar, basic setting - 12 bar;

  • flange connection option, ∅ 54 mm;

  • productivity – 287 l/h at a working medium viscosity of 5 cSt and a pressure of 20 bar;

  • reliability and wear resistance of the gear mechanism;

  • protection of gears from wear by a built-in filter of 170 μm, cleaning area of ​​45 cm²;

  • threaded connection with a suction, return line, diameter ½ inch;

  • the possibility of connecting measuring equipment;

  • bypass hole of the nozzle line;

  • placement in the system in any position, excluding the load on the axle;

  • automatic air outlet with a 2-pipe connection;

  • pressure in the suction line and return line - no more than 1.5 bar.

The Suntec J 7 PCK 1002 8P burner pump is used to equip systems with one or two pipes. In the basic assembly, it is equipped with a bypass plug. For single-pipe use, it is necessary to unscrew the plug and close the hole.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOil temperature: from 1 to 90 °C in the pumpStrainer: Opening size: 170 µmStrainer: Open area: 45 cm²Pump series: J: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 287 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 30 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mType of pumped liquid: medium viscosity fuel, diesel
