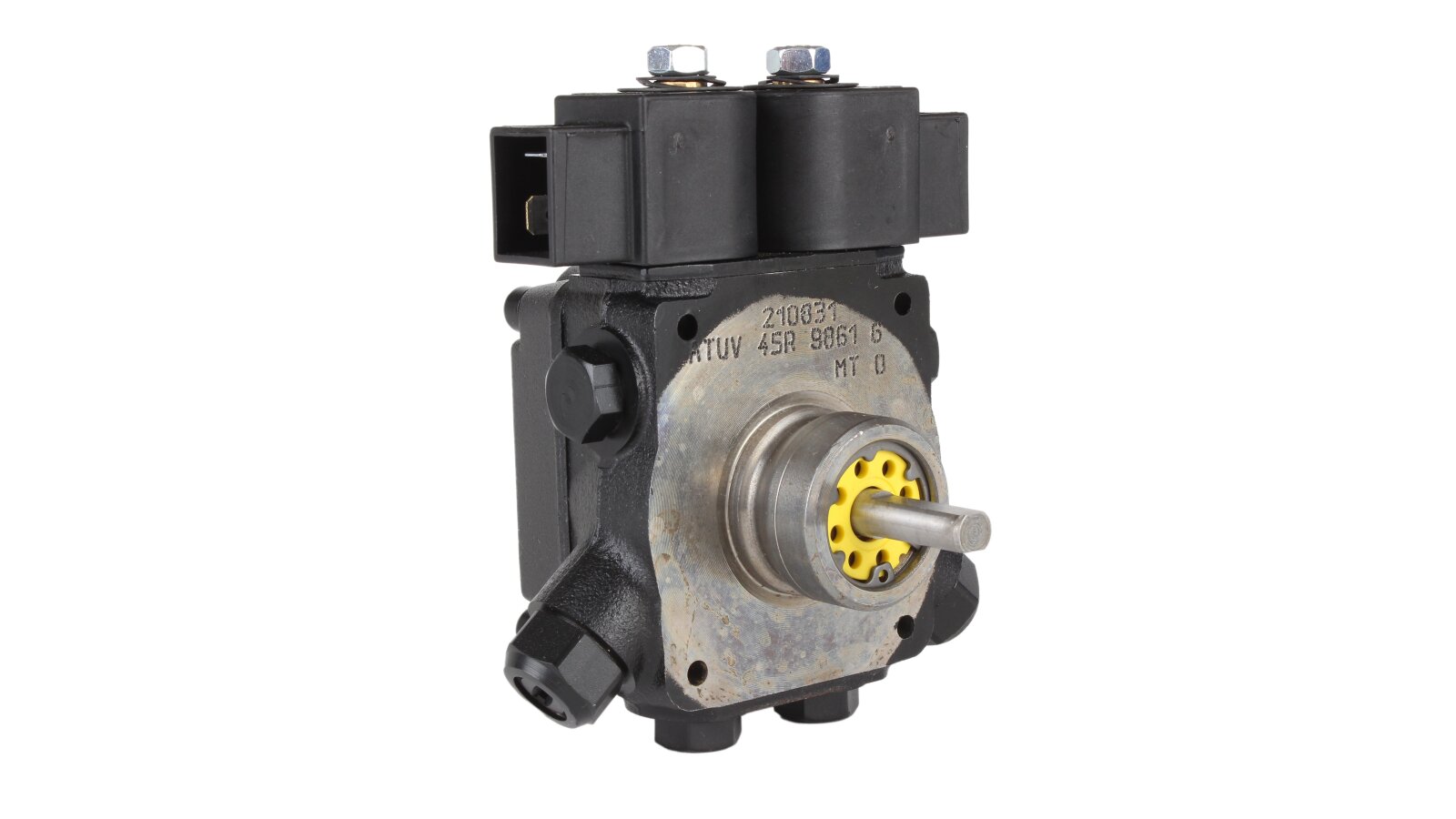

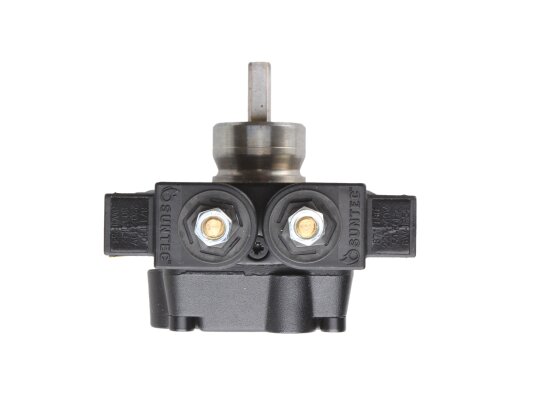

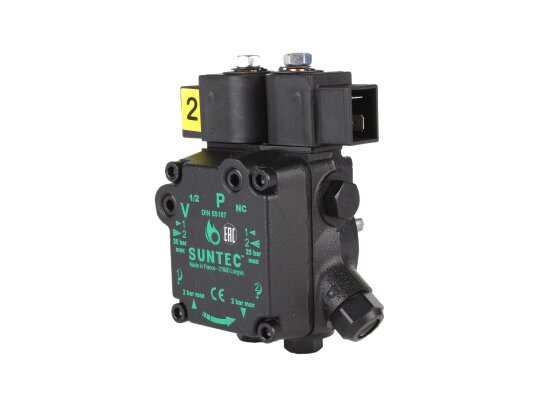

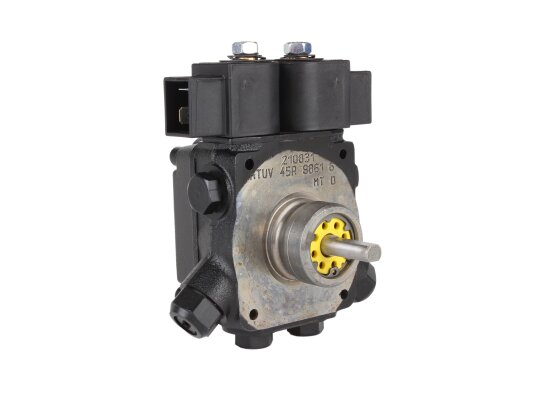

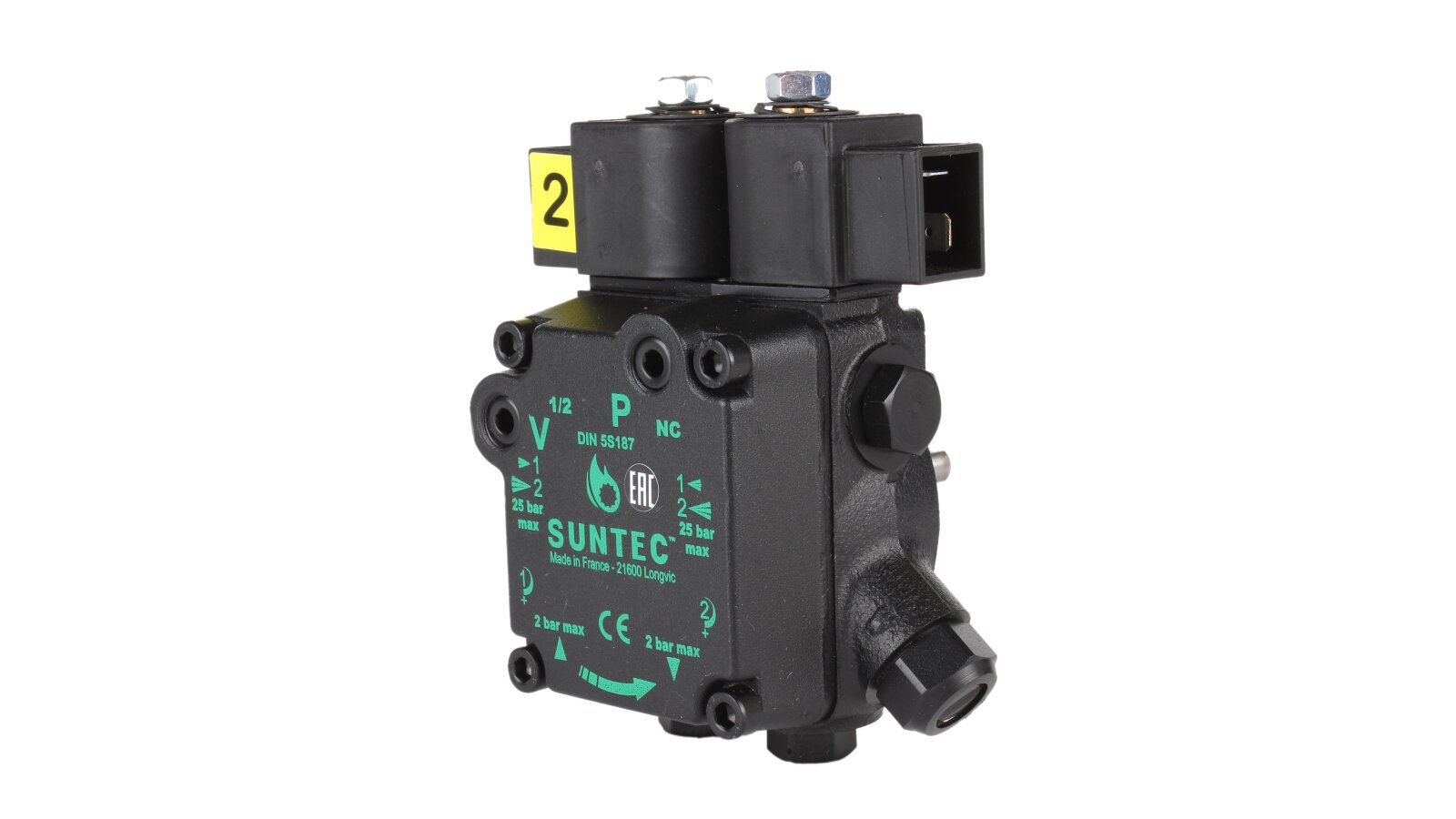

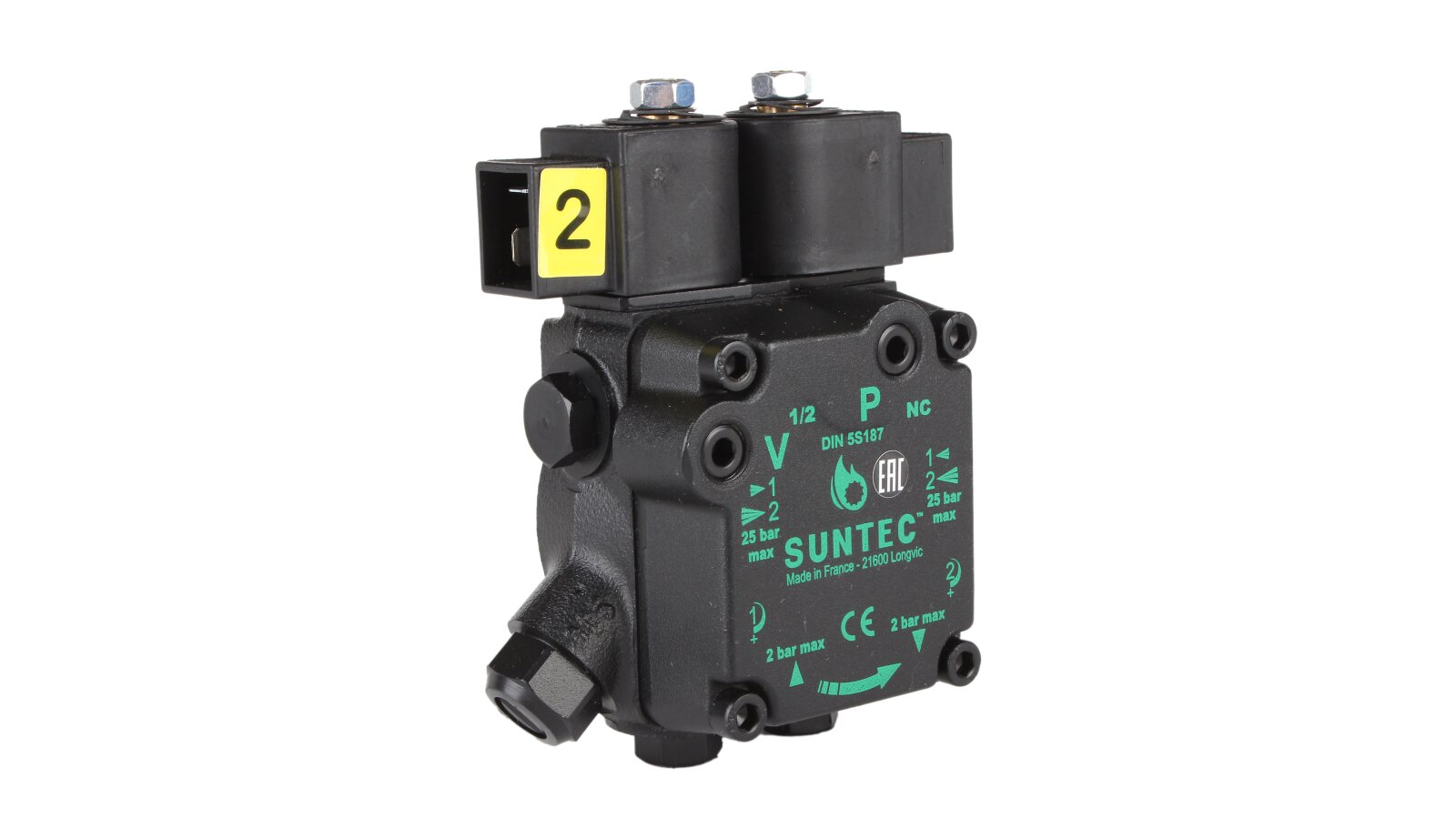

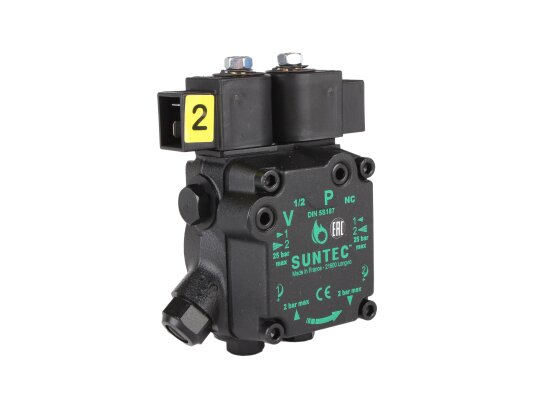

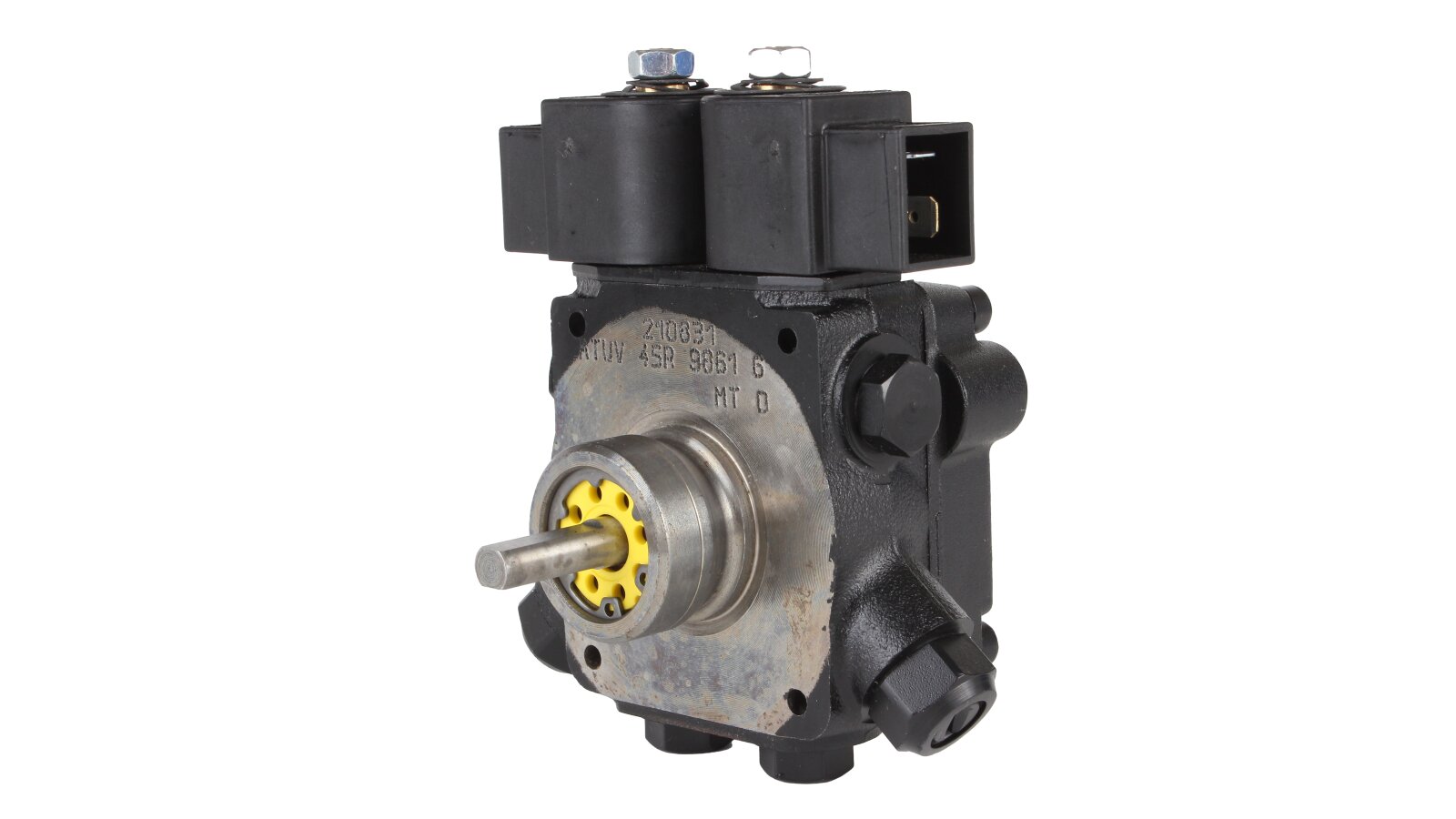

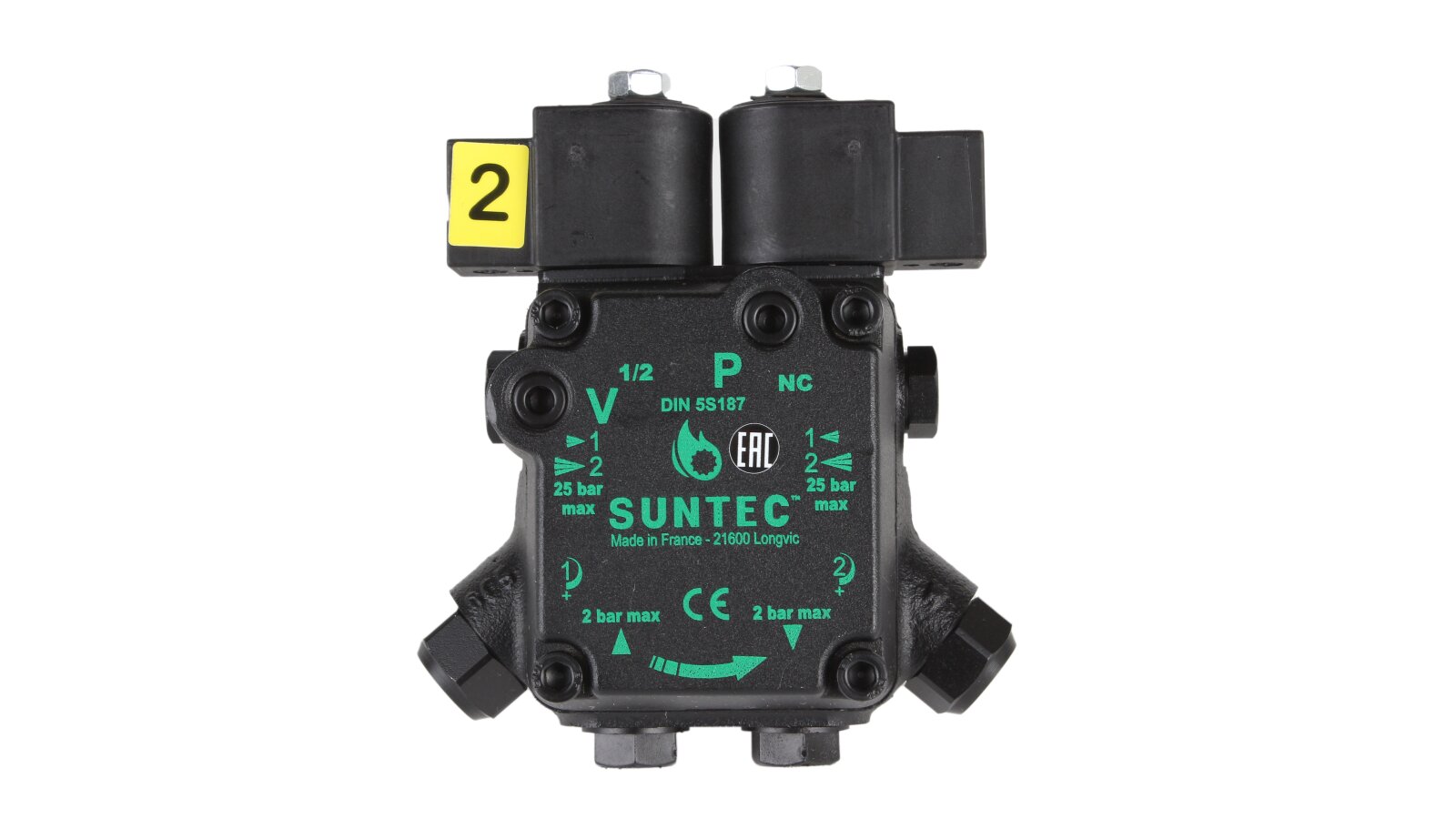

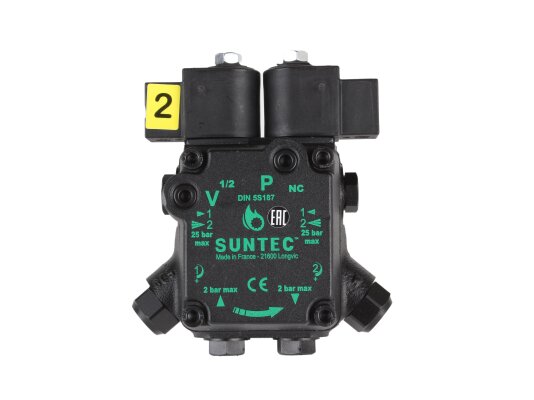

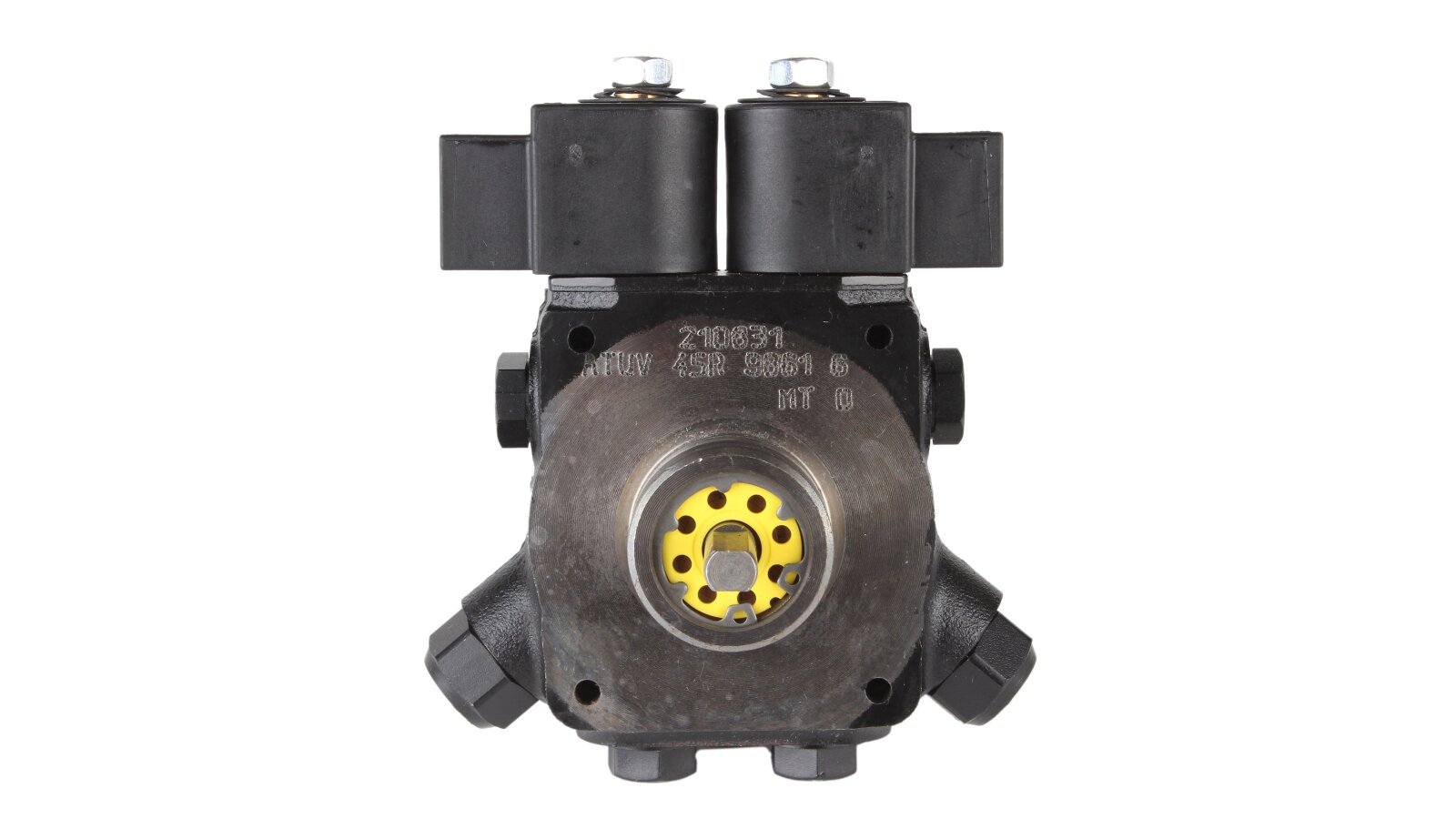

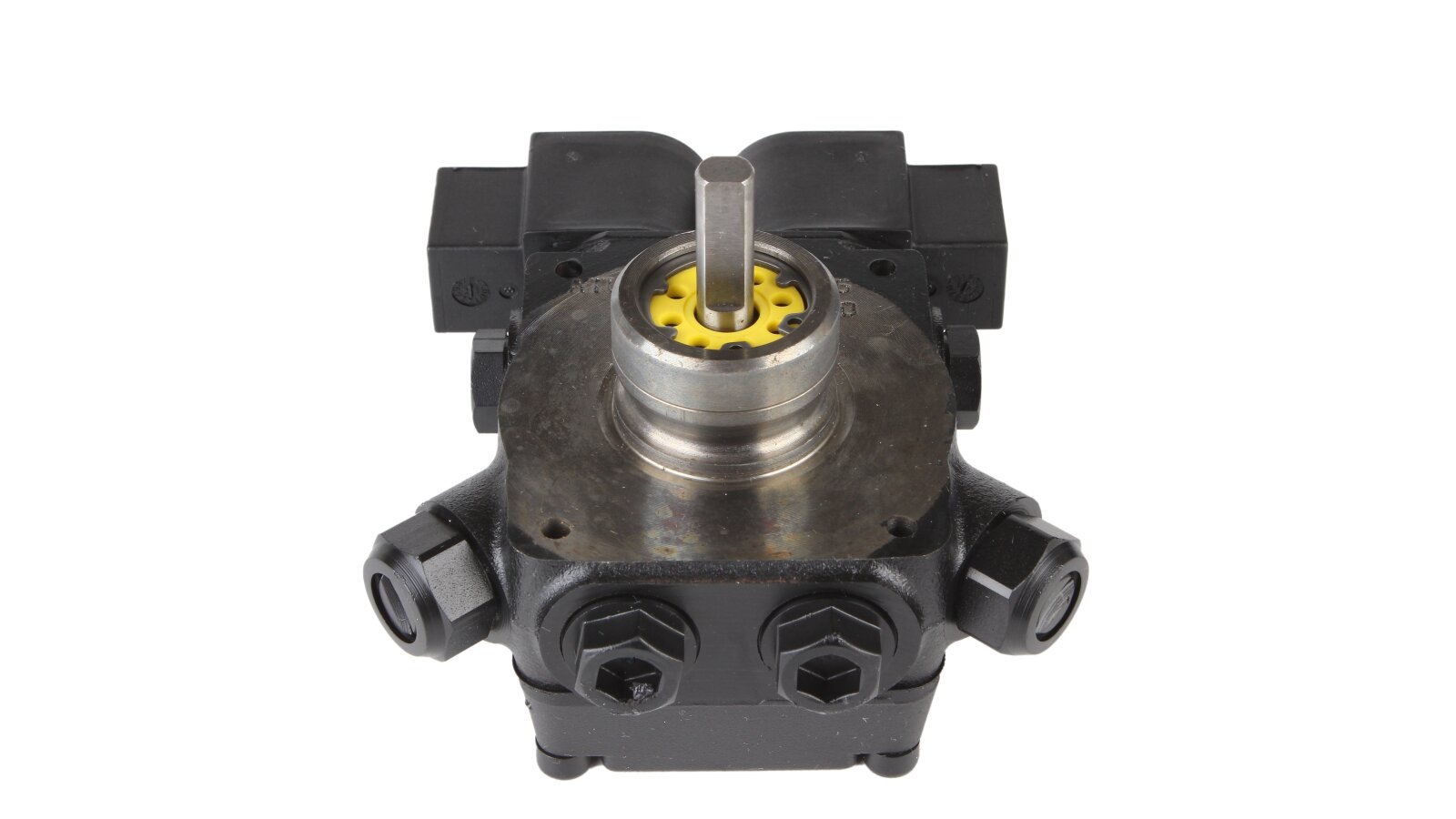

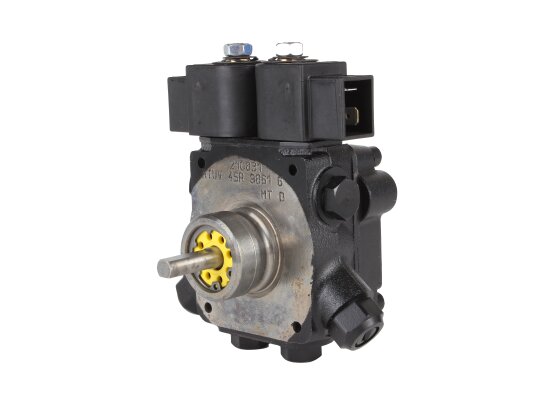

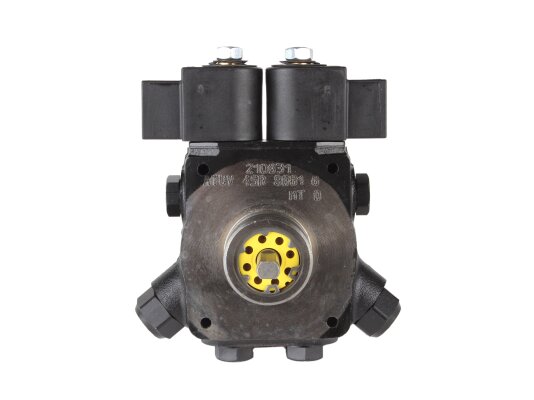

Burner Pump Suntec ATU V 45 R 9861 6P 0700I

Suntec

AED 1,650

Oil Burner Pumps
Products code: 36510

Description

The two-stage burner pump Suntec ATU V 45 R 9861 6P 0700I is used for pumping diesel fuel, biofuel B10 in heating systems. Equipped with a blocking electromagnetic valve with a shut-off function and a pressure relief device in the nozzle line.

Features:

  • use in systems with a return line;

  • feed pressure adjustment from 2 to 25 bar, by default the pump is set to 9 and 22 bar;

  • the ability to select an outlet pipe on either side of the housing;

  • a device for relieving pressure in the nozzle line with a shut-off function;

  • a dismountable filter at the flow inlet (mesh 6 cm², holes 150 μm);

  • permissible range of operating temperatures (fuel and air): from 0 to +60 °;

  • dust and moisture protection of the housing class IP 54;

  • standard fit on ∅ 32 mm bushing according to EN225 standards;

  • connection to the inlet and return line on a tapered thread ¼ inch NPTF;

  • "normally open" bypass solenoid valve for switching low and high pressure;

  • "normally closed" blocking solenoid valve in the injector line;

  • fast switching at any engine speed;

  • automatic air bleeding in a two-pipe installation, acceleration by loosening the pressure gauge plug;

standard ports for connecting measuring devices.

You can learn more about the Suntec ATU pump from ANKAS consultants.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Maximum pressure of the solenoid valve: 25 barPerformance at 11 bar pressure and 5 cSt viscosity: 46 l/hOperating viscosity: from 1.25 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 2-stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Solenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 2 to 25 barFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barShaft design: one cavityDegree of protection: IP54Solenoid valve voltage: 220-240V~, 50-60HzDirection of rotation (looking at the drive shaft): R: вращение по часовой стрелке
